With R8 Shank Precision Integrated & Chuck Jaw Tightening Key 5/8" Drill Chuck

Product Specification：

• Material: 40CR, Hardness HRC60.
• Clamping Range: 3-16mm (1/8"~5/8").
• R8 Shank: Suitable for drill presses or lathes spindle accepts R8 shank.
• Maximum T. I. R. does not exceed,accuracy: 0.005".
• Component: Chuck jaw tightening key.

Product Description：

• Our R8 Drill Chuck are suitable for CNC mahines and machine center.
• 5/8-Inch Drill Chuck includes the 5/8" Drill Chuck, R8 shank and a Jaw tightening Key that help you in easily holding drill bits, Extrmely high accuracy and precision design, suitable for CNC mahines and machine center.
• As you will be able to tighten this tool with a chuck key, you will be able to get and excellent grip on it. It can also be removed easily with a knock-out bar.
• Two Options: Clamping Range: 1-13mm (1/32" - 1/2") and ?Clamping Range: 3-16mm (1/8" - 5/8") Accuracy: 0.005".
• Material: Made of durable bearing steel, Hardness HRC60.

Package Included：

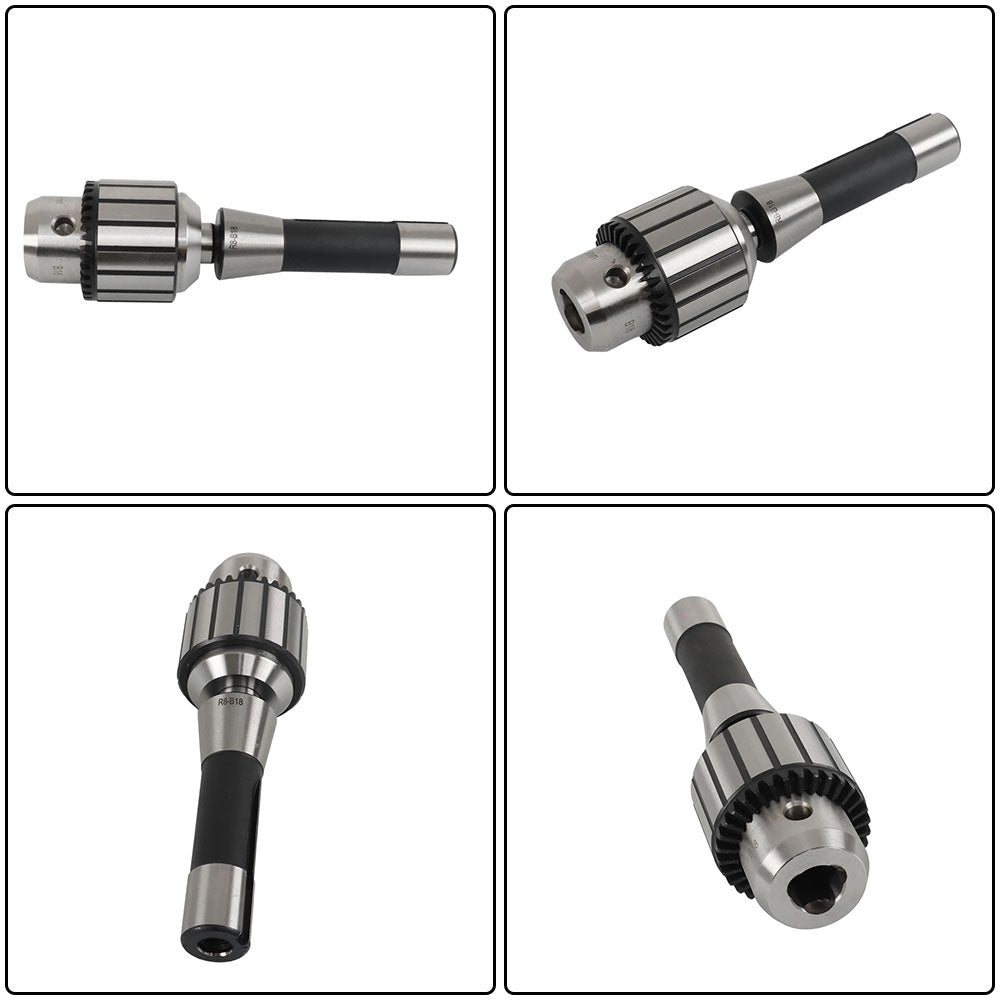

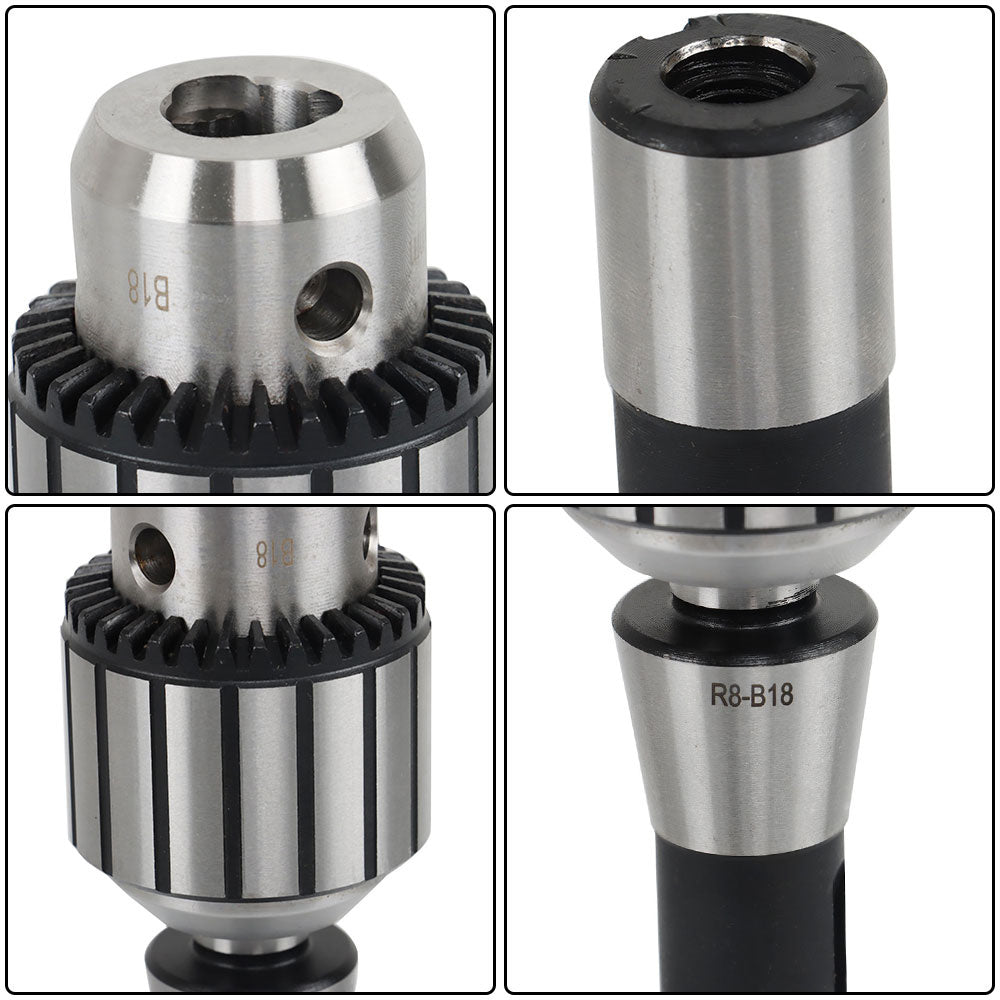

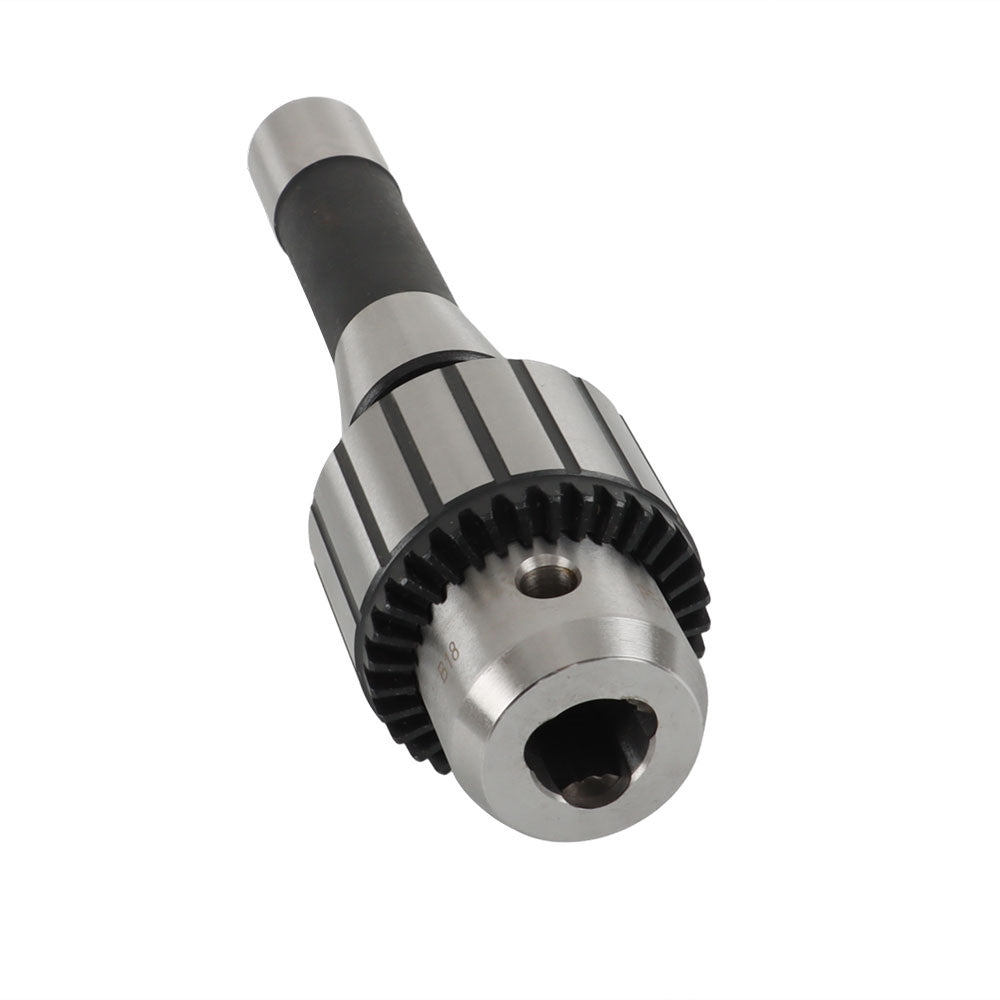

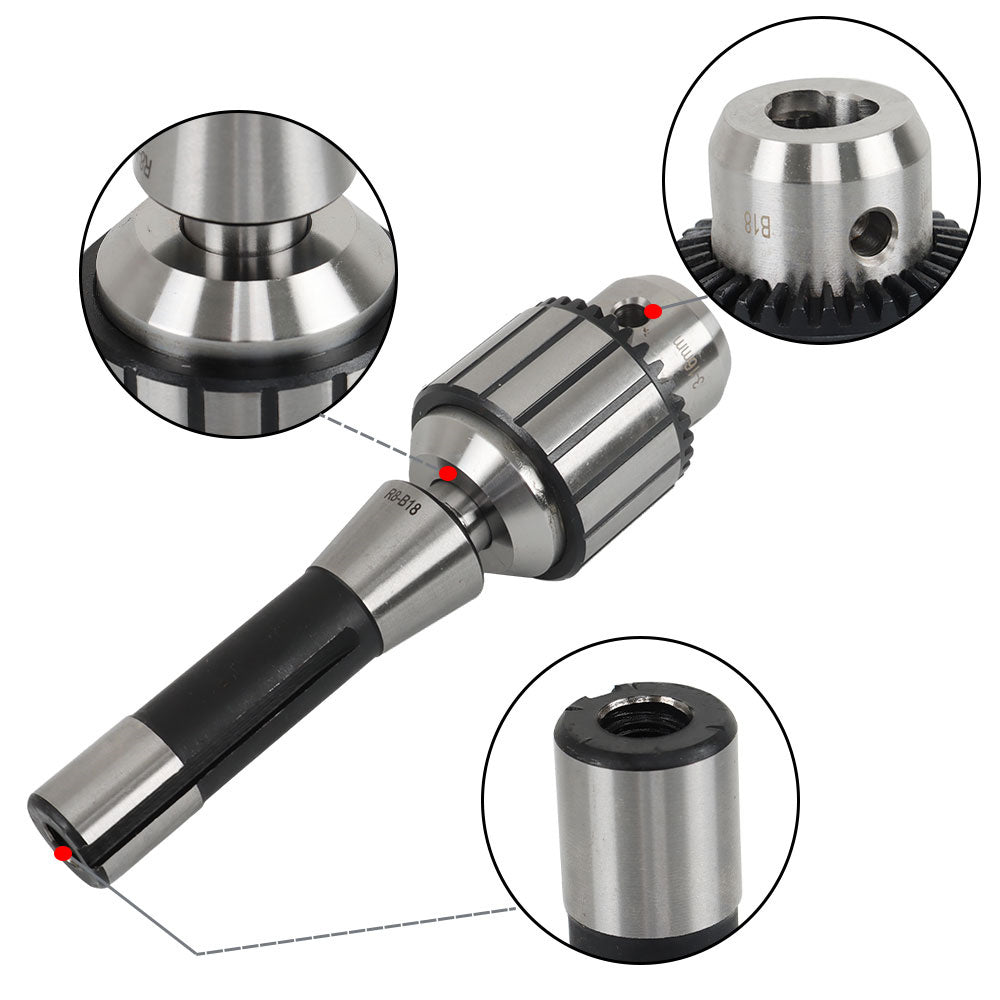

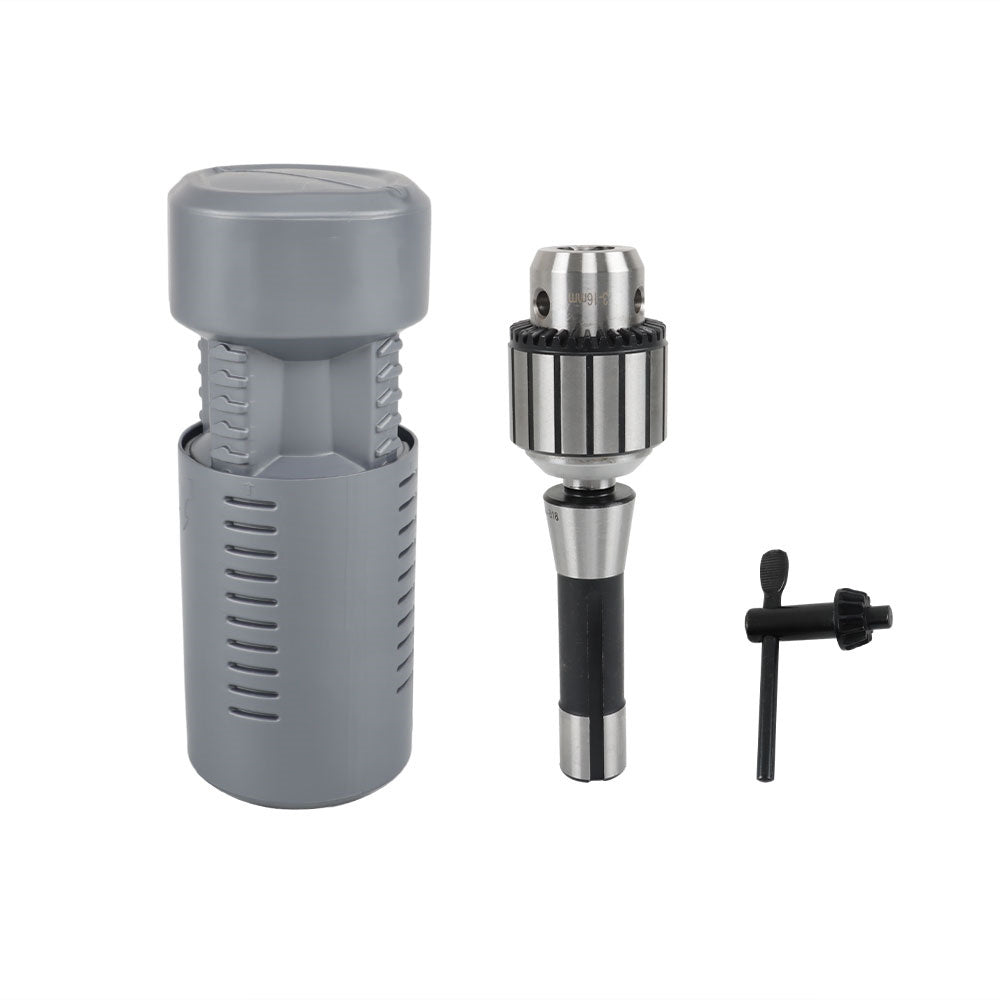

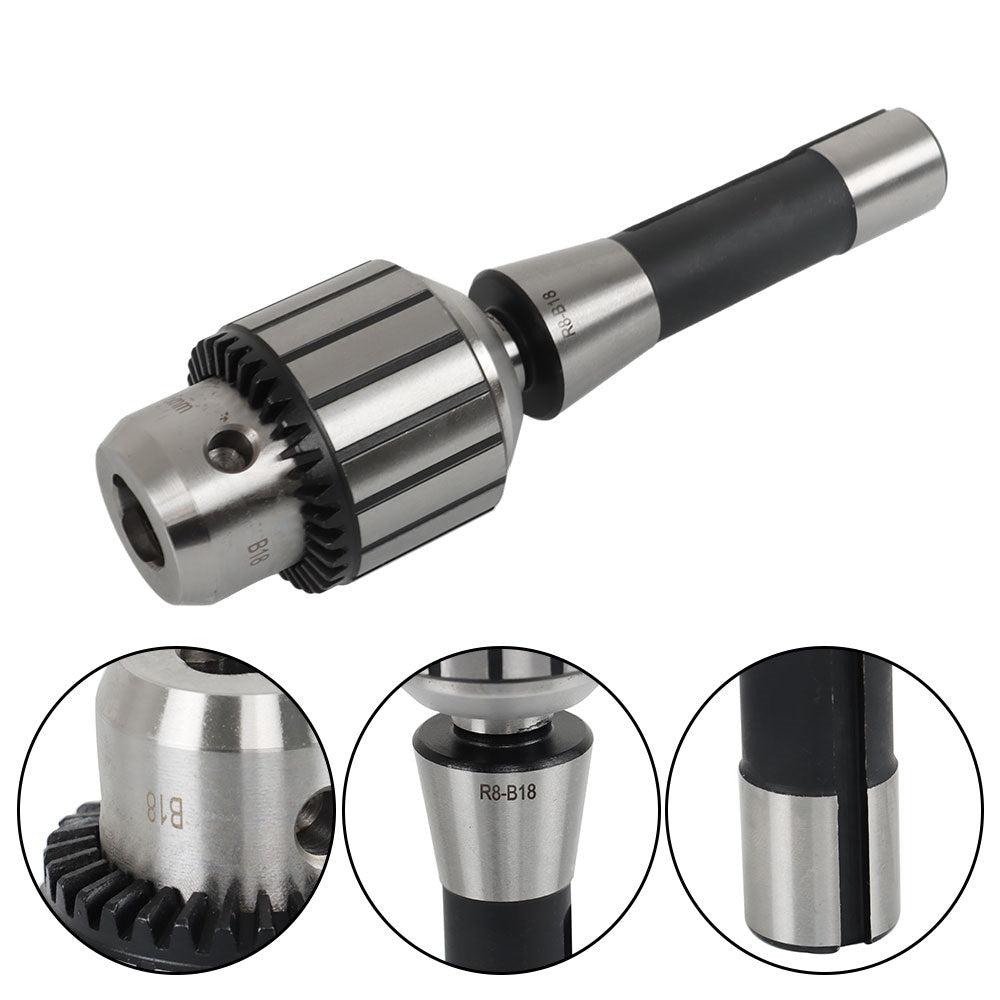

• Super Heavy Duty Drill Chuck 5/8" Capacity with R8 Shank Precision Integrated & Chuck Jaw Tightening Key (R8-B18)
• As Picture Show, Contact Us If Receive With Missing Parts?

Please Notice:

• Please allow a little error due to manual measurement and make sure you do not mind before ordering.
• Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object.
