Top End Rebuild Kit Cylinder Piston for 2005-2011 Honda TRX500 Foreman 500

Description:


• Kit includes piston, rings, clips & top end gasket kit (you get exactly what is pictured).

Specification:

• Condition: Aftermarket 100% Brand New
• Quantity: 1 Set
• Piston Material: Forged Aluminum
• Actual Displacement: 475cc
• Bore Size: STD 92 mm
• Piston diameter: 91.96 mm
• Piston height: 59.23 mm
• Piston pin diameter: 20 mm
• Piston pin height: 62 mm

Replaces Part Number:

• Cylinder: 12100-HP0-A00
• Cylinder Base Gasket: 12191-HP0-A00
• Cylinder Head Gasket: 12251-HP0-A00
• Cylinder Head Cover Gasket: 12315-HP0-A00
• Ring Set: 13010-HP0-A01
• Pin, Piston: 13111-HN2-000

Fitment:

• Fit for Honda 2005-2011 TRX500FM/FE Fourtrax Foreman 4x4/S/ES
• Fit for Honda 2007-2011 TRX500FPE/FPM Fourtrax Foreman 4x4/ES/EPS
• Fit for Honda 2005-2006 TRX500TM Fourtrax Foreman 2x4

(Compatibility Chart is for Reference ONLY!!!)

(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Features:

• Cast piston has super-high silicone content for additional strength.
• Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
• Piston dome is anodized for superior heat resistance and longer lifespan.
• The gaskets use performance materials to increase durability and provide greater reliability.
• Includes all gaskets pictured to rebuild top end.
• Kit is for standard bore size - 92.00mm.
• All of the components within this kit are bolt-on ready for a hassle free installation.

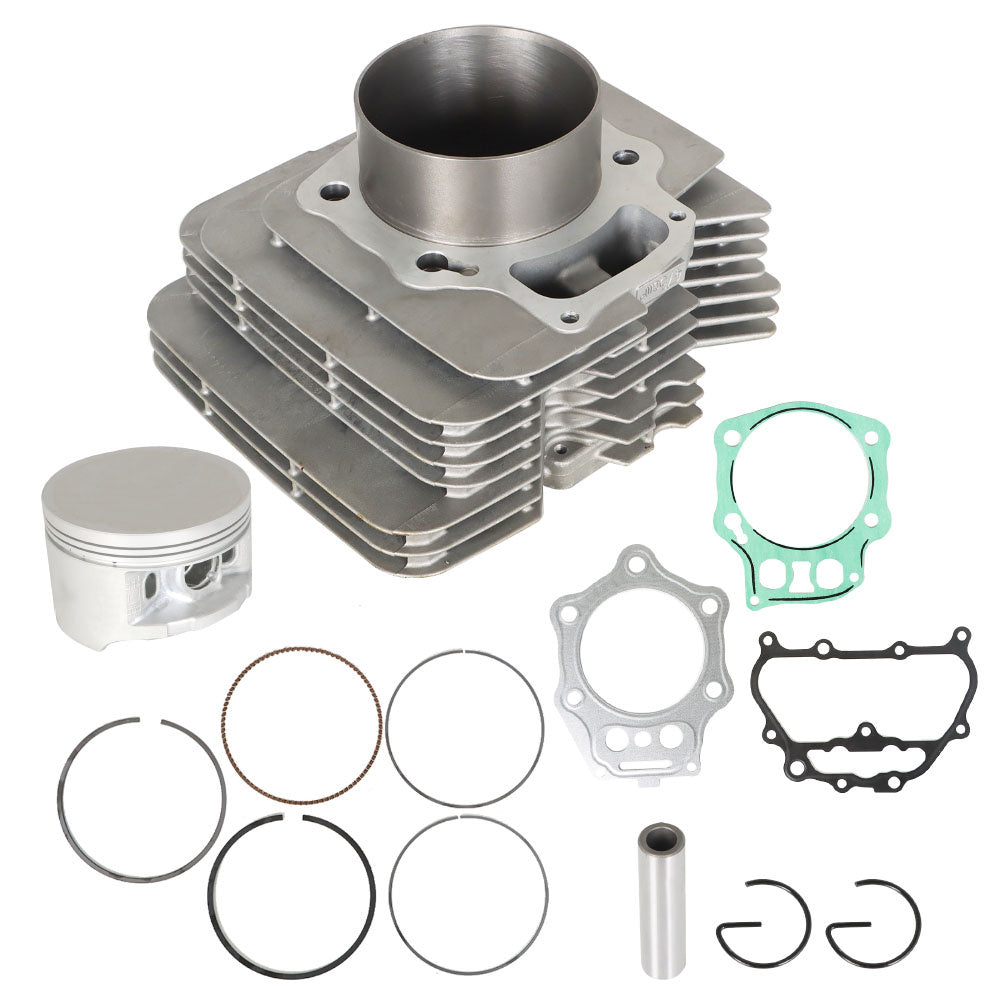

Package Includes:

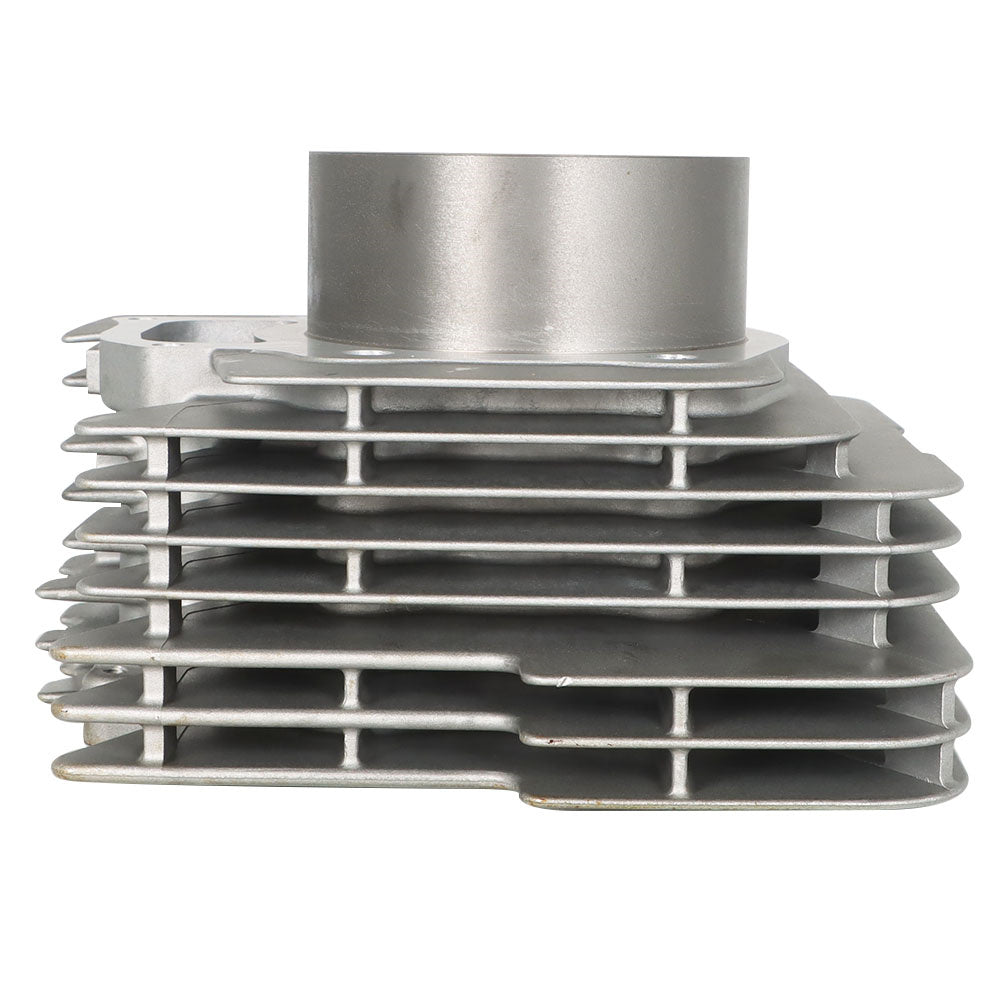

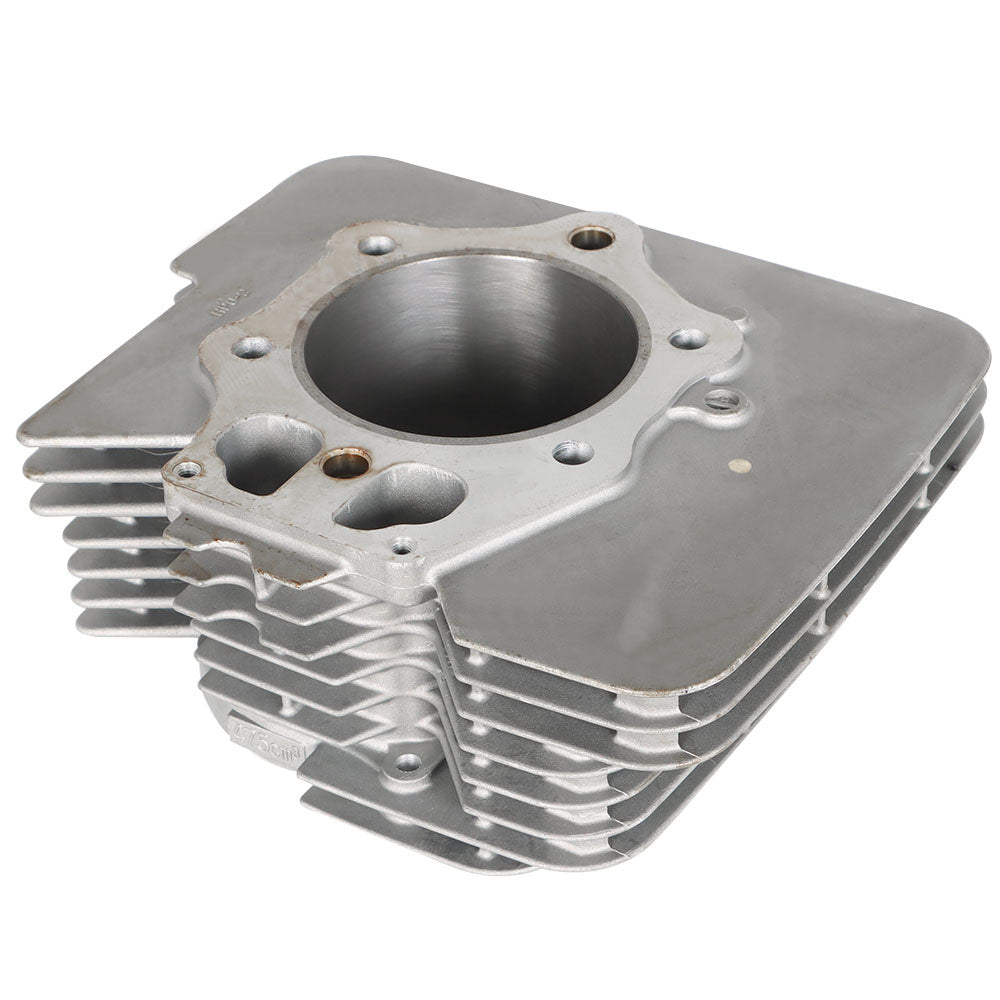

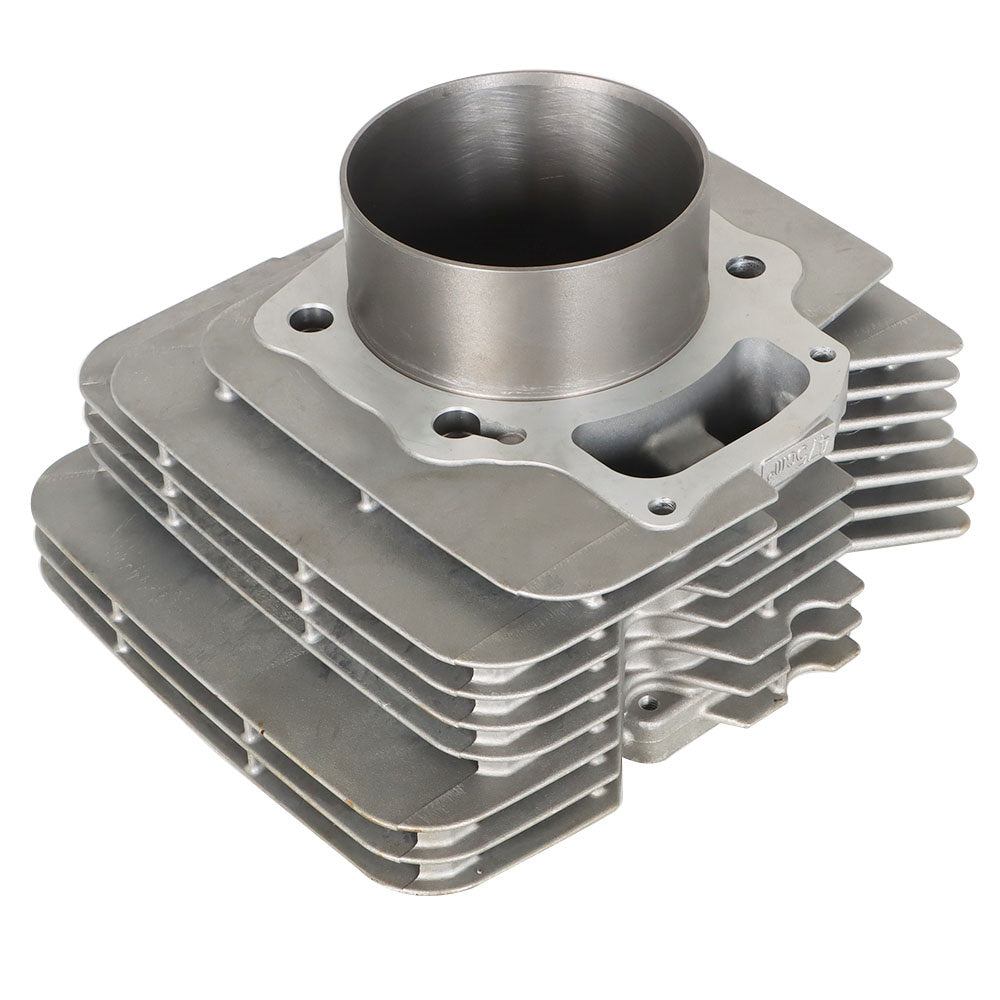

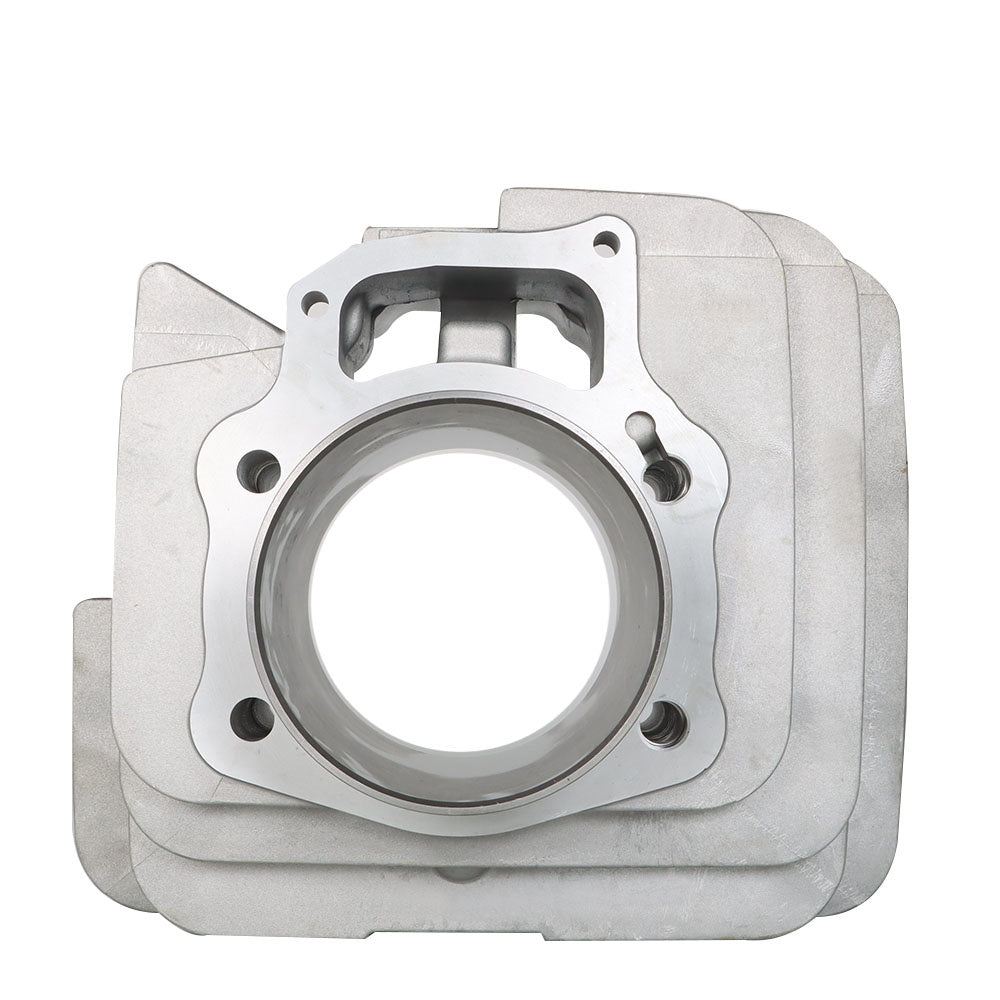

• 1x Cylinder

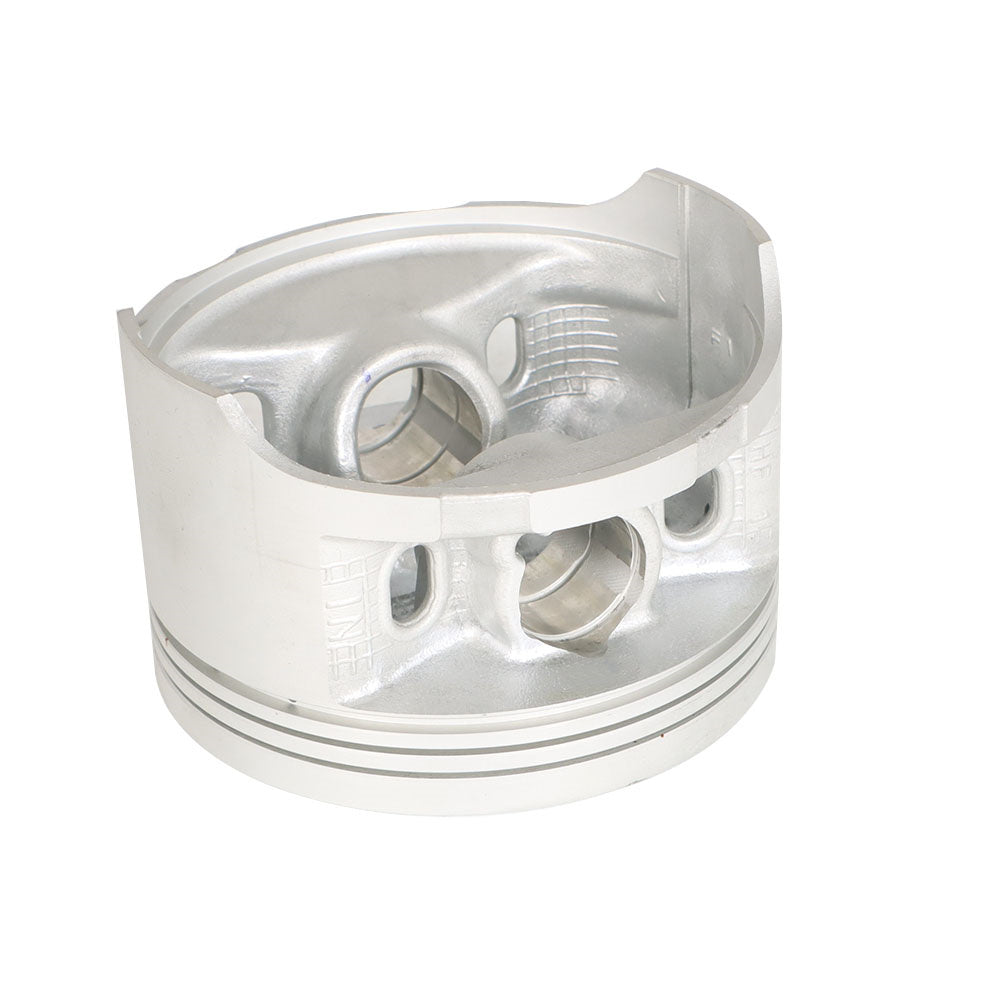

• 1x Piston(STD)
• 1x Piston Ring Set
• 1x Circlip(2)
• 1x Cylinder Base Gasket
• 1x Cylinder Head Gasket
• 1x Cylinder Head Cover Gasket
