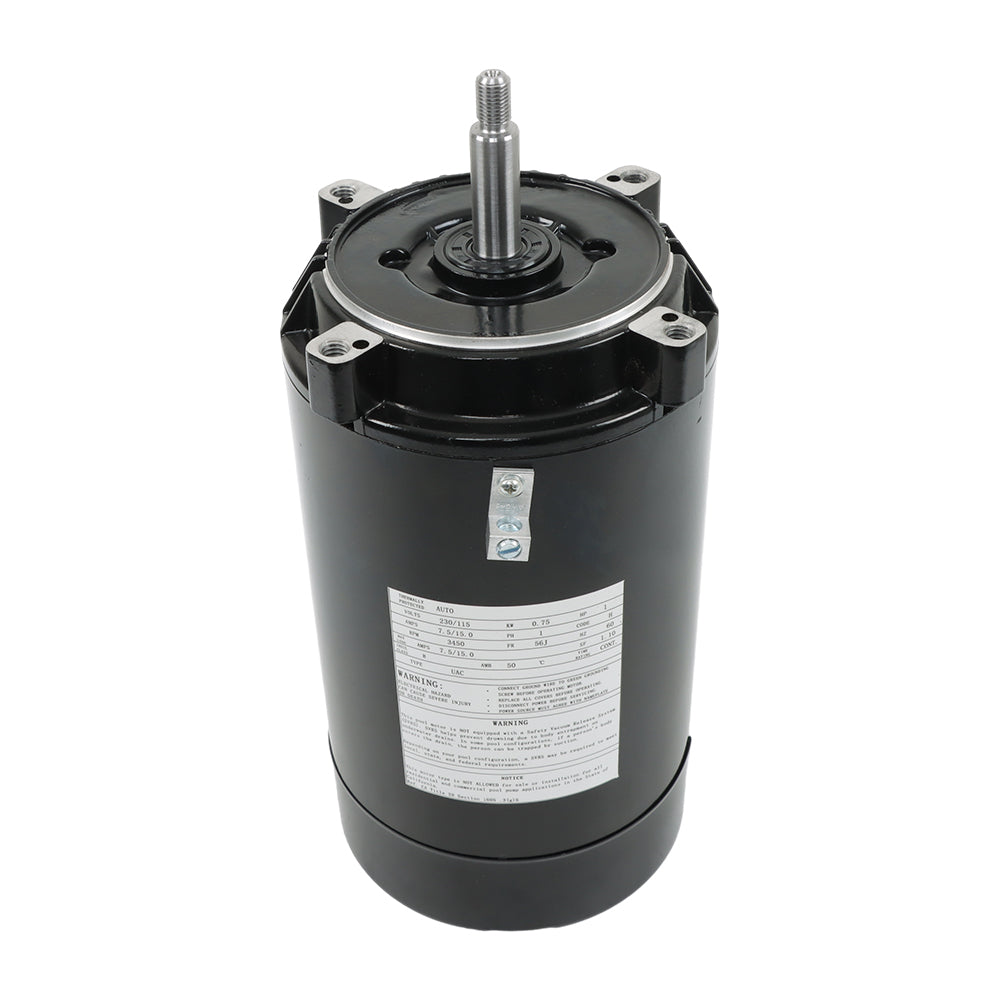

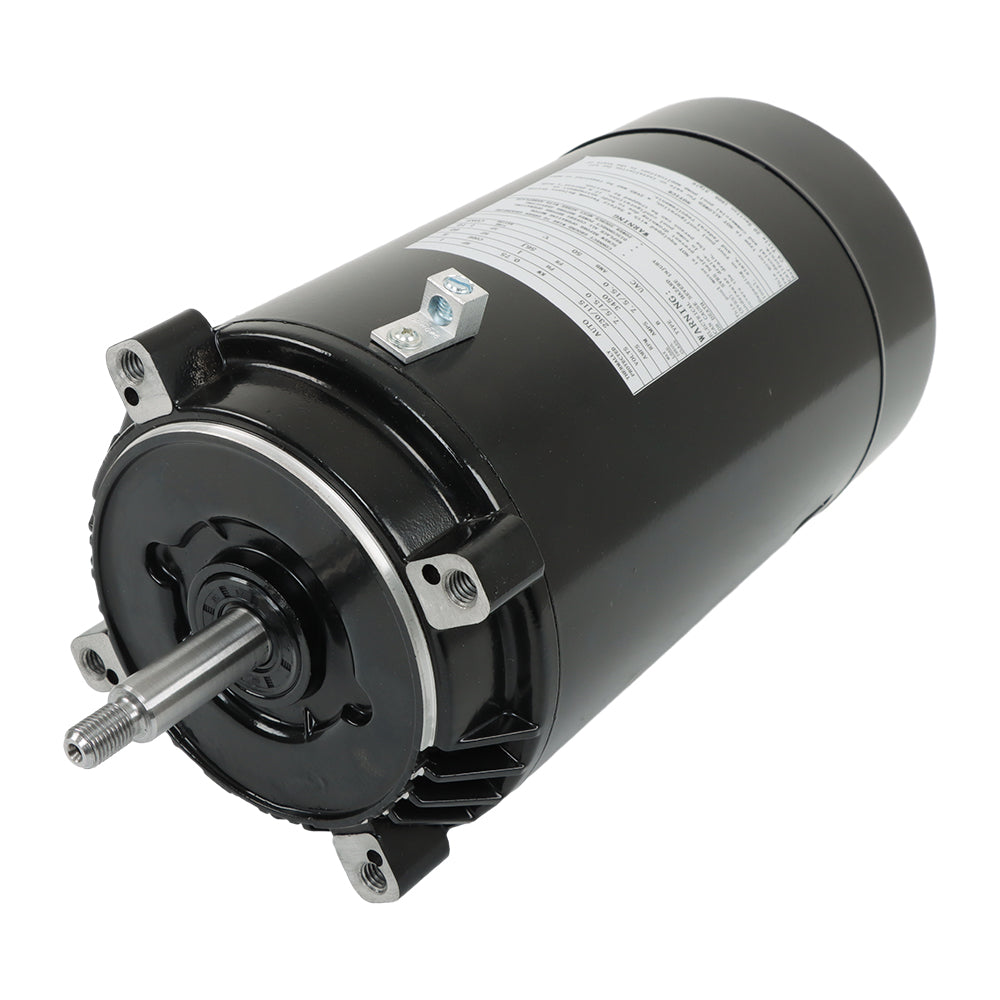

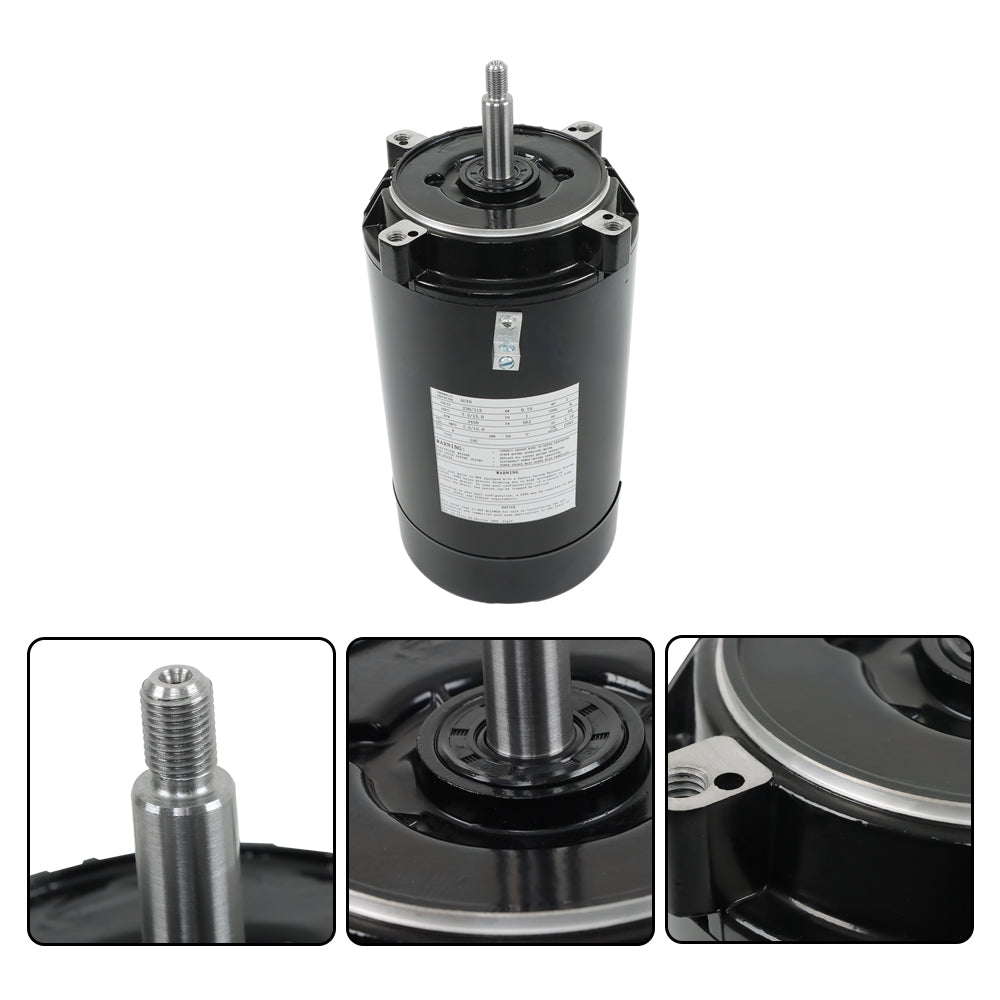

SP2607X10 UST1102 115/230 Volts 7.5/15 Amperes Swimming Pool Motor For 1 Horsepower 56J Frame 3450 Revolutions Per Minute

Key Features

• High-Velocity Filtration Performance: Operating at a rapid 3,450 RPM, this motor significantly accelerates water turnover through your filtration system. It provides the necessary hydraulic force to keep pool water consistently clear, clean, and well-circulated.

• Dual-Voltage Versatility: Engineered to operate efficiently on both 115V and 230V power configurations at a standard 60 Hz frequency, allowing for straightforward integration into your existing equipment pad setup.

• Rugged 56J Frame Construction: Designed around an industry-standard 56J frame specification. This structural housing ensures smooth, stable mechanical operation, minimizes shaft vibration, and helps extend the operational lifespan of the internal bearings.

• Secure Square Base Design: Features a precision-engineered square flange configuration that simplifies alignment with the pump wet-end housing. This design reduces installation complexity, ensures a flush seal, and allows for easier routine maintenance.

Important Power & Specification Notice

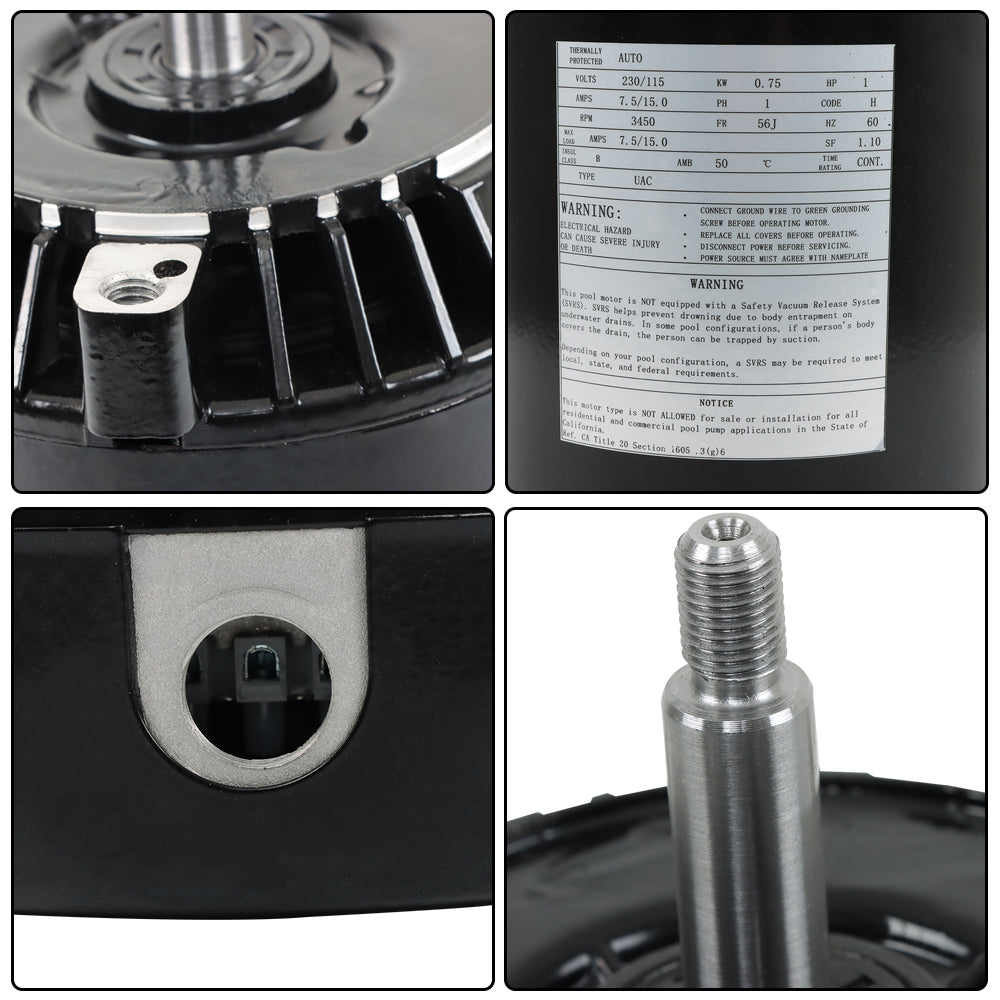

Please Read Before Purchasing: To ensure complete compatibility with your existing pool pump setup, please cross-reference your original motor's data plate against the technical specifications below.

• Power Rating Clarification: This motor is built to replace systems corresponding to standard 1-HP uprated / 0.75-HP full-rated specifications (matching industry interchange numbers SP2607X10 and UST1102). Please confirm your pump housing's specific impeller requirements before installation.

Product Specifications

• Part Type: Replacement Swimming Pool Pump Motor

• Motor Frame Style: 56J (Square Flange / Base)

• Speed Profile: Single Speed

• Rotational Speed: 3,450 RPM

• Electrical Frequency: 60 Hz

• Operating Voltage: 115V / 230V (Dual Voltage Capable)

• Condition: 100% Brand New

Interchange Reference Part Numbers:

• Hayward / Century Reference: SP2607X10, UST1102

Package Includes

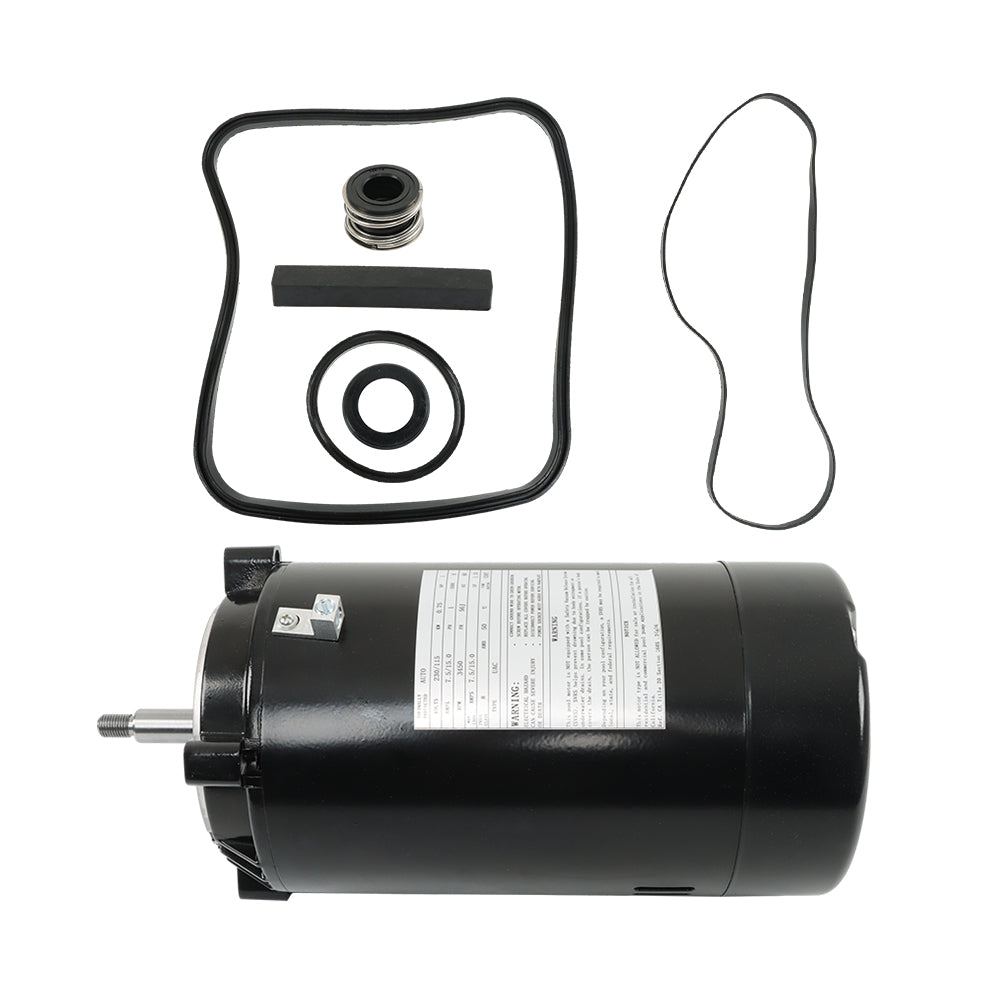

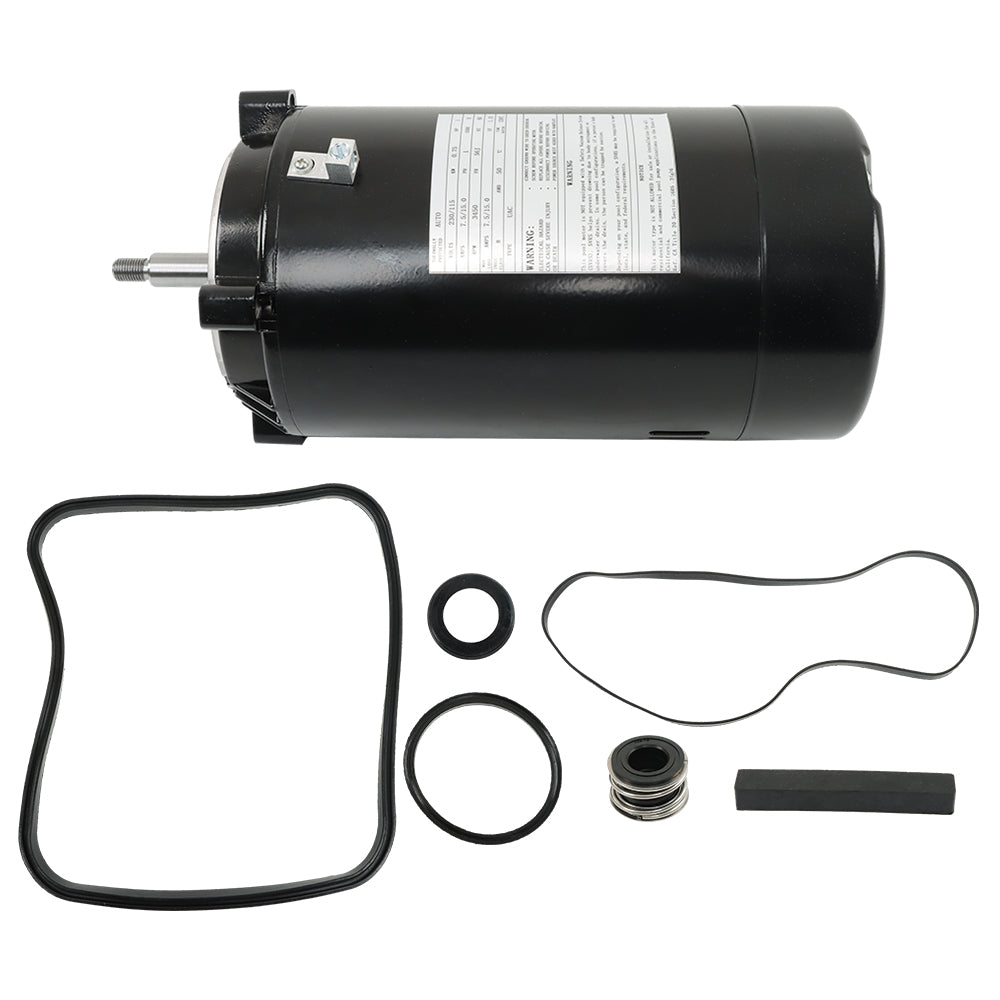

• 1 × Replacement 56J Frame Swimming Pool Pump Motor (Note: Shaft seals, O-rings, and pump housing are sold separately).

Important Mechanical & Installation Notes

• Isolate Electrical Power First: Always shut off the main circuit breaker feeding the pool equipment pad and verify the absence of electrical voltage with a multimeter before disconnecting wires or removing the old motor.

• Replace Shaft Seals Simultaneously: It is highly recommended to install a brand-new pump shaft seal kit (specific to your pump model) whenever replacing a motor. Reusing an old seal significantly increases the risk of water leaking into the new motor housing, which can cause premature bearing failure.

• Verify Voltage Wiring Layout: Before applying power to the newly installed motor, verify that the internal voltage selector terminal block (located under the rear canopy) is set correctly to match your supply voltage (115V vs. 230V) to prevent immediate electrical damage.
