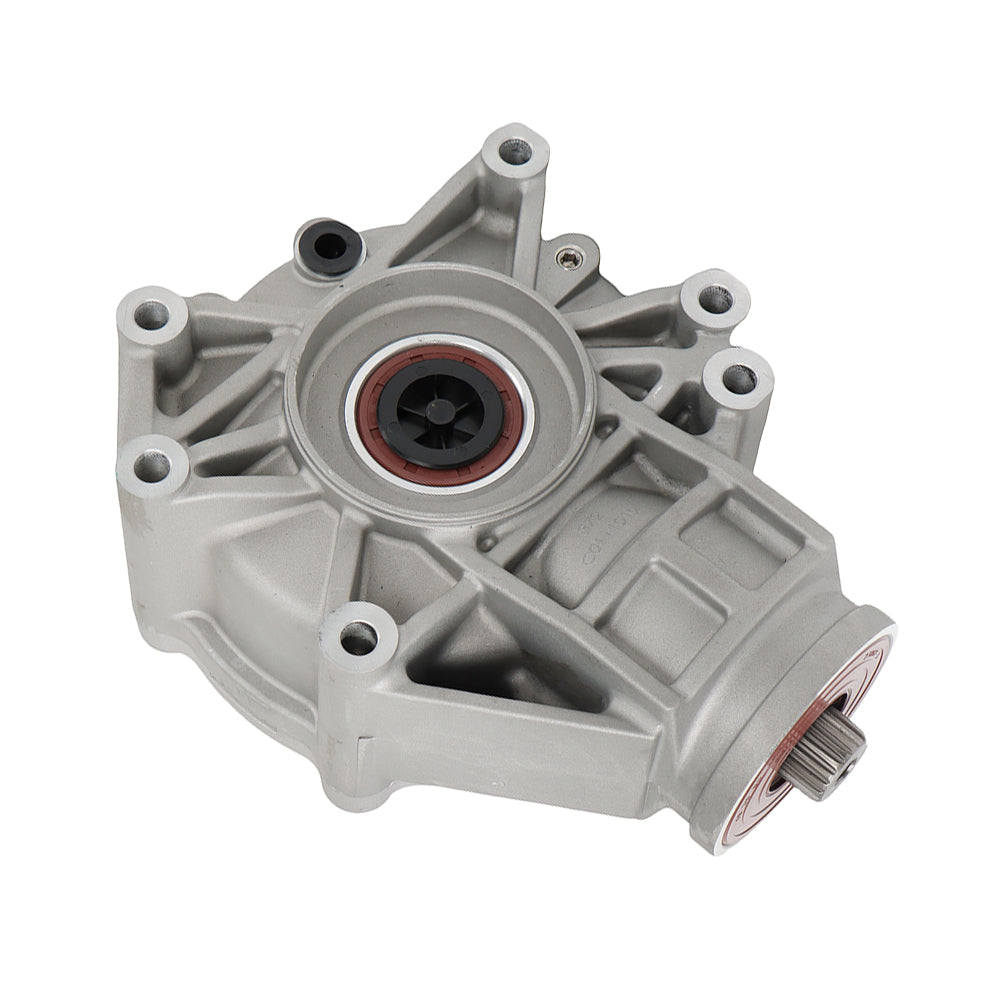

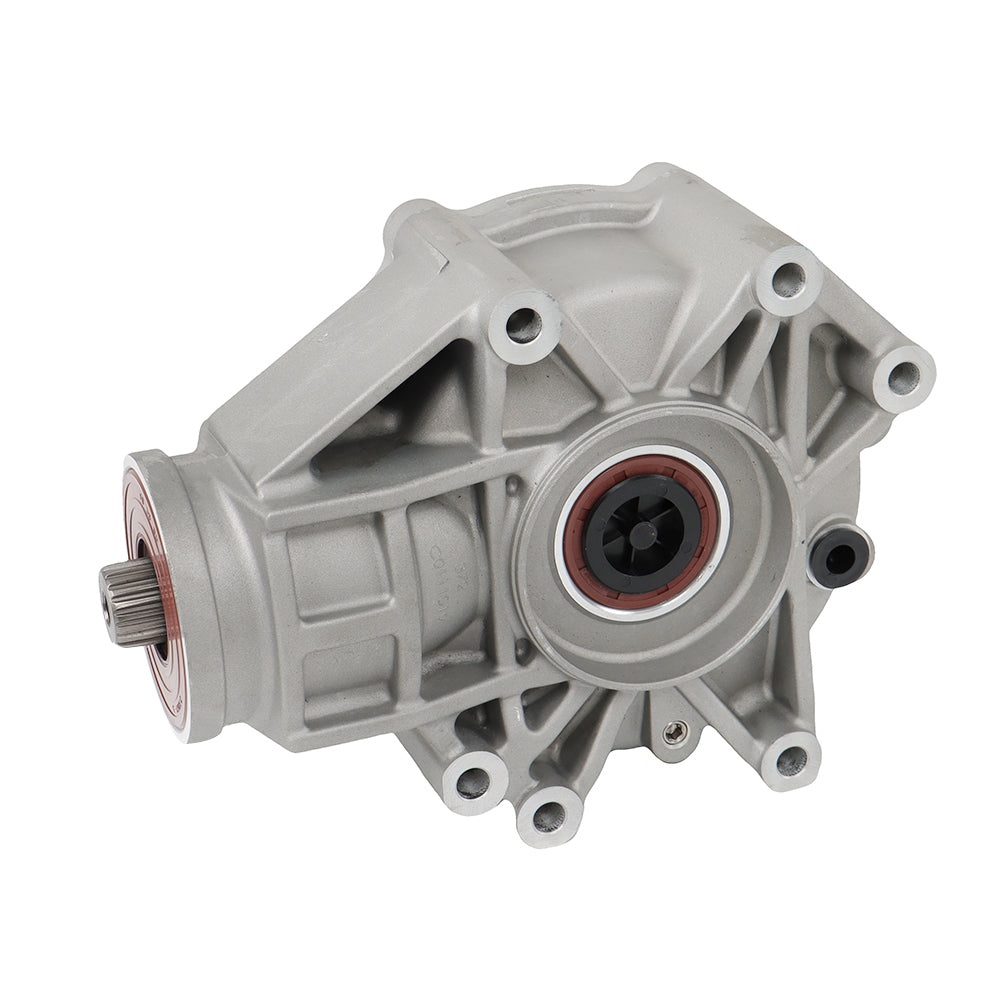

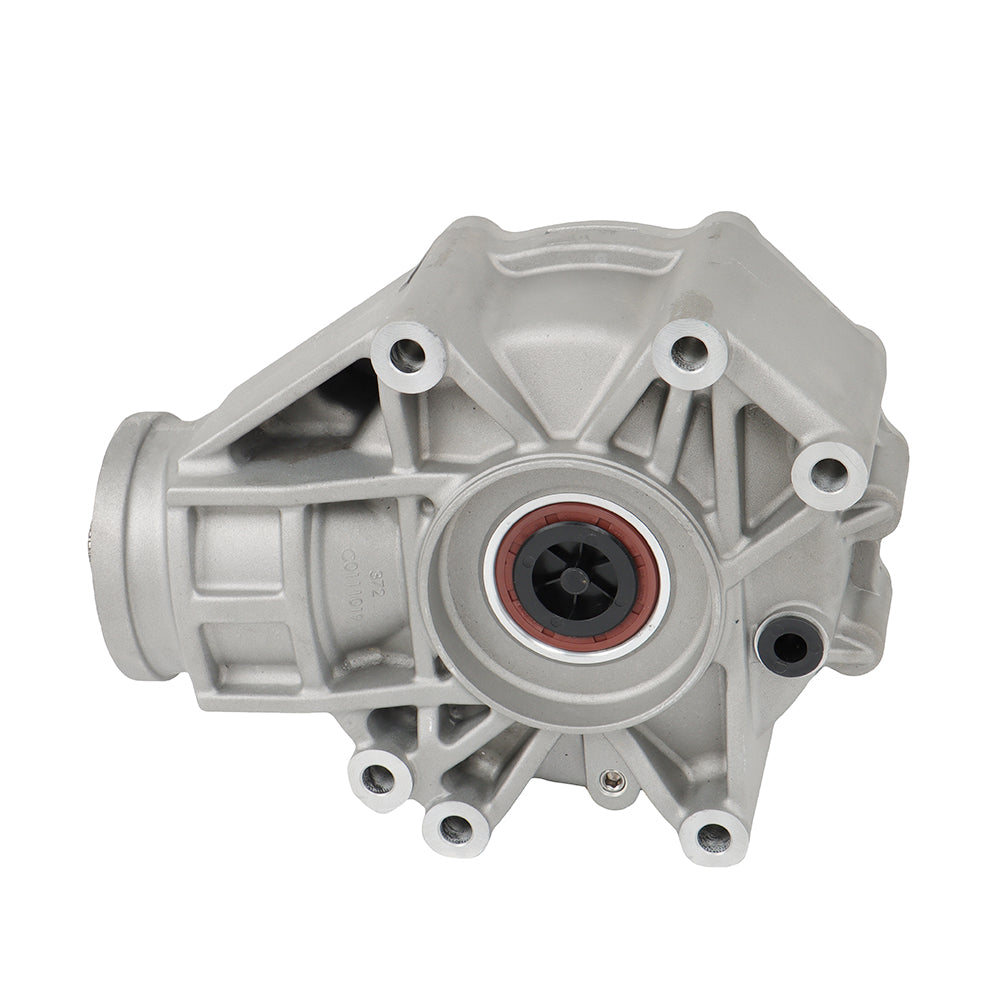

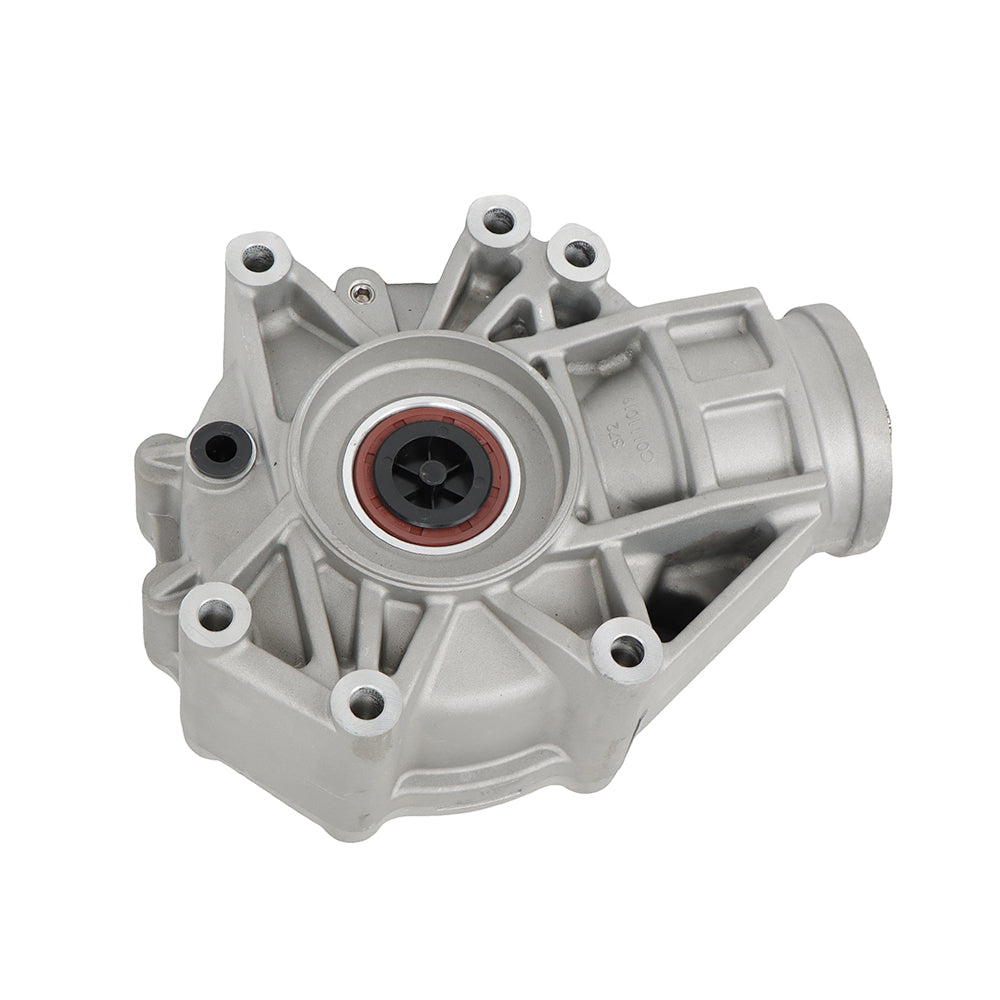

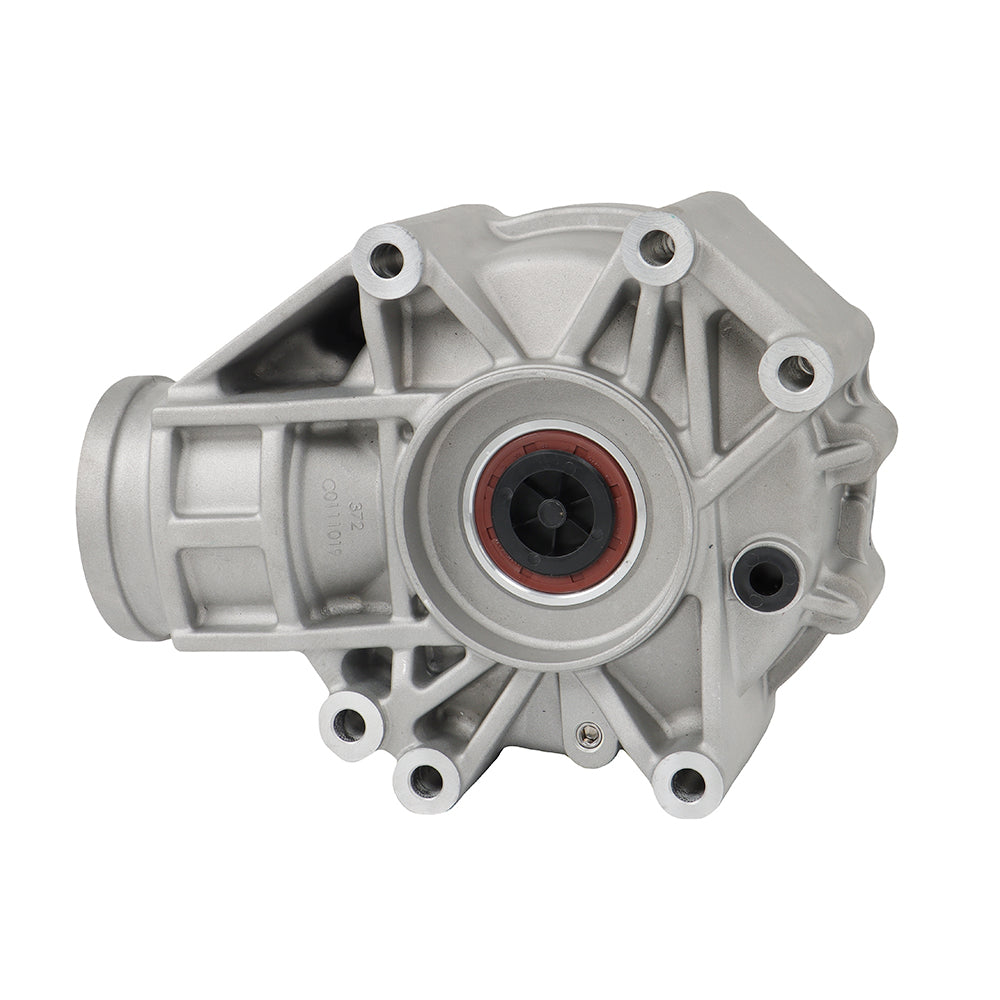

Rear Differential Diff Rear Chunk for Can-Am Outlander XMR 2013-2018 705502546

Fitment :

For 2013-2018 Can-Am Outlander 1000

For 2019-2021 Can-Am Outlander 450/MAX 450

For 2015 Can-Am Outlander 800 R

For 2018-2021 Can-Am Outlander 850/1000R/570/650

For 2016-2021 Can-Am Outlander Max 1000 R

For 2017-2021 Can-Am Outlander Max 570

For 2016-2021 Can-Am Outlander Max 650/850/1000R

Description：

This differential has automotive style cut gears, tapered roller bearings, along with an overall larger gear size.

There are a total of three bearings on the pinion gear giving it much more support over the standard rear differentials, this requires a shorter driveshaft, as mentioned earlier if you are swapping this in place of a standard differential.

Pinion spline count 20, standard differentials use 18 spline pinion shafts, that are smaller in diameter. In every way this is a beefier differential.

To bolt your driveshaft on this differential you will need a M10x1.25 16mm long bolt (not included)

Current part number：705502546  Old part number：705502178,  705502090

OE Part Number：705502546 705501723 705502178 705502090

Package Include:

1 × RearDifferential
