Post Holder Set AXA 250-100 Piston Type 6Pcs For Lathe 6 -12"Quick Change Tool

Description：

Package Include - No.1 Turning & Facing Holder (up to 1/2 tool cap.);  No.2 Boring Turning & Facing Holder (up to 1/2 tool cap.);  No.4 Heavy Duty Boring Holder (3/4 & 5/8 tool cap.);  No.7 Universal Parting Blade Holder (1/2 tool cap.);  No.10 Knurling, Turning, & Facing Holder (up to 1/2 tool cap.).
Material - Made of steel;  Quick Change Tool Post Set (USA Style), Piston Type Quick Change Tool Post Set (6 Pcs/Set).  d surface to lathe center line.
Features - Turning: Insures smoother turning without chatter or vibration.  Drilling: Set enables you to drill by power feed with your carriage, instead of hand operation or tailstock.  Rigid piston tool post design, easily centered!  Includes machineable base to make a T-slot nut to fit your lathe.
Easy use - All parts are hardened, ground and completely sealed for maintenance-free operation.  Quick change QC tool post sets advanced design provides built-in quick tool changing versatility with positive rigidity to meet the most exacting working tolerances.  Quickly and easily installed on an engine bench or turret lathe quick change QC tool post sets perform a wide range of operations from fine precise work to heavy duty cutting.
The scope of application of the tool holder set is determined by the main tool holder, namely AXA 250-100.  The specific size of the main tool holder is shown in Figure 2, followed by the swing diameter (the space range) and the extension range of the tool holder to confirm whether it is suitable.

Suitable for lathe center height 0.6 - 1.75" (top compound surface to lathe center line) , such as:  South Bend 9"  & 10" , Atlas 10 & 12", Delta 10 &11" Nardini TT1000 & TT1200 and many other import  lathes.

Package Including：

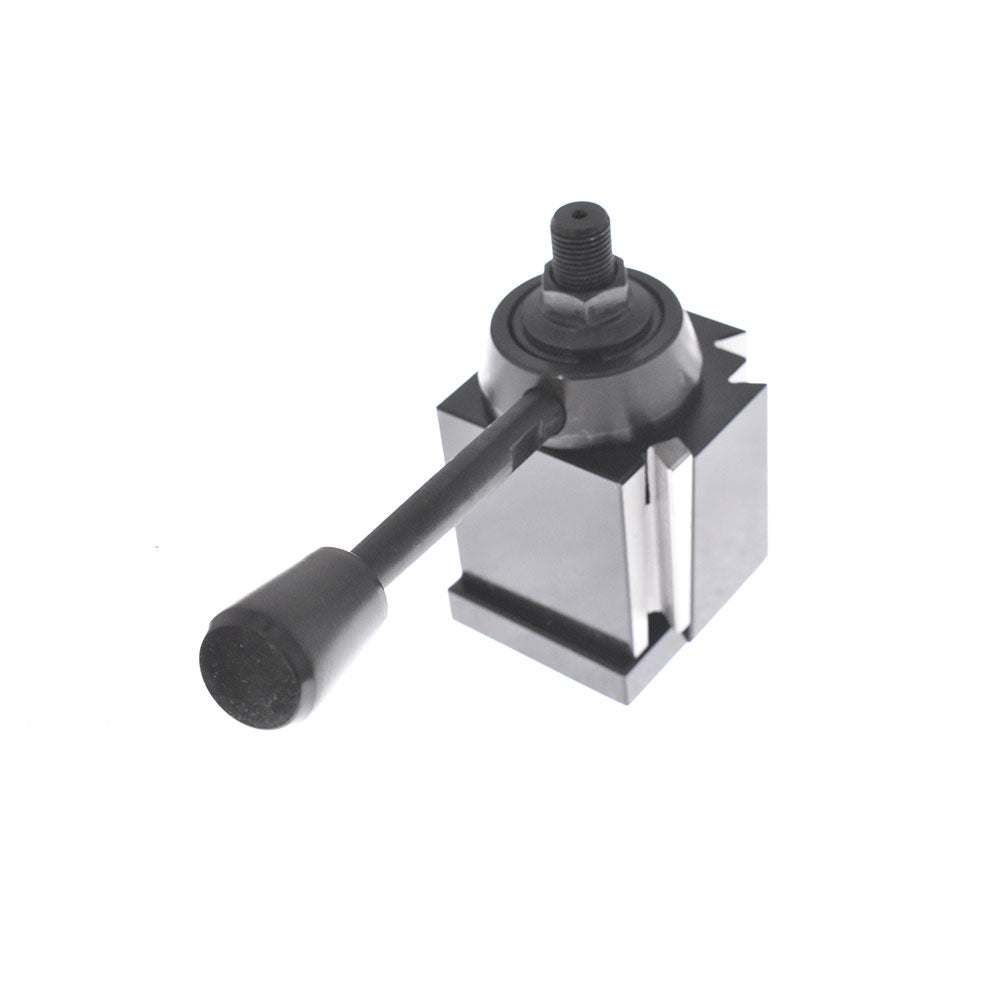

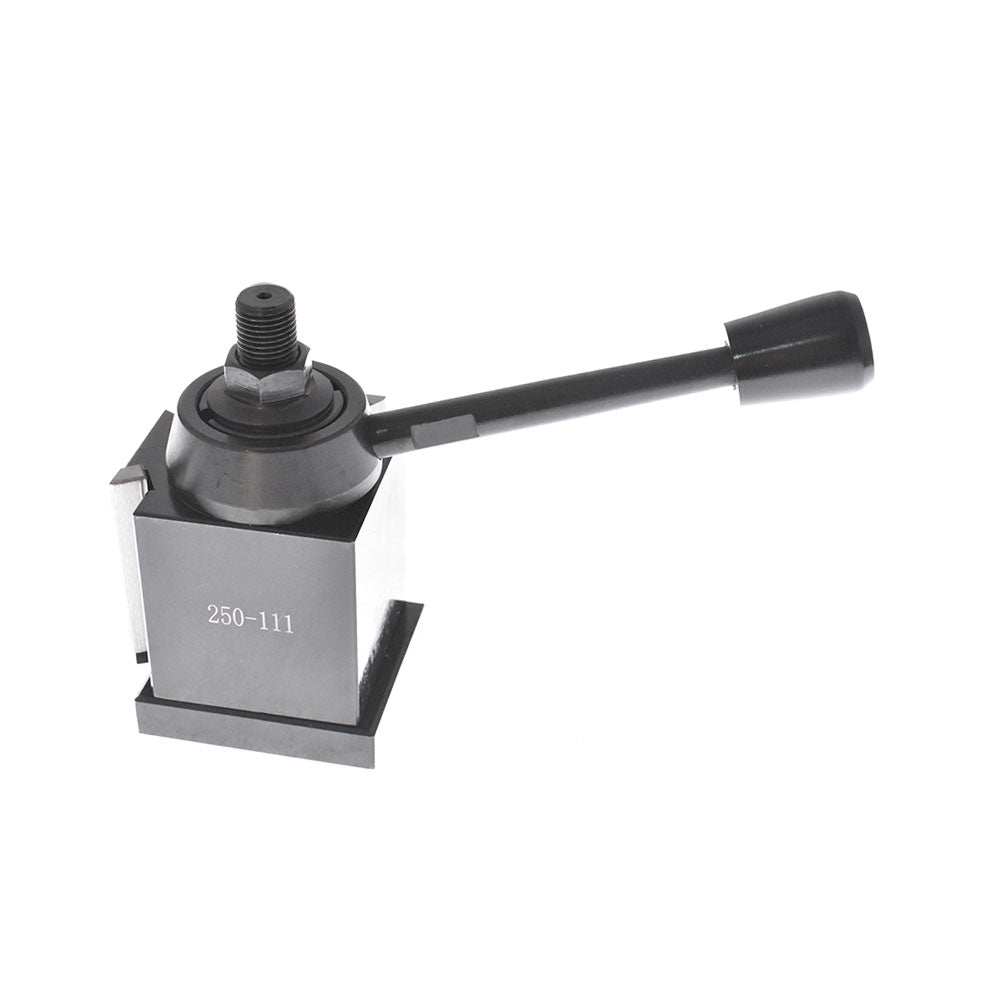

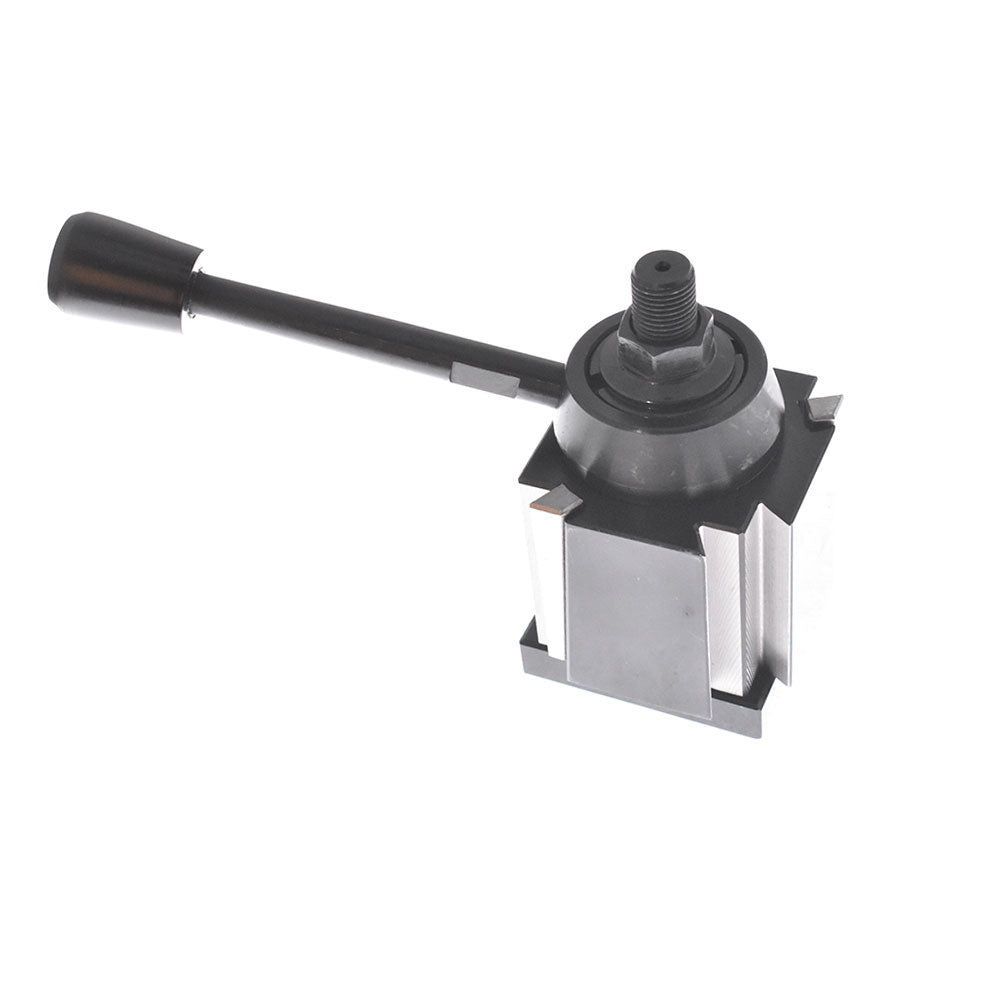

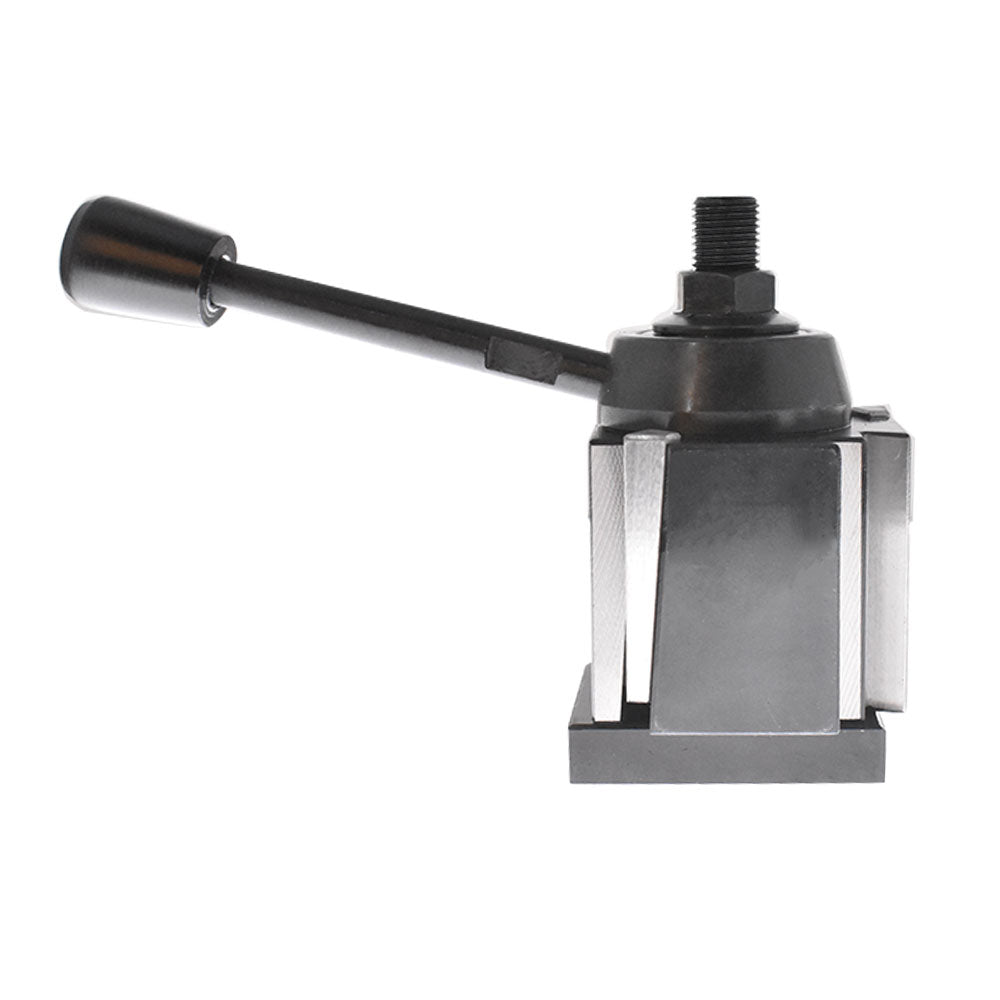

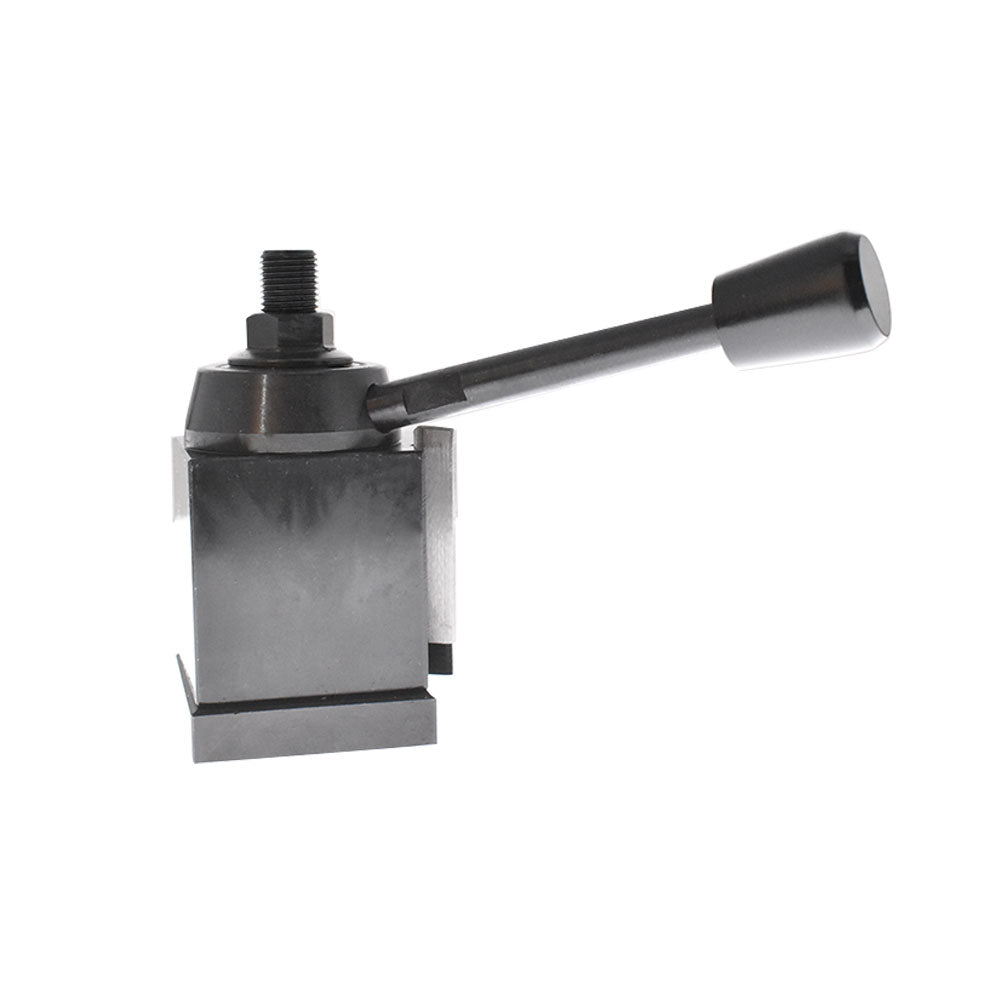

250-100 Piston Type Tool Post

250-101 Turning Tool Holder , use tool bit up to 1/2"

250-102 Boring,Turning Tool Holder,use tool bit up to  1/2" and round shank tool bits up to 7/16"

250-104 Heavy Duty Boring Bar Holder,  use 5/8 and 3/4 shank boring bars

250-107 Parting Blade Tool Holder, use 1/2" high parting blades

250-110 Knurling and Turning Tool Holder

Quantity：1pc Tool Host and 5pcs Tool Holders
