Pitch Size 0.625" #50 10 Feet carbon stell Roller Chain With 1Connecting Links

Feature:

-ANSI #50 Industrial Roller Chain

-Pitch Size: 0.625 Inch

-Length: 10 Feet Box

-Average Tensile Strength: 6600 lbs

-Pitch Size (p) : 0.625 Inch

-Roller Diameter (d1 max) : 0.400 Inch

-Width Between Inner Plates (b1 min) : 0.370 Inch

-Pin Diameter (d2 max) : 0.200 Inch

-Pin Length (L max) : 0.815 Inch

-Pin Length (Lc max) : 0.874 Inch

-Inner Plate Depth (h2 max) : 0.594 Inch

-Plate Thickness (T max) : 0.080 Inch

-Average Tensile Strength: 6600 lb

-Material: Carbon Steel

-Length: 10 Feet

-Weight Per Foot: 0.683 lbs

Description：

All of our chain products have gone through stringent process measures for Best Quality!  This helps align the chain parts which will minimize the initial elongation.  This will drastically increase the life of the chain.

Package Include：

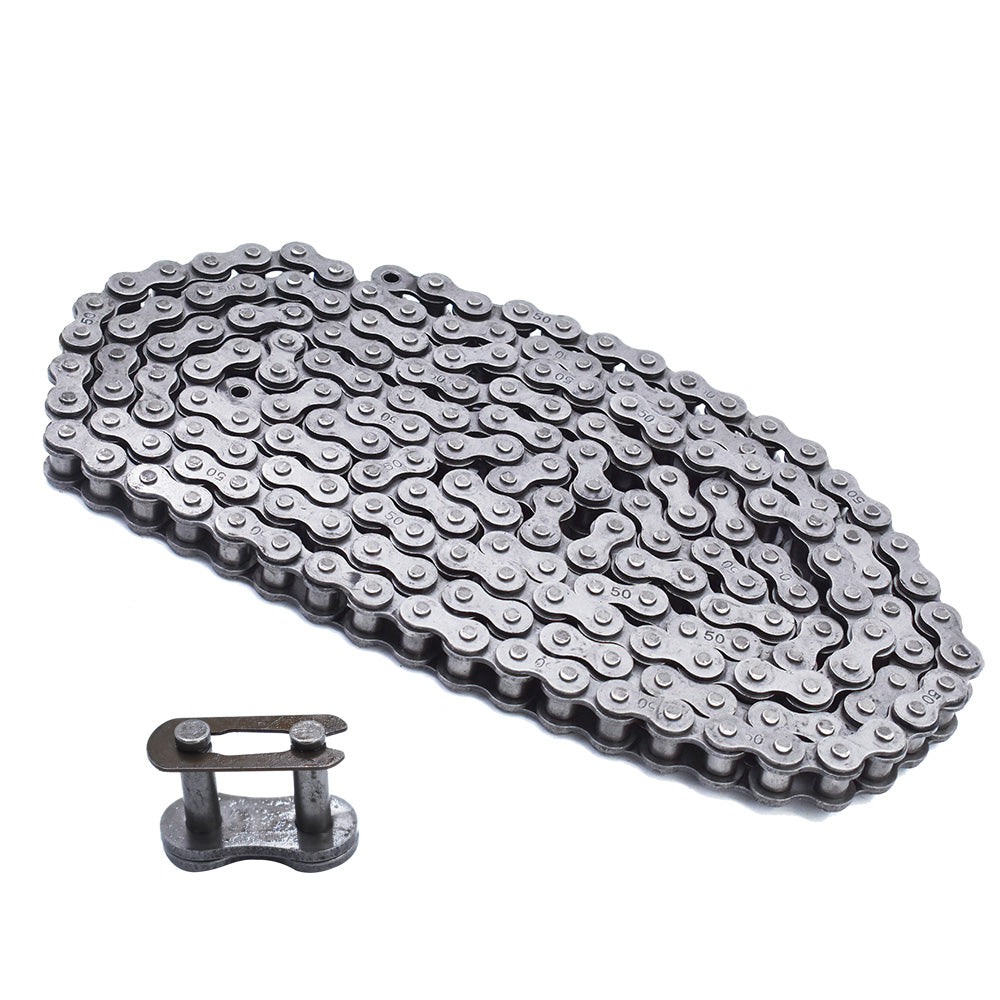

1*#50 Roller Chain 10 Feet with 1 Connecting Links

W/o Product Instruction

Notes：

-Please Allow 1-3CM Differs Due To Manual Measurement.

-Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item. Thanks For Your Understanding.
