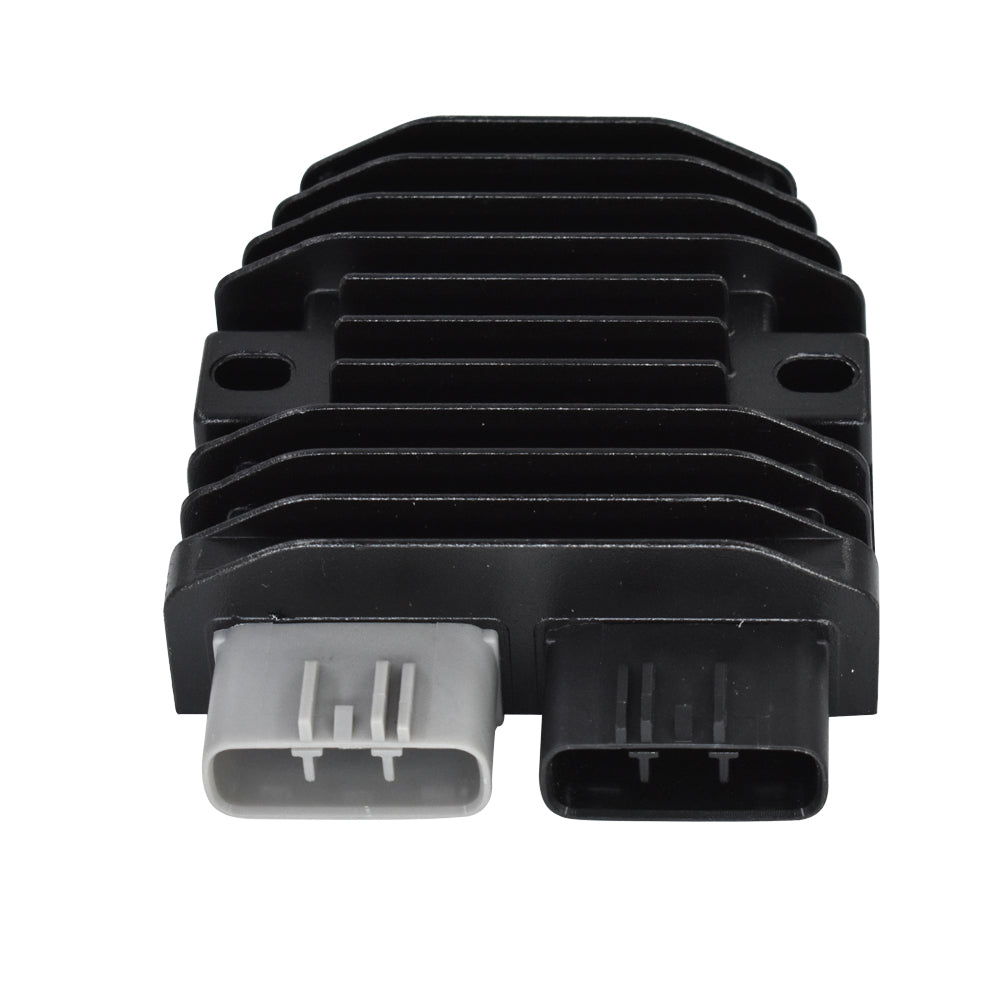

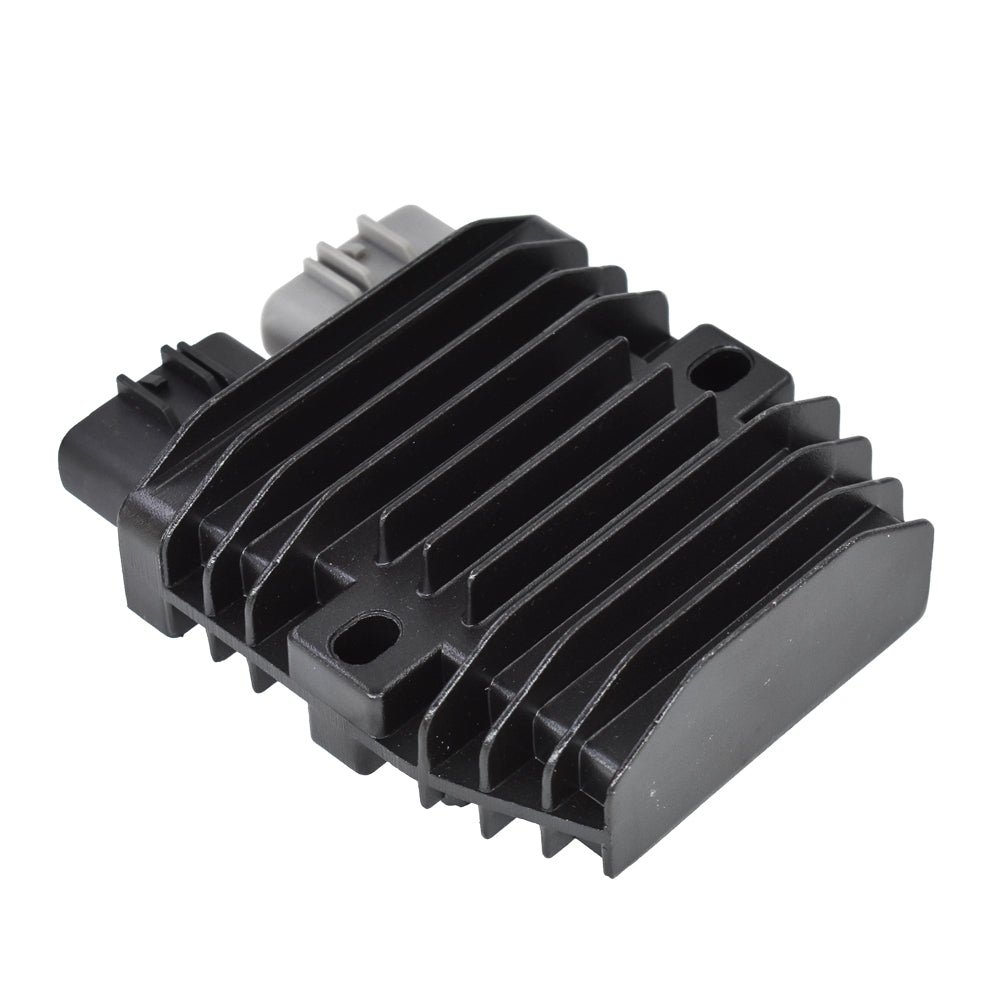

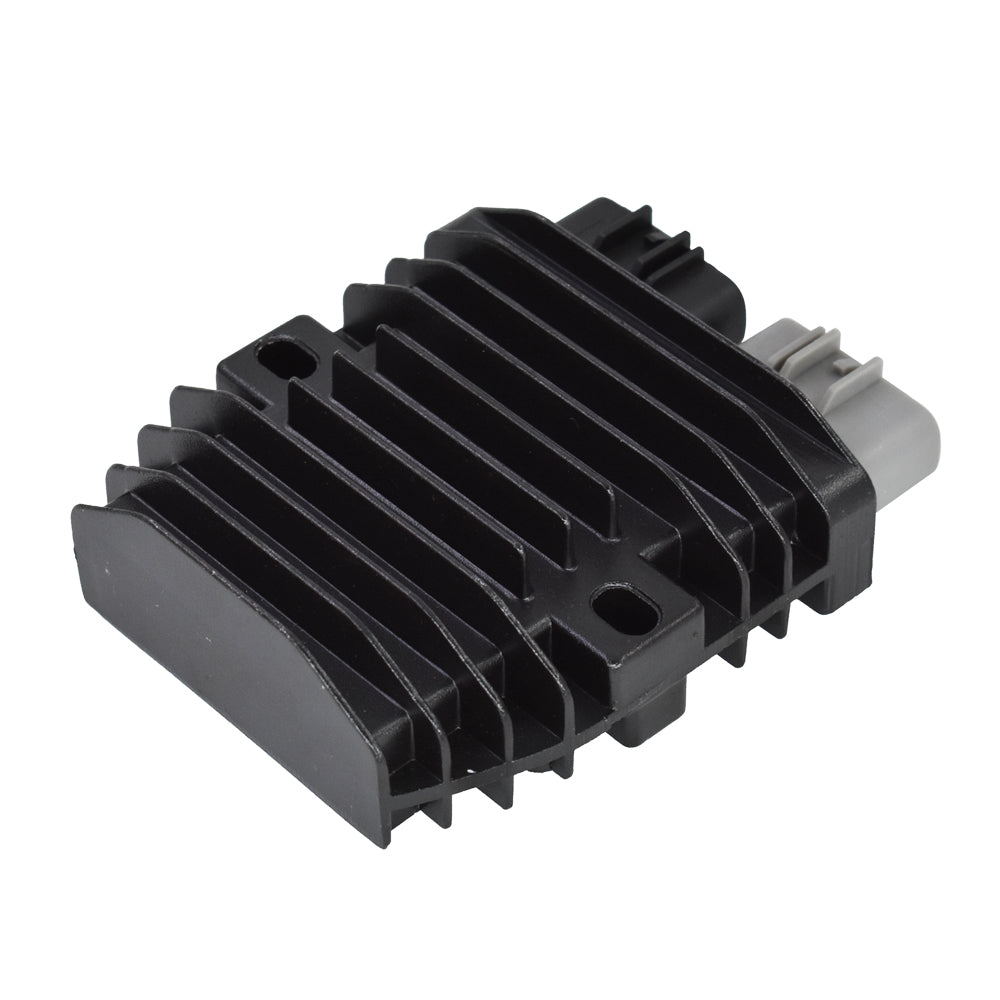

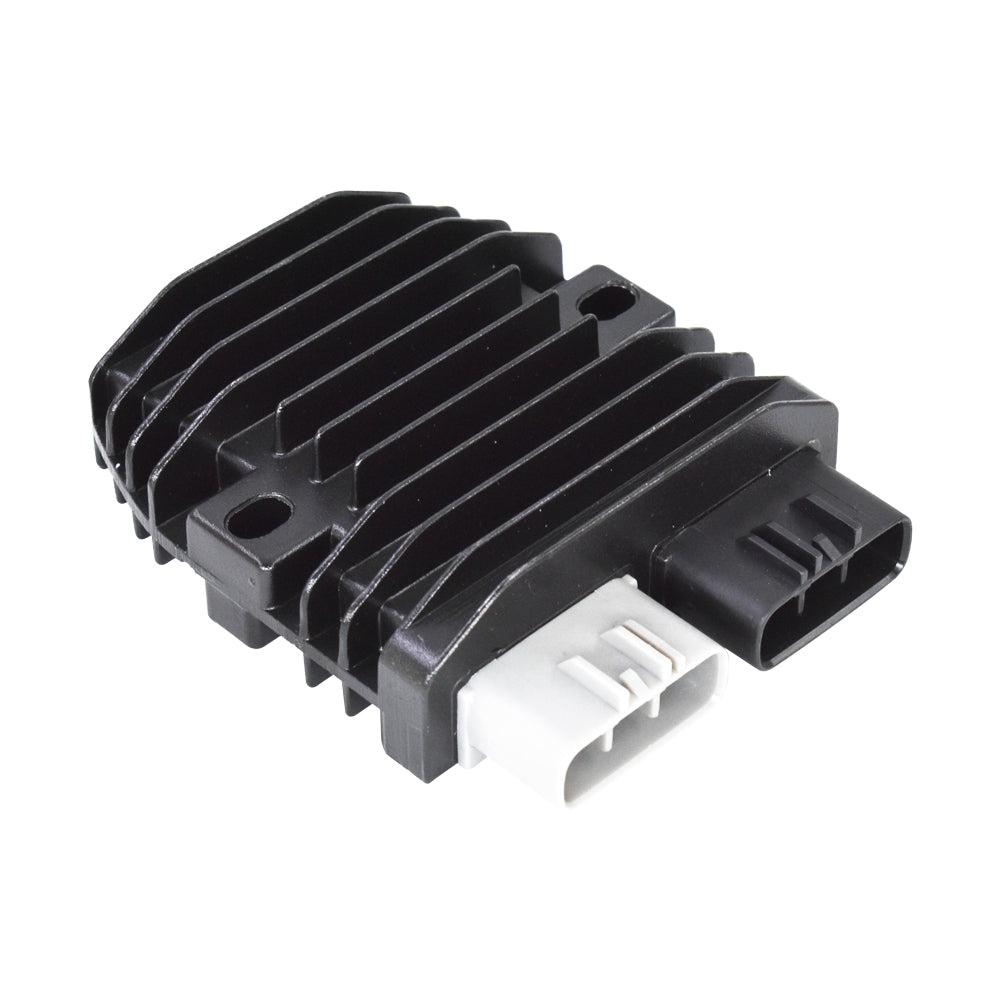

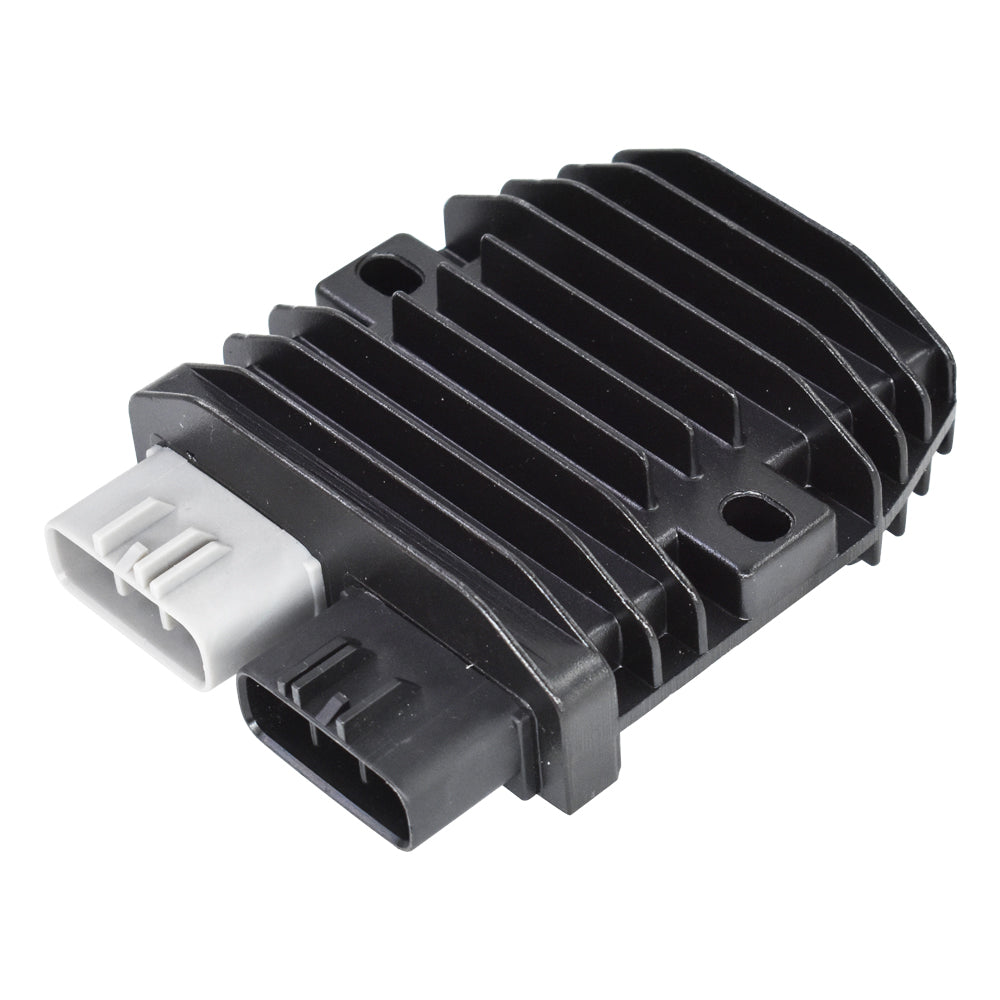

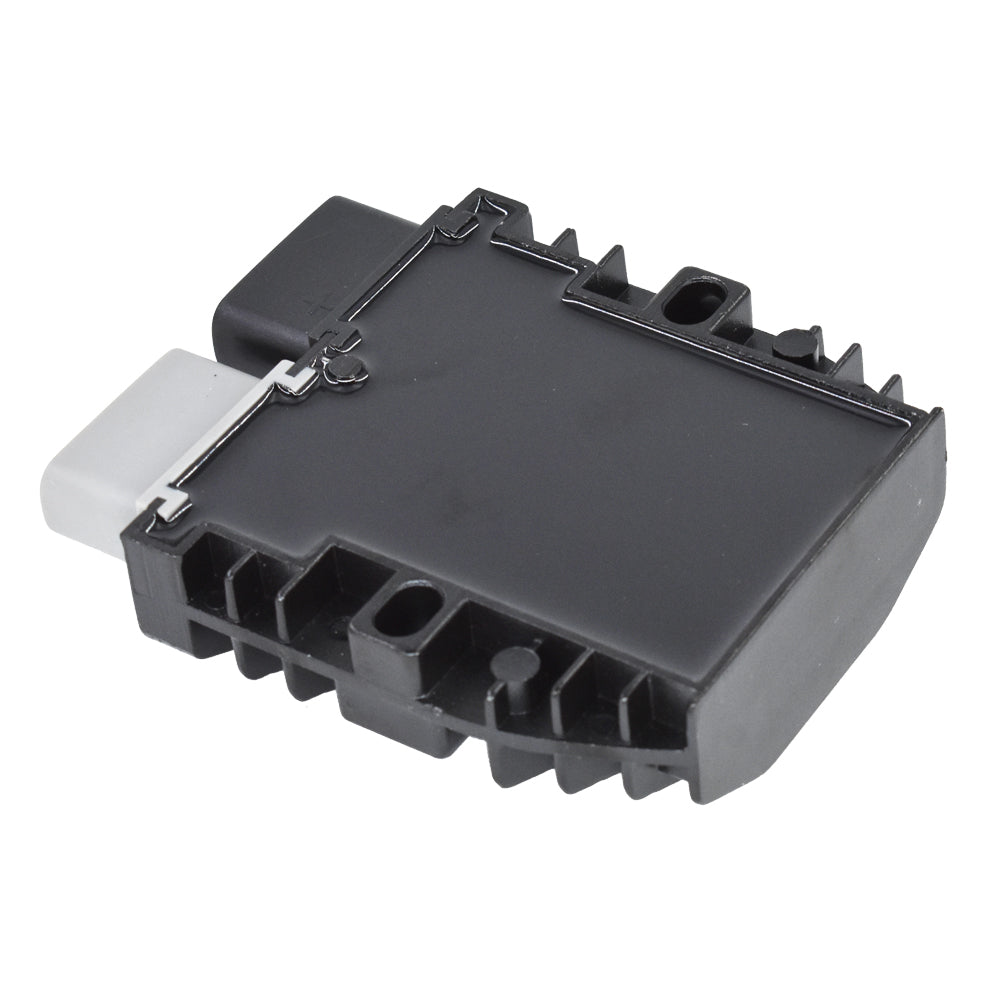

Labwork 31600-HP5-601 Voltage Regulator Rectifier for Honda Rancher 420 07-14

In stock
No reviews
$26.56
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
Checking Vehicle Fit
Have Questions?
Market@labworkauto.com
Description Reviews

Key Features

  • Advanced Electrical Engineering: Fabricated with the highest grade lamination materials and upgraded electronic components to significantly improve charging capability and stabilize vehicle voltage.

  • Battery Overcharge Protection: Engineered to prevent battery overcharging, protecting your electrical system and extending the life of your battery.

  • Enhanced Heat Dissipation: Features an optimized heavy-duty heat sink design for superior cooling performance, reducing thermal stress under intense operational conditions.

  • Direct Plug-and-Play Installation: Designed to match factory mounting points and terminal orientations exactly, requiring no complex wiring modifications or cutting.

Crucial Fitment & Compatibility Notice

Please Read Before Purchasing: To avoid common electrical incompatibility and plug configuration mismatches, please strictly check your vehicle model, year, and specific sub-trim designation against our table below.

Official Application Matrix

Make Vehicle Model / Series Compatible Years Sub-Trim & Drivetrain Specifications
Honda TRX420 Rancher (AT) 2009–2014 TRX420FA / TRX420FPA (Automatic Transmission)
Honda TRX420 Rancher (ES) 2007–2013 TRX420FE / TRX420FPE (Electric Shift, 4WD)
Honda TRX420 Rancher (Manual) 2007–2013 TRX420FM / TRX420FPM (Manual Shift, 4WD)
Honda TRX420 Rancher (2WD) 2007–2013 TRX420TE / TRX420TM (2WD Models Only)
Honda MUV700 Big Red 2009–2013 All Standard MUV700 UTV Series Models

Strict Non-Compatibility Notice (Will NOT Fit):

  • Non-Honda Vehicles: Will NOT fit Yamaha, Polaris, Hisun, or other 700cc class UTV/ATV models.

  • Later TRX420 Models: Will NOT fit certain mid-generation facelifted 2015–2018 TRX420 models due to different plug wiring structures and computer programs.

  • Later MUV700 Models: Will NOT fit 2014 or newer MUV700 models.

Product Specifications

  • Part Name: Alternating Current Regulator Rectifier Assembly

  • Interchange Reference Numbers: 31600-HP5-601, SH753AA, AHA6094, 230-58036

  • Fitment Type: Direct Model-Specific Plug-and-Play

  • Condition: 100% Brand New

Package Includes

  • 1 × Premium Replacement Regulator Rectifier Module

Important Mechanical & Installation Notes

  • Terminal Inspection: Before sliding the factory wire harness coupling into the new regulator, inspect your vehicle's male connector pins for corrosion or heat discoloration. Clean or replace damaged connectors to prevent circuit damage.

  • Apply Dielectric Grease: Applying a thin layer of specialized automotive dielectric grease inside the plug terminals is highly recommended to isolate moisture, dust, and electrical arcing.

  • Ground Verification: Ensure the metal chassis mounting surface is clean, rust-free, and securely fastened to provide a solid ground loop pathway for the heat-sink body.
