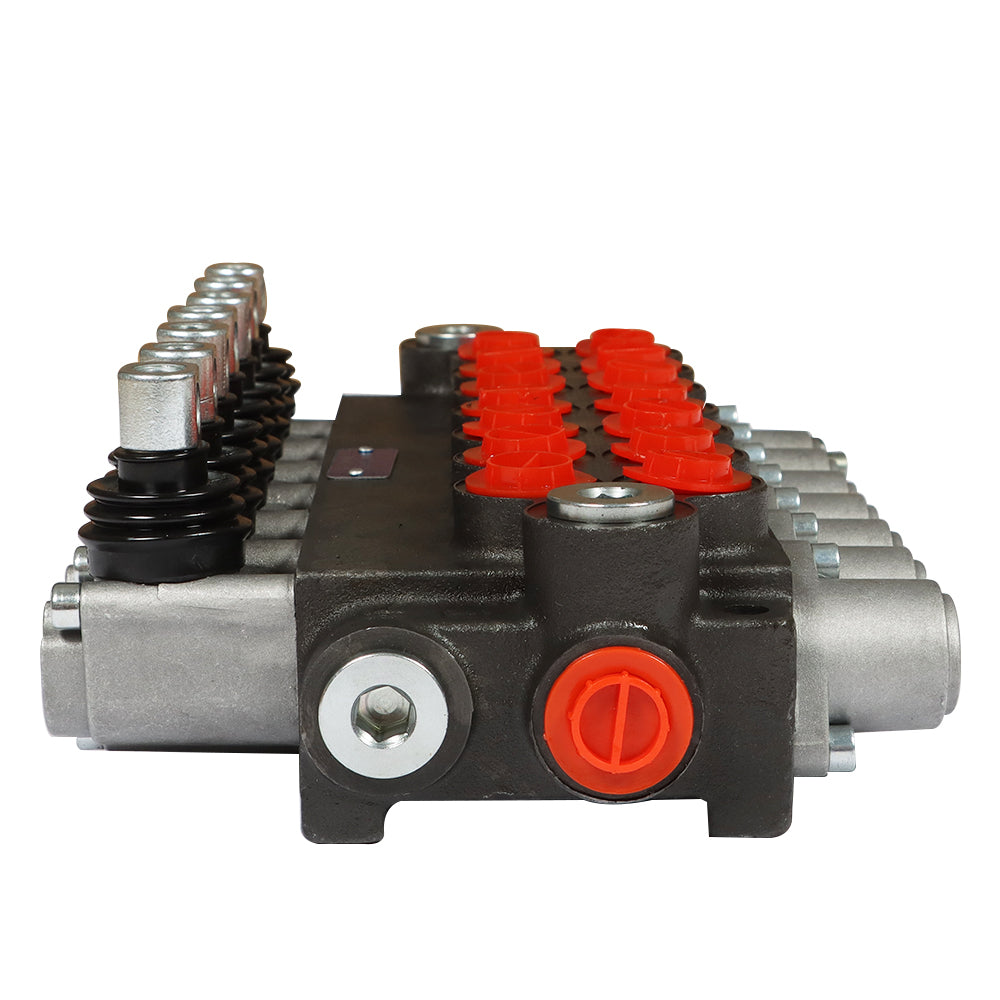

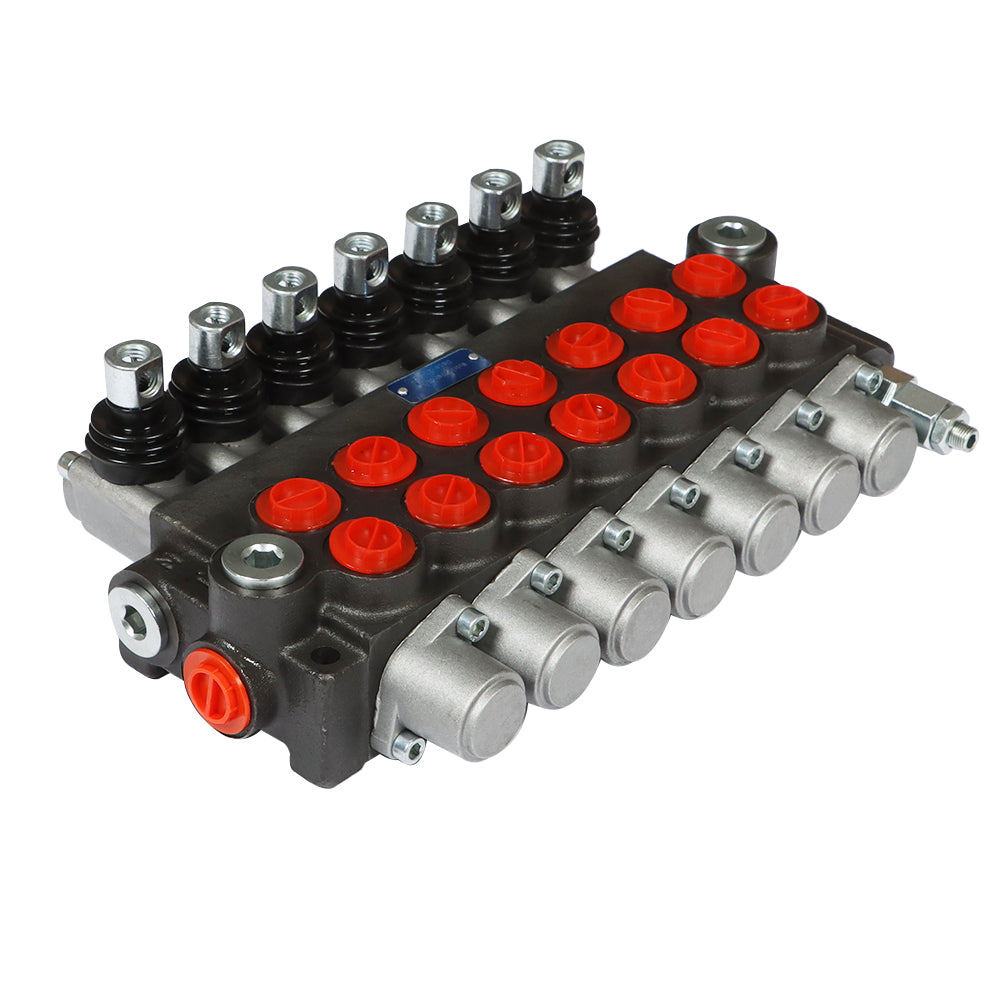

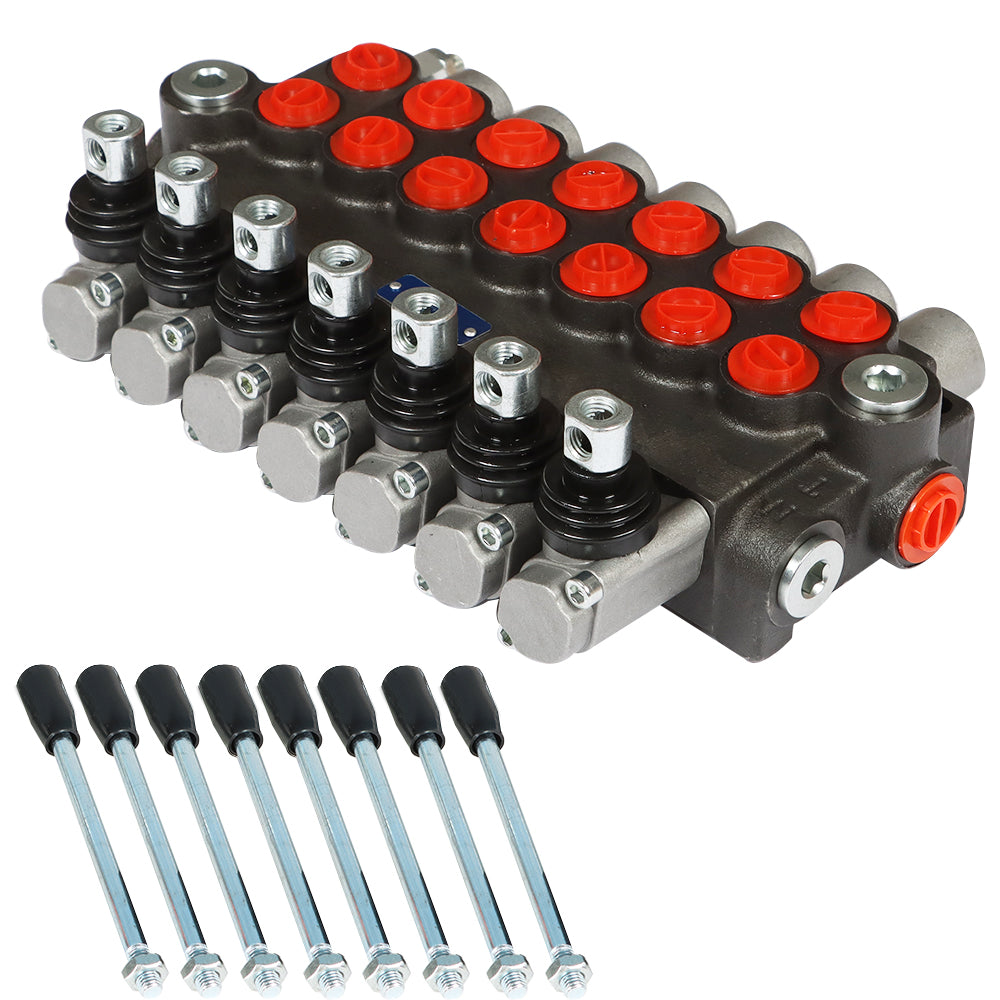

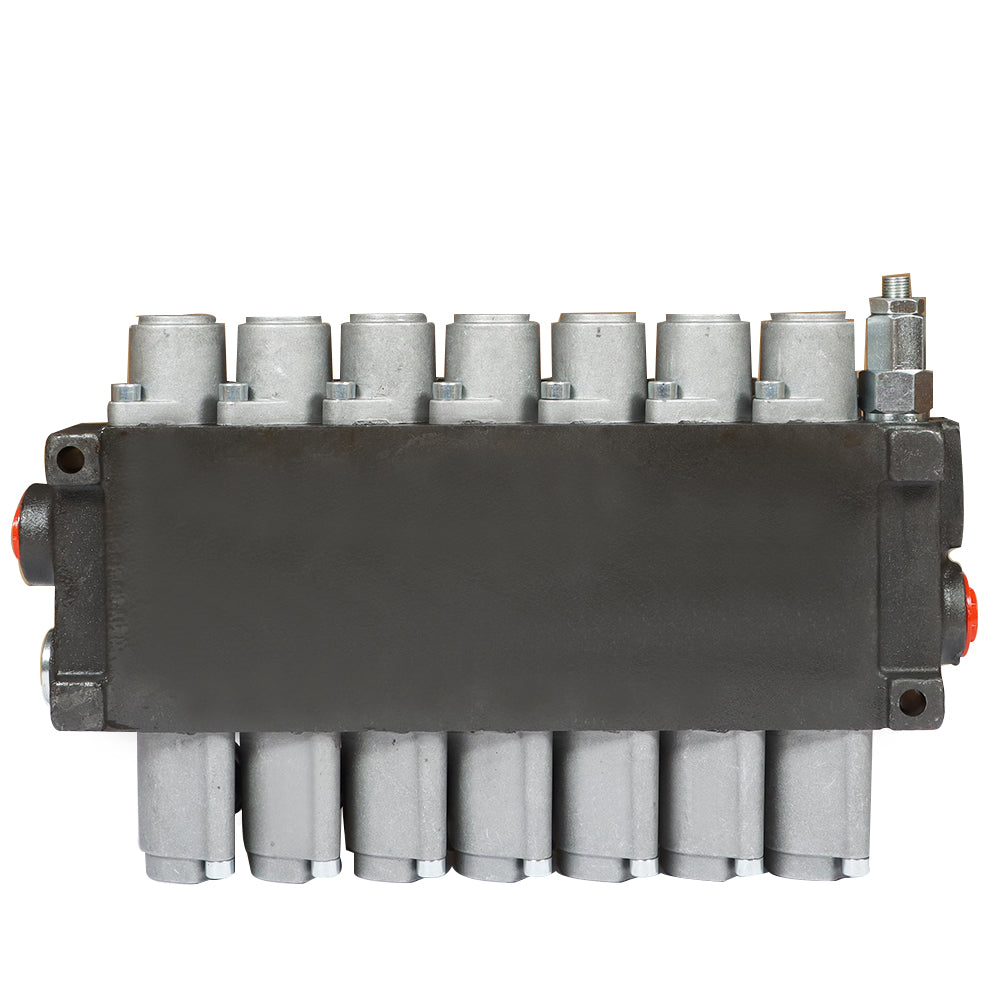

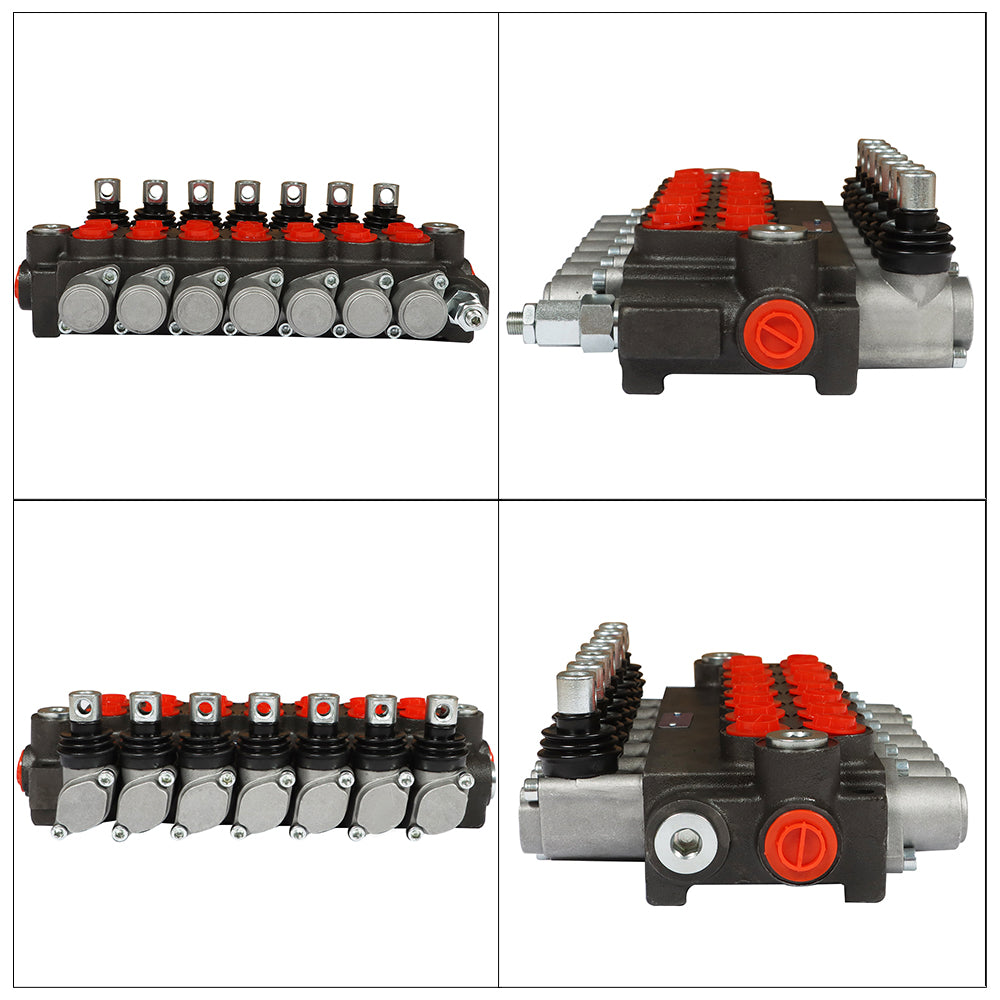

New 7 Spool Hydraulic Directional Control Valve 13 GPM, 3600 PSI, SAE Interface

Specifications:

    l Max operating pressure: P = 3600psi (250 bar);
    l T = 150psi (10 bar); A ,
    l B = 4300psi (300 bar)
    l Nominal flow: 13gpm (60L/min)
    l Relief valve: Adjustable
    l Center system: Open
    l Back pressure: ≤1MPA
    l Temperature: -20 - 80℃
    l Vise rang: 10 - 400mm2/s
    l Filtrating accuracy: ≤10um

Features:

    l P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
    l Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
    l Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
    l Oil way: Parallel circuit, power beyond option
    l Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
    l Valve construction. monoblock construction, 1-7 levers.Spool Function: O,Y, PA.
    l Available with manual,' pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.


Applications:

    l Small tractors
    l Tractors loaders
    l Log splitters
    l Other mobile


 Packages:
1 × 7P40 Hydraulic Directional Control Valve
