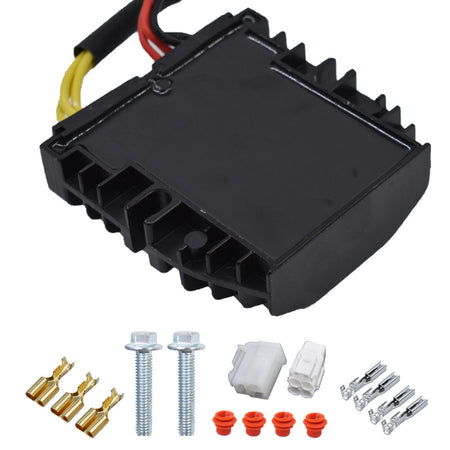

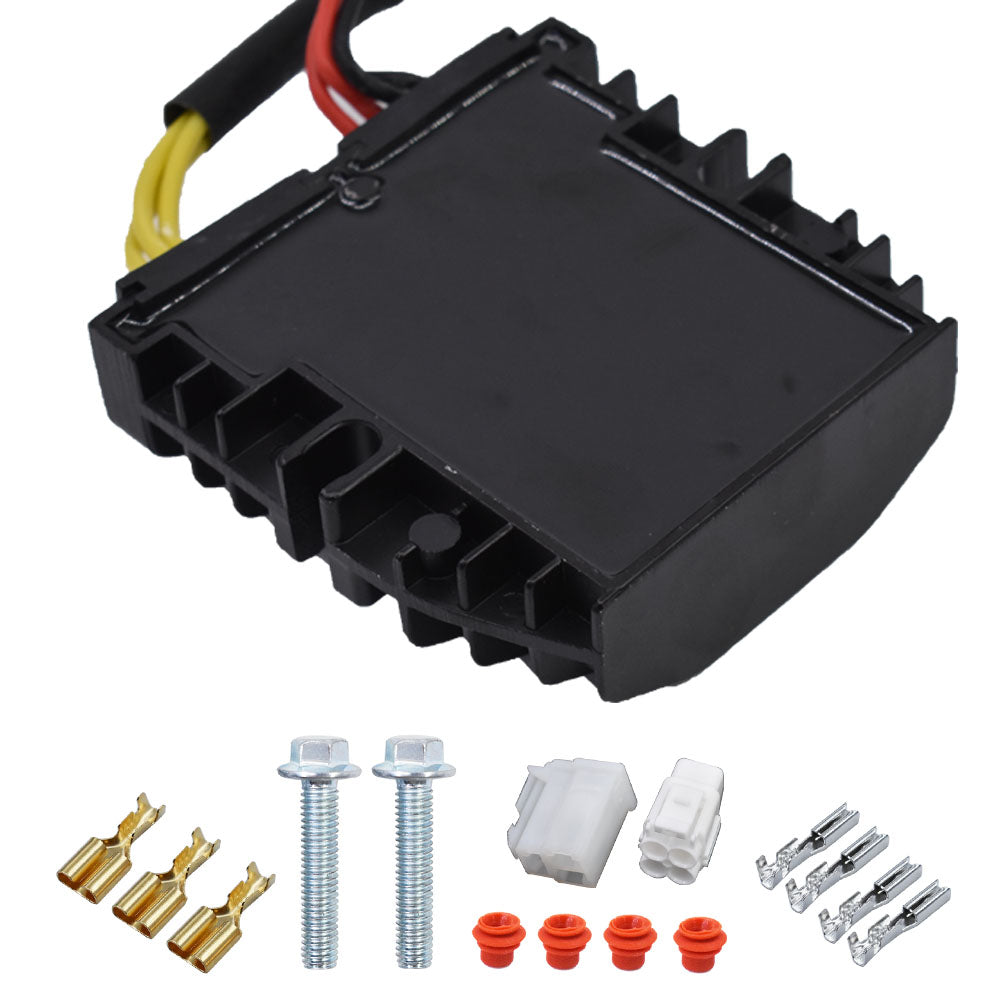

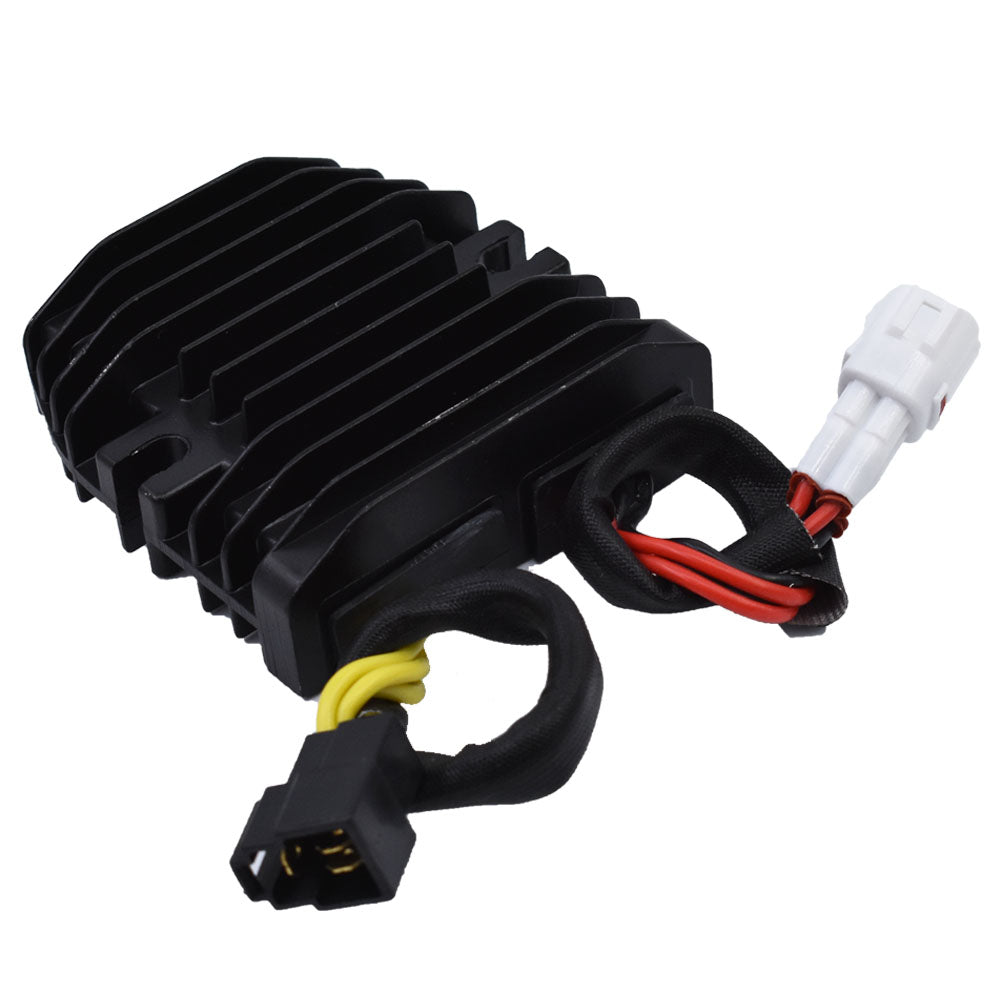

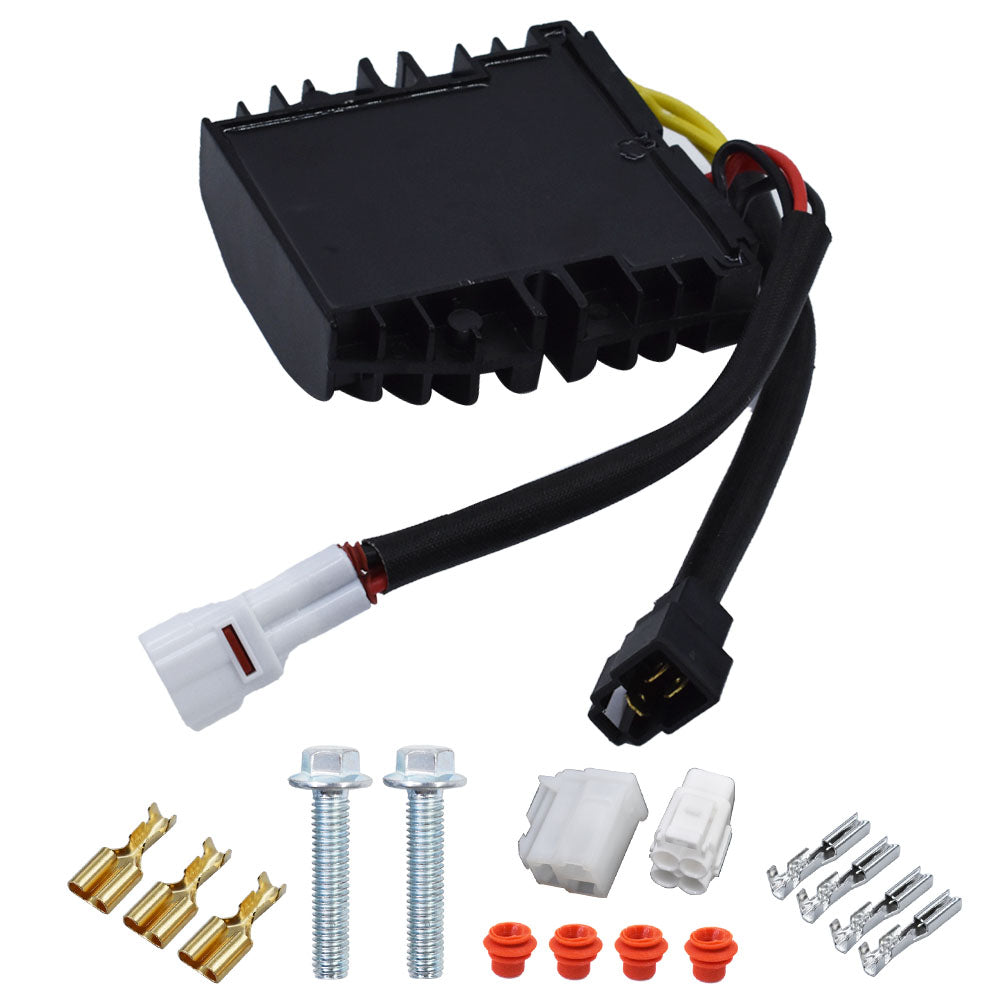

Mosfet Regulator Rectifier For Suzuki GSXR600 / GSXR750 / GSXR 1000 2006-2015

Regulator Rectifier For Suzuki GSF 1250 / GSX 1250 1300 B-King / GSXR

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please note that there are two possible regulators for the KingQuad LTA 700X 2006. Make sure you have the production number that matches your vehicule. All item pictures are accurate, if in doubt do not hesitate and compare our item to your former part.

Features:
    Direct replacement to your former unit.
    Plug-and-play, direct fit, easy installation.
    The quality exceeds the OE equipment
    Improved heat sink and charging capabilities
    Higher grade of electric components.
    All shipped products are tested

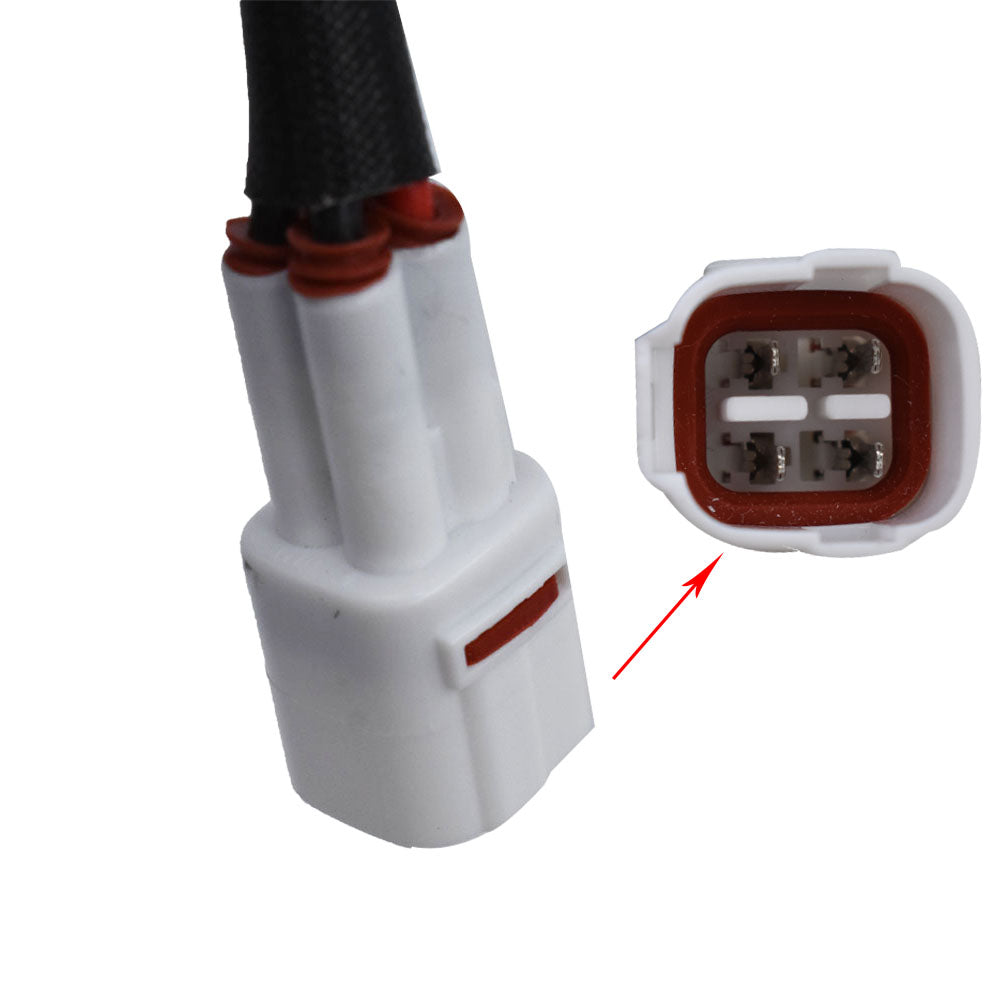

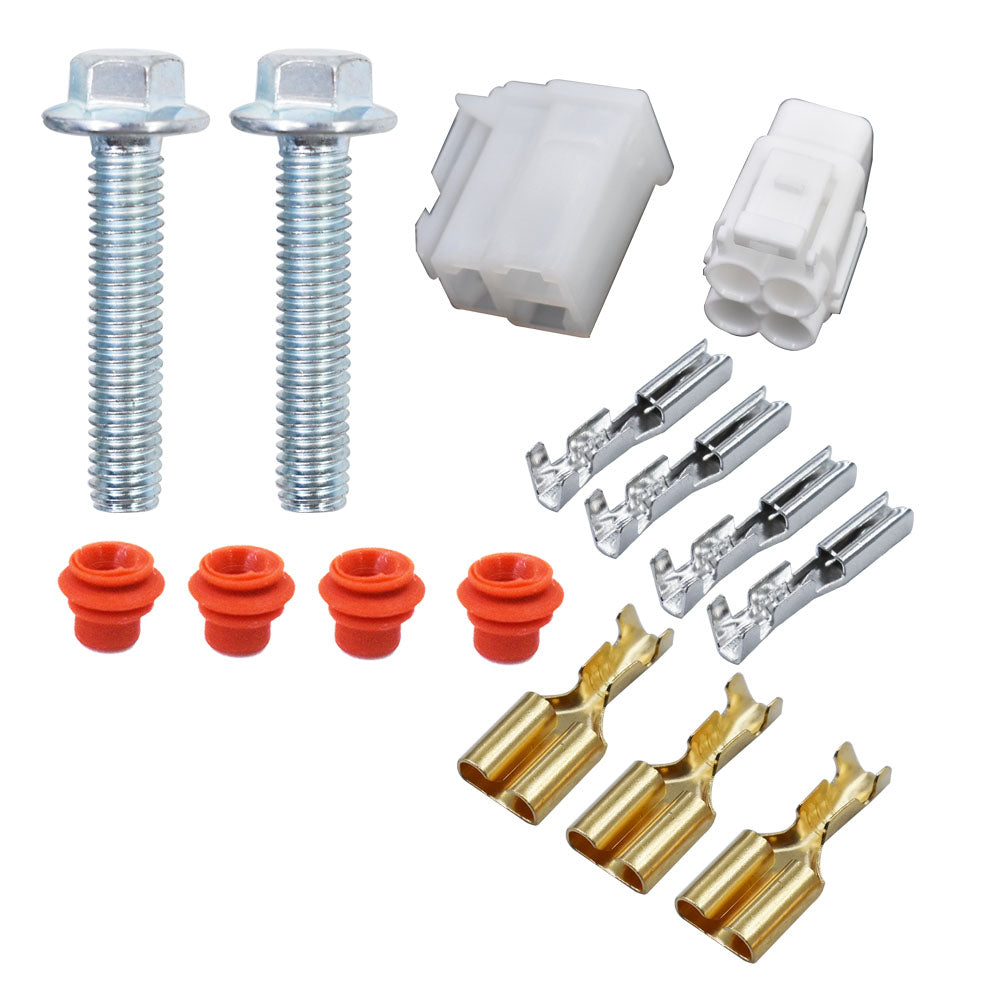

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

OE PartNumber：

32800-02H00
32800-18H00
32800-47H00
32800-41F10
32800-41F11
32800-41F00
32800-21H00
32800-47H10
32800-15H10
32800-15H00
32800-15H01
32800-15H11
32800-41F01
32800-41G00
32800-41G10
32800-41F02

Fit For：

Suzuki Boulevard C50 VL800 -- 2005-2007, 2013-2017
Suzuki Boulevard C50T VL800T -- 2013-2016
Suzuki Boulevard C90 VL1500 -- 2005-2009
Suzuki Boulevard C90T VL1500T -- 2005-2009
Suzuki Boulevard M50 VZ800 -- 2005-2009, 2013-2017
Suzuki GSF 1250 Bandit -- 2007-2009, 2016
Suzuki GSX 1250 -- 2011
Suzuki GSX 1300 B-King -- 2008-2009
Suzuki GSX 650 F -- 2008-2009
Suzuki GSXR 1000 -- 2007-2009, 2011-2016
Suzuki GSXR 600 -- 2006-2009, 2011-2018
Suzuki GSXR 750 -- 2006-2009, 2011-2018
Suzuki GSXS 750 -- 2015-2016
Suzuki Hayabusa GSX 1300 R -- 2008-2009, 2011-2012
Suzuki SFV 650 Gladius EFI L/C -- 2009, 2014-2015
Suzuki SV 650 -- 2017
Suzuki VL800 Volusia (Model K1) -- 2001-2005
Suzuki VL800 Volusia (Model K2) -- 2001-2005
Suzuki VL800 Volusia (Model K3) -- 2001-2005
Suzuki VL800 Volusia (Model K4) -- 2001-2005
Suzuki VStrom 650 -- 2008-2009, 2011-2017

Specifications：

Width : 92mm
Length : 92mm
Height : 30mm
Fixation holes center to center : 75mm
Wires length: 250mm

Other specifications :

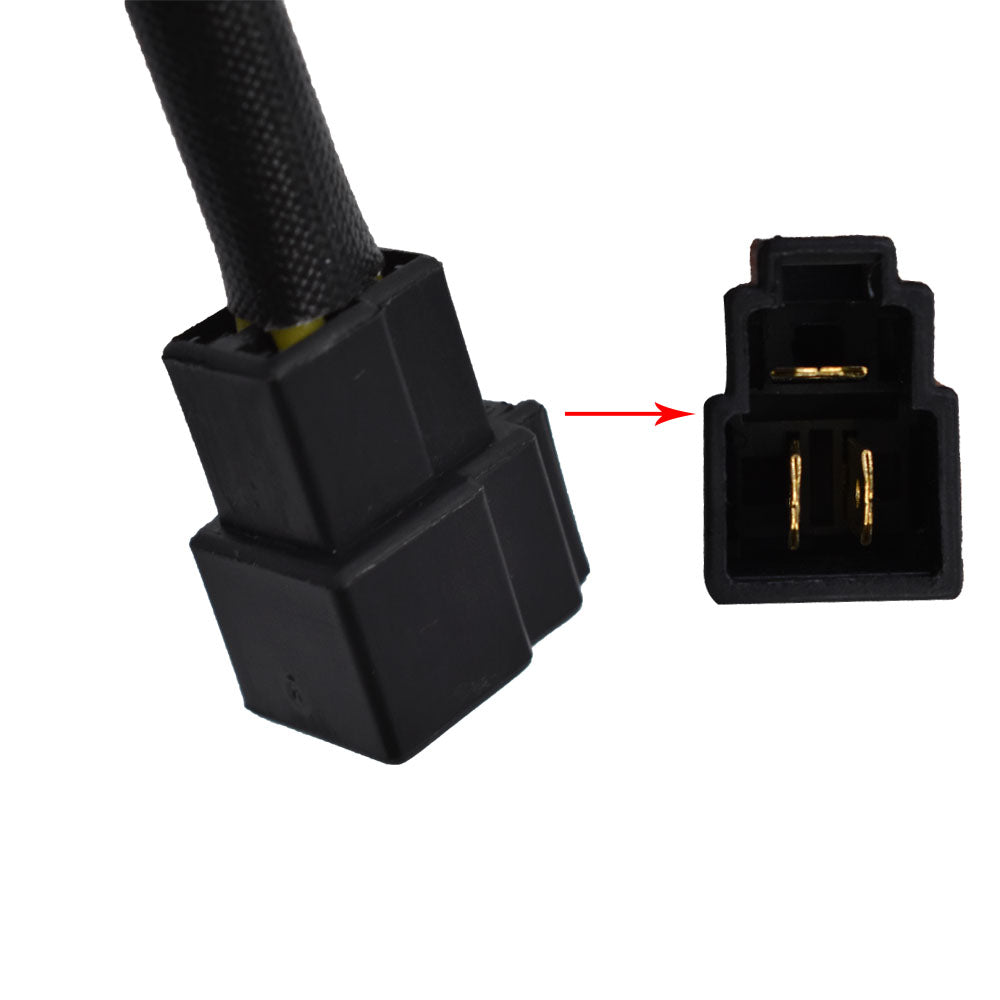

Number of plugs : 2
Number of pins : 7
Number of wires : 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Instructions:
Before installing your new voltage regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
