Mechanics Stage 2 Cam Lifters Timing Chain Kit for Chevy GMC 4.8 5.3 6.0L

Fitment：
For GM Chevy LS L92 L99 1999-2007 4.8L 5.3L 6.0L 6.2L

For LSx Sloppy Stage 2 1999-2007 V8

Description：

-Camshaft: E-1840-P
-Timing Cover Gaskets:TCS45993
-Harmonic Balancer Bolt: 12557840
-PAC Racing Spring: PAC-1218
-Hydraulic Roller Lifters: 12499225 , HL214
-7.400 Pushrods: PR-15740S
-Oil Pump:12696357, 12586665
-Timing Chain Kit: 12646386, 12576407, 12556582, 12588670


-Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

-Camshaft RPM Range: 2200 to 5400 RPM
-Camshaft Intake Valve Lift: .585"
-Camshaft Exhaust Valve Lift: .585"
-Camshaft Advertised Intake Duration: 283°
-Camshaft Advertised Exhaust Duration: 286°
-Camshaft Intake Duration at .050": 228°
-Camshaft Exhaust Duration at .050": 230°
-Camshaft Lobe Separation: 112°
-Camshaft Intake Centerline: 108°
-Camshaft Cam Gear Attachment: 3-Bolt

-Number of Springs Per Valve: Single

-Outside Diameter of Outer Spring (in): 1.290 in.
-Spring Coil Bind Height (in): 1.140 in.
-Damper Spring Included: No
-Spring Install Load: 130lbs
-Spring Install Height: 1.800"
-Spring Open Height: 1.175"
-Spring Open Load: 318 lbs
-Spring Rate (lbs/in): 313 lbs./in.
-Inside Diameter of Outer Spring (in): 0.885 in.
-Valve Spring Style: Beehive

-Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.

Lifters Fitment includes:

For Trucks/SUVs 1999-2012 4.8L V-8 VIN-V,C,A
For Trucks/SUVs 1999-2007 5.3L V-8 VIN-T,Z,B
For LS1 V-8 1997-2004 5.7L
For LS6 V-8 2001-2005 5.7L
For Trucks/SUVs 1999-2010 6.0L V-8 VIN-U,K
For LS2 V-8 2005-2009 6.0L
For LS3 V-8 2008-2013 6.2L ; without AFM
For LS7 V-8  2006-2013 7.0L
Also fit For Factory Roller 93-97 LT1, and For 305-350 Chevy Engines.

-putters

-5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS

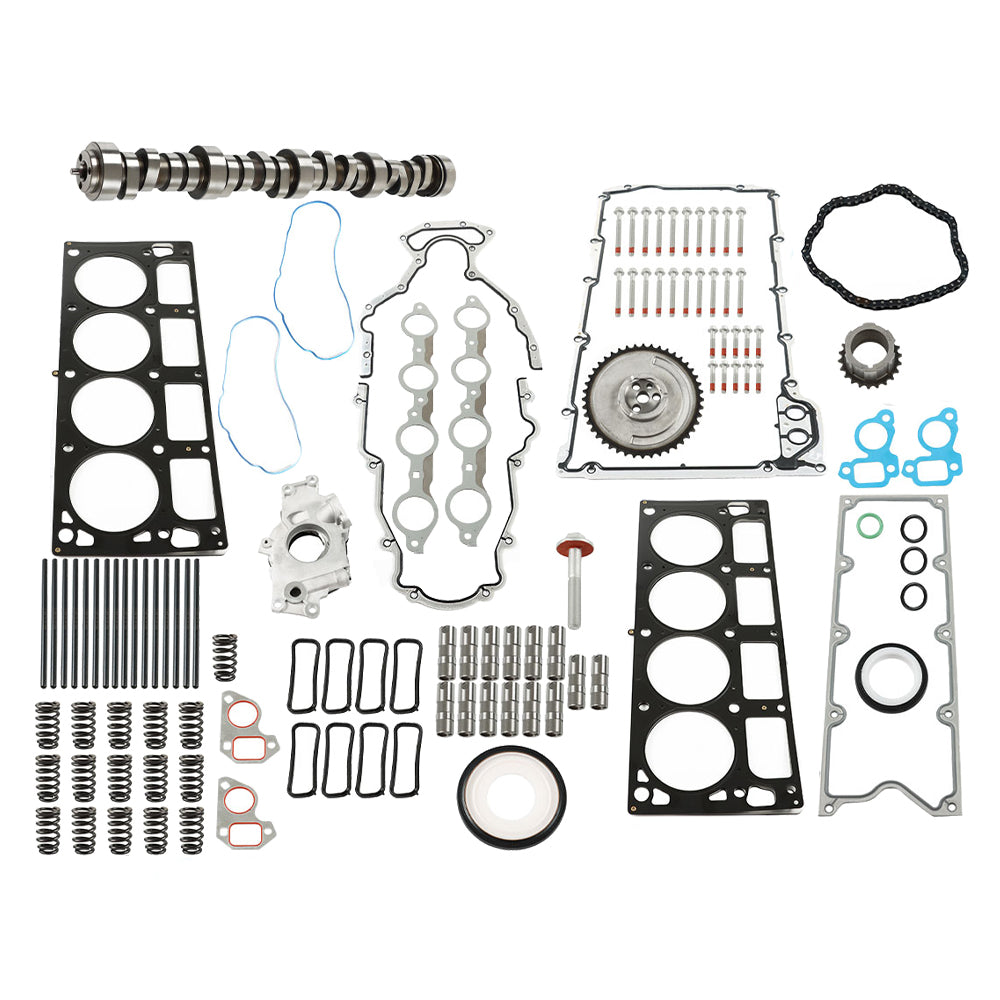

Package Include：

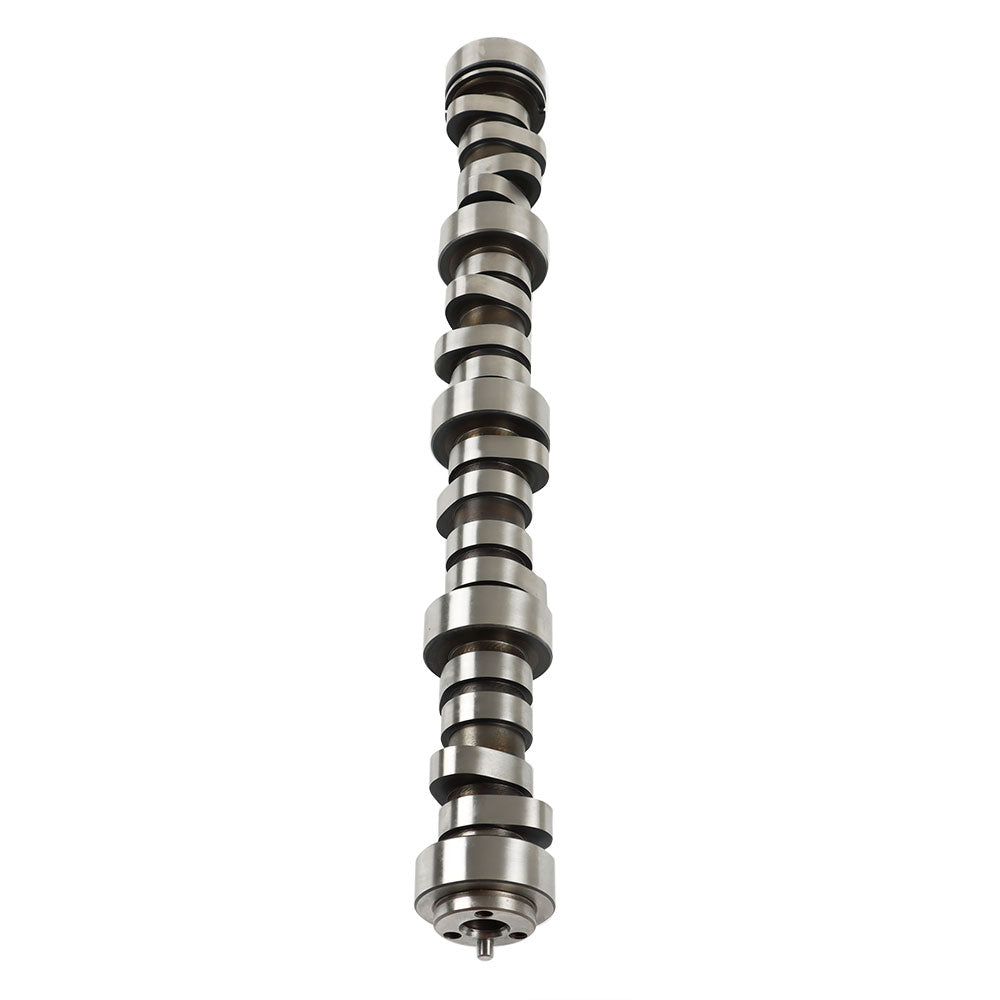

1* Camshaft

16* Valve Lifters

16* Springs

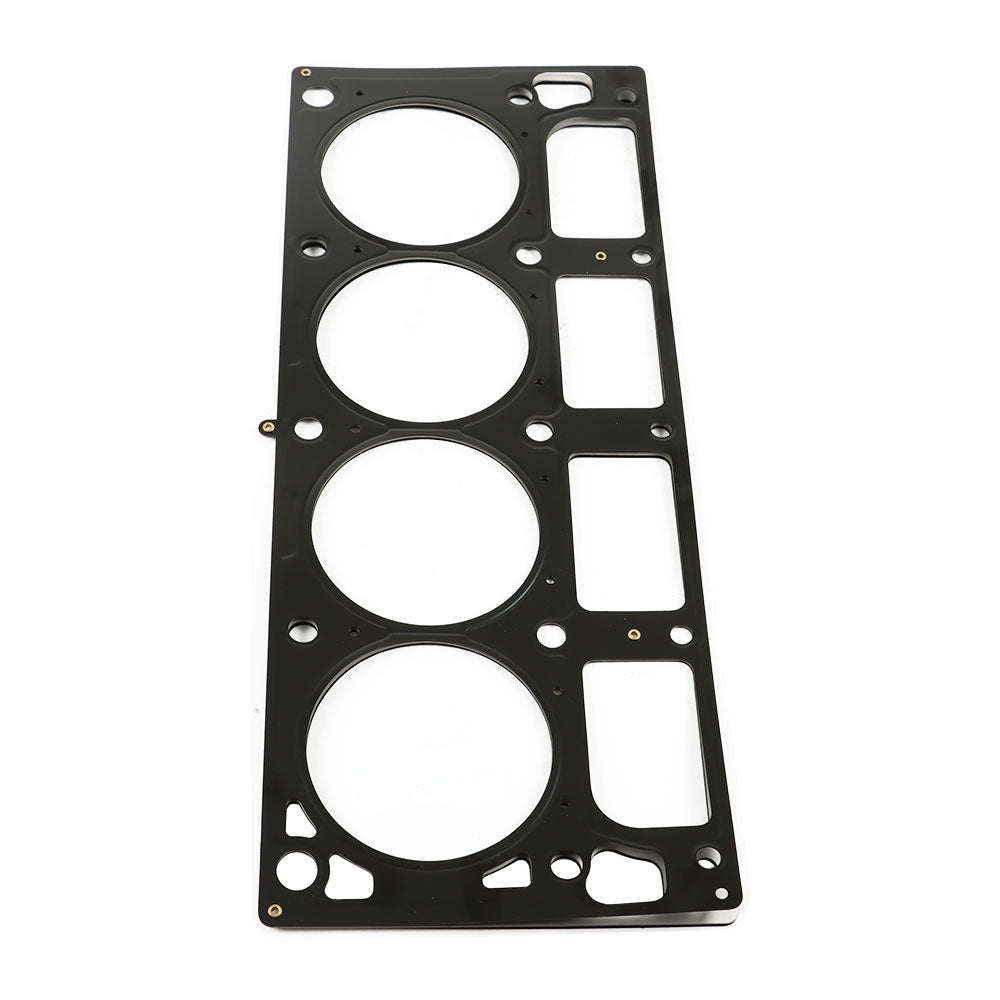

1* Set of Head Gaskets

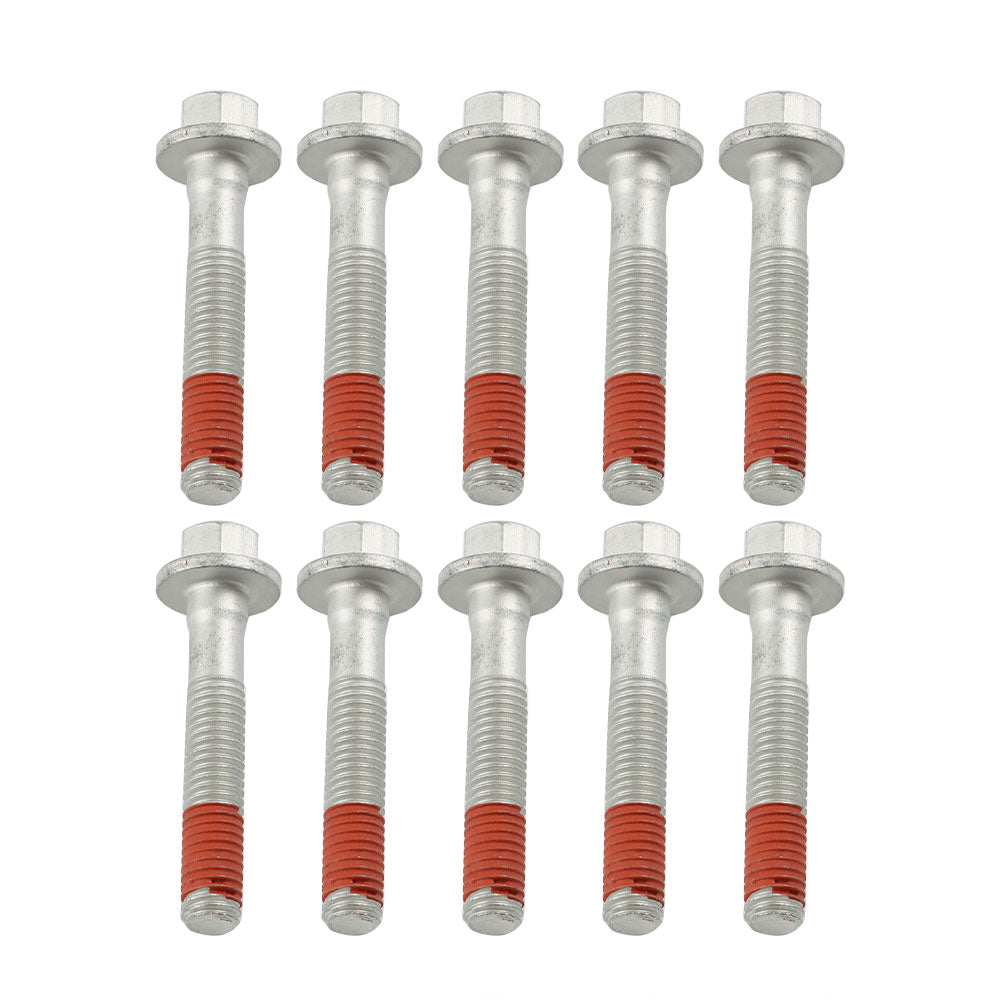

1* Set of Bolts

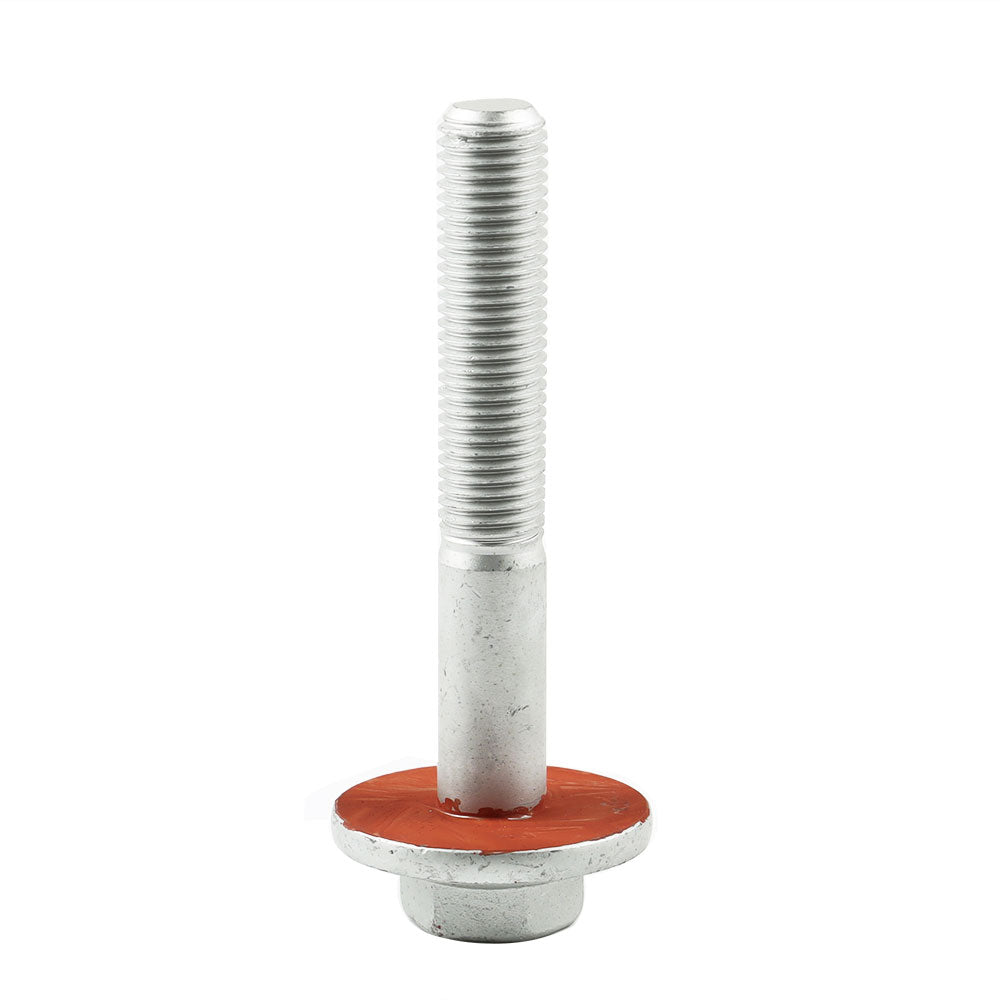

1* Harmonic Balancer Bolt

1* Oil Pump

16* 7.400 Pushrods

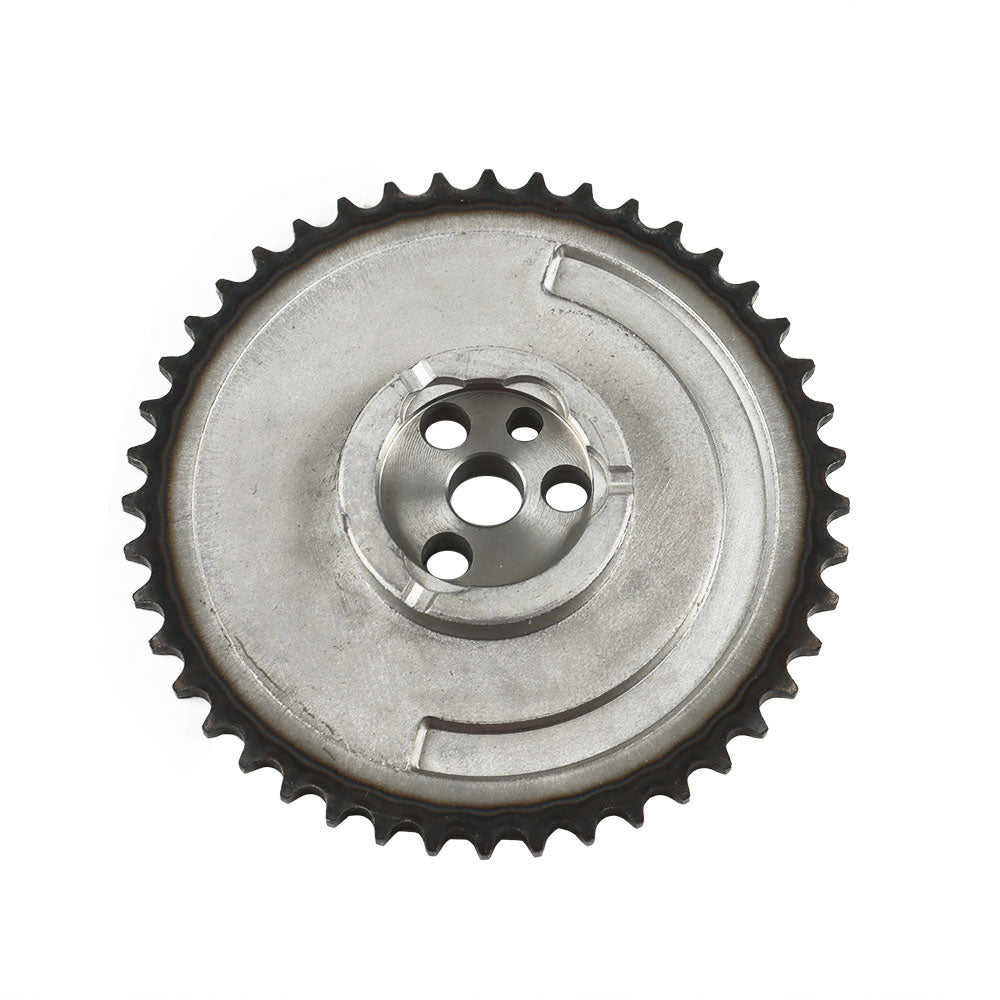

1* Set of Timing Chain Kit

W/o Product Instruction
