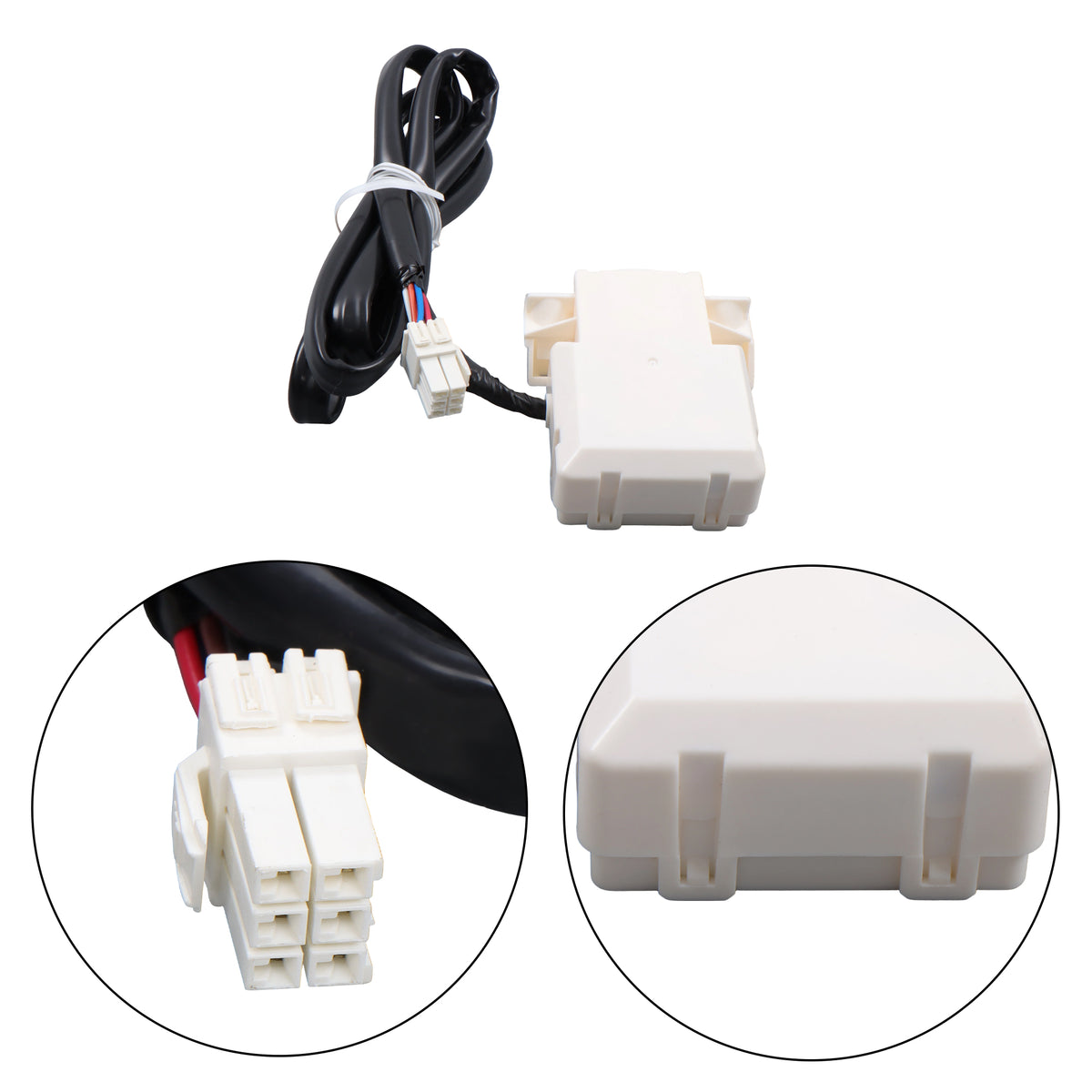

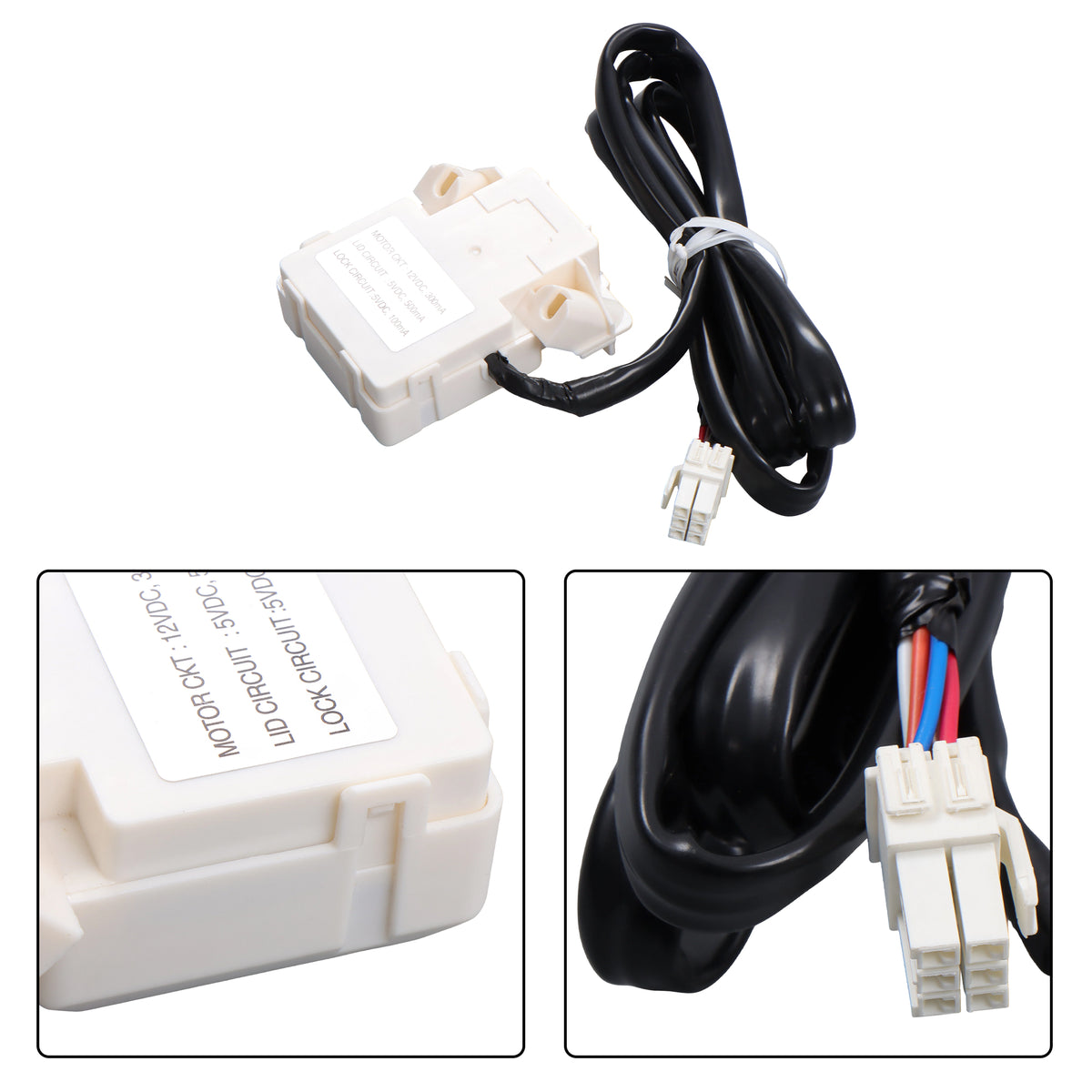

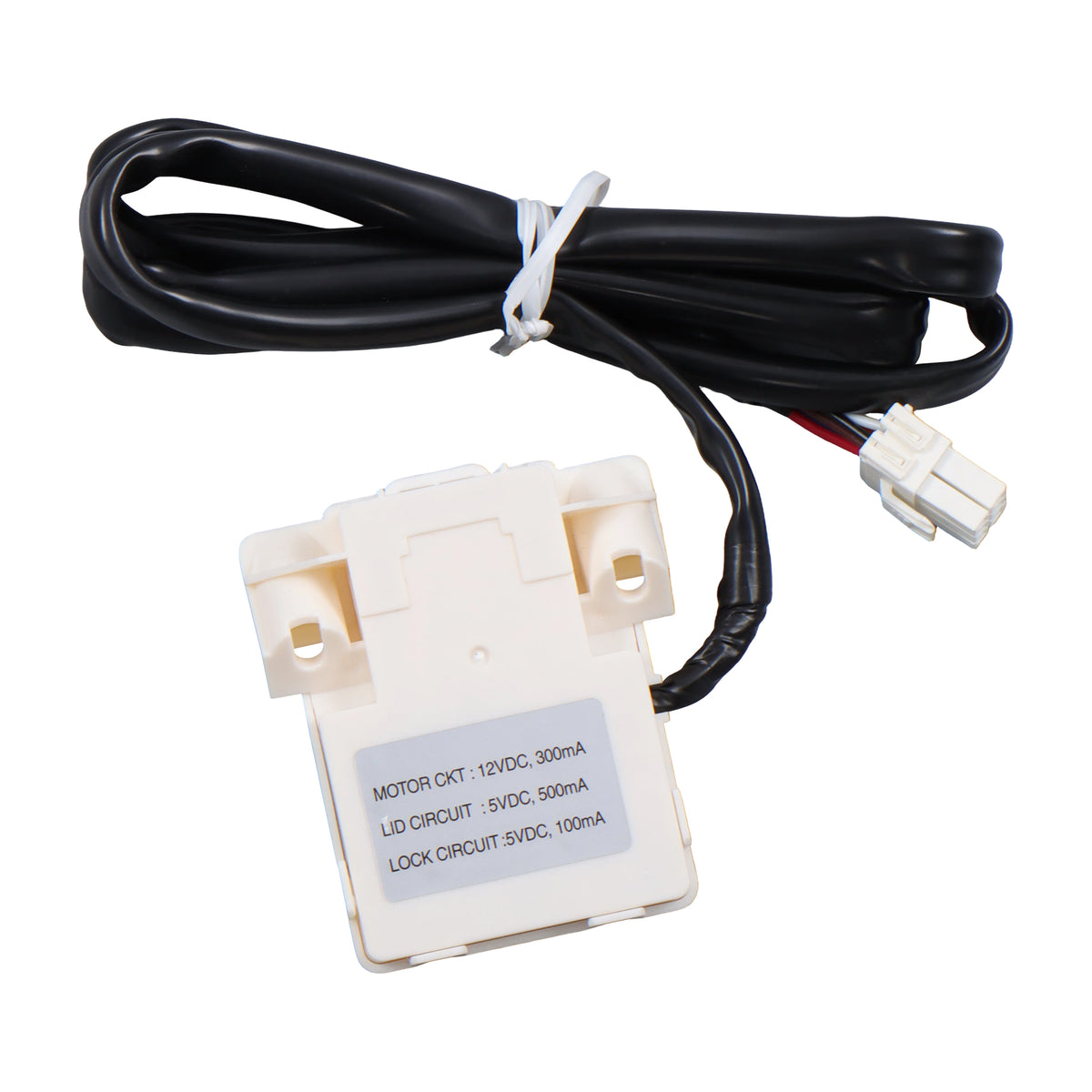

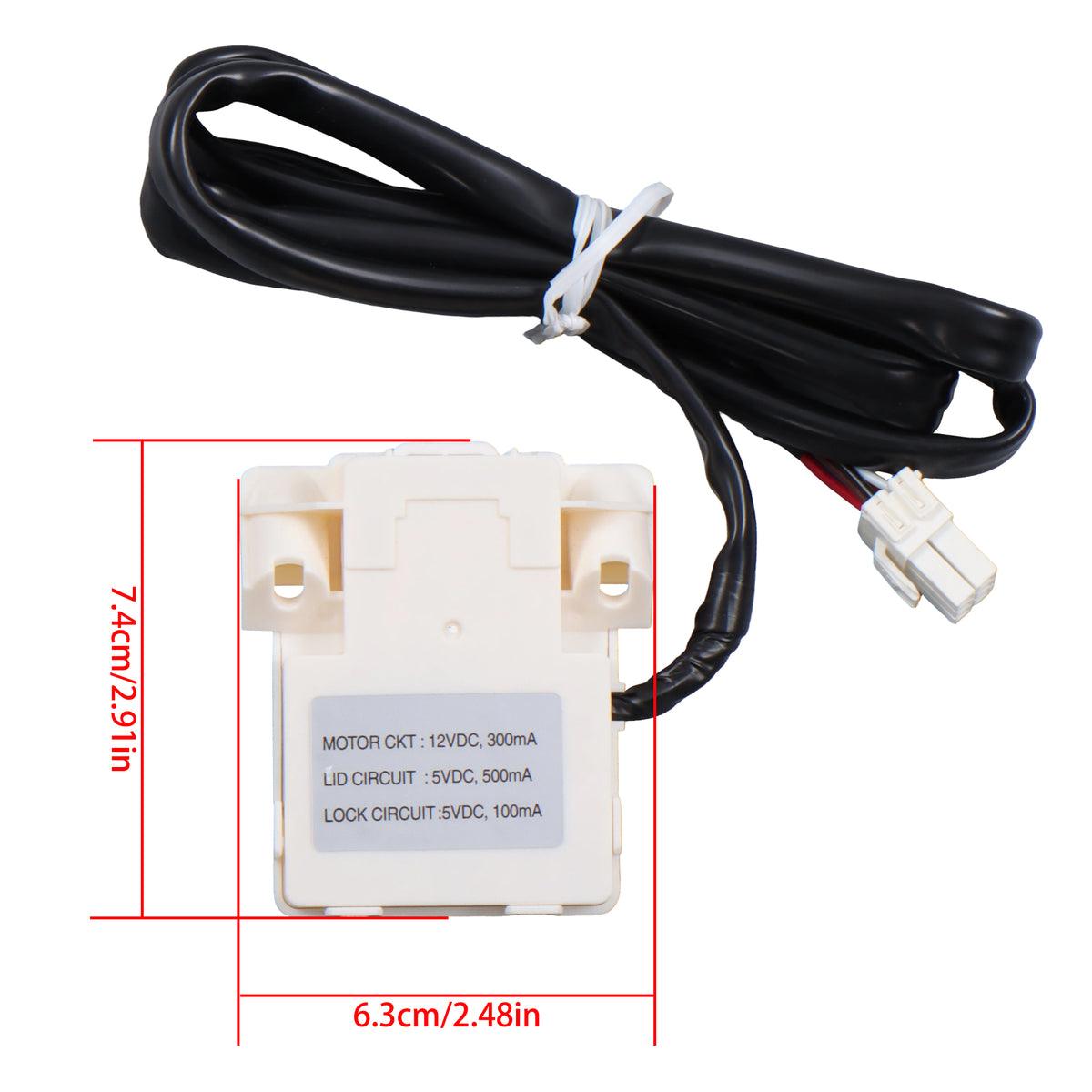

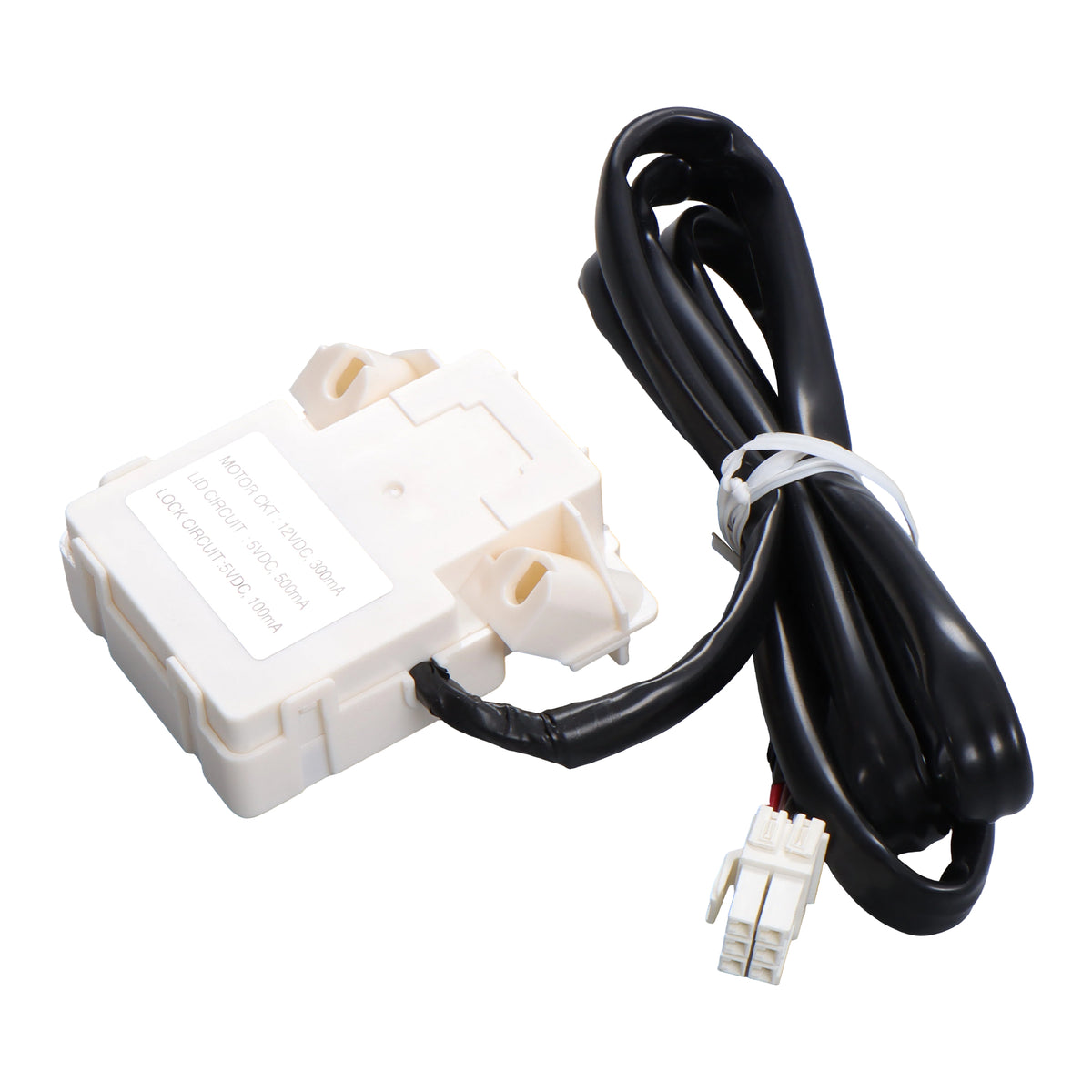

labwork Washer Lid Lock Switch EBF61674802 Replacement for LG Washer

EBF61674802 EBF60665201 Washer Lid Lock Switch

Fuction:

EBF61674802 Top Lid Lock Switch Replacement Part, specifically designed to prevent accidental opening of the top lid during high-speed spin cycles. The built-in metal detection sensor accurately detects the lid's open/closed status and sends real-time response to the mainboard. If the original door lock is damaged-resulting in an inability to lock or abnormal flashing of the indicator light-replacing this part will completely resolve the issue and restore the machine to normal operation. Be sure to disconnect the power supply before installation

Appliance Model:

Replacement for LG: WT5680HVA WT7700HWA WT5270CW WT5680HWA WT7500CW WT7600HKA WT7200CW WT7700HVA WT7200CW/00 WT7200CV/00 WT7100CW/00 WT5680HVA-T1743ADFS5 WT7300CV WT7050CV/00 WT7700HVA/00 WT7700HWA/00 WT7600HKA/00 WT5680HVA/01 WT7500CW/00 WT7300CW/02 WT5680HVA/00 WT7300CV/00 WT7300CW/00 WT4870CW WT4970CW WT5001CW WT5001CW/00 WT5070CW WT5070CW/00 WT5101HV WT5101HV/00 WT5101HW WT5101HW/00 WT5170HV WT5170HW WT6001HV WT6001HW WT7005CW/00 WT7005CW/03 WT7060CV/00 WT7150CW/00 WT7155CW/00 WT7300CV/01 WT7305CV/00 WT7305CW/00 WT7400CV/00 WT7400CW/00 WT7405CV/00 WT7405CW/00 WT7800CV/00 WT7900HBA/00 WT7900HBA/04 WT7900HBA/05

Replacement for Kenmore: 79631622310 79631623310 79631552610 79631553610 79629002000 79629002010 79629272000 79629272001 79629272010 79629272900 79629272901 79629278000 79629278001 79629278010 79629278900 79629472000 79629472001 79629478000 79629478001 79631512210 79631512211 79631513210 79631513211 79631513310 79631522210 79631522211 79631523210 79631523211

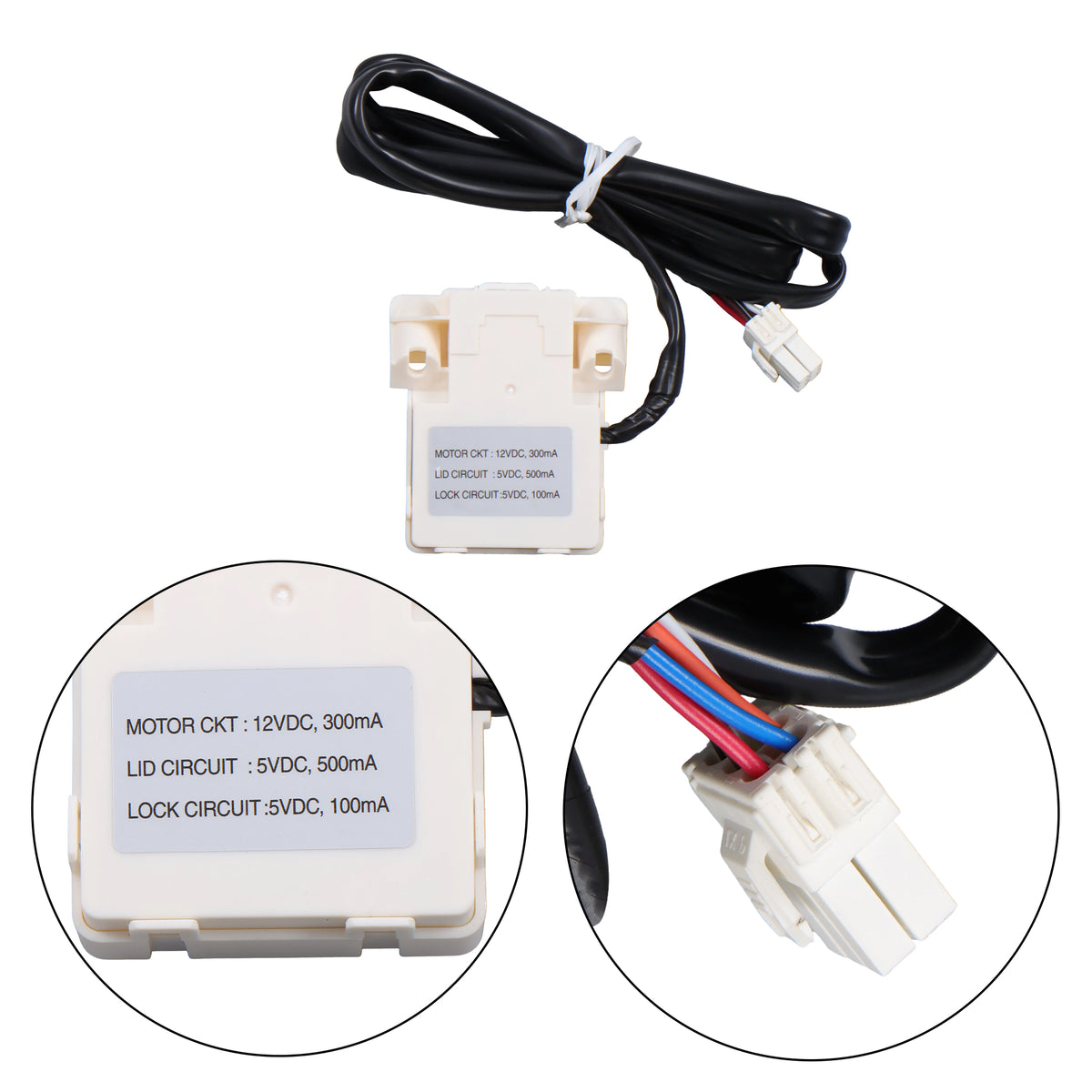

Specification:

Motor Ckt: 12VDC, 300mA
Lid Circuit: 5VDC, 500mA
Lock Circuit: 5VDC, 100mA
