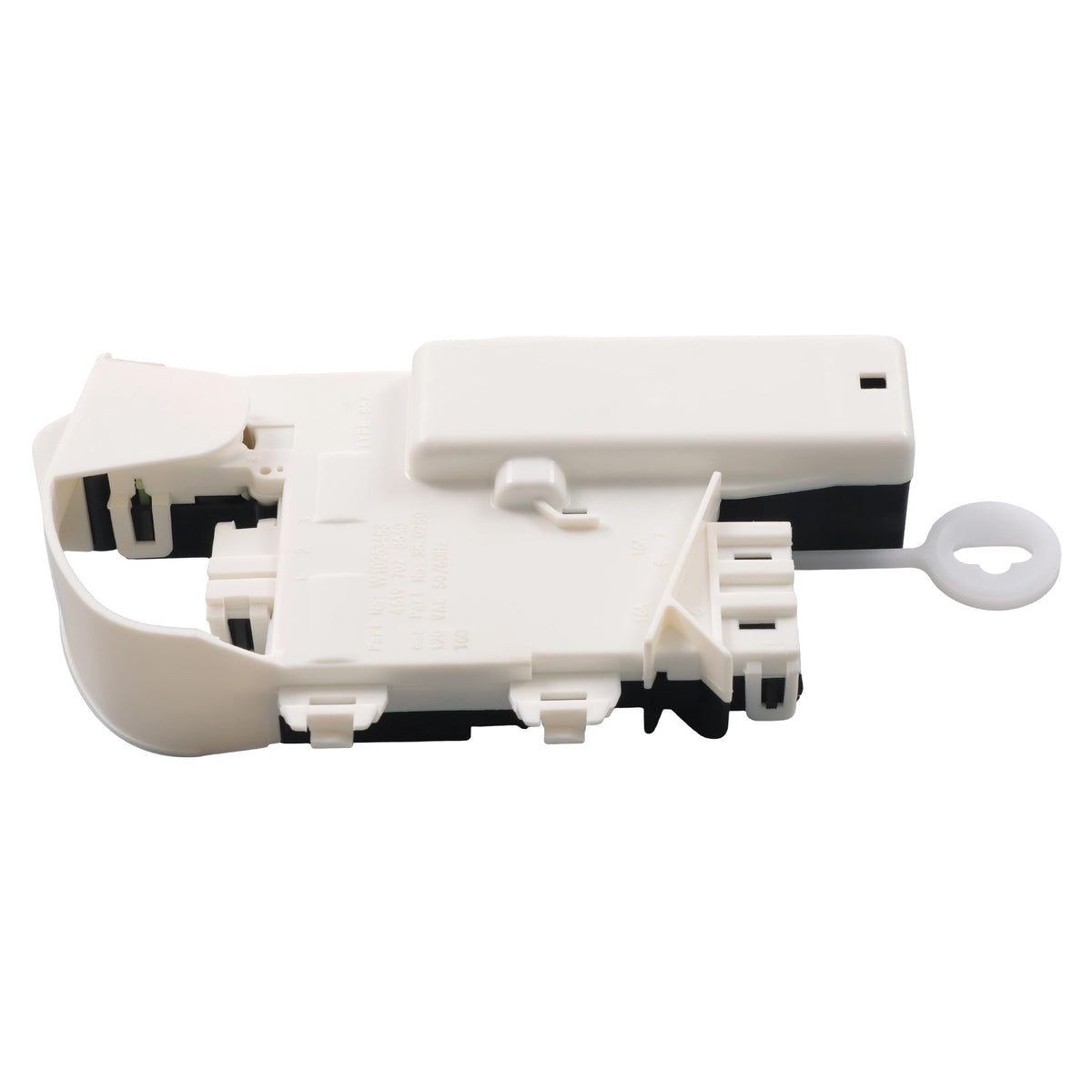

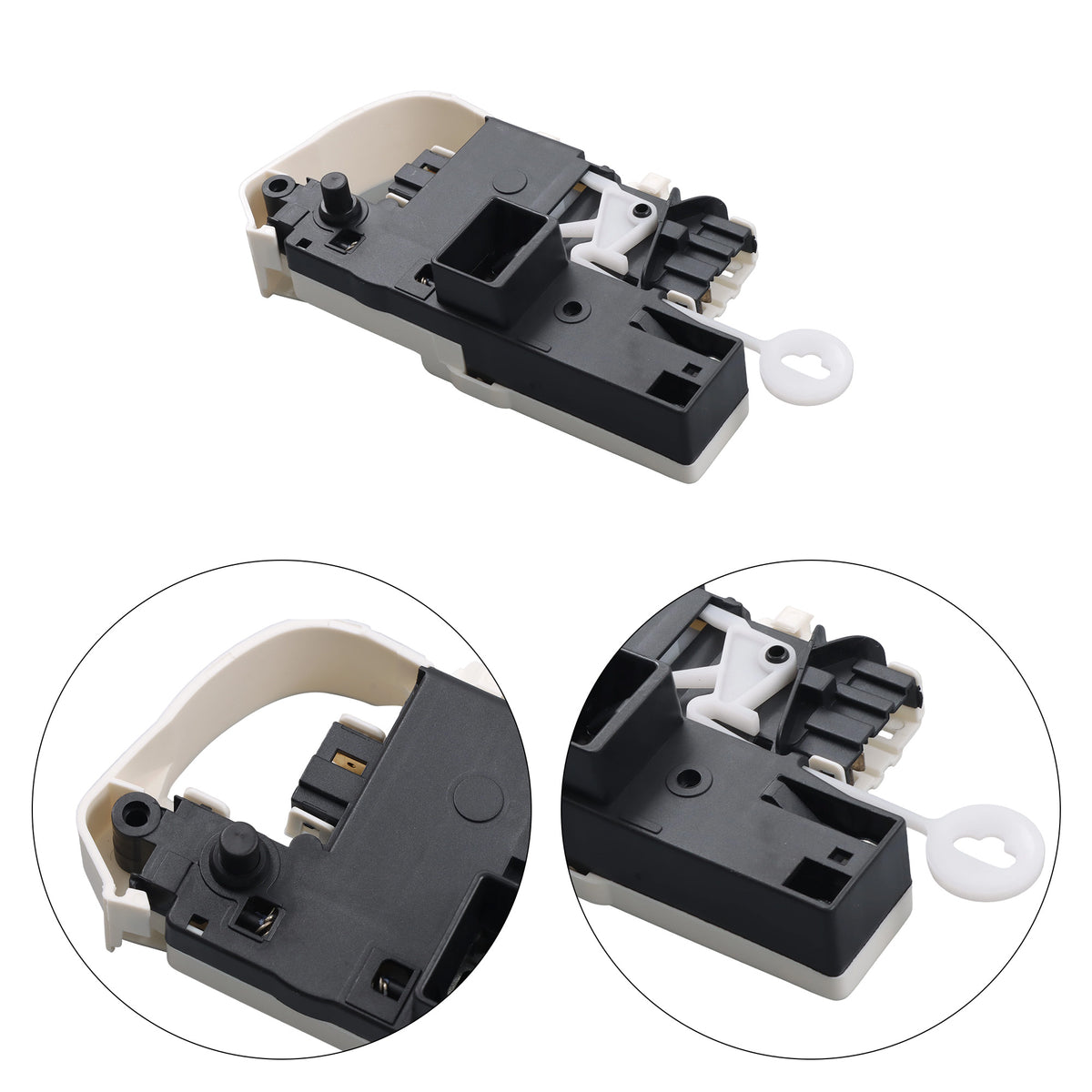

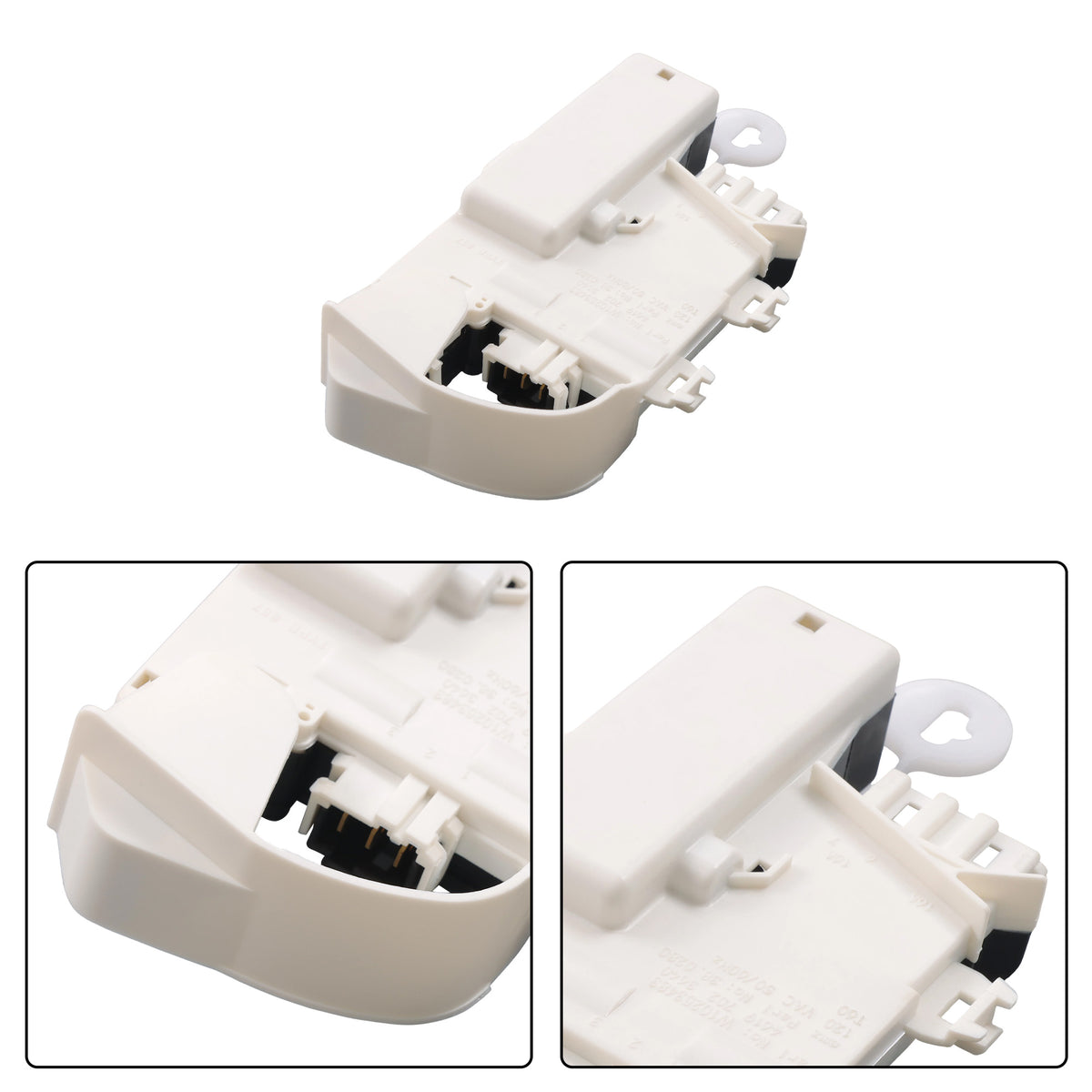

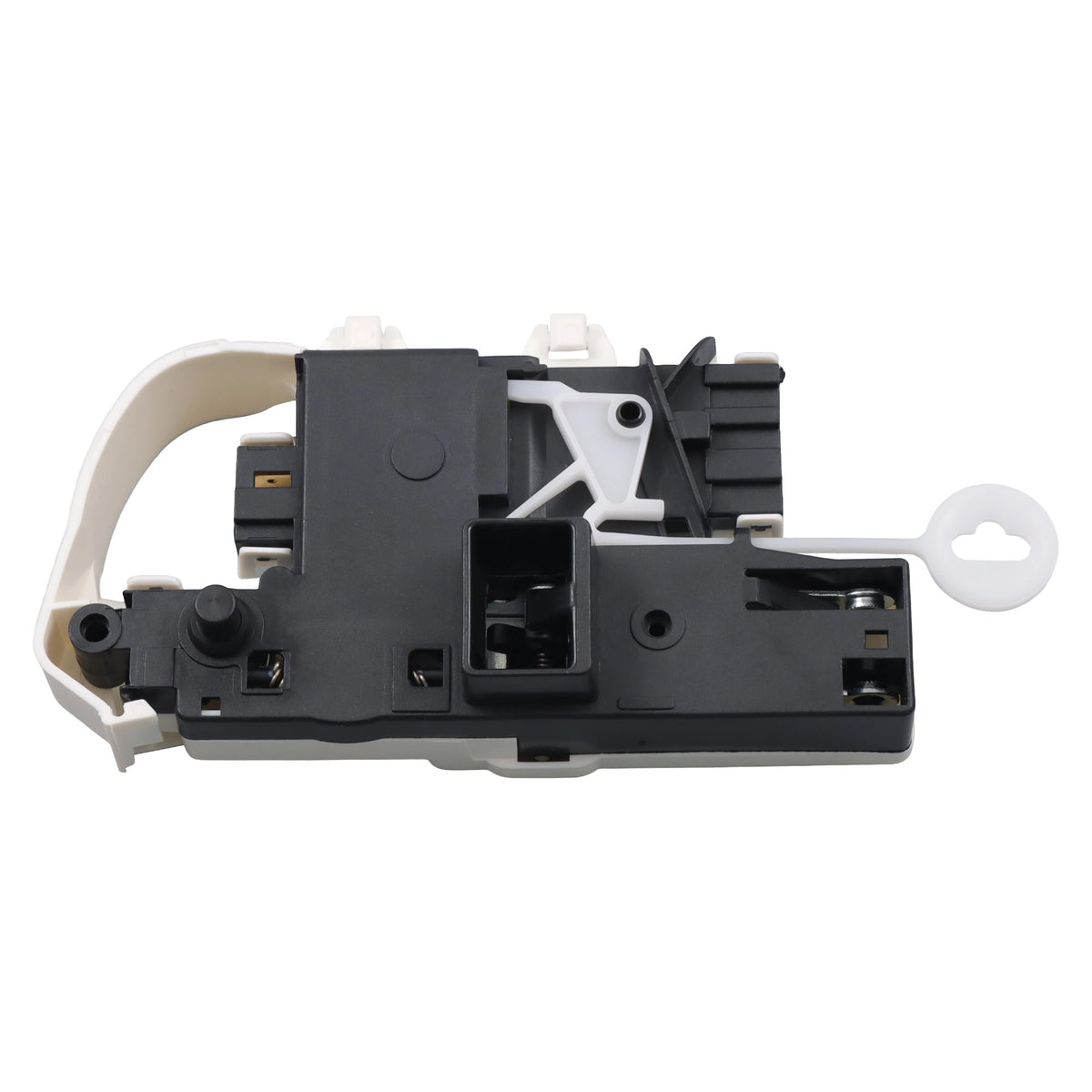

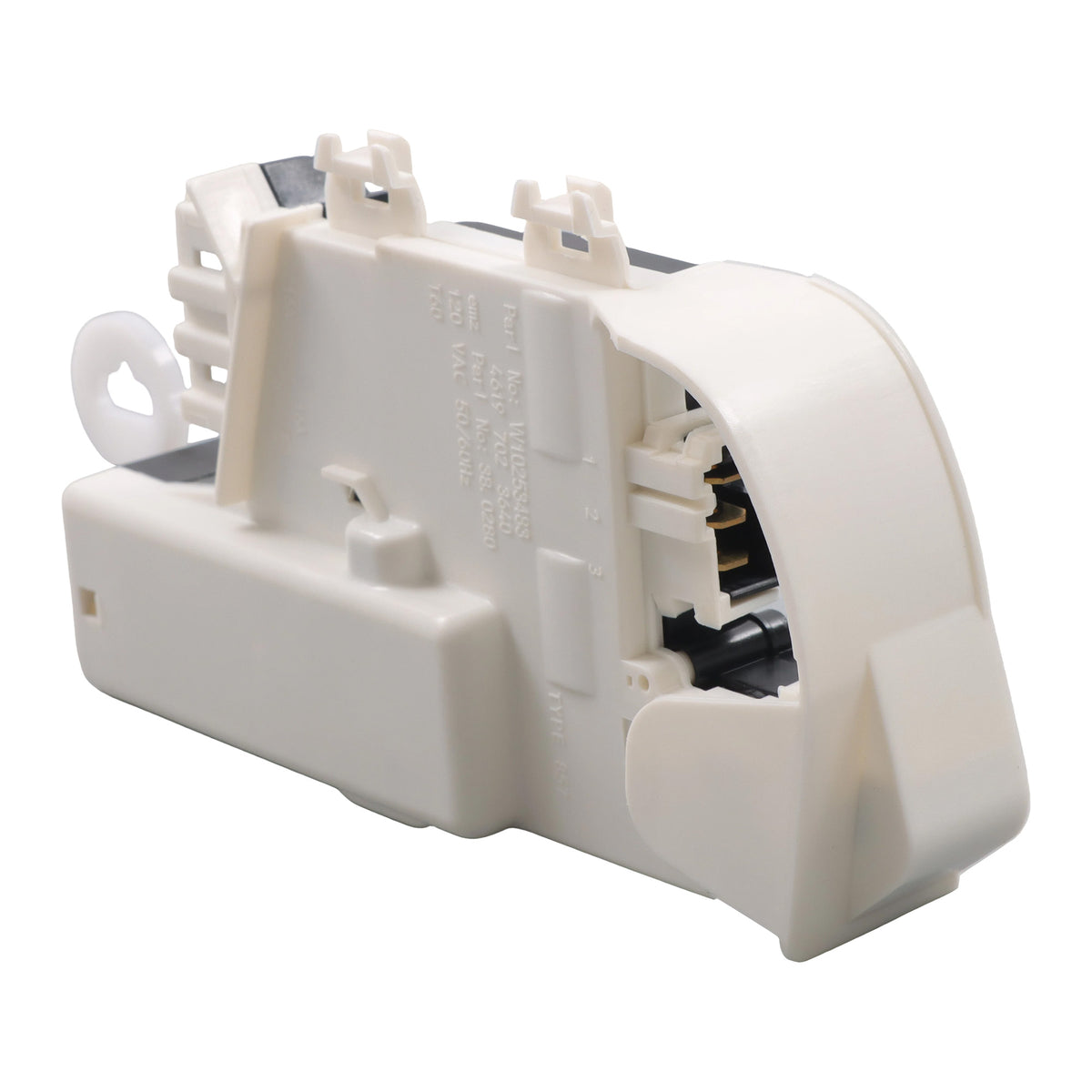

labwork W10253483 Front Load Washer Door Lock Replacement for Whirlpool and Kenmore
Couldn't load pickup availability
- Product Category Washer Door Lock Assembly
- OE Number W10253483, WPW10253483, 8540772, 8540222, EDR15091X1, 1515091, PS11751211, EAP11751211
- MPN W10253483, WPW10253483
- Material Copper, Iron, Plastic
Market@labworkauto.com
Product Description
Restore proper door-lock operation on compatible front-load washing machines with this replacement electronic door lock assembly. The copper, iron, and insulated plastic construction supports reliable electrical operation, secure mounting, and safe washer-cycle control.
Compatibility
Whirlpool Models
MWFW8500SR, MWFW9200SQ, MWFW8300SW, WFW8200TW, WFW8300SW, WFW8400TB, WFW8400TE, WFW8400TW, WFW8410SW, WFW8500SR, WFW9050XW, WFW9150WW, WFW9200SQ, WFW9200SQA, WFW9250WL, WFW9250WR, WFW9250WW, WFW9351YL, WFW9351YW, WFW9400SBA, WFW9400STA, WFW9400SWA, WFW9400SZA, WFW9450WL, WFW9450WR, WFW9450WW, WFW9550WL, WFW9550WR, WFW9550WW, WFW9700VA, WFW9700VW, YWFW9050XW, YWFW9151YW, YWFW9351YW.
Maytag Models
YMHWE301YW, YMHWE251YL, YMHWE251YG, YMHWE301YG, MHWE200XW, MHWE201YW, MHWE250XL, MHWE300VF, MHWE300VW, MHWE500VP, MHWE500VW, MHWE900VJ, MHWE900VW, MHWZ400TB, MHWZ400TQ, MHWZ600TB, MHWZ600TE, MHWZ600TK, MHWZ600TW, MHWZ600WR.
Other Compatible Models
YNFW7300WW00, NFW7300WW00, NFW7300WW01, NFW7300WW02, YIFW7300WW00, IFW7300WW00, IFW7300WW01, IFW7300WW02.
Kenmore Models
Compatible Kenmore front-load models include 1102647751K, 11047532601, 11047797800/801, 11047798801, 11047532600/03/04/05, 11046462500/501, 11046472500/501, 11047511700/701, 11047531700/701/702, 11047562700, 11047567700/701, 11047512600/01/02/04/05, 11047542600/01/02/03/04/05, 11047561601/02/03/04, 11047566600/01/02/03, and 11047571600/01/02/03/04.
Replacement Part Numbers
- W10253483
- WPW10253483
- 8540772
- 8540222
- EDR15091X1
- 1515091
- PS11751211
- EAP11751211

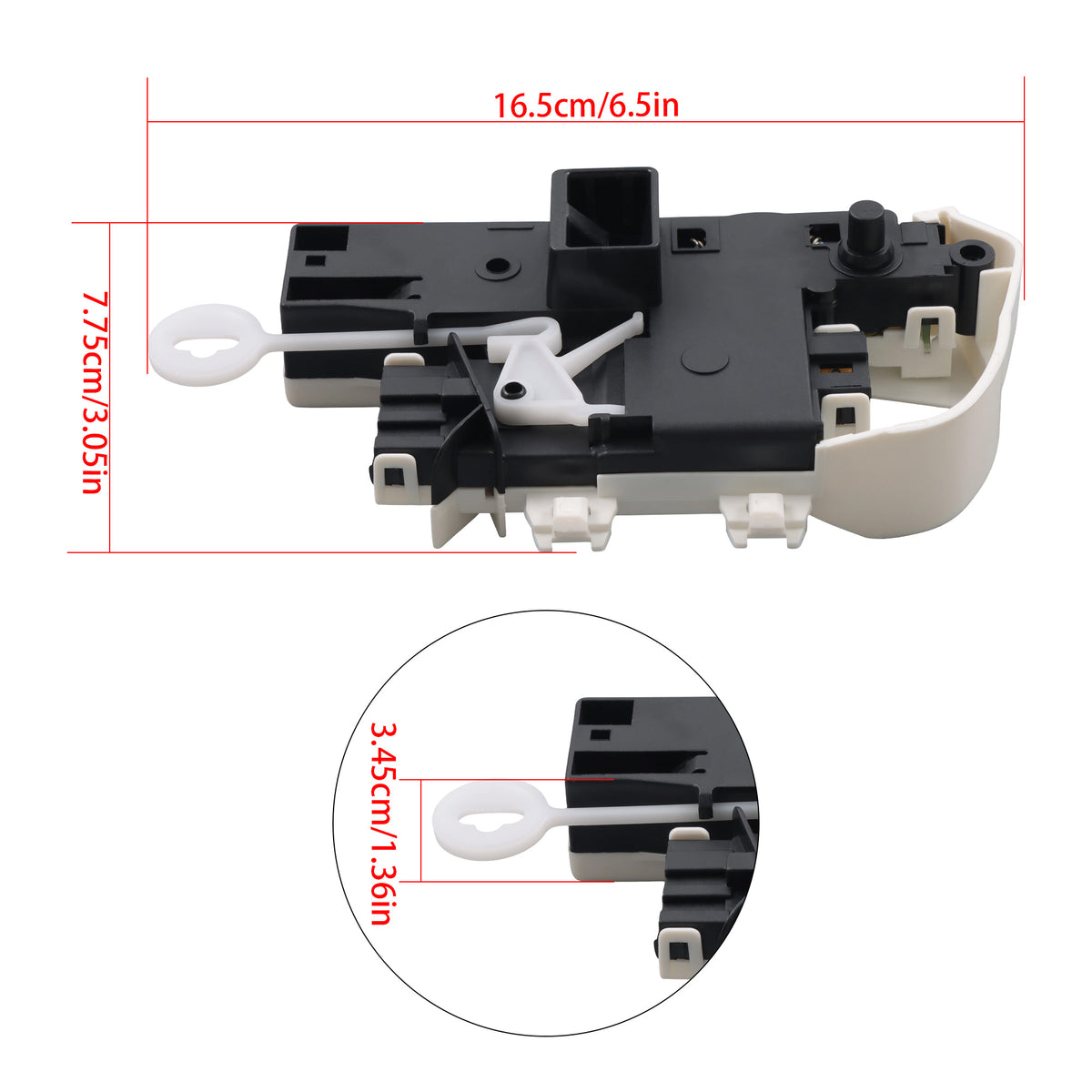

Specifications
- Type: Front-Load Washer Door Lock Assembly
- Function: Electronic Door Lock and Unlock
- Material: Copper, Iron, and Plastic
- Application: Household Front-Loading Washing Machine
- Fitment Type: Direct Replacement
- Terminal Connections: Factory-Style
- Mounting Holes: Factory-Style
Features
- Helps resolve washer door-lock failure and error messages
- Receives signals from the washer control system
- Automatically locks and unlocks during the wash cycle
- Copper components support electrical conductivity
- Iron mounting base provides structural reinforcement
- Plastic housing provides insulation
- Matching terminals and mounting points simplify replacement
- Basic tools are generally sufficient for installation
Package Includes
- 1 × Front-Load Washer Door Lock Assembly
- W/o Installation Instructions
Important Note
Please verify the washer brand, complete model number, connector layout, terminal configuration, mounting holes, and part number before ordering. Disconnect power and water supplies before servicing the appliance. Professional appliance repair is recommended.
