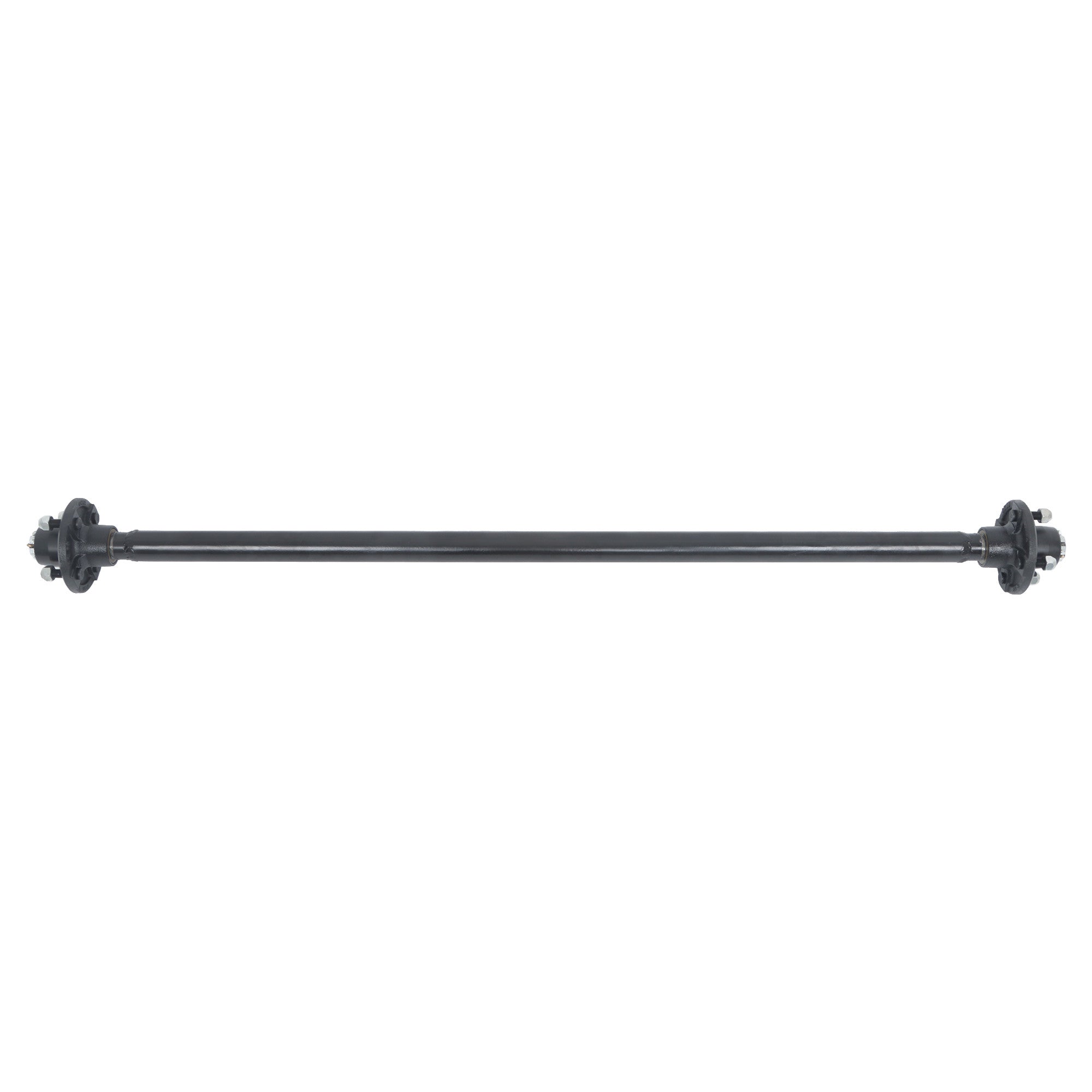

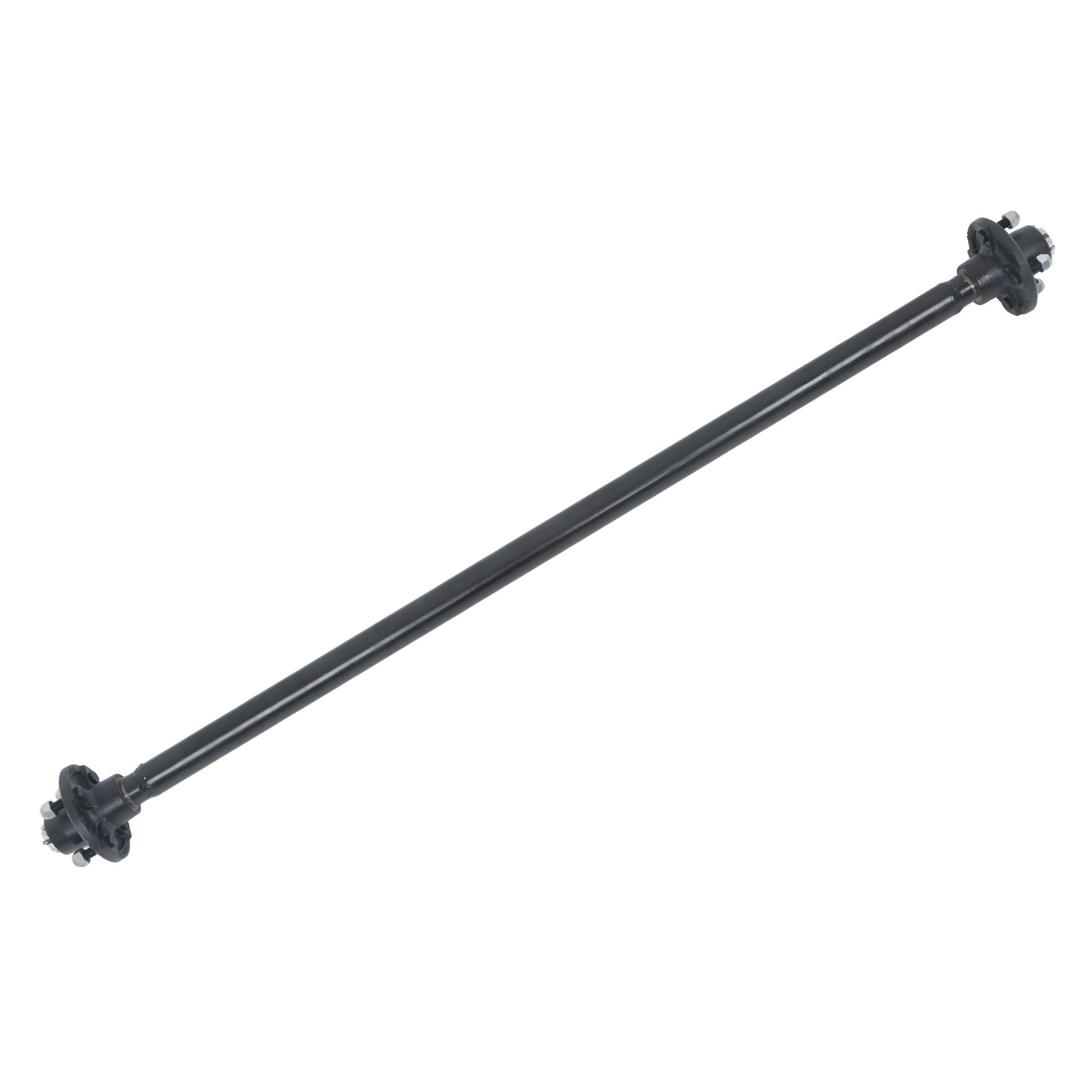

Labwork U-Bolt Kit 2000lbs 4 Lug Trailer 54" Hub Face Trailer Boat Axel

About Labwork

Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features

An axle is a component that holds wheels in place and rotates with the wheels to send or receive mechanical power or allow the -wheels to freely rotate on it.
The axle will bear and share the weight of the trailer.
Become a carrier for installing shock absorption systems, braking systems, tires, and steel rims.

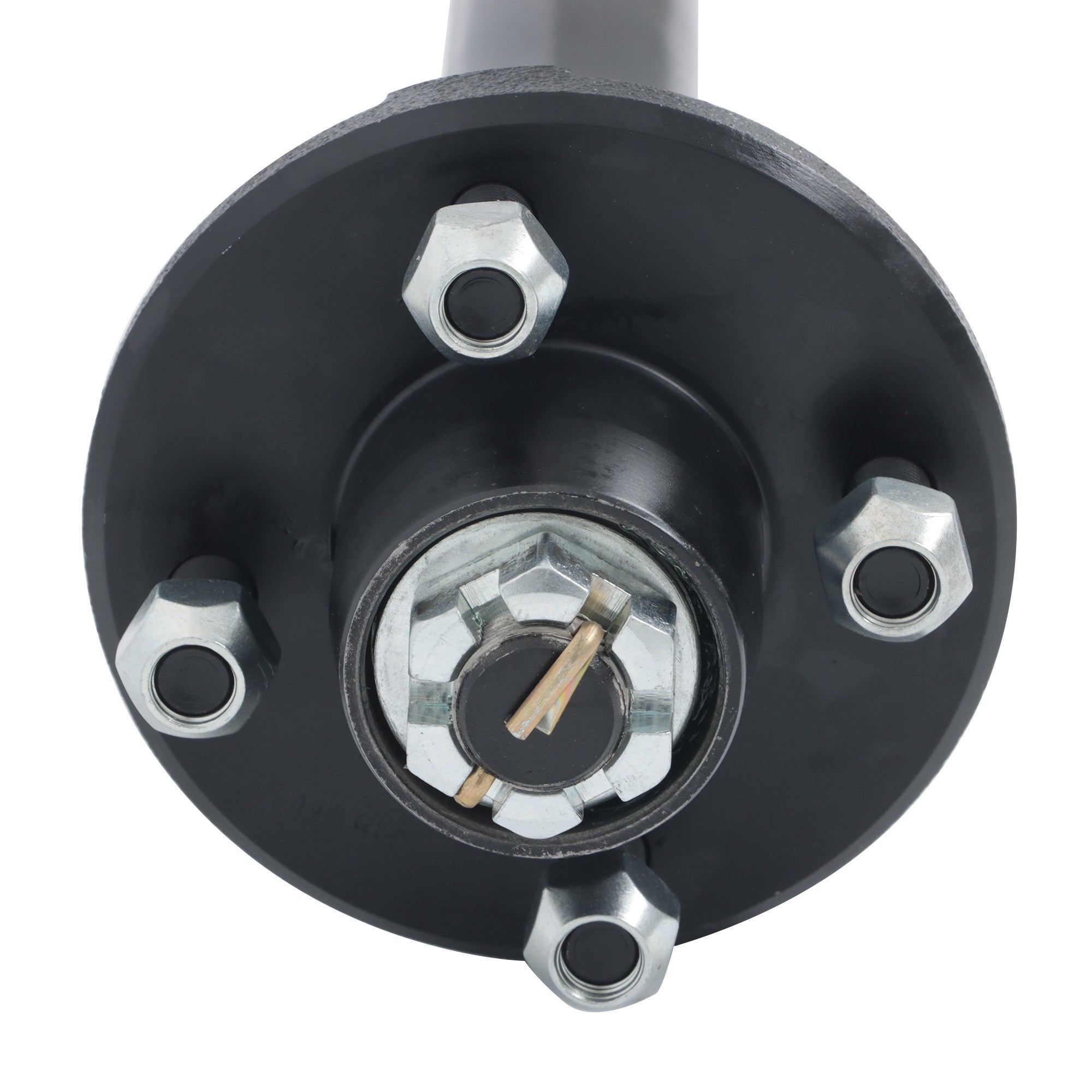

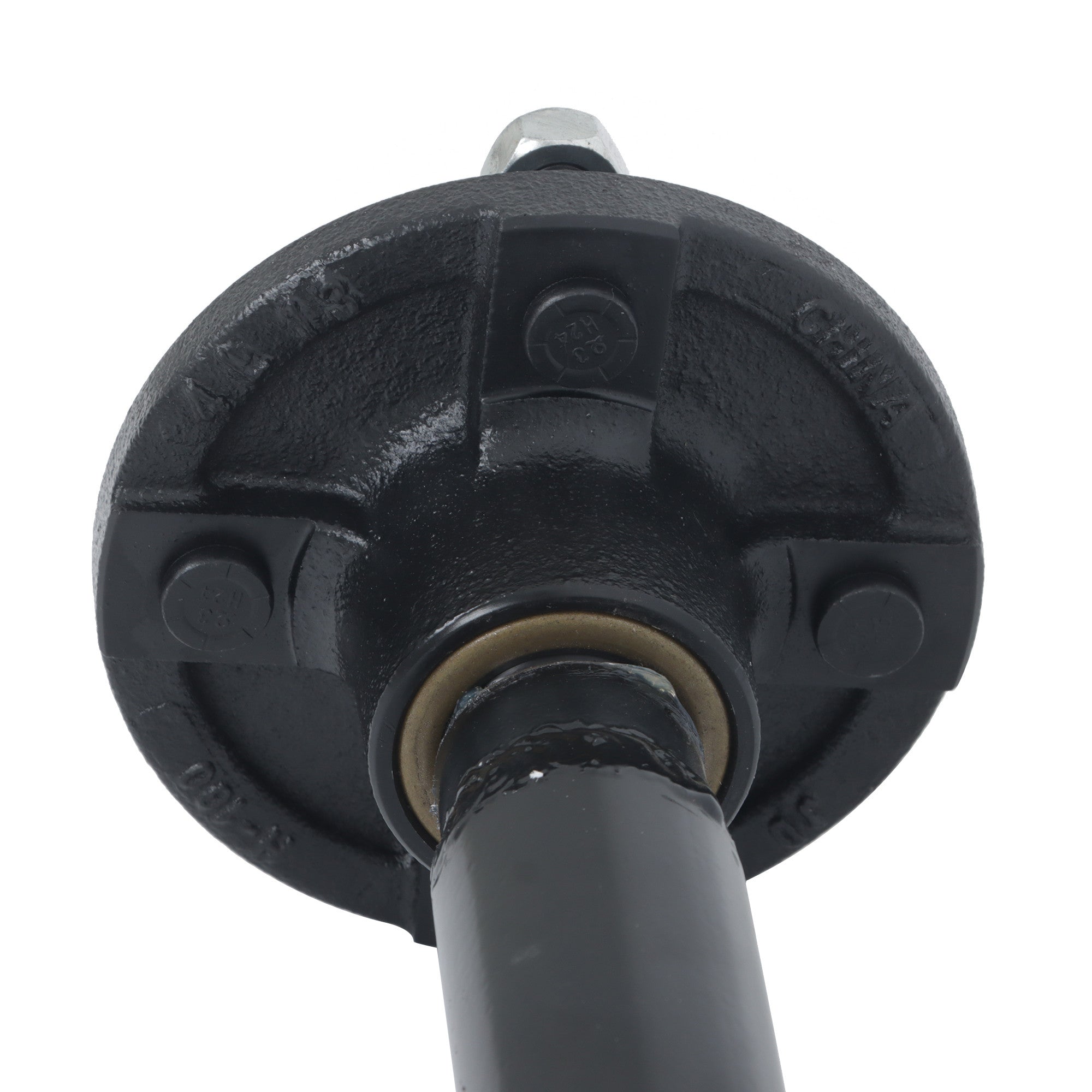

Pre installed with wheel hub kit, equipped with U-shaped bolt kit, can be matched according to needs; Connect the leaf spring, tire, and wheel components. The leaf spring bracket is not welded and shipped in bulk. It needs to be welded according to one's own needs

Fitment

Inner bearing: L44649
Outer bearing: L44649
Pipe diameter: 45mm
Wall thickness: 5mm
Suitable for all light trailers, including but not limited to trailer axles, ship trailer axles, car trailer axles, ATV trailer axles, lawn and landscape trailer axles, motorcycle trailer axles, cargo trailer axles, enclosed trailer axles, RV trailer axles, etc

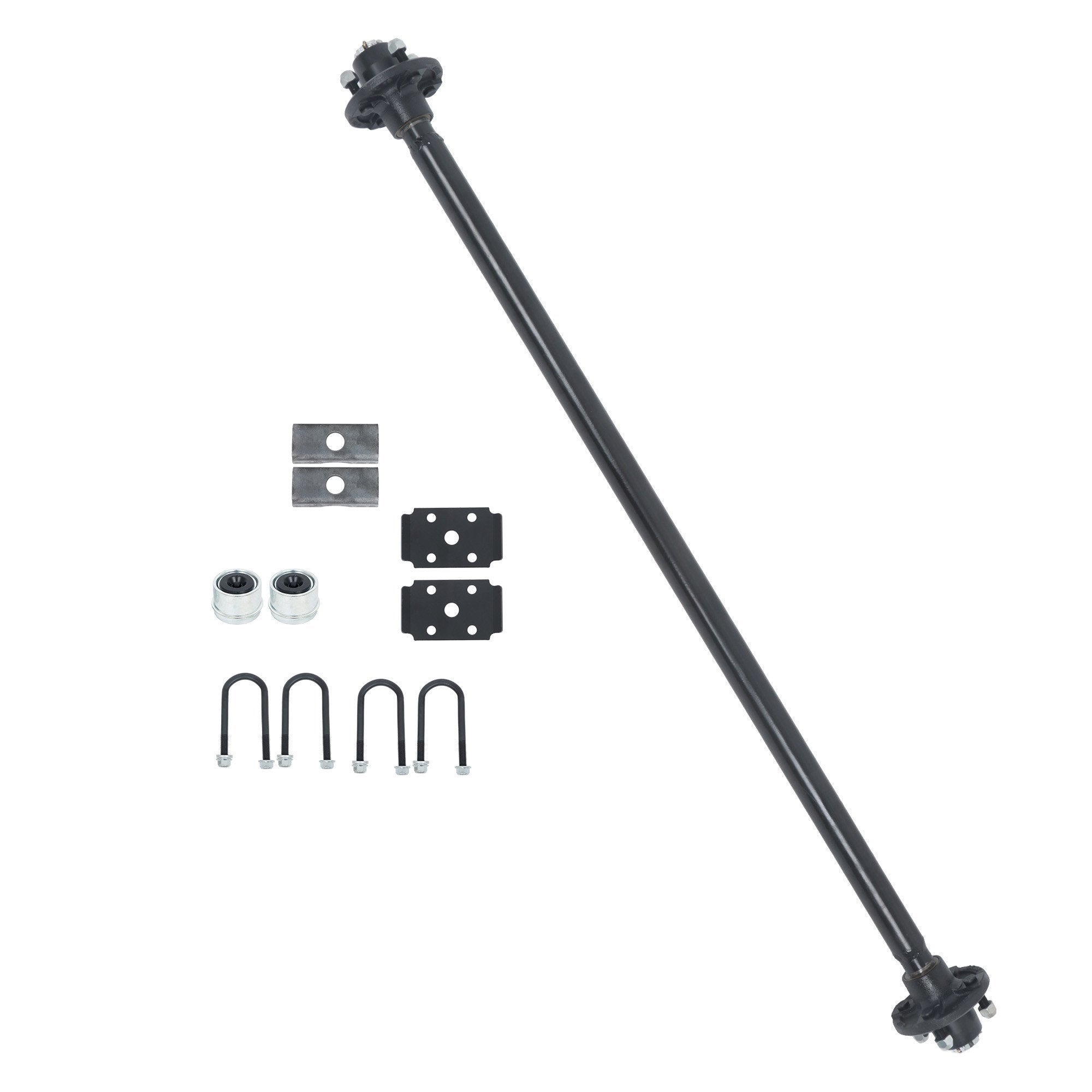

Package Includes

1 * Axle with wheel hub kit
2 * gasket
2 * Spindle Nut
2 * Open mouth sales
2 * Dust cover
1 * U-shaped bolt kit (4 * U-shaped bolts+2 * plates)

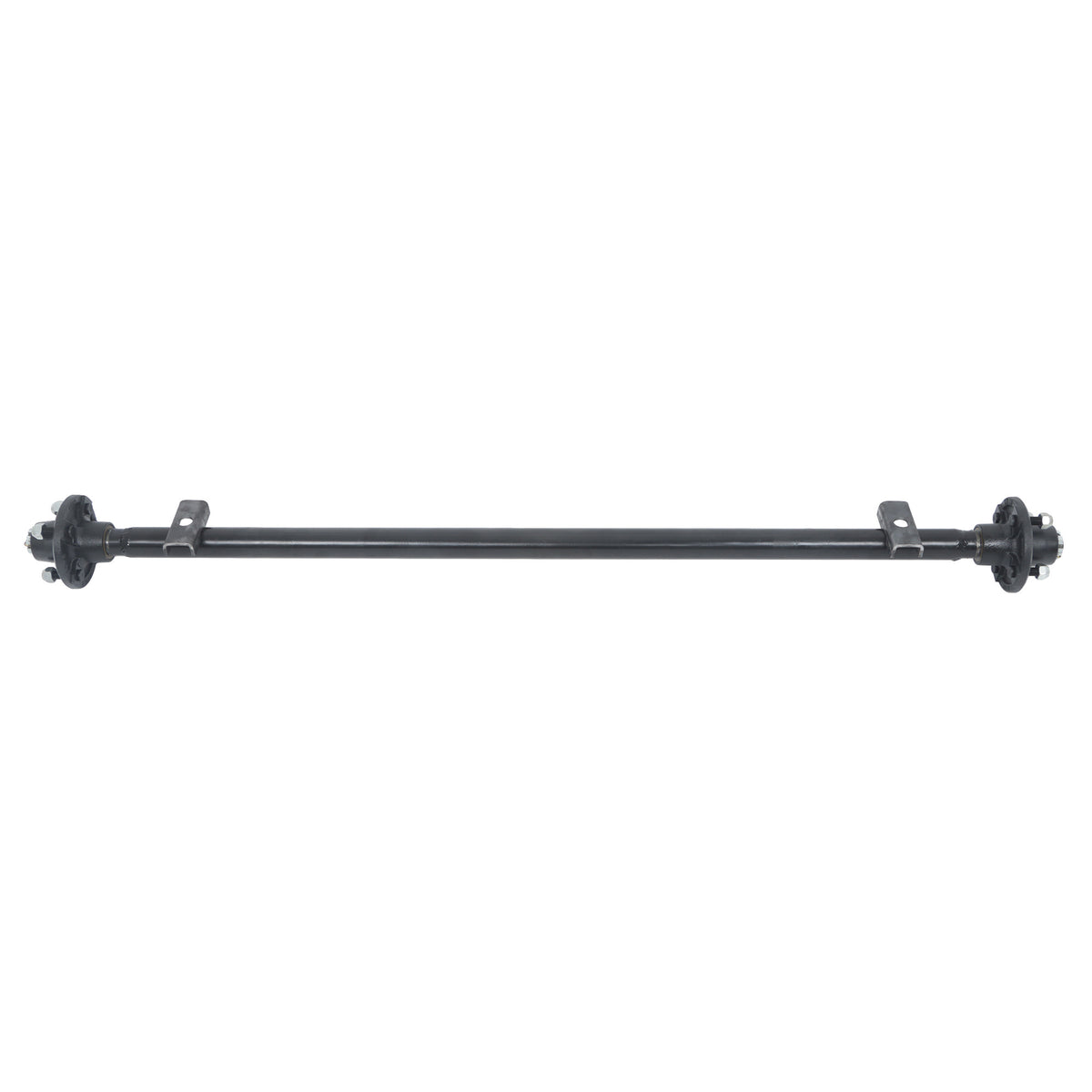

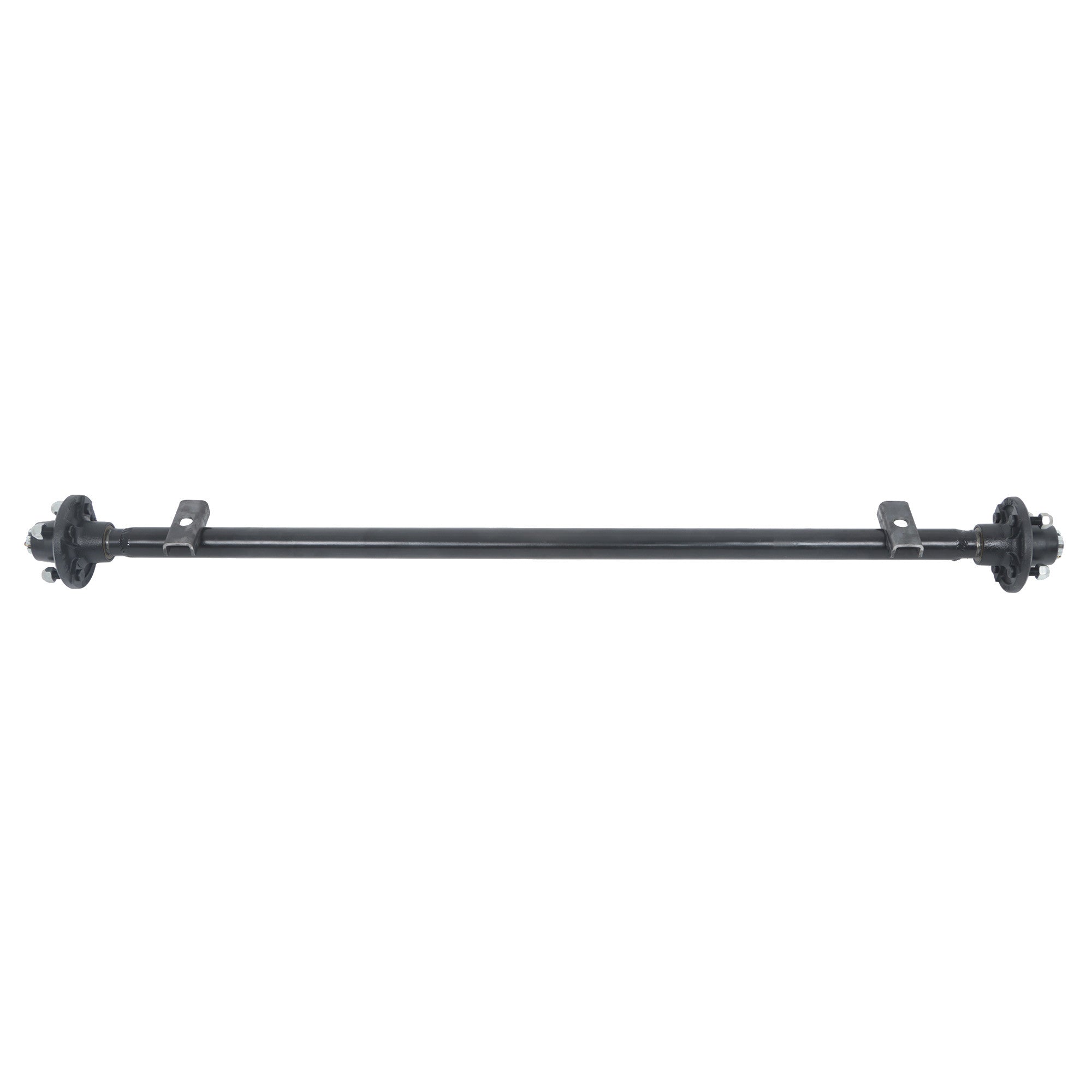

2 * Leaf spring bracket (unwelded, needs to be welded as needed)

W/o Product Instruction

Frequently asked questions：

1. How to determine the axle size I want
Answer: If you want to get the correct axle, you need to carefully check the spacing between your wheel hub surfaces and leaf springs. Please refer to the following instructions on how to measure.
If you build a trailer from scratch, then you don't have to worry about measuring anything. Just choose the width of the axis you want.
Wheel hub spacing (HF):
The length of the shaft measured from the bottom of one wheel stud to the bottom of the other wheel stud.
This dimension can be obtained by measuring the point where two wheels meet on one side of the shaft to the point where two wheels meet on the other side of the shaft.
This measurement is very important, and there is an allowable error of about one inch between your measurement spacing and the dimensions we display.
Leaf spring spacing (SC):
The approximate width of the trailer. It is a measurement from the center of the spring seat on one side of the axle to the center of the spring seat on the other side. This axle beam is welded with spring seats.
