Labwork Turbo Engine Timing Locking Tools Set For Opel Vauxhall Chevrolet

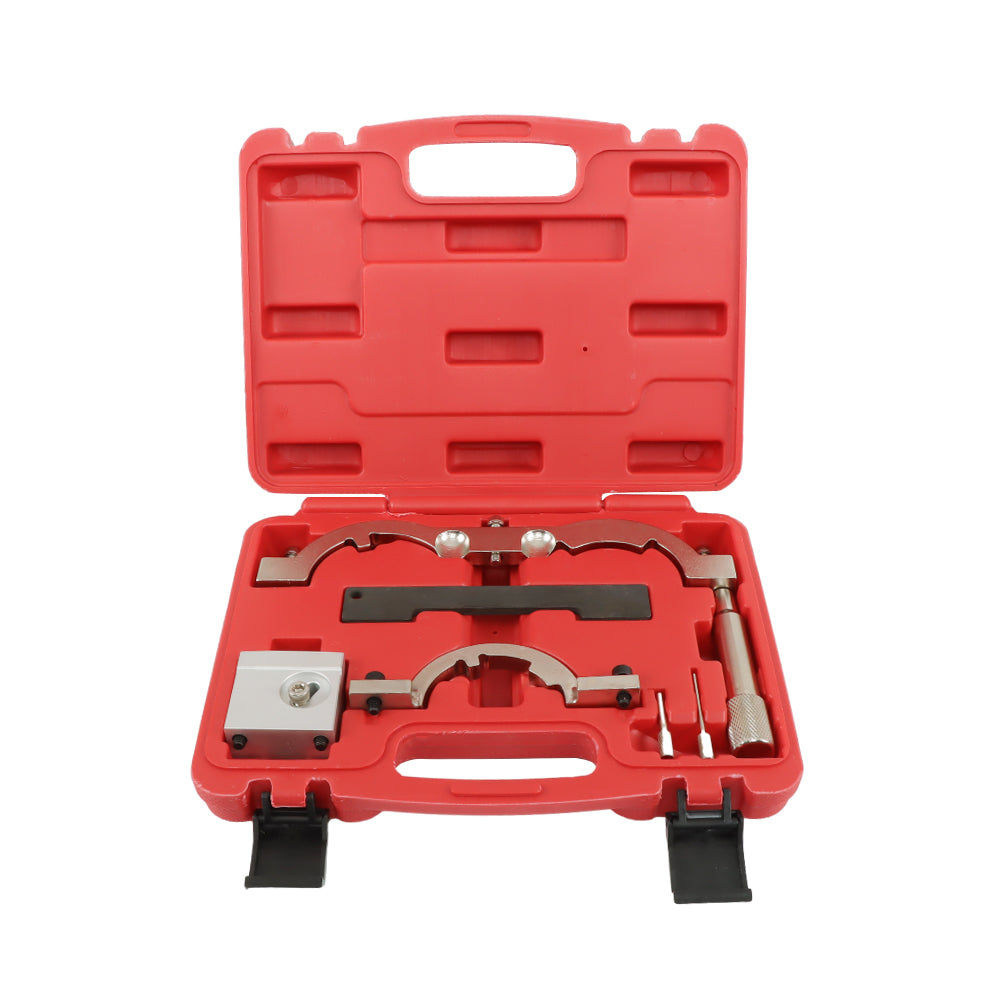

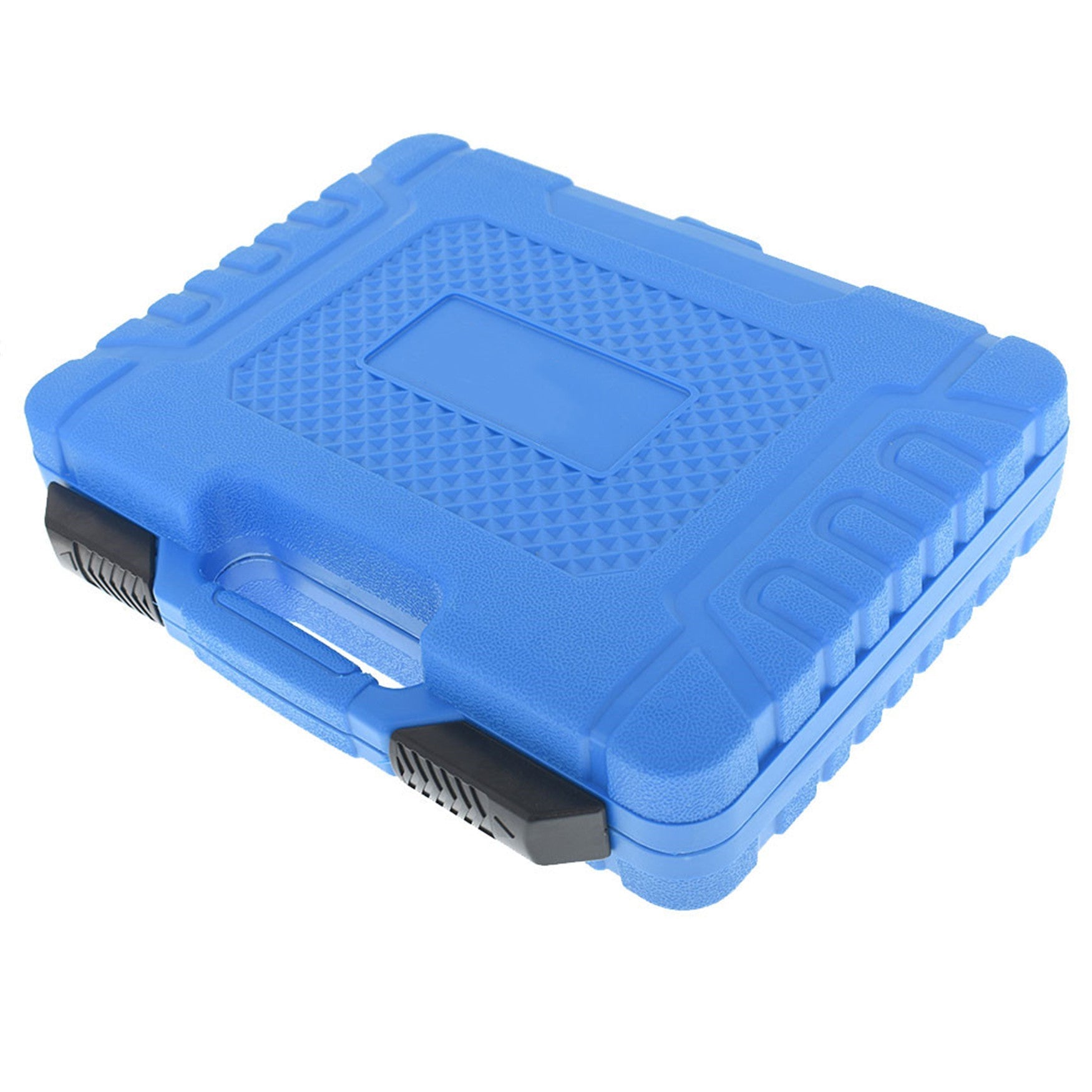

Note: Red box and blue box are shipped randomly

Fit for Opel/Vauxhall Chevrolet

1.0 1.2 1.4 Turbo Engine Timing Tools Set from

2009 - onwards

Application:

Fit for ：

Vauxhall / Opel :

Adam 1.2 1.4 (2012- ), Ampera 1.4 (2011- ),

Astra-J 1.4 (2009),

Corsa-D 1.0 1.2 1.4 (2009-),Cascada 1.4 (2013-),

Insignia 1.4 (2011-), Meriva-B 1.4 (2010-),

Mokka 1.4 (2012-), Zafira-C Tourer 1.4 (2011-)

Chevrolet:

Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)

Item Description

Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain fitted to the Vauxhall/Opel twin Cam engines below.

Removal of the timing chain will require the removal of the sump. Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held in the retracted position using a suitable pin. Remove the crankshaft pulley using an appropriate pulley holding tool.

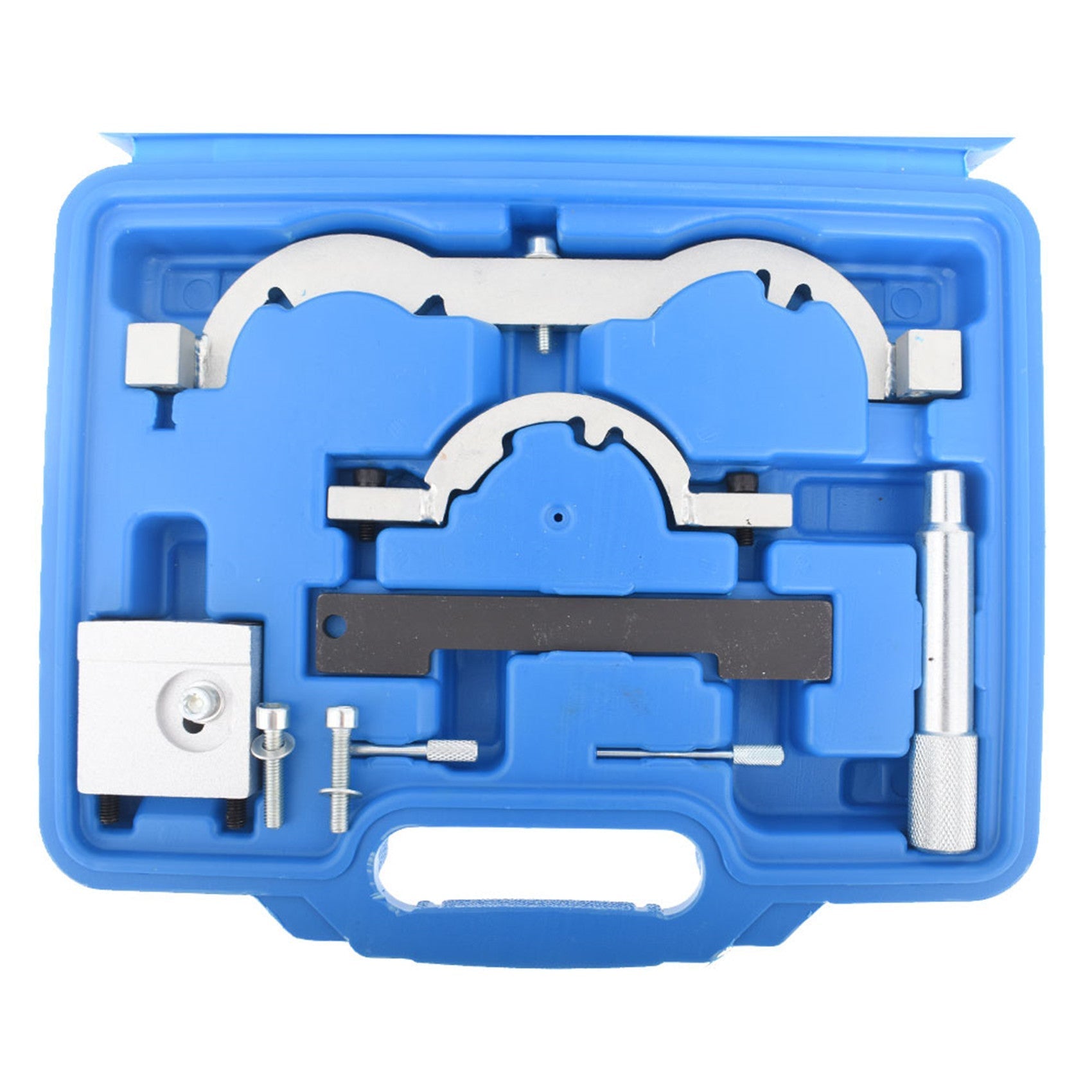

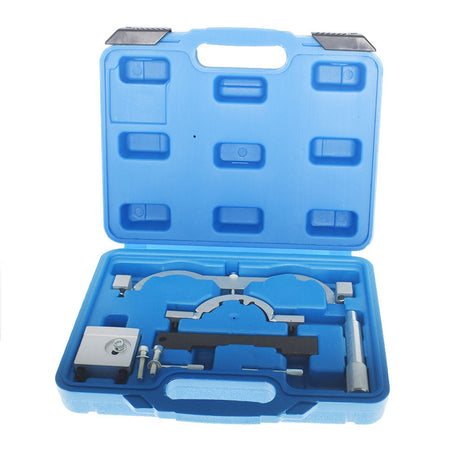

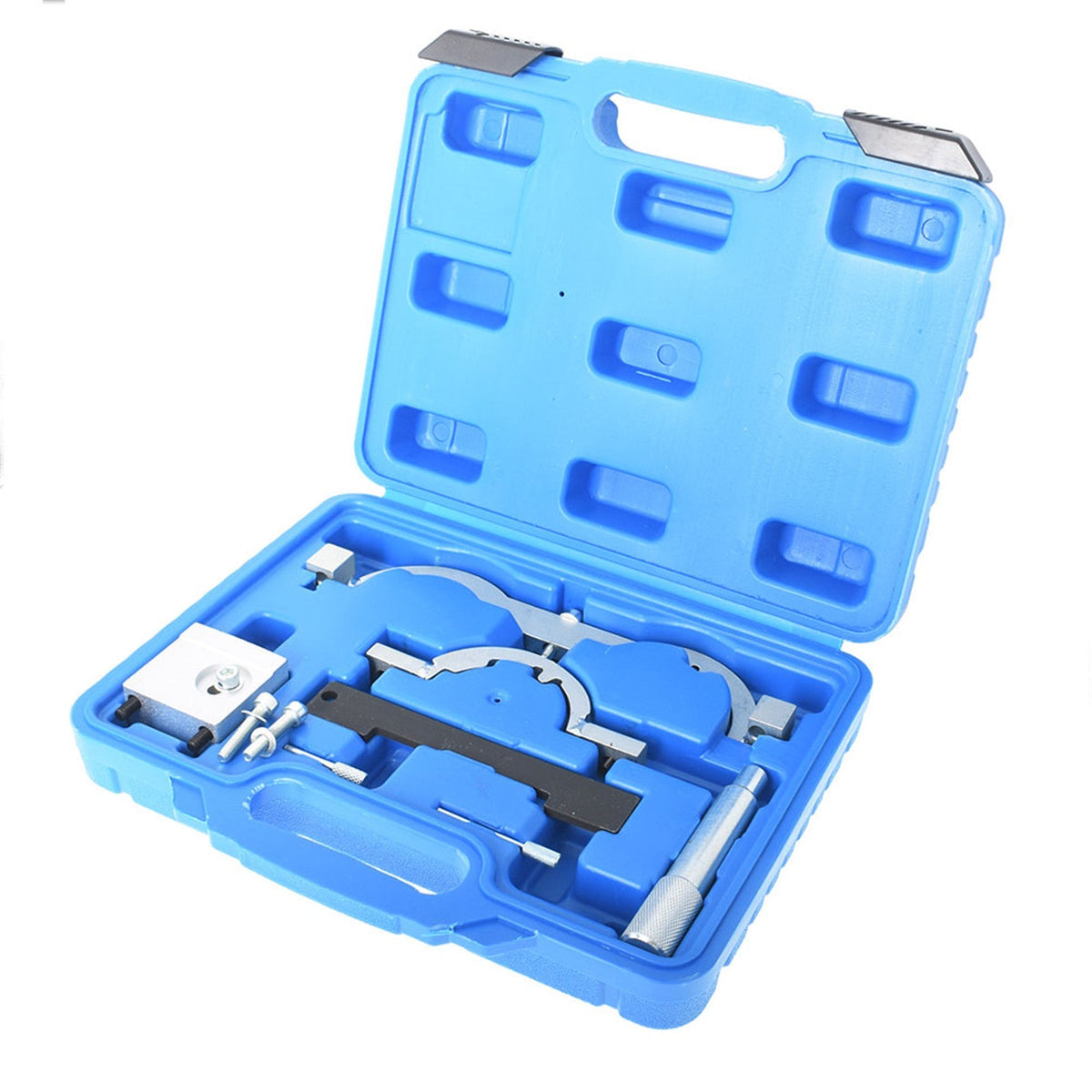

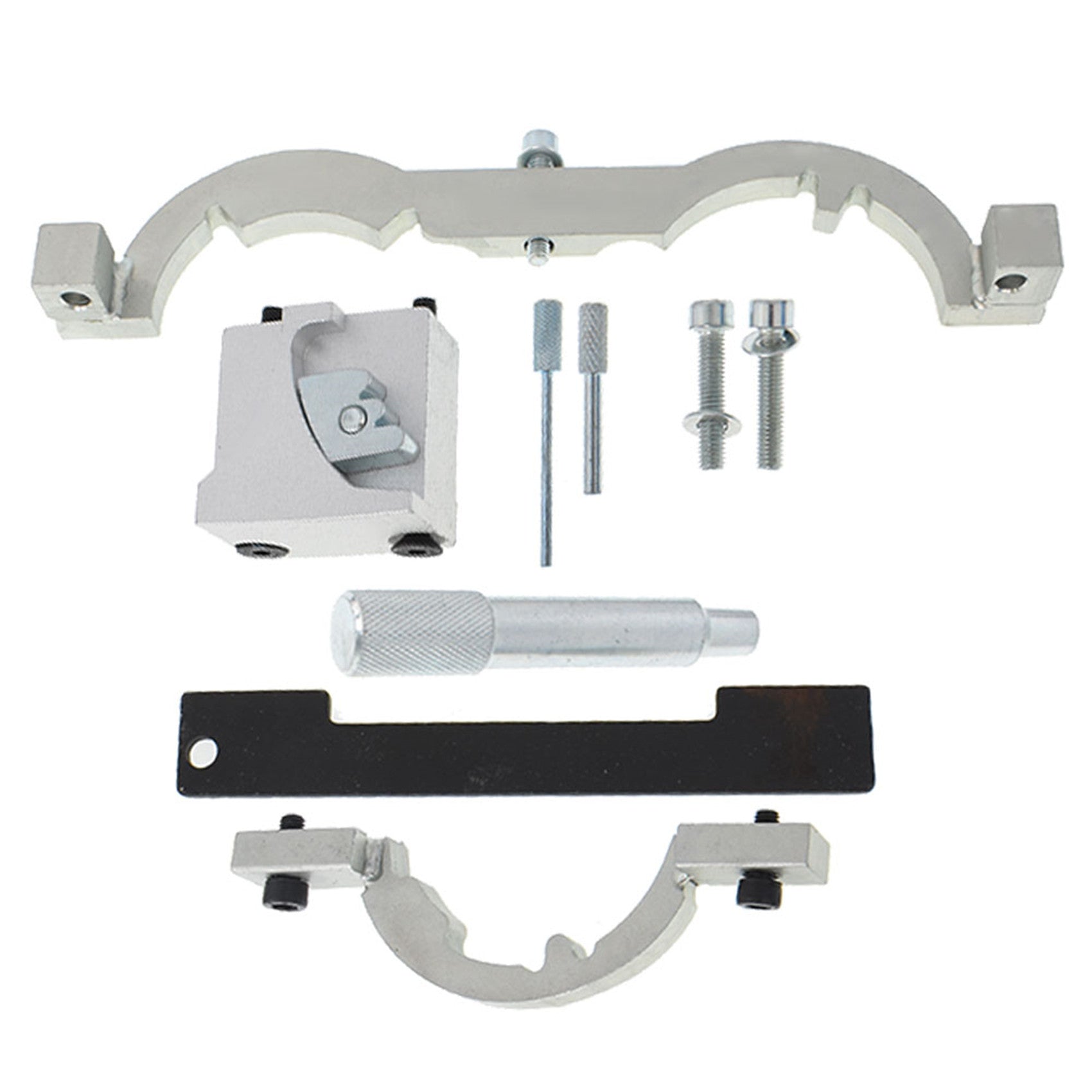

Content;

1. Crankshaft Locking Pin

2. Camshaft Setting Plate

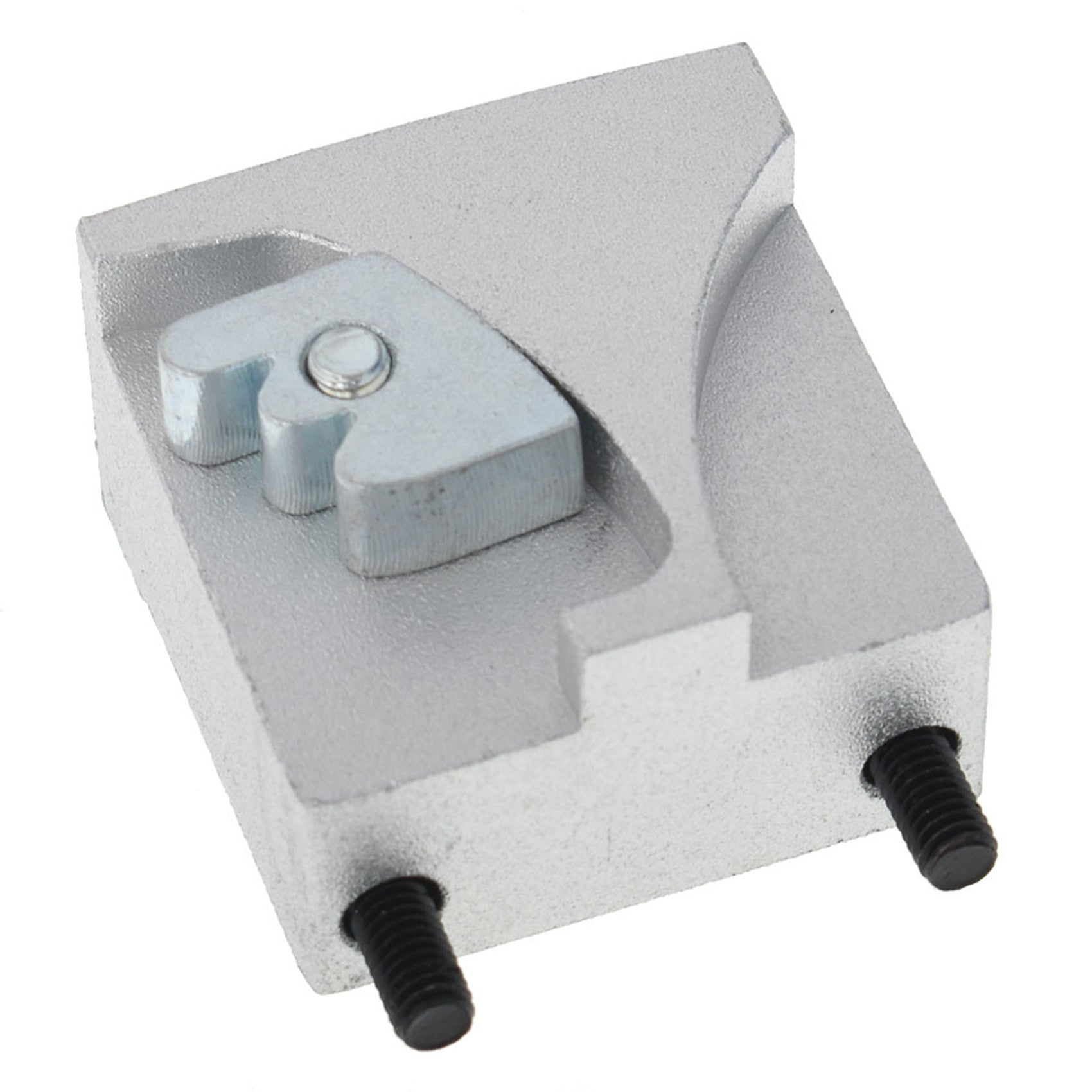

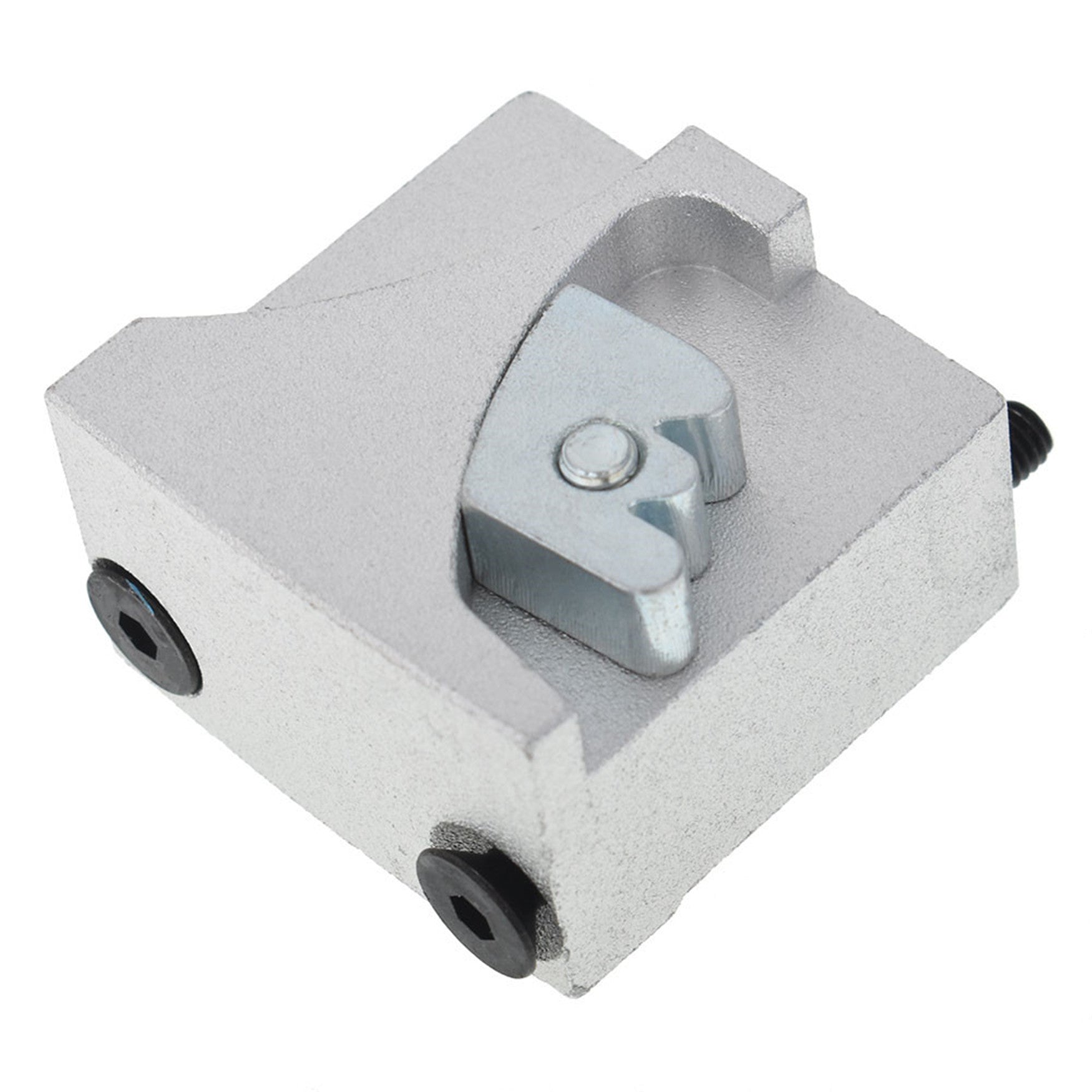

3. VVT Sensor Setting Tool (1.0L)

4. VVT Sensor Setting Tool (1.2 & 1.4L)

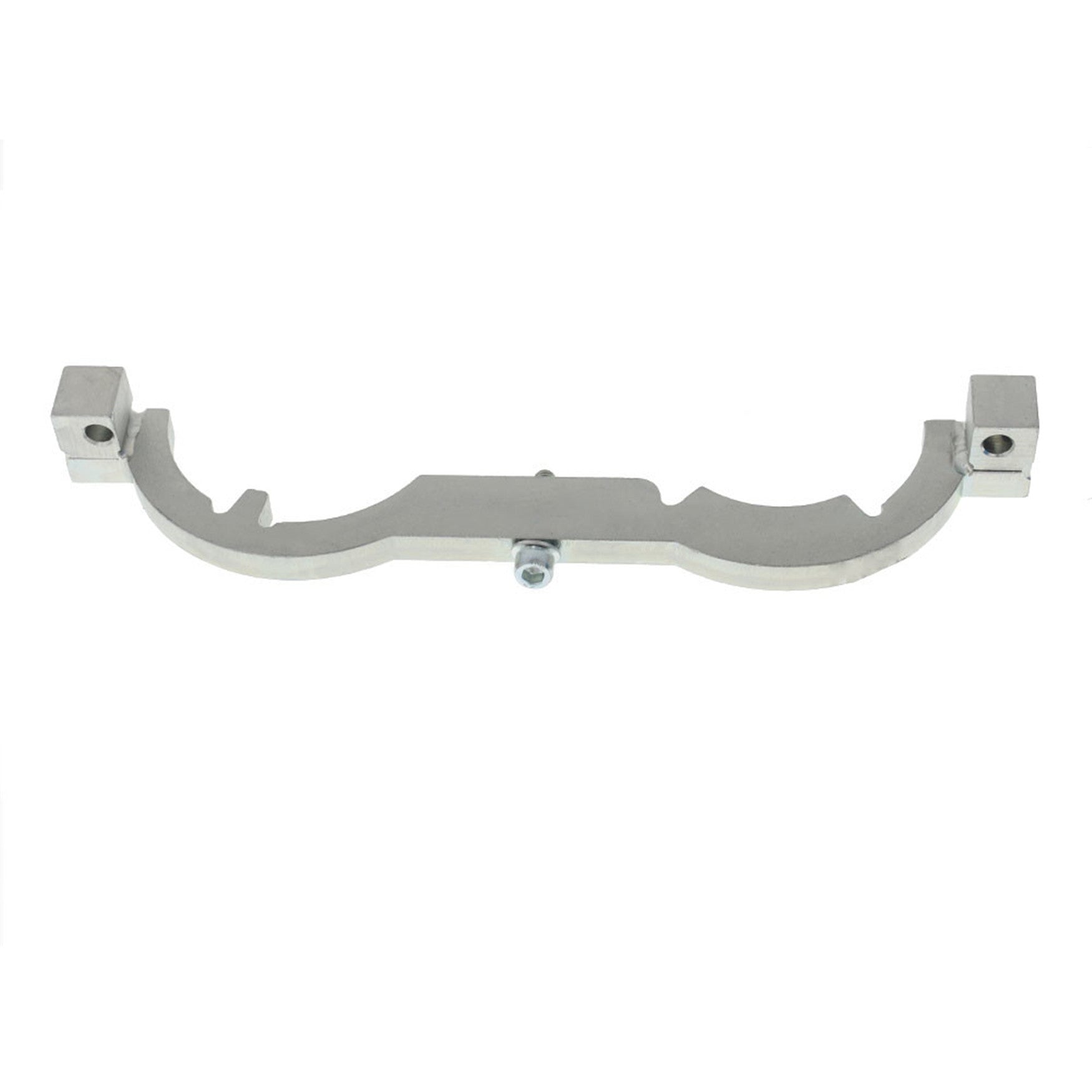

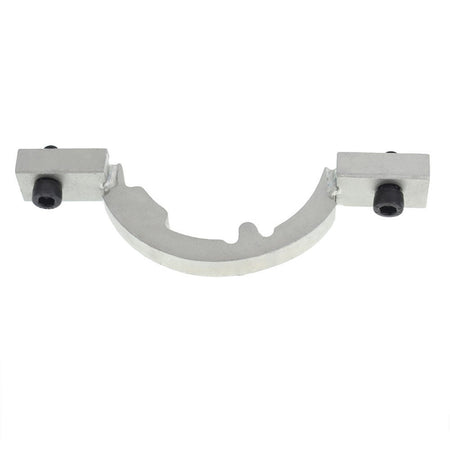

5. Camshaft Sprocket Holding Tool

6. Chain Tensioner Locking Pin

7. Belt Tensionet Locking Pin

Engines Code:

1.0: A10XEP (LDB),

1.2: A12XEL (LWD), A12XER (LDC),

1.4: A14XEL (L2Z), A14XER (LDD), LDU

1.4(T): A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX engines

Fit for :

Adam, Ampera, Astra-J, Aveo, Corsa-D, Insignia, Meriva-B, Mokka, Zafira-C Tourer

Engine Codes:

LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER, LDD/A14XEL, LUJ/114NET, LUJ/A14NEL, A10XEP, A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ/A14NET, LDD/A14XER, LUJ/A14NET, LUH/A14NEL, LUJ/A14NET, LUJ/A14NEL, L2Q/A12XEL, LDC/A12XER, LWD/A12XEL, LDD/A14XEL, LDD/A14XER
