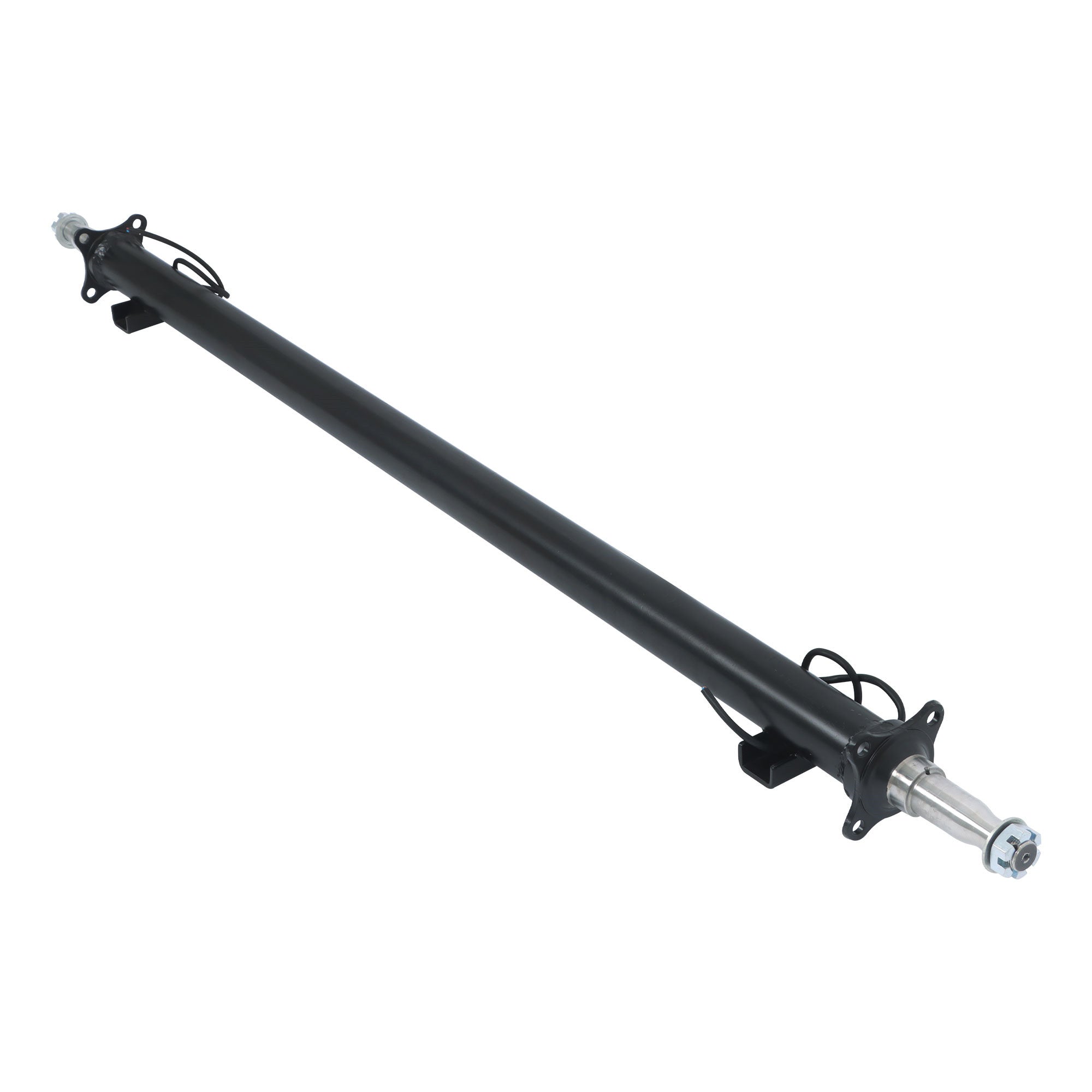

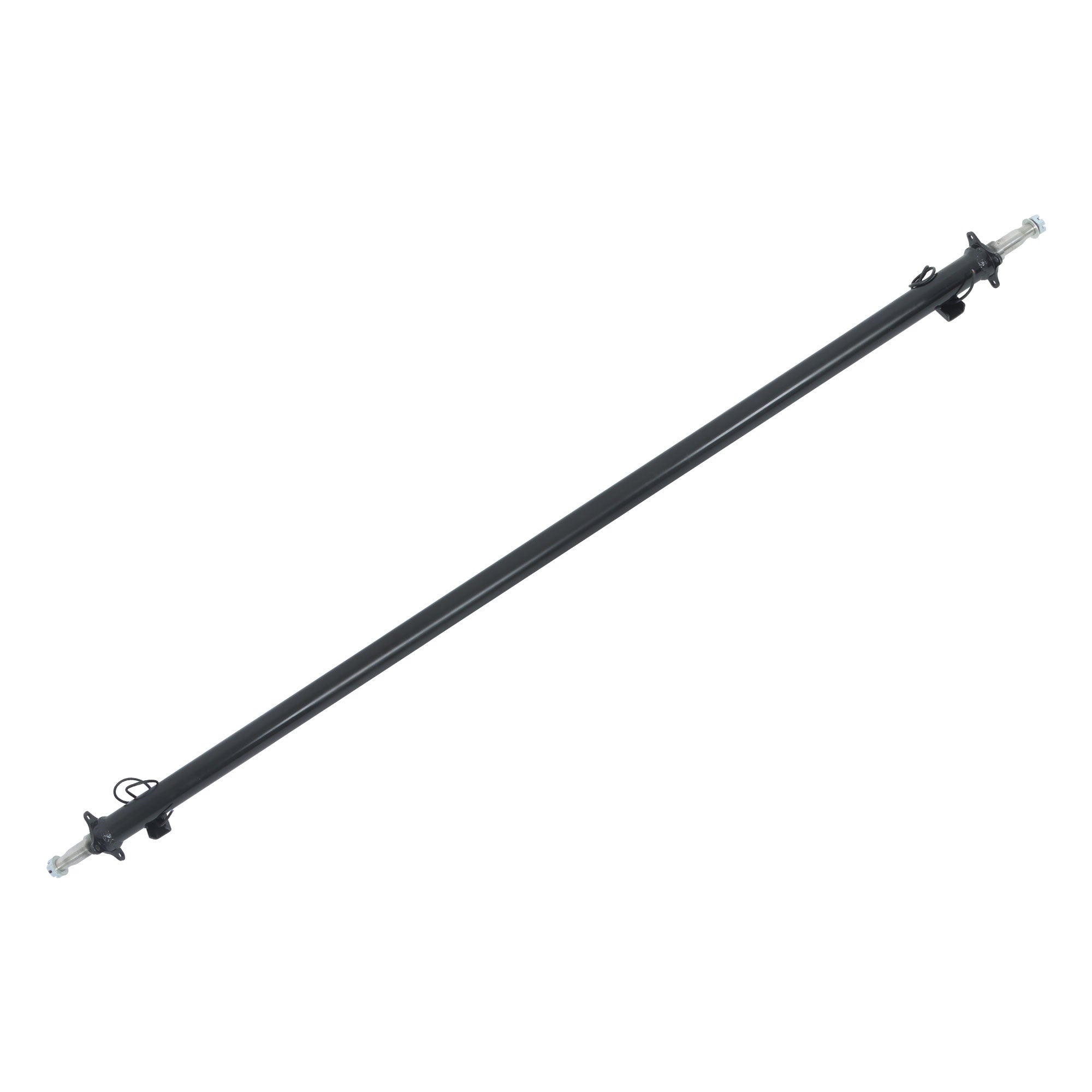

Labwork Trailer Axle only beam W/axle Hub plate spring 61"~95" 46"~80" 3500lbs
Couldn't load pickup availability
About Labwork：
Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.
Fitment:
Suitable For all light trailers, including but not limited to trailer axle, boat trailer axle, car trailer axle, ATV trailer axle, lawn and landscape trailer axle, motorcycle trailer axle, cargo trailer axle, enclosed trailer axle, RV trailer axle, etc
For 3500 pound trailer axle only beam with axle head.
Description：
Inner bearing: L68149
Outer bearing: L44649
Brake flange configuration: 4 bolts
Pipe diameter: 2-3/8"
Wall thickness: 5mm
Various sizes available：
73" hub surface spacing 58" leaf spring spacing
61" hub surface spacing 46" leaf spring spacing
95" hub surface spacing 80" leaf spring spacing
89" hub surface spacing 74" leaf spring spacing
85" hub surface spacing 70" leaf spring spacing

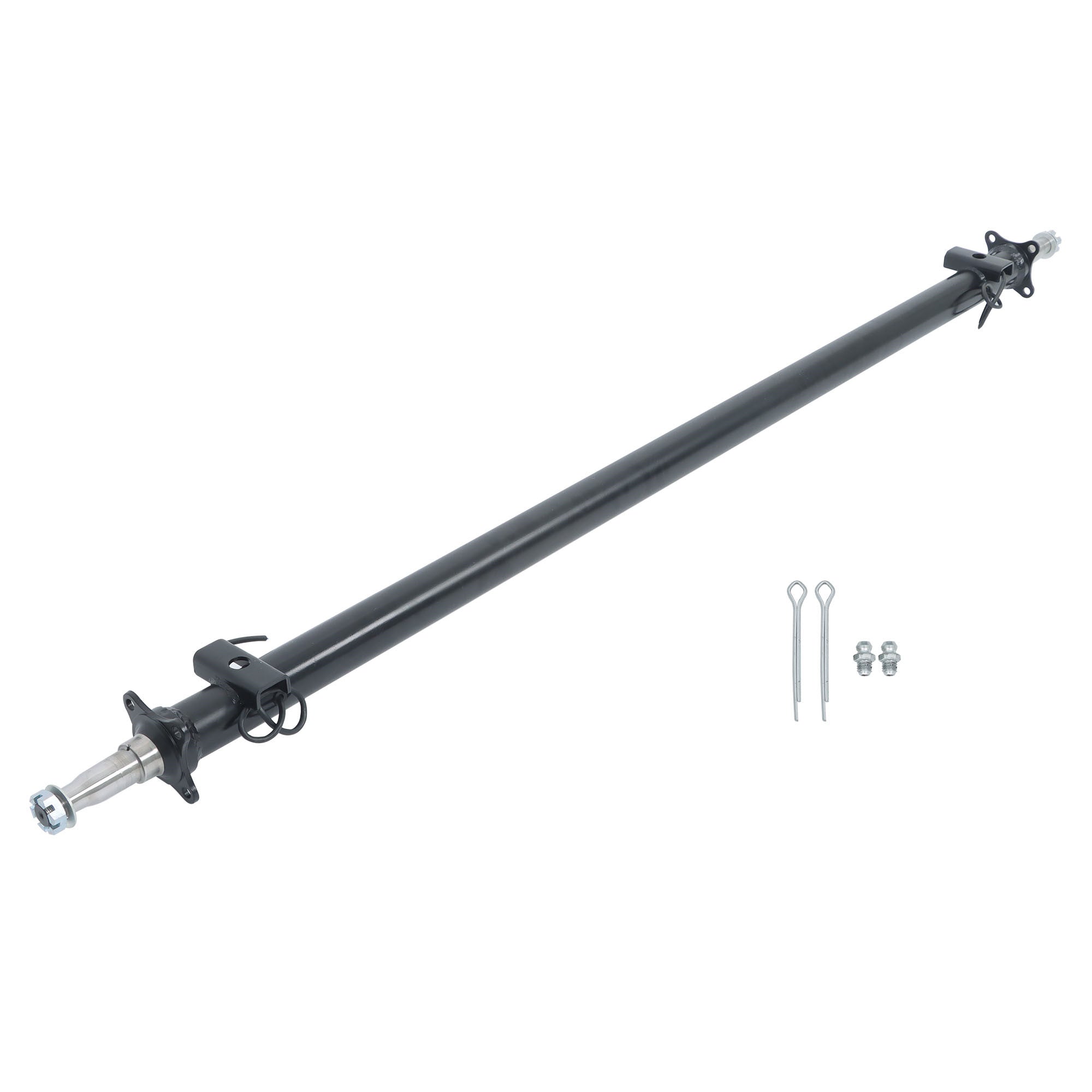

Package Include：
1* axle
2* injection nozzle
2* gasket

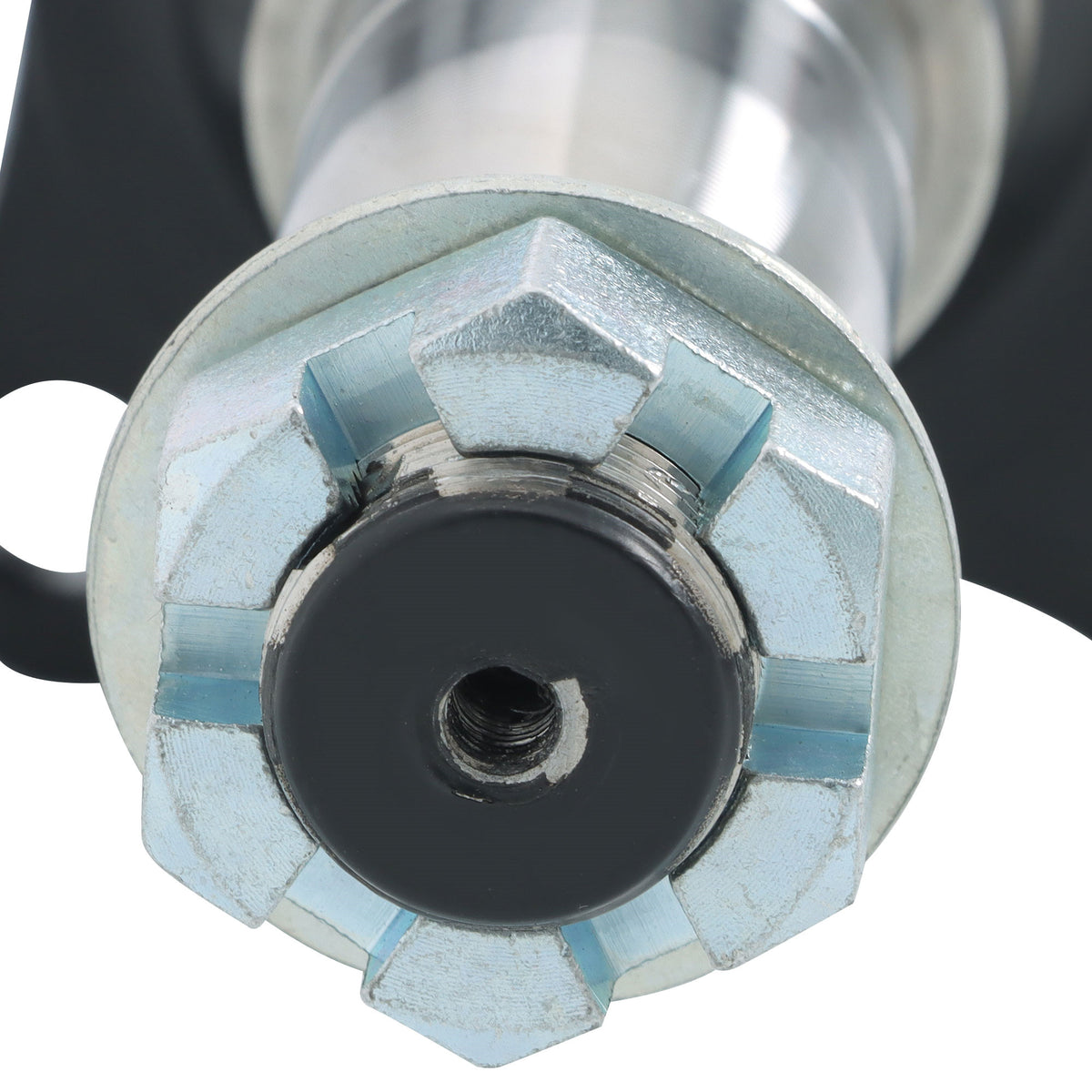

2* spindle nut
2* cotter pin
W/o Product Instruction
Q&A：
1. How do I determine the size of the axle I want
A: If you want to get the right axle, you need to carefully check your hub surface spacing and plate spring spacing. See How to measure below.
If you're building a trailer from scratch, then you don't have to worry about measuring anything. Just choose the width of the shaft you want.
Hub surface spacing (HF):
The length of the shaft measured from the bottom of one wheel stud to the bottom of the other wheel stud.
This size can be obtained by measuring where the two wheels meet on one side of the shaft to where the two wheels meet on the other side of the shaft.
This measurement is very important, your measurement spacing is allowed to be off by about an inch from the size we show.
Spring spacing (SC) :

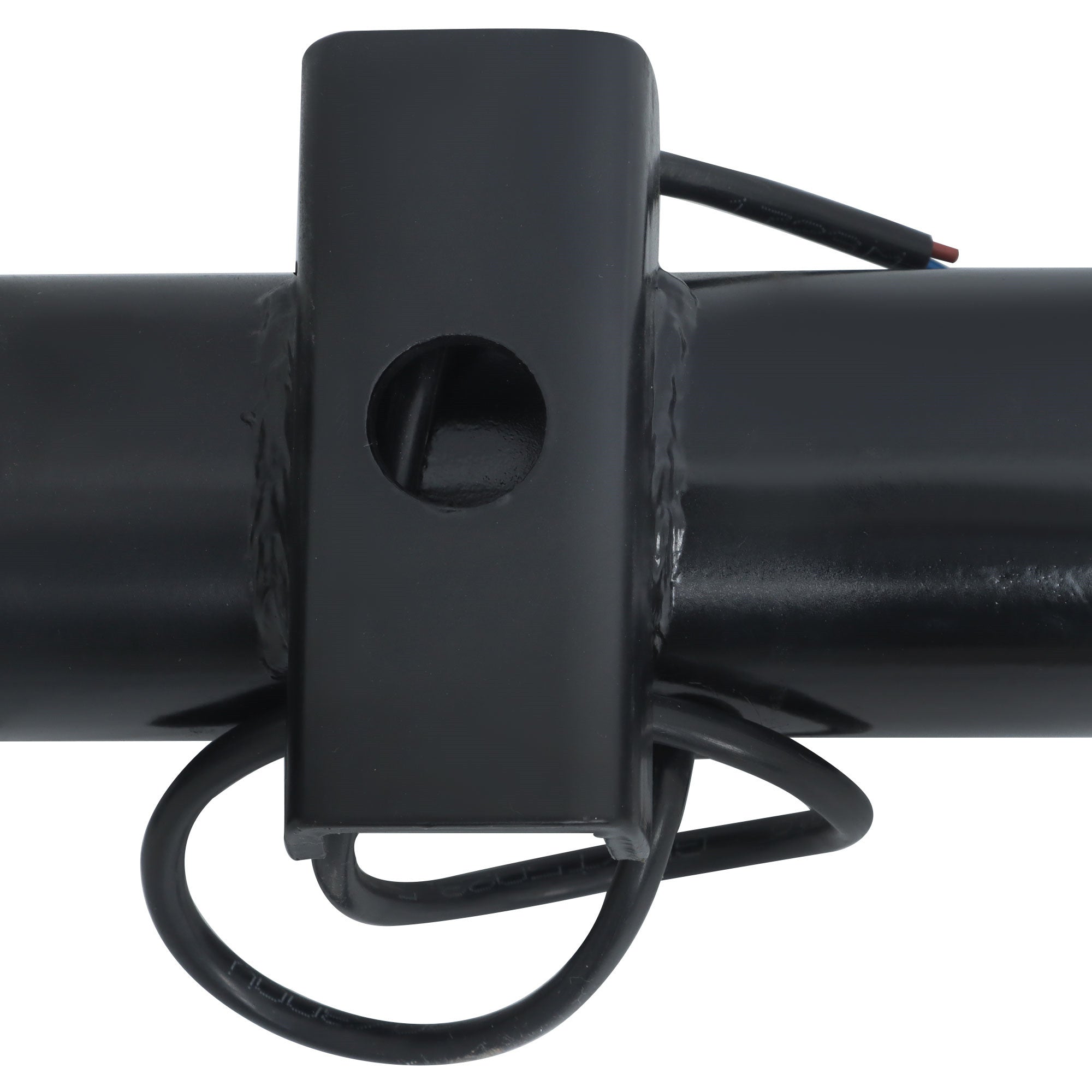

It's the approximate width of the trailer. It is a measurement from the center of the spring seat on one side of the axle to the center of the spring seat on the other side. The axle beam has a spring seat welded to it.
