Labwork Trailer Axle Only Beam 6000lbs With Idler 95" Hub Face 80" Spring Center

About Labwork：

Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features：

Function/Purpose

An axle is a component that holds wheels in place and rotates with them to send or receive mechanical power or allow the wheels to freely rotate on it.

Inner bearing: 25580
Outer bearing: 15123

Brake flange configuration: 5 bolts
Pipe diameter: 3“
Wall thickness: 6.3mm

Internal wiring, capable of connecting to electric brakes

Note：Only shaft, without brake disc, wheel hub, or bearing, can be customized according to needs; Connect the leaf spring, U-bolt kit, tire and wheel components.

Fitment：

Suitable for all light trailers, including but not limited to trailer axles, ship trailer axles, car trailer axles, ATV trailer axles, lawn and landscape trailer axles, motorcycle trailer axles, cargo trailer axles, enclosed trailer axles, RV trailer axles, etc

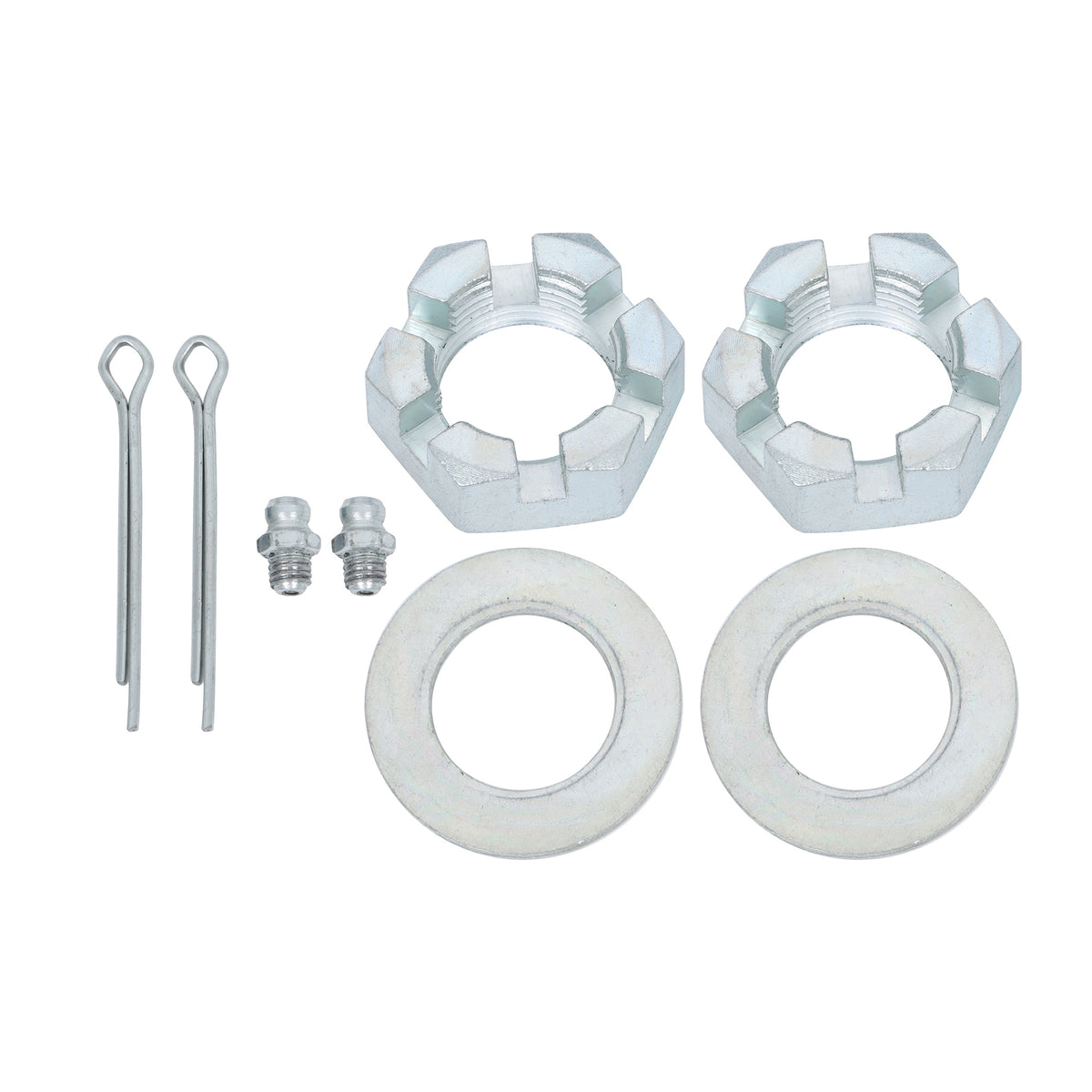

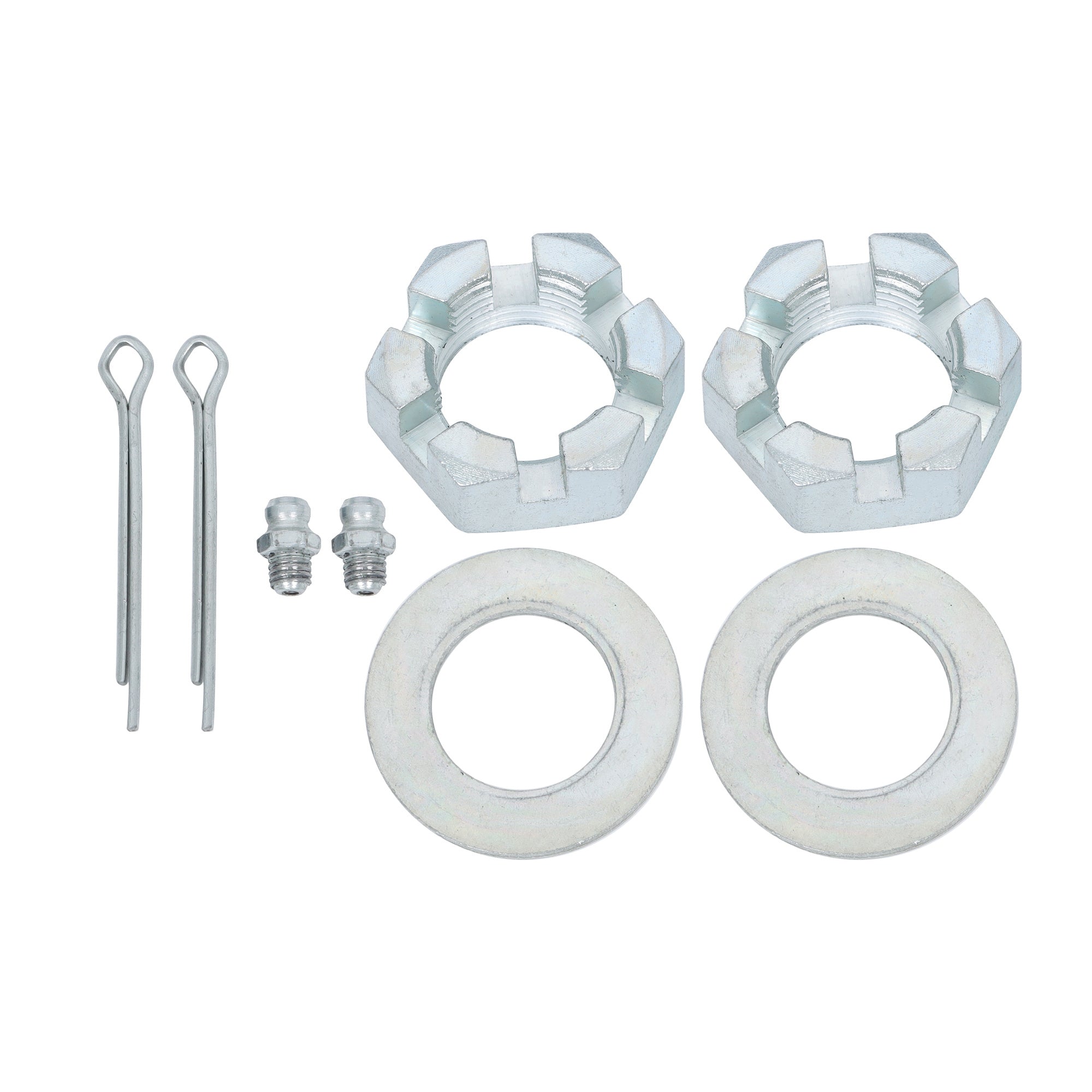

Package Includes：

1 * Axle
2 * Oil injection nozzle
2 * gasket
2 * Spindle Nut
2 * Open mouth sales

W/o Product Instruction

Frequently asked questions:

1. How to determine the axle size I want
Answer: If you want to get the correct axle, you need to carefully check the spacing between your wheel hub surfaces and leaf springs. Please refer to the following instructions on how to measure.
If you build a trailer from scratch, then you don't have to worry about measuring anything. Just choose the width of the axis you want.
Wheel hub spacing (HF):
The length of the shaft measured from the bottom of one wheel stud to the bottom of the other wheel stud.
This dimension can be obtained by measuring the point where two wheels meet on one side of the shaft to the point where two wheels meet on the other side of the shaft.
This measurement is very important, and there is an allowable error of about one inch between your measurement spacing and the dimensions we display.
Leaf spring spacing (SC):
The approximate width of the trailer. It is a measurement from the center of the spring seat on one side of the axle to the center of the spring seat on the other side. This axle beam is welded with spring seats.
