Labwork Timing Chain Kit For Cadillac Buick Chevy Saturn Pontiac 07-15 3.0L 3.6L

Fitment:

Replacement for Cadillac ATS 3.6L 2013-2015

Replacement for Cadillac CTS 3.0L 2010-2014

Replacement for Cadillac CTS 3.6L 2007-2015

Replacement for Lacrosse 3.6L 2007-2008

Replacement for Lacrosse 3.6L 2010-2016

Replacement for Lacrosse 3.0L 2010

Replacement for Chevy Equinox 3.0L 2010-2012

Replacement for Chevy Equinox 3.6L 2013-2015

Replacement for Chevy Equinox 3.6L 2008-2009

Replacement part number:

12609262, 12609258, 12623513, TK10436, 76159,12609260

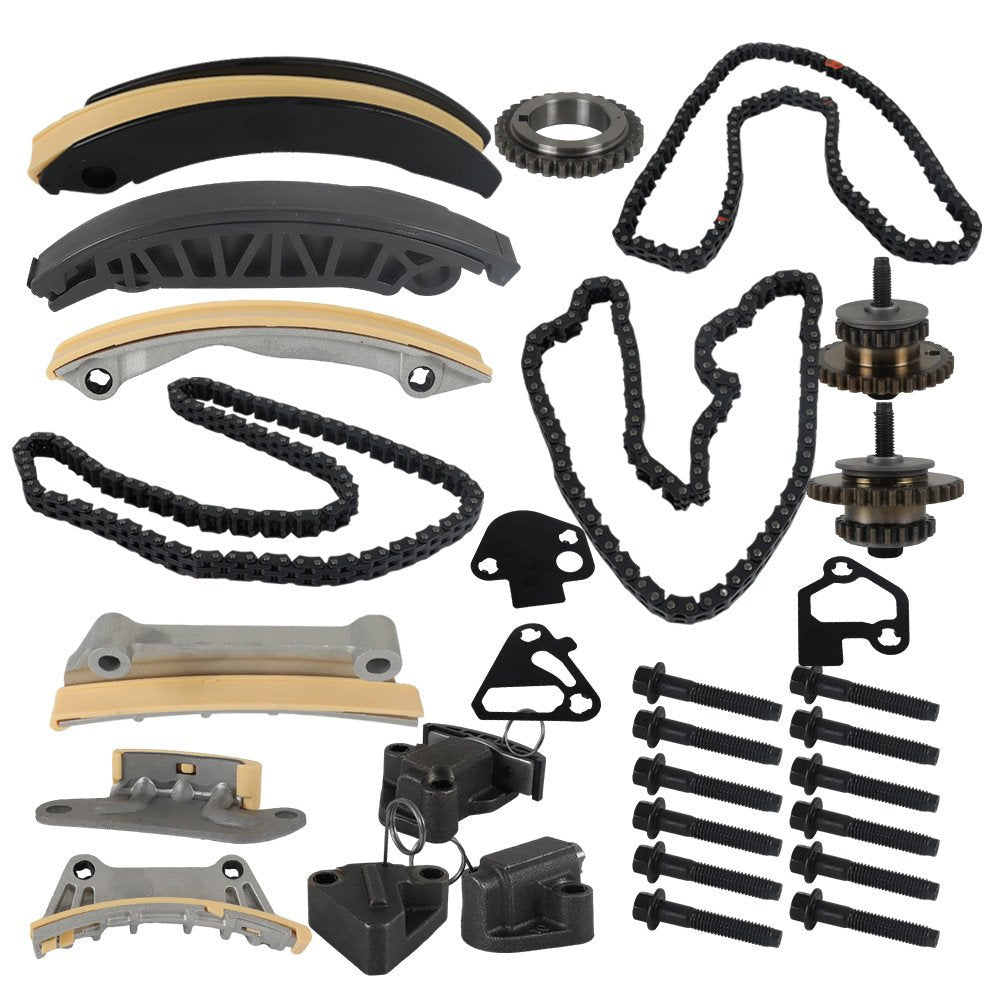

Parts Included:

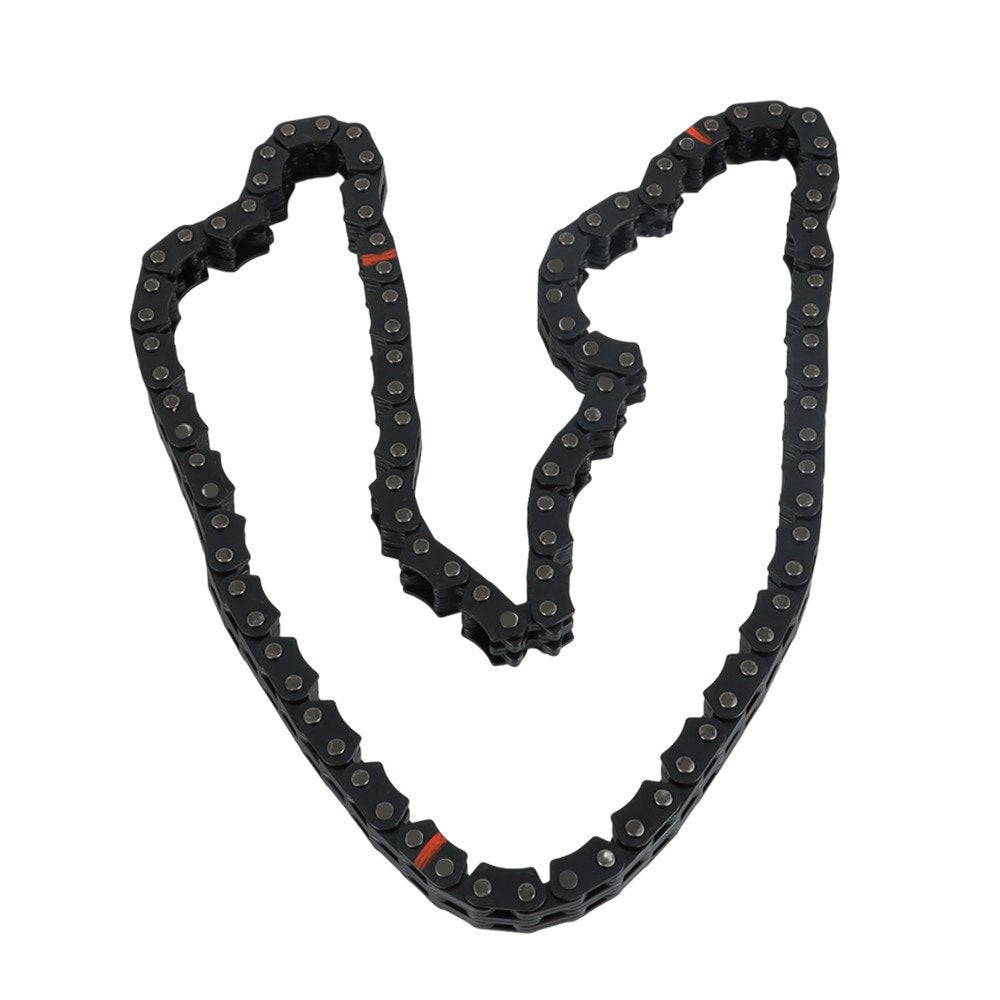

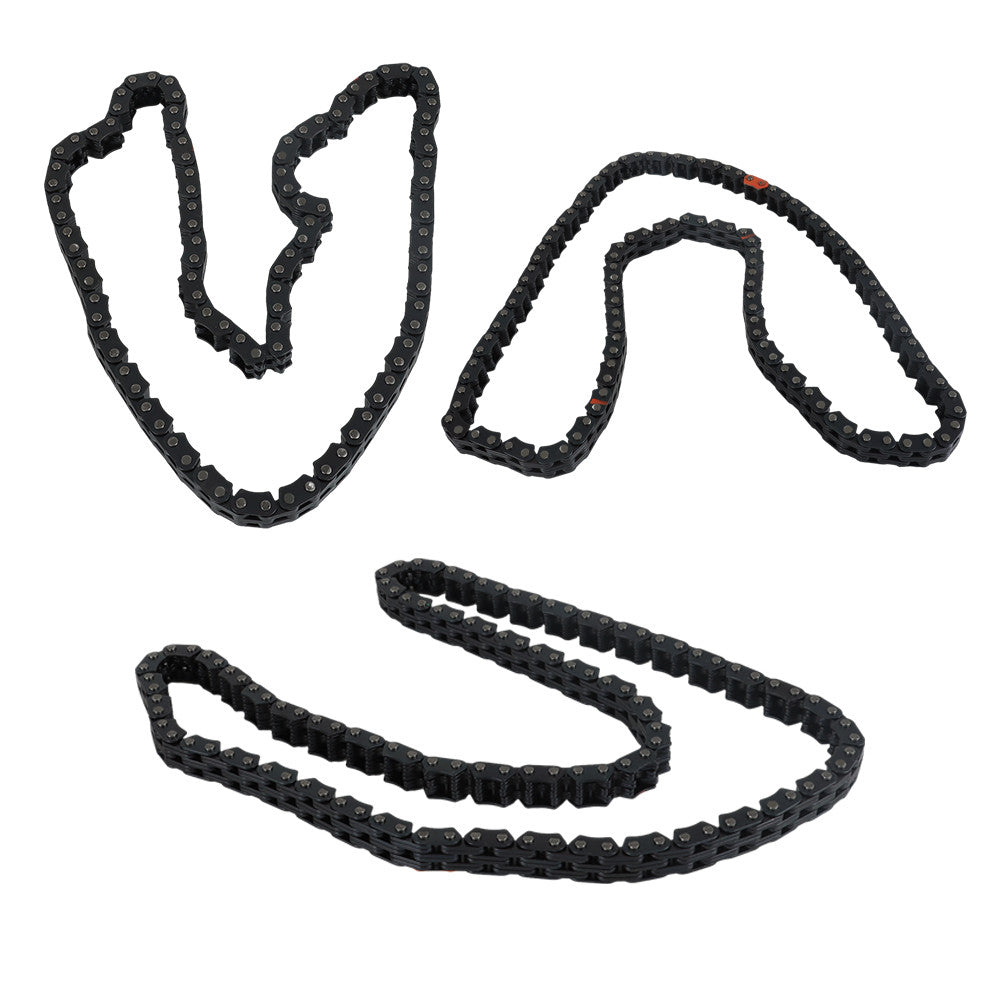

1 x Primary Timing Chain (lower - 96 links - silent type)

2 x Secondary Timing Chains (upper - 114 links)

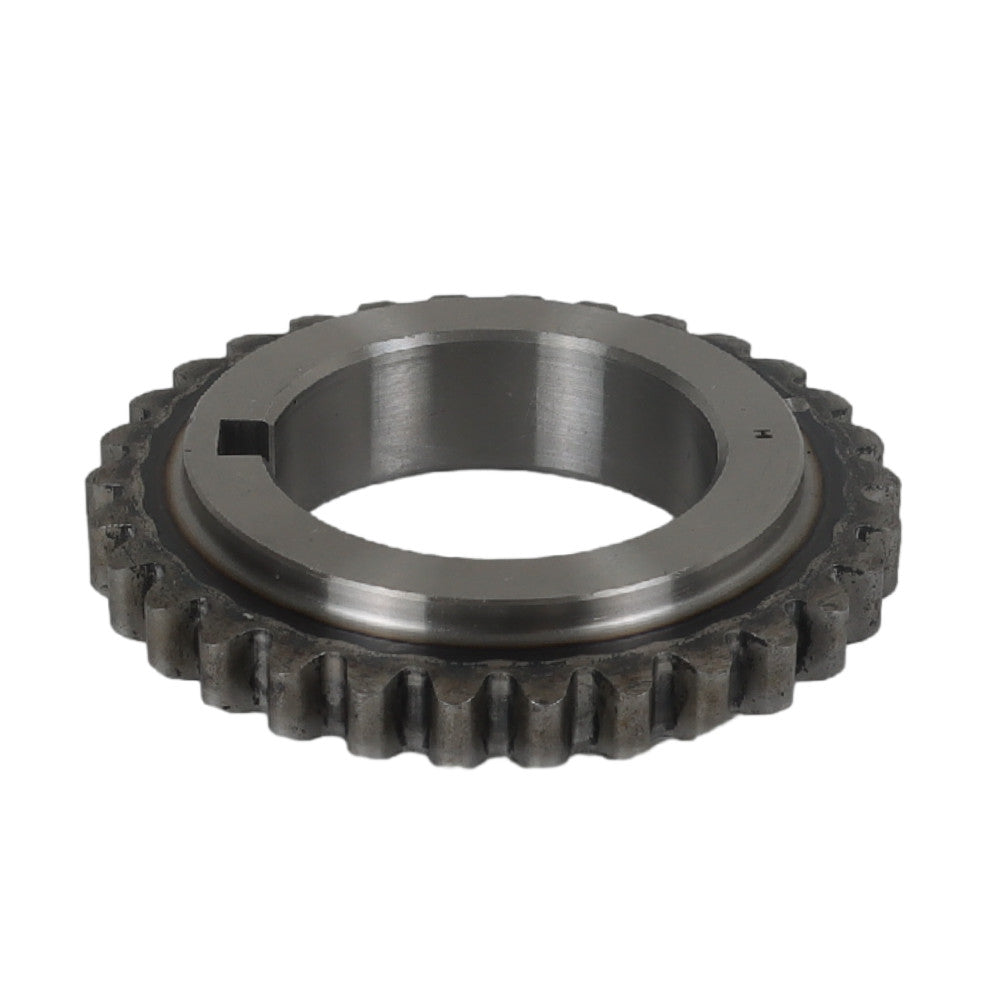

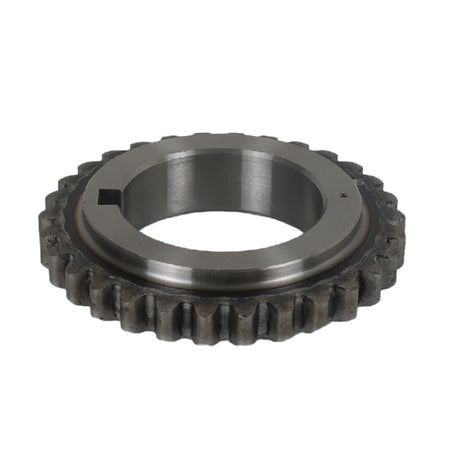

1 x Crank Sprocket (30 teeth - non roller style)

1 x Primary Guide Rail (lower right - fixed)

1 x Primary Guide Rail (lower top - fixed)

1 x Secondary Guide Rail (upper left - tensioner arm)

1 x Secondary Guide Rail (upper right - tensioner arm)

1 x Secondary Guide Rail (upper left - fixed)

1 x Secondary Guide Rail (upper right - fixed)

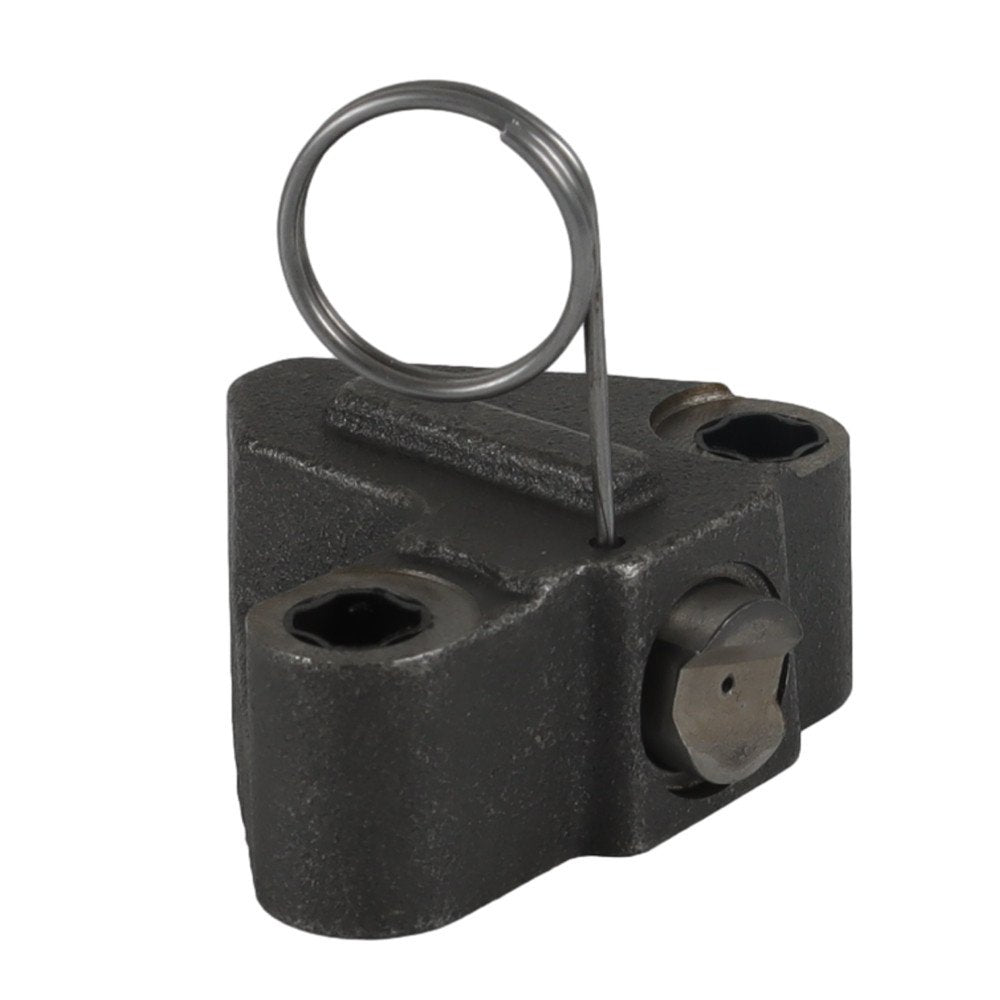

1 x Primary Tensioner (lower - crank to idlers)

1 x Secondary Tensioner (upper - left)

1 x Secondary Tensioner (upper - right)
