Labwork Tilt Trim Motor For Mercury 809885A1 809885T2 885654T2 18-6777 430-22008

Fitment：

Tilt Trim Motor For Mercury 809885A1 809885T2 885654T2 18-6777 430-22008 10850

Description：

-Used on late models 50-150HP For Mercury & Mariner outboards with single ram

-Replacement Trim Motor for Mercury Marine 809885A1, 809885A2, 811674, 811699, 813447 Engines

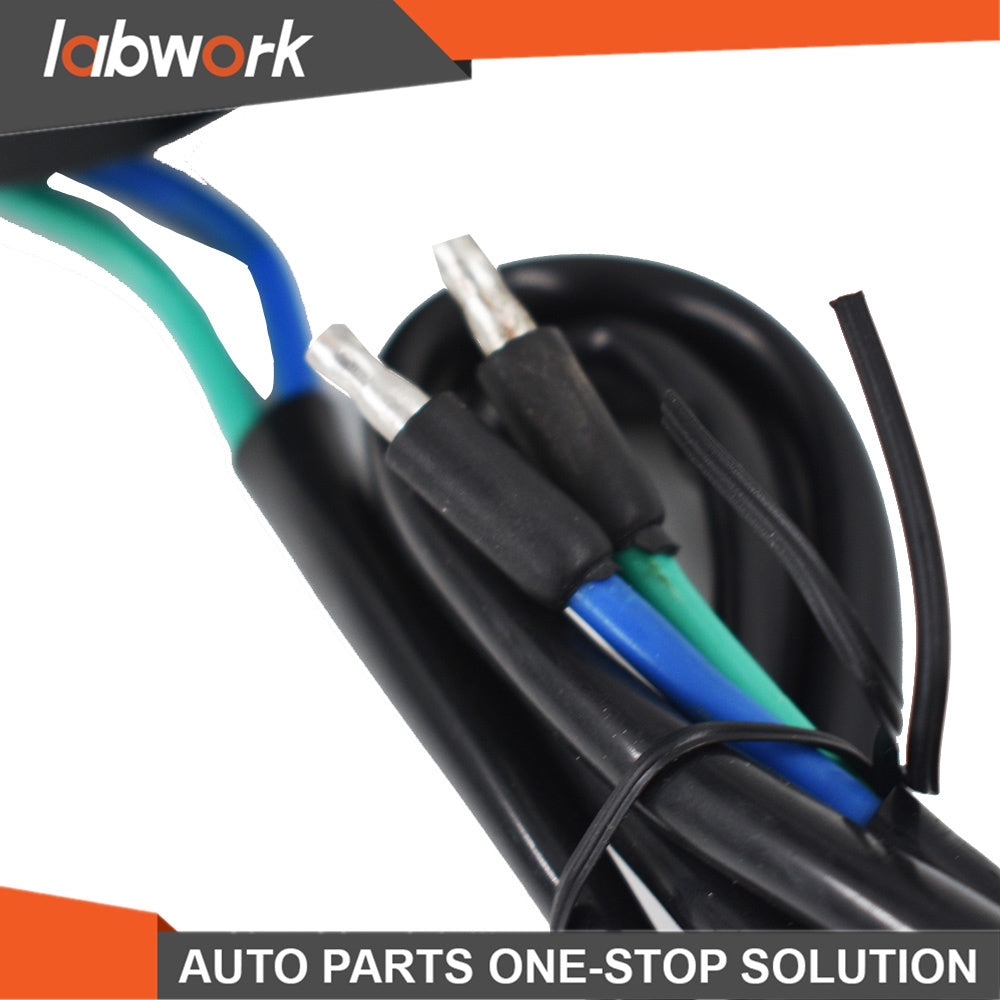

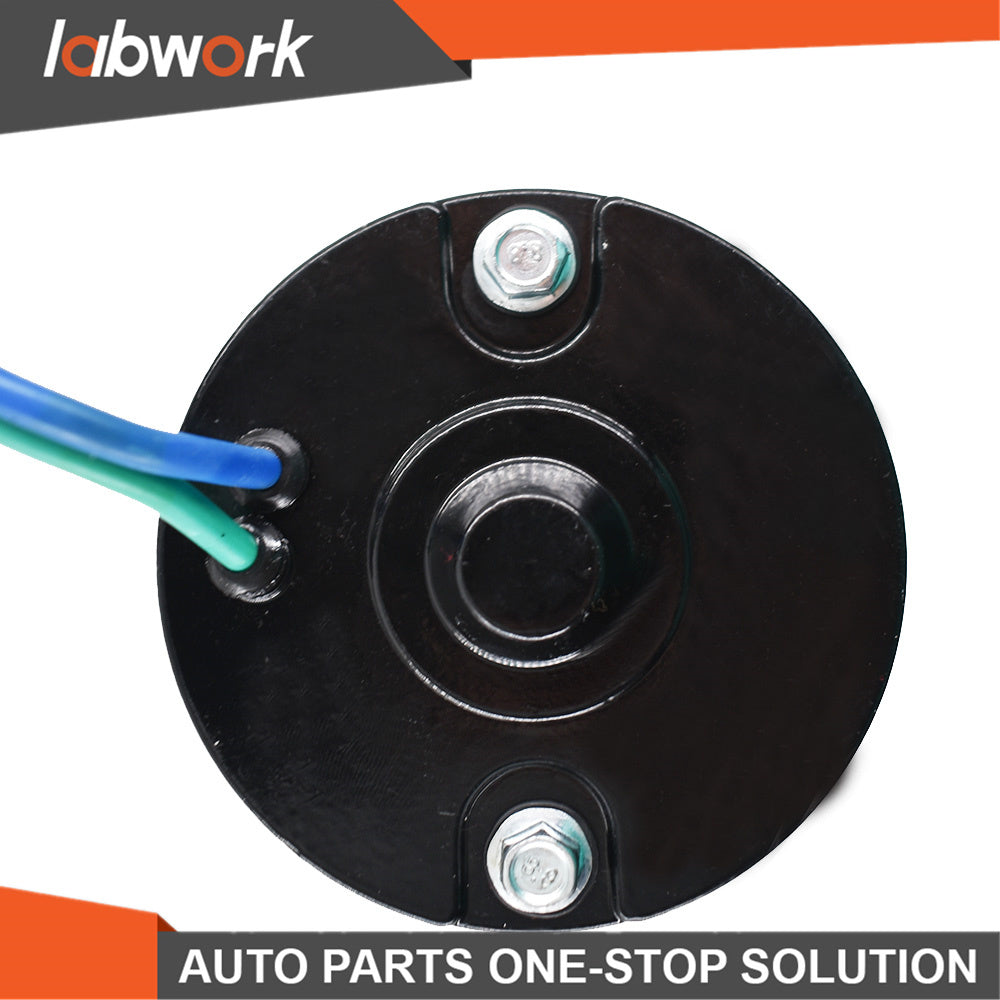

-Installation guide:When it’s time to install a tilt trim motor, you’ll notice one green and one blue wire on most models. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. Motors built for older-style systems may also have a black wire that serves as a ground. Newer style systems do not have this third wire.

-MAKE / MODEL / ENGINE / YEAR

For Mercury 100ELPTO 2-Stroke  100HP    1988

For Mercury  100ELPTO 2-Stroke 100HP    1989

For Mercury  100ELXLPTO 2-Stroke 100HP    1988

For Mercury  100ELXLPTO 2-Stroke 100HP    1989

For Mercury  115ELPTO 2-Stroke  115HP    1989

For Mercury  115EXLPTO 2-Stroke 115HP    1989

For Mercury  35ELO    35HP 1987-1989

For Mercury  35ELPTO    35HP    1987-1989

For Mercury  35EO    35HP    1987-1989

For Mercury  35M    35HP    1987-1989

For Mercury  35ML    35HP    1987-1989

For Mercury  40ELHPTO 2-Stroke    40HP    1989

For Mercury  40ELO 2-Stroke    40HP    1989

For Mercury  40ELPTO 2-Stroke    40HP    1989

For Mercury  50ELO 2-Stroke    50HP    1988-1989

For Mercury  50ELPTO 2-Stroke    50HP    1988-1989

For Mercury  60ELO 2-Stroke    60HP    1988-1989

For Mercury  60ELPTO 2-Stroke    60HP    1988-1989

For Mercury  Tilt & Trim    All Models    All    30-125 HP

For Mercury  Tilt & Trim    All Models    All    50-125 HP

-MAKE / MODEL / ENGINE / YEAR

For Force 1201    120HP    1990-1992

For Force  1208    120HP    1990-1992

For Force  120ELPT    120HP    1993-1999

For Force  120EXLPT    120HP    1993-1999

For ?Force  1501    150HP    1989-1992

For Force  1508    150HP    1989-1992

For Force  150ELPT    150HP    1993-1994

For Force  150EXLPT    150HP    1993-1994

For Force  407    40HP    1992

For Force  408    40HP    1992

For Force  40EL    40HP    1993-1994

For Force  40ELPT    40HP    1993-1994

For Force  507    50HP    1991-1992

For Force  508    50HP    1991-1992

For Force  50EL    50HP    1993-1994

For Force  50ELPT    50HP    1993-1994

For Force  706    70HP    1991-1992

For Force  708    70HP    1991-1992

For Force  70EL    70HP    1993-1995

For Force  70ELPT    70HP    1993-1995

For Force  75EL    75HP    1996-1999

For Force  75ELPT    75HP    1996-1999

For Force  903    90HP    1991-1992

For Force  906    90HP    1991-1992

For Force  908    90HP    1991-1992

For Force  90EL    90HP    1993-1994

For Force  90ELPT    90HP    1993-1999

For Force  90EXLPT    90HP    1993-1999

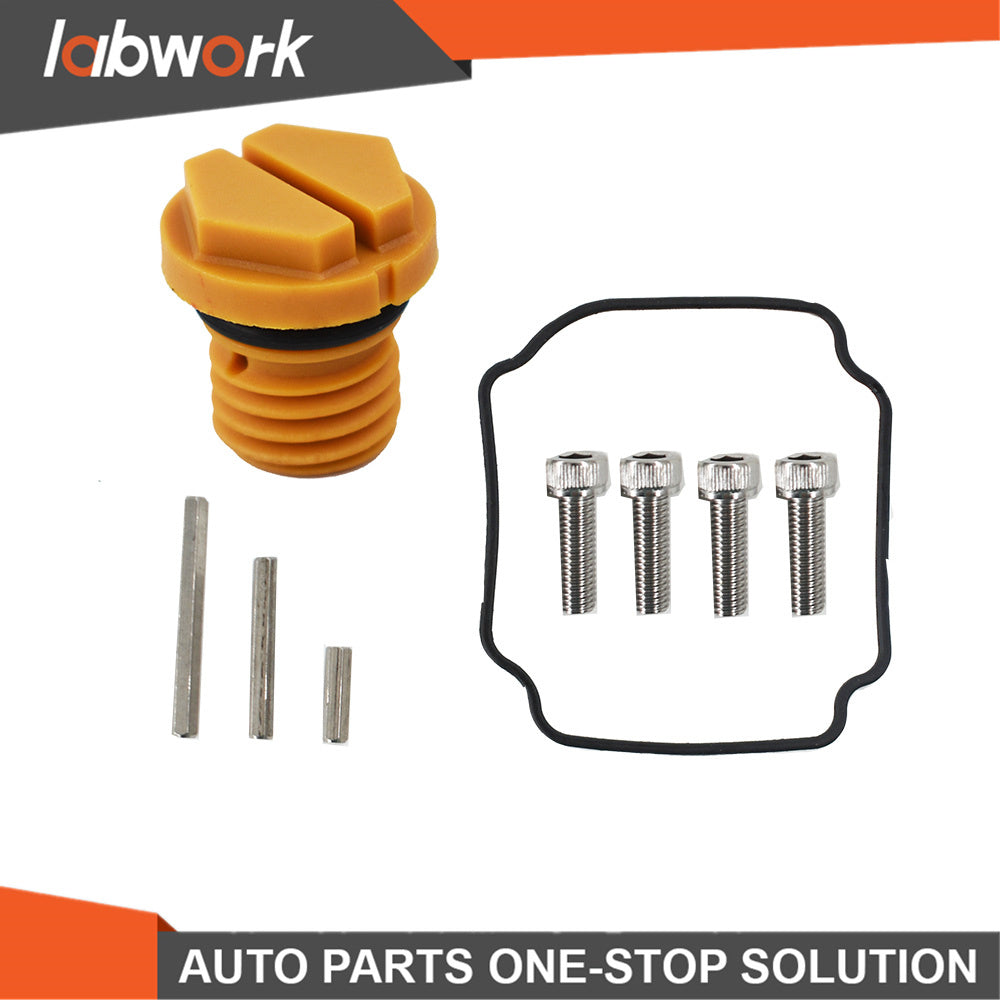

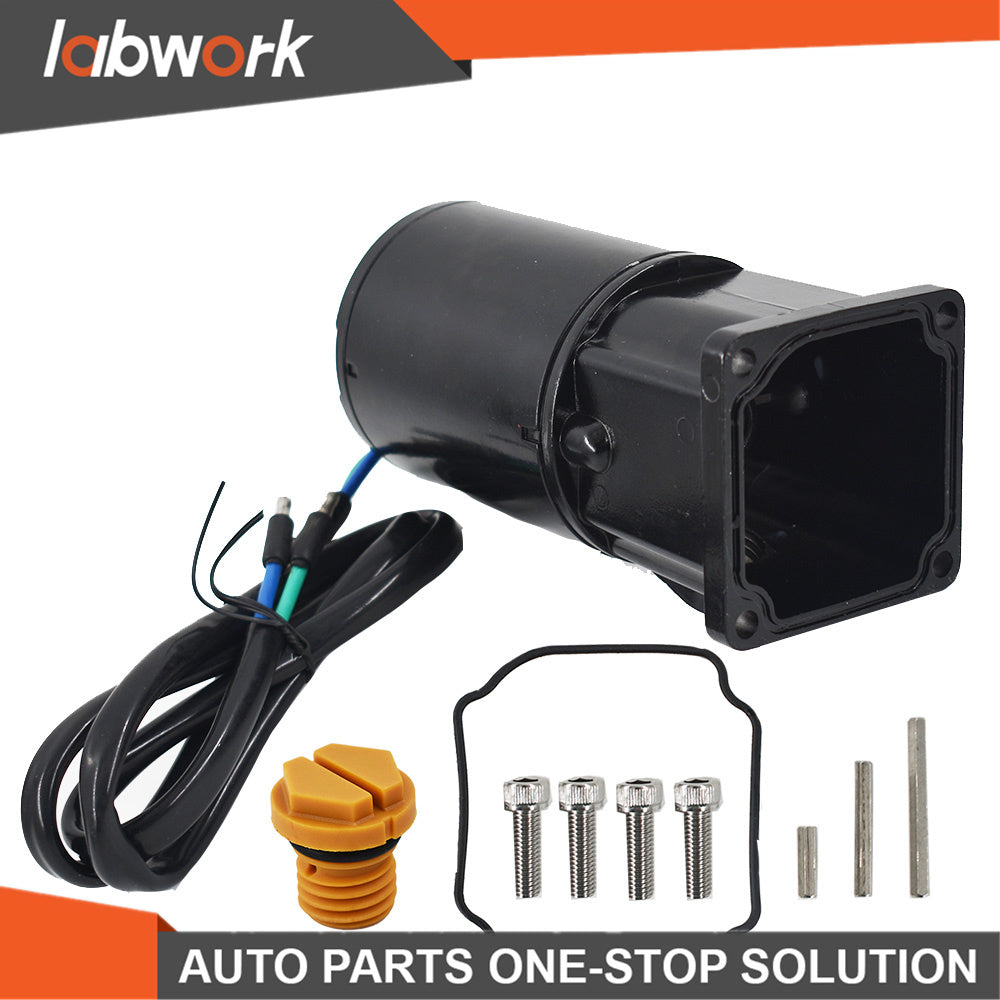

Package includes:

1* Tilt trim motors

Notes：

-If You Are Not Sure The Item 100% Fit For Your Vehicle Before Your Purchase.

-Please Allow 1-3CM Differs Due To Manual Measurement.
-Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item. Thanks For Your Understanding.
