Labwork Solar Surge Protector Device 300VDC Lighting and Surge Arrestor Green

Fitment：

• Environmental Rating - Type 4X (Outdoor)

• 300VDC Surge Protector For all DC circuits up to 300 volts and any 120/240 VAC circuit.The DC SPD will work well on all DC circuits up to 300 volts as well as any 120/240 VAC circuits. The difference between the AC and DC SPD is the way the LED's are powered. The protection side of things is identical.

• The Solar Surge Protector (MNSPD) is a Class 1 device in accordance with UL1449 rev3. Designed for both AC and DC systems, it provides protection for service panels, load centers, or where the SPD is directly connected to electronic equipment requiring protection. Provides protection for Classic and other charge controllers, off-grid PV combiners and 120/240 VAC circuits.

• Easy to Install:Some homes have surface mounted electrical panels. These panels are easy to install SPDs on. Simply pop out a 7/8-inch diameter knockout hole and mount the SPD on the door.?

• NOTE1: Prior to installation or maintenance, check to ensure that the system voltage does not exceed the SPD voltage requirements and that the correct SPD voltage/type has been selected.

• NOTE2：All units are compatible with both AC and DC systems regardless of the box markings, the only difference is how the indicator lights work. Each unit has several lights and a DC unit hooked up to a DC system will power all of the indicator lights and vice versa; an AC unit hooked up to an AC system will power all of the indicator lights. If you hook a DC unit to an AC system, however, only 1 of the indicator lights will work and vice versa, but the unit will still be safe and function properly.

Description:

• Applications: Engineered for both indoor and outdoor use, our Type 1 SPD safeguards AC and DC systems, including transformer and transformer-less inverters. It complements GFP protection circuits and defends service panels, load centers, or directly connected electronic devices.
• Protect Your Electronics: This Solar SPDs reduce clamping voltage to a safe level, preventing electronic damage. Ensure the SPD's operating voltage exceeds the system voltage to avoid over voltage issues, which can lead to performance degradation or failure.
• This is the right choice for long-lasting protection and peace of mind.
• Difference: The difference between the AC and DC SPD is the way the LED's are powered. The protection side of things is identical.
• Warm Notice: Each unit has several lights and a DC unit hooked up to a DC system will power all of the indicator lights and vice versa; an AC unit hooked up to an AC system will power all of the indicator lights. If you hook a DC unit to an AC system, however, only 1 of the indicator lights will work and vice versa, but the unit will still be safe and function properly.

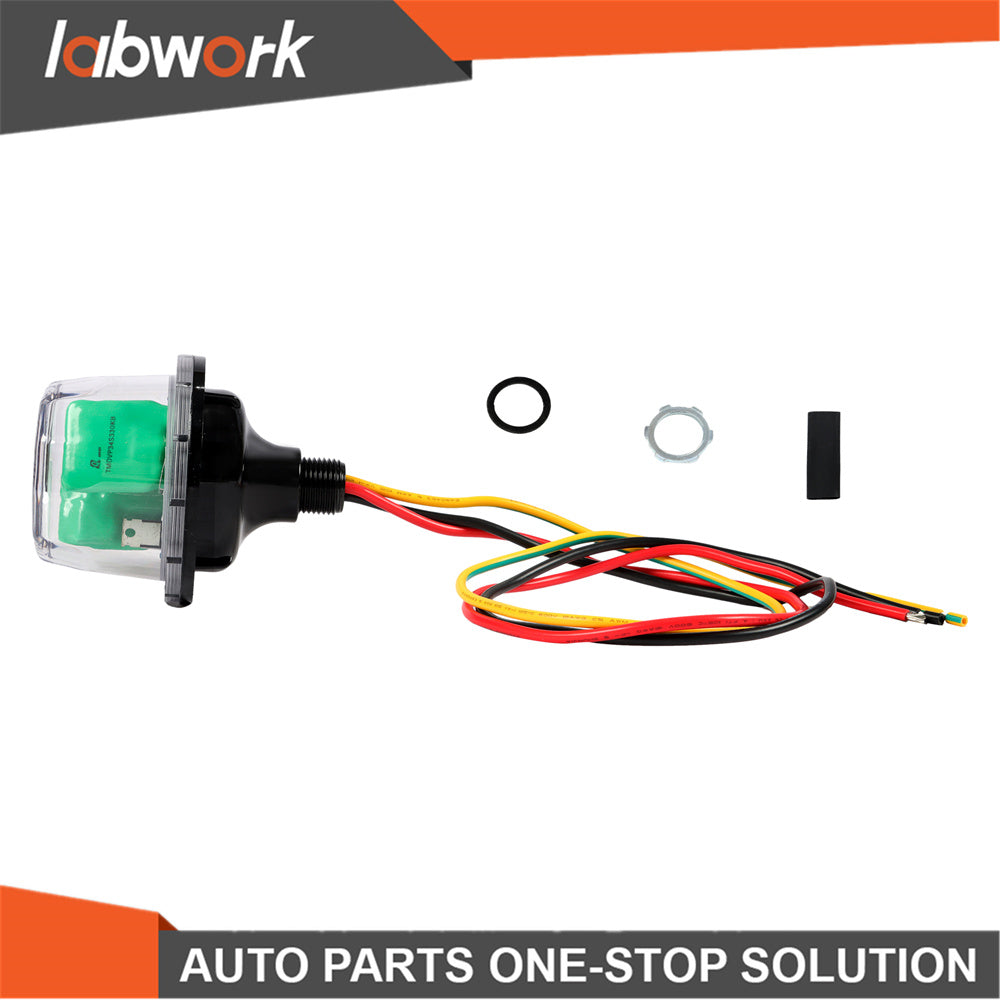

Package Include:

1 × 300VDC Surge Protection Device

W/ Product Instruction

(As Picture Show, Contact Us If Receive With Missing Parts.)
