Labwork Sloppy Stage 2 Cam Lifters Pushrods Kit For LS1 4.8 5.3 5.7 6.0 6.2 LS

About Labwork:
Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features:

-Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

-Camshaft RPM Range: 2200 to 5400 RPM
-Camshaft Intake Valve Lift: .585"
-Camshaft Exhaust Valve Lift: .585"
-Camshaft Advertised Intake Duration: 283°
-Camshaft Advertised Exhaust Duration: 286°
-Camshaft Intake Duration at .050": 228°
-Camshaft Exhaust Duration at .050": 230°
-Camshaft Lobe Separation: 112°
-Camshaft Intake Centerline: 108°
-Camshaft Cam Gear Attachment: 3-Bolt

-Number of Springs Per Valve: Single

-Outside Diameter of Outer Spring (in): 1.290 in.
-Spring Coil Bind Height (in): 1.140 in.
-Damper Spring Included: No
-Spring Install Load: 130lbs
-Spring Install Height: 1.800"
-Spring Open Height: 1.175"
-Spring Open Load: 318 lbs
-Spring Rate (lbs/in): 313 lbs./in.
-Inside Diameter of Outer Spring (in): 0.885 in.
-Valve Spring Style: Beehive

-Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.

-Lifters Fitment includes:

-For 1999-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A
-For 1999-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B
-For 1997-2004 5.7L LS1 V-8
-For 2001-2005 5.7L LS6 V-8
-For 1999-2010 Trucks/SUVs 6.0L V-8 VIN-U,K
-For 2005-2009 6.0L LS2 V-8
-For 2008-2013 6.2L LS3 V-8; without AFM
-For 2006-2013 7.0L LS7 V-8
-Also fit For Factory Roller 93-97 LT1, and For 305-350 Chevy Engines.

-putters

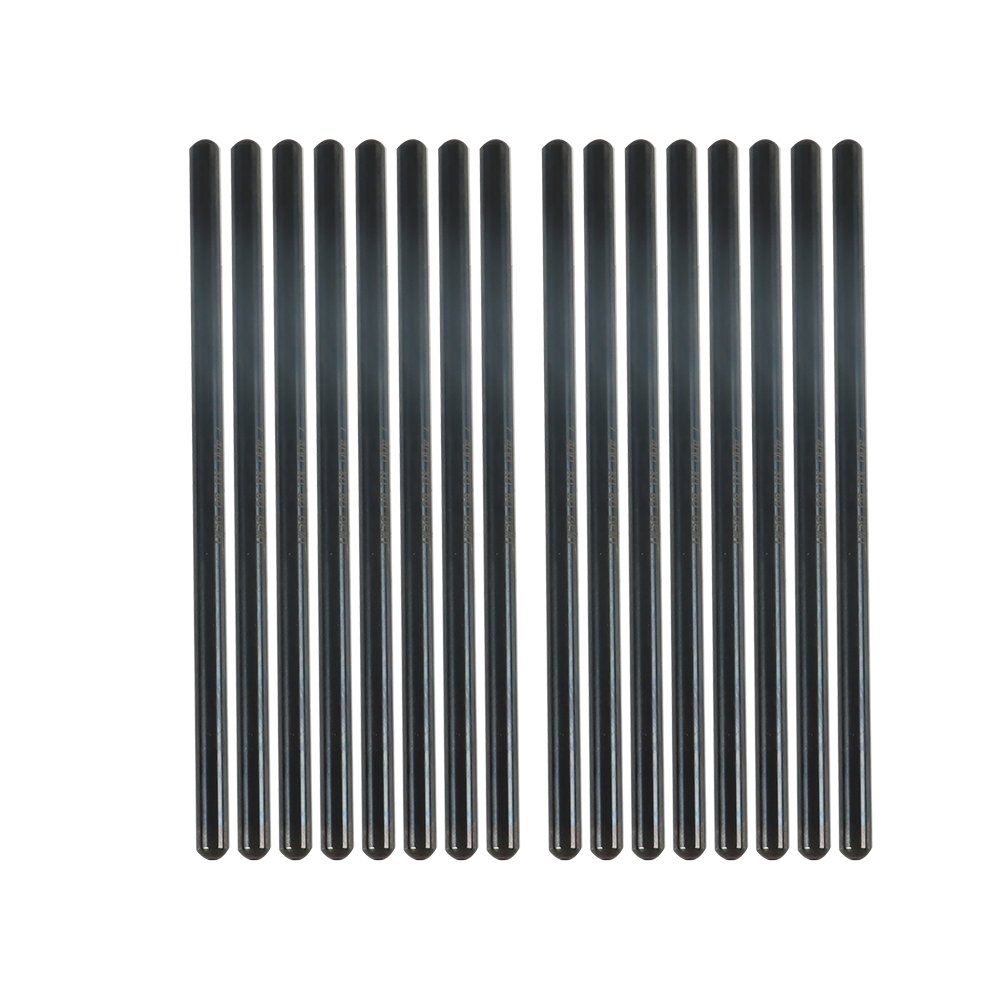

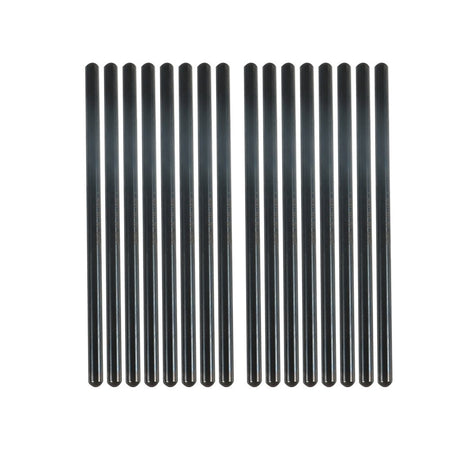

-5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS

-The Sloppy Stage 2 Camshaft is a cam with a fairly aggressive profile.  It will have a nice Lopey Idle and make tons of power all while keeping costs low.  This cam is a great choice for those daily drivers that like a nice Lopey/Choppy idle.  Great for Cars, Trucks, SUV's, Street Rods, and LS Swaps.  There is no hiding this cam as will will have a muscle car sounds to it. Everyone will take note of this street warrior. Automatic's will perform best with a 2,600-2,800 Stall Converter.

Fitment：

For GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L

For LSx Sloppy Stage 2 1997-2007 V8

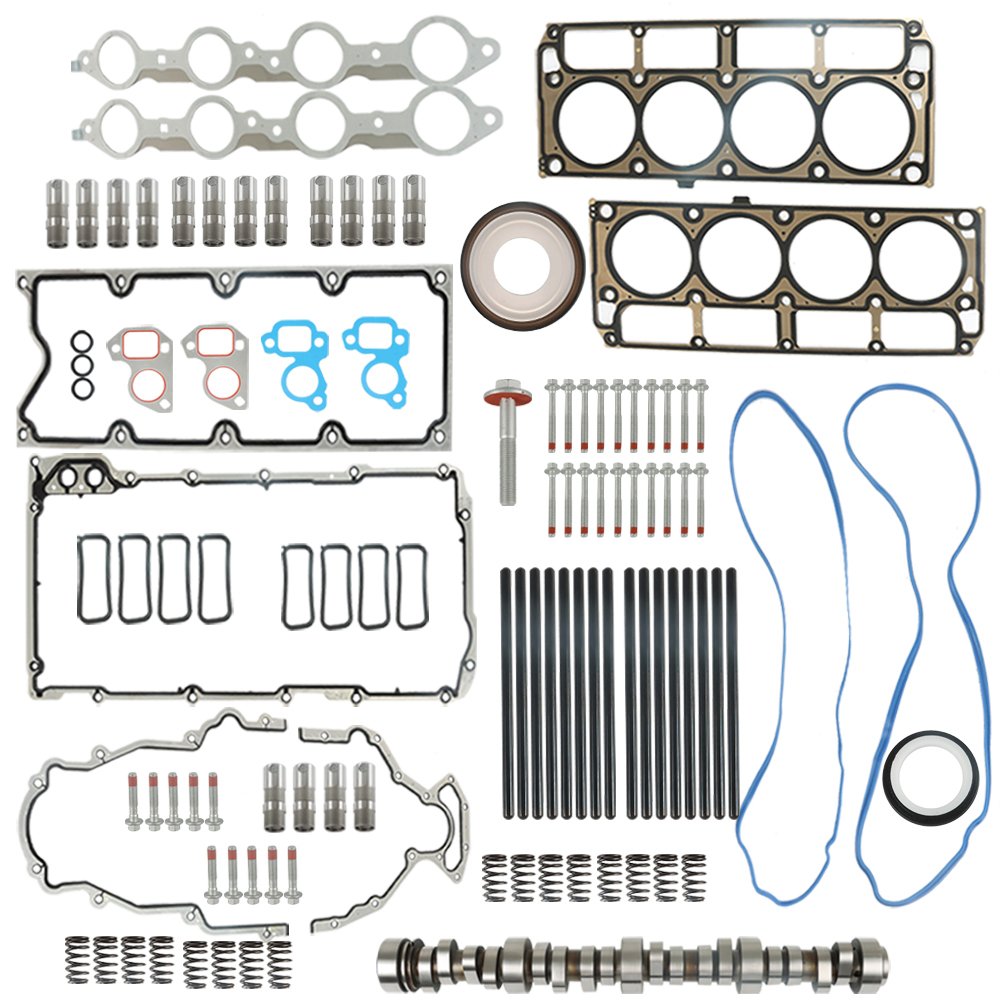

Package Include：

1*Camshaft

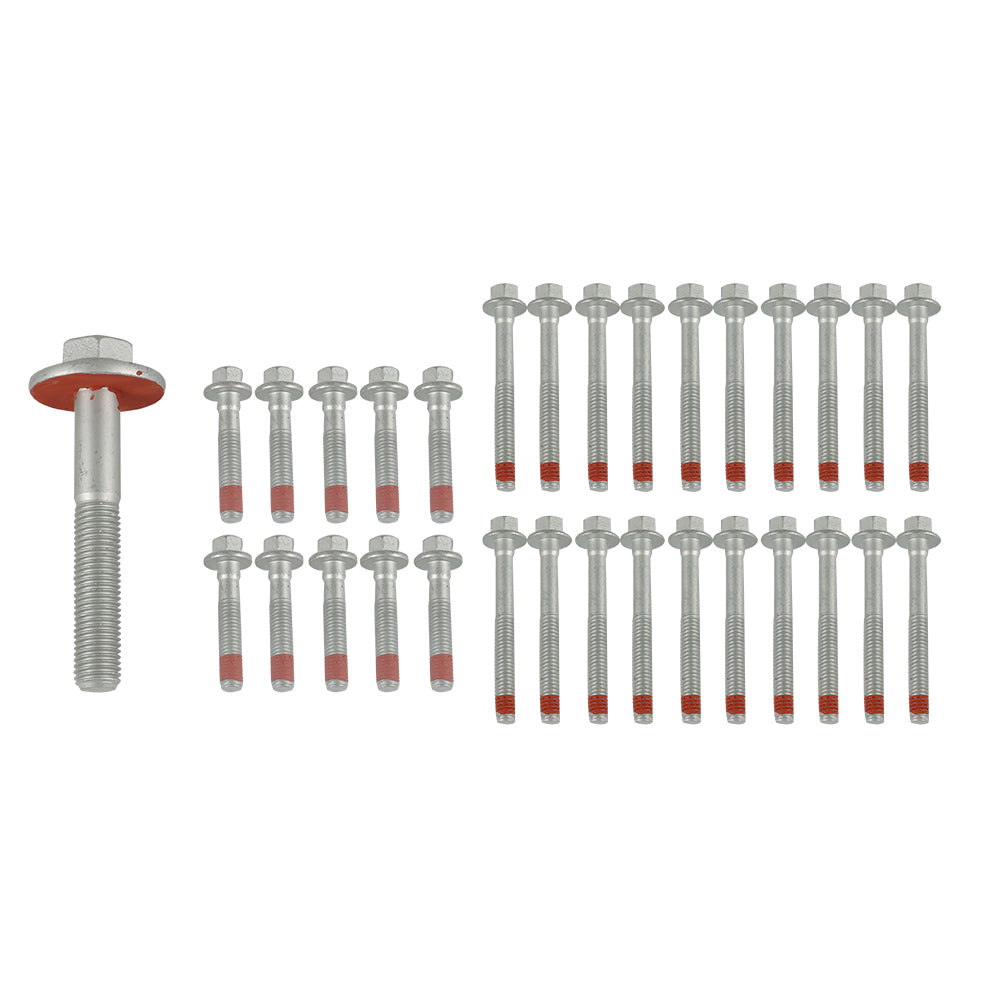

1*Screw Set

Spacer Set with 16 Valve Lifters

16* Valve Lifters

16* putters

W/o Product Instruction
