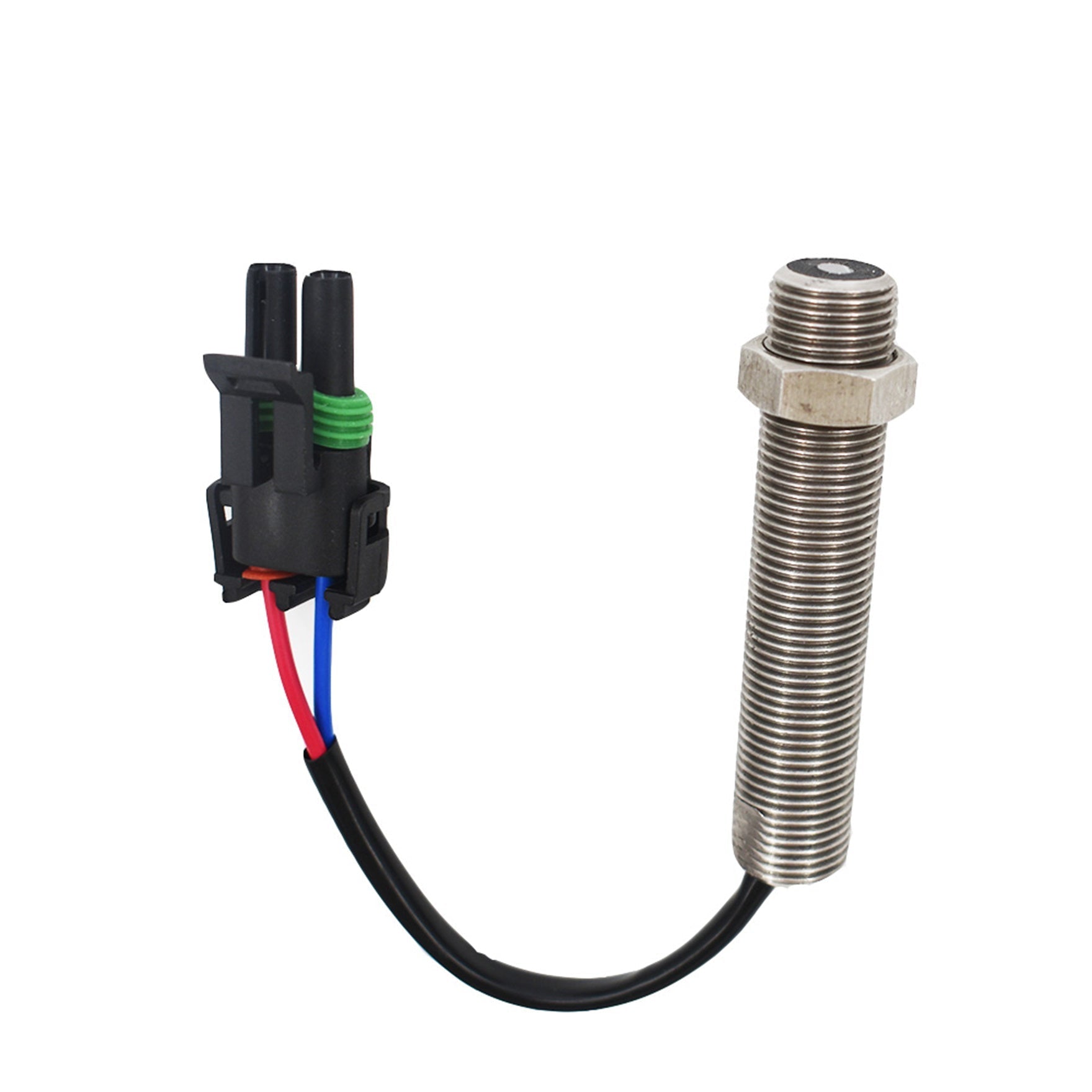

labwork Magnetic Pick up MPU 3034572 Pickup Speed Sensor Fit for Cummins
Regular price
$18.36
Couldn't load pickup availability
Search for more parts? Click here
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg C to 105 deg C
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum
Application:
Fit for Cummins Engine K38, QSK38 CM2150 MCRS, QSK38 CM850 MCRS, G38, KTA38GC CM558, QSK38 CM2150 K106
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg C to 105 deg C
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum
Application:
Fit for Cummins Engine K38, QSK38 CM2150 MCRS, QSK38 CM850 MCRS, G38, KTA38GC CM558, QSK38 CM2150 K106
