Labwork M7500 Compressed Air Piping Tubing System Master Kit 3/4" Pipe 100 FT

About Labwork：
Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features：

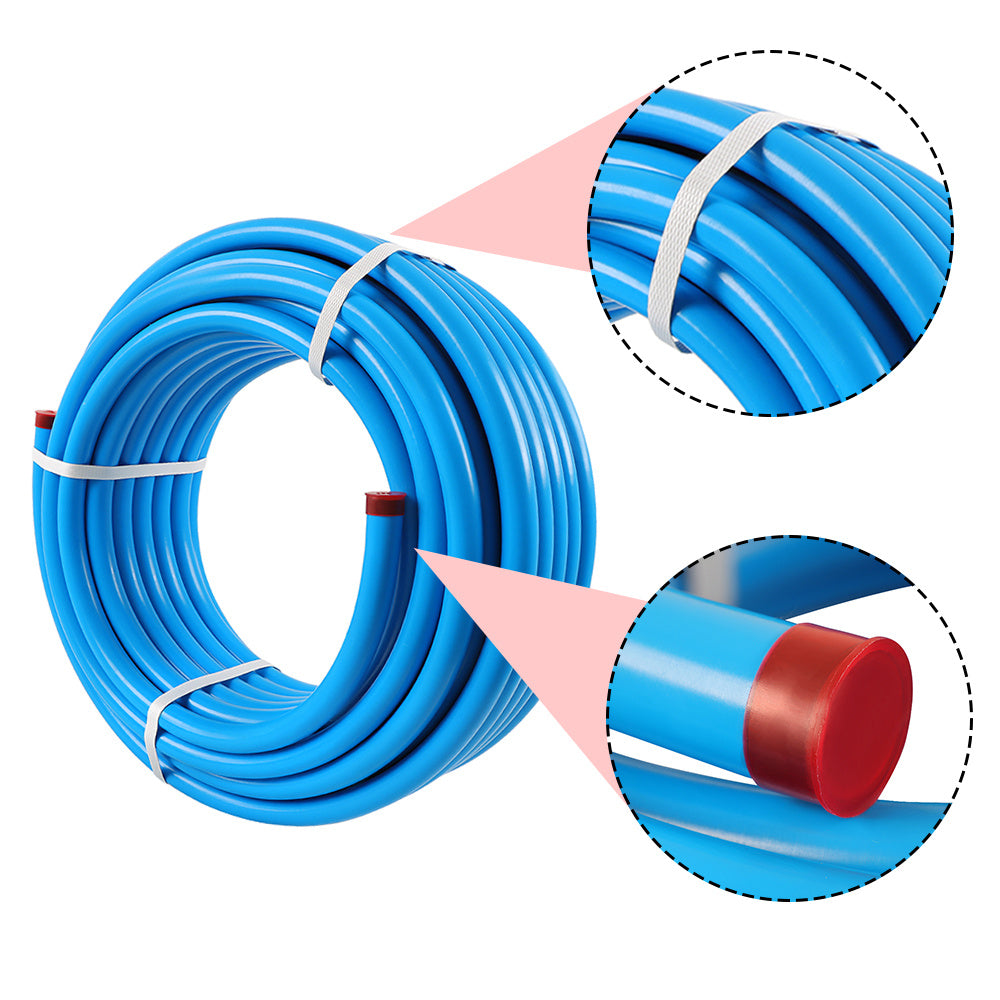

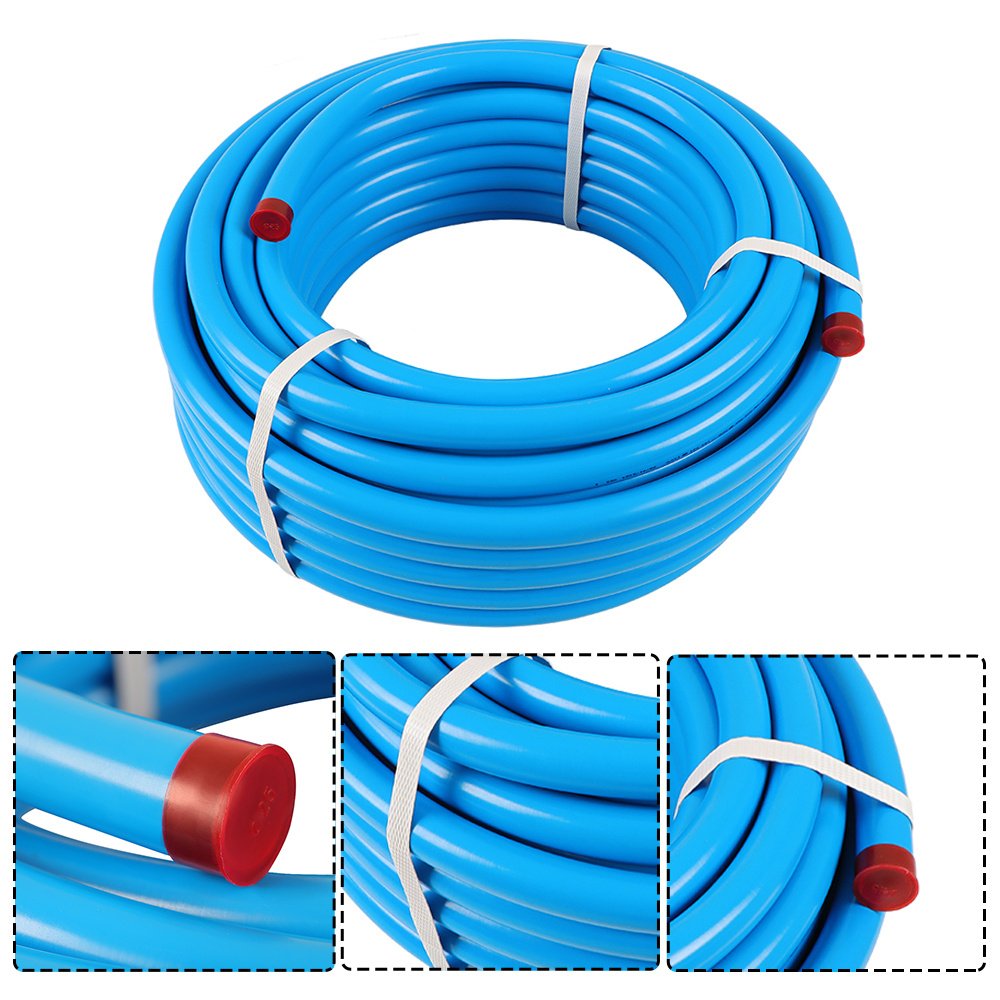

Set up a compressed air system with the 3/4-Inch Master Kit with 3 air outlet locations. The tubing has an aluminum core sandwiched between an inner and outer layer of polyethylene. Tubing can be mounted on wall surfaces, in wall, or buried underground or concrete. Tubing holds any hand bent shape. Reduce shop clutter with this industrial compressed air piping system. No glue, soldering or crimping needed. Simply cut the tubing to length, insert in the fitting and tighten. Easy to expand with more air outlet locations or modify later.

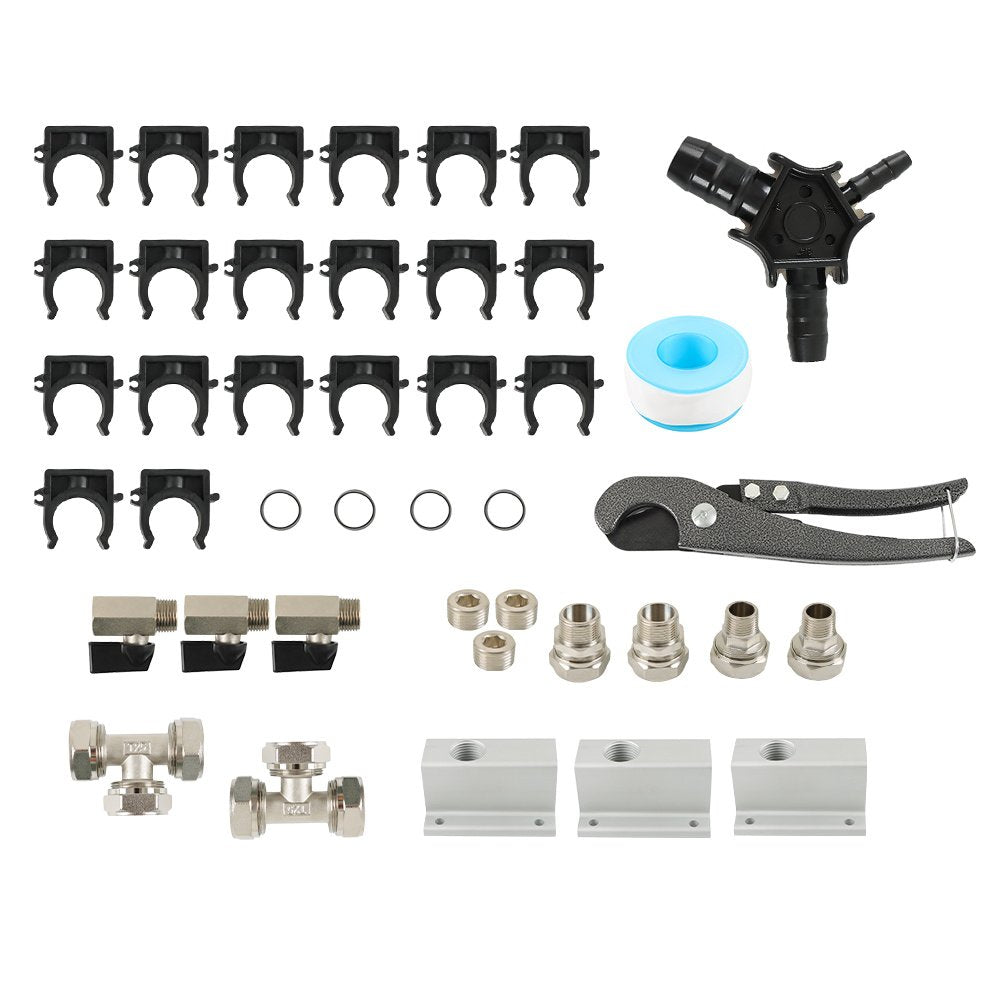

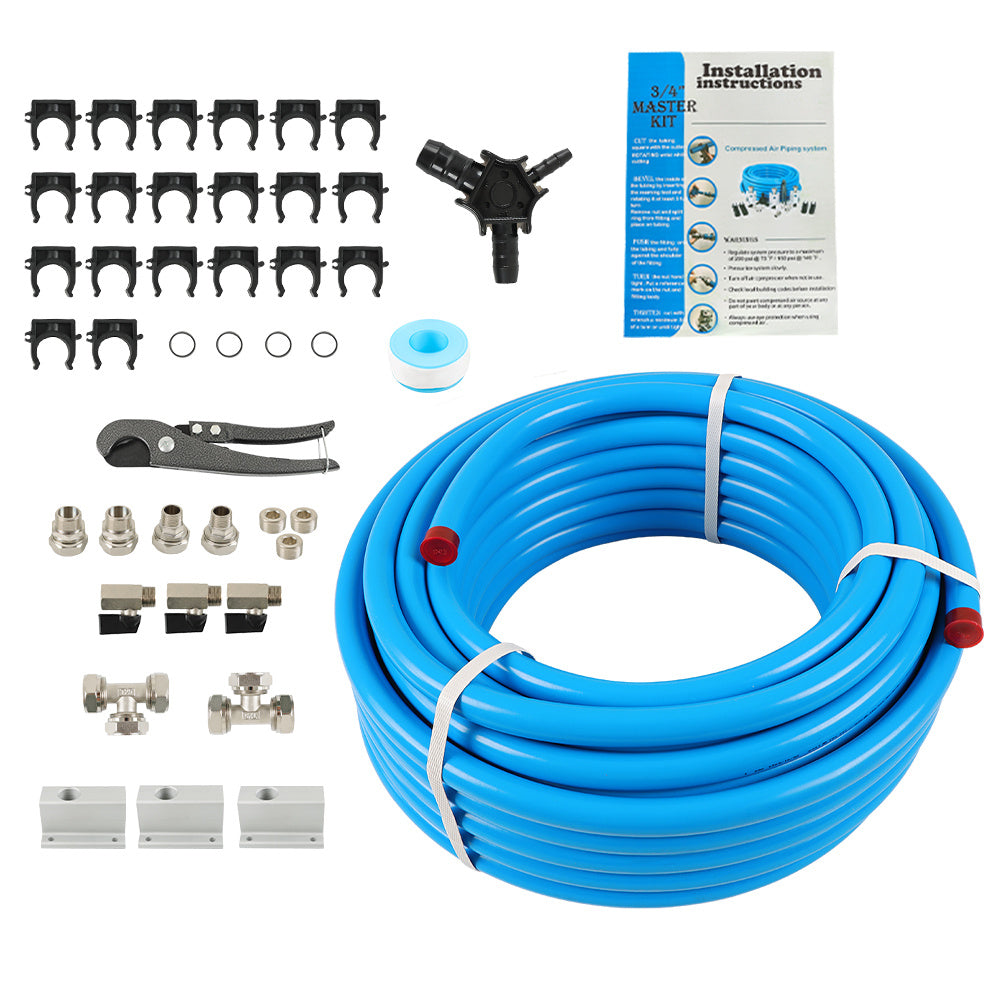

Kit includes: 100 ft; of 3/4-Inch Tubing, (3) Air Outlet Kits, (2) Tee Fittings, 3/4-Inch Straight Fitting, (20) Pipe Clips, Debar and Cutter Tool

175 psi maximum working pressure, 3/4-Inch inside diameter x 1-Inch outside diameter

Compression style nickel plated brass fittings

Recommended usage 150 ft.; maximum from the air compressor, up to 4000 sq.; ft.; buildings, up to 10-HP air compressor

Use only with 3/4-Inch system

Fitment:

For Universal

Package Includes：

100 ft M6030 Tubing

(3) M81010 Aluminum Blocks

(3) M8005 ¾” Tubing x 1/2” NPT fittings

(3) 50136 ½” npt Plugs

(3) 50120 3/8” npt Drain Valves

(1) M8003 ¾” Tubing x ¾” NPT Fitting

(2) M8011 Tee Fittings

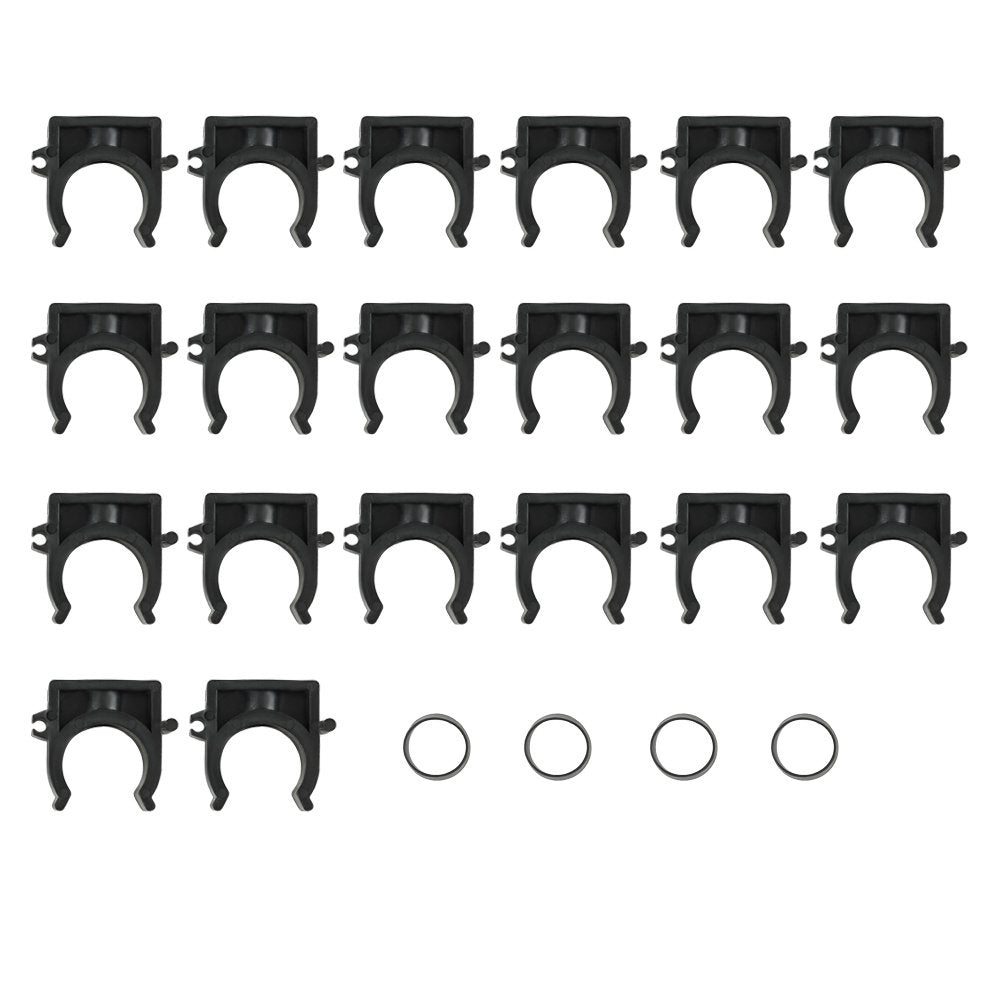

(2) M8065 10 PACK Tubing Clips (20 clips total)

(1) M8091 Cutter

(1) M8095 Bevel Tool

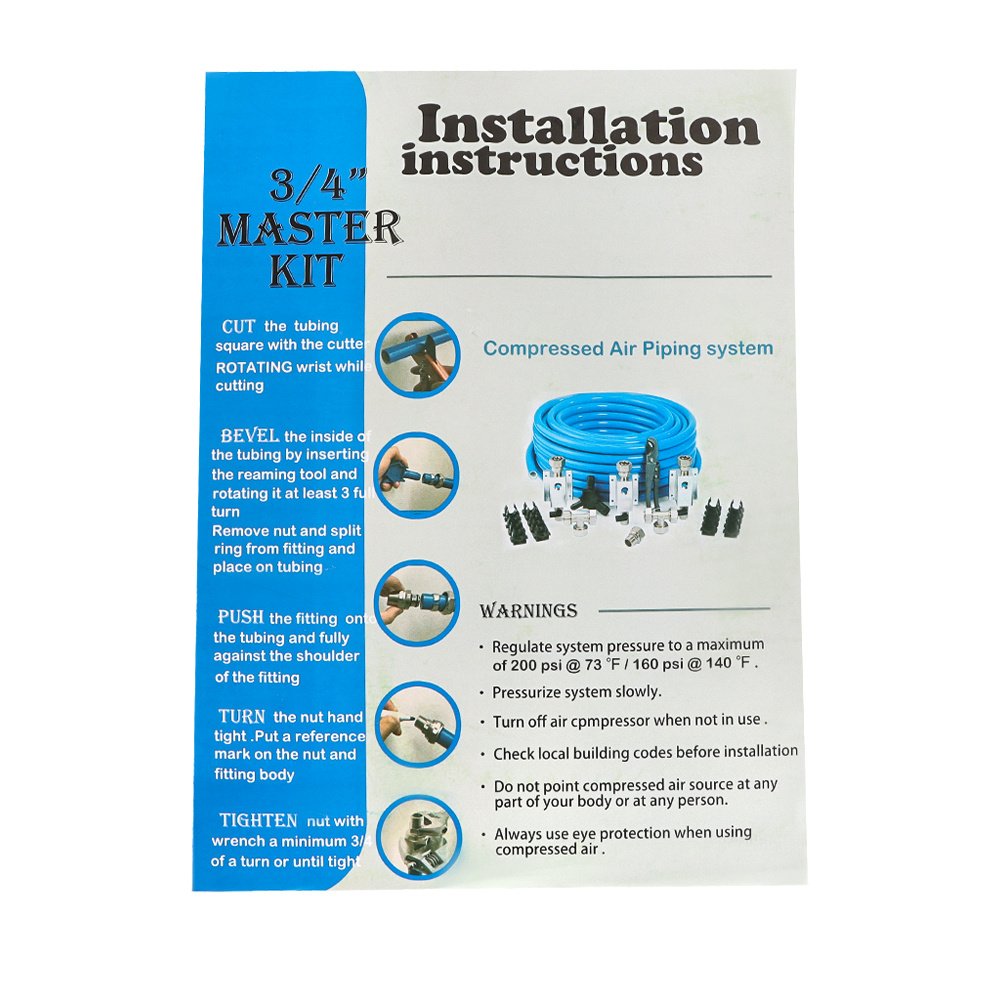

W/ Product Instruction；
