labwork LS Swap Harness DIY Fuse Block Kit for GM 1993-2015 Drive by Cable & Drive by Wire

Description:

This LS swap fuse block kit is color coded for easier wiring identification and installation. The fuse block cover is labeled inside with a legend showing the location of each relay and fuse, helping organize ignition power, fuel pump relay, fuse connections, and diagnostic port wiring.

Fitment:

Replacement for GM 1993-2015 V8 Drive by Cable Harnesses

Replacement for GM 1993-2015 V8 Drive by Wire Harnesses

Compatible engine applications include but are not limited to:

LT1

LS1

LM7

LR4

LQ9

LQ4

4.8L

5.3L

5.7L

6.0L

6.2L

7.0L

Specifications:

Type: LS Swap Harness DIY Fuse Block Kit

Application: GM V8 Engine Swap Harness

Fuse Block: 12 Way

Relay Quantity: 2

Relay Use: Ignition Power, Fuel Pump

Diagnostic Port: OBD II / DLC Port

Fitment Type: DIY Wiring / Direct Harness Integration

Features:

Designed for GM V8 LS swap harness applications.

Compatible with drive by cable and drive by wire setups.

Color coded wiring helps simplify installation.

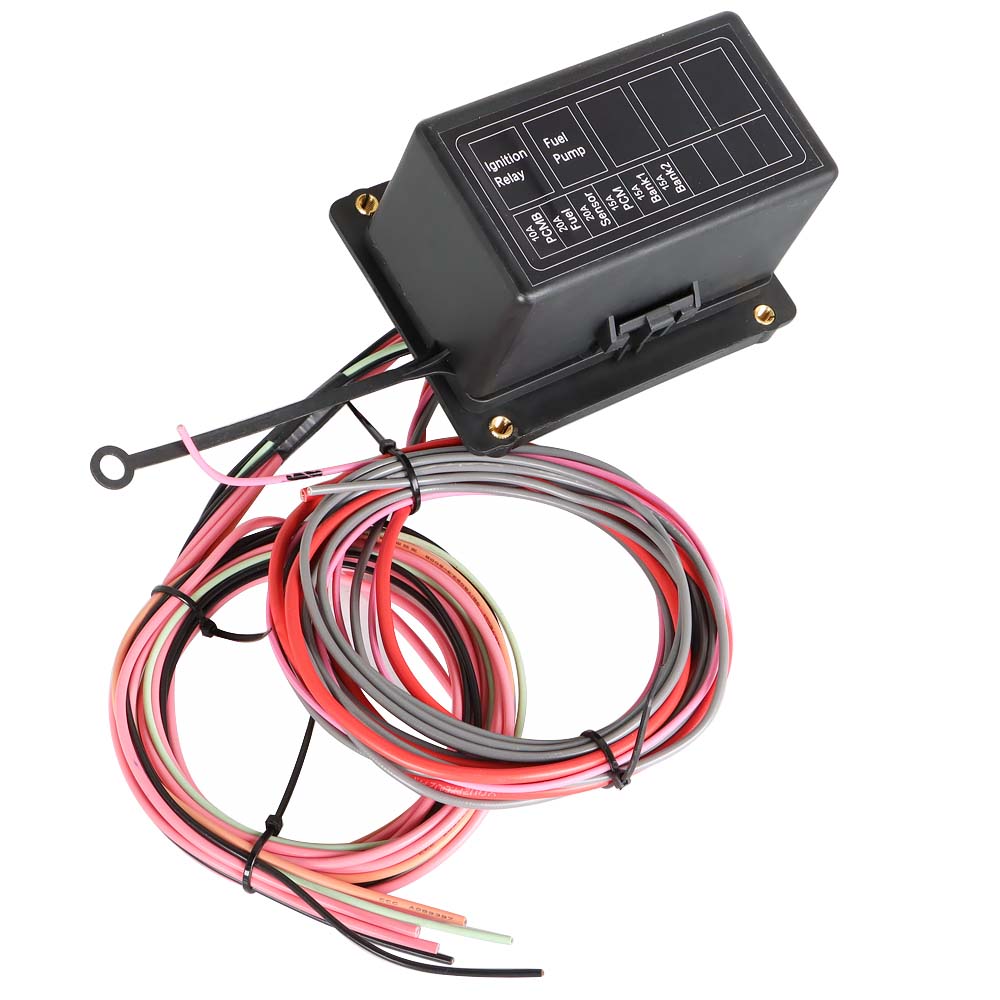

Fuse block cover includes internal relay and fuse location labels.

Includes ignition power relay and fuel pump relay.

OBD II diagnostic port included for DLC connection.

Engine harness tape included for wiring organization.

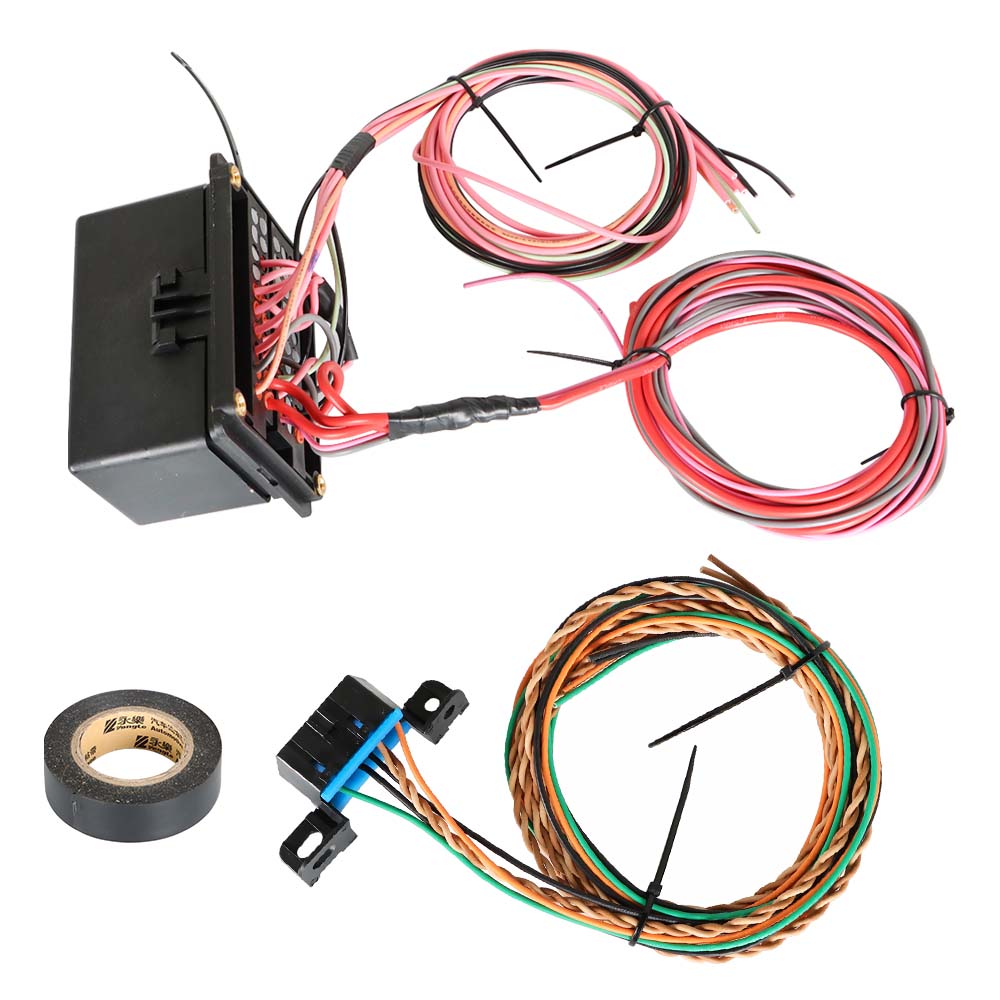

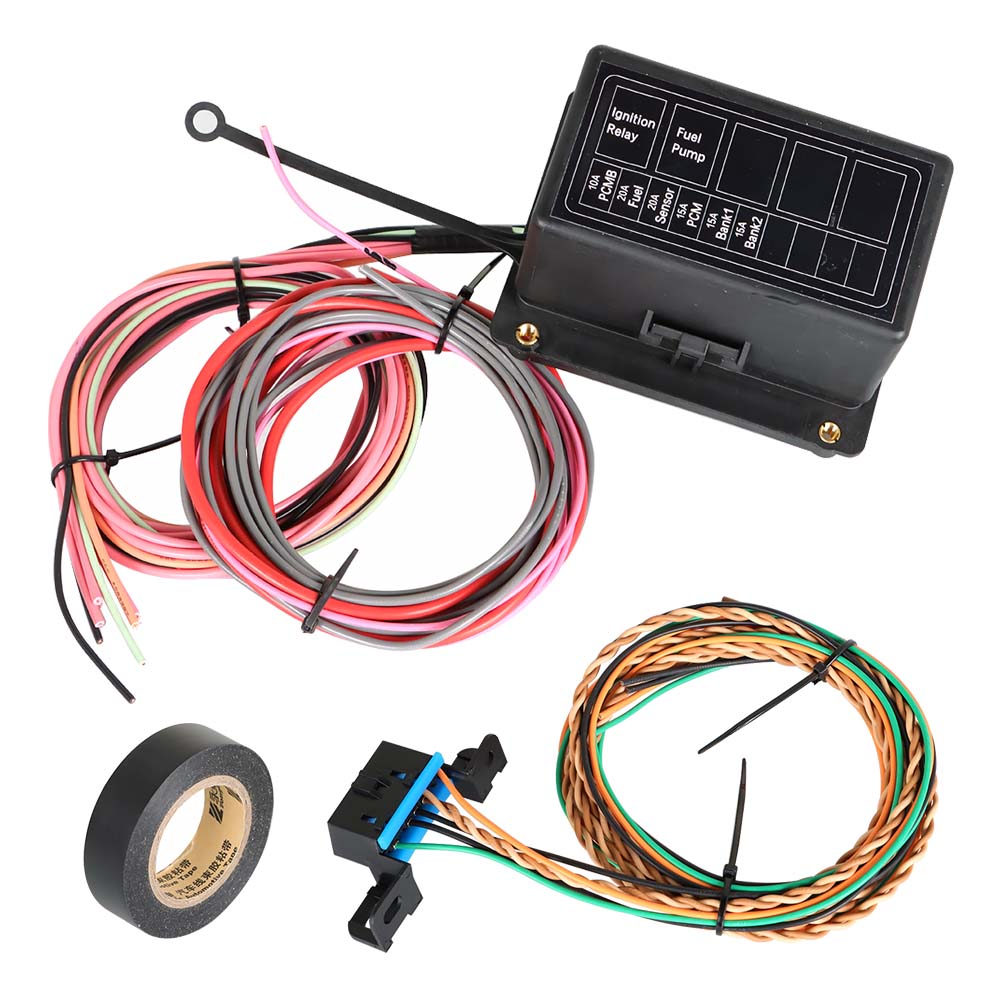

Package Includes:

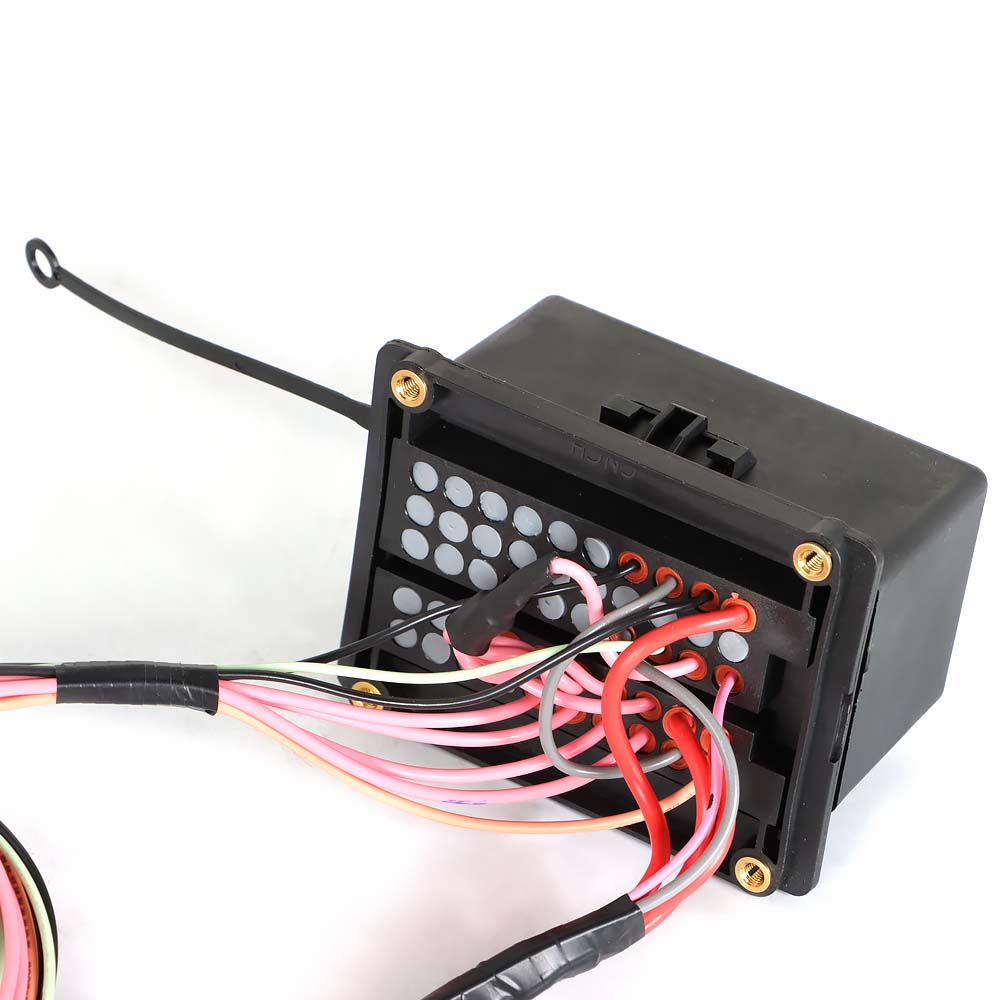

1 x 12 Way Fuse Block with 6 Fuses

2 x Relays

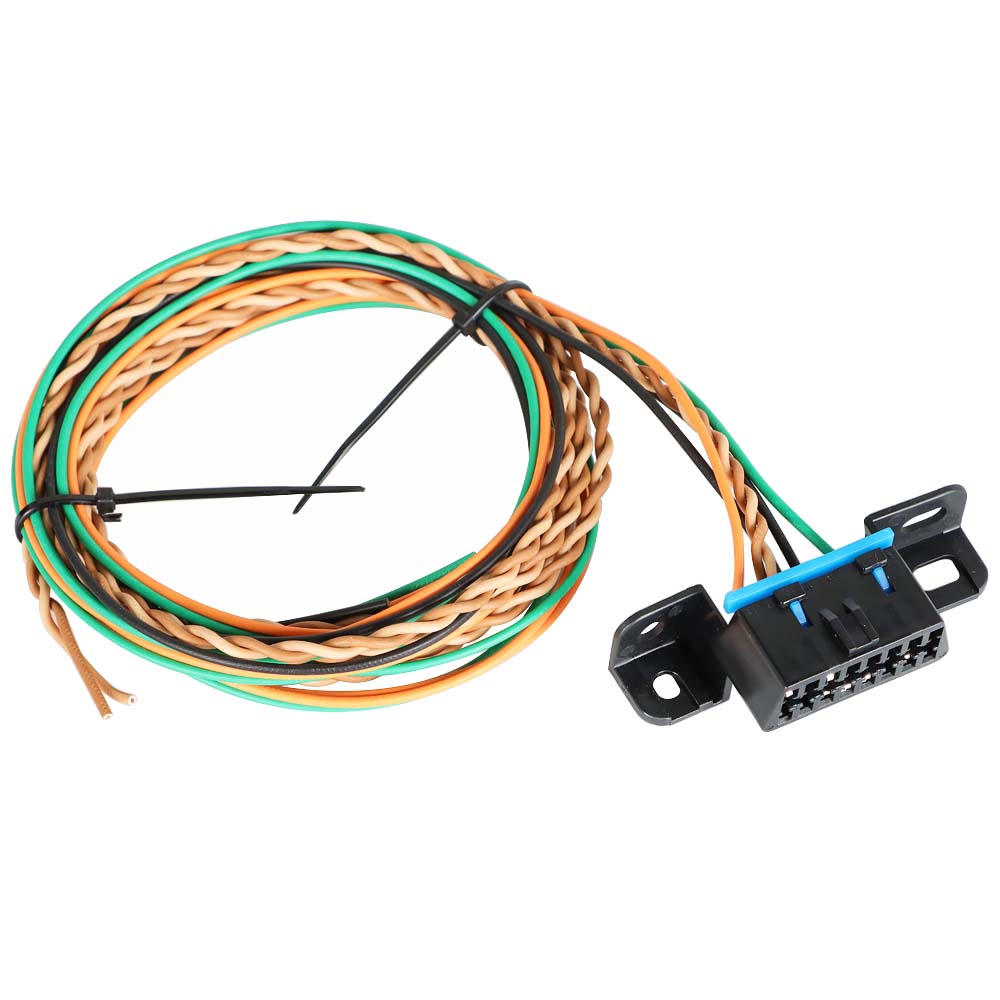

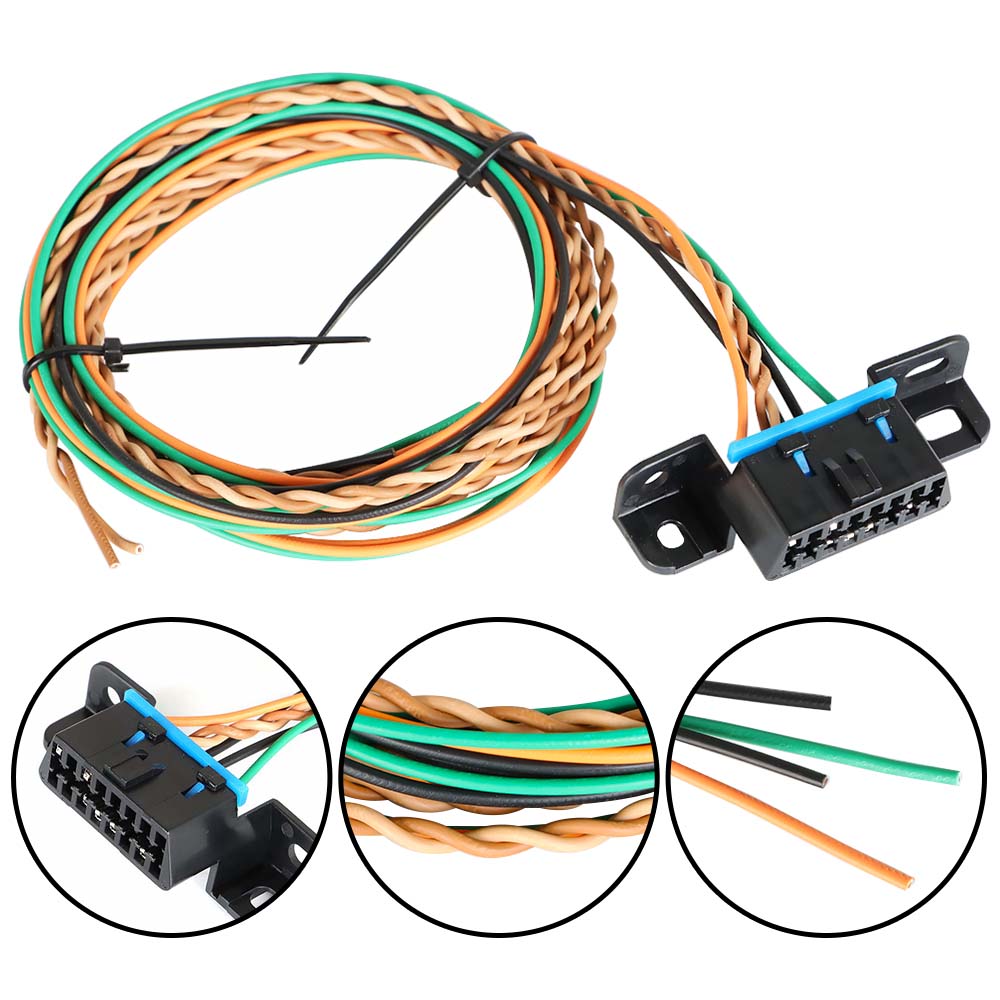

1 x OBD II / DLC Diagnostic Port

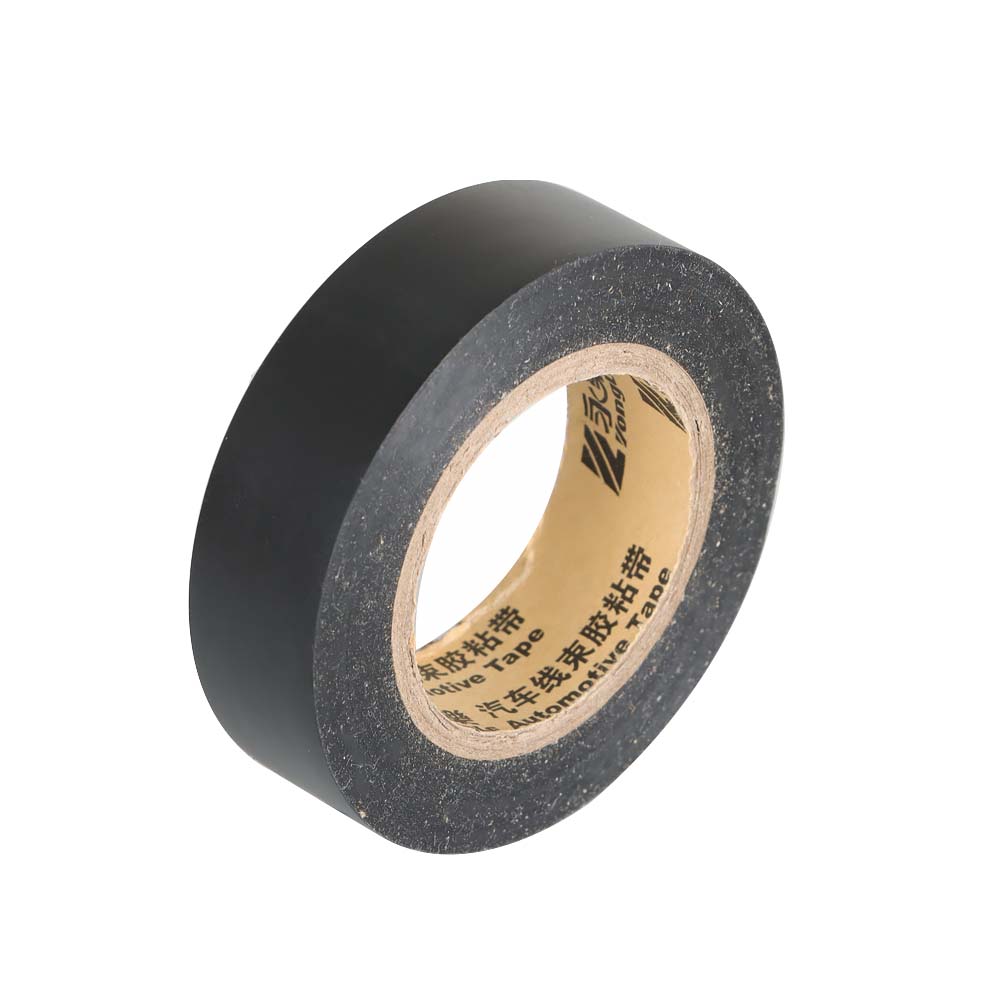

1 x Roll of Engine Harness Tape

Important Note:

Product instruction is not included.

Please confirm wiring requirements, engine type, harness type, and vehicle application before purchasing.

Manual measurement may have 1-3cm difference.

Due to monitor and lighting differences, the actual product color may vary slightly from pictures.
