Labwork LS Engine Low Profile Oil Pan Retro For Chevrolet Nova Durable1969-1974

About Labwork:

Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features:

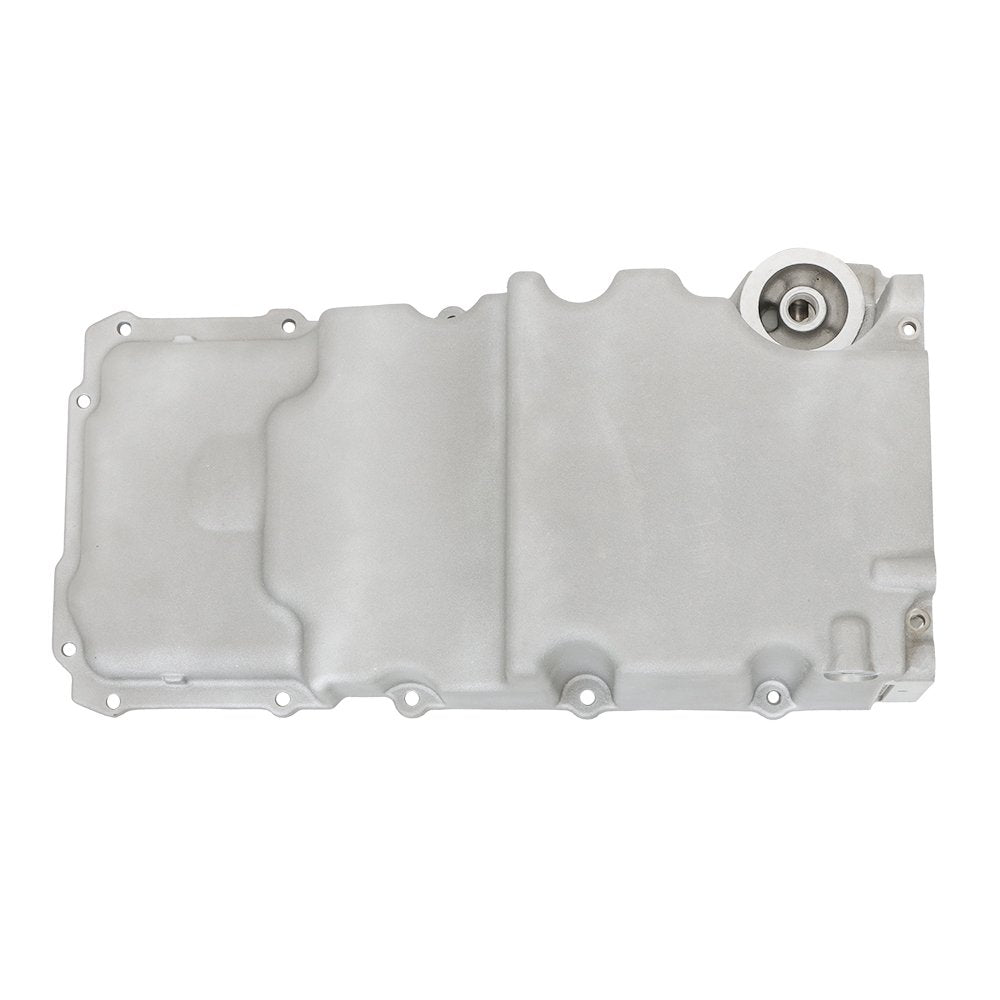

-LS engine Low Profile cast aluminum engine oil pan

-Gen III/IV  blocks

4.8 - 5.3 - 5.7 -  6.0 - 6.2

-LS1 - LS2 - LS3

-Sump Style  ---    Wet

-Sump Location  ---     Rear

-Sump Depth ---    5.46"

-Maximum Stroke ---   3.62"

-Oil Filter Location ---    Stock

-Sump Oil Capacity ---   5.7 Quarts

-Total Oil Capacity ---   6.2 Quarts with Stock Filter

-Baffled ---   Yes

-Windage Tray ---   Not Included

-Designed for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube

Ideal for Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92)

-Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application

-Fits most LS engines, except LS7 or LS9 dry sump applications

-Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031

Fitment:

For LS Engine LS1 LS6 LS2 LS3 LS9 4.8L 5.3L 5.7L 6.0L 6.2L Motor

For Chevrolet Camaro 1967-1969

For Pontiac Firebird 1967-1969

For Chevrolet Nova 1968-1974

For Chevrolet Ventura 1968-1974

For Chevrolet Omega 1968-1974

For F-body 1982-1992

For G-body 1978-1987

For A-body 1964-1972

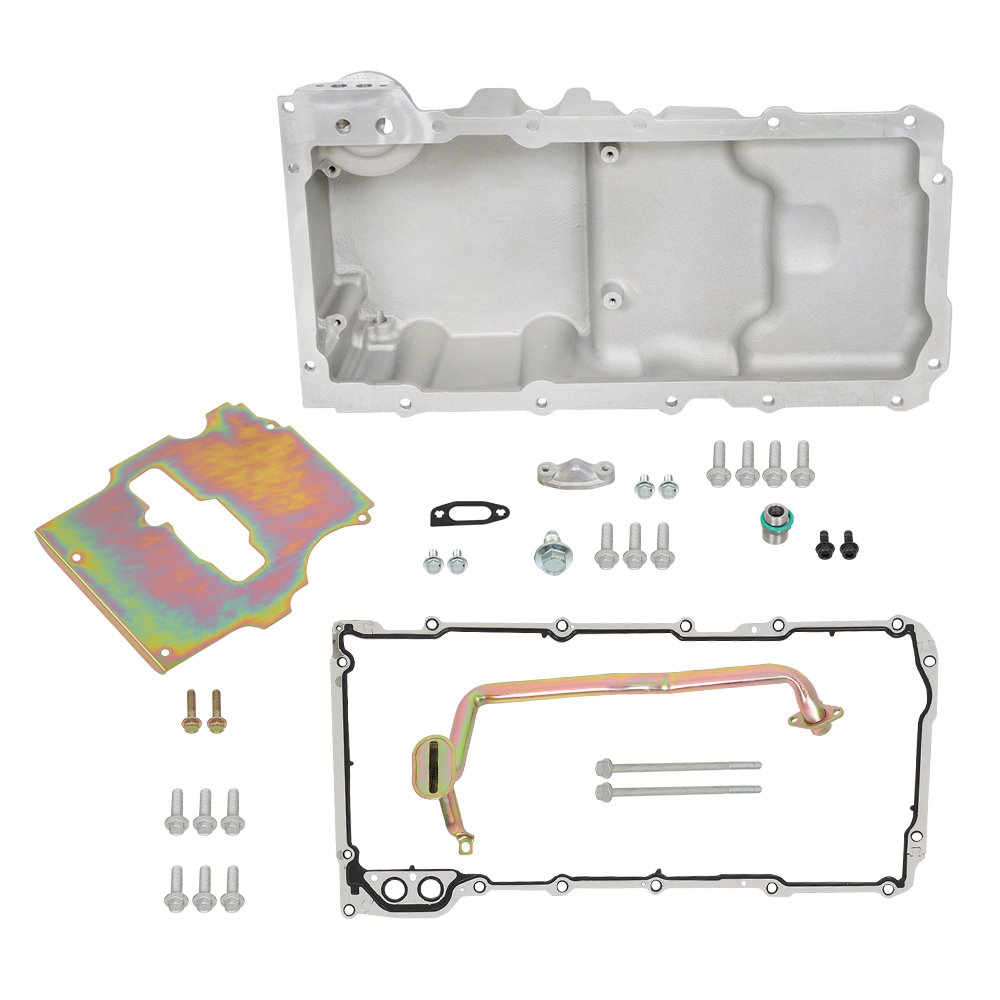

Package Include:

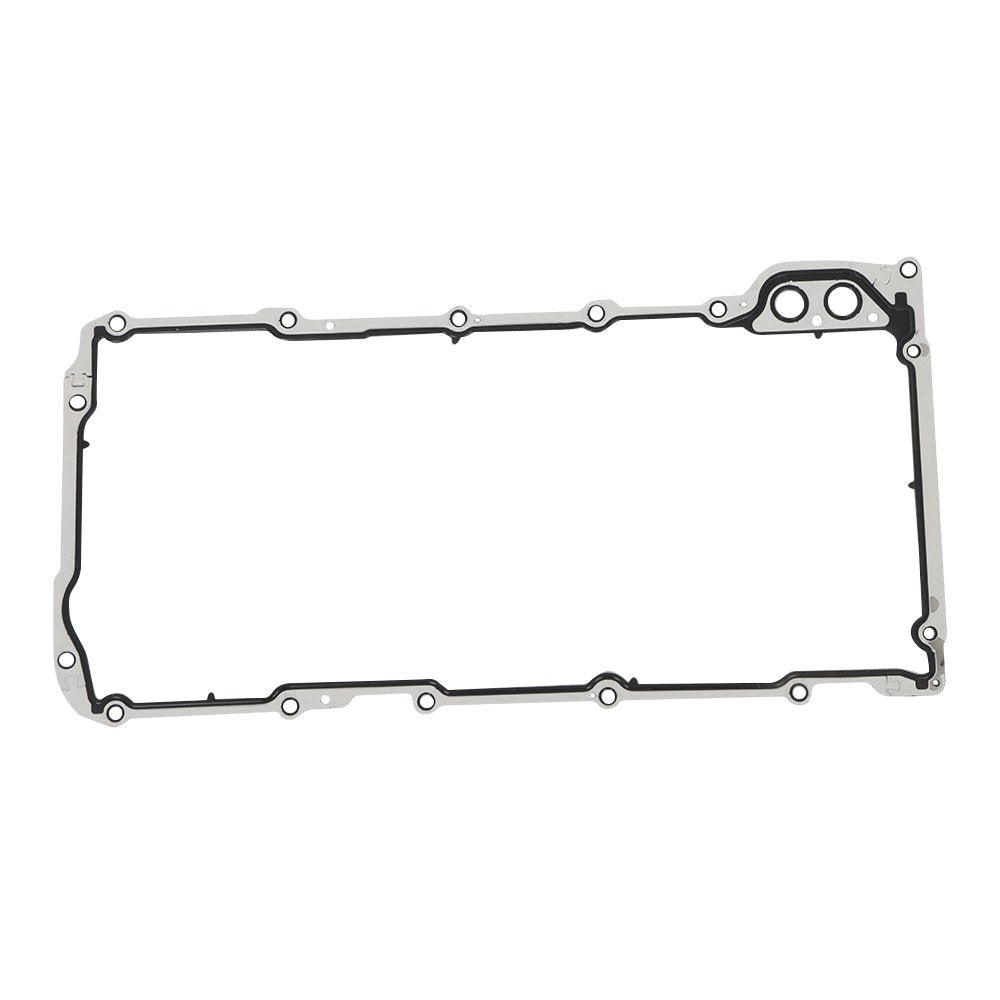

1*Oil Pan Gasket

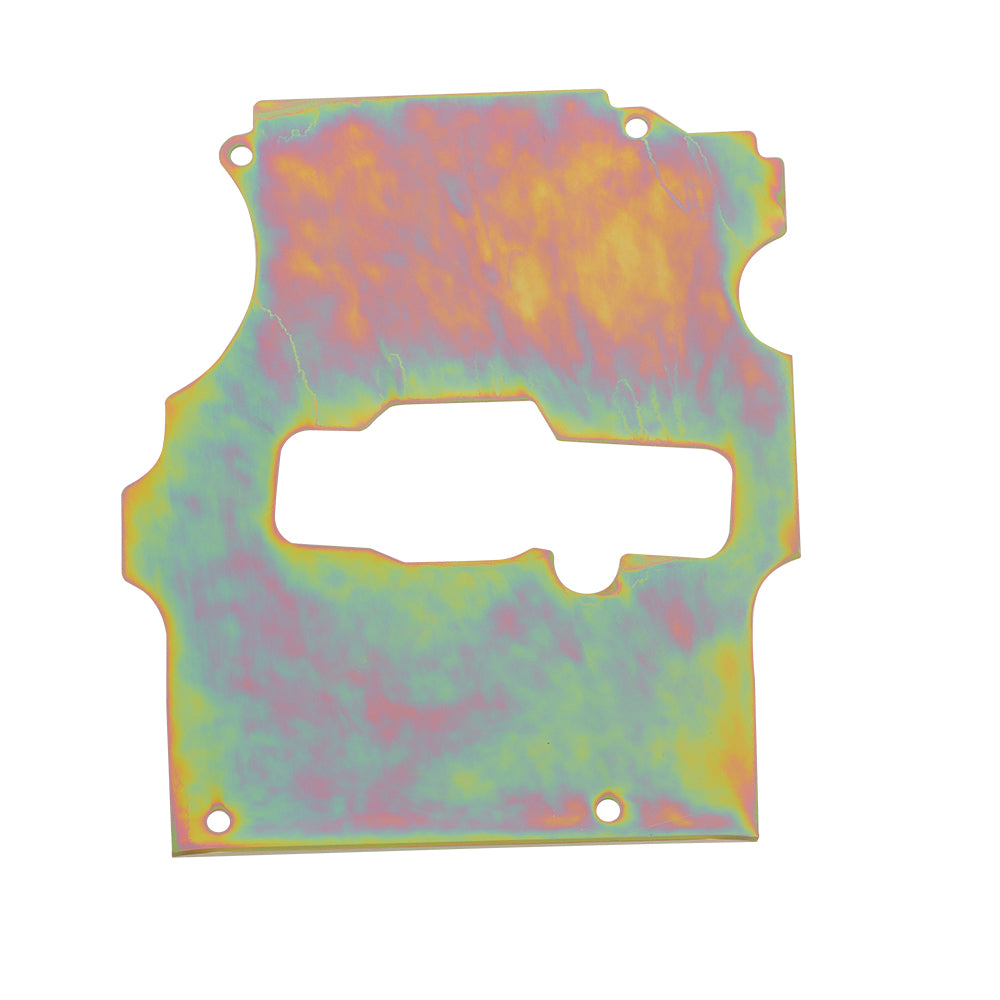

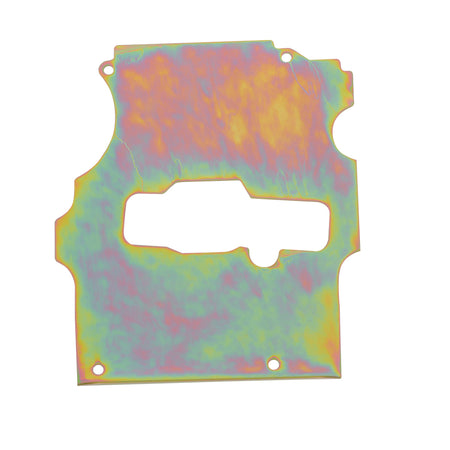

1*Sump Baffle

1*Oil Pickup Tube

1*Drain Plug

1*Oil Filter Stud

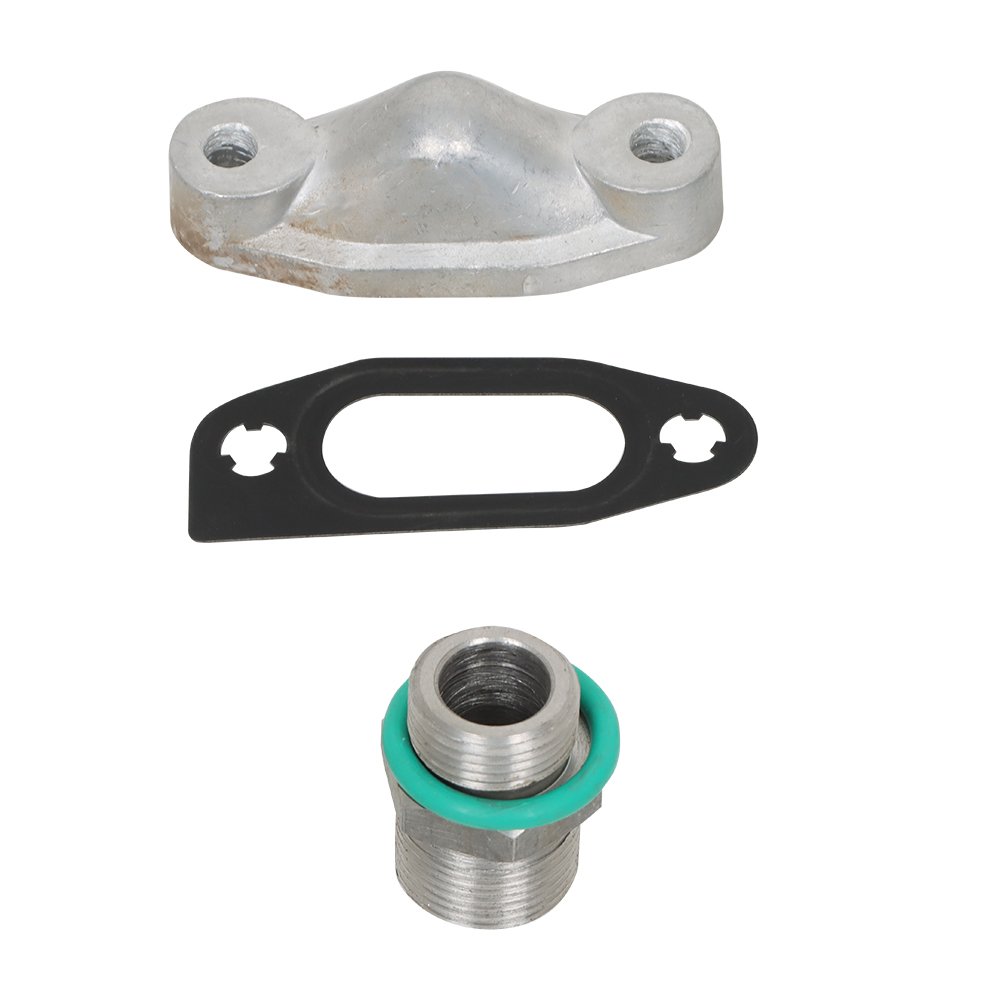

1*Oil Passage Cover

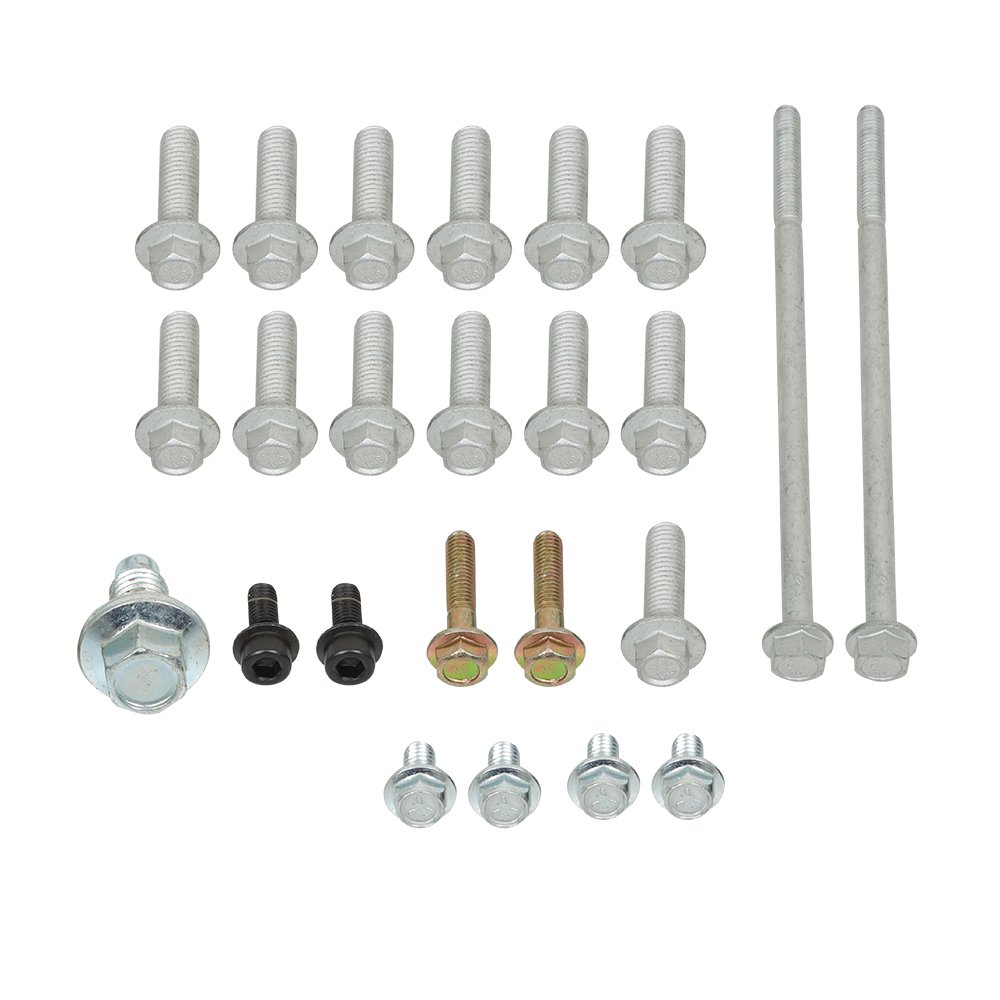

1*Mounting Hardware

W/o Product Instruction
