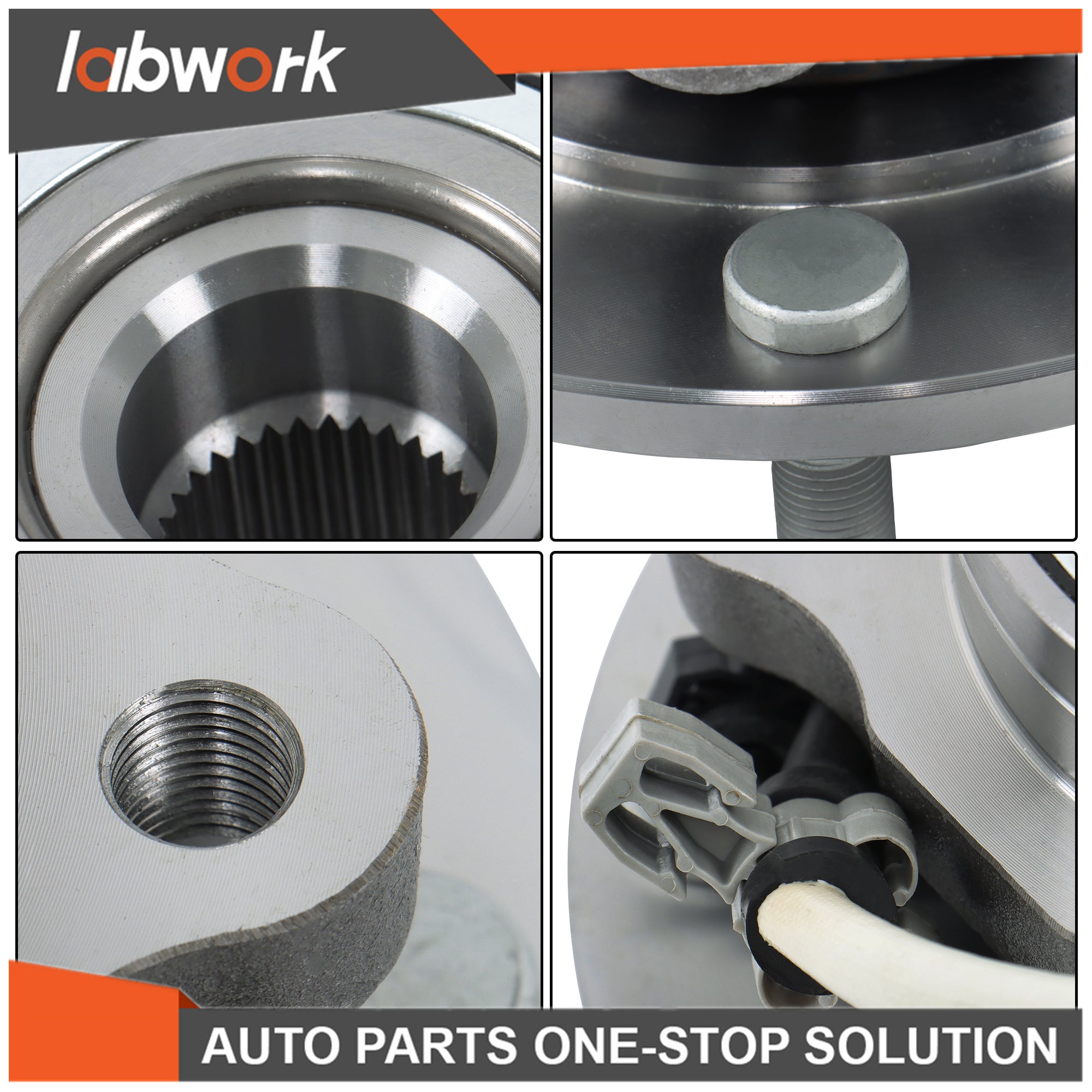

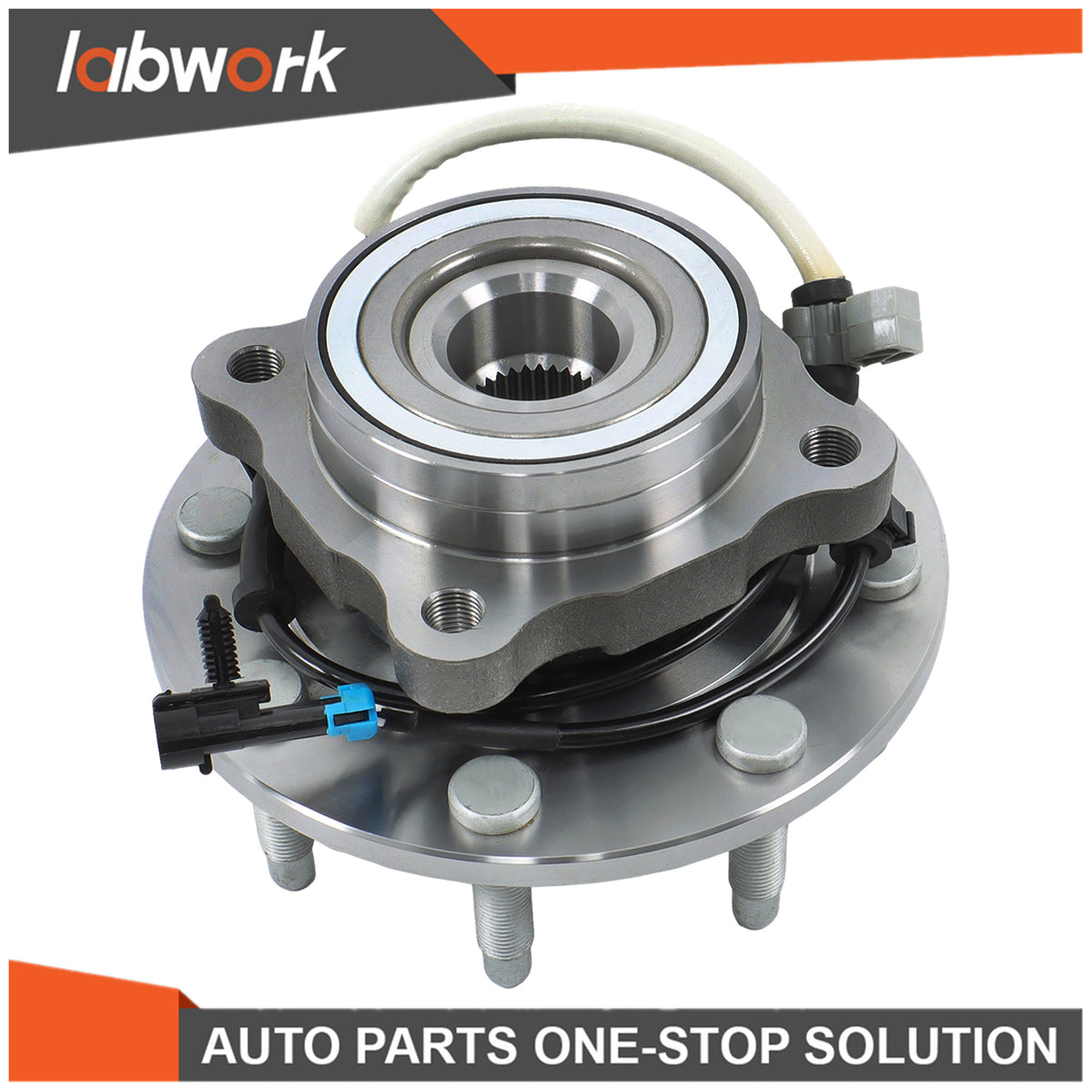

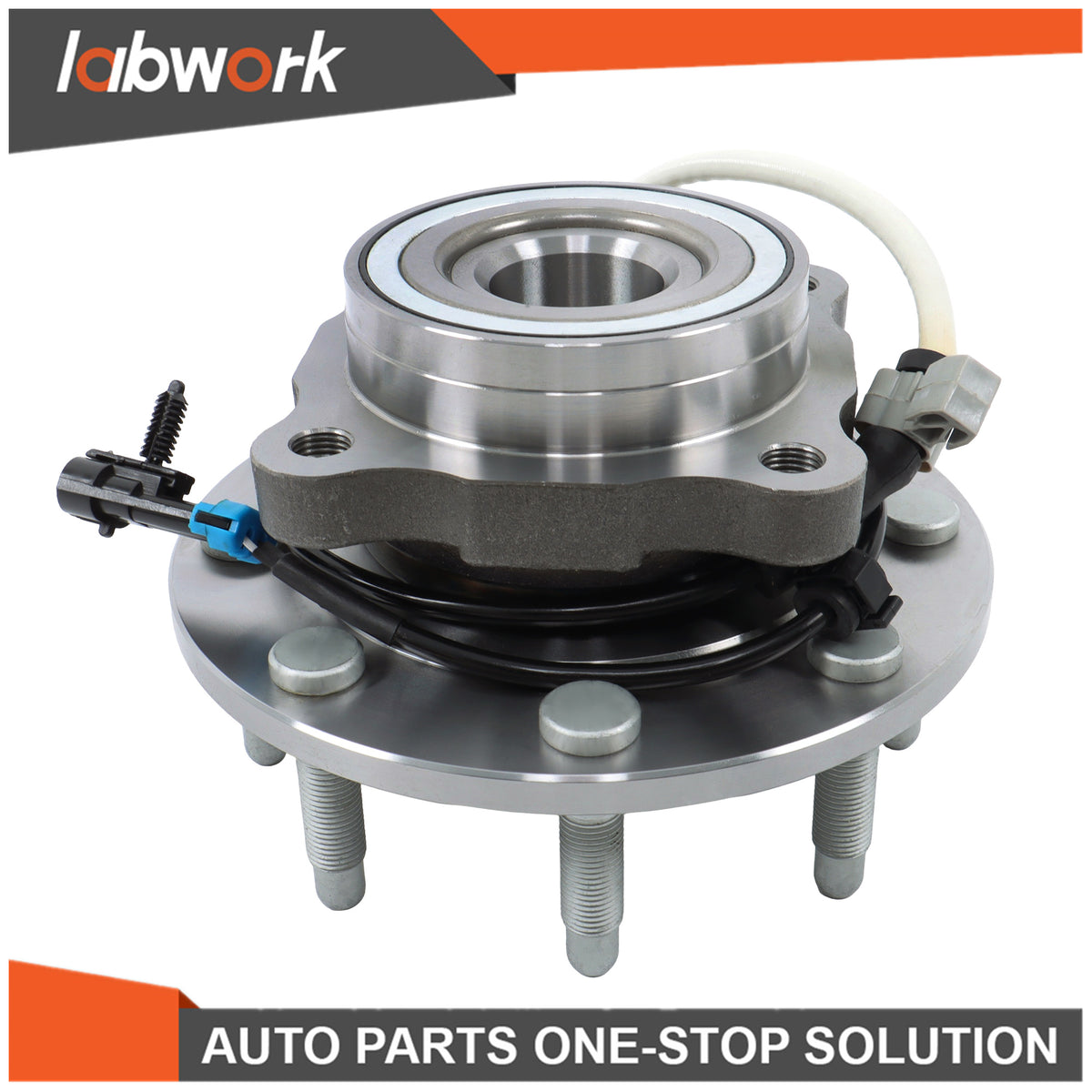

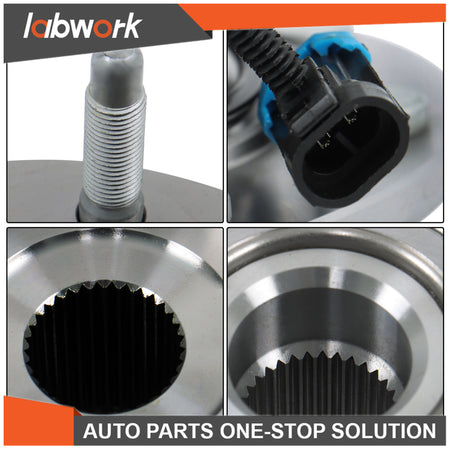

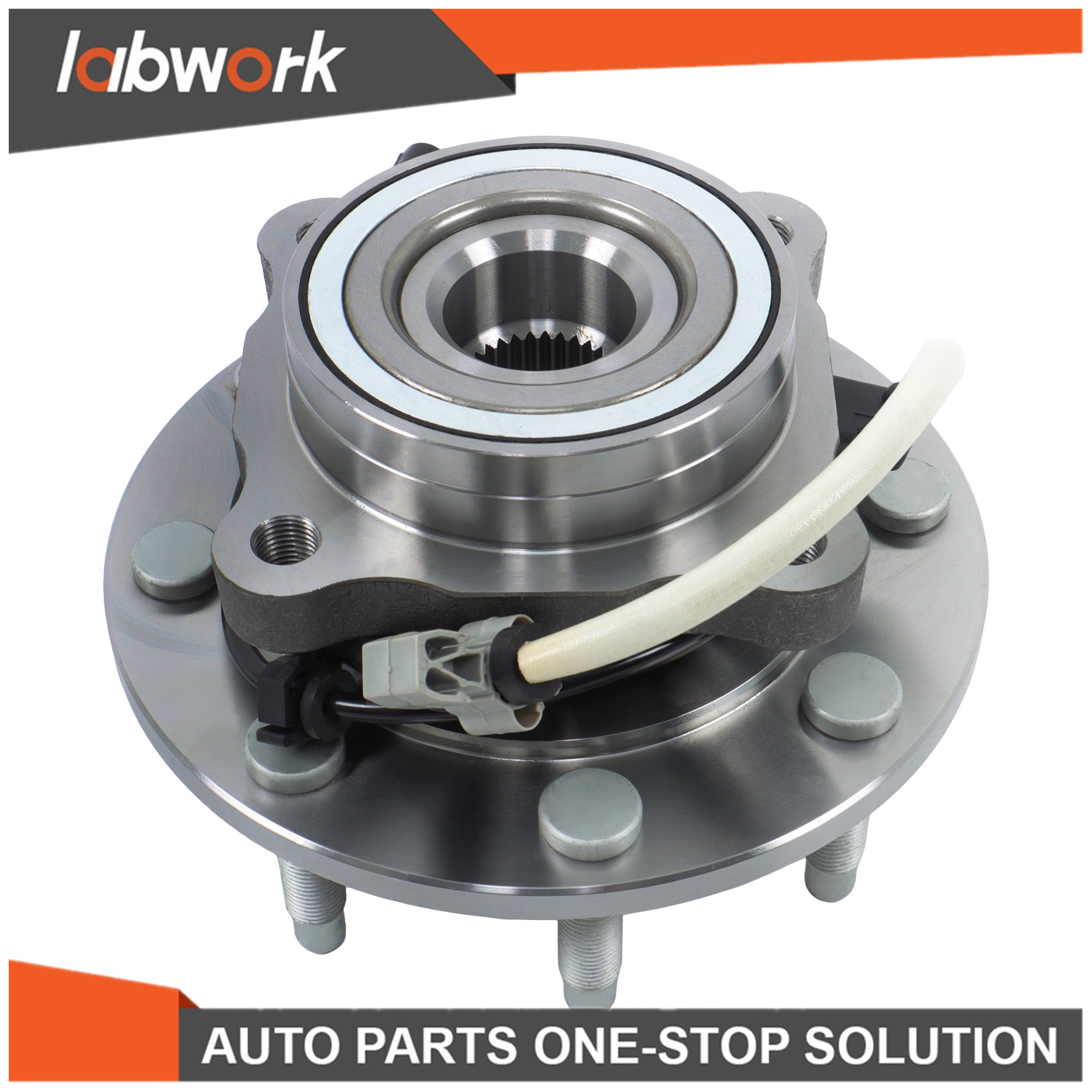

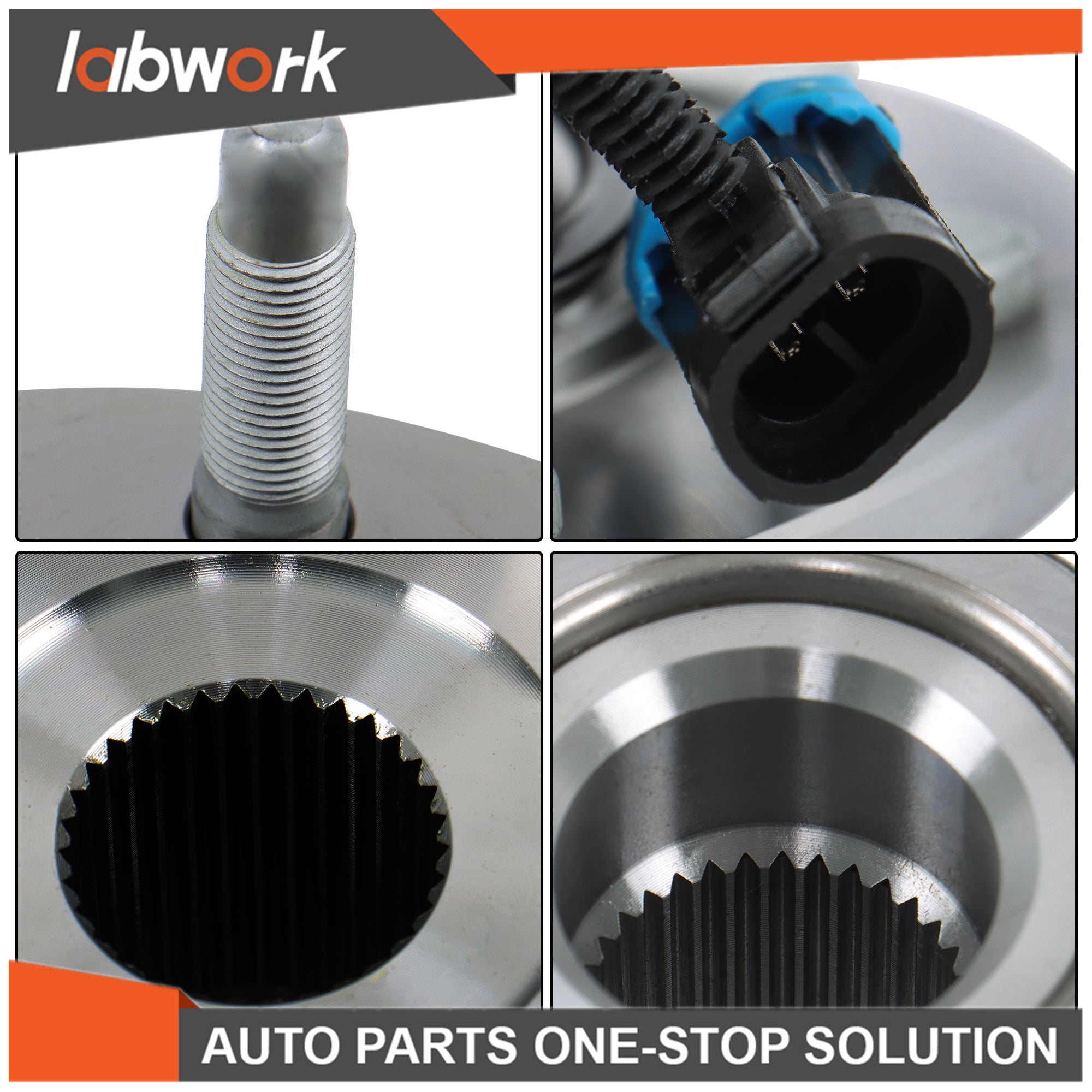

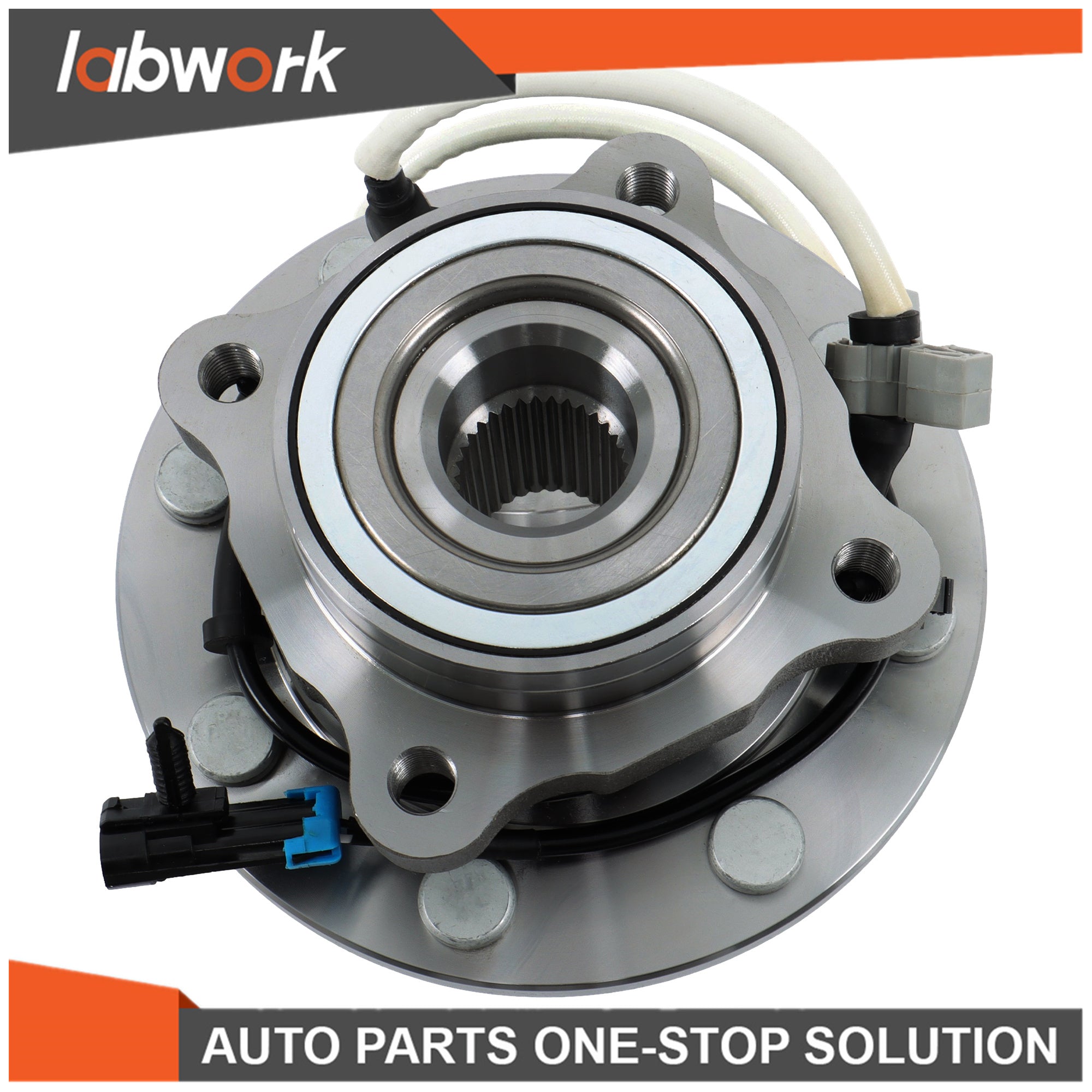

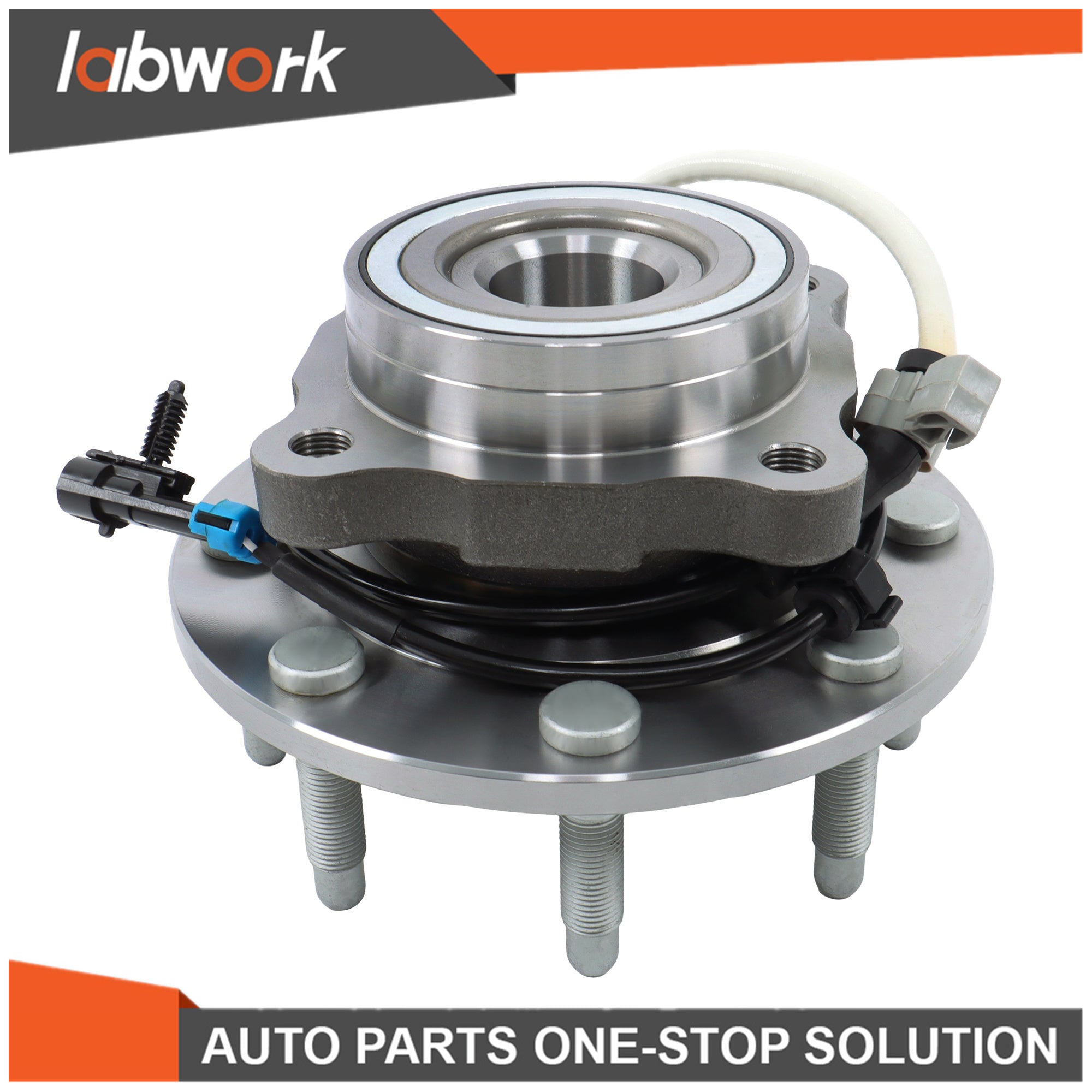

Labwork Front Wheel Bearing Hub Assembly 2003 2004 2005 2006 2007 for Hummer H2

Fitment：

For  Chevrolet Avalanche 2500 2002-2006 Front 4WD; 4x4 Only

For  Chevrolet Silverado 1500 HD 2001-2006

For  Chevrole Silverado 1500 HD Classic 2007

For  Chevrole Silverado 2500 1999-2004 Front 4WD; 4x4 Only; 900 Lb. GVW; Hydraulic Booster; 4 Wheel Disc Brakes

For  Chevrolet Silverado 2500 HD 2001-2006 Front  4WD; 4x4 Only
For  Chevrolet  Silverado 2500 HD Classic 2007 Front 4WD; 4x4 Only

For  Chevrolet  Silverado 3500 2004-2006 Front 4WD; 4x4 Only; 900 Lb. GVW; Hydraulic Booster; 4 Wheel Disc Brakes

For  Chevrolet  Silverado 3500 Classic 2007 Front 4WD; 4x4 Only

For  Chevrolet  Suburban 2500 2000-2006 Front 4WD; 4x4 Only

For  GMC Sierra 1500 2001-2006 Front 4WD; 4x4 Only

For  GMC Sierra 1500 Classic 2007 Front 4WD; 4x4 Only

For  GMC Sierra 1500 HD 2001-2006 Front  4WD; 4x4 Only; 900 Lb. GVW; Crew Cab

For  GMC Sierra 1500 HD Classic 2007 Front 4WD; 4x4 Only

For  GMC Sierra 2500 1999-2004 Front 4WD; 4x4 Only

For  GMC Sierra 2500 HD 2001-2006 Front 4WD; 4x4 Only

For  GMC Sierra 2500 HD Classic 2007 Front 4WD; 4x4 Only

For  GMC Sierra 3500 2004-2006 Front 4WD; 4x4 Only

For  GMC Sierra 3500 Classic 2007 Front 4WD; 4x4 Only

For  GMC Yukon XL 2500 2000-2006 Front 4WD; 4x4 Only

For  Hummer H2 2003-2007 Front 4WD; 4x4 Only

Description：

Type: Wheel Hub & Bearing Assembly

Placement on Vehicle: Front, Left, Right, Driver Side, Passenger Side

Wheel Stud Quantity: 8

Bolt Pattern: 8 x 6.5 in. / 8 x 165.1 mm

Part Number: 515058, H515058, HU515058, WA515058HD, H515058HW, 102019, 40266005, WE60884, 715058, SP580310, SP580310A, 19419501, TXF515058, BR931000, G515058, WA515058, 7300231, WH515058HD, 29515058, WH515058, 40266005E, 951067, 951-067

515058, 15042868, 15056760, 15104582, 15112411, 15225753, 15225770, 15719015, 15733637, 15946732, 15946733, 51112412, 89059059, 89059060

Manufacturer Warranty: 1 Year

Anti-lock Braking System: Yes

Brake Pilot Diameter: 4.641 in. / 118.1 mm

Flange Diameter: 7.85 in. / 199.4 mm

Flange Offset: 2.297 in. / 58.4 mm

Hub Pilot Diameter: 4.16 in. / 105.8 mm

Flange Shape: Modified

Item Weight: 17 pounds

Items Included: ABS Sensor, ABS Wire

Material: Forged Steel

Universal Fitment: Direct Replacement

Package Content: 1 Piece

Wheel Stud Size: 14 mm

Flange Bolt Hole Quantity: 4

Engine: 4X4 4WD V6 V8 - 4.3L 4.8L 5.3L 6.0L 6.6L 8.1L

Spline Quantity: 33

Bolt Circle Diameter: 6.5 in. / 165.1 mm

Bearing Generation: G3

Flange Bolt Thread Size: M14-1.50

Package Include：

1*Front Wheel Bearing and Hub Assembly 515058

W/o Product Instruction；

Notes：

-If You Are Not Sure The Item 100% Fit For Your Vehicle Before Your Purchase.

-Please Allow 1-3CM Differs Due To Manual Measurement.
-Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item. Thanks For Your Understanding.
