labwork Front Rear Crank Seal Installer Replacement for Detroit Diesel Series 60 12.7L 14L J-35686-B

In stock
No reviews
$187.07
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee

Checking Vehicle Fit

Product details

  • Material Metal
  • Color As shown in the picture
  • MPN LAW177744
  • Placement Upper
  • OE For two Cycle 92 engines & Detroit Diesel Series 6
  • Warranty 1 Year
Have Questions?
Market@labworkauto.com
Description Reviews

About Labwork：



Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.



Features：



used on multiple seal & wear sleeve assemblies including 23516969, 23513578, 23513485, 23518355 etc.Can be directly Replacement to J-35686, J-35686-A and J-35686-B
Used to correctly install the front and rear crankshaft wear sleeves and seals, making the process more perfect and saving time.Protect your engine. It eliminates lip flare on the wear sleeve and installs the seals properly without leakage.
made of high-quality steel, with a smooth black surface, durable, anti-rust, and can be used many times. After many measurements, the product has precise dimensions.

Directives:
1. Seal the outer diameter of the rubber with clean oil lubricating oil. Lubricate the gearbox cover or flywheel housing bore with clean oil.

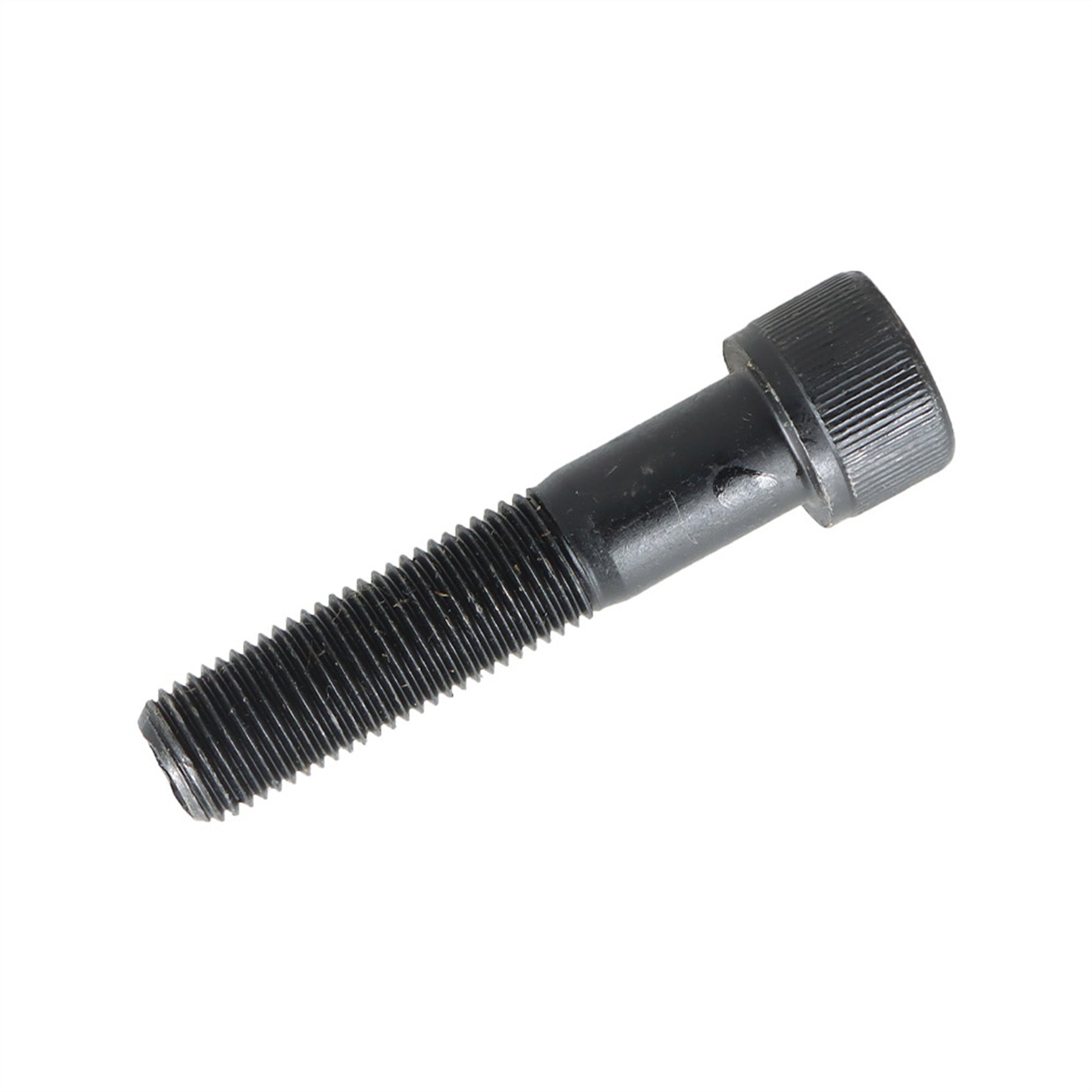

2. Install two guide studs (J-35686-2) through the holes provided by the center guide assembly (J-35686-1) and insert them into two tapping holes on the crankshaft that are 180 degrees apart. Tighten the guide studs. The base must be close to the end of the crankshaft.

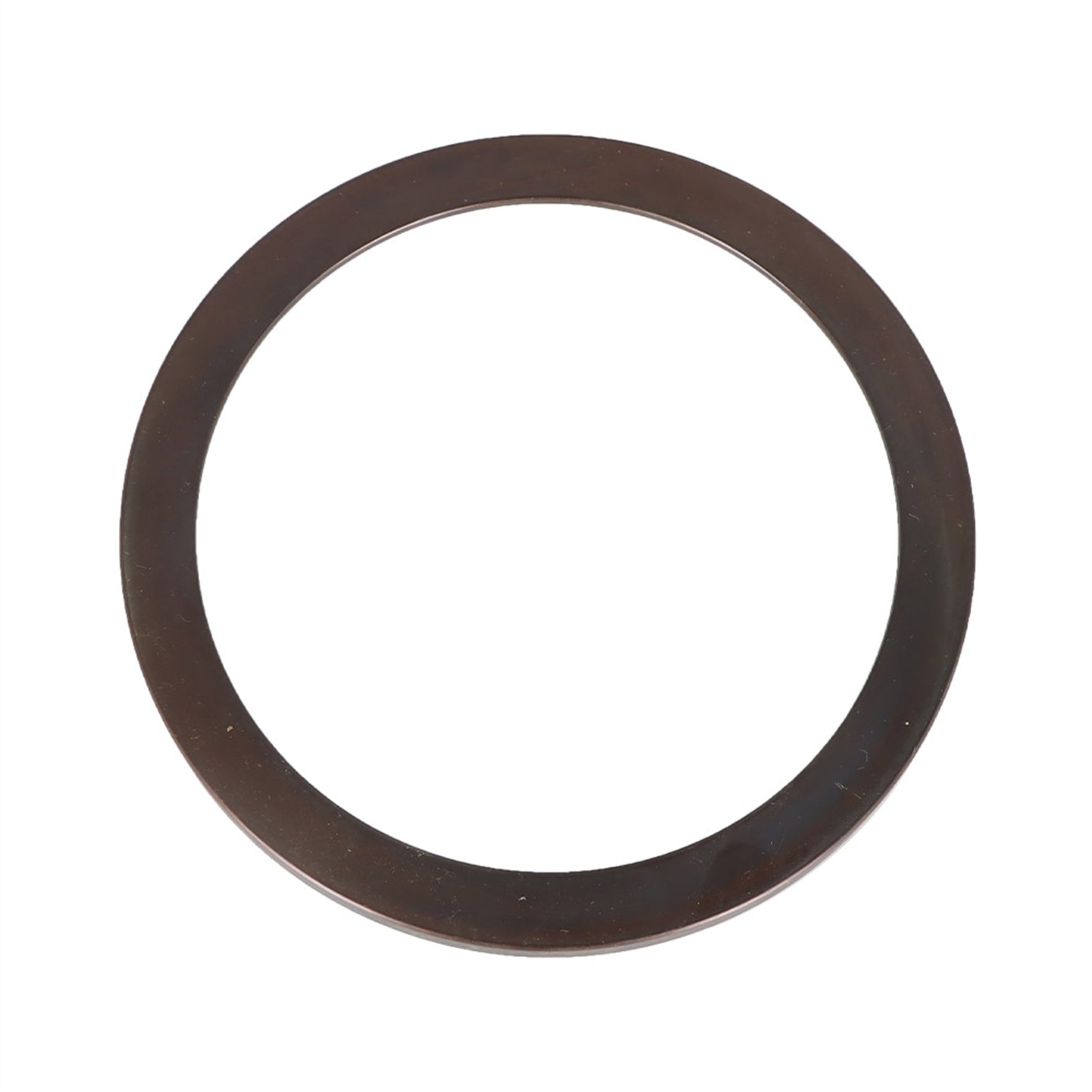

 3. Install the spacer on the center screw of the base.
4. Slide the oil seal assembly from the mounting base to the crankshaft hub, as far as possible. Seal ring on the step side that slides in contact with the seal. Slide the mounting cup over the guide studs and mounting base.

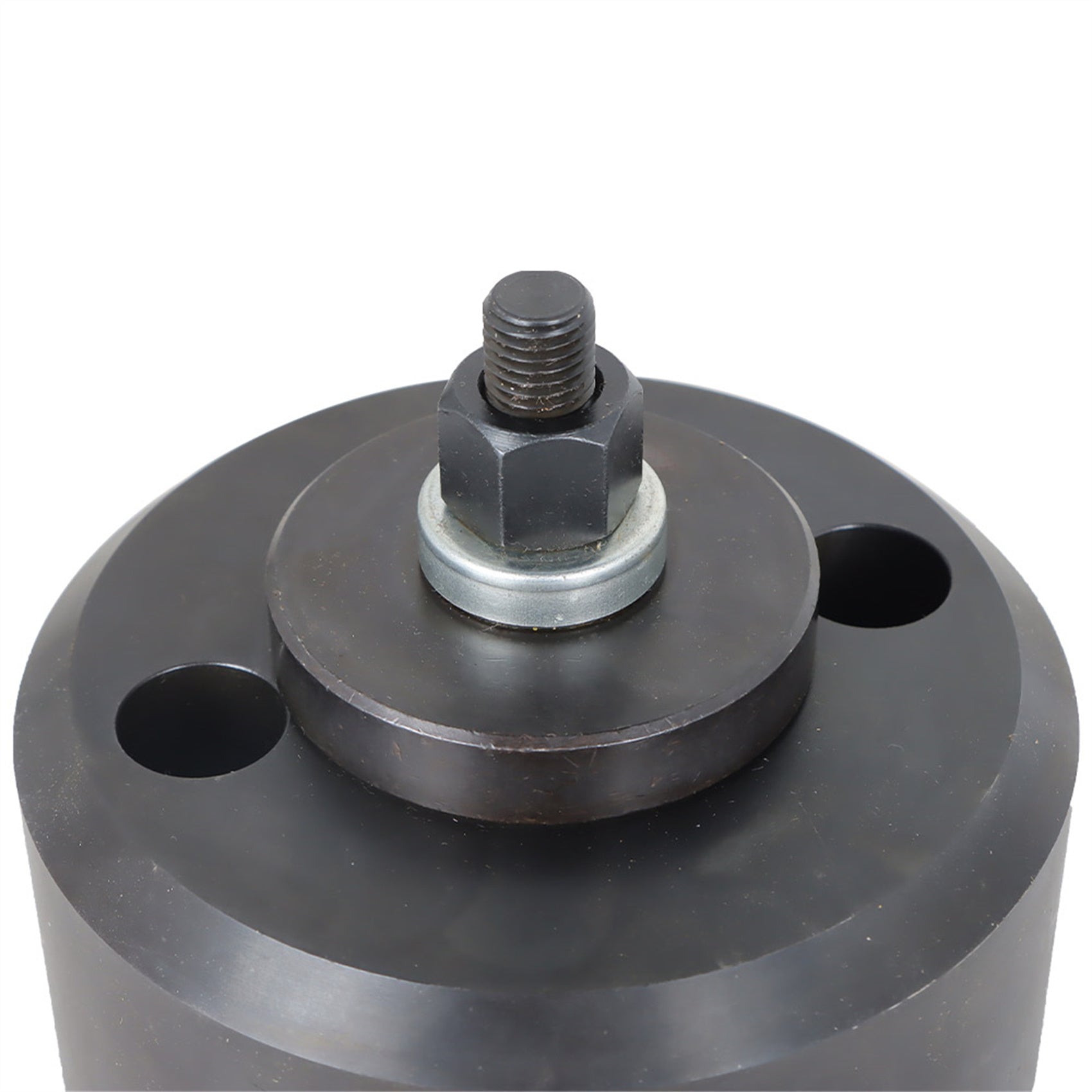

5. Lubricate the center screw of the base with extreme pressure lubricant. Face the housing side of the thrust bearing towards the mounting cup and mount the hex nut to the center screw of the base.
6. Tighten the hex nut until the oil seal and wear sleeve are pressed into the flywheel housing or gearbox cover.
7. When the inner surface of the housing rests firmly against the base and gasket, the seals and sleeves are installed correctly. Remove  tool.



Fitment：



For two Cycle 92 engines & Detroit Diesel Series 60 . Help workers do their jobs better





Package Includes：

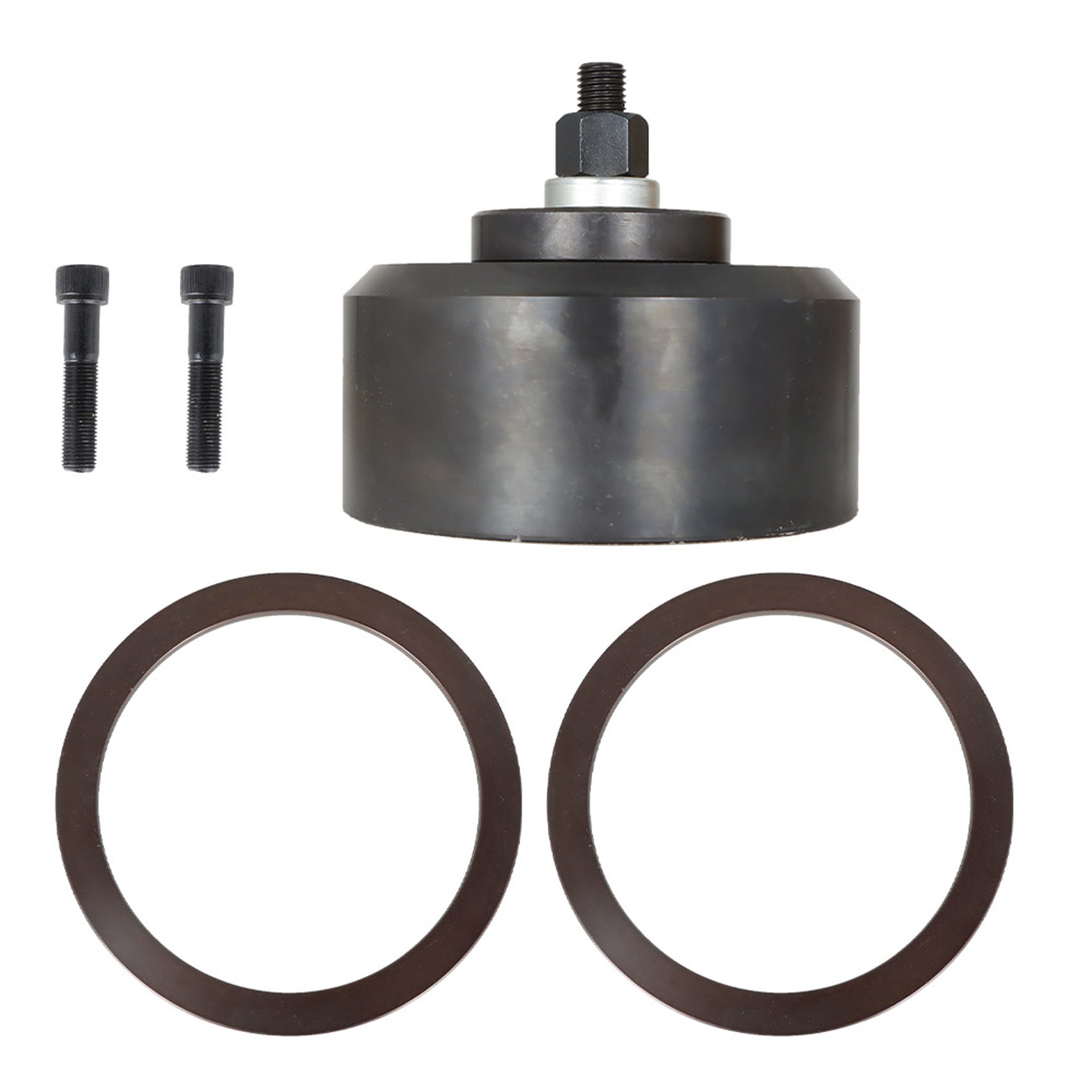

1* Front & Rear Crankshaft Seal & Wear Sleeve Installer Tool
