Labwork For 73-87 Chevy C/K Series Pickup Blazer/GMC 3Row Radiator+Shroud Fan

About Labwork：

Labwork Is An Auto Parts One-stop Solution Brand Of More Than 10 Years, Which Specializes In Providing Global Customers With Top-notched Quality Automotive Parts & Accessories . If You Need Any Auto Parts, Its Enough To Come To Labwork.

Features：

Part Number: 716/CC716/CU716/DPI716/CU1599/EC716/AE716/MC716

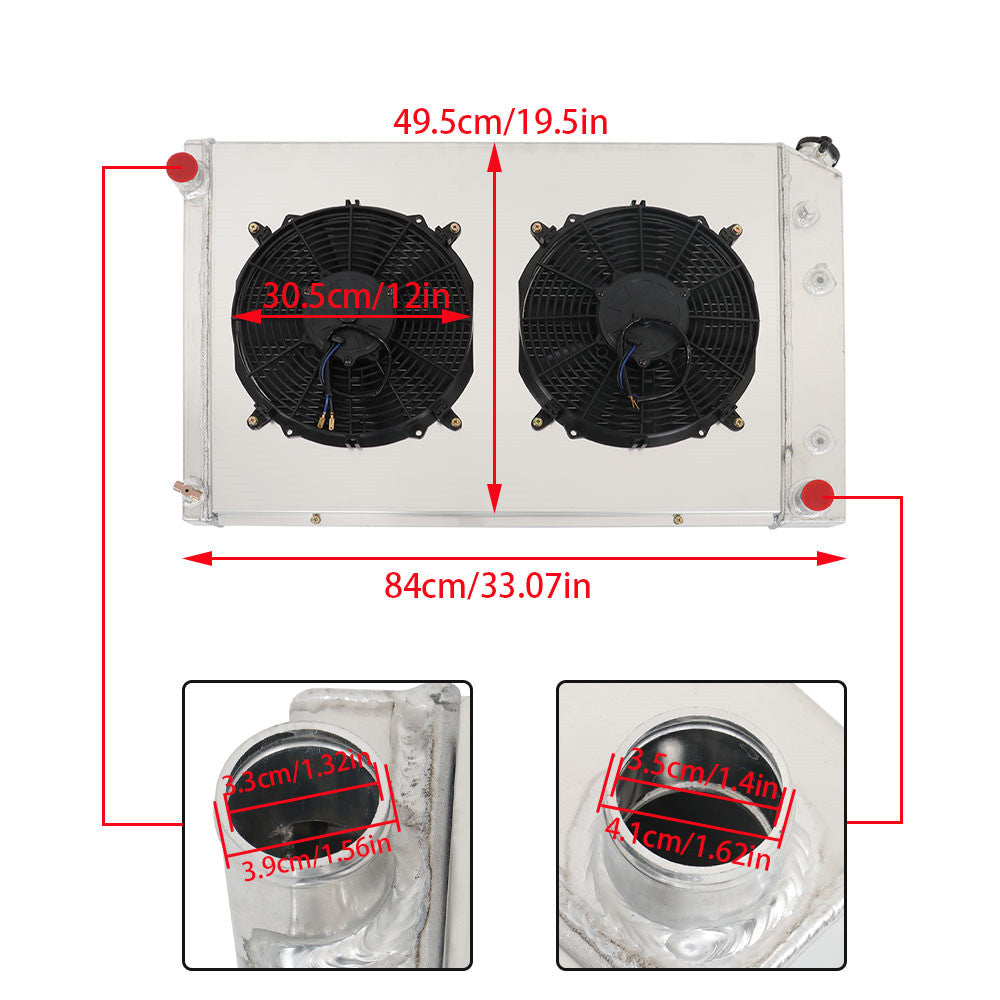

This Radiator Size:

3-Row of tubes Core Racing Design

Core Size:19" Height x 28-1/4" Width x 1 3/4"

Overall Size:20-1/4" Height x 33-1/4" Width

Upper Inlet Size:1 1/2" located on the driver side

Lower Outlet Size:1 1/2" located on the passenger side

Transmission Cooler: ￠32×215×G1/4（Z）

ONLY For Engines using 28 1/4" WIDTH X 19" HEIGHT CORE.

Fan Specification:

Diameter: 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 80 watt motor will keep your engine cool.

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

Comes on at 185º AND Turns off at 165º.

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.

Fitment：

1990 For Chevrolet Blazer / Gmc V3500

1975 1979 1981 1983 For Chevrolet C10 4.1l 4.8l 5.0l 5.7l 6.2l 6.6l 7.4l

1974 1975 1979 1985 For Chevrolet C10 Suburban

1976 1980 1981 1982 1986 For Chevrolet C20 4.1l 4.3l 4.8l 5.0l 5.7l 6.2l 7.4l

1974 1975 1979 1983 For Chevrolet C20 Suburban

1977 1982 1986 For Chevrolet C30

1974 For Chevrolet C30 Pickup

1978 1979 1982 1986 For Chevrolet K10

1973 For Chevrolet K10 Pickup / Gmc P35/P3500 Van

1979 1984 For Chevrolet K10 Suburban

1975 1979 1985 For Chevrolet K20

1974 1978 1982 1986 For Chevrolet K20 Suburban

1978 1984 For Chevrolet K30

1974 For Chevrolet K30 Pickup

1979 For Chevrolet K5 Blazer 4.1l 5.0l 5.7l 6.6l

1973 For Chevrolet P10 Van 4.1l 5.0l 5.7l 7.4l

1979 1983 1988 For Chevrolet P20

1977 1981 1985 1993 For Chevrolet P30

1974 For Chevrolet P30 Van

1987 For Chevrolet R10 / V30 Gmc R1500 Suburban / R2500 Suburban / V1500

1990 For Chevrolet R1500 Suburban

1988 For Chevrolet R20 Suburban/ V20 Suburban Gmc R3500

1990 For Chevrolet R2500 Suburban 5.7l 6.2l 7.4l

1989 For Chevrolet V1500 Suburban /For Gmc V2500 Suburban

1973 1975 For Gmc C15 / C1500 Pickup 4.1l 4.8l 5.0l 5.7l 7.4l

1976 For GMC C15 Suburban / C35

1981 1985 For Gmc C1500

1983 For GMC  C1500 Suburban

1977-1978 For Gmc C25 / K35

1977 For GMC  C25 Suburban

1973 For GMC C25 /C2500 Pickup / K25 /K2500 Suburban

1981 1982 1986 For GMC C2500

1981 1985 For GMC C2500 Suburban

1979 1982 1986 For GMC C3500

1979 For GMC  G2500

1976 1980 1986 1990 For GMC  Jimmy

1975 For GMC  K15 / K15 Suburban / K25 / K25 Suburban

1974 For GMC  K15 /K1500 Pickup

1979 1982 1983 For Gmc K1500

1979 1983 For GMC  K1500 Suburban/ K2500 / K2500 Suburban

1982 1986 For GMC  K3500

1980 For GMC  P1500 4.8l

1982 1989 For GMC  P2500

1975 For GMC  P35 4.8l 5.7l 7.4l

1983 1989 1993 For GMC  P3500

1988 1989 For GMC  V1500 Suburban

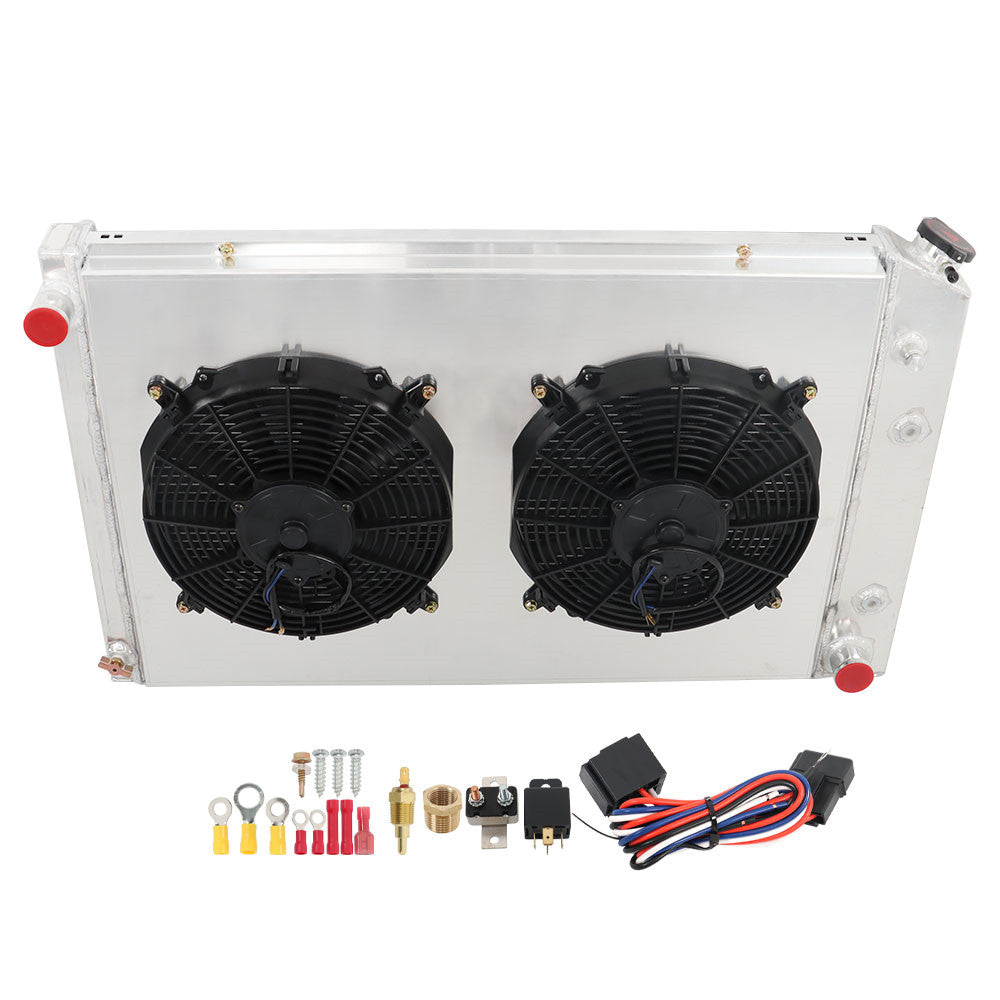

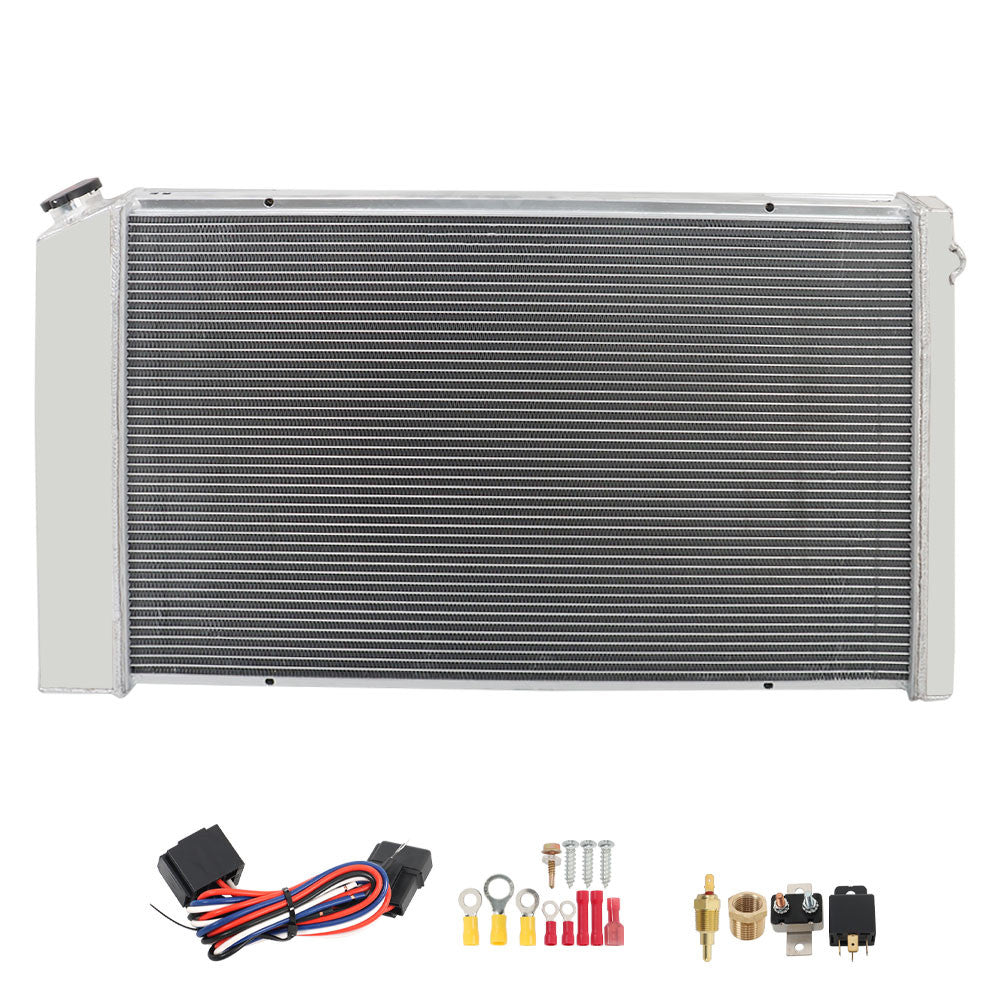

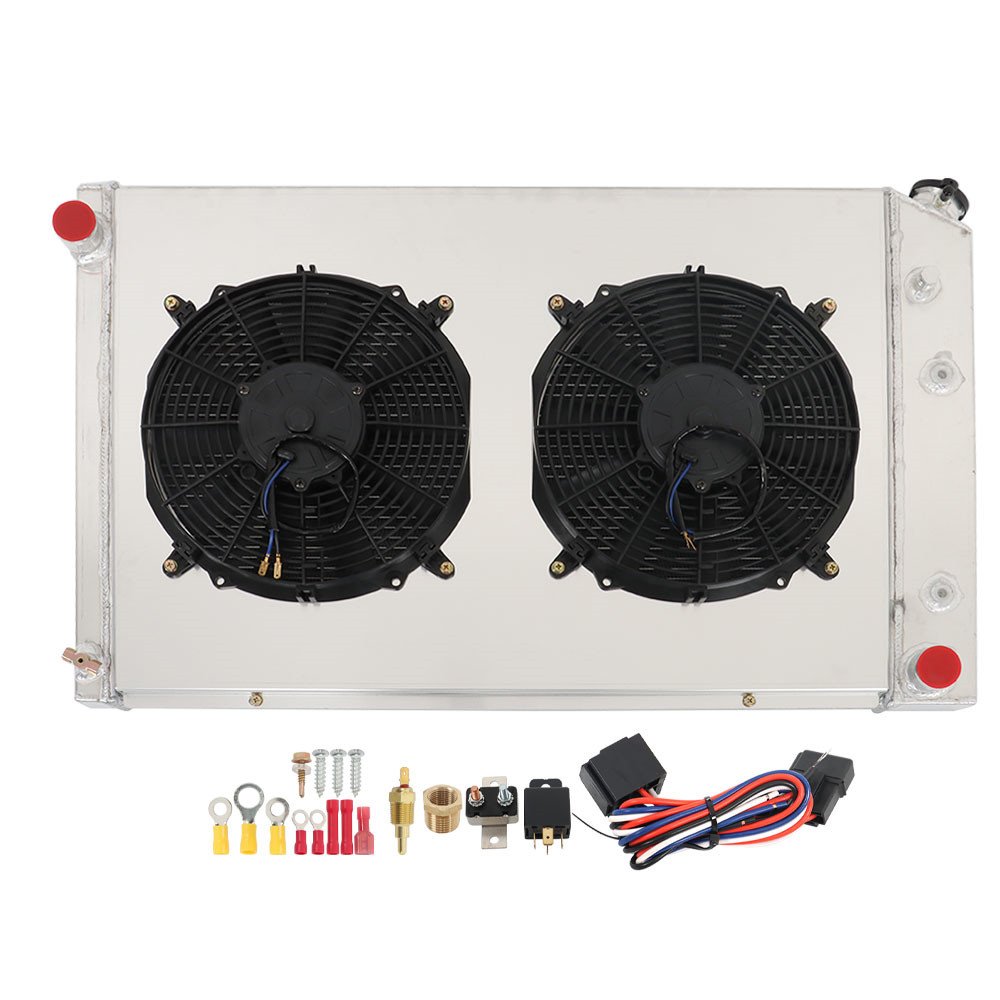

Package Includes：

1* 3-Row Aluminum Radiator (Includes Radiator Cap)

1* Aluminum Shroud

2* 12" Fans (Includes mounting kits)

1* Thermostat Relay Kit

Just as pictures show
