Labwork Engine Motor Transmission Mount Mounts For Mercedes-Benz C300/C350/S550

About Labwork

Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features

Step 1: Check for clearance against the firewall before attempting to raise the engine. Tearing radiator hoses, crimping AC lines or -cracking distributor caps should be avoided.

Step 2: Secure the engine on a jack with various blocks of wood. Never jack an engine directly by the oil pan. The pan will bend and rupture.

Step 3: Loosen the engine from the mount bolts. Sometimes a long extension and universal joint is the way to go.

Step 4: Next, crawl under the vehicle and loosen the mount-to-frame bolts.

Step 5: Jack-up the engine a little at a time and remove the motor mount.

Step 6: Compare the old and new motor mounts. Transfer any heat or drip shields to the new mount.

Step 7: Thread in the mount-to-frame bolts before lowering the engine. This will simplify mount alignment.

Step 8: Lower the engine and fully tighten all bolts.

Step 9: Front-wheel-drive vehicles often have third "dog-bone" motor mounts.

Interchange Part Number

9924 9924 9914

2042402017, A4063, EM-7156, R4688H

2042400618, A4074, EM-7280, R3059

Fitment

For Mercedes-Benz C300 2008-2012 3.0L AWD
For Mercedes-Benz C350 2008-2012 3.5L AWD
For Mercedes-Benz S550 2007-2011 5.5L AWD
For Mercedes-Benz S450 2008-2011 4.6L AWD
For Mercedes-Benz CL550 2009-2010 5.5L AWD

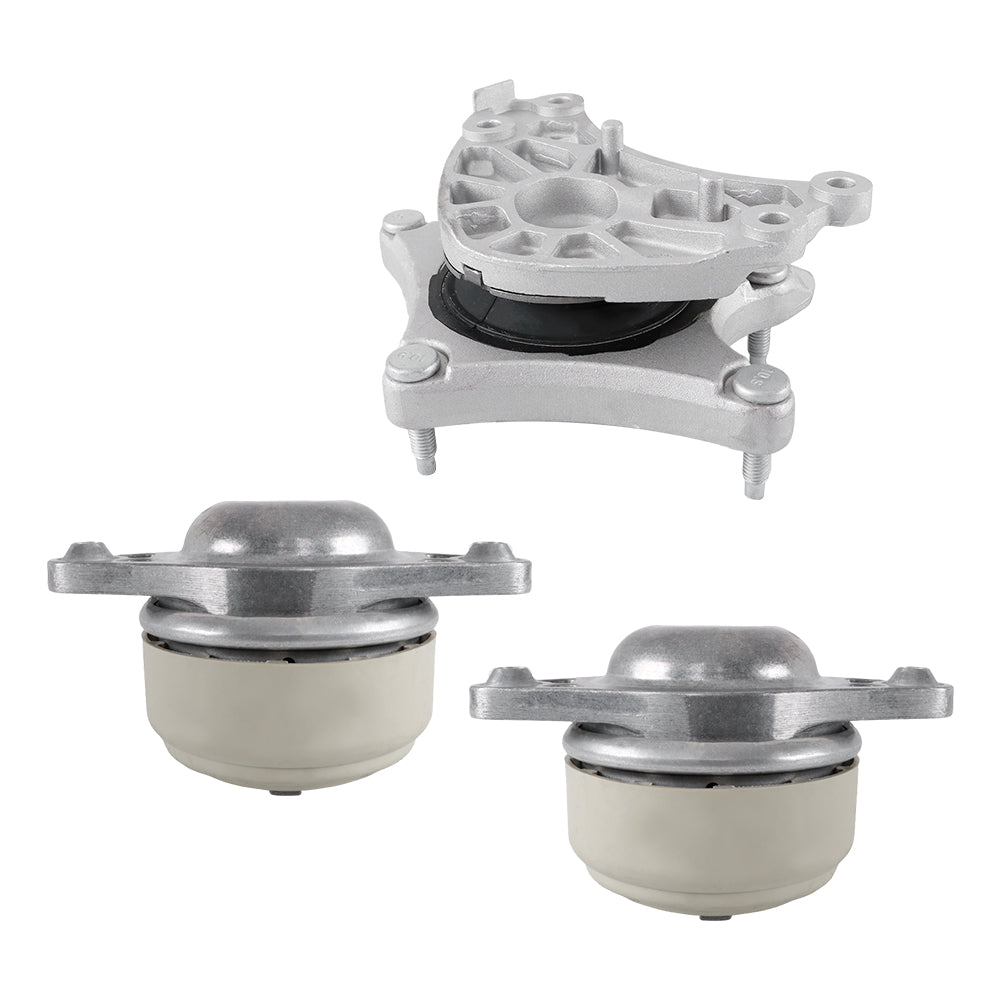

Package Includes

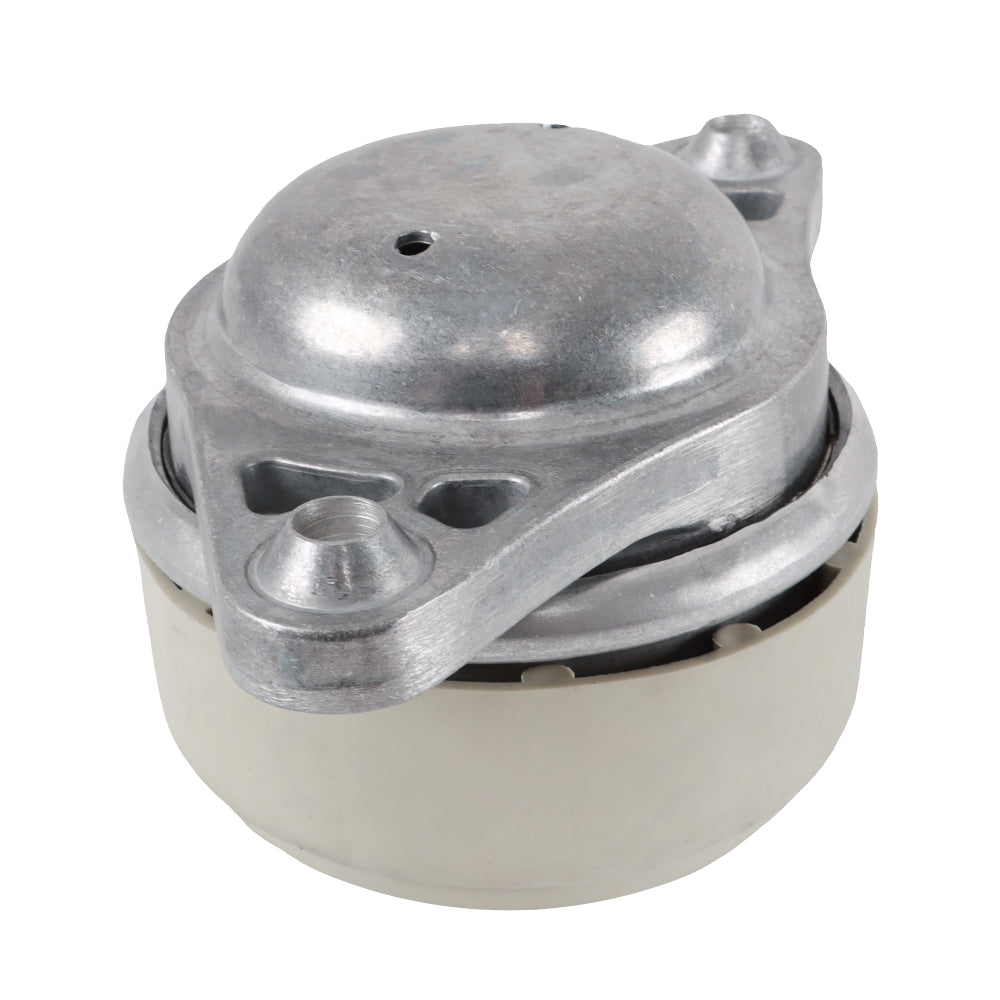

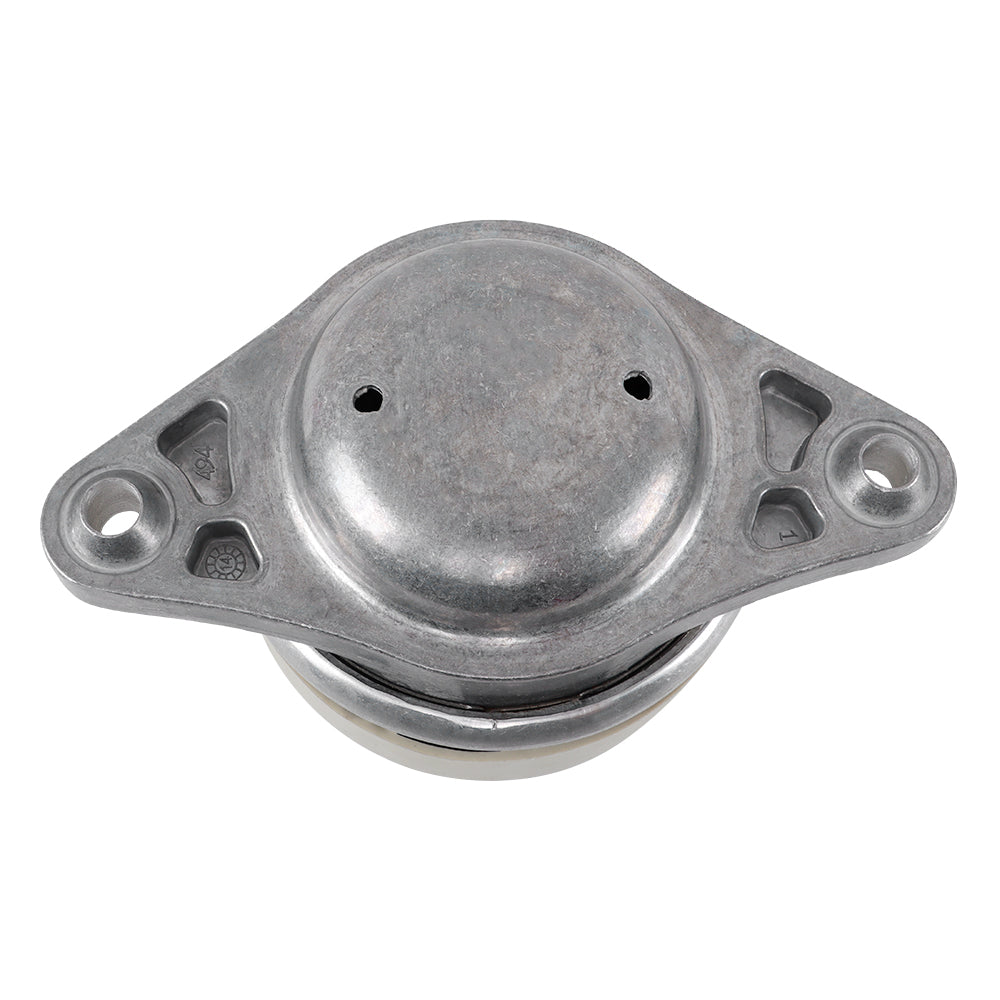

1x 9924 Front Left Engine Mount (Hydraulic)

1x 9924 Front Right Engine Mount (Hydraulic)

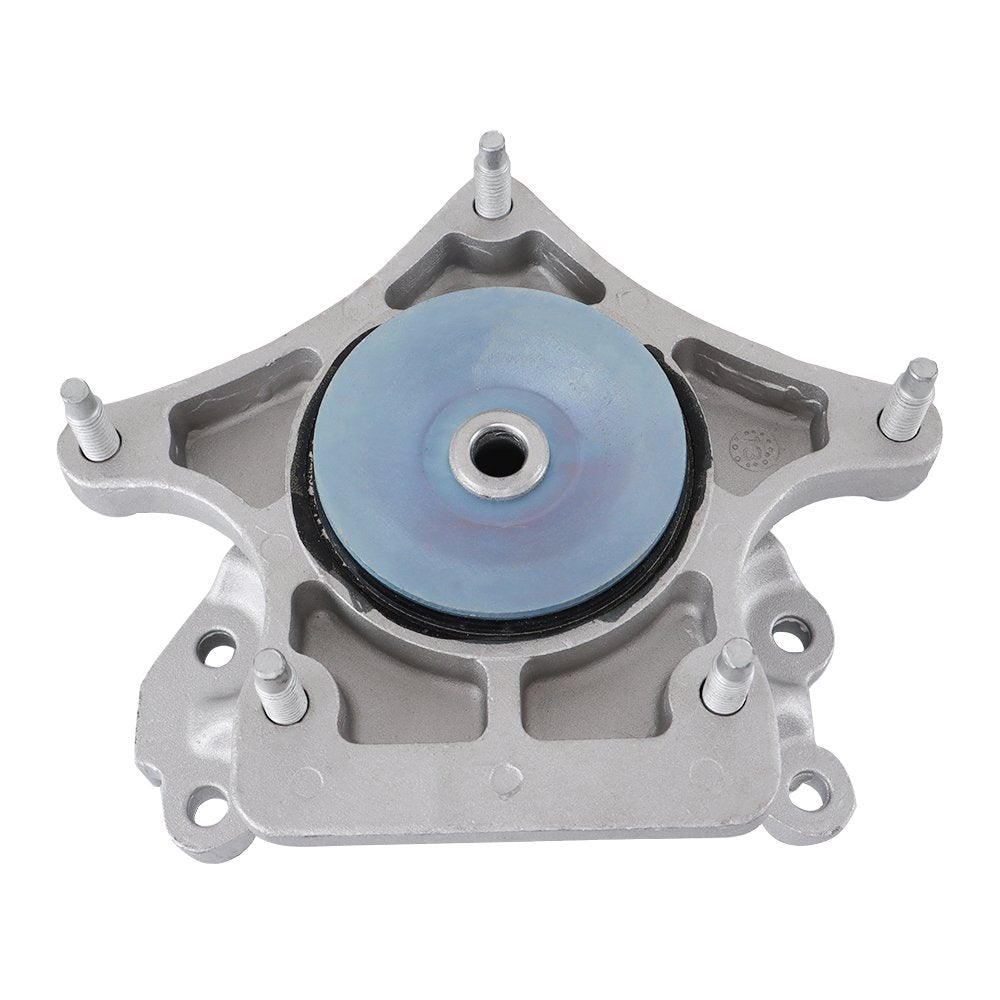

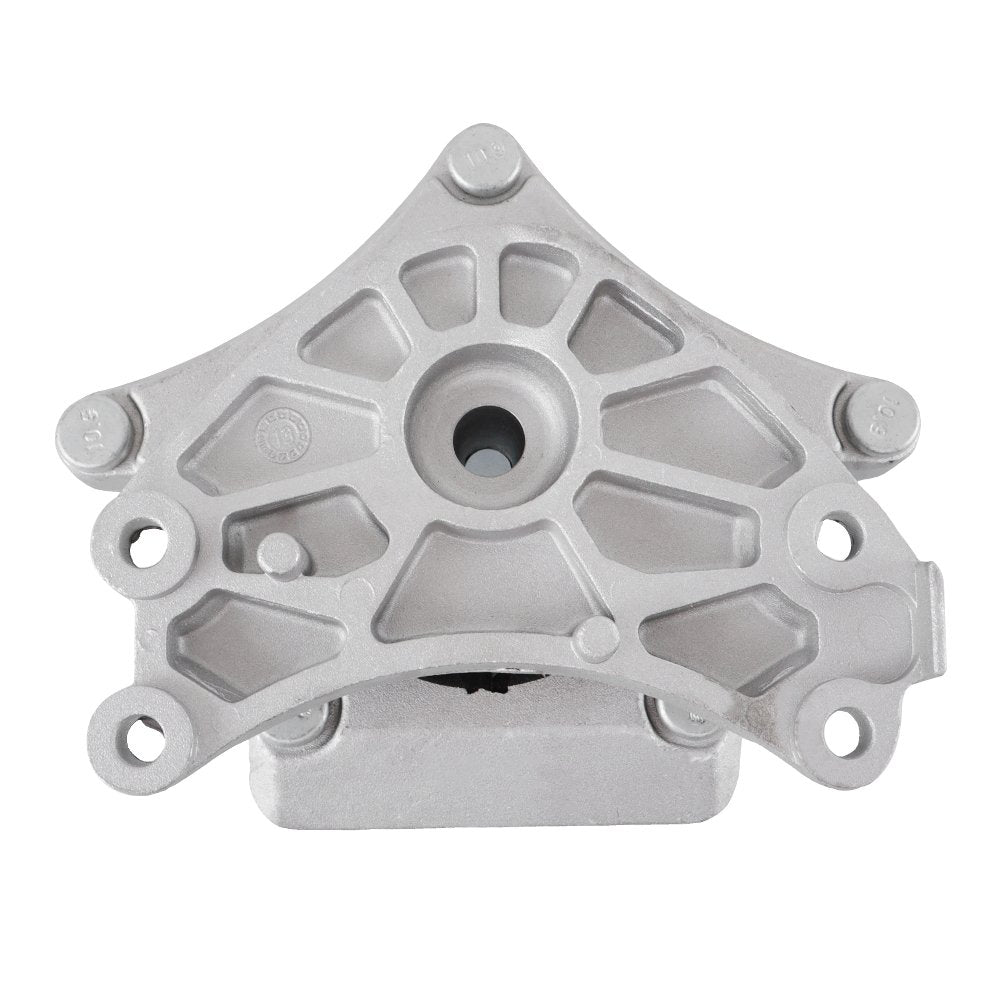

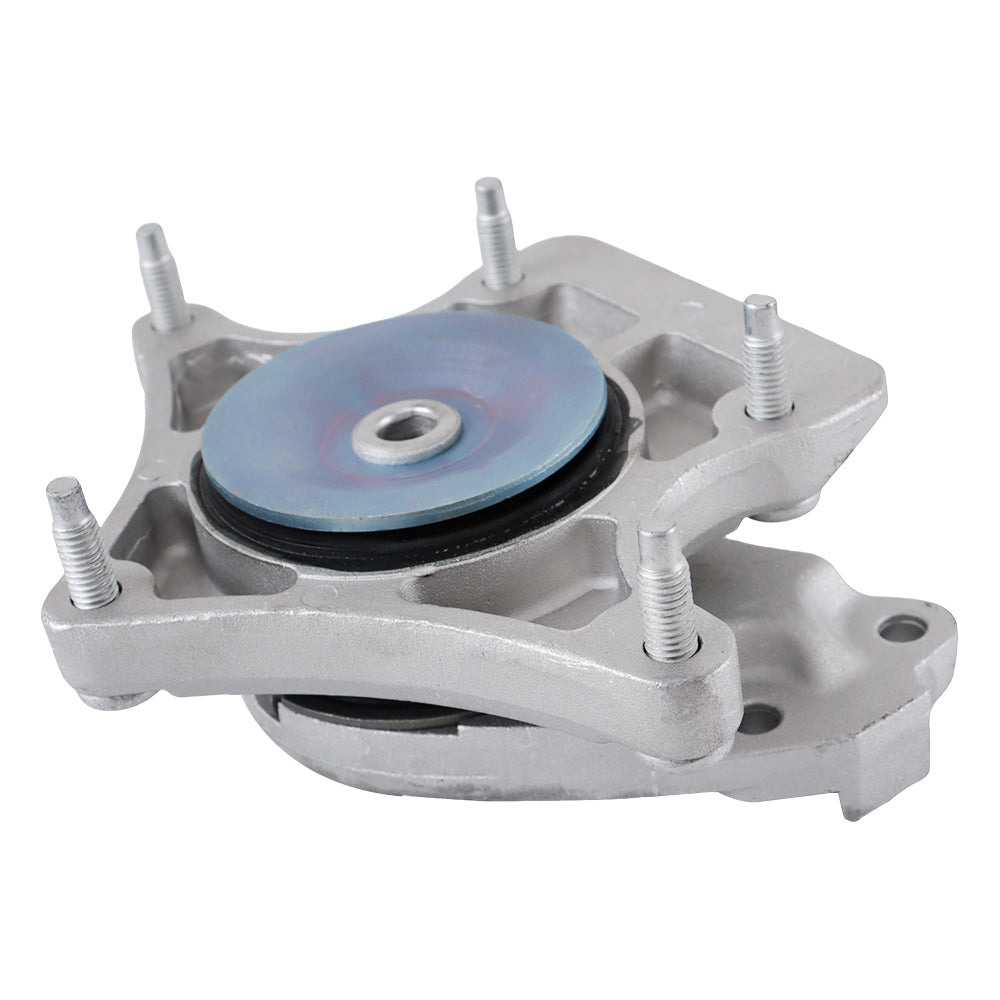

1x 9914 Rear Transmission Mount

W/o Product Instruction
