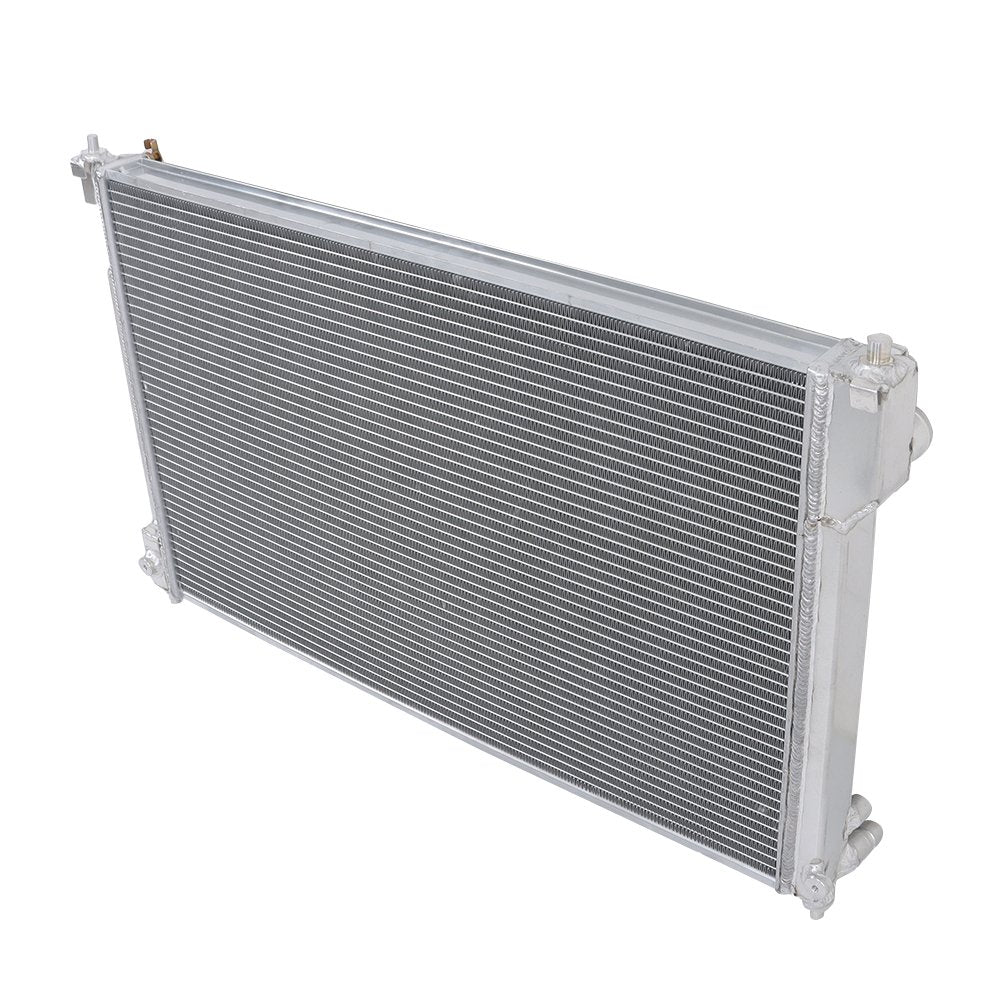

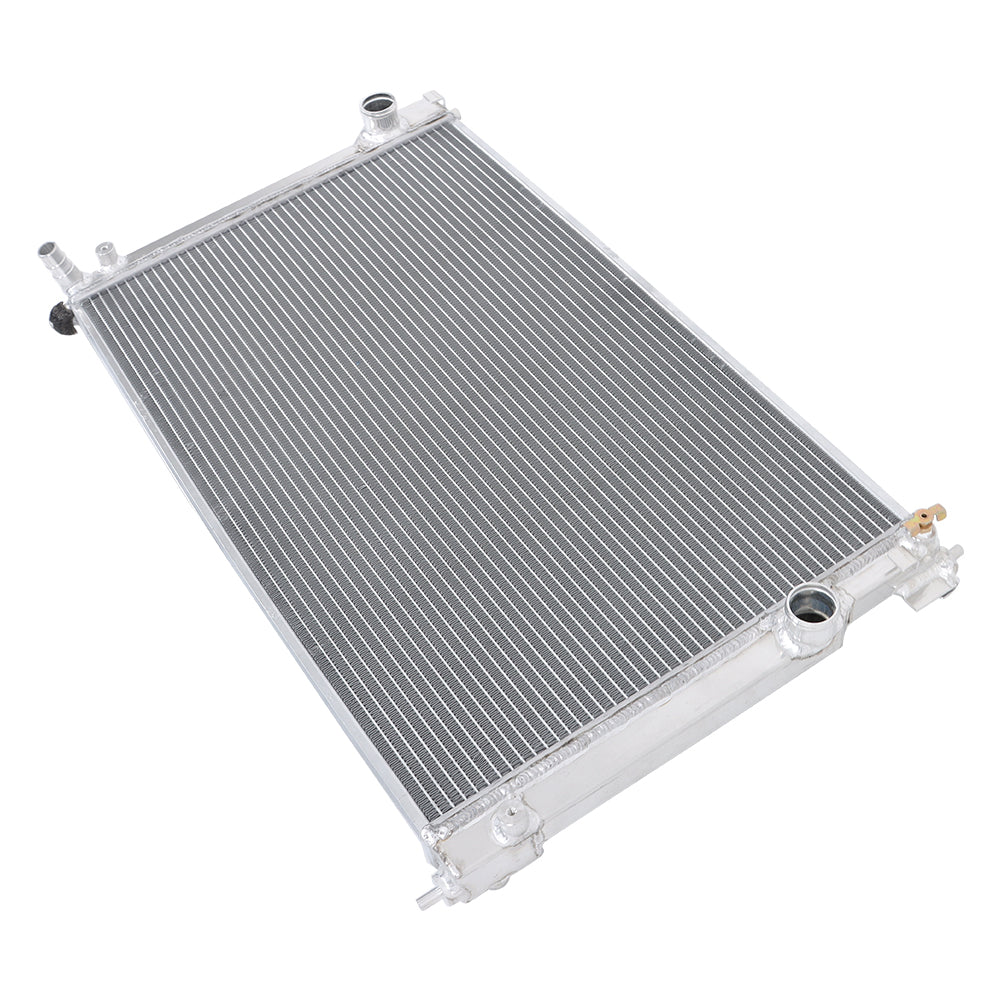

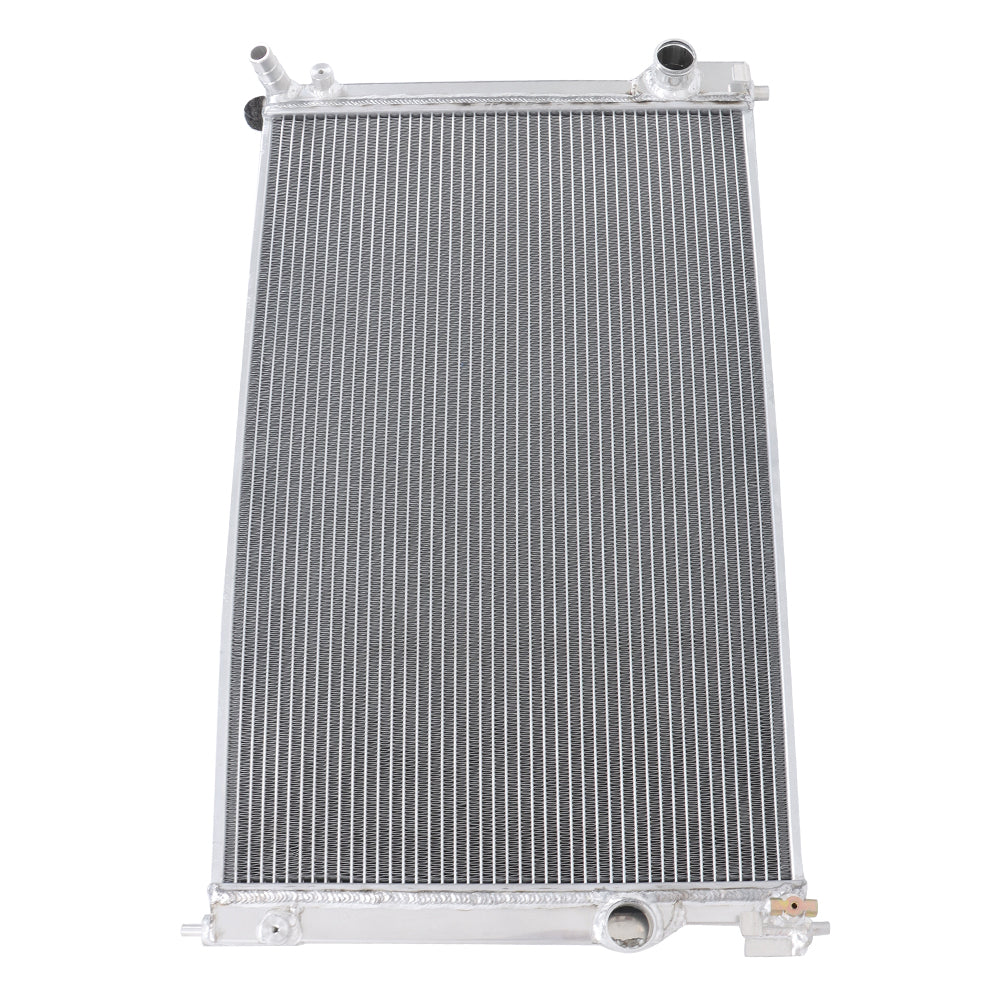

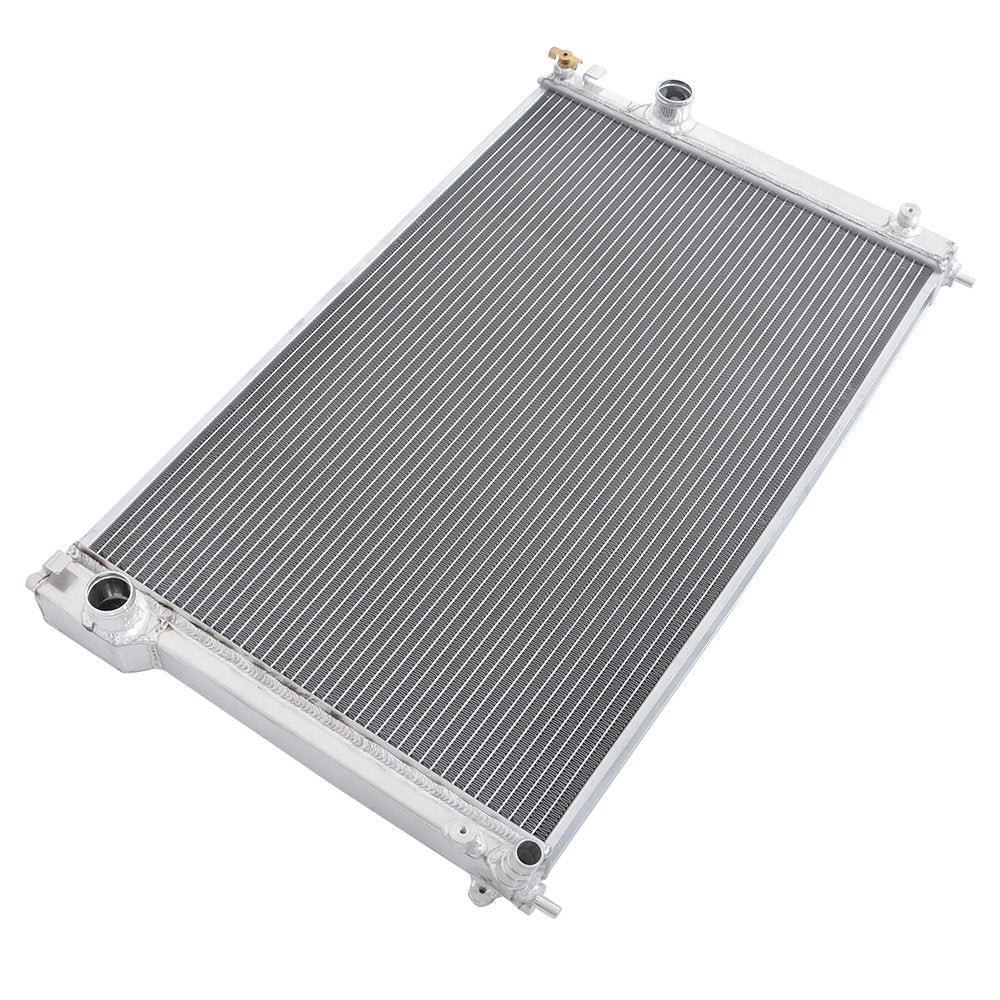

Labwork CU13670 3 ROW Full Aluminum Radiator For Toyota Camry 2018-19 RAV4 19-20

About Labwork：
Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.

Features:

Description：

-Features:
Enhancements added to solve design failures and to improve the life of high mileage vehicles
Drop in fit, form and function for hassle-free installation
All necessary hardware or fittings are included in each unit
100% Leak Tested

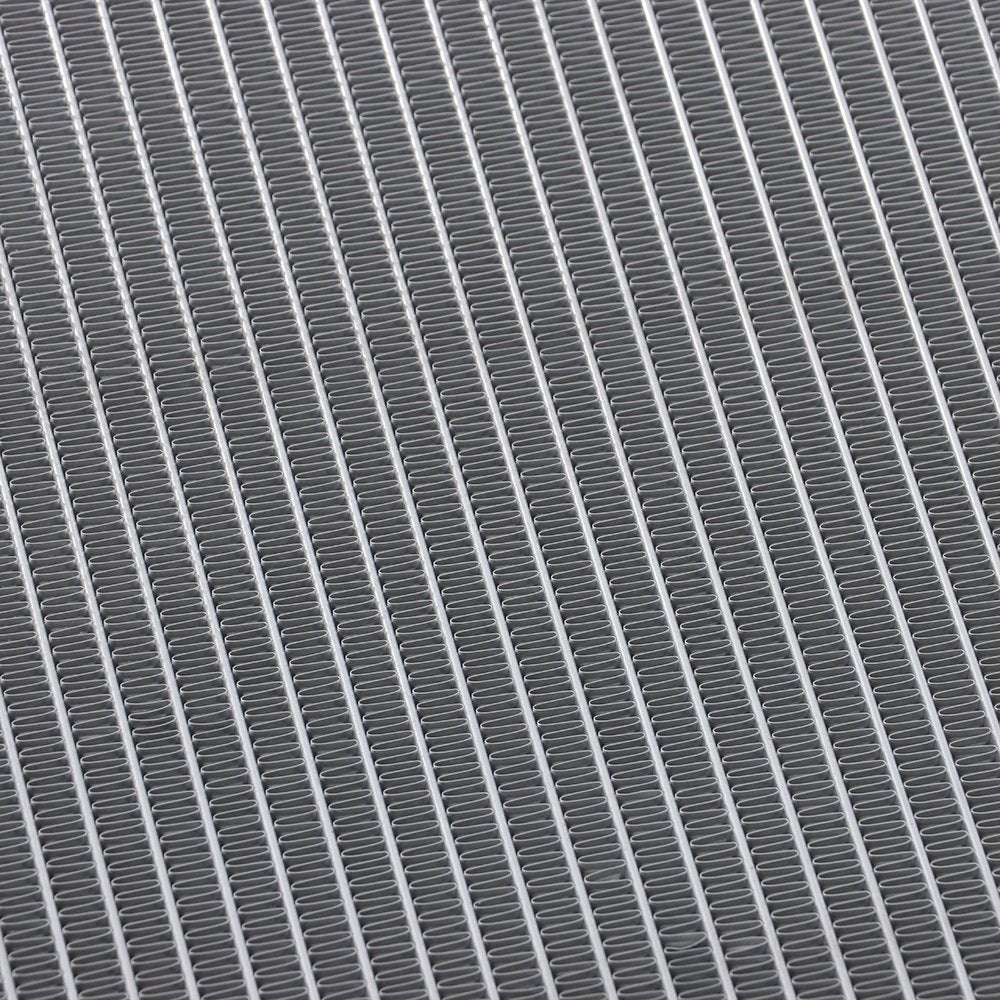

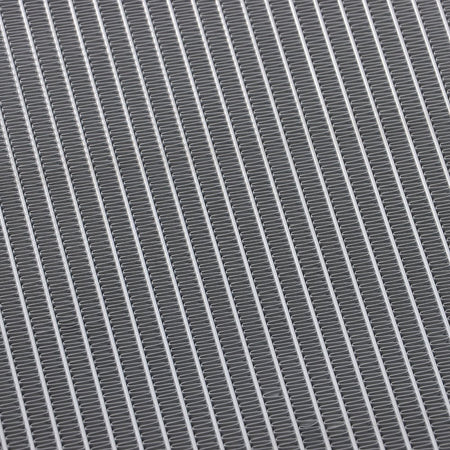

Premium grade tubes, fins, headers, tanks, and other components
Components are fitted and torqued in place to factory specifications

-Details:
Core Material: Aluminum
Core Dimension: 27-7/16 In. x 17-5/8 In.


Core Thickness: 5/8 In.

Inlet Diameter: 1-1/2 In.
Outlet Diameter: 1-1/2 In.
Row: 1
Oil Cooler: NO
Radiator Cap: NO
Interchange Part Number: CU13670, DPI 13670, A13670, RAD13670, Q13670, 1640025130, 16400F0010, TO3010364

Color:  Black and Silver

How to clean radiator:
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.

-How to replace the radiator:
1. Disconnect the battery.
2. Drain the radiator fluid into a suitable container.
3. Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. Fill the radiator with fluid.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note: Do please keep children and pets away when replacing the radiator)

Fitment:

NOT FOR Hybrid Models


For 2019 - 2022 For toyota Avalon NON Hybrid 2.5L 3.5L
For 2018 - 2019 For toyota Camry NON Hybrid 2.5L - Japan Built Only
For 2020 - 2022 For toyota Camry NON Hybrid 2.5L
For 2018 - 2022 For toyota Camry 3.5L
For 2019 - 2022 For toyota RAV4 NON Hybrid 2.5L - Japan Built Only
For 2021 - 2022 For toyota Venza 2.5L
For 2021 - 2022 For lexus ES250 2.5L
For 2019             For lexus  ES350 3.5L - Japan Built Only
For 2020 - 2021 For lexus  ES350 3.5L

Package Includes：

1*brand new radiator；W/o Product Instruction
