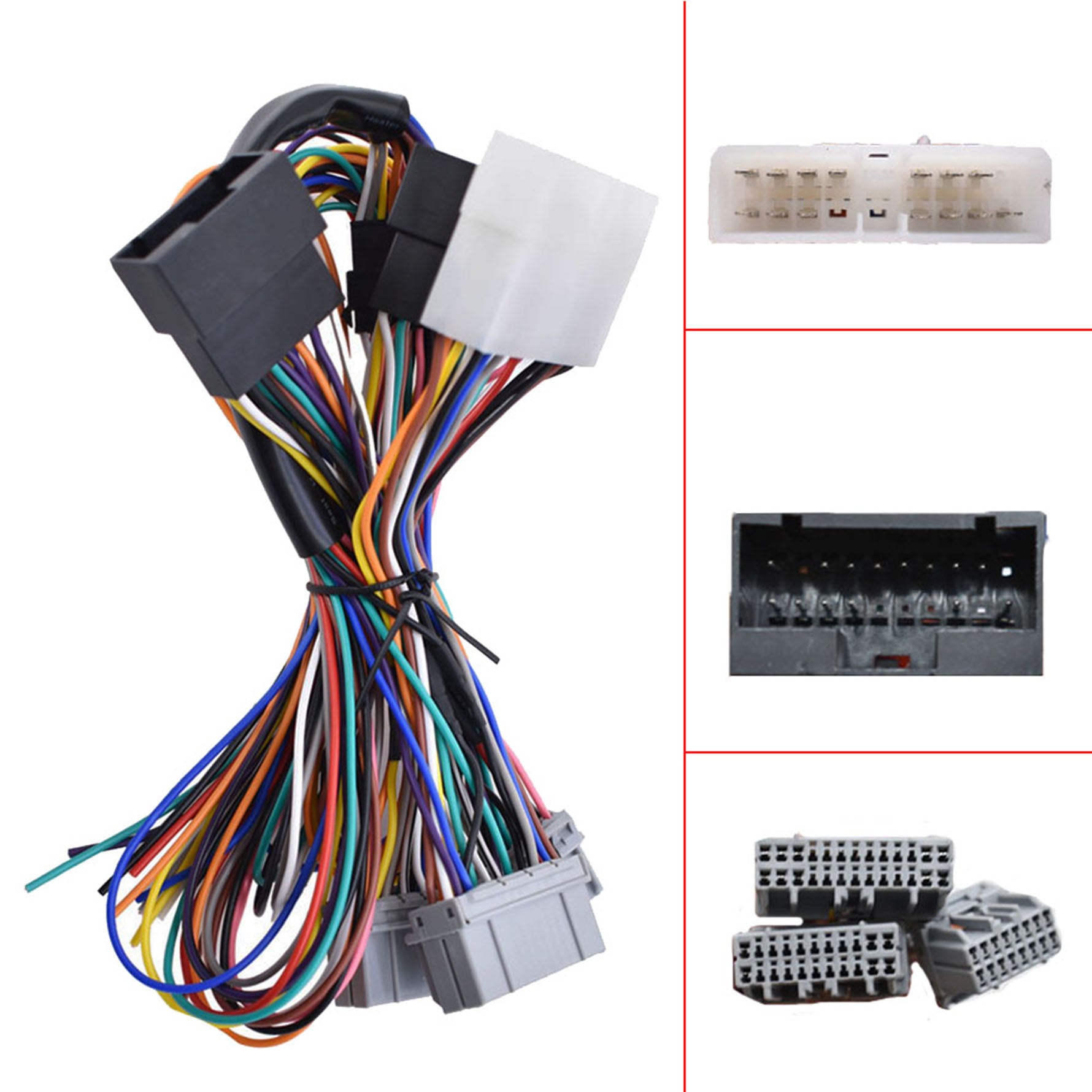

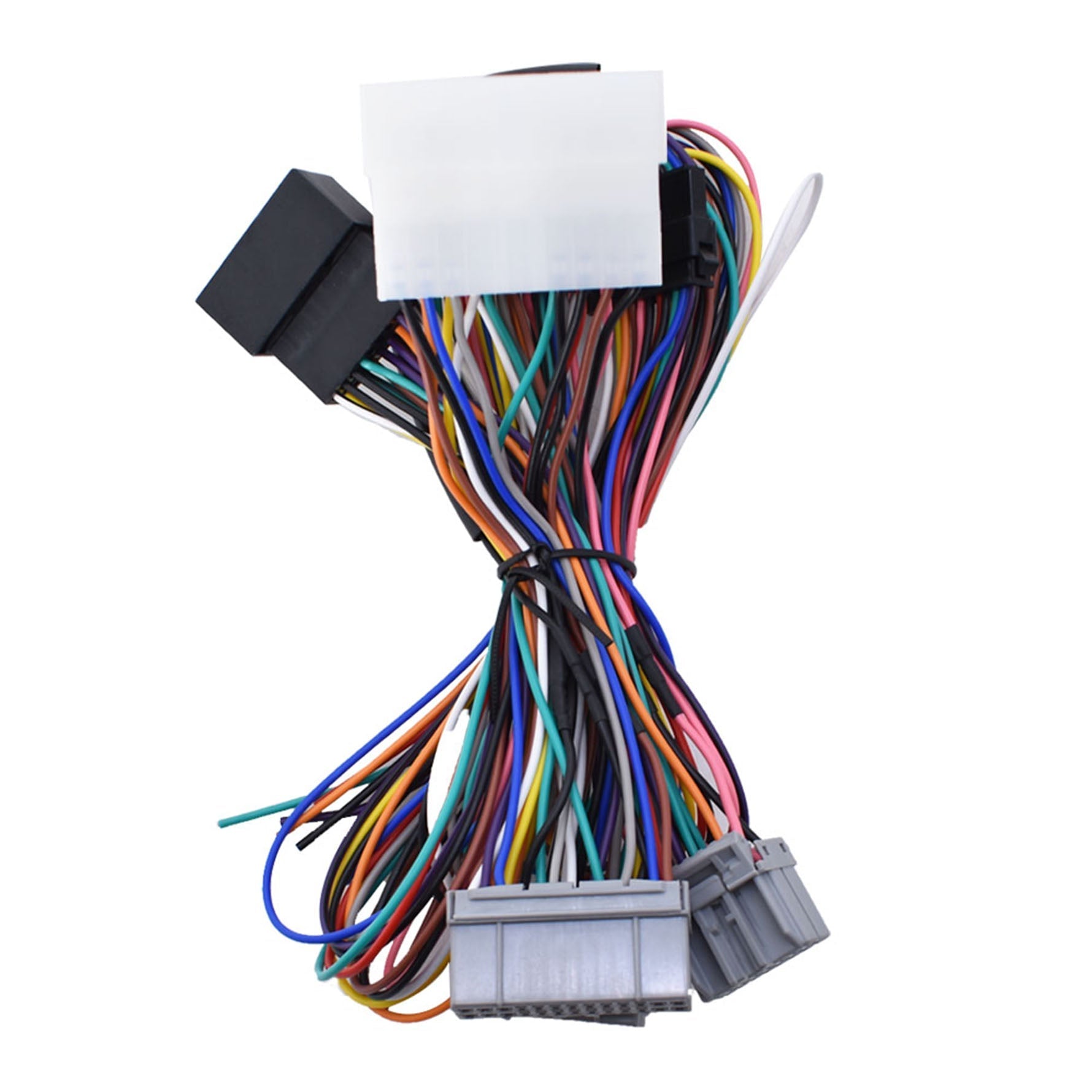

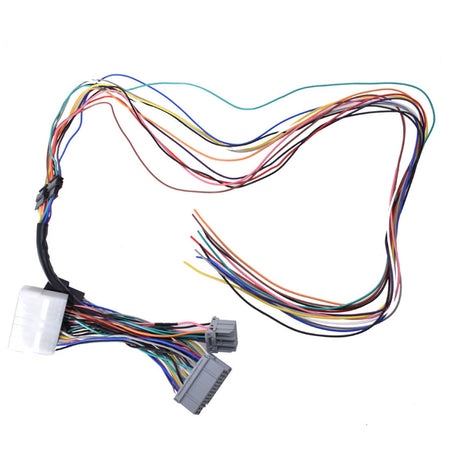

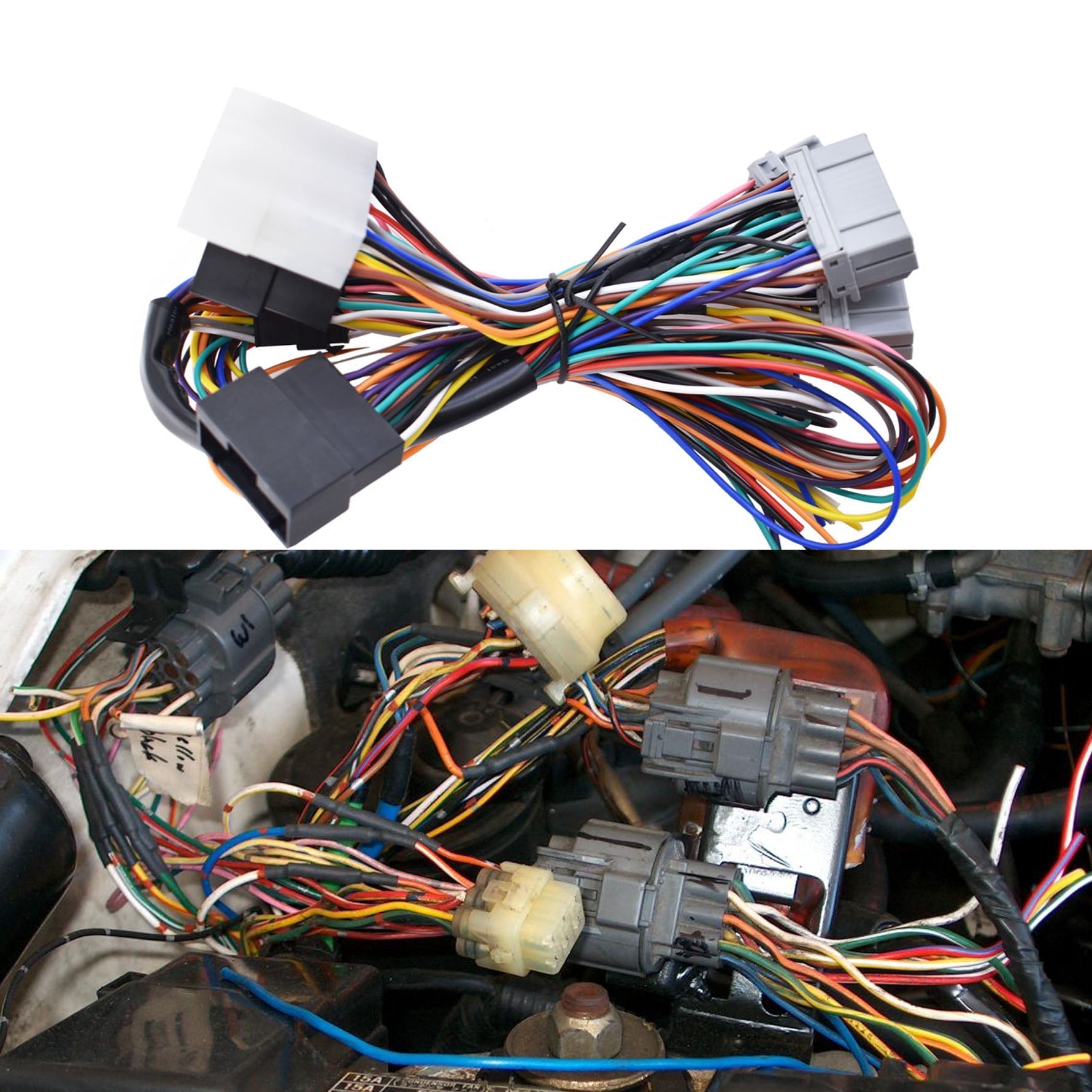

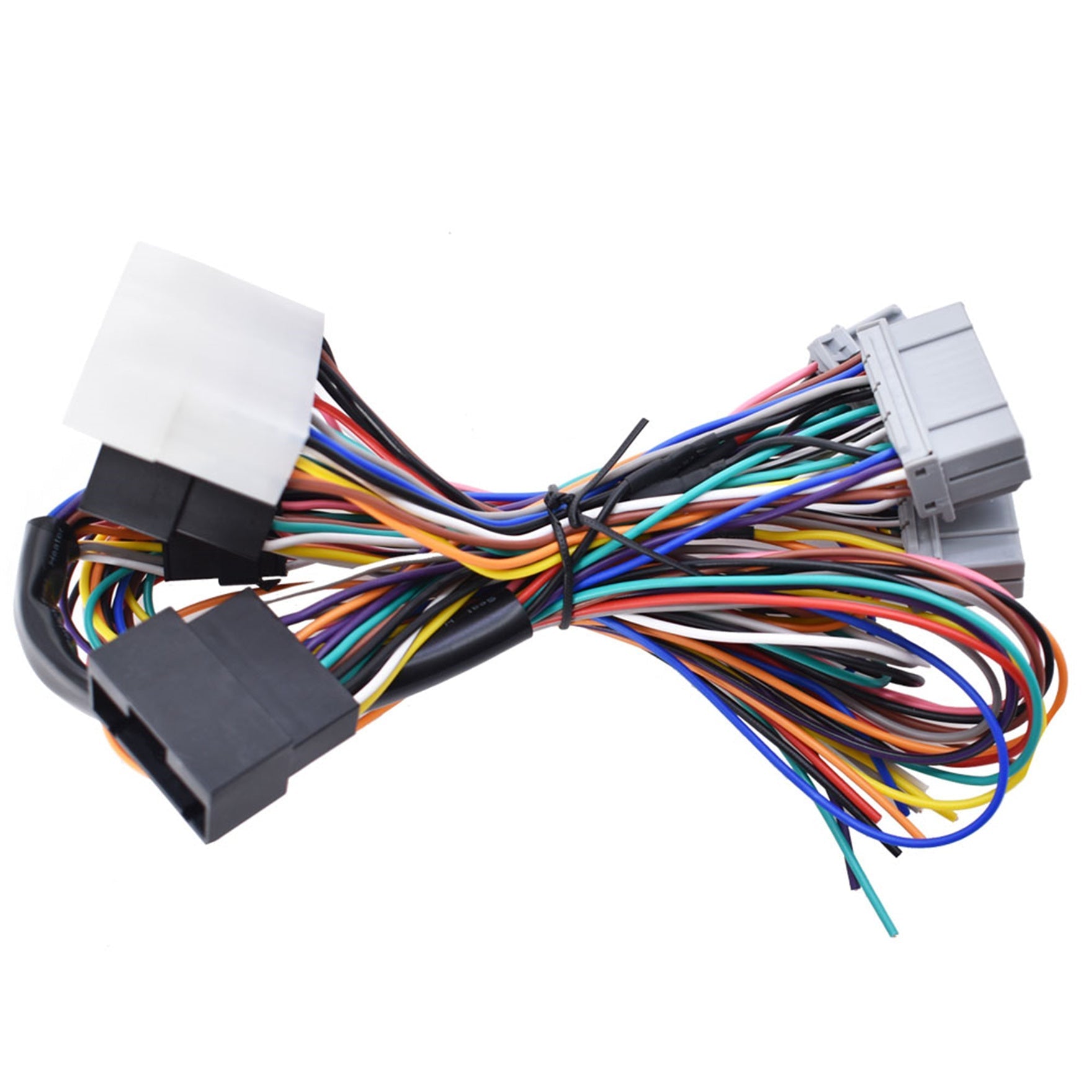

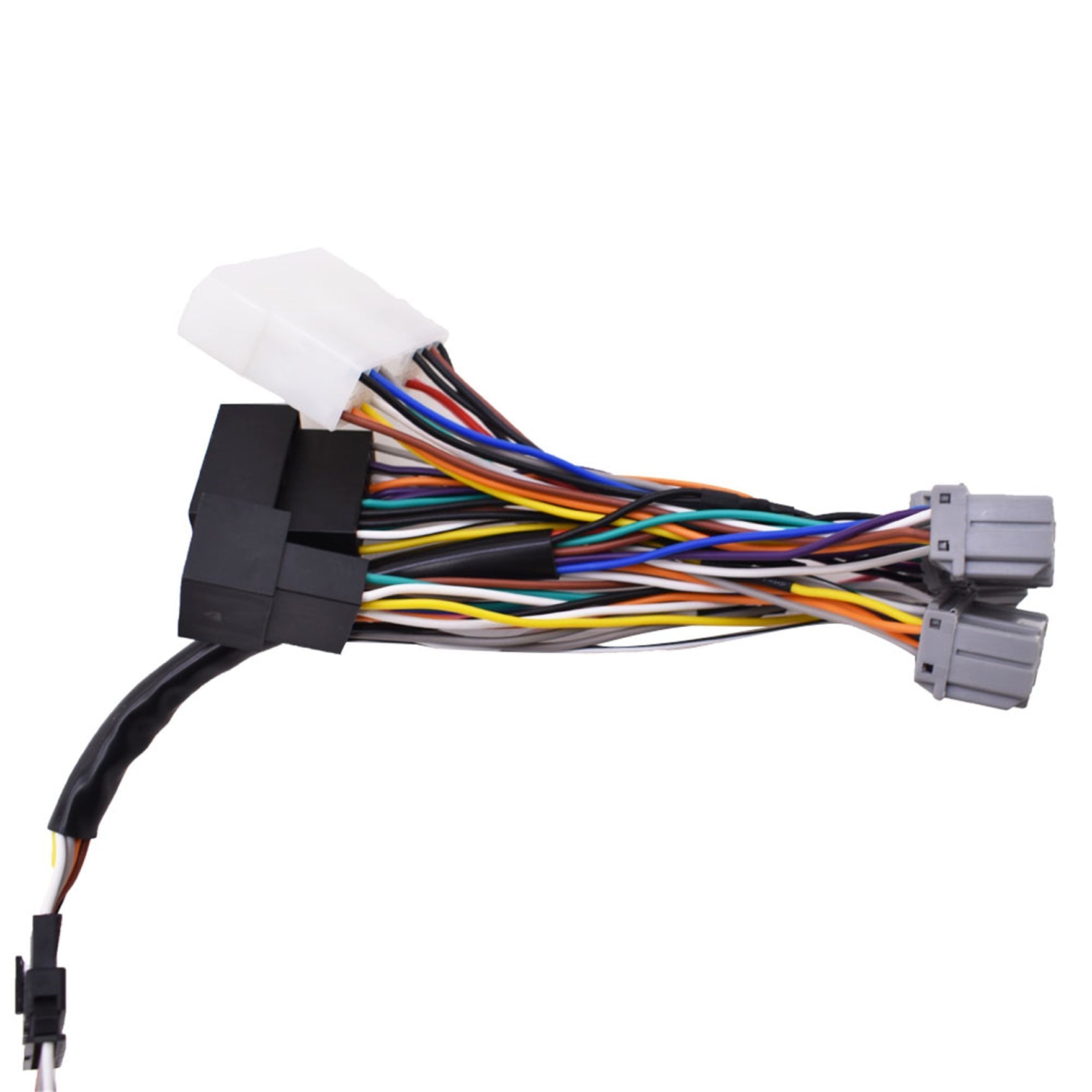

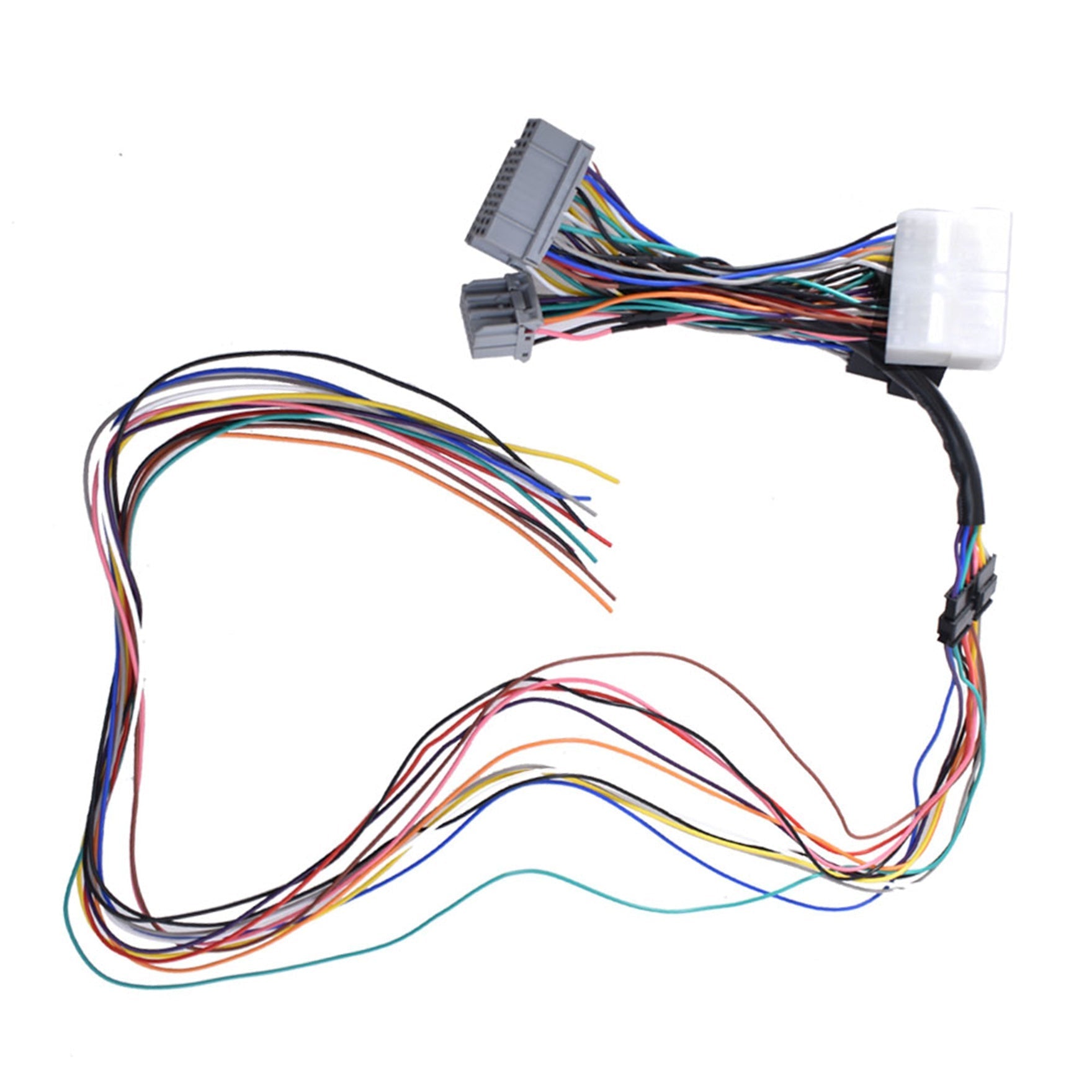

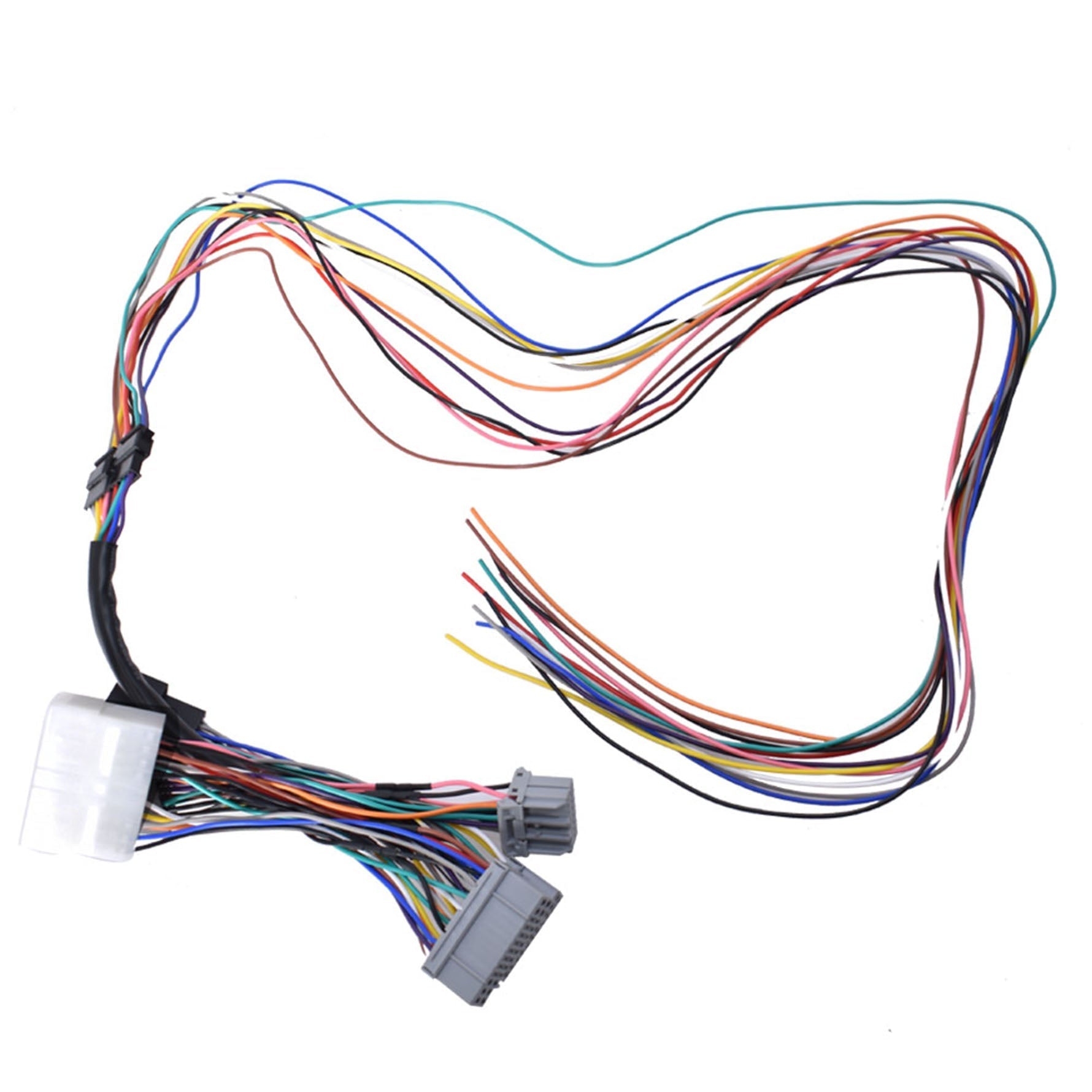

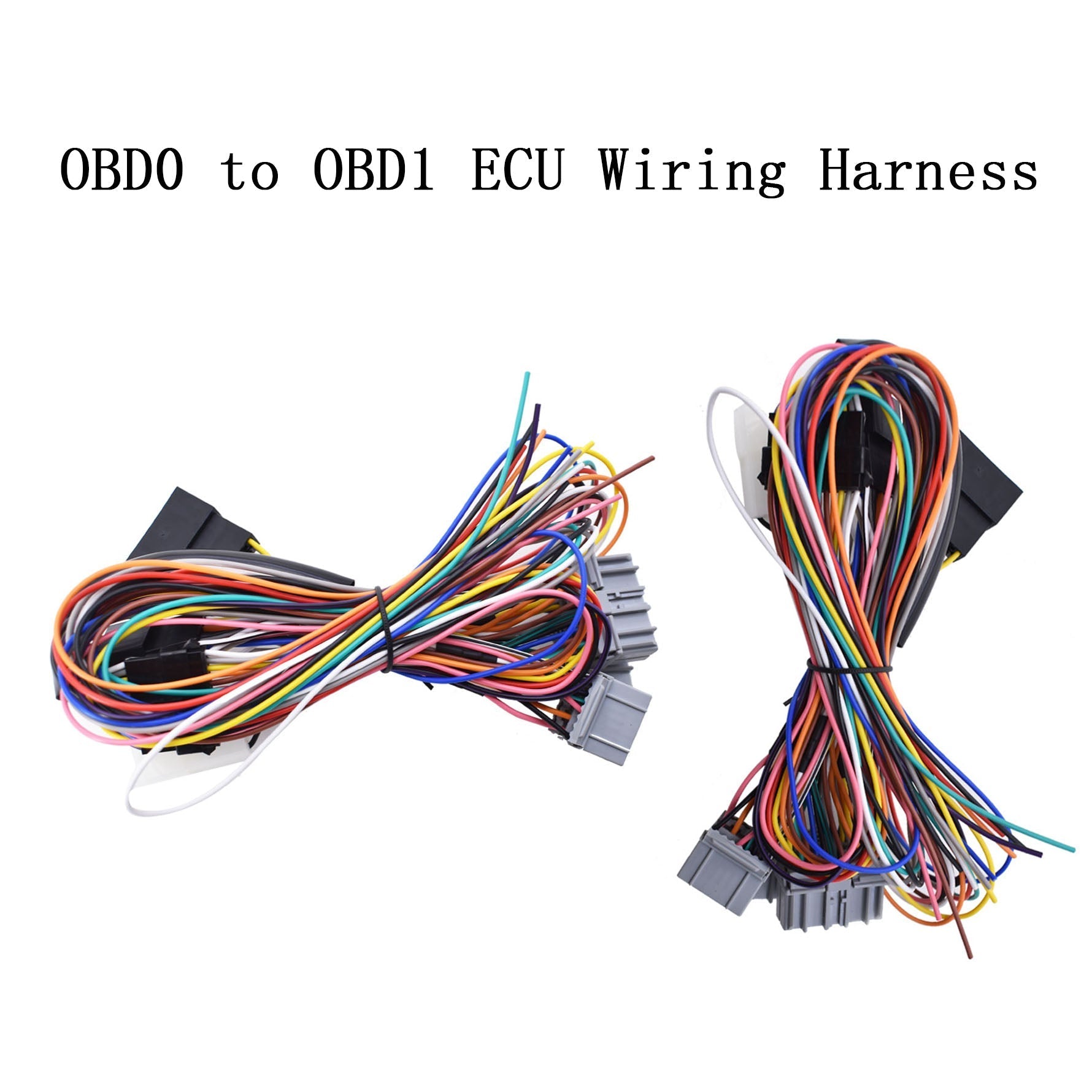

labwork Conversion Jumper Harness For 88-91 Honda Civic Acura ECU OBD0 to OBD1
Couldn't load pickup availability
Specification：
This harness adapter is designed for use with manual transmission only. It is not designed for use with an automatic transmission.
Fitment：
1988-1991 Honda CRX (Hf, Si or MPFI converted only)
1988-1991 Honda Civic (Ex, Si or MPFI converted only)
1988-1991 Acura Integra
To run any OBD1 1992-1995 ECU

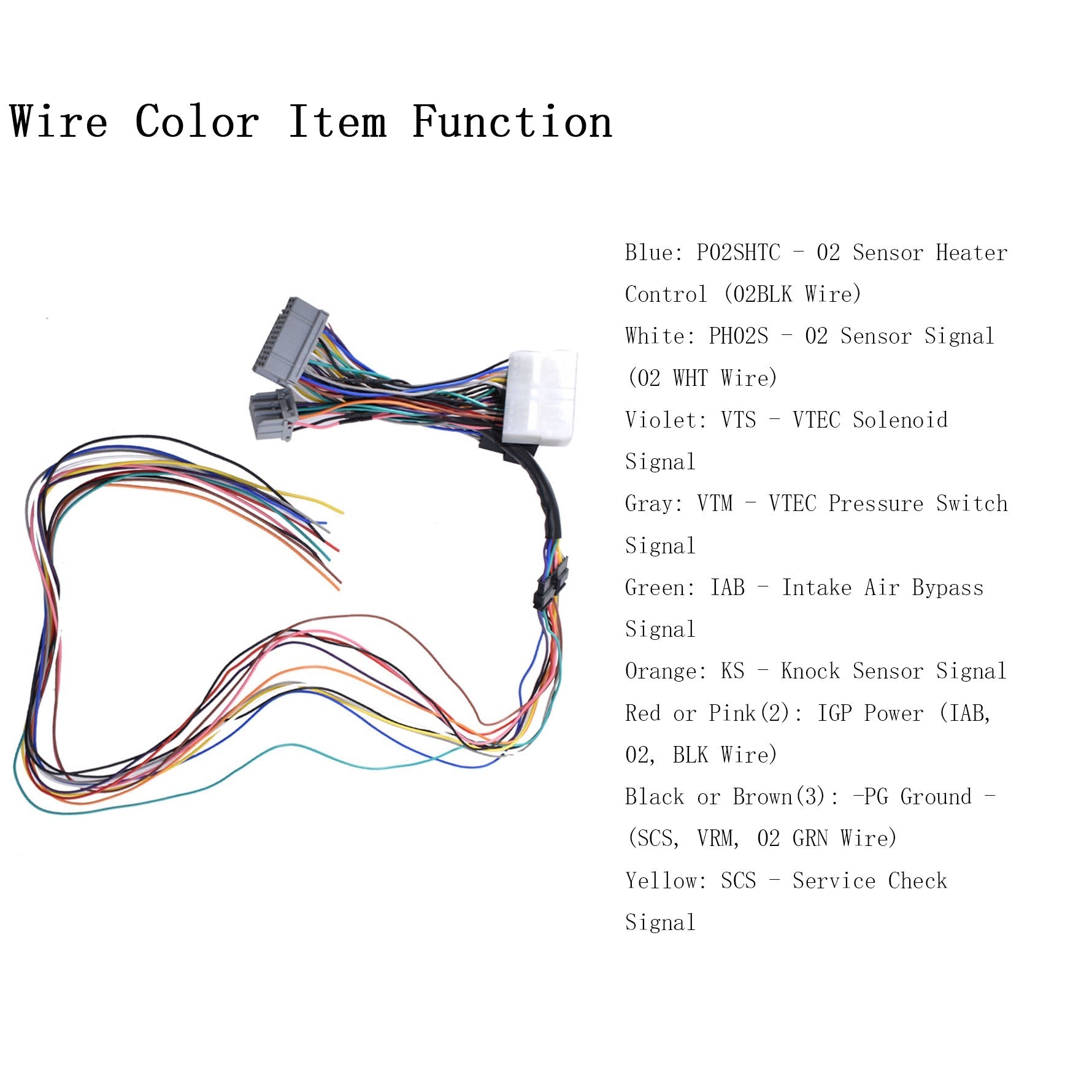

Wire Color Item Function
Blue - P02SHTC - 02 Sensor Heater Control (02BLK Wire)
White - PH02S - 02 Sensor Signal (02 WHT Wire)
Violet - VTS - VTEC Solenoid Signal
Gray - VTM - VTEC Pressure Switch Signal
Green - IAB - Intake Air Bypass Signal
Orange - KS - Knock Sensor Signal
Red or Pink (2) - IGP Power (IAB, 02, BLK Wire)
Black or Brown - (3) -PG Ground - (SCS, VRM, 02 GRN Wire)
Yellow - SCS - Service Check Signal
Package Including：1*Conversion Jumper Harness
Note：
Professional installation are highly recommended
The harness is made for manual 5 speed applications only, will not work with automatic models. You will need the OBD1 ECU, Distributor, and 4 wire O2 sensor to use this harness with the vehicles listed above
