labwork CDI Ignition Coil Wiring Harness Kit for Honda Sportrax TRX400EX 1999-2004 30500-HN1-003

In stock
No reviews
$98.04
$115.35 -15% $98.04
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
Checking Vehicle Fit
Product details
  • MPN 30500-HN1-003
  • Placement Electrical System
  • OE 30500-HN1-003, 30700-KCZ-000, 30410-HN1-003, 31600-HM8-013
Have Questions?
Market@labworkauto.com
Description Reviews

Product Description

Restore the ignition and electrical systems of your Honda Sportrax TRX400EX with this labwork complete CDI, coil, relay, switch, and wiring harness kit. The set includes the major components needed to replace worn or damaged ignition and starting-system parts on compatible 2x4 models.

Fitment

  • Replacement for Honda Sportrax 400 TRX400EX 2x4 1999
  • Replacement for Honda Sportrax 400 TRX400EX 2x4 2000
  • Replacement for Honda Sportrax 400 TRX400EX 2x4 2001
  • Replacement for Honda Sportrax 400 TRX400EX 2x4 2002
  • Replacement for Honda Sportrax 400 TRX400EX 2x4 2003
  • Replacement for Honda Sportrax 400 TRX400EX 2x4 2004

Replacement Part Numbers

  • 30500-HN1-003
  • 30700-KCZ-000
  • 30410-HN1-003
  • 31600-HM8-013
  • 32100-HN1-000
  • 35020-HN1-000

Specifications

  • Type: CDI Ignition and Electrical Wiring Kit
  • Application: Honda TRX400EX 2x4
  • Fitment Type: Direct Replacement
  • Electrical Components: CDI, ignition coil, relays, switches, and harness
  • Material: Not Specified
  • Voltage: Verify with original equipment

Features

  • Complete replacement solution for ignition and starting circuits
  • Helps restore reliable engine starting and ignition control
  • Includes CDI unit, ignition coil, starter relay, and rectifier relay
  • Wiring harness supports organized electrical connections
  • Key switch and left handlebar switch included
  • Direct replacement design for compatible TRX400EX models
  • Manufactured for dependable service life

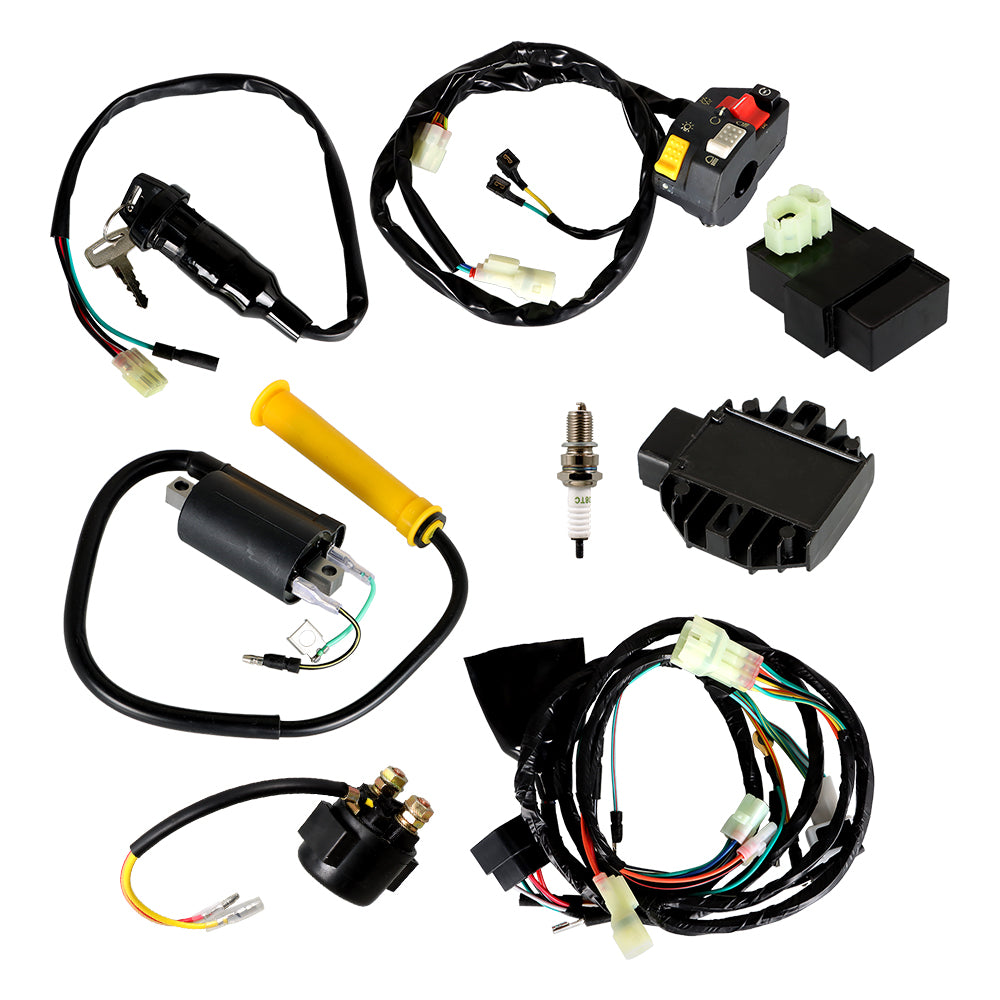

Package Includes

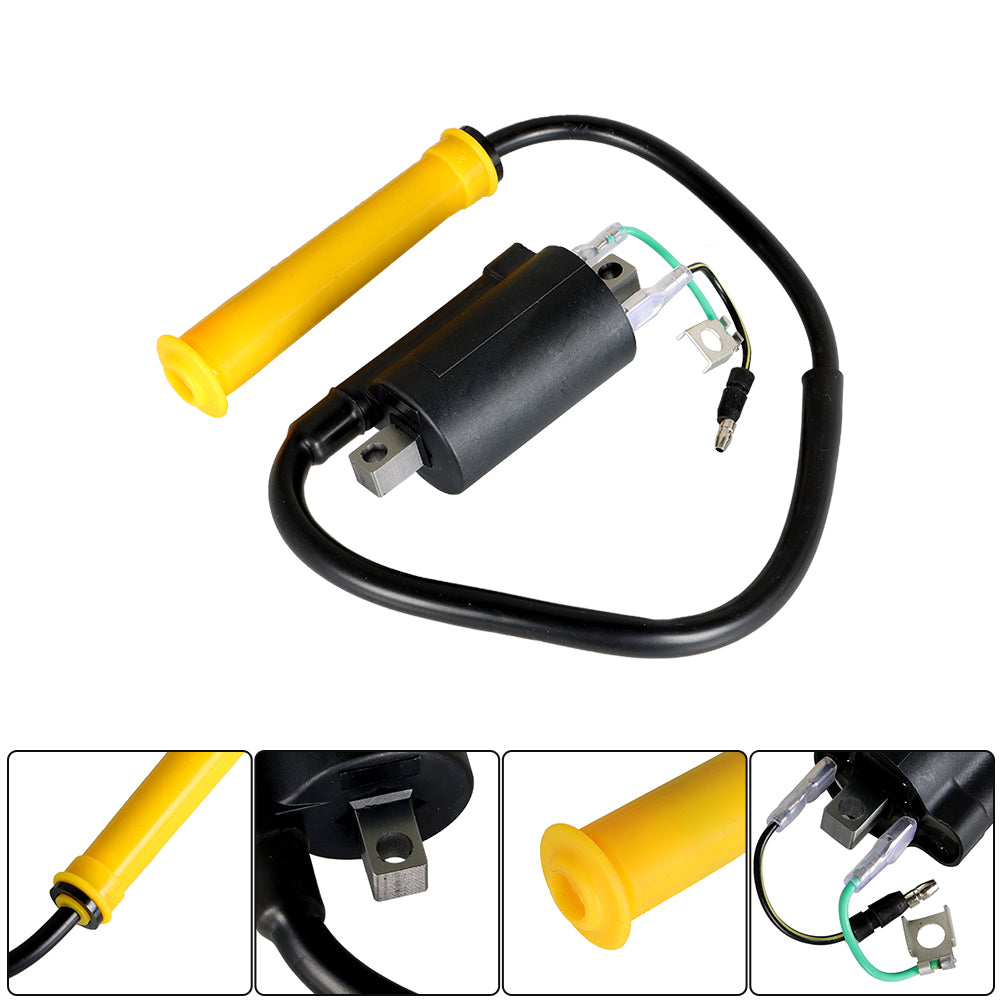

  • 1 × Ignition Coil

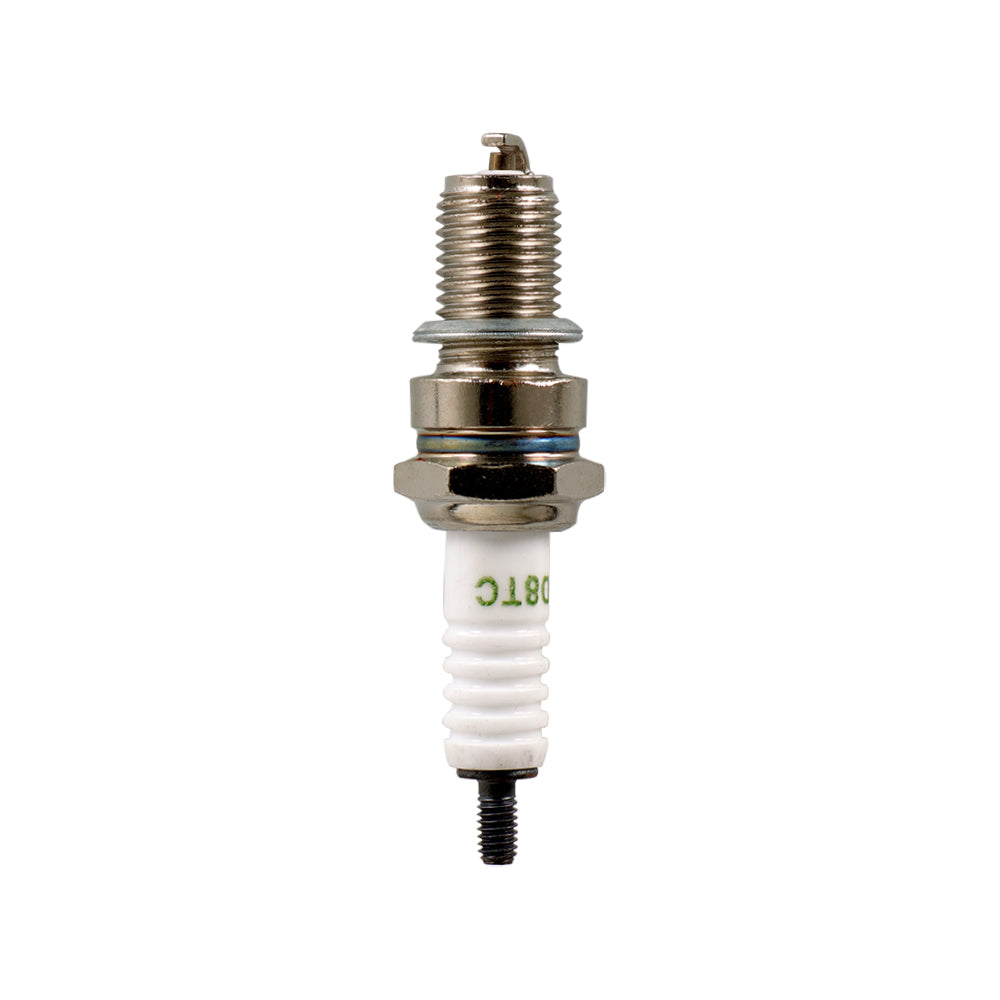

  • 1 × Spark Plug

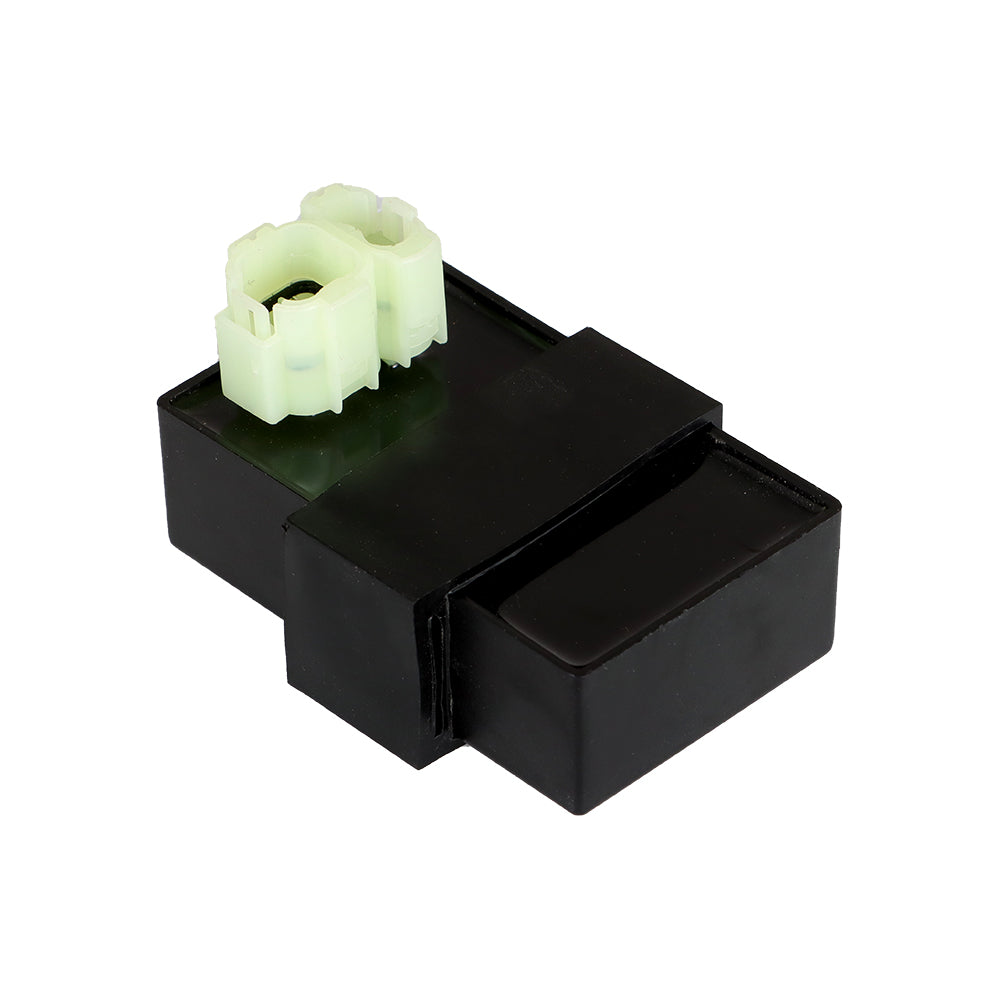

  • 1 × CDI Ignition Unit

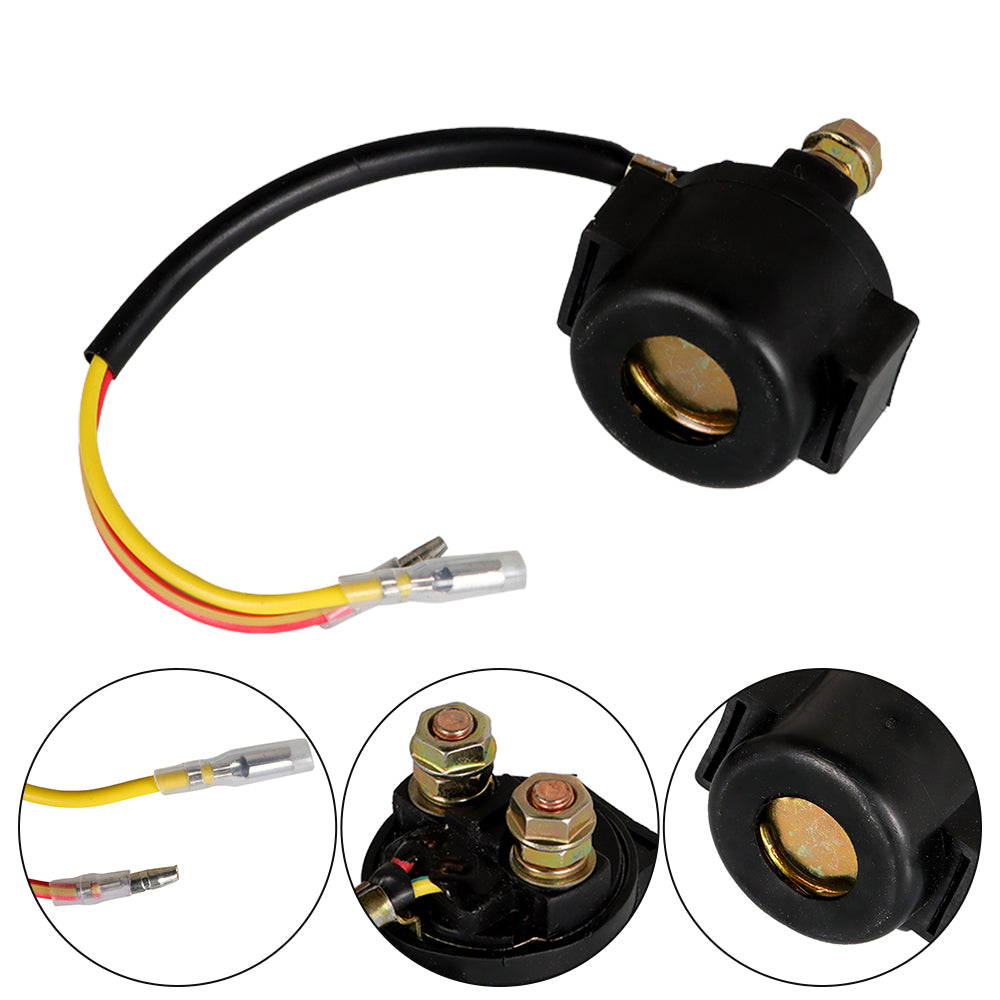

  • 1 × Starter Relay

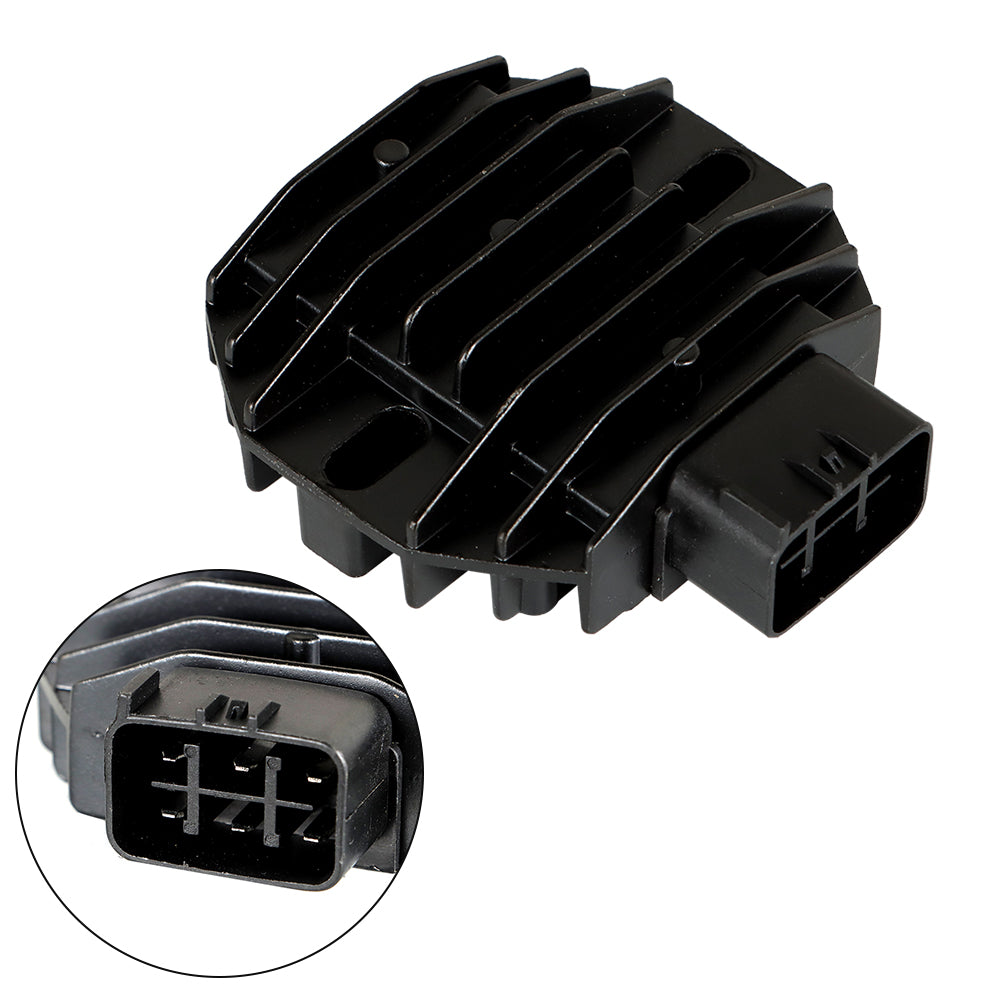

  • 1 × Relay Rectifier

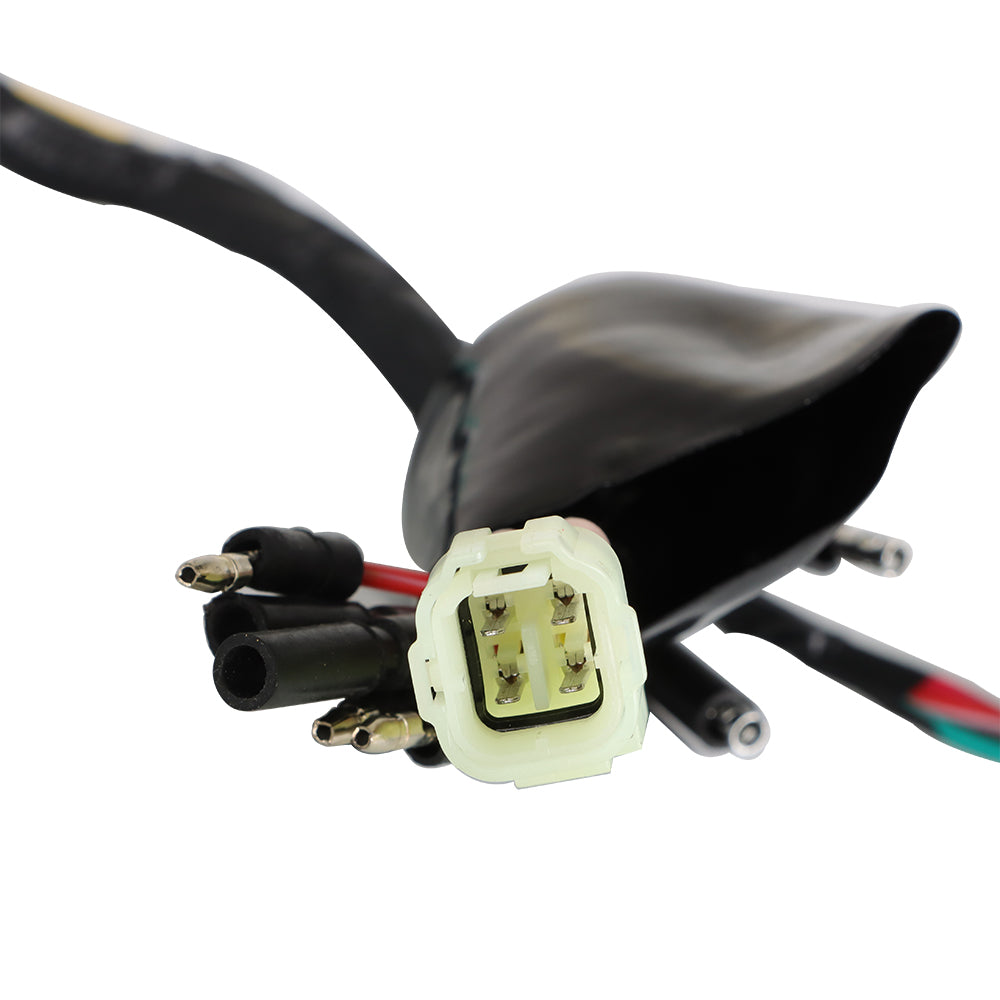

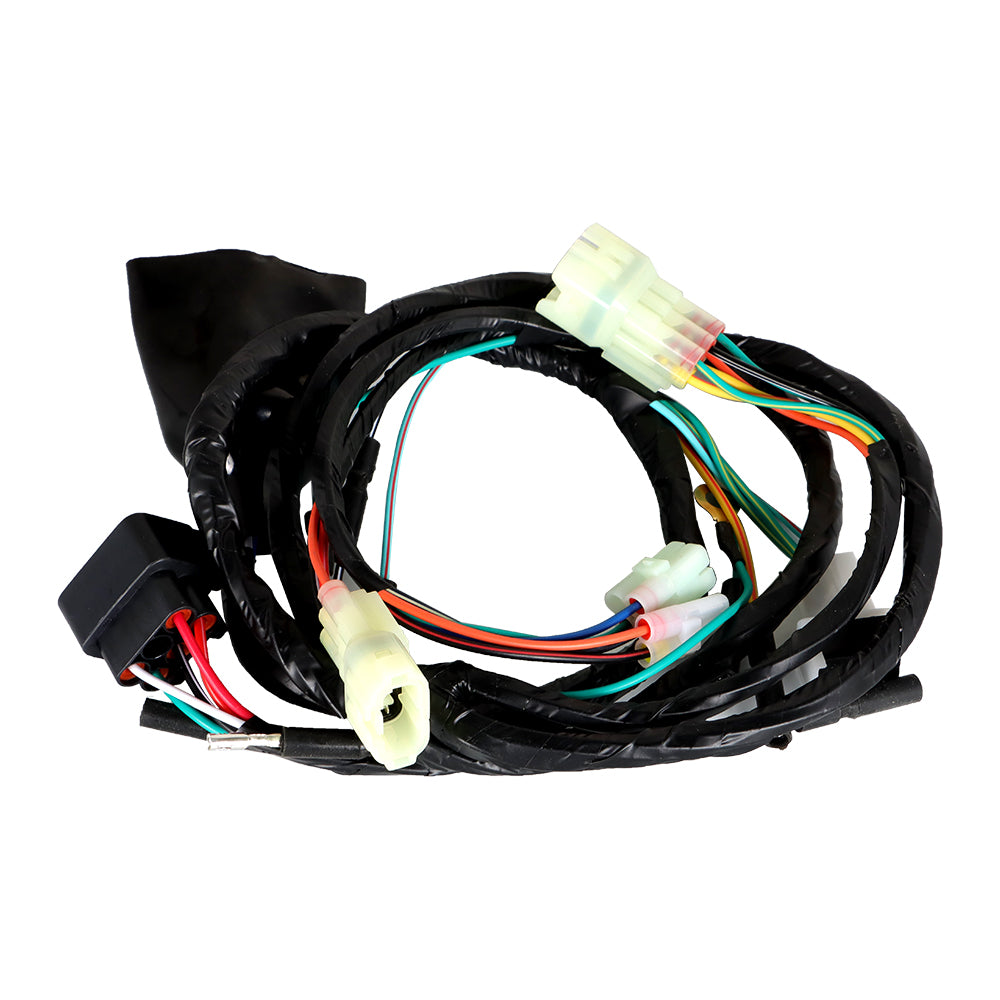

  • 1 × Wire Harness
  • 1 × Ignition Key Switch

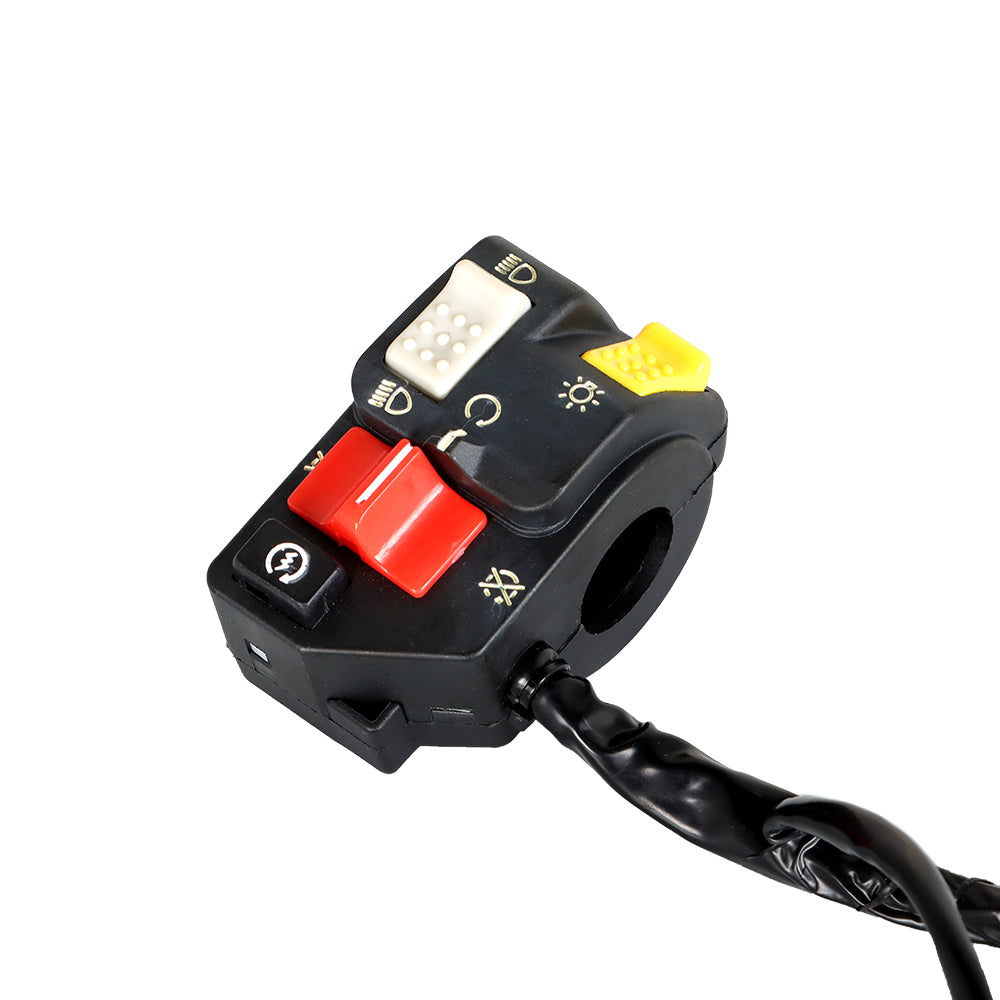

  • 1 × Left Handlebar Switch

Important Note

Please compare the original connectors, wire routing, terminal layout, relay configuration, key switch, handlebar switch, and part numbers before ordering. Verify compatibility with the 2x4 TRX400EX model and year. Disconnect the battery before installation. Professional installation is recommended.
