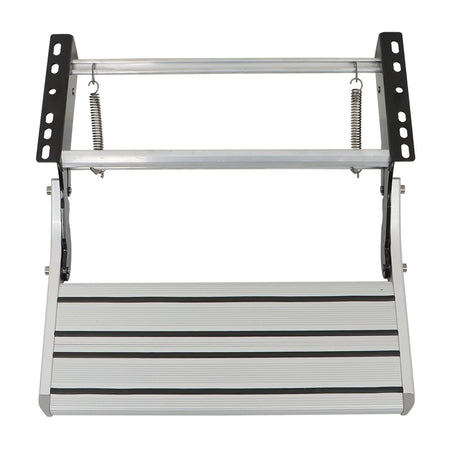

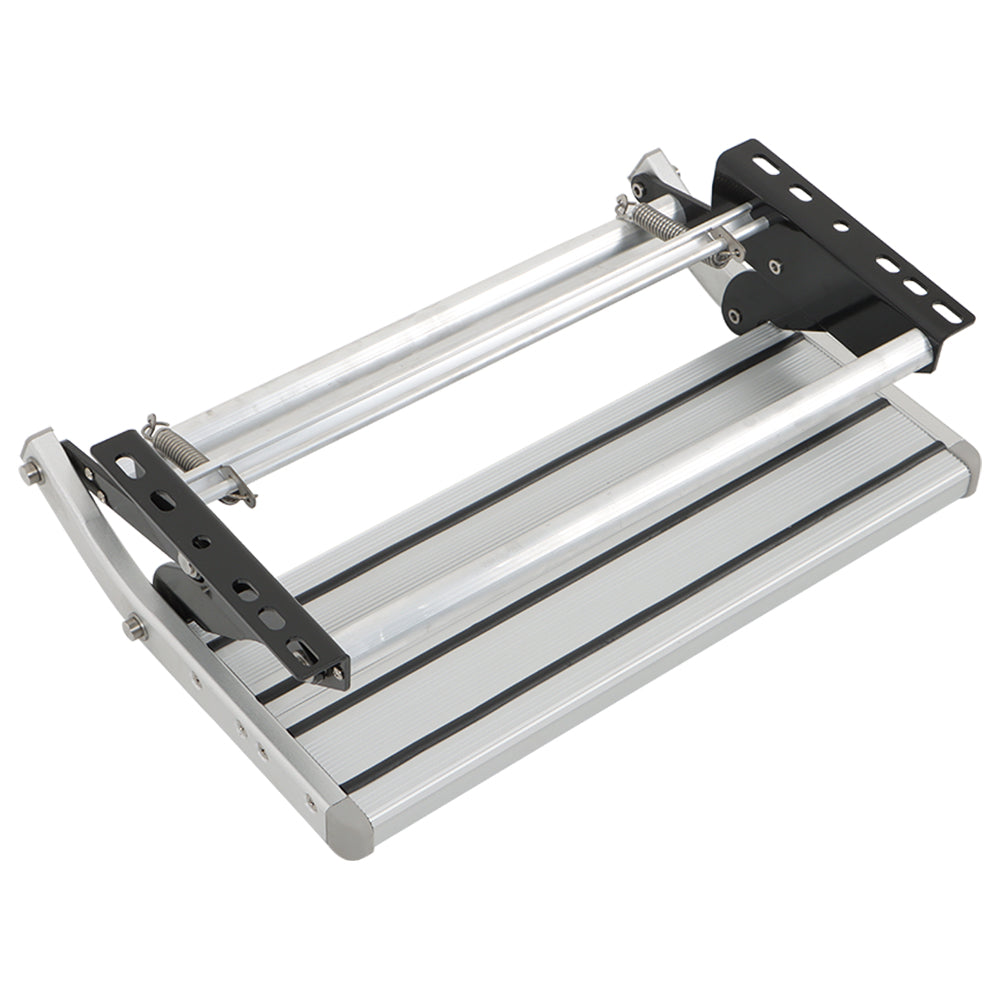

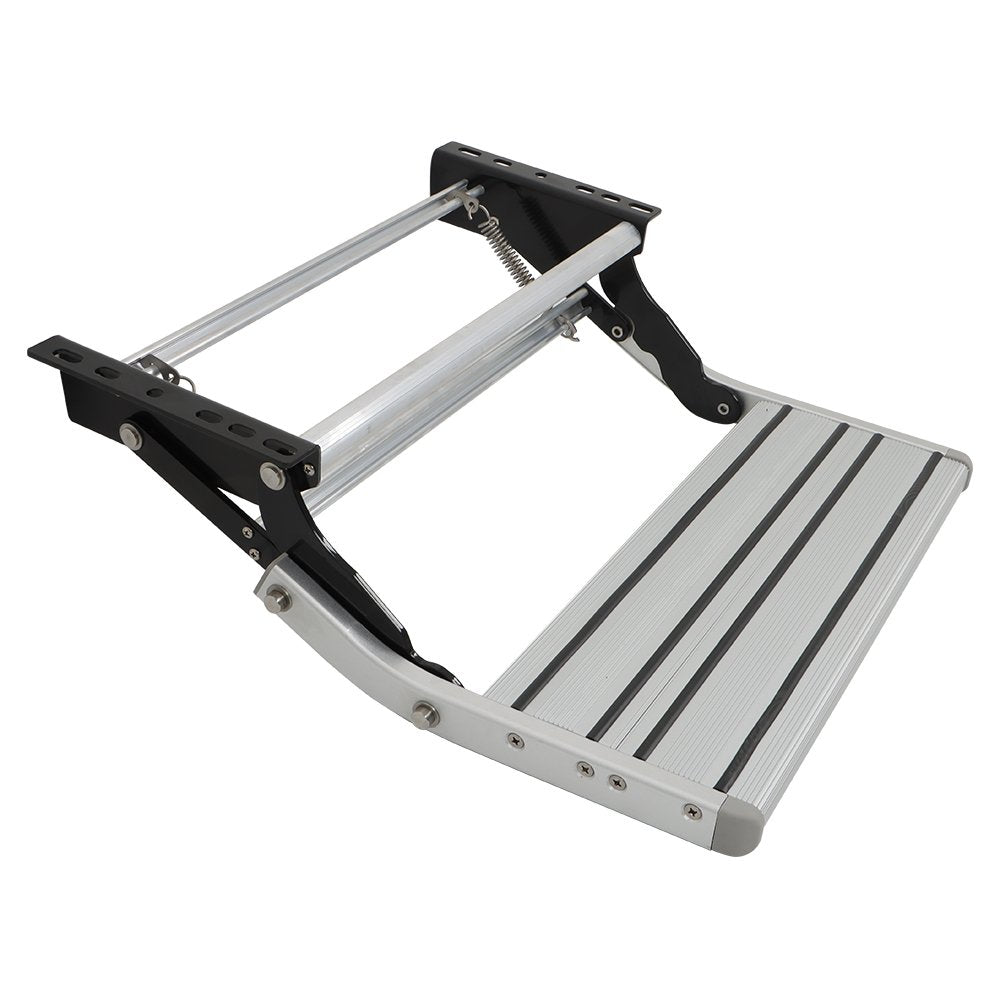

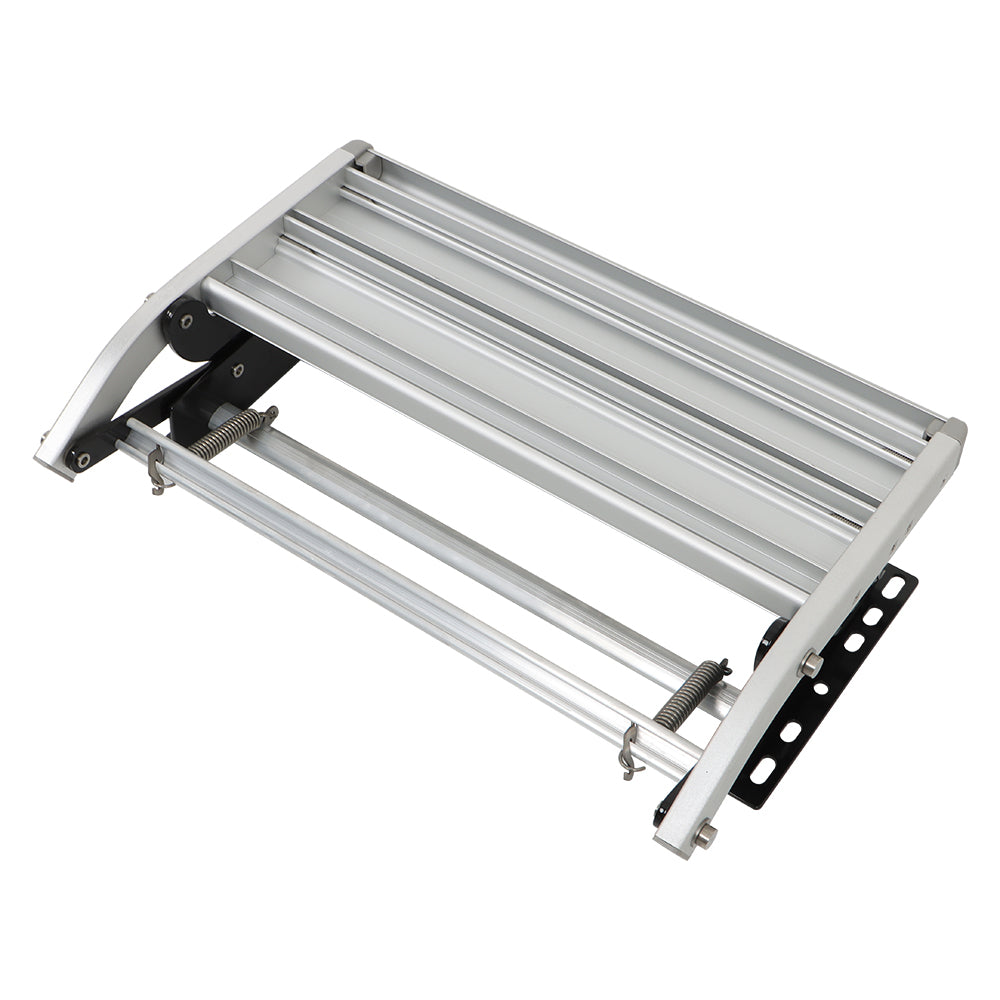

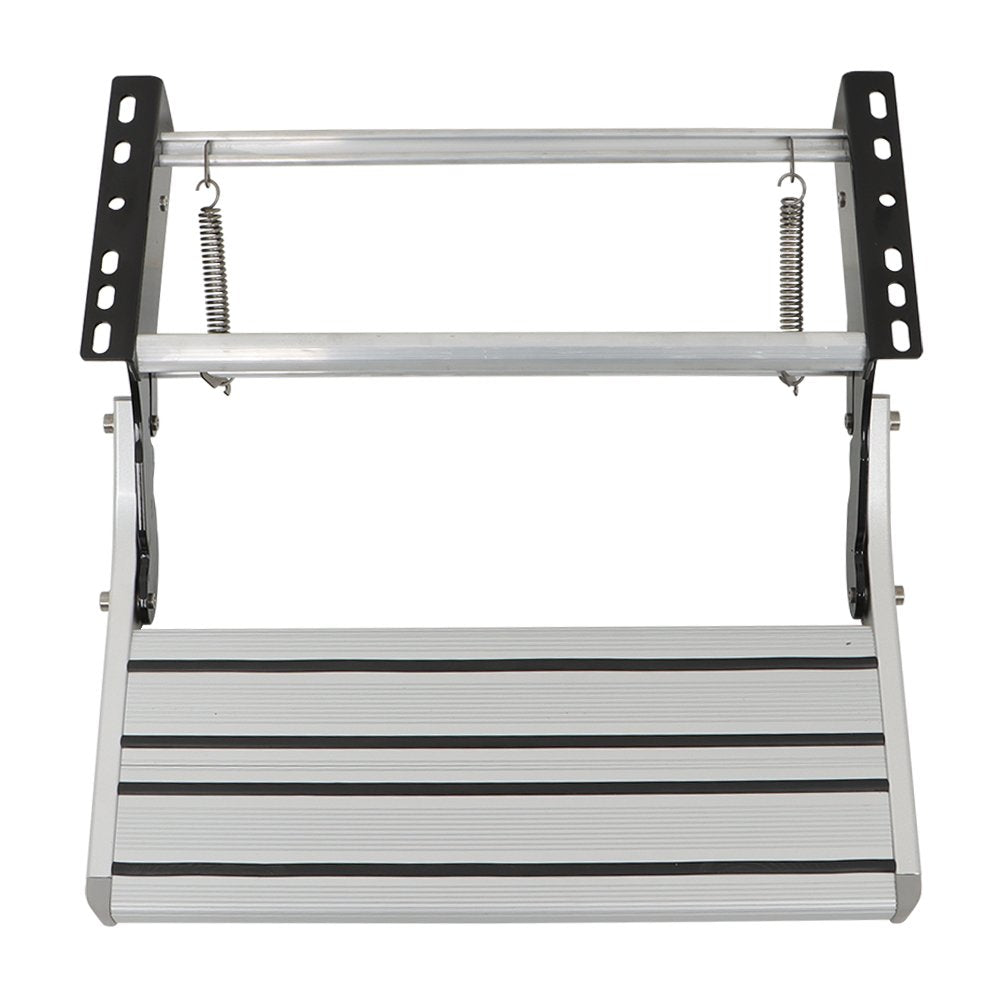

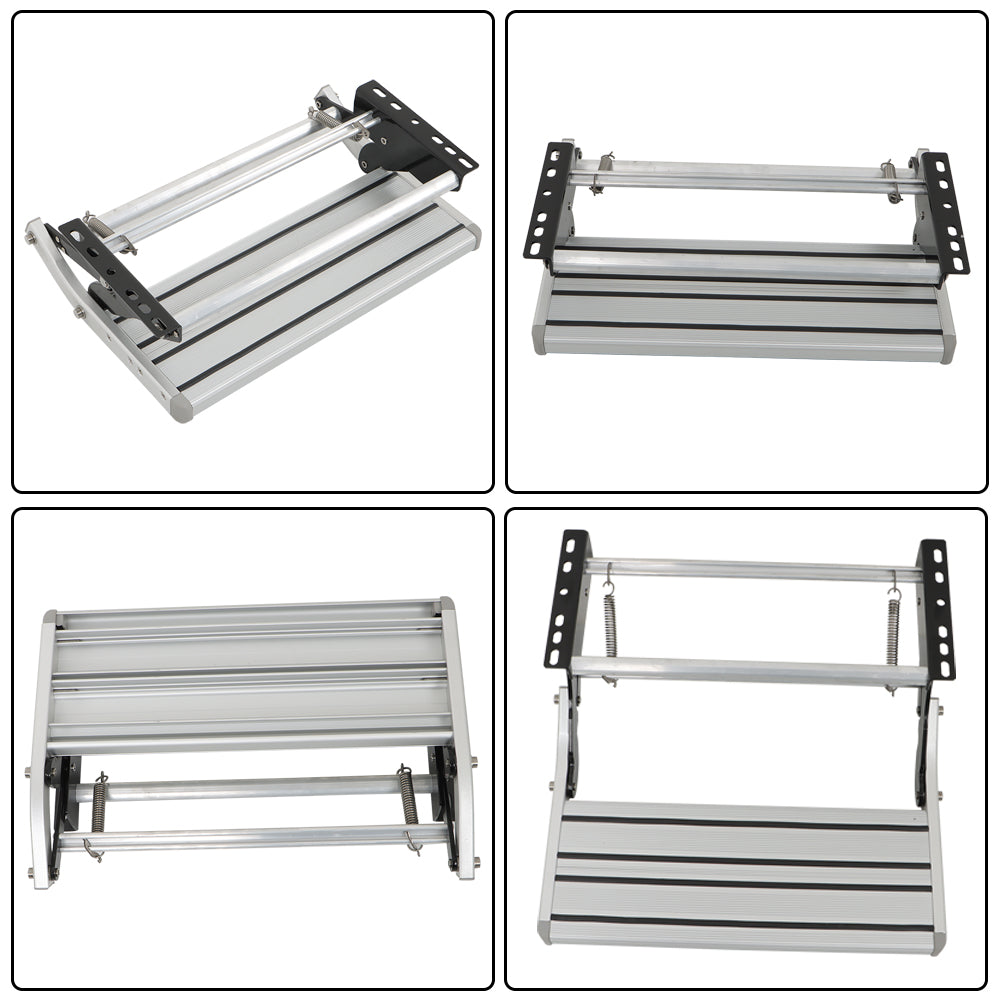

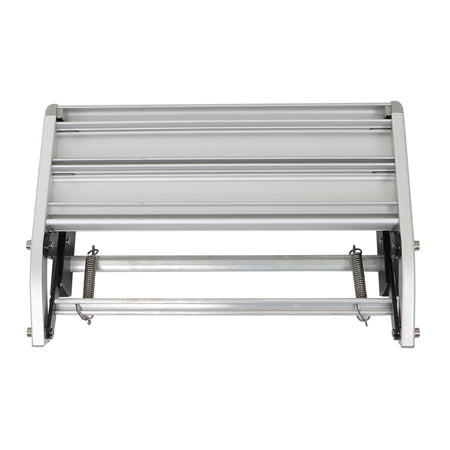

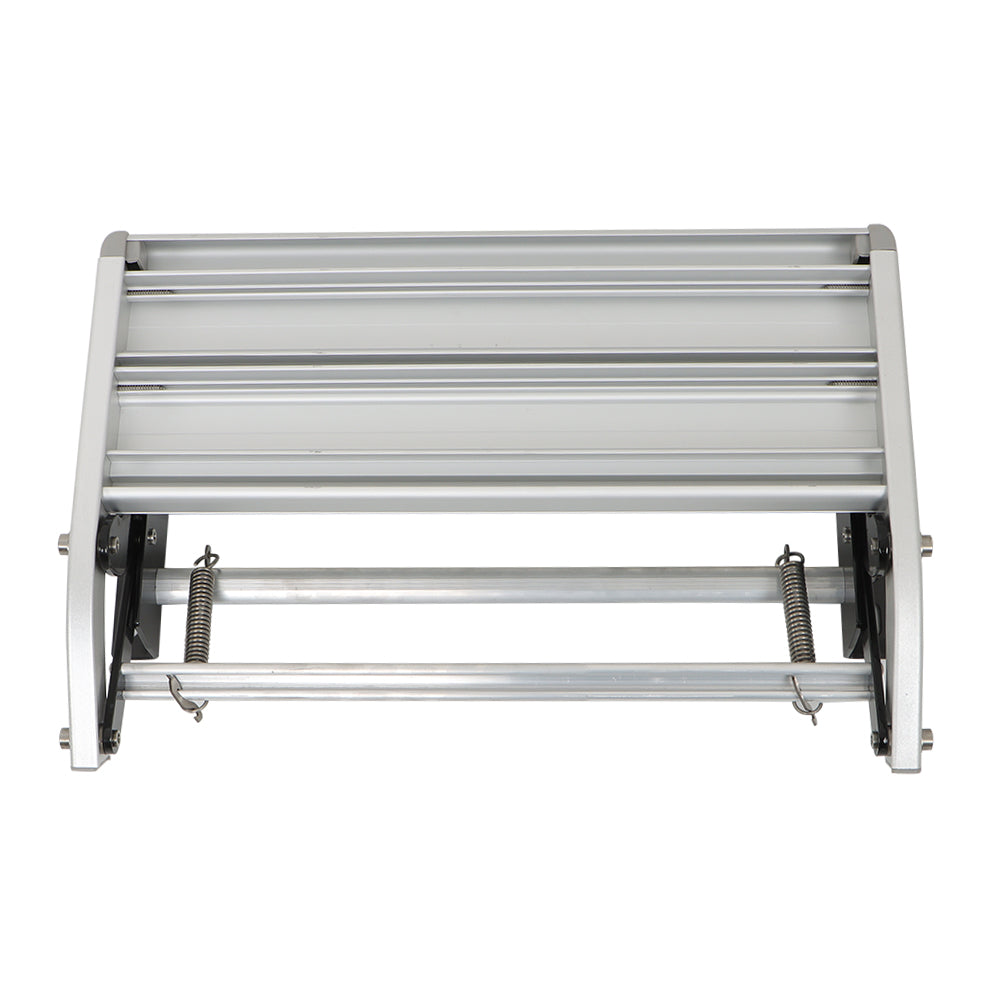

Labwork Aluminum 1 Step Pull Out Retractable Platform Steps Stair Anti-Slip

Single Tier Manual Aluminium Step Replacement for RV Campervan Motorhome RV Travel Trailer 21.65 Inch Silver

Note:

This product is used for the modification and upgrade of customer RVs, campers, motorhomes, and trailers

1.If the chassis has pre-drilled holes with a 515mm pitch, customers can install it directly

2.If the pre-drilled hole pitch of the chassis is not 515mm, customers can drill new holes with a 515mm pitch before installation

3.If there is no suitable position on the chassis for drilling, customers can weld angle iron to the chassis first, then drill holes with a 515mm pitch for installation

Corresponding to the three installation methods above:

Product installation center hole pitch: 515mm

Installation hole size: 10mm

Feature:

Single-layer manual step made of aluminium alloy, sturdy, long service life

The step surface is designed with skid strips to increase friction, allowing you and your family to enter and exit the caravan safely

RV folding pedals are suitable for a wide range of vehicles including rv, campervans, motorhomes, emergency vehicles and more

To extend, simply pull the unit out and allow the spring to lock into place; To retract, push against the unit until it neatly folds and stores under the RV

Specification:

Material: Aluminium alloy

Max capacity 440lbs

Mounting screws not included

Package includes:

1 x RV single tier manual aluminium step
