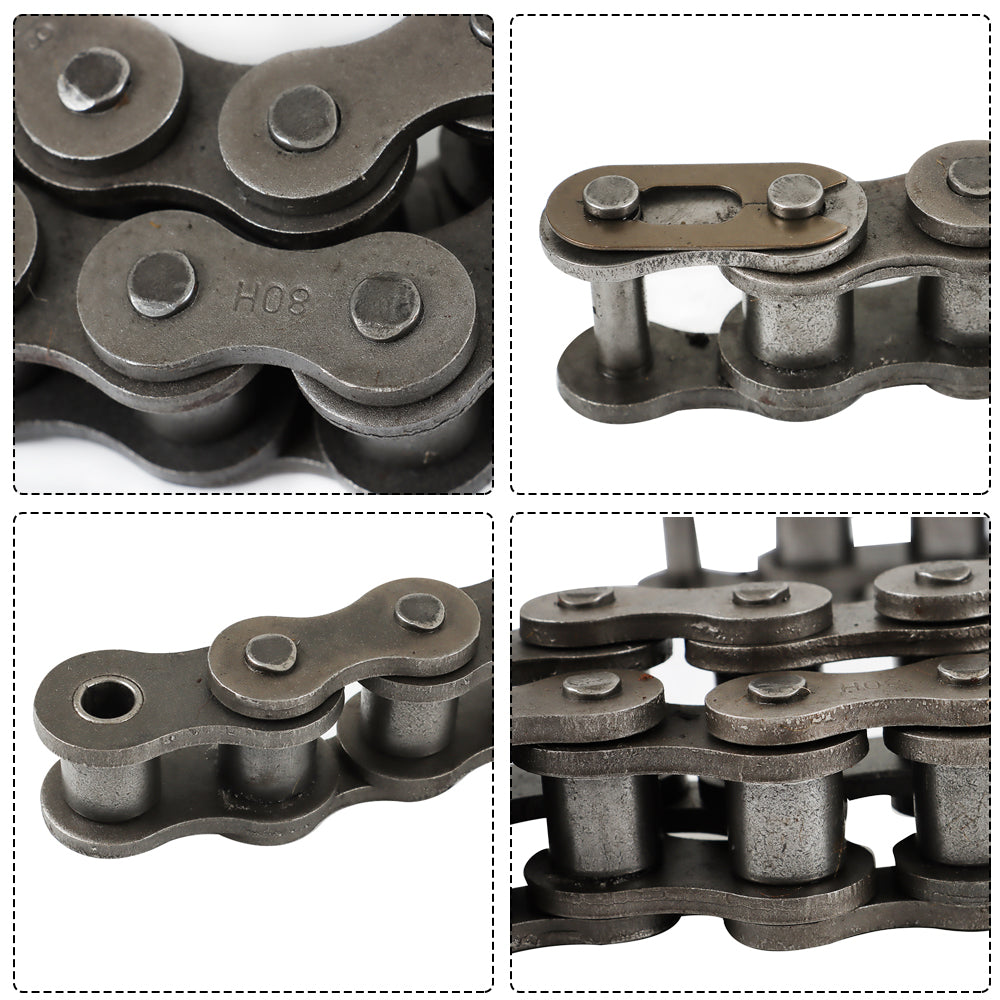

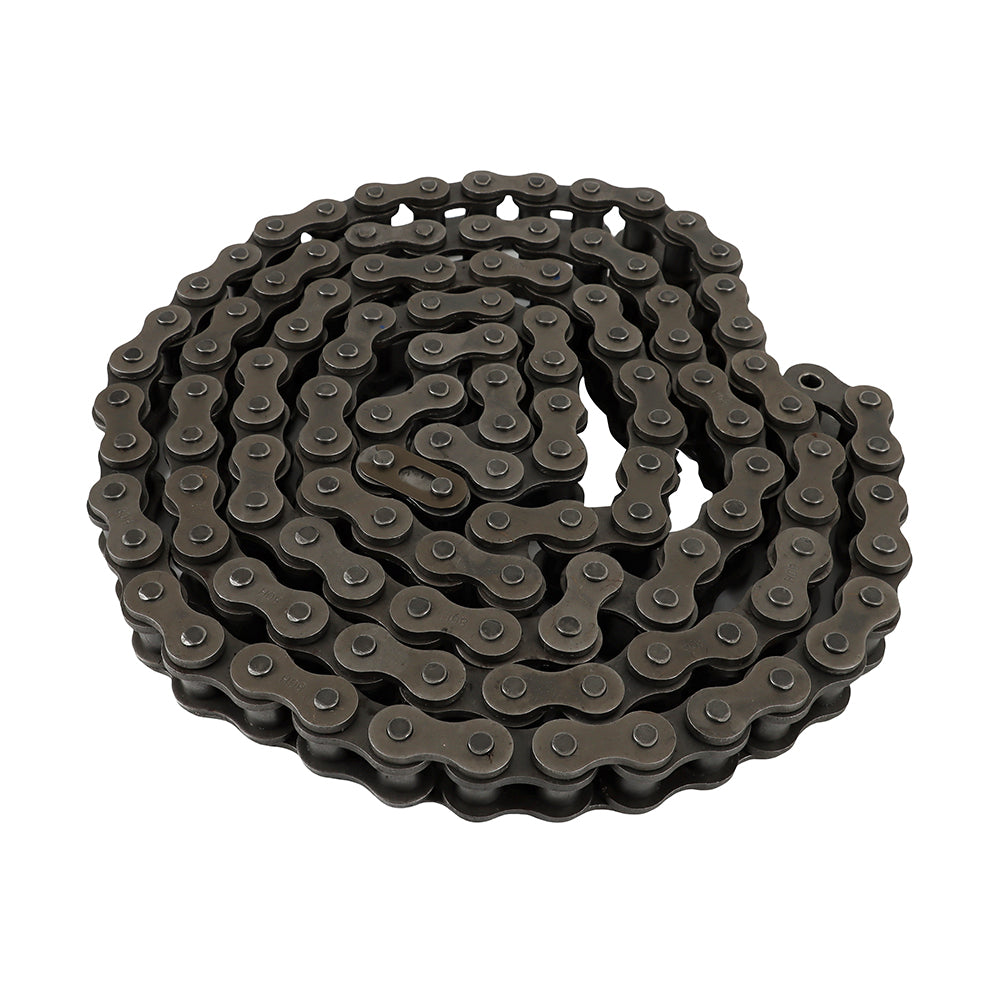

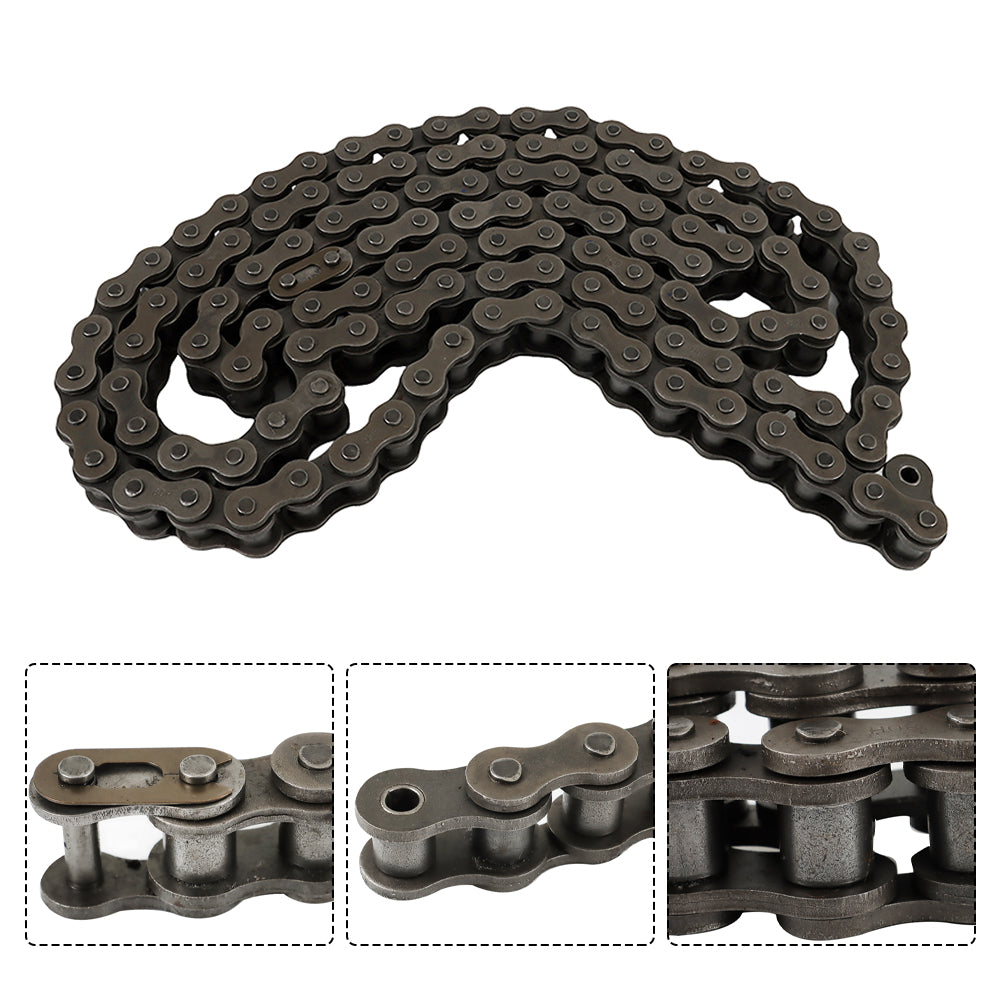

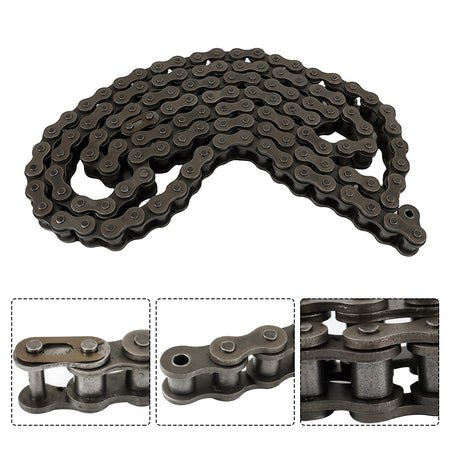

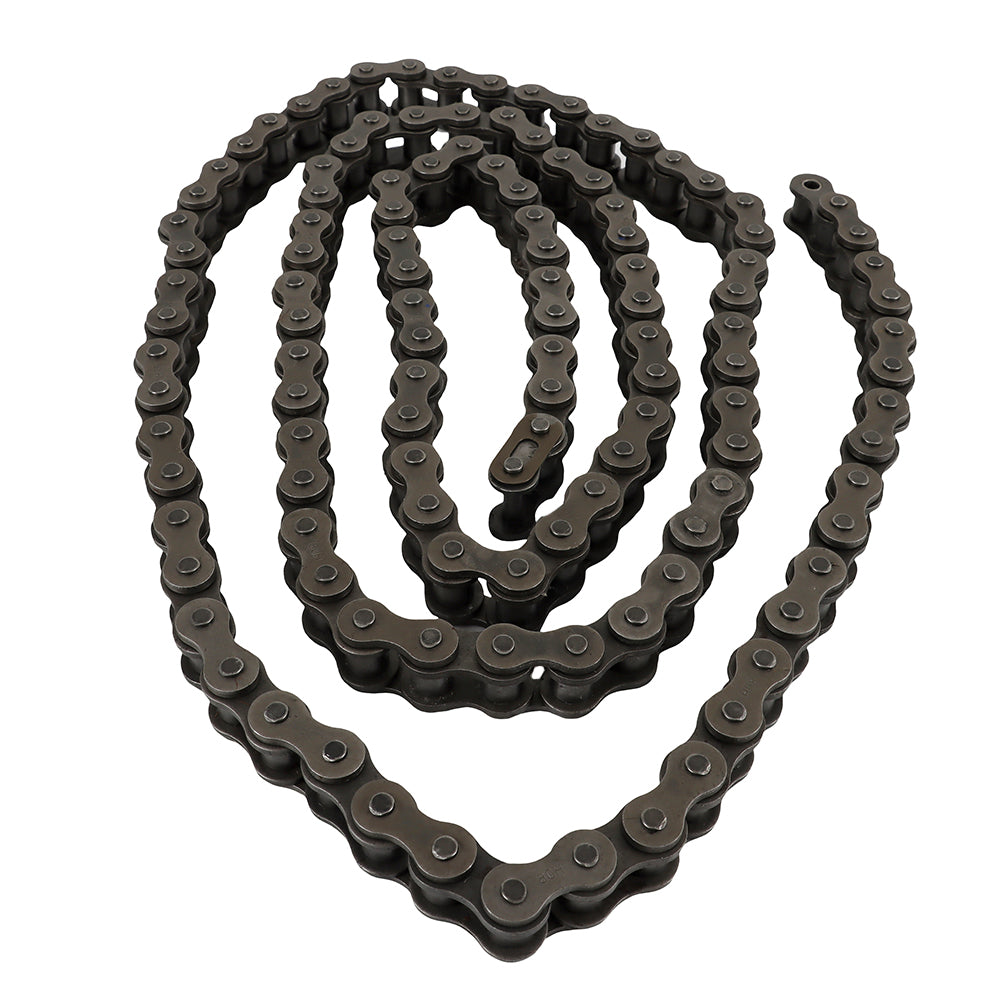

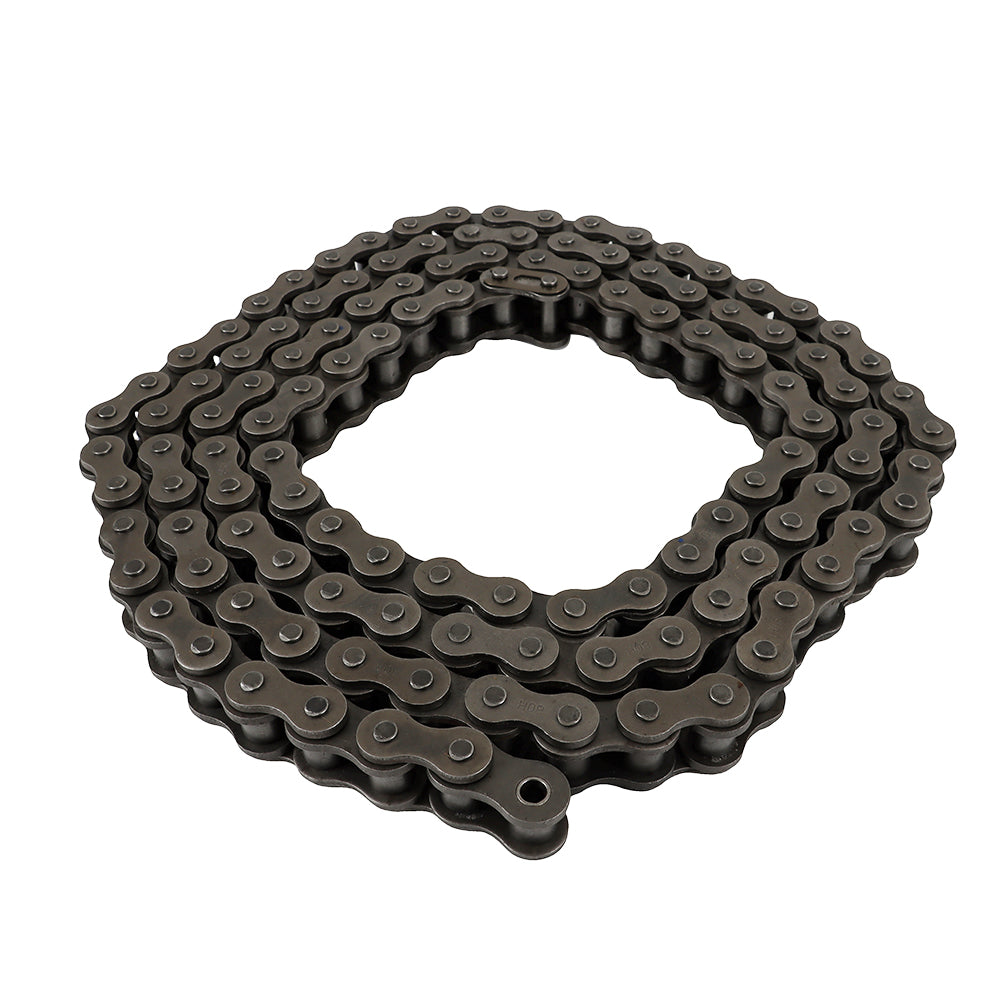

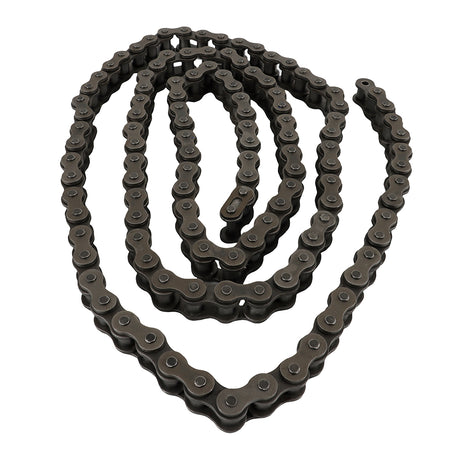

labwork 80H Heavy-Duty Roller Chain 10 ft, 120 Links with Connecting Link

This 80H heavy-duty roller chain provides reliable power transmission for industrial, agricultural and mechanical equipment. Made from carbon steel and supplied in a 10-foot length with 120 links, the chain is prestressed and run-in to help reduce initial elongation and improve service life.

Specifications

• ANSI Chain Number: 80H
• Chain Length: 10 ft
• Number of Links: 120
• Material: Carbon Steel
• Pitch: 1.000 in (25.40 mm)
• Average Tensile Strength: 71.4 kN
• Minimum Ultimate Tensile Strength: Approximately 56.70 kN / 12,886 lb
• Pin Length, L max: 1.425 in (36.20 mm)
• Pin Length, Lc max: 1.484 in (37.70 mm)
• Pin Diameter, d2 max: 0.311 in (7.92 mm)
• Plate Thickness, T max: 0.157 in (4.00 mm)
• Roller Diameter, d1 max: 0.625 in (15.88 mm)
• Inner Plate Depth, h2 max: 0.944 in (24.00 mm)
• Width Between Inner Plates, b1 min: 0.620 in (15.75 mm)

Features

• Heavy-duty 80H roller chain for stable power transmission
• Carbon-steel construction provides strength and durability
• Prestressed operation helps evenly distribute working loads
• Run-in after assembly helps reduce rapid initial elongation
• Suitable for industrial machinery, agricultural equipment and mechanical drives
• Includes one connecting link for installation

Package Includes

• 1 × 80H Heavy-Duty Roller Chain, 10 ft / 120 links
• 1 × Connecting Link

Note

Please confirm that your equipment uses ANSI 80H chain before ordering. The chain length is approximately 10 feet and includes one connecting link.
