labwork 6Pcs Telescoping Gage Set 5/16"-6" T-Bore Hole Gauge Set 8mm-150mm

Description:

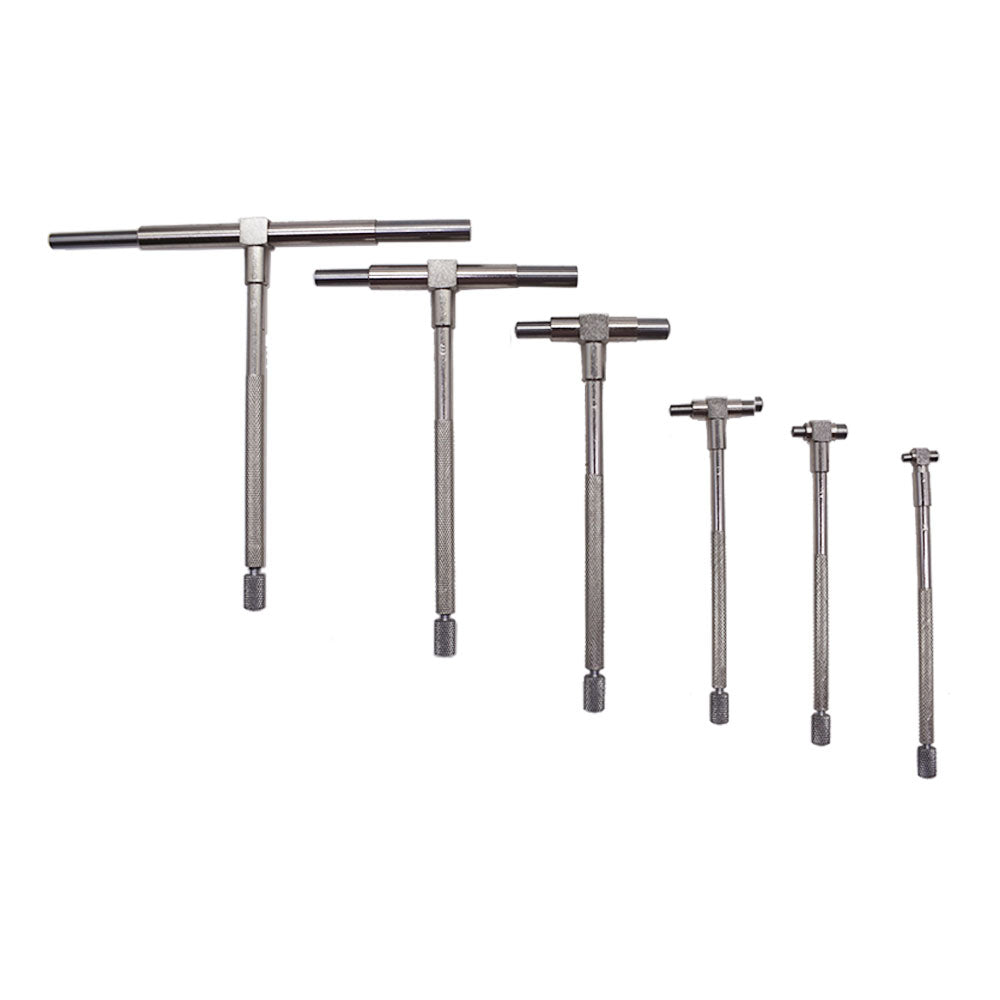

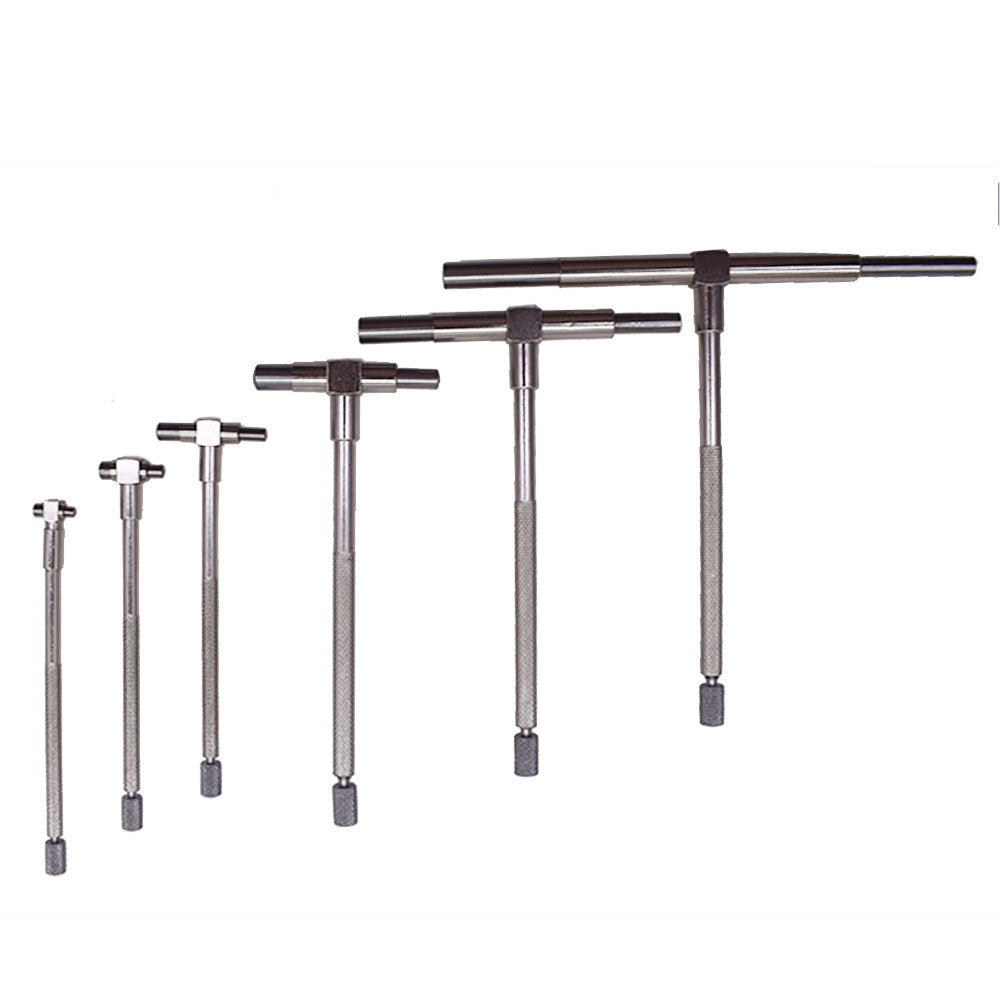

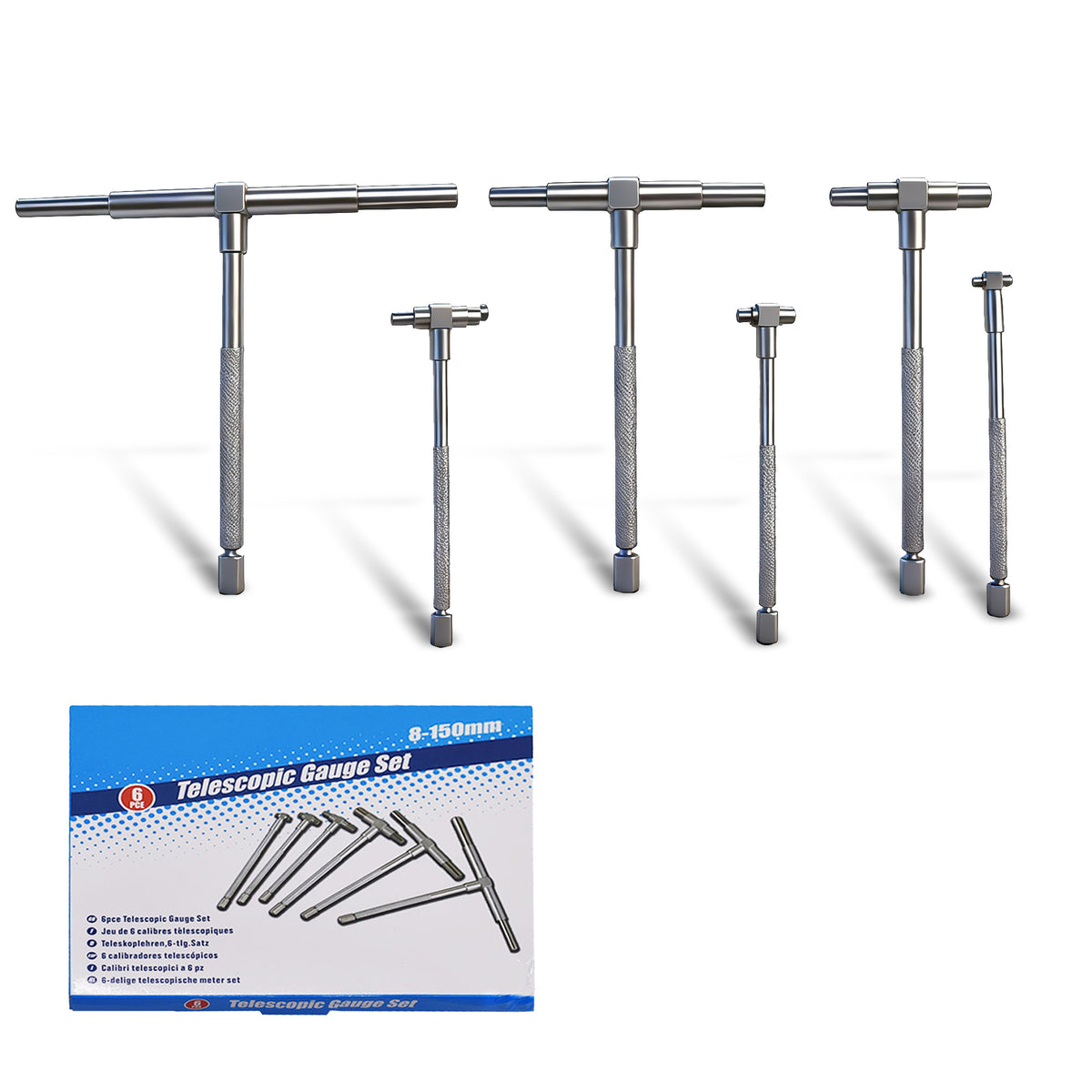

6Pcs Telescoping Gage Set 5/16" - 6" Range T-Bore Hole Gauges

The telescoping gauges feature spring-loaded plungers, a locking knurled knob, and a rigid handle for quick and stable inside measurement checking. The smooth probe surface and rounded contact ends help provide consistent contact with the measured bore.

Specifications:

• Type: Telescoping Gage Set
• Quantity: 6 Pieces
• Measuring Range: 5/16" - 6"
• Metric Range: 8mm - 150mm
• Material: Steel / Stainless Steel
• Surface Finish: Titanium Coating
• Design: Spring Loaded, Locking Knurled Knob
• Measuring Method: Use with micrometer or calipers
• Application: Inside diameter, bore, hole, slot, and groove measurement

Features:

• Spring-loaded design expands smoothly inside the hole being measured
• Locking knurled knob helps secure the gauge position after measurement
• Double-action self-centering design allows quick inside measurement checking
• Hardened and ground contact points for stable measuring performance
• Titanium-coated steel construction offers durability and wear resistance
• Rhombic handle design increases grip friction for easier operation
• Suitable for machinists, mechanics, inspection work, and workshop use

How to Use:

1. Insert the telescoping gauge into the hole or bore.
2. Release the gauge tips so they expand against the inner surface.
3. Lock the knurled knob to hold the measured position.
4. Remove the gauge carefully.
5. Measure the gauge width using a micrometer or caliper.

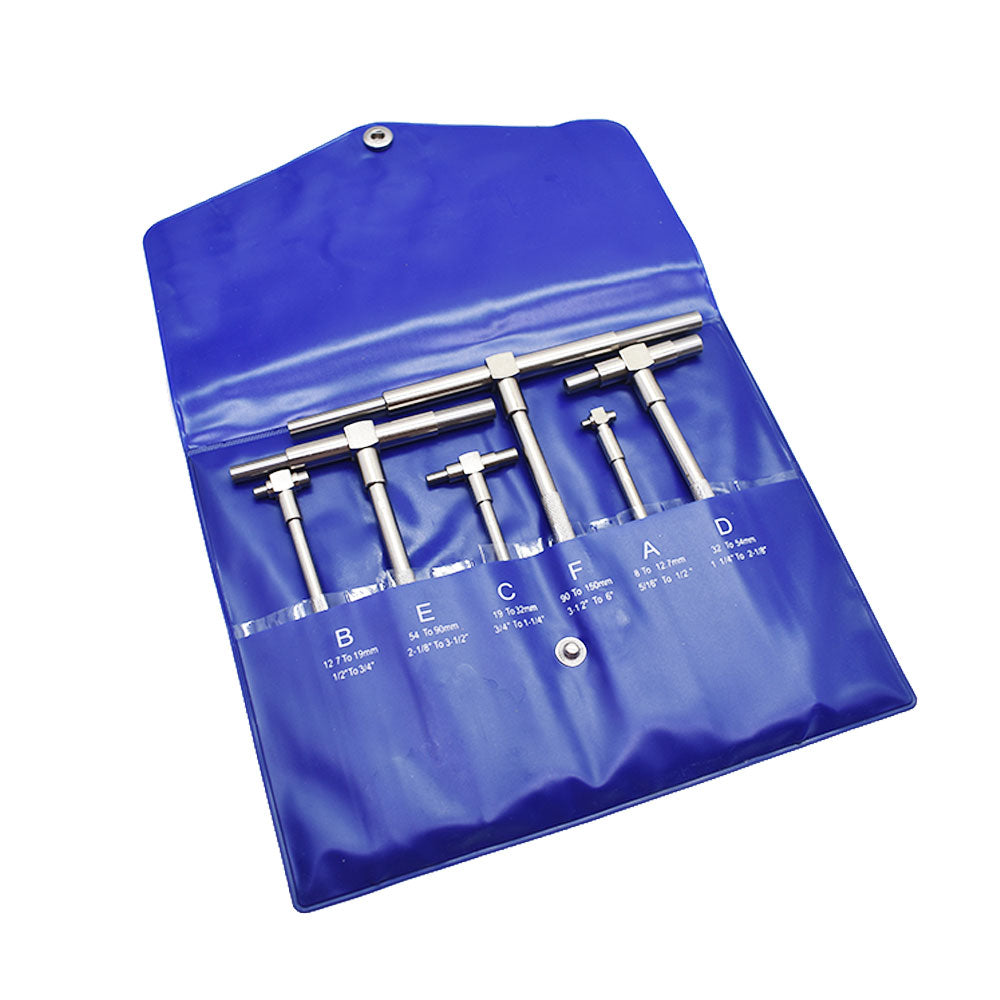

Package Includes:

6 x Telescoping Gages

Note:

This tool is used for transferring inside measurements. A micrometer or caliper is required to determine the final measurement value.
