labwork 5-Lug Trailer Hub Kit with 1-1/16-Inch BT16 Square Spindle, Bearings and Hardware, 2,200 lb Capacity

Product Description

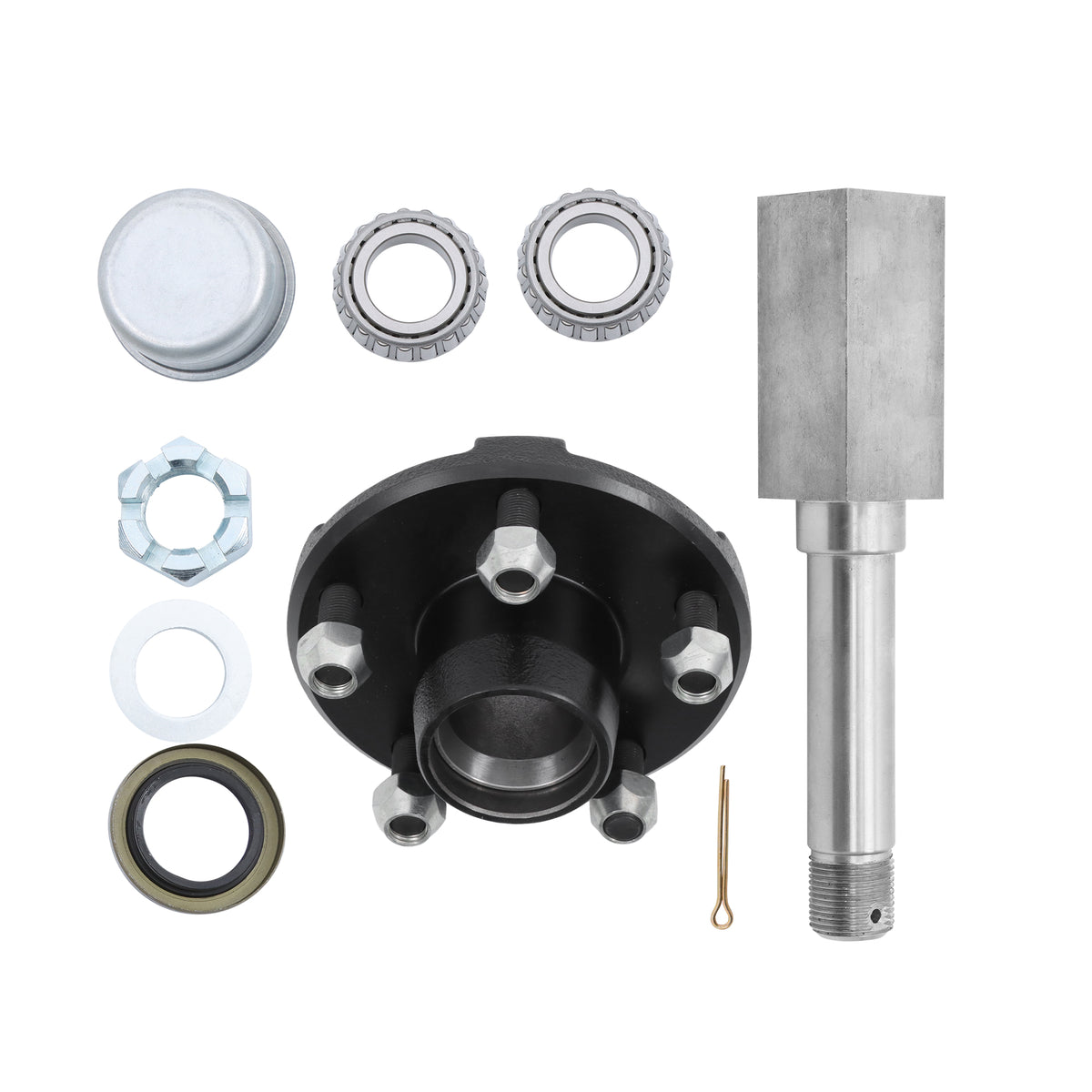

This trailer hub and spindle kit includes a 5-on-4.5-inch idler hub, a 1-1/16-inch BT16 square spindle, bearings, grease seal, dust cap, lug nuts, and mounting hardware. It is designed for compatible trailer axle repairs and replacements.

Compatibility

• Trailers using a 5-on-4.5-inch bolt pattern
• Trailers using a 1-1/16-inch BT16 square spindle
• Compatible axle and wheel dimensions must be verified before ordering

Specifications

• Type: Trailer Hub and Spindle Kit

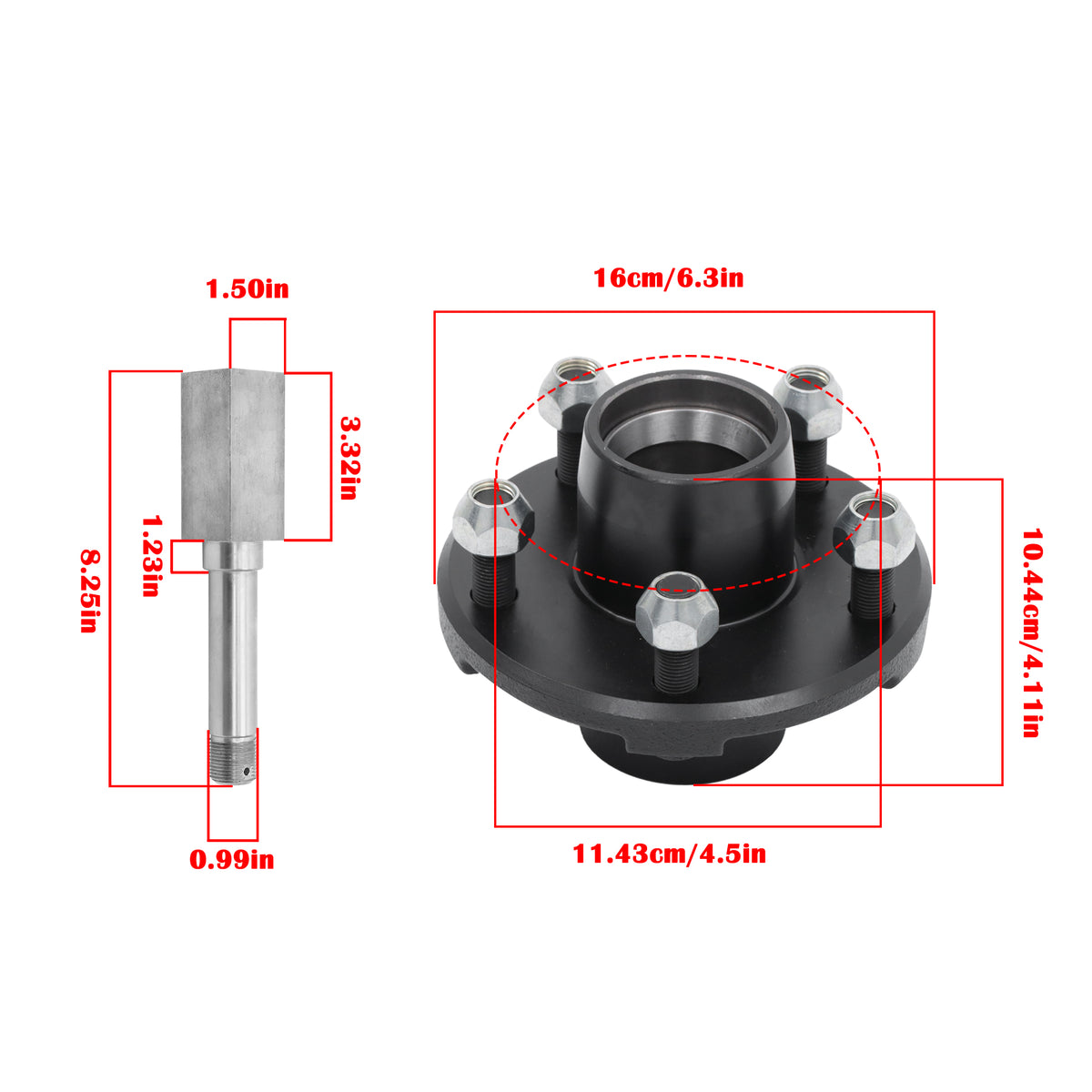

• Bolt Pattern: 5 on 4.5 inches
• Load Capacity: 2,200 lbs
• Spindle Type: BT16 Square
• Spindle Size: 1-1/16 inches
• Inner Bearing: L44649
• Outer Bearing: L44649
• Bearing Race: L44610
• Inner Bearing Diameter: 1-1/16 inches
• Race Outside Diameter: 1.98 inches
• Grease Seal Size: 1.987 × 1.249 inches
• Grease Cap Outside Diameter: 1.986 inches
• Lug Nuts: 1/2-20
• Fitment Type: Direct Replacement

Features

• 5-on-4.5-inch trailer hub configuration
• 1-1/16-inch BT16 square spindle
• Includes inner and outer bearing components
• Grease seal helps retain lubricant and reduce contamination
• Dust cap helps protect the hub assembly
• Spindle includes nut, washer, and cotter pin

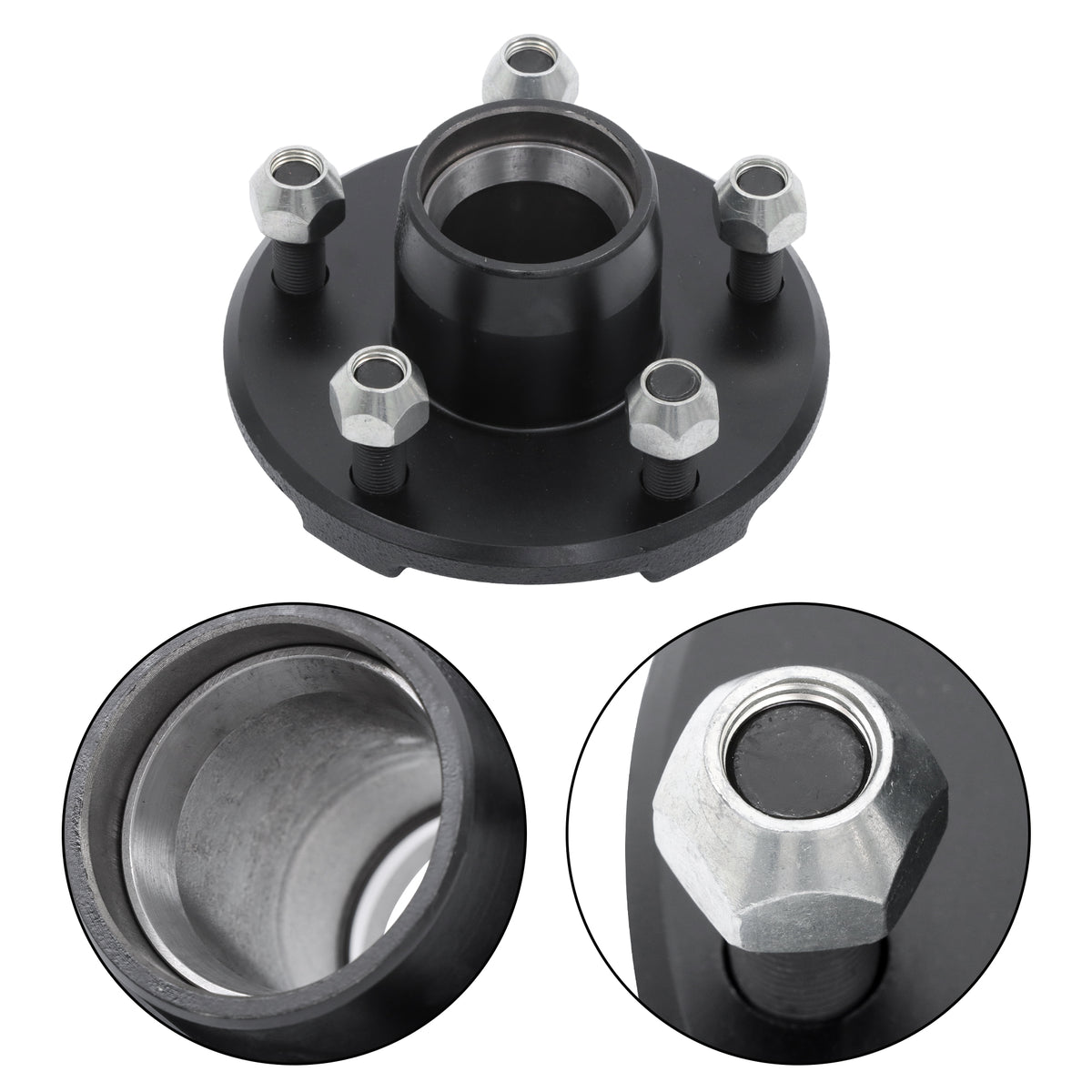

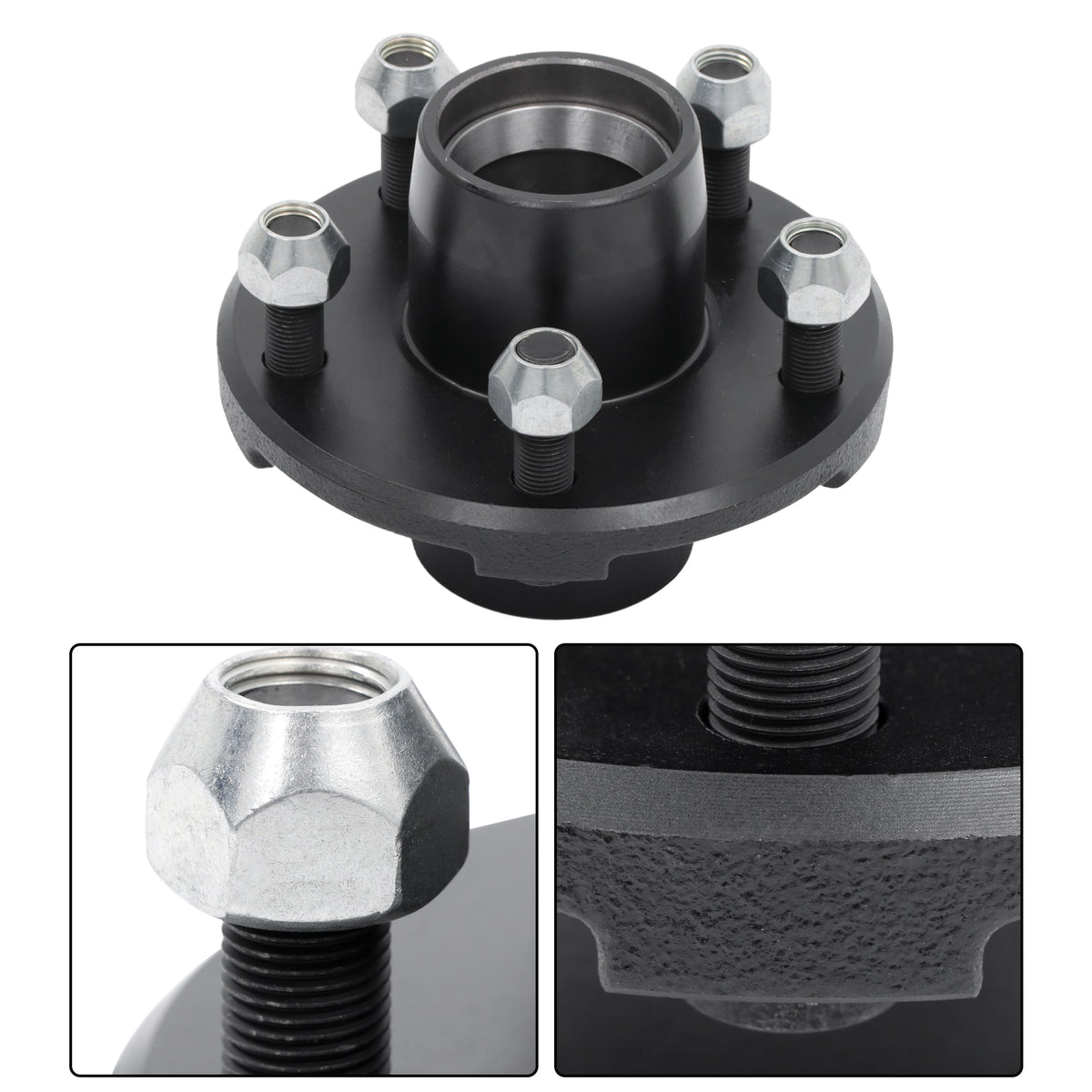

• Hub includes pre-installed lug nuts
• Durable construction supports reliable trailer service
• Precise dimensions support easier installation

Package Includes

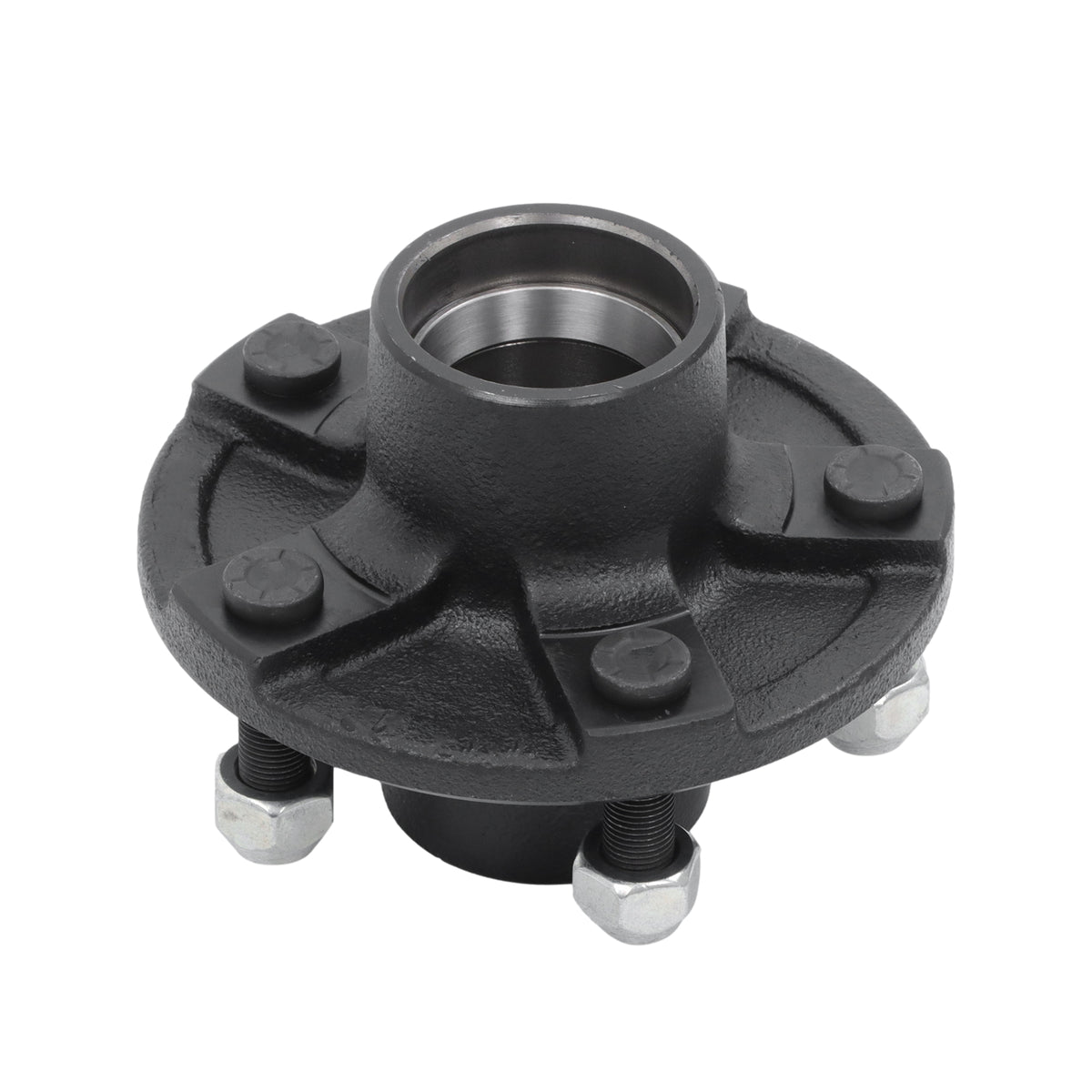

• 1 × 5-on-4.5-Inch Trailer Hub

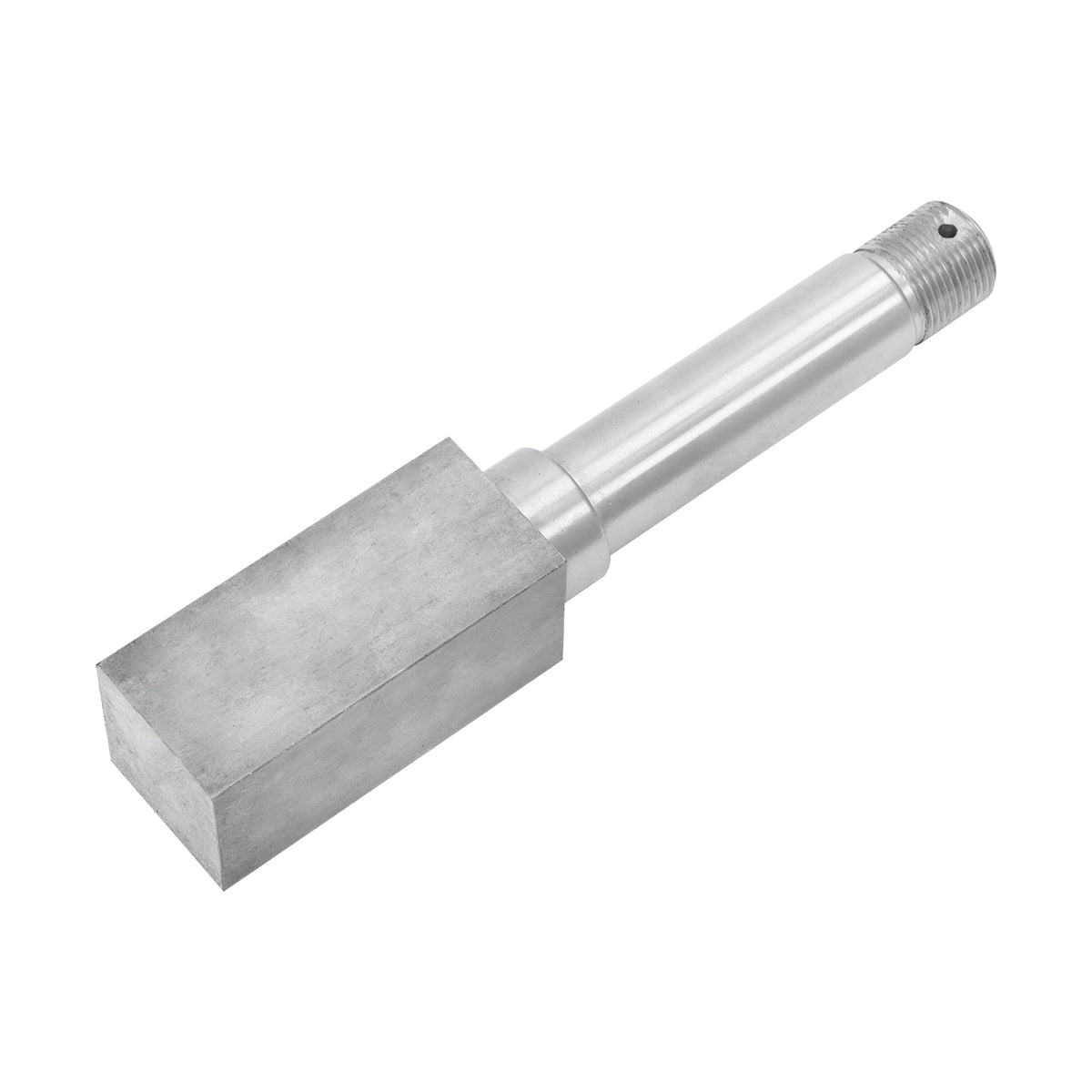

• 1 × 1-1/16-Inch BT16 Square Spindle

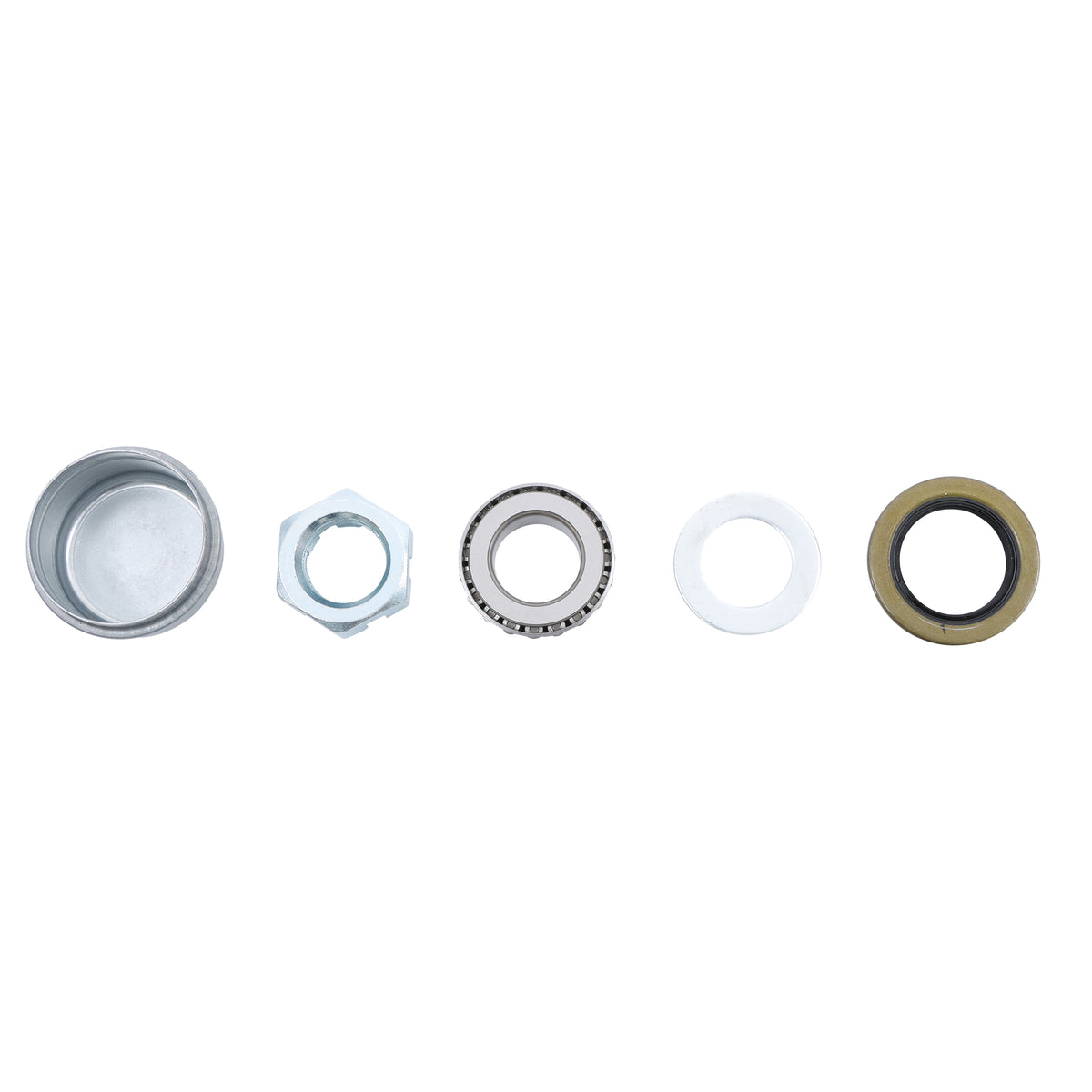

• 2 × L44649 Bearings
• 2 × L44610 Bearing Races
• 1 × Grease Seal
• 1 × Dust Cap

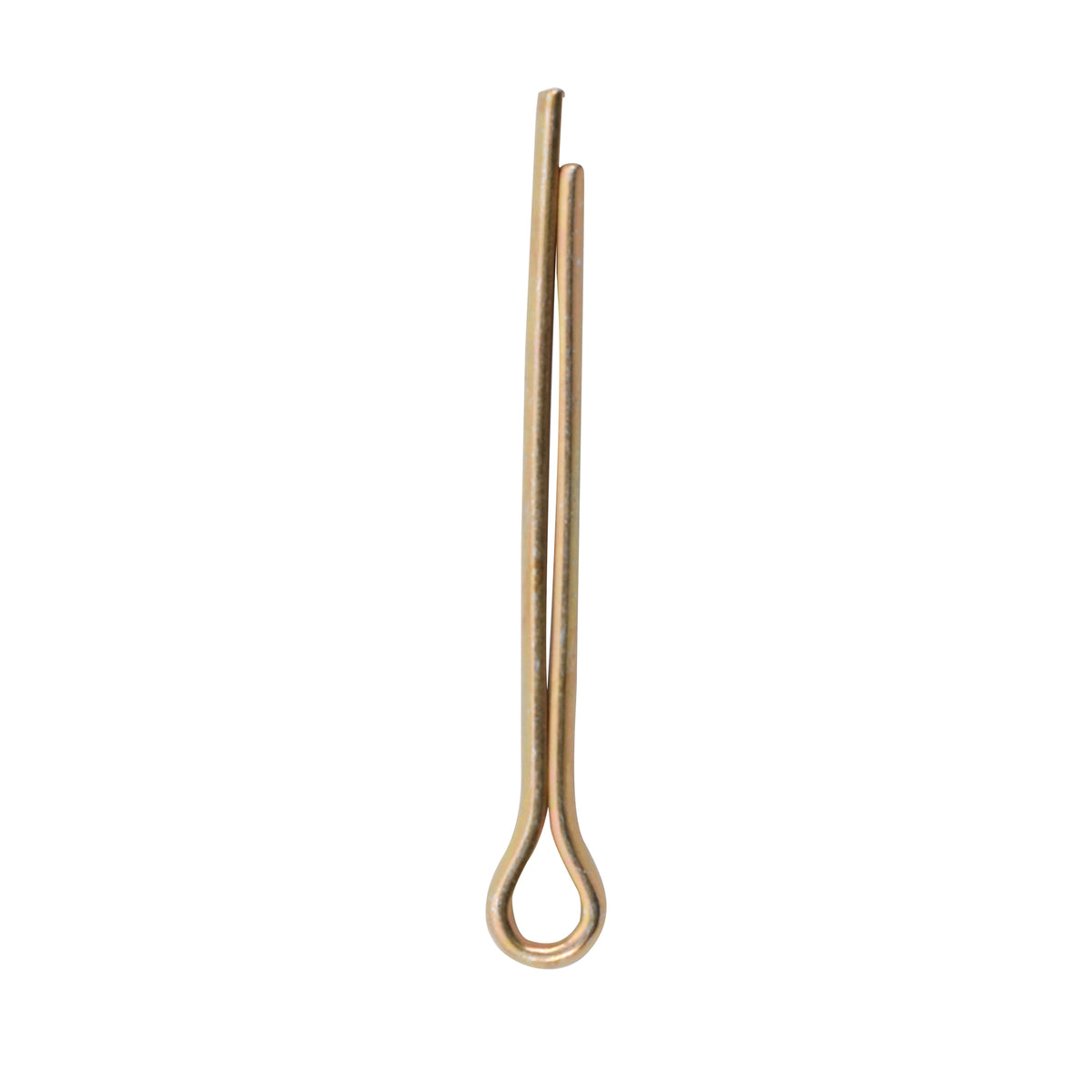

• 1 × Cotter Pin
• 1 × Spindle Nut
• 1 × Spindle Washer
• 5 × 1/2-20 Lug Nuts, Pre-Installed on Hub
• W/o Installation Instructions

Important Note

The stated load capacity is 2,200 lbs. Do not exceed the capacity of the spindle, hub, axle, tires, wheels, or trailer frame. Please verify the bolt pattern, spindle dimensions, bearing and seal sizes, wheel clearance, and axle configuration before ordering. Professional installation is recommended.
