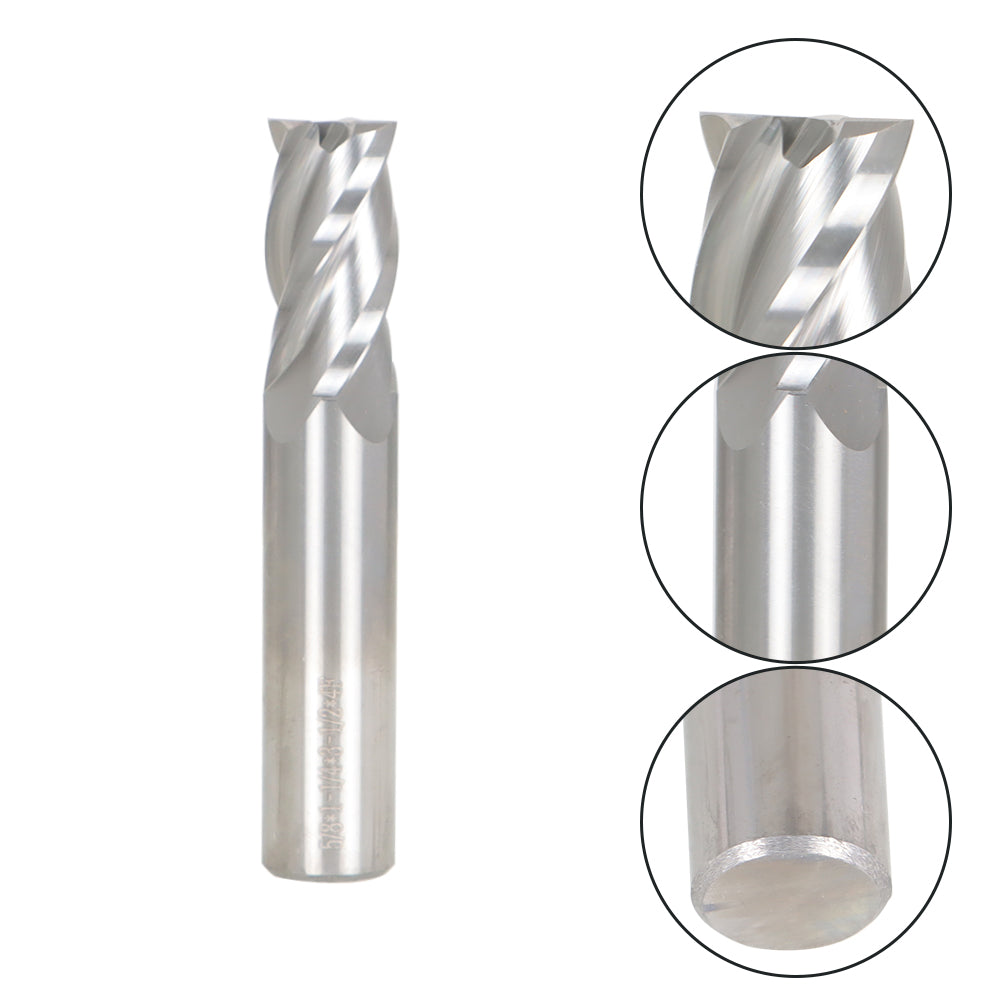

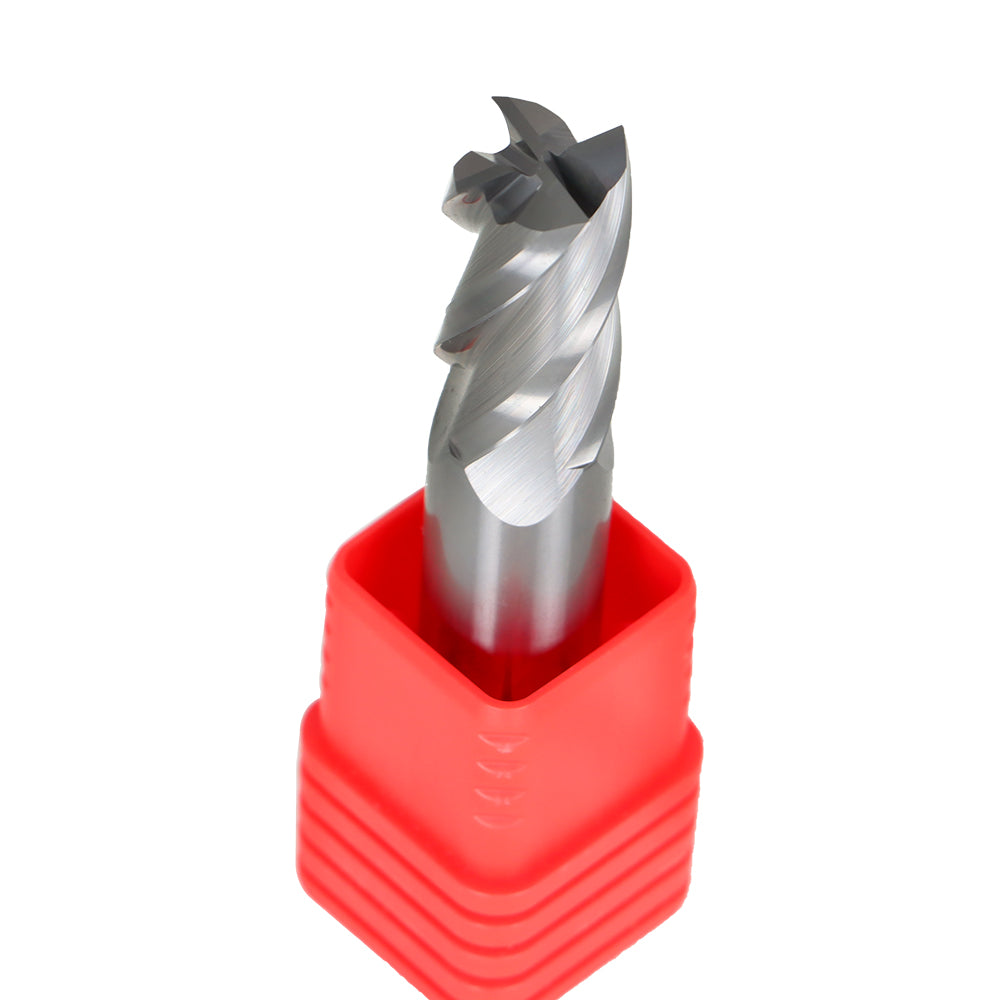

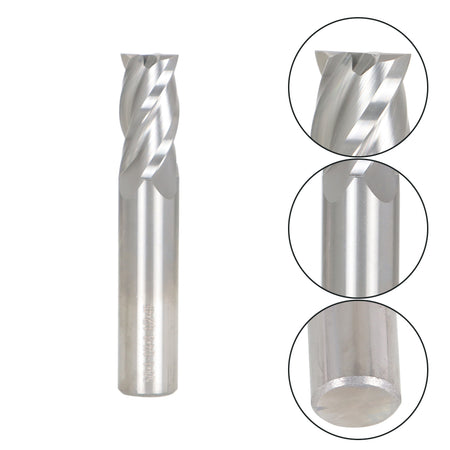

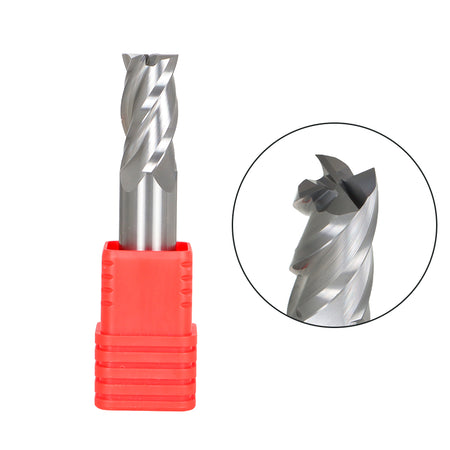

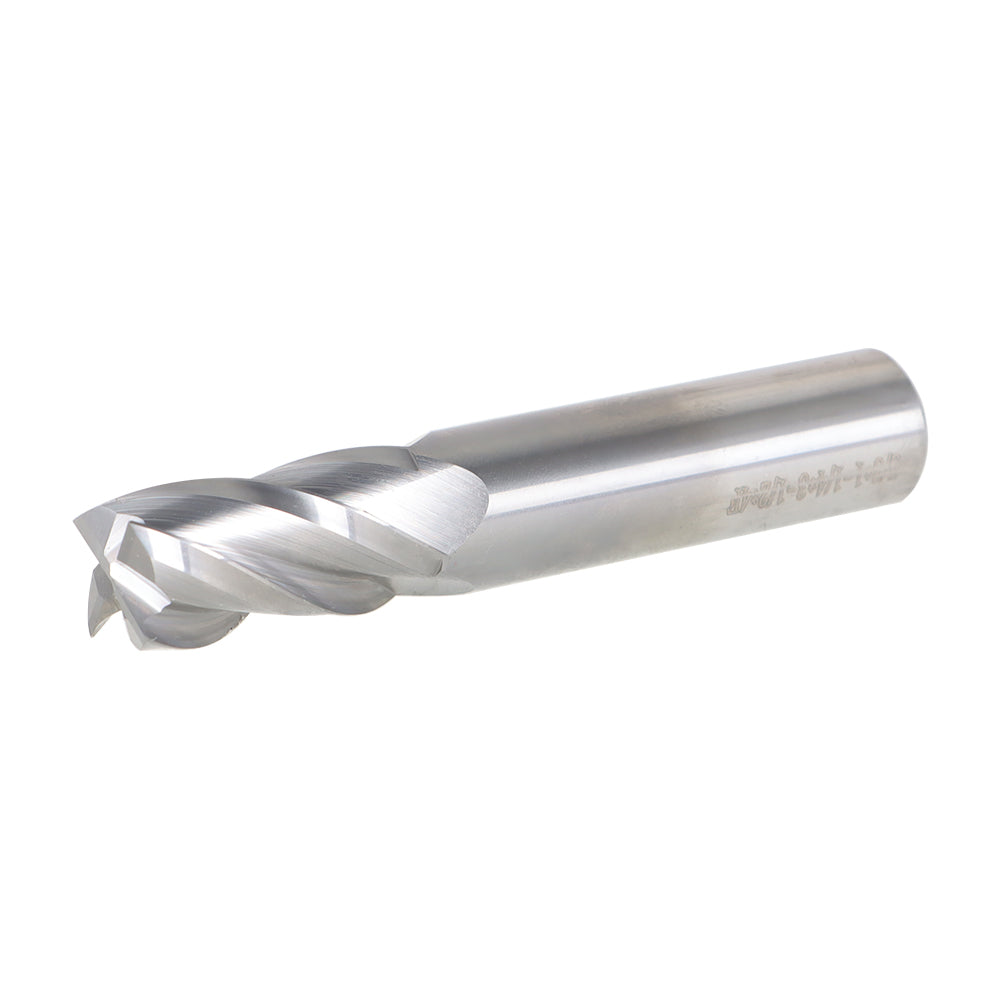

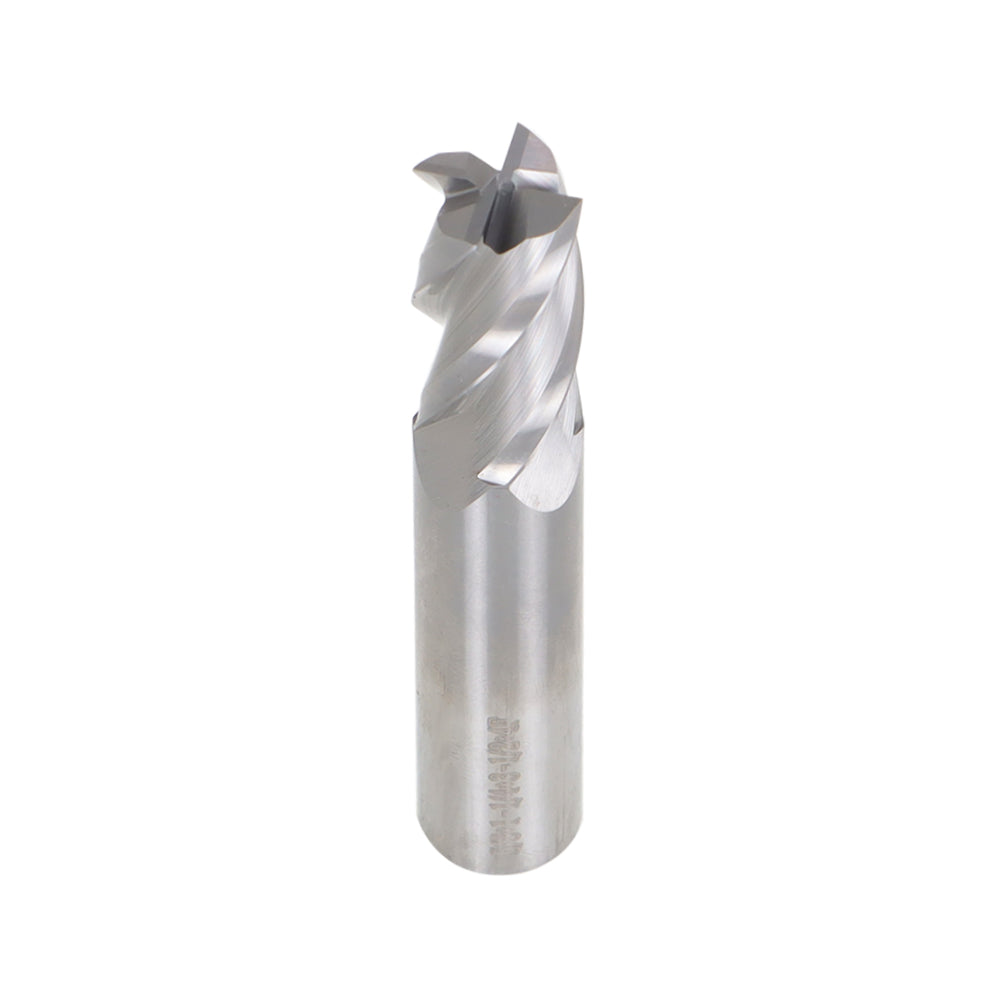

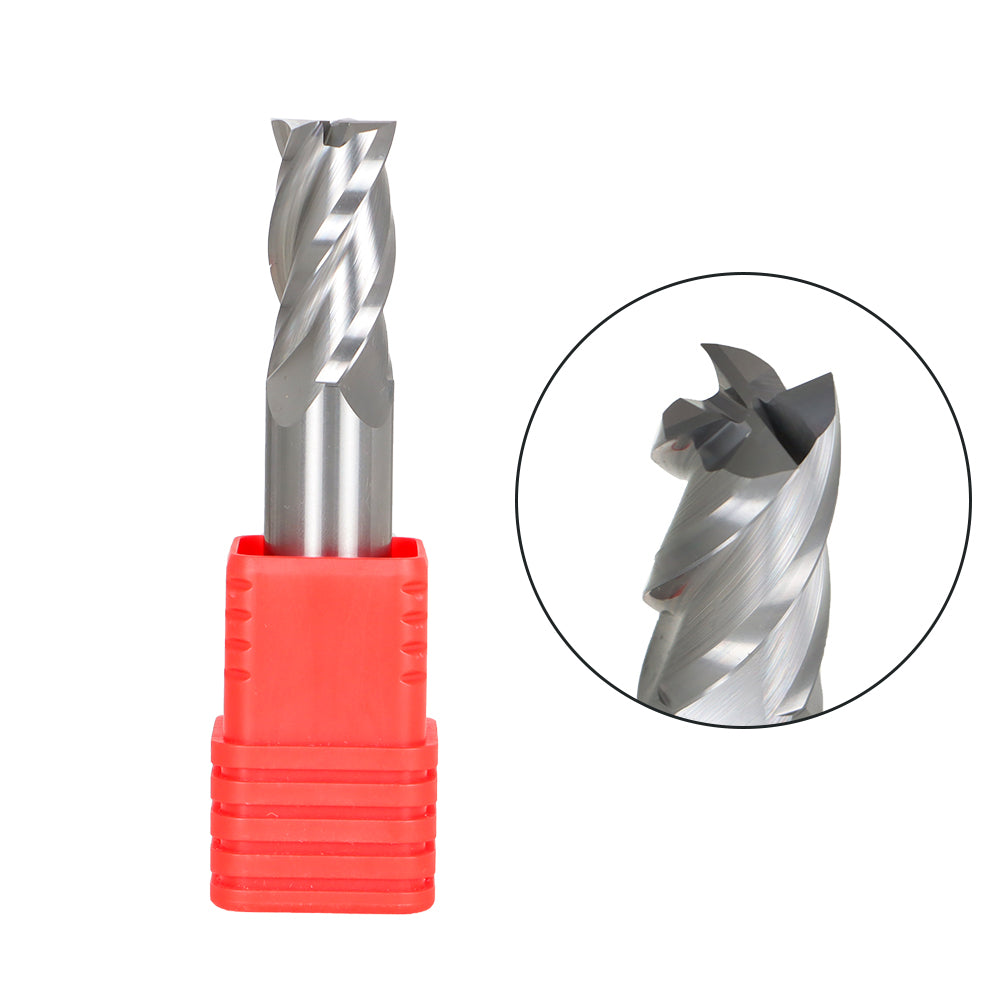

labwork 5/8" 4-Flute Carbide Square End Mill, 30° Helix Upcut CNC Router Bit

Product Description

This solid tungsten-carbide square end mill features four flutes and a 30-degree helix angle for efficient upcut machining and chip evacuation. The universal chamfered shank design supports stable tool holding and improved cutting performance on compatible CNC equipment.

Specifications

• Type: Carbide Square End Mill
• Material: Tungsten Carbide
• Flute Count: 4
• Helix Angle: 30°
• Cutting Direction: Upcut
• Shank Diameter: 5/8 in
• Cutting Diameter: 5/8 in
• Length of Cut: 1-1/4 in
• Overall Length: 3-1/2 in
• Shank Style: Chamfered Round Shank
• Application: CNC Milling and Routing

Features

• Durable solid-carbide construction
• Four-flute design supports efficient material removal
• 30-degree helix angle improves chip evacuation
• Square-end profile produces flat-bottom cuts
• Chamfered shank helps improve shock resistance and tool compatibility
• Suitable for compatible aluminum, non-ferrous metal, alloy steel, or quenched-steel applications
• Designed for CNC routers, milling machines, and machining centers

Package Includes

• 1 × 5/8" 4-Flute Carbide Square End Mill
• W/o Installation Instructions

Important Note

Please verify the recommended workpiece material, shank size, spindle compatibility, cutting speed, and feed rate before use. Follow proper CNC machining safety procedures and wear appropriate protective equipment.
