Labwork 4 ROW RADIATOR SHROUD FAN For Ford F100 F150 F250 F350 TRUCK CHEVY V8

About Labwork：
Labwork Is An Auto Parts One-stop Solution Brand Of More Than 10 Years, Which Specializes In Providing Global Customers With Top-notched Quality Automotive Parts & Accessories . If You Need Any Auto Parts, Its Enough To Come To Labwork.

Features：

Part Number: 433,CC433,CU433,DPI433

Fan Specification:

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 80W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 80 watt motor will keep your engine cool.

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Radiator Size:

Row Count: 4 Rows

Core Size: 19.25" H x 26.375" L

Overall Size: 26.375" H x 29.5" L

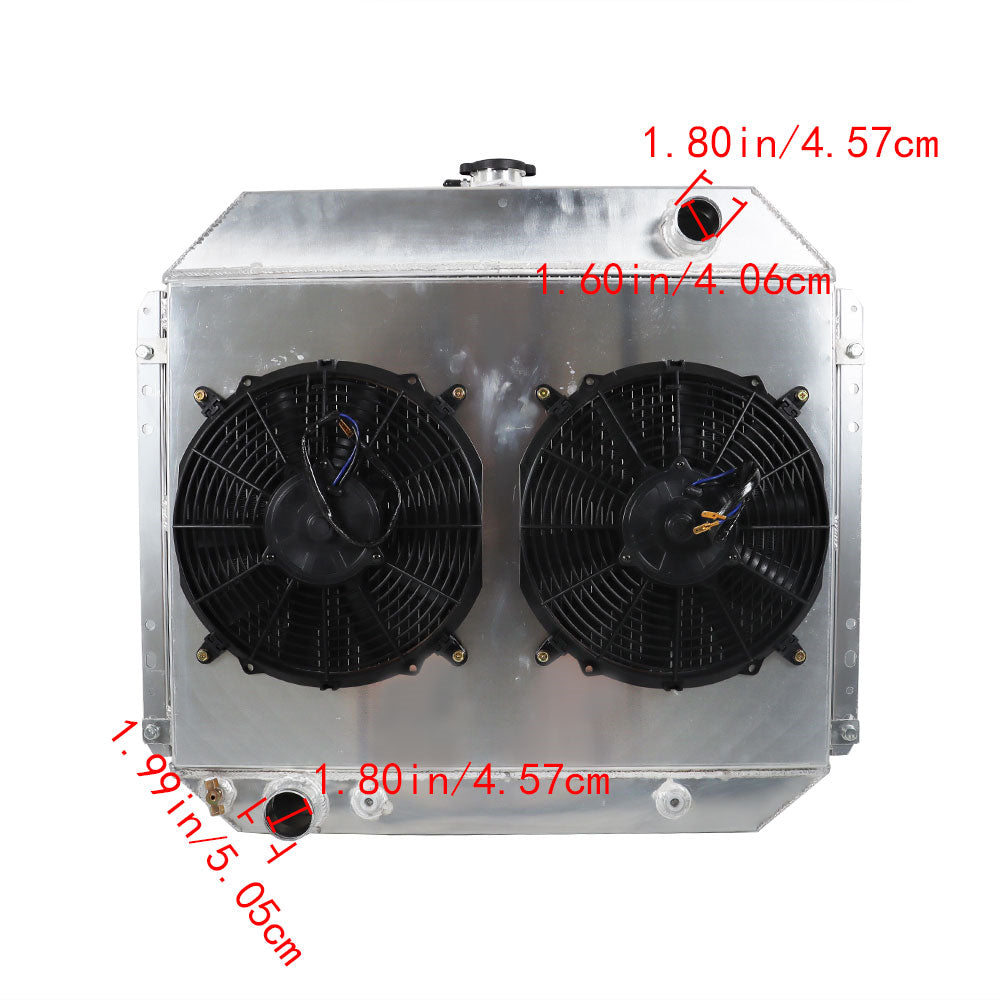

Inlet Diameter: 1.75"
Outlet Diameter: 2"
Trans Cooler Details: ￠26×305×1/4-18NPT（T）

Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8

Features:

1.Made from Aircraft grade aluminum for prolonged lifespanand with raw aluminum finish

2.Brazed core technology to guarantee optimum performance and dependability

3.All Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4.Billet Aluminum CNC machined fill neck rugged and durable

5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment

6.OE style brass petcock drain much better than other plastic one on eBay

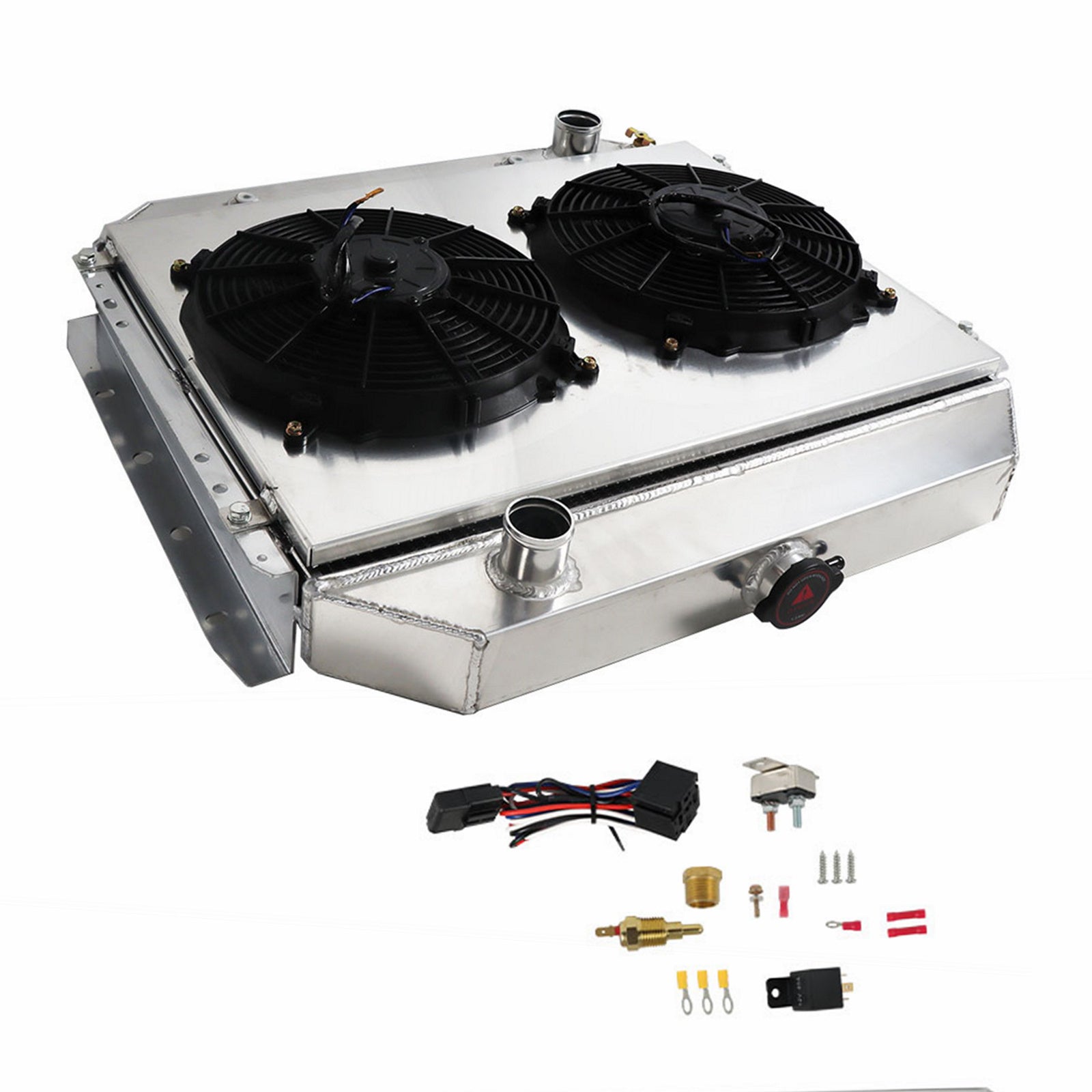

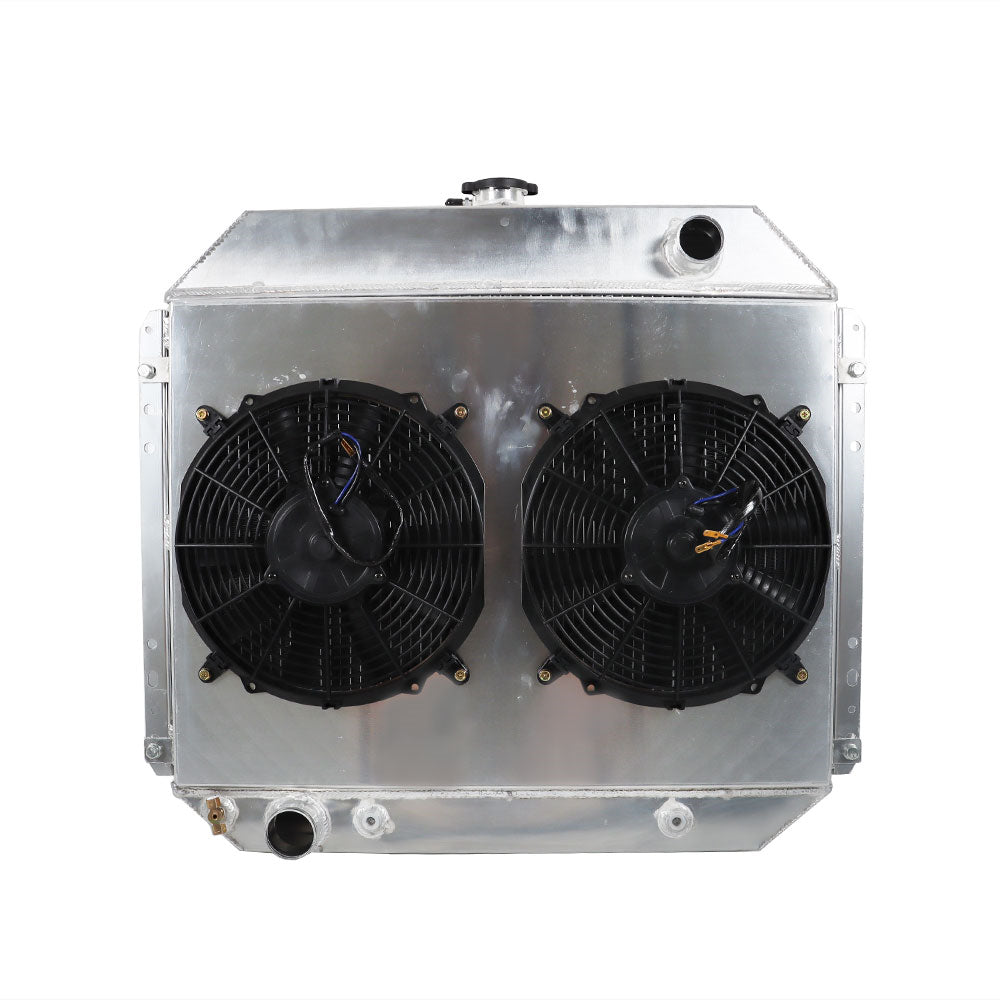

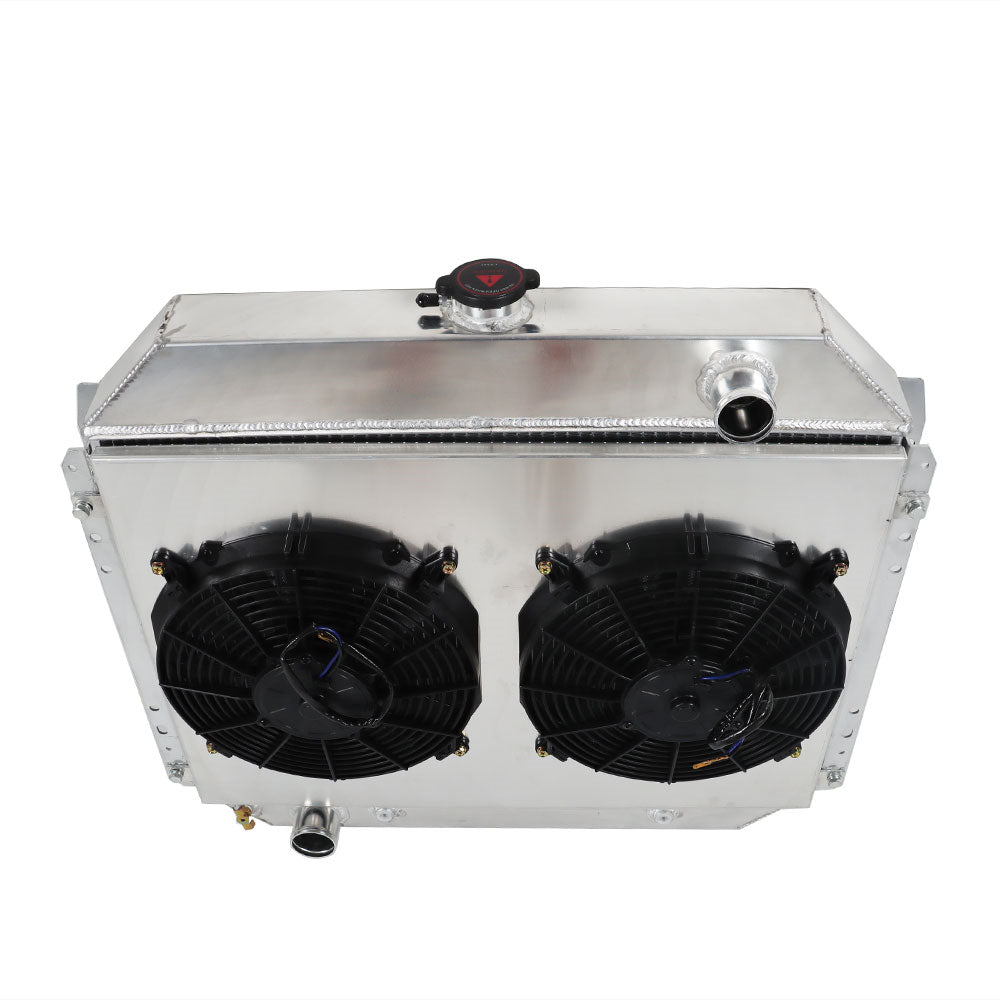

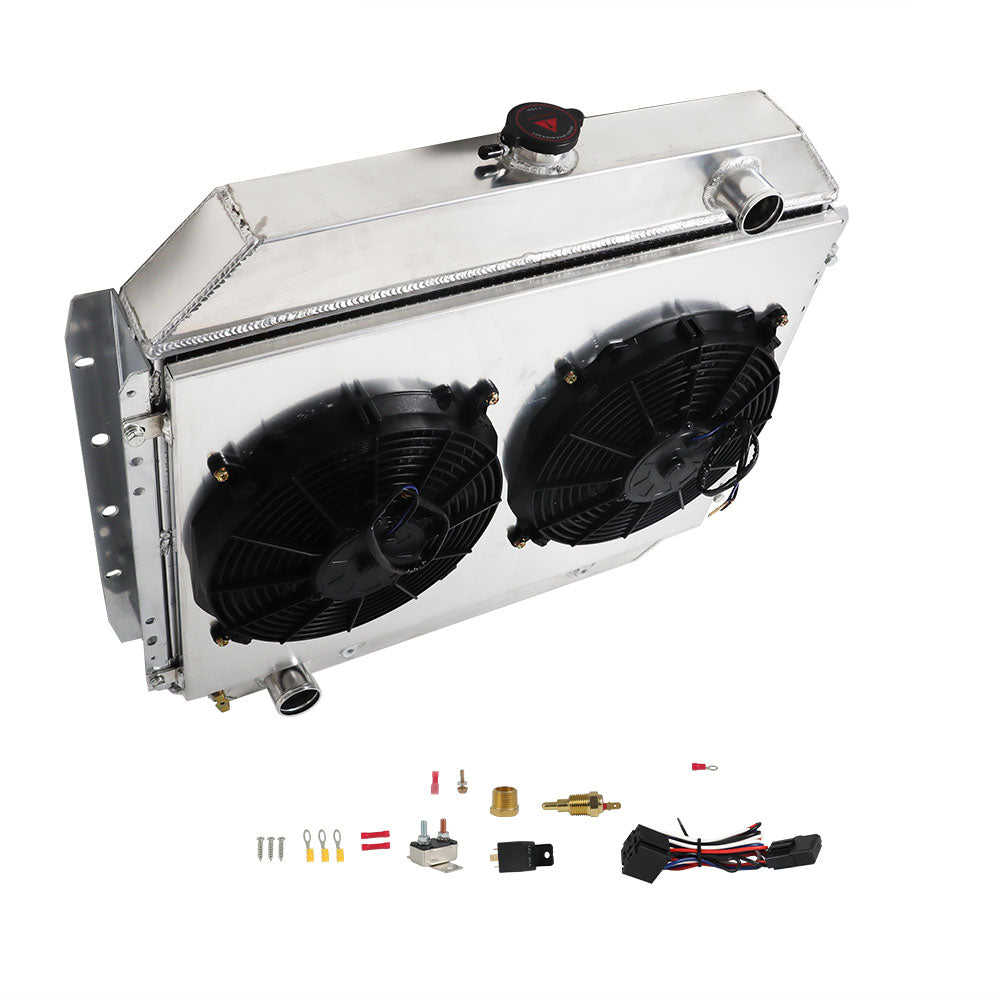

Package Includes：

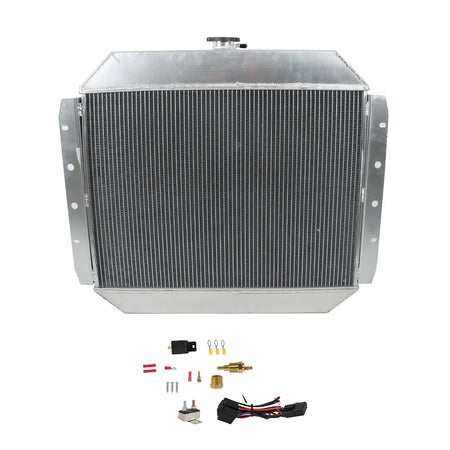

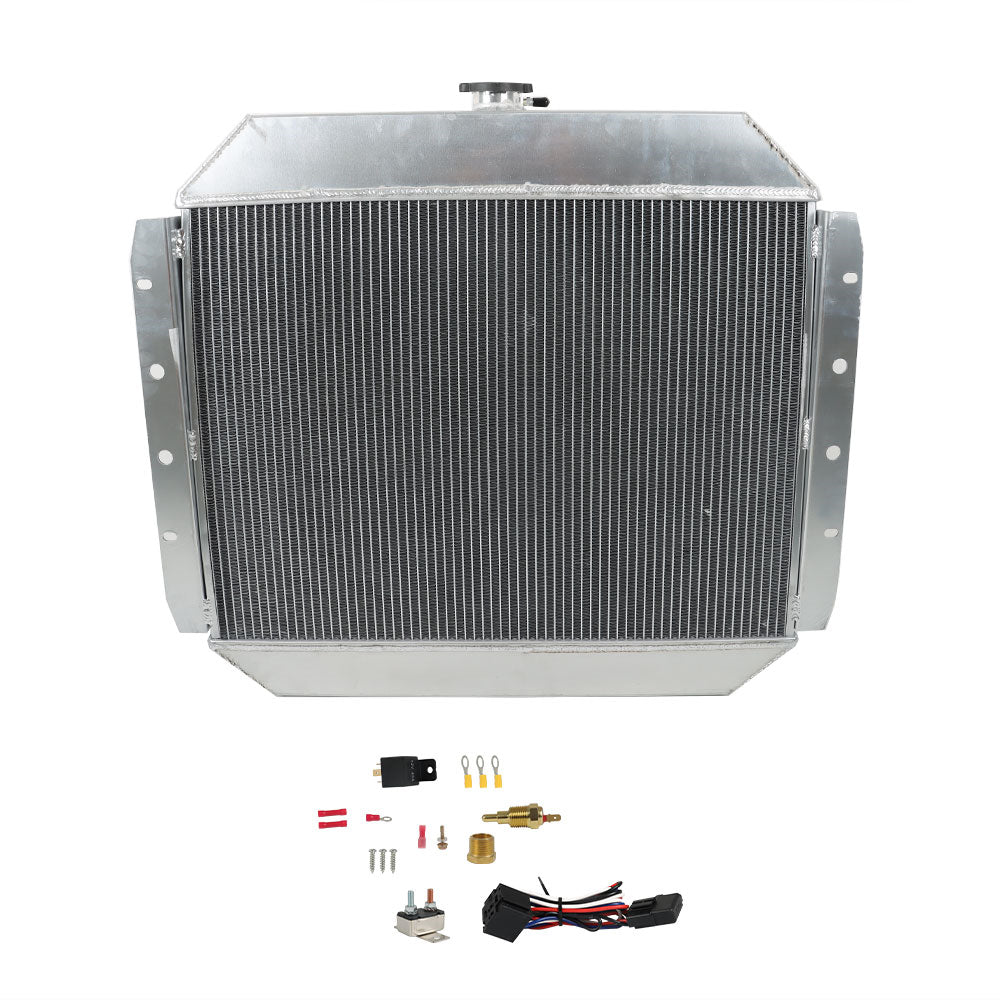

1 X 4-Row Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Fitment：
· For F-Series / Bronco Ford F100 F150 F250 F350 V8 1968-1979
· For 1968-1979 Ford F-Series/Bronco
· For Ford F-100 Pickup,F-250 Pickup
· For Ford F350 Truck 302ci.,351ci.,360c,390 ci,400ci
· For 1983-1994 Ford F-250 F250 V8
· For 1966-1979 FORD F100 F150 F250 F350 Bronco TRUCK
· For 1978 1979 Ford Bronco Custom V8 5.8L 6.6L
· For 1978 Ford Bronco Northland V8 5.8L 6.6L
· For 1978 1979 Ford Bronco Ranger XLT V8 5.8L 6.6L
· For 1970-1974 1976-1978 Ford F-100 Base V8 5.0L
· For 1977 1978 Ford F-100 Base V8 5.8L
· For 1978 Ford F-100 Base V8 6.6L
· For 1970-1974 1976 Ford F-100 Base V8 5.9L 6.4L
· For 1975-1979 Ford F-100 Custom V8 5.0L
· For 1977-1979 Ford F-100 Custom V8 5.8L
· For 1978-1979 Ford F-100 Custom V8 6.6L
· For 1975-1976 Ford F-100 Custom V8 5.9L 6.4L
· For 1975-1978 Ford F-100 Northland V8 5.0L
· For 1977 1978 Ford F-100 Northland V8 5.8L
· For 1978 Ford F-100 Northland V8 6.6L
· For 1975 1976 Ford F-100 Northland V8 5.9L 6.4L
· For 1975-1979 Ford F-100 Ranger V8 5.0L
· For 1977-1979 Ford F-100 Ranger V8 5.8L
· For 1978 1979 Ford F-100 Ranger V8 6.6L
· For 1975 1976 Ford F-100 Ranger V8 5.9L 6.4L
· For  1978 1979 Ford F-100 Ranger Lariat V8 5.0L 5.8L 6.6L
· For 1975-1979 Ford F-100 Ranger XLT V8 5.0L
· For 1977-1979 Ford F-100 Ranger XLT V8 5.8L
· For 1978 1979 Ford F-100 Ranger XLT V8 6.6L
· For 1975 1976 Ford F-100 Ranger XLT V8 5.9L 6.4L
· For 1977 Ford F-100 XLT V8 5.0L 5.8L
· For 1976-1978 Ford F-150 Base V8 5.0L
· For 1977 1978 Ford F-150 Base V8 5.8L
· For 1978 Ford F-150 Base V8 6.6L
· For 1976 Ford F-150 Base V8 5.9L 6.4L
· For 1975-1979 Ford F-150 Custom V8 5.0L
· For 1977-1979 Ford F-150 Custom V8 5.8L
· For 1978 1979 Ford F-150 Custom V8 6.6L
· For 1975 1976 Ford F-150 Custom V8 5.9L 6.4L
· For 1975-1978 Ford F-150 Northland V8 5.0L
· For 1977 1978 Ford F-150 Northland V8 5.8L
· For 1978 Ford F-150 Northland V8 6.6L
·For 1975 1976 Ford F-150 Northland V8 5.9L 6.4L
·For 1975-1979 Ford F-150 Ranger V8 5.0L
·For 1977-1979 Ford F-150 Ranger V8 5.8L
·For 1978 1979 Ford F-150 Ranger V8 6.6L
·For 1975 1976 Ford F-150 Ranger V8 5.9L 6.4L
·For 1978 1979 Ford F-150 Ranger Lariat V8 5.0L 5.8L 6.6L
·For 1975-1979 Ford F-150 Ranger XLT V8 5.0L
·For 1977-1979 Ford F-150 Ranger XLT V8 5.8L
·For 1978-1979 Ford F-150 Ranger XLT V8 6.6L
·For 1975 1976 Ford F-150 Ranger XLT V8 5.9L 6.4L
·For 1977 Ford F-150 XLT V8 5.0L 5.8L
·For 1972-1974 1977 1978 Ford F-250 Base V8 5.0L
·For 1977-1978 Ford F-250 Base V8 5.8L
·For 1978 Ford F-250 Base V8 6.6L
·For 1970-1974 1976 Ford F-250 Base V8 5.9L 6.4L
·For 1977-1979 Ford F-250 Custom V8 5.8L
·For 1978 1979 Ford F-250 Custom V8 6.6L
·For 1977 1978 Ford F-250 Custom V8 5.0L
· 1975 1976 Ford F-250 Custom V8 5.9L 6.4L
· 1977-1978 Ford F-250 Northland V8 5.0L 5.8L
· 1978 Ford F-250 Northland V8 6.6L
· 1975 1976 Ford F-250 Northland V8 5.9L 6.4L
· 1977-1979 Ford F-250 Ranger V8 5.8L
· 1978 1979 Ford F-250 Ranger V8 6.6L
· 1977 1978 Ford F-250 Ranger V8 5.0L
· 1975 1976 Ford F-250 Ranger V8 5.9L 6.4L
· 1978 1979 Ford F-250 Ranger Lariat V8 5.8L 6.6L
· 1978 Ford F-250 Ranger Lariat V8 5.0L
· 1977-1979 Ford F-250 Ranger XLT V8 5.8L
· 1978 1979 Ford F-250 Ranger XLT V8 6.6L
· 1977 1978 Ford F-250 Ranger XLT V8 5.0L
· 1975 1976 Ford F-250 Ranger XLT V8 5.9L 6.4L
· 1977 Ford F-250 XLT V8 5.0L 5.8L
· 1972-1979 Ford F-350 Base V8 5.0L
· 1977 1978 Ford F-350 Base V8 5.8L 6.6L
· 1970-1974 1976 Ford F-350 Base V8 5.9L 6.4L
· 1977-1979 Ford F-350 Custom V8 5.8L
· 1978 1979 Ford F-350 Custom V8 6.6L
· 1975-1978 Ford F-350 Custom V8 5.0L
· 1975 1976 Ford F-350 Custom V8 5.9L 6.4L
· 1978 Ford F-350 Northland V8 5.0L
· 1977 1978 Ford F-350 Northland V8 5.8L
· 1978 Ford F-350 Northland V8 6.6L
· 1975-1977 Ford F-350 Northland V8 5.0L
· 1975 1976 Ford F-350 Northland V8 5.9L 6.4L
· 1977-1979 Ford F-350 Ranger V8 5.8L
· 1978 1979 Ford F-350 Ranger V8 6.6L
· 1975-1978 Ford F-350 Ranger V8 5.0L
· 1975-1976 Ford F-350 Ranger V8 5.9L 6.4L
· 1978 1979 Ford F-350 Ranger Lariat V8 5.8L 6.6L
· 1978 Ford F-350 Ranger Lariat V8 5.0L
· 1977-1979 Ford F-350 Ranger XLT V8 5.8L
· 1978 1979 Ford F-350 Ranger XLT V8 6.6L
· 1975-1978 Ford F-350 Ranger XLT V8 5.0L
· 1975-1976 Ford F-350 Ranger XLT V8 5.9L 6.4L
· 1977 Ford F-350 XLT V8 5.0L 5.8L

· 1976 Ford F-500 Custom V8 5.4L 5.9L 6.4L
