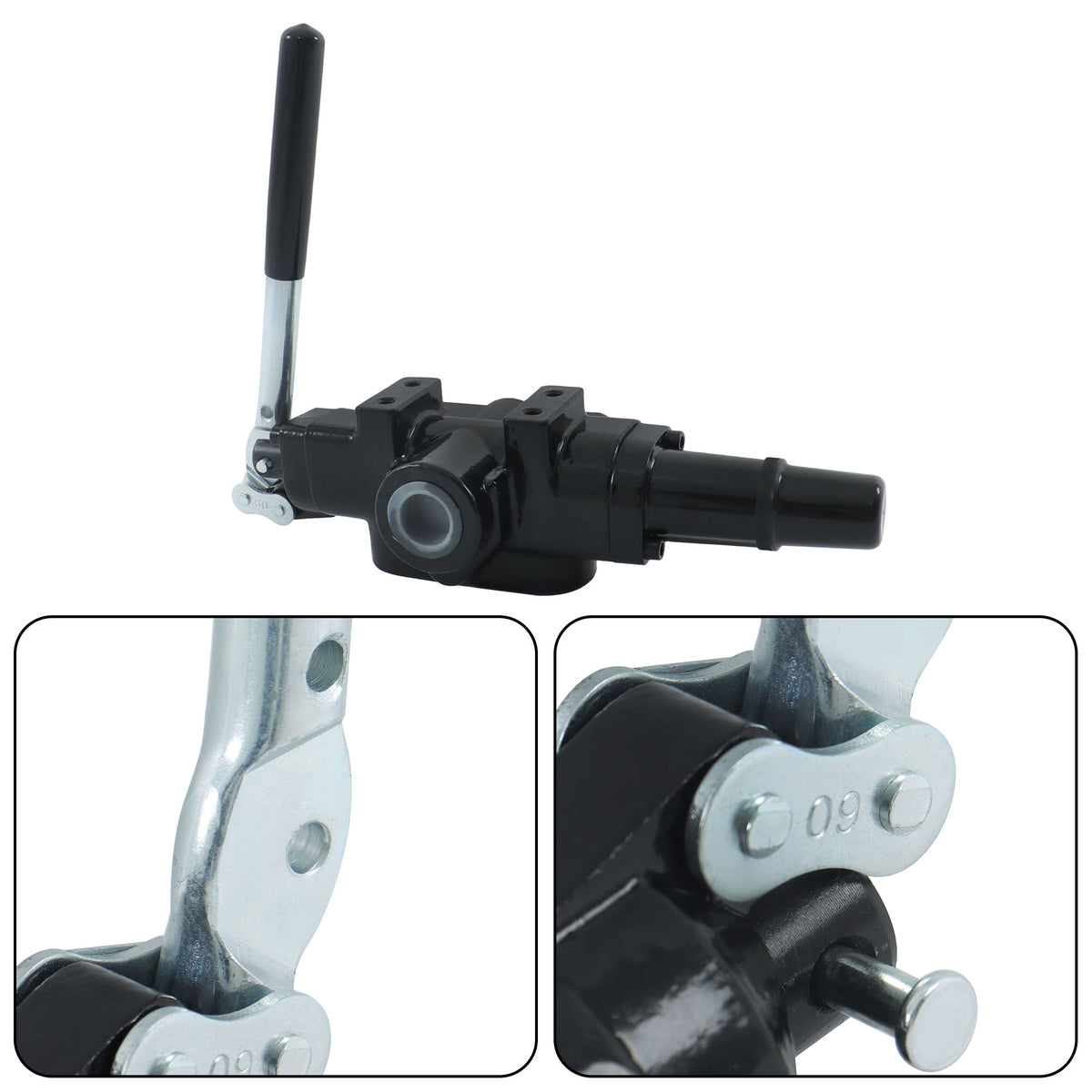

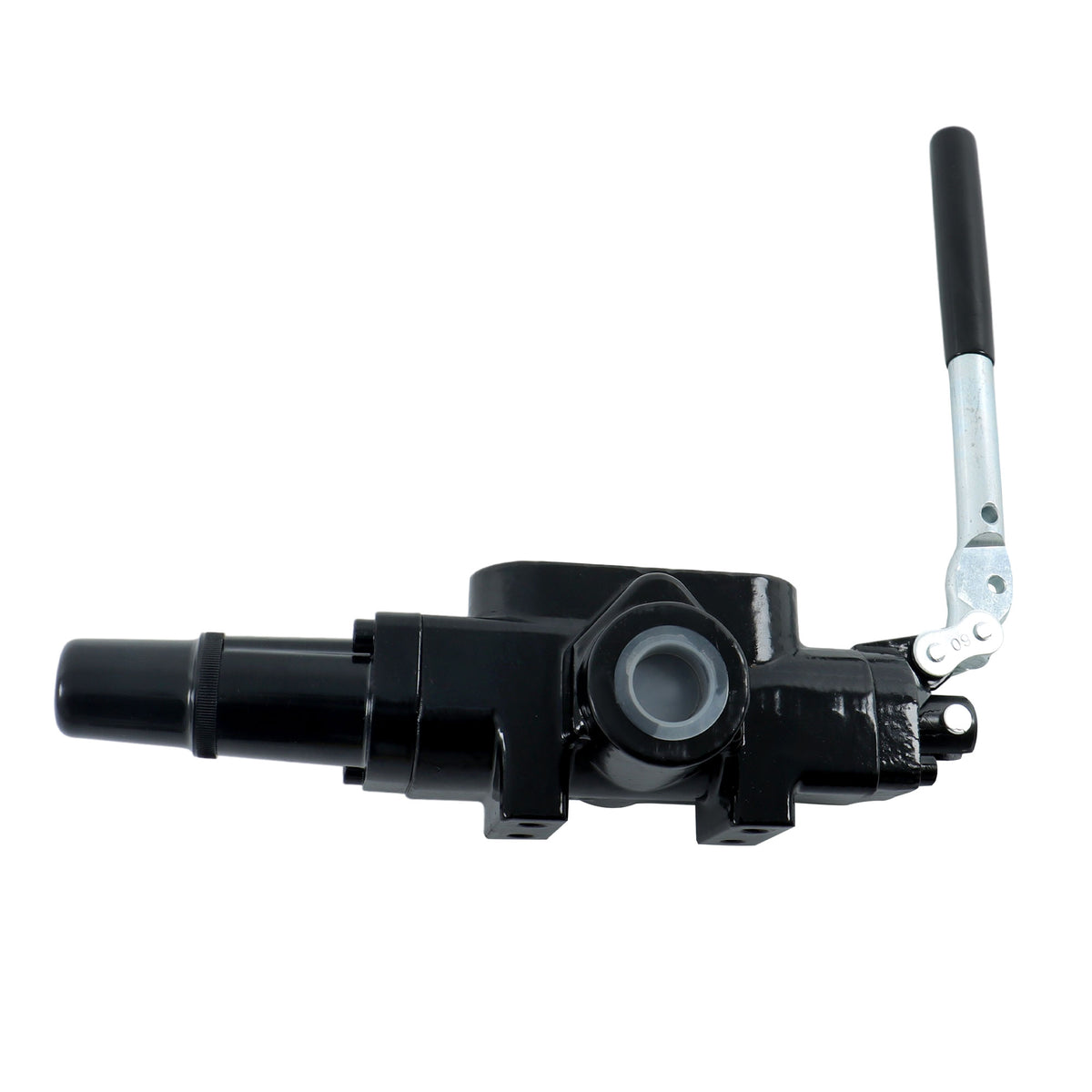

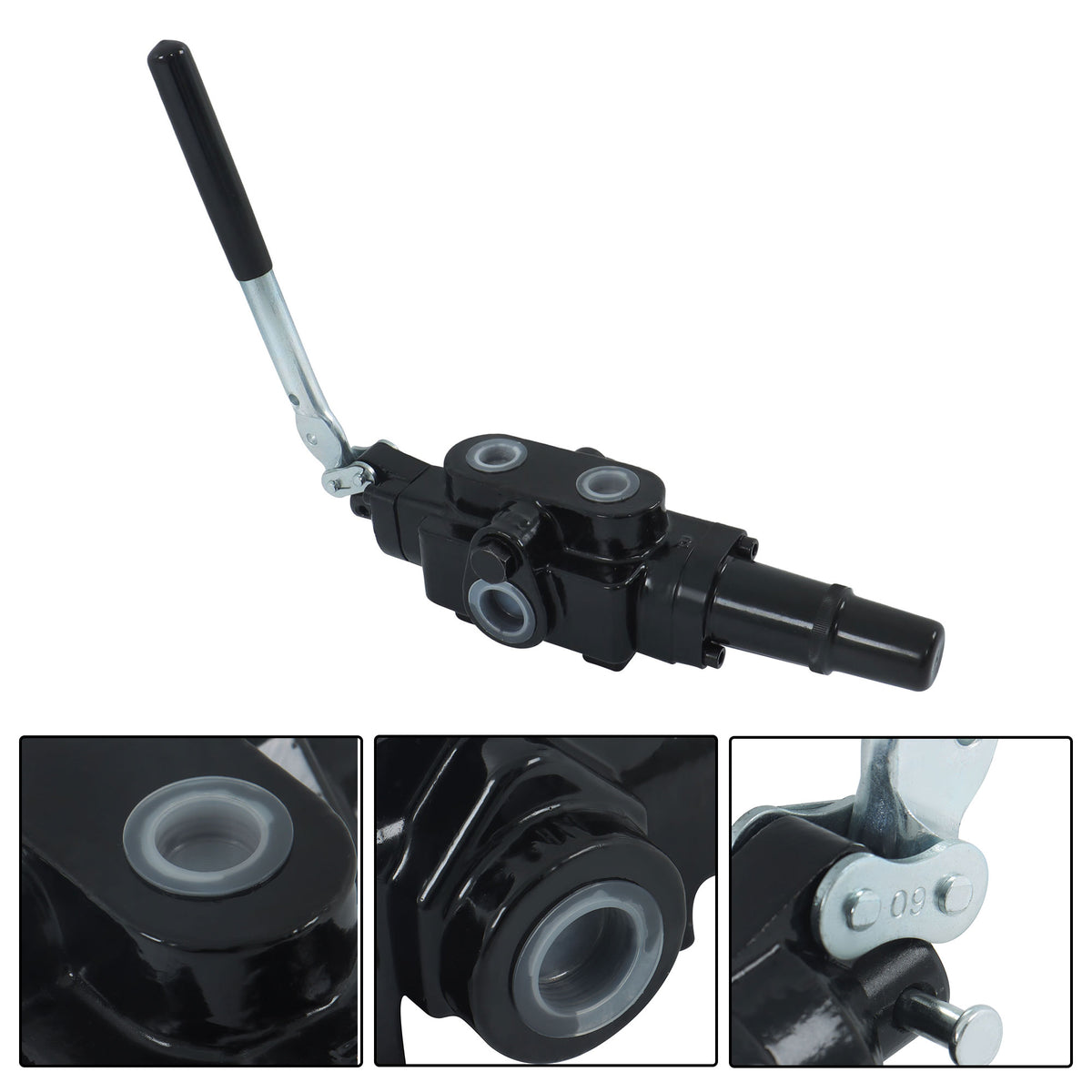

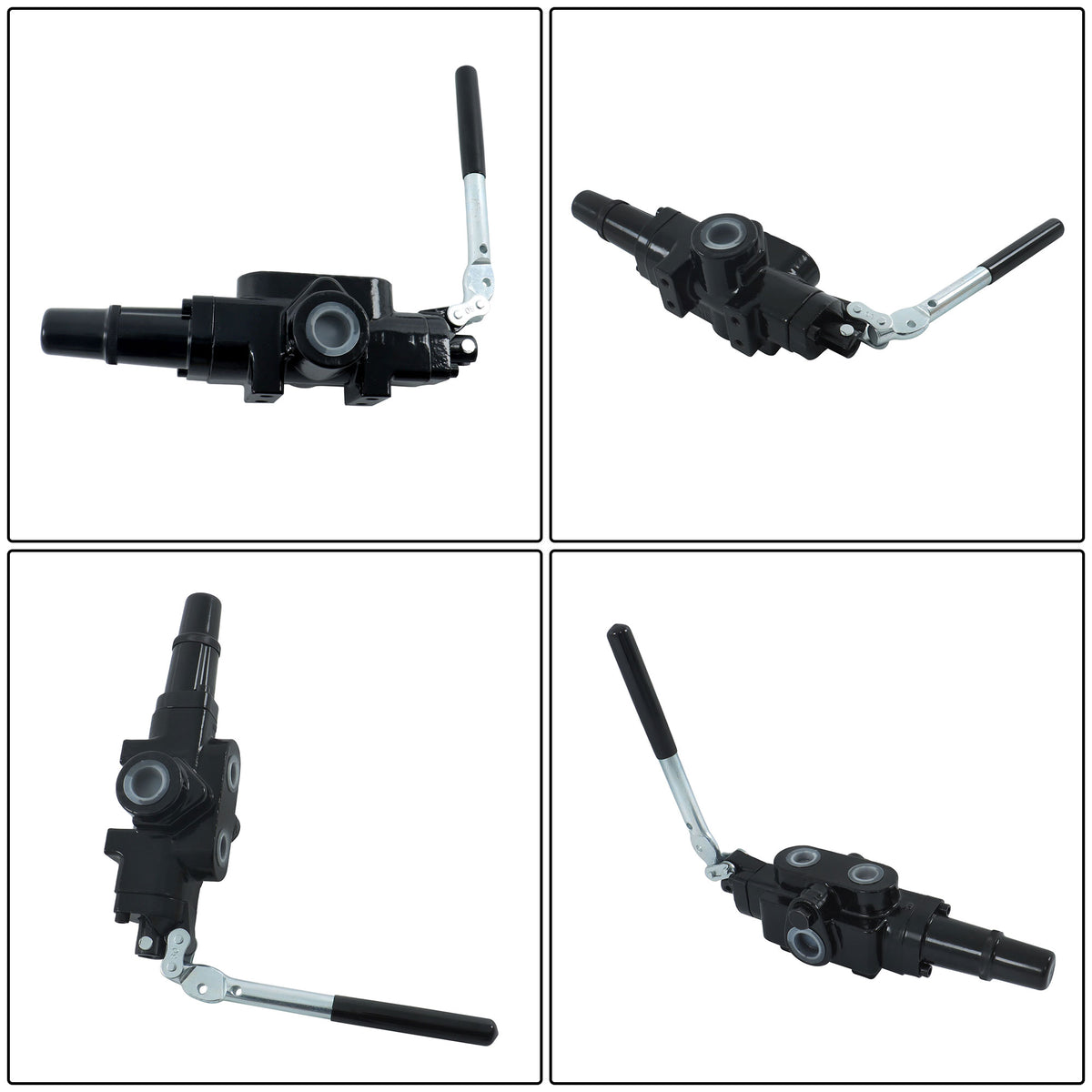

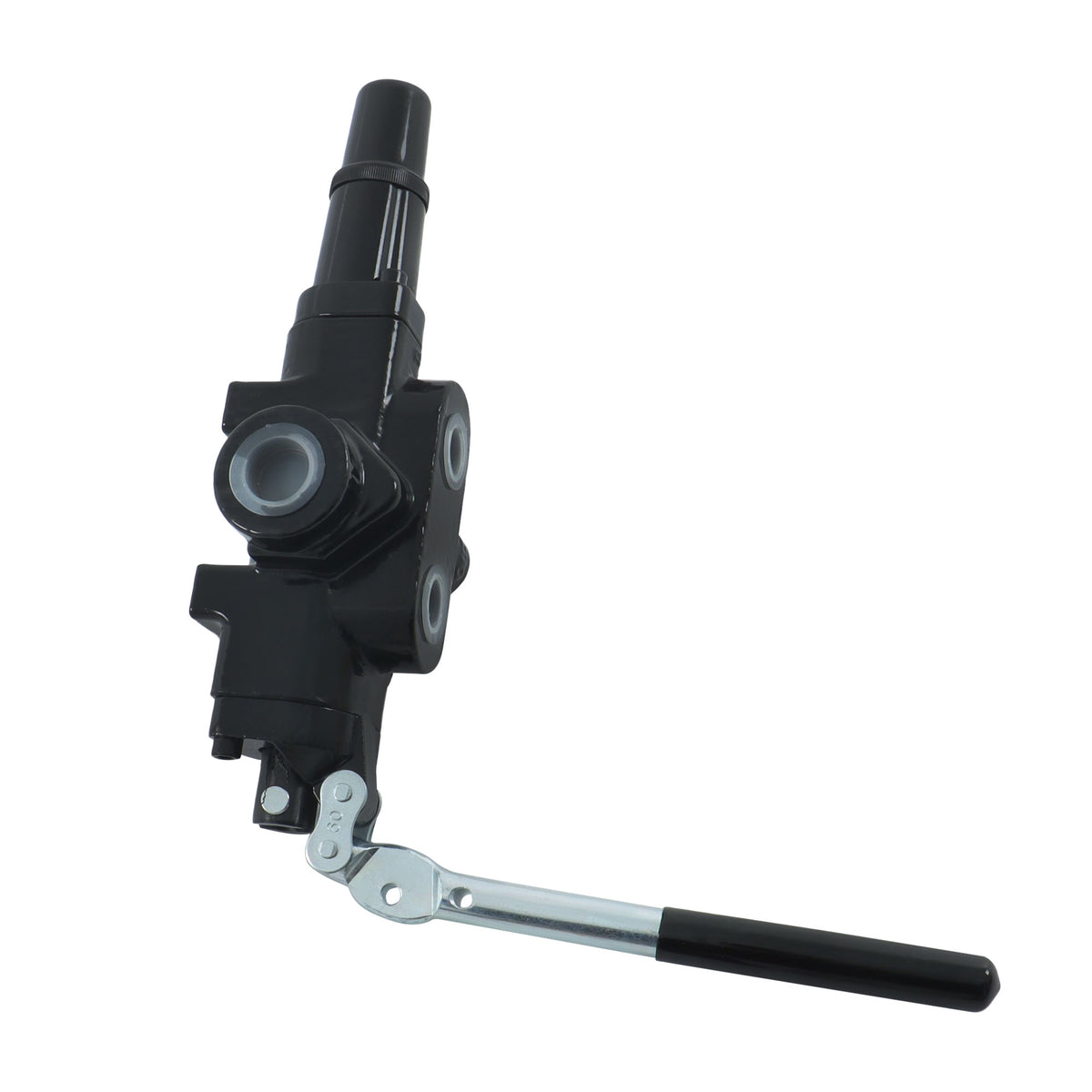

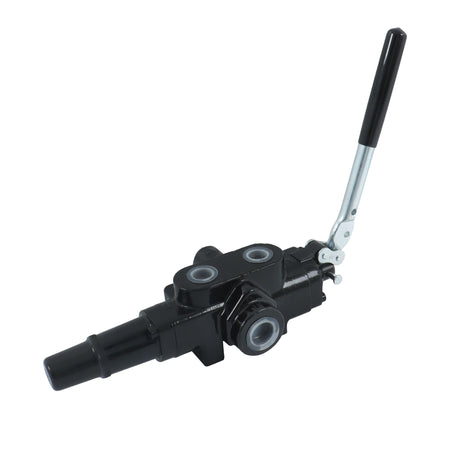

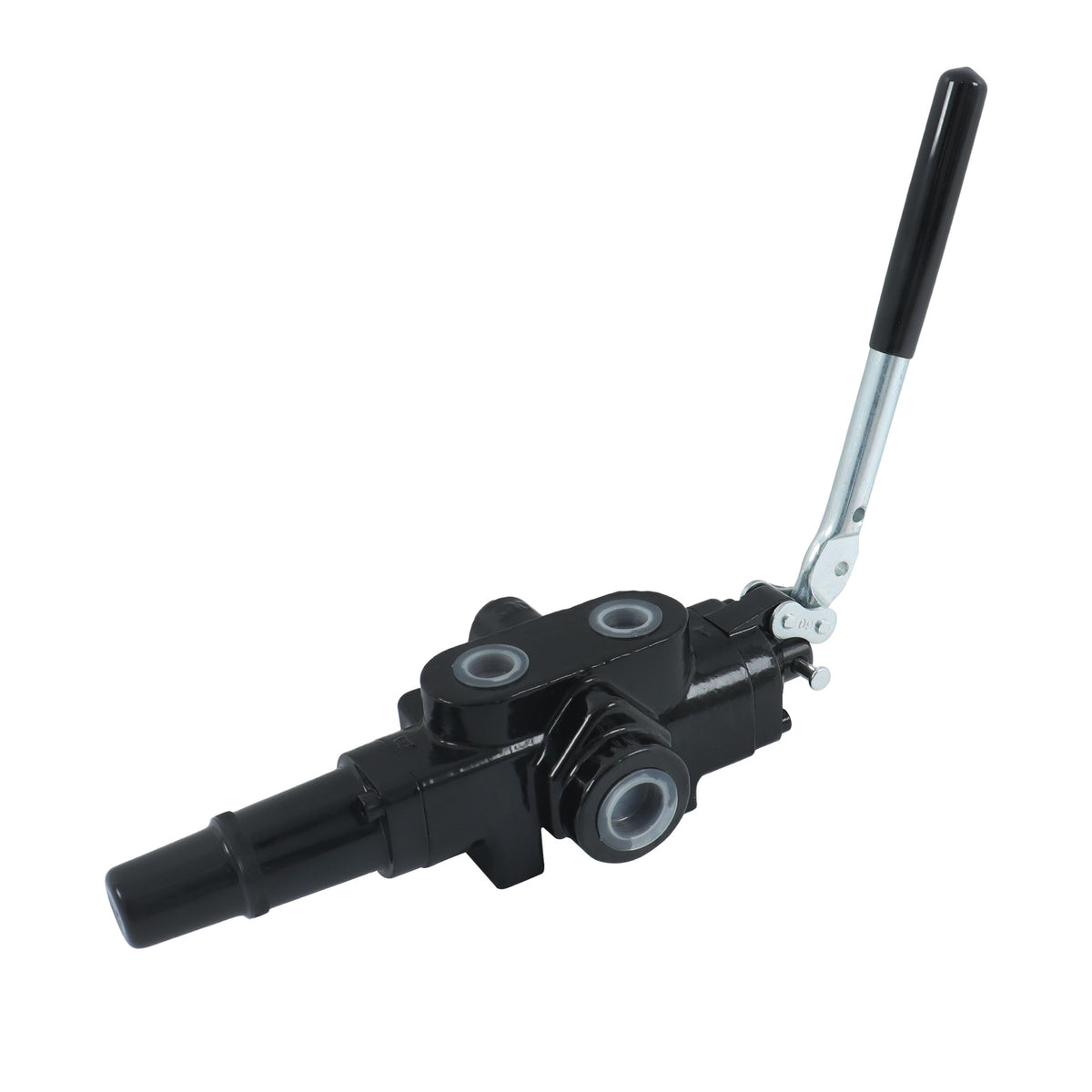

labwork 30 GPM 3625 PSI Log Splitter Hydraulic Kick-Off Control Valve, 3/4" NPT

Product Description

This hydraulic directional control valve is designed for log splitters and compatible hydraulic systems. It features a spring-center spool with hydraulic kick-off, a built-in relief valve, and high-strength gray cast iron construction for reliable operation.

Specifications

• Type: Hydraulic Directional Control Valve
• Application: Log Splitter and Hydraulic Equipment
• Maximum Flow: 30 GPM
• Maximum Operating Pressure: 3,625 PSI
• Recommended Tank Pressure: 500 PSI Maximum
• Maximum Operating Temperature: 180°F
• Spool Action: Spring Center / Hydraulic Kick-Off
• Relief Valve: Built-In, Preset at 2,250 PSI
• Kick-Off Pressure: Non-Adjustable, Preset at 800 PSI
• Side Inlet/Outlet Ports: 3/4" NPT
• Top Cylinder Ports: 1/2" NPT
• Construction: High-Tensile Gray Cast Iron
• Spool: Hard Chrome Plated
• Handle Position: Up or Down
• Fitment Type: Direct Replacement

Features

• Designed for 30 GPM hydraulic systems
• Spring-center spool with hydraulic kick-off action
• Built-in adjustable relief valve design
• Hard chrome-plated spool supports durability
• High-strength gray cast iron body
• Side inlet and outlet ports use 3/4" NPT threads
• Top cylinder ports use 1/2" NPT threads
• Handle can be installed in the up or down position

Package Includes

• 1 × Hydraulic Control Valve

Important Note

Please verify the hydraulic flow, pressure rating, port sizes, cylinder connection, kick-off requirements, and system temperature before ordering. Professional hydraulic installation is recommended.
