labwork 3 Row Radiator & Shroud Fan & Relay Replacement for 1973-1991 Chevy C/K10 20 30
About Labwork：
Labwork is an Auto Parts One-Stop Solution brand of more than 10 years, which specializes in providing global customers with top-notched quality automotive parts & accessories . If you need any auto parts, its enough to come to Labwork.
Features?:
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
100% Brand new and never been used.
Stringently tested to guarantee optimum performance and dependability
Straightforward installation guaranteed
Professional Installation is Highly Recommended
No Instruction Included

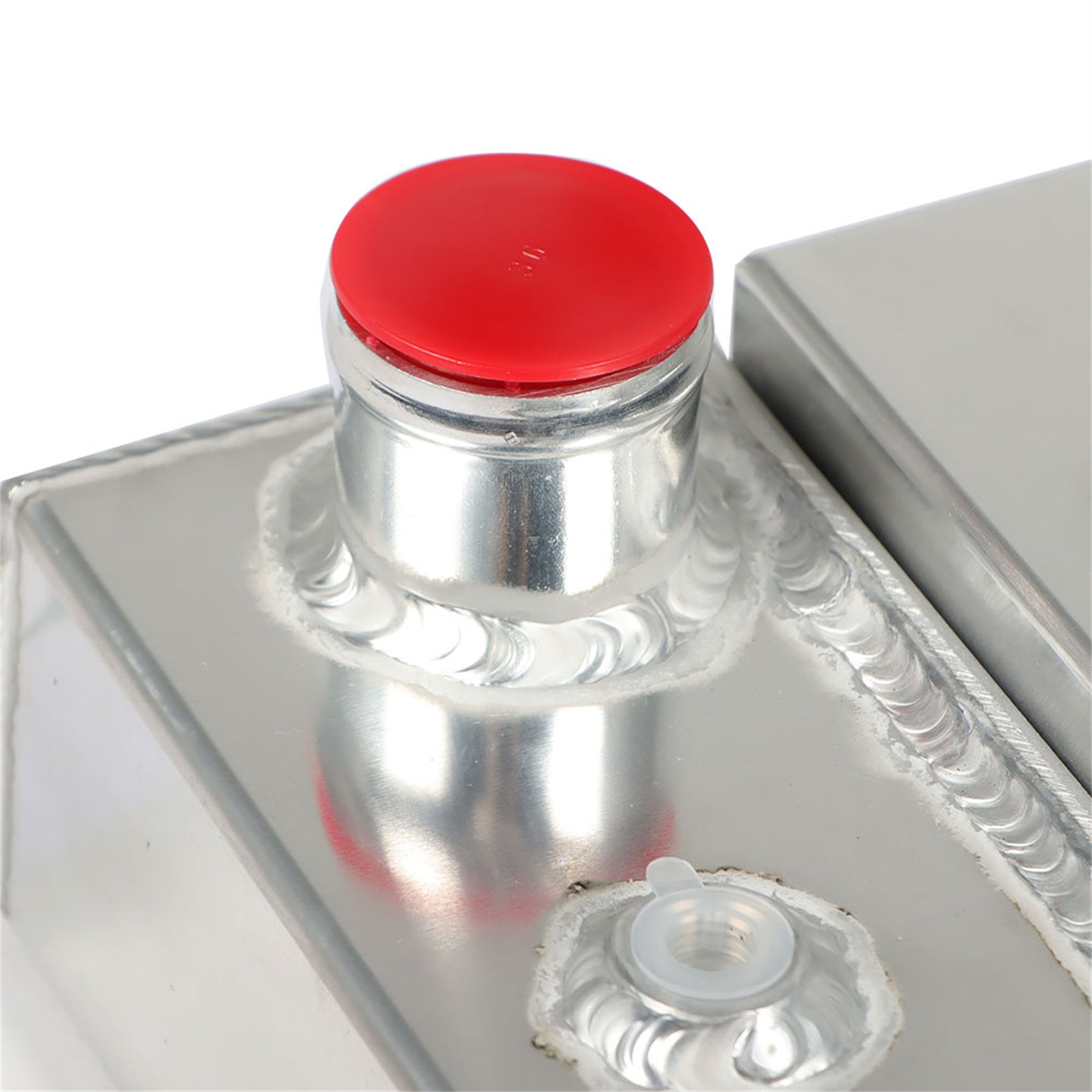

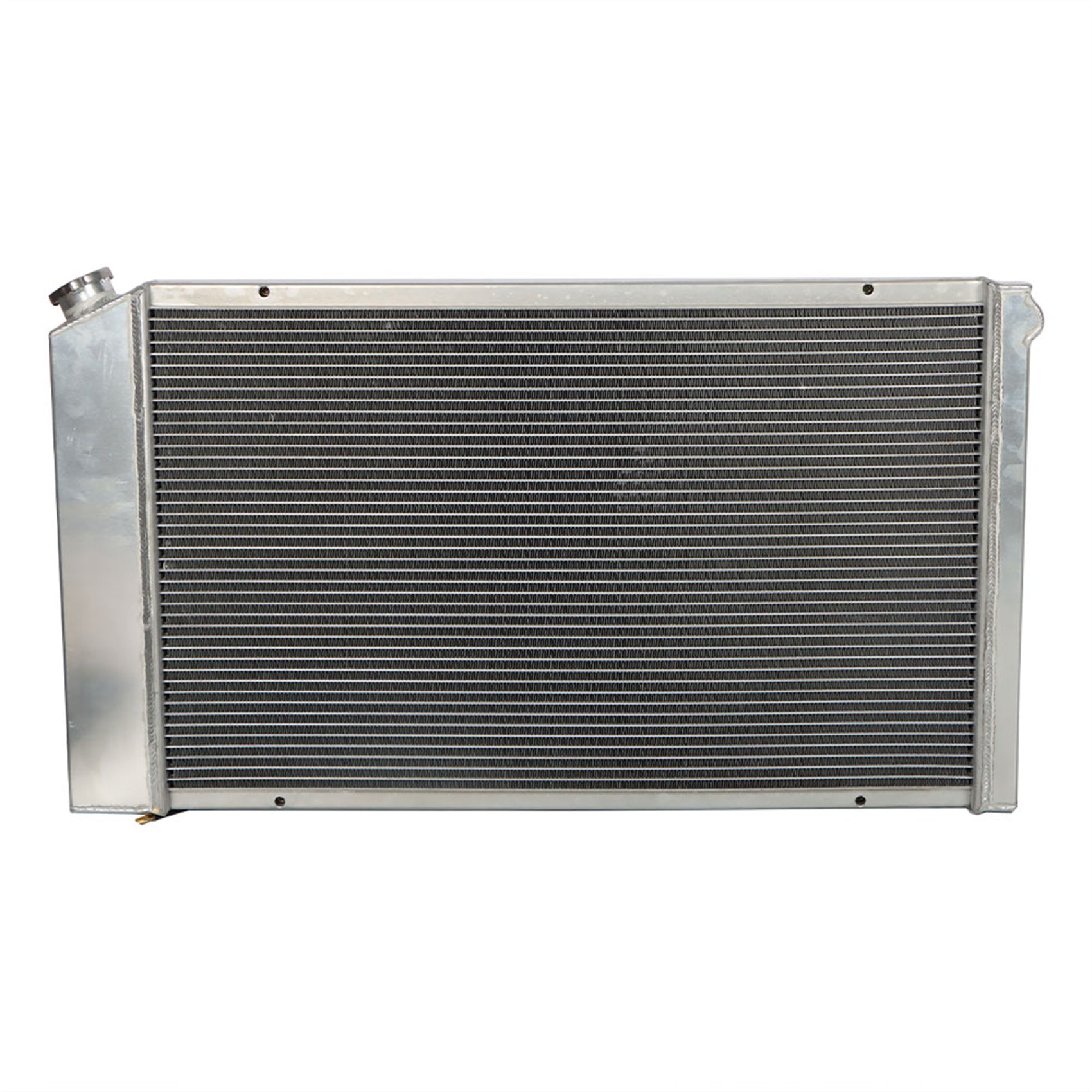

Radiator:
All Aluminum Tank and Core
3 Rows Cores
Core Size: 717 x 428 x 44mm (28.23" x 16.85" x 1.73")
Overall Size: 858 x 525 x 116mm (33.78" x 20.67" x 4.57")
Upper inlets: 1.50"
Lower outlets: 1.57"

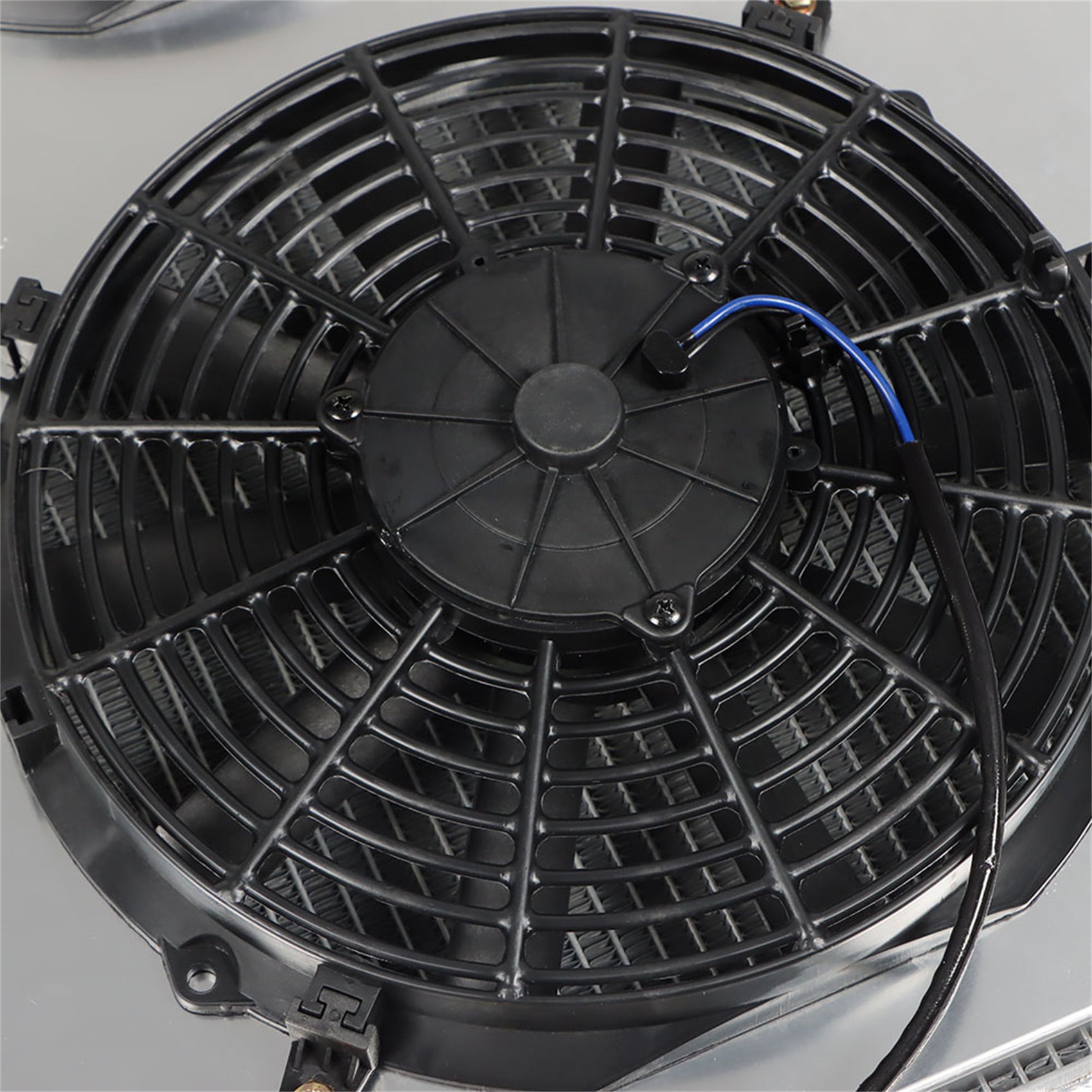

Shroud And Fans:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

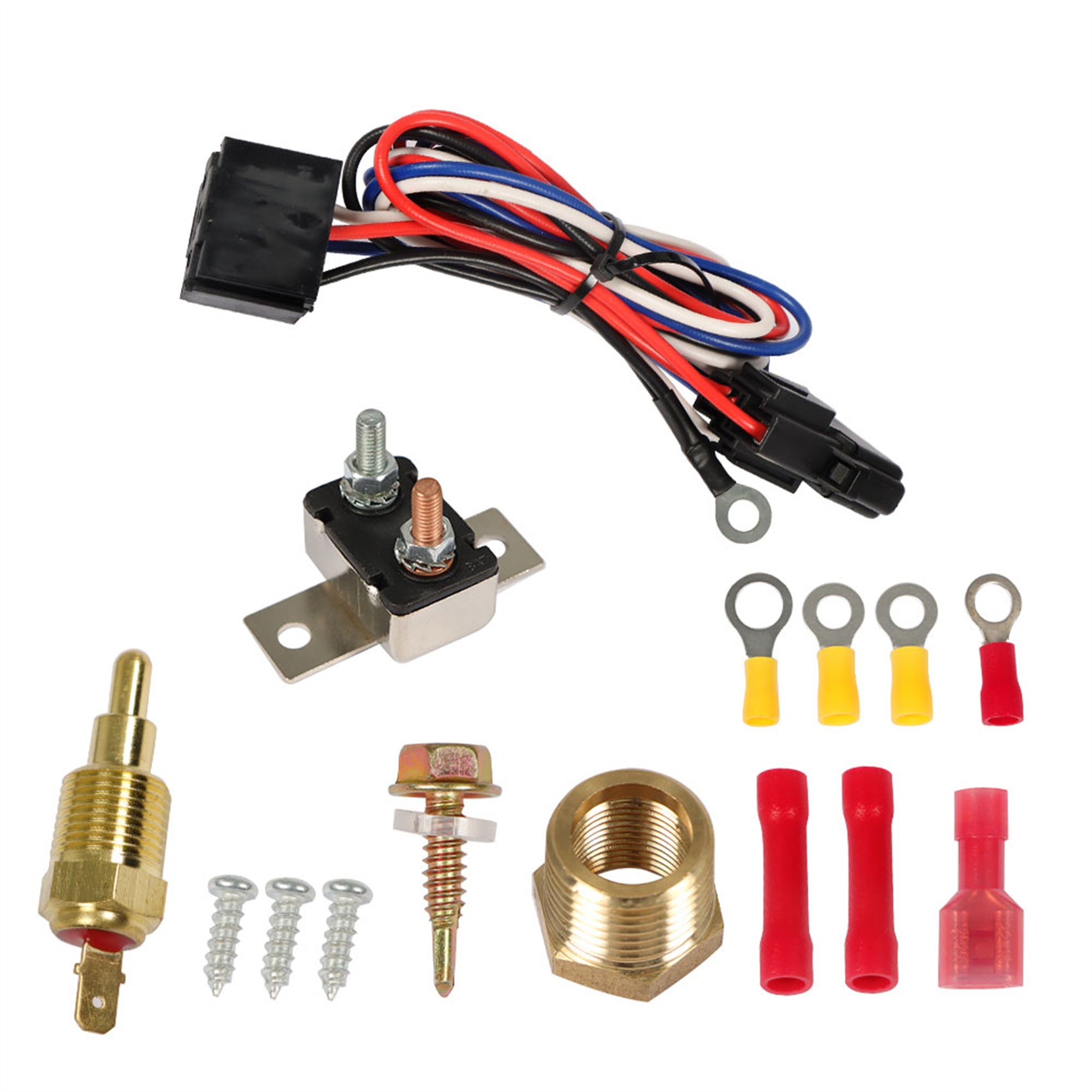

Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
Fitment:
For Chevrolet Blazer/Jimmy 1973-1978 (400ci V8, 454ci V8)
For Chevrolet Blazer/Jimmy 1979 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
For Chevrolet Blazer/Jimmy 1980 (305ci V8, 350ci V8, 454ci V8)
For Chevrolet Blazer/Jimmy 1981-1991 (250ci V8, 305ci V8, 350ci V8)
For Chevrolet C/K Series 1973-1980 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
For Chevrolet C/K Series 1981-1987 (305ci V8, 350ci V8, 454ci V8)
For Chevrolet Suburban 1973-1975 (454ci V8)
For Chevrolet Suburban 1976-1979 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
For Chevrolet Suburban (305ci V8, 350ci V8, 454ci V8)
For Chevrolet Suburban 1988-1991 (350ci V8)
For For the year and models, please check the compatibility.

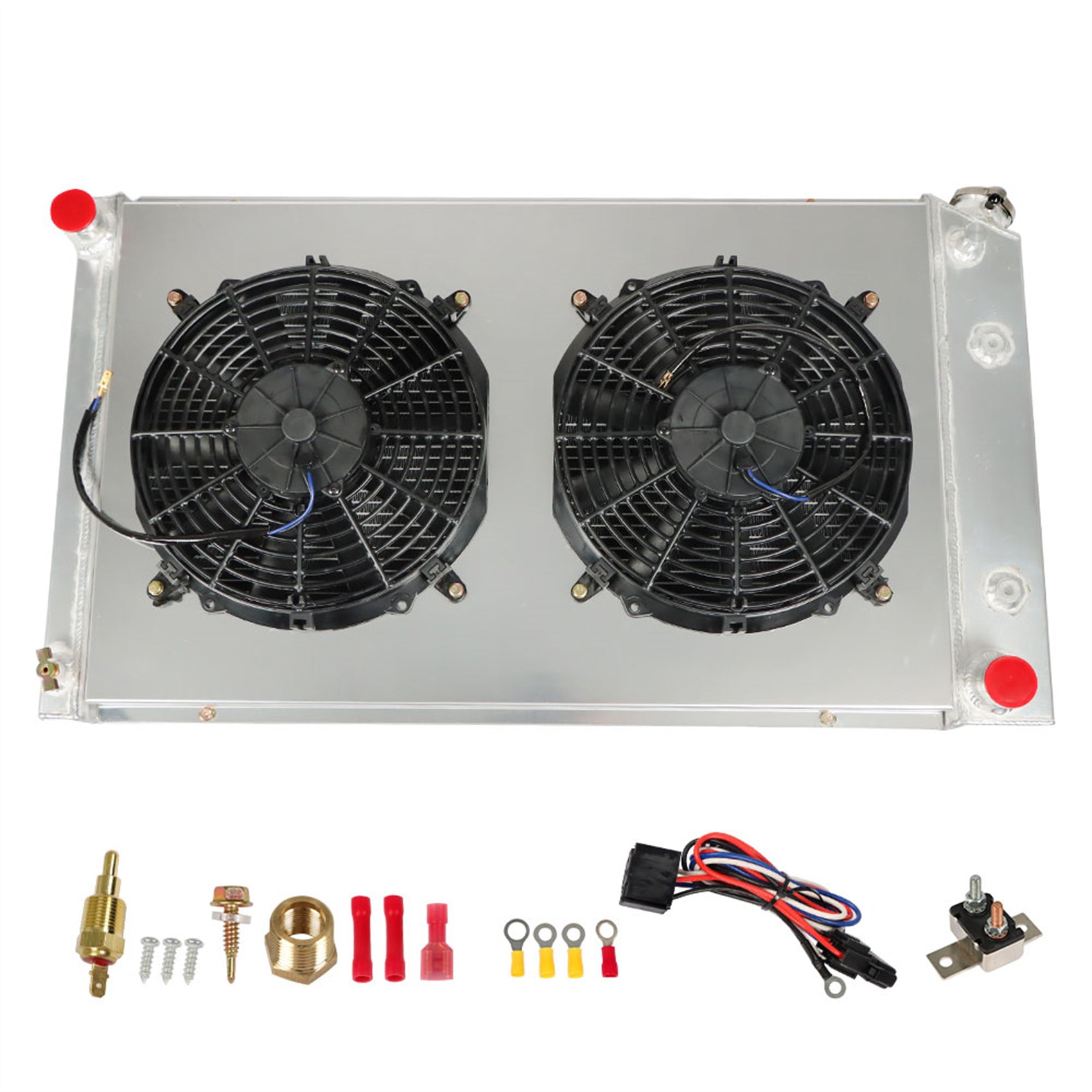

Package includes:
1* 3-Row Aluminum Radiator (Includes Radiator Cap)
1* Aluminum Shroud
2*12" Fans (Includes mounting kits)
1*Thermostat Relay Kit
Just as pictures show
