Labwork 24x24x8" NEMA 4X Steel Junction Box IP66 Dustproof Outdoor w/Mount Panel

Specification：

Color: White Gray
Body Material: 0.06 in / 0.15 cm Carbon Steel
Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
Finish: Powder Coating(Surface Pickling and Passivization)
Ratings: NEMA Type 4
Protection Grade: IP65, IK10
Construction: Continuously Welded
Ambient Temperature: -40 to 122�H / -40 to 55°C
Gasket Material: Seamless Foam/ Nylon(washer or plug)
Outer Dimensions(H x W x D): 24 x 24 x 8 in / 60 x 60 x 20 cm
Inner Dimensions(H x W x D): 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm
Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm
Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
Net Weight: 55.56 lbs / 25.2 kg

Product Description:

Premium Steel Material
The electrical junction box metal features carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites

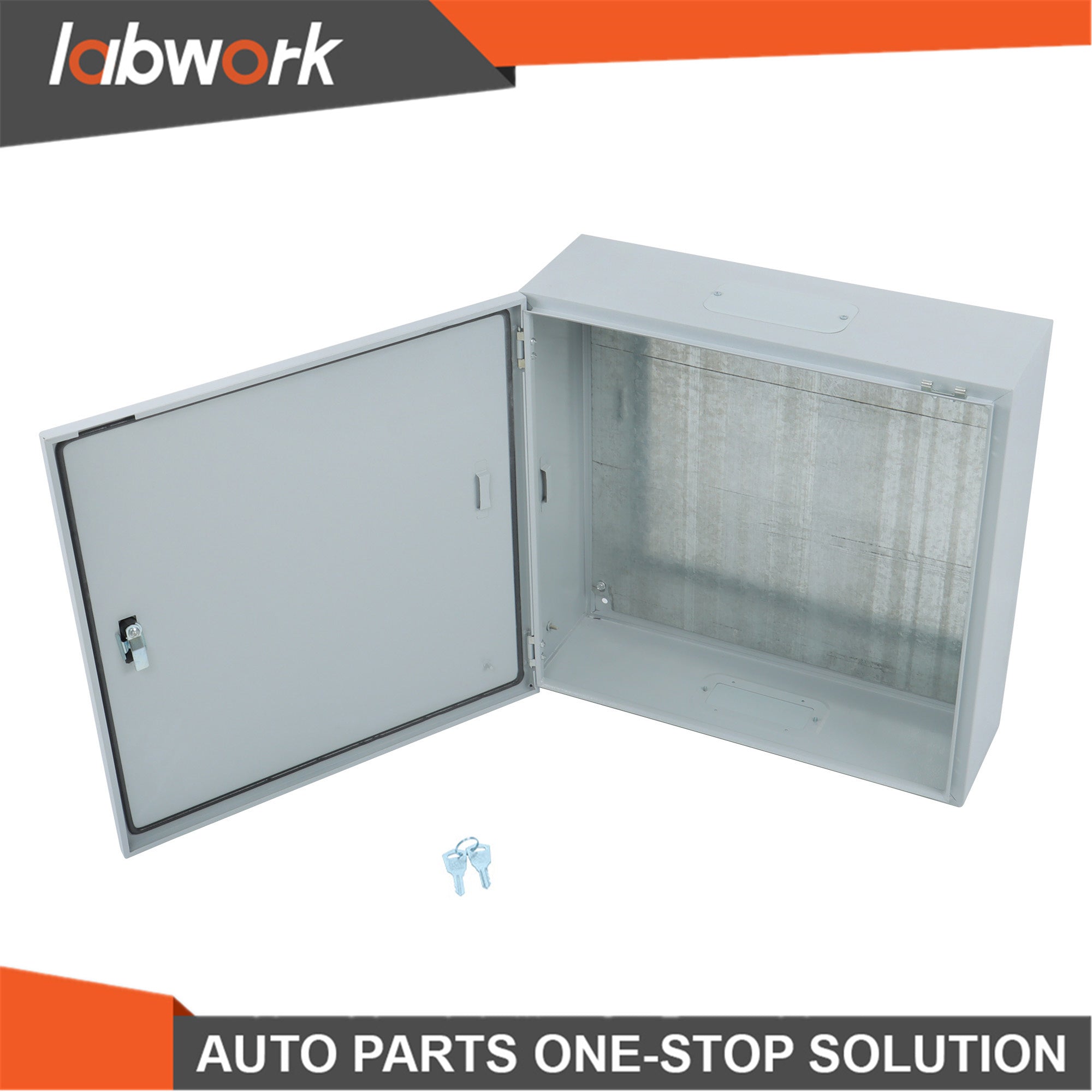

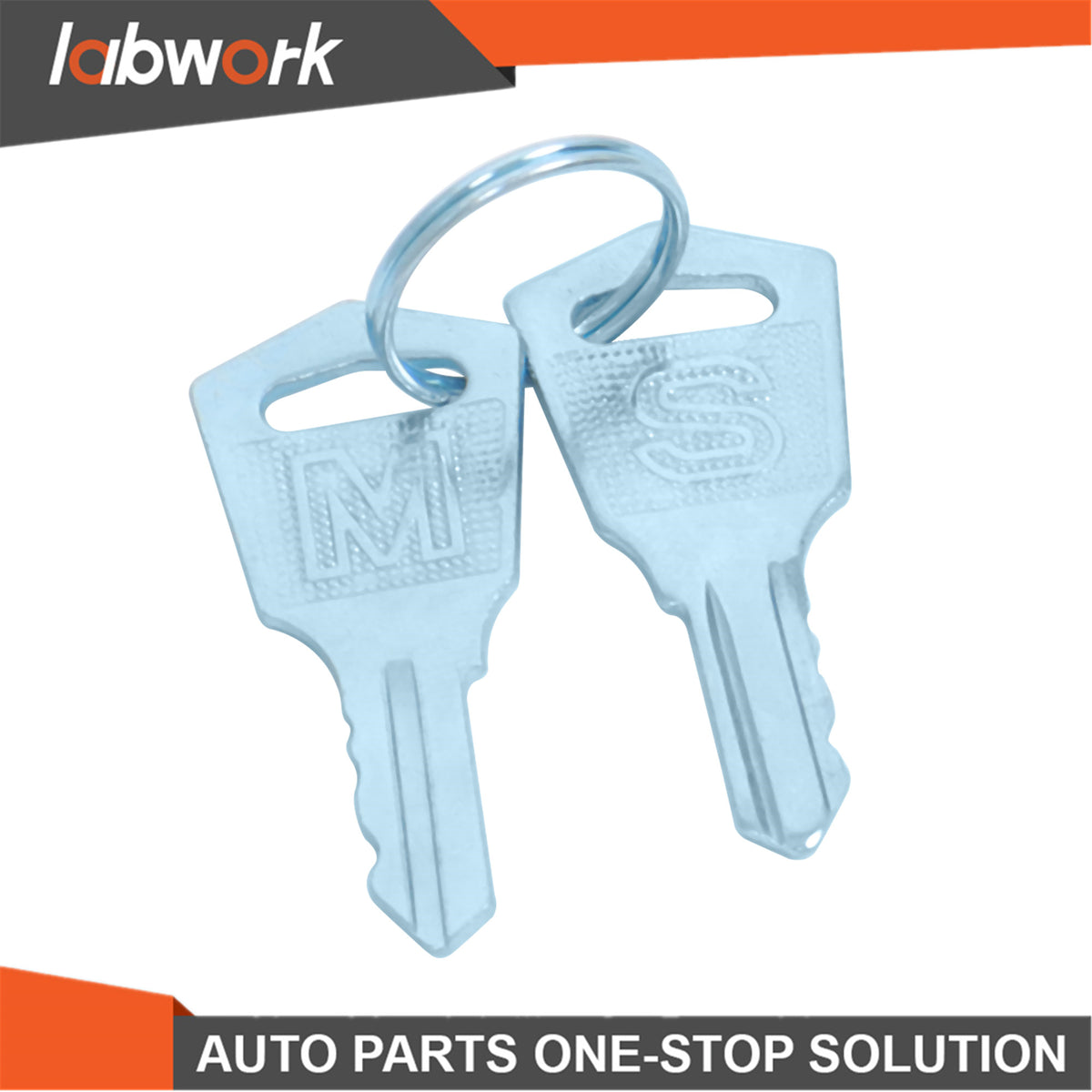

Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position.  There are also four mounting holes on the back for easy wall mounting.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit;  the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components.  Applicable to factories, construction sites, shopping malls, squares, etc.

Package Including：

1 x Electrical Box
