labwork 2000 lb Trailer Axle with 5-Lug Hubs, 54-Inch Hub Face, Unwelded Leaf Spring Brackets and U-Bolt Kit

Product Description

This 2000 lb straight trailer axle assembly is designed for compatible car trailers, ATV trailers, RV trailers, and utility trailers. It includes 5-lug hubs, unwelded leaf spring brackets, and a U-bolt mounting kit, allowing the brackets to be positioned and welded according to your trailer’s suspension layout.

Compatibility

• Car trailers
• ATV trailers
• RV trailers
• Utility trailers
• Trailers using a 5-lug, 4.5-inch bolt pattern
• Compatible frame and suspension dimensions must be verified before ordering

Specifications

• Type: Straight Trailer Axle Assembly
• Load Capacity: 2,000 lbs

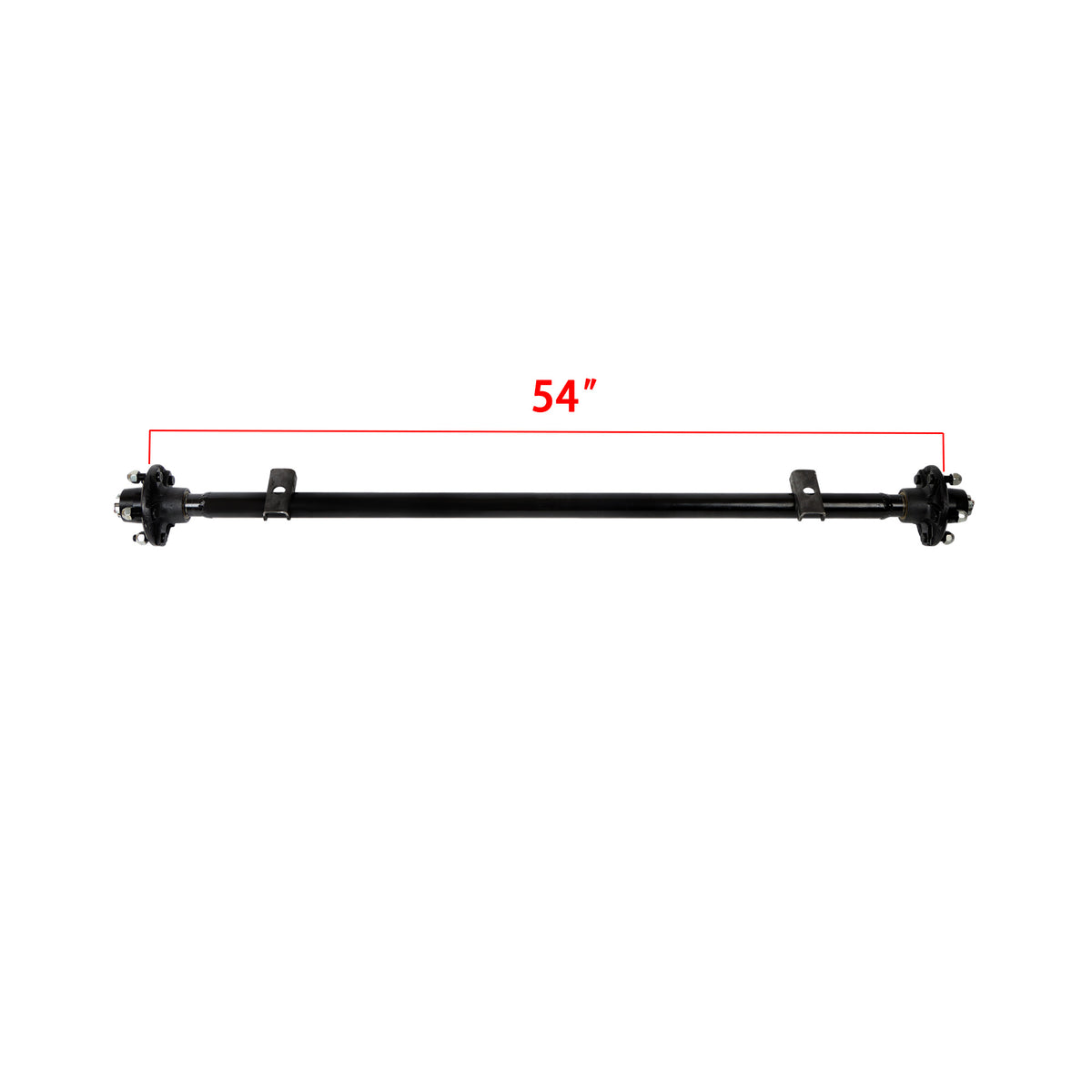

• Hub Face: 54 inches
• Lug Pattern: 5-Lug, 4.5-inch
• Inner Bearing: L44649
• Outer Bearing: L44649
• Axle Tube Diameter: 1.75 inches / 45 mm
• Axle Tube Thickness: 3/16 inch / 5 mm
• Material: Steel
• Finish: Powder Coated
• Leaf Spring Brackets: Unwelded
• Fitment Type: Direct Replacement / Custom Installation

Features

• 2,000 lb load capacity for compatible trailers
• Durable straight steel axle tube
• Powder-coated finish helps resist corrosion and wear
• 5-lug hubs with a 4.5-inch bolt pattern
• Unwelded leaf spring brackets allow flexible positioning
• Heavy-duty 1.75-inch tubing provides strength and rigidity
• Includes U-bolts and shaft plates for mounting
• Suitable for a variety of trailer applications

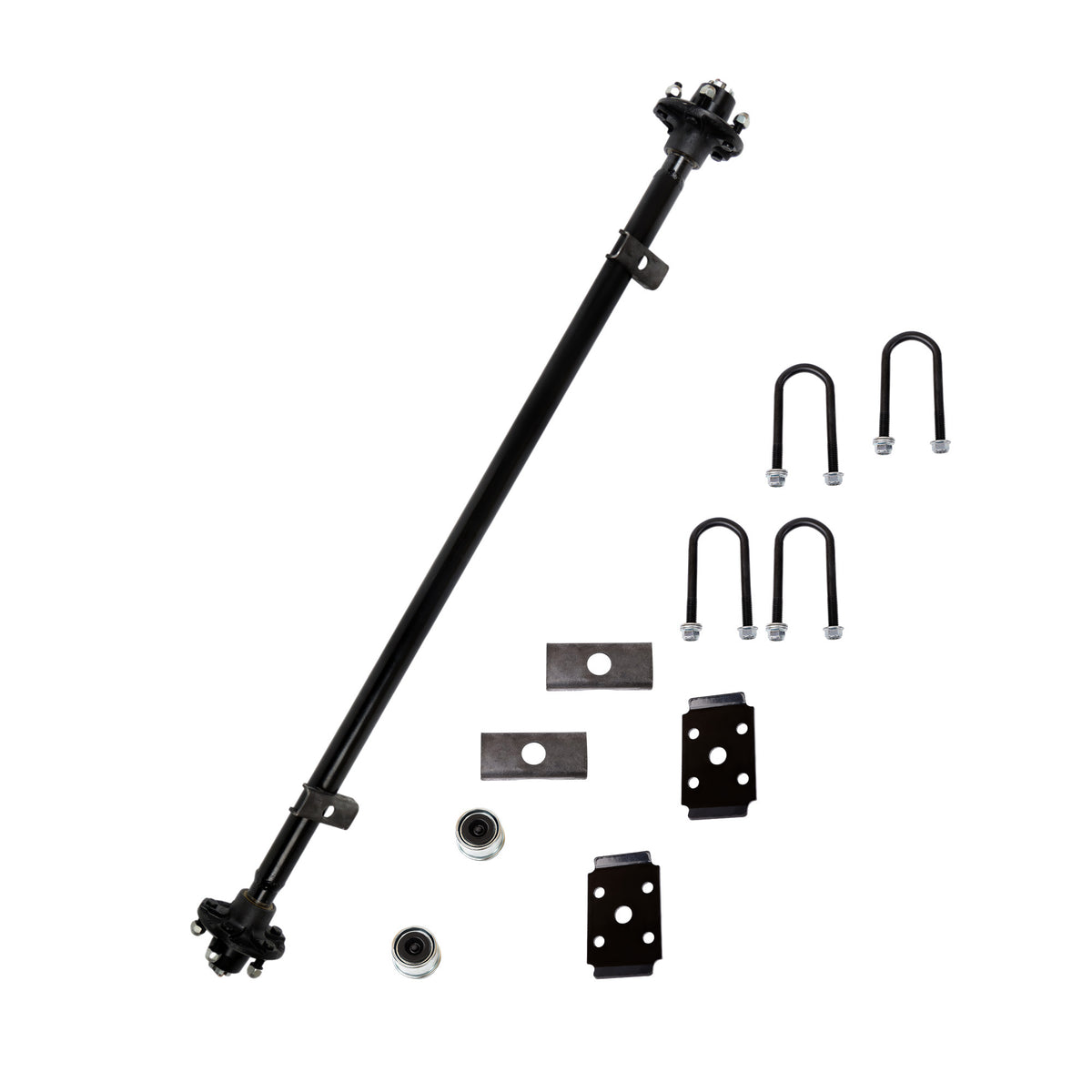

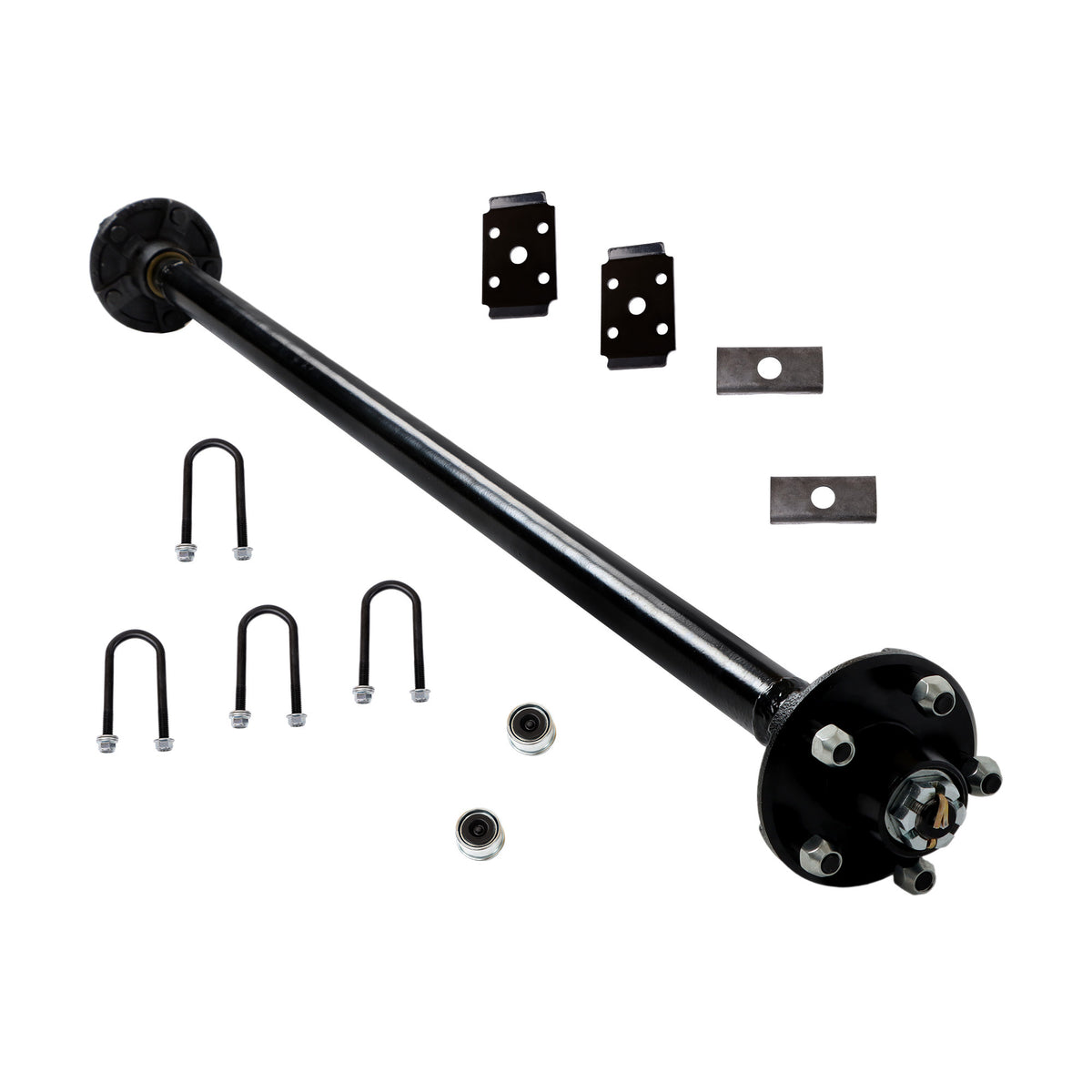

Package Includes

• 1 × Trailer Axle with Hub Kit
• 2 × Gaskets
• 2 × Main Shaft Nuts
• 2 × Cotter Pins
• 2 × Dust Caps

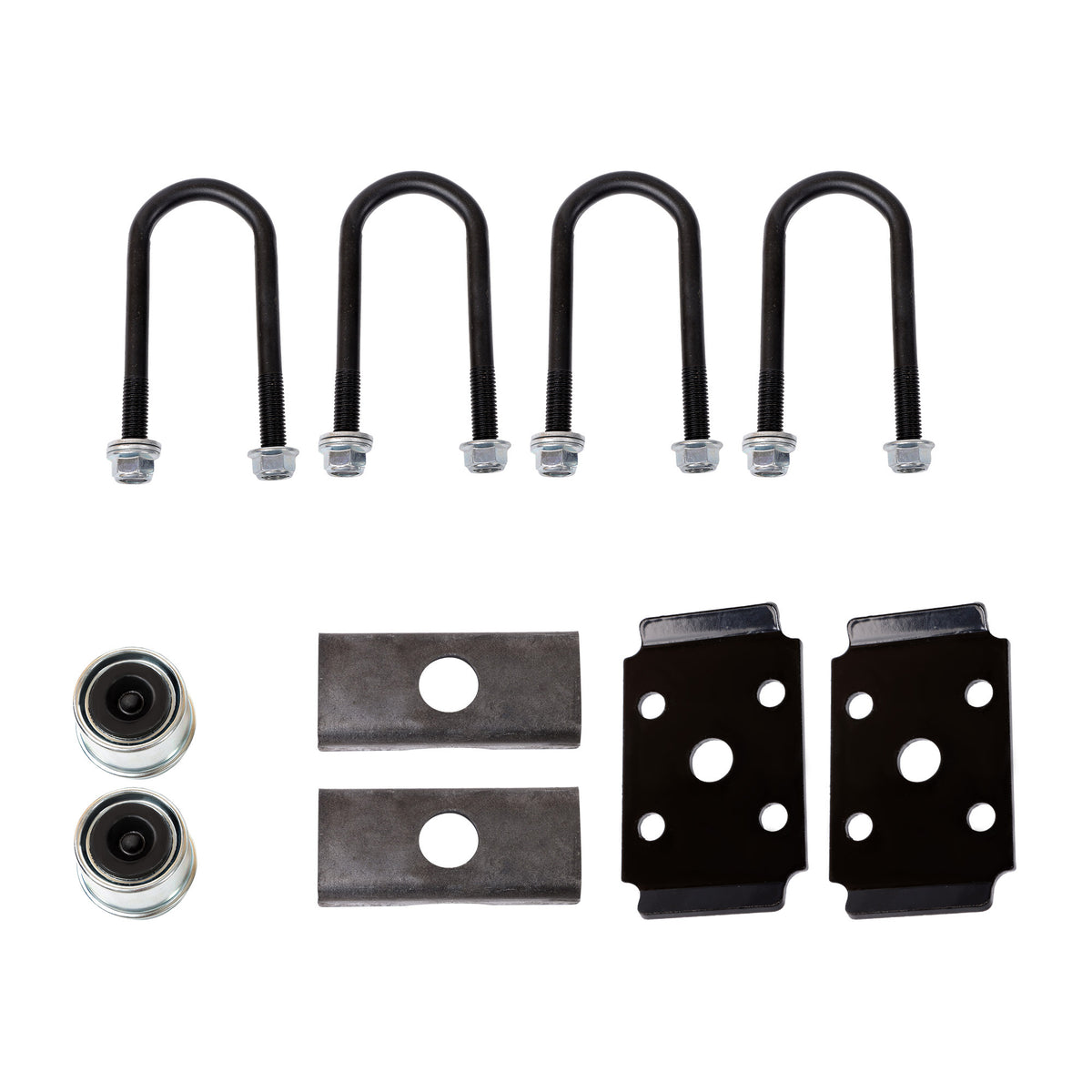

• 1 × U-Bolt Kit, including 4 U-Bolts and 2 Shaft Plates
• 2 × Unwelded Leaf Spring Supports

Important Note

The leaf spring supports are unwelded and must be positioned and welded according to your trailer’s frame and suspension requirements. Please verify frame width, hub-face measurement, bolt pattern, bearing size, suspension type, and axle capacity before ordering. Professional welding and installation are recommended.
