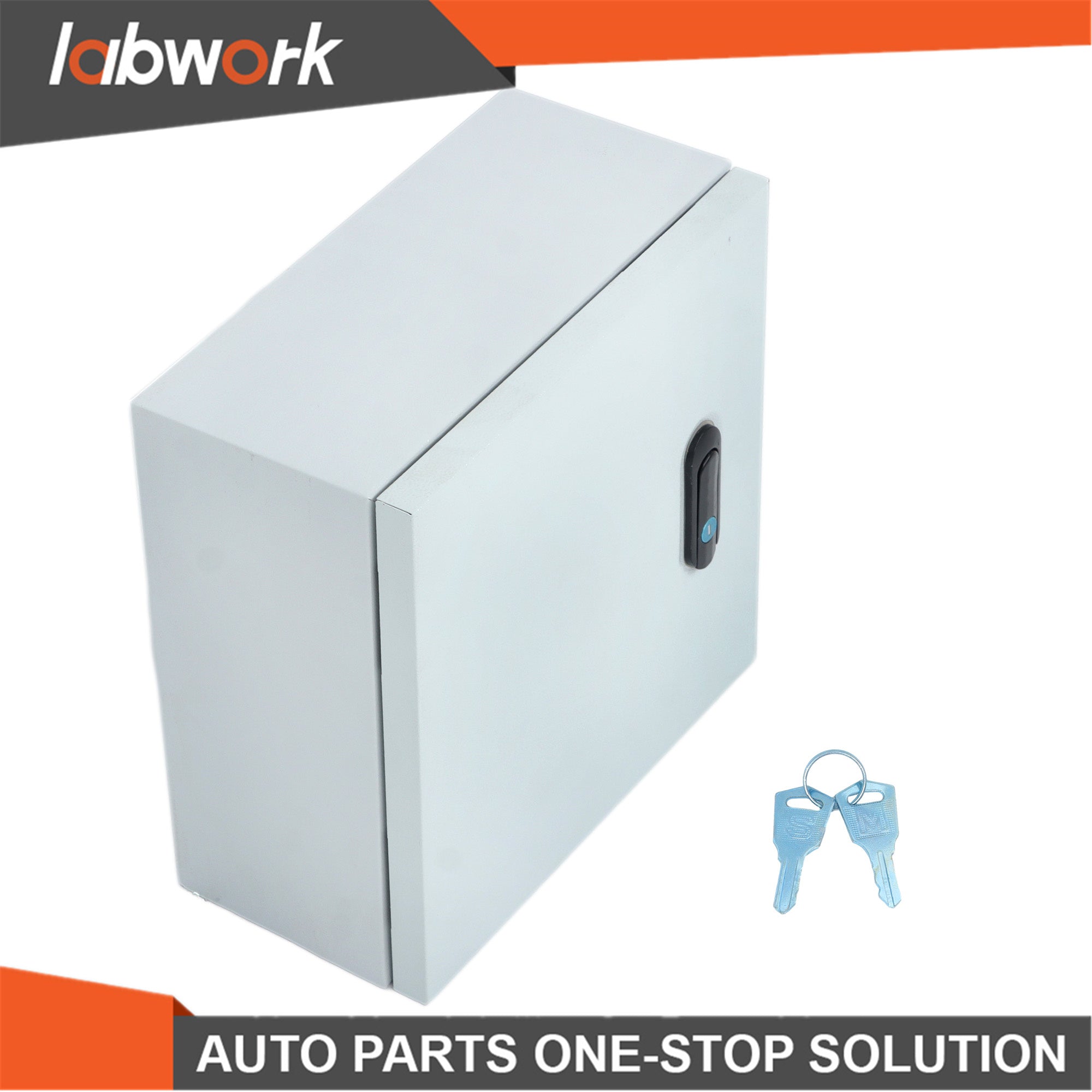

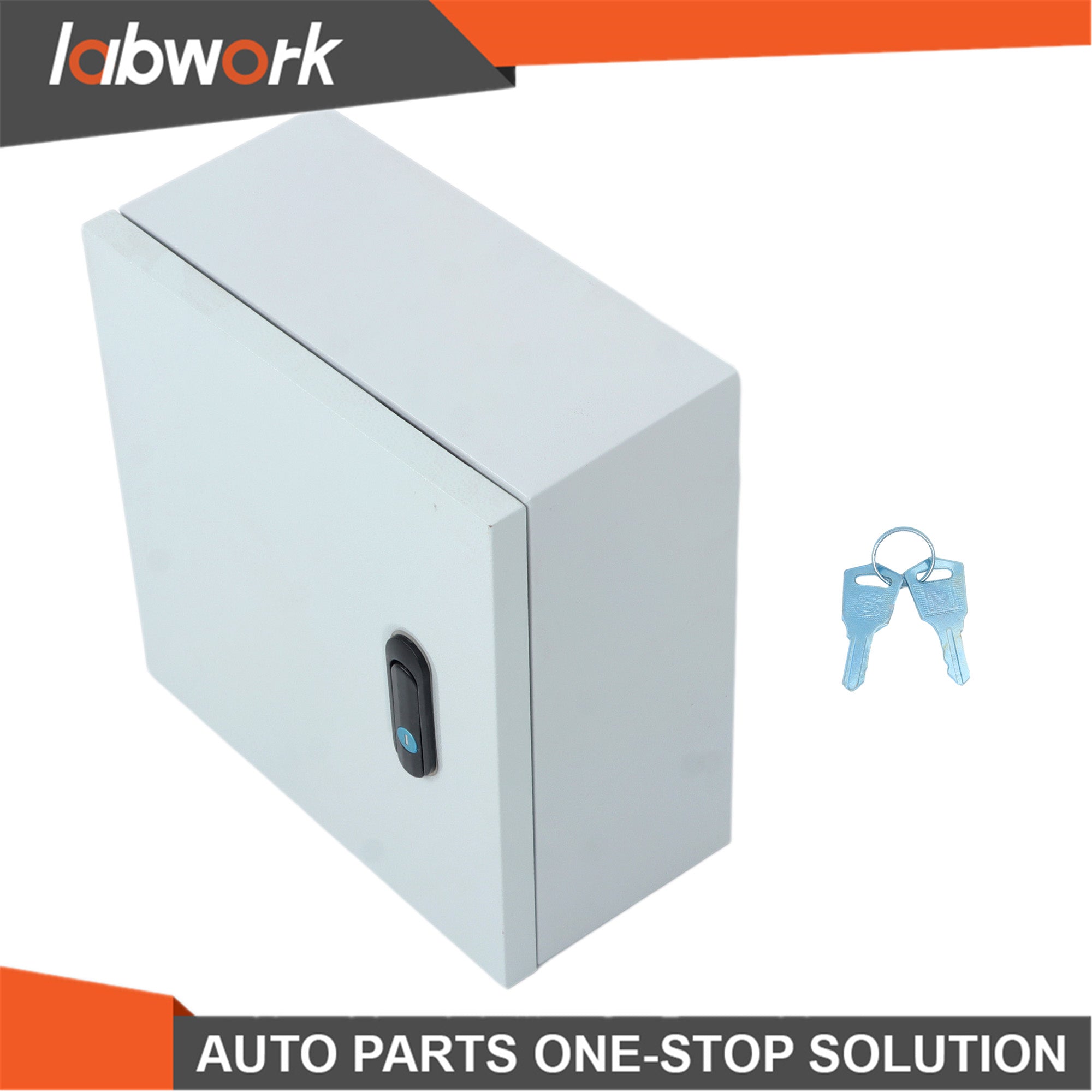

Labwork 16x12x8" NEMA 4X Steel Electrical Box IP66 Outdoor Enclosure w/Lock

Specification：

Premium Steel Material
The junction box is made of 0.059''/1.5 mm steel, features high toughness and rust resistance.  Epoxy polyester powder coating has good mechanical and leveling properties.

IP66 Protection Level
The IP66 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc.  A waterproof electrical box keeps all your electrical equipment dry and ensures greater security on construction sites.

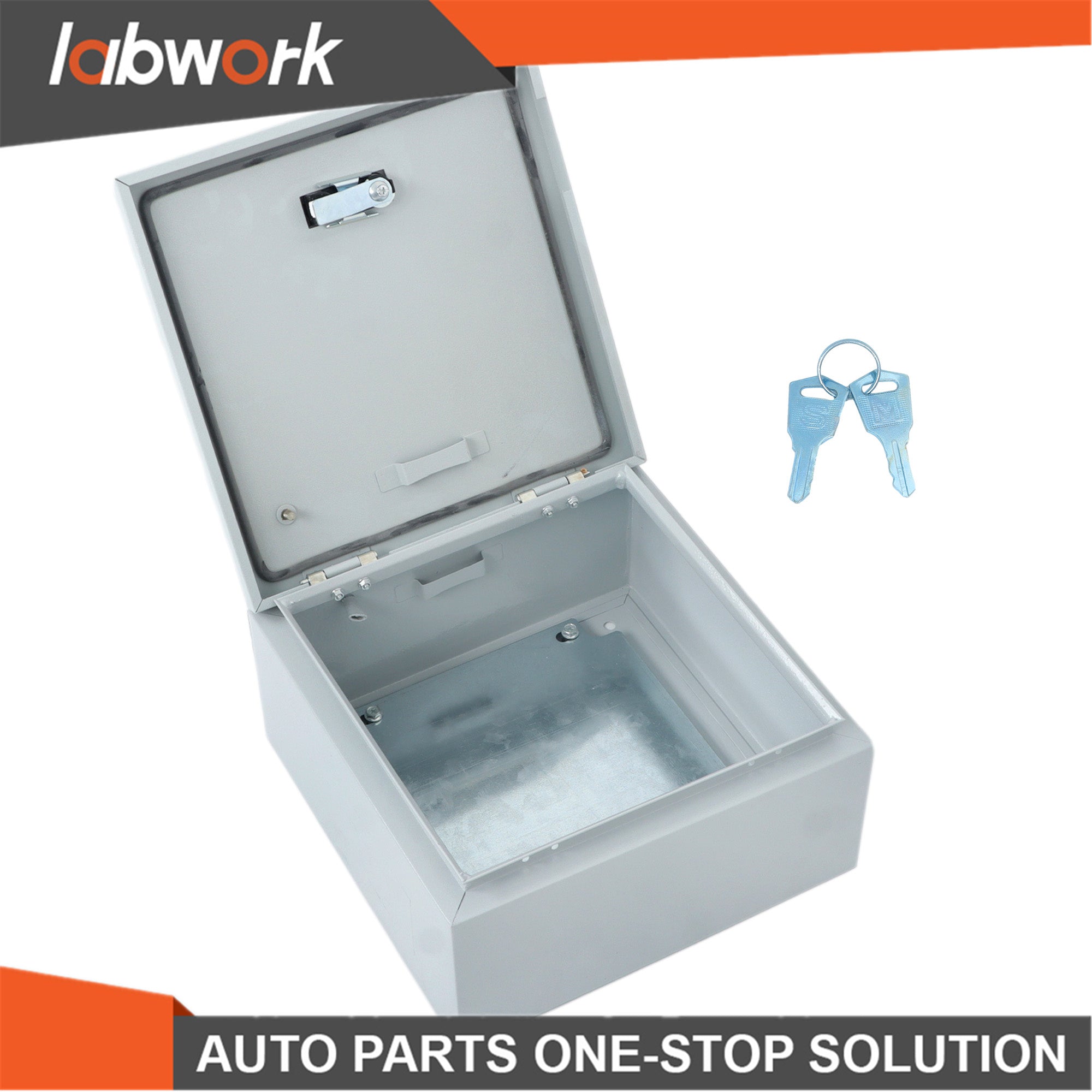

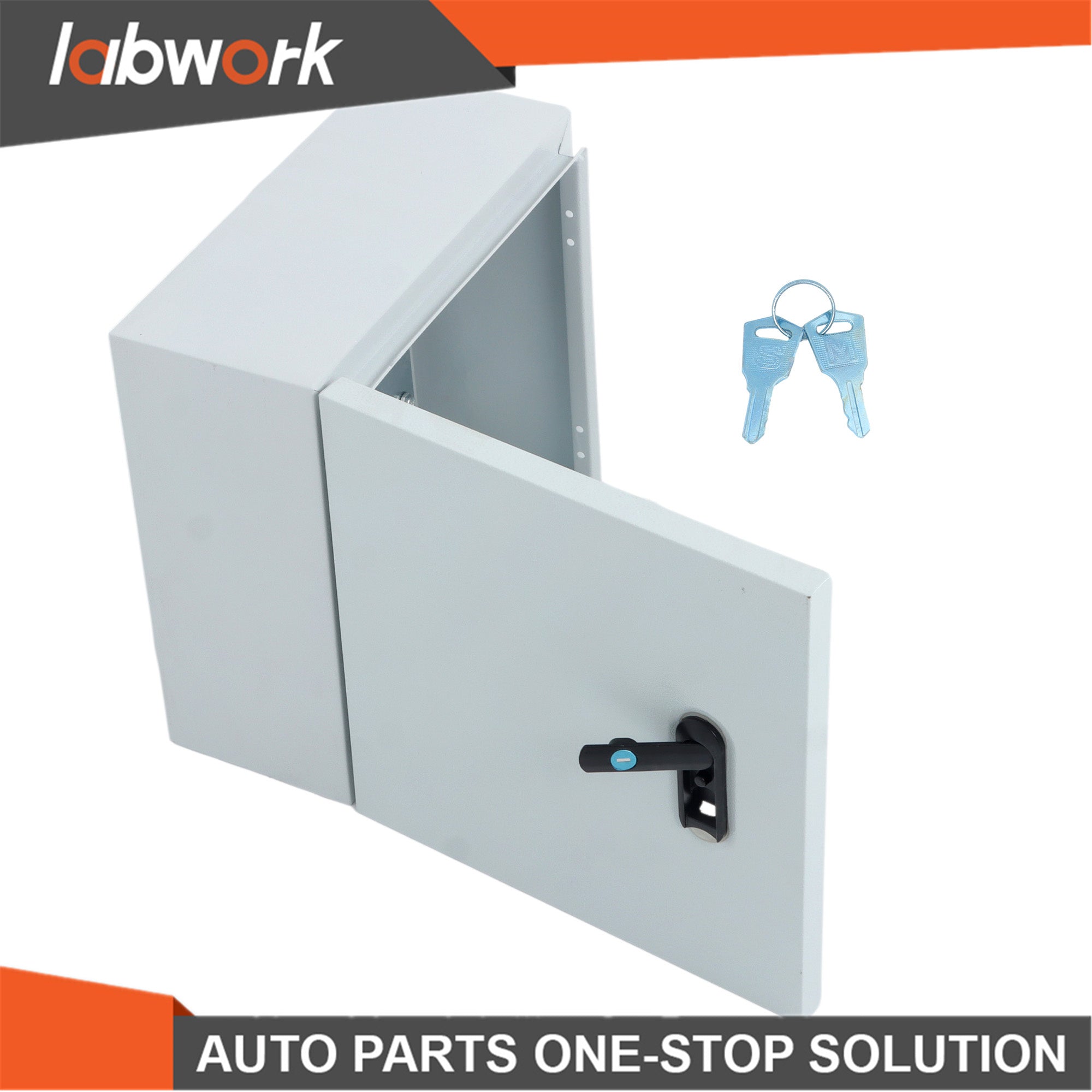

Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening.  The reinforced hinge ensures that repeated opening and closing will not cause damage.

Effortless to Install & Use

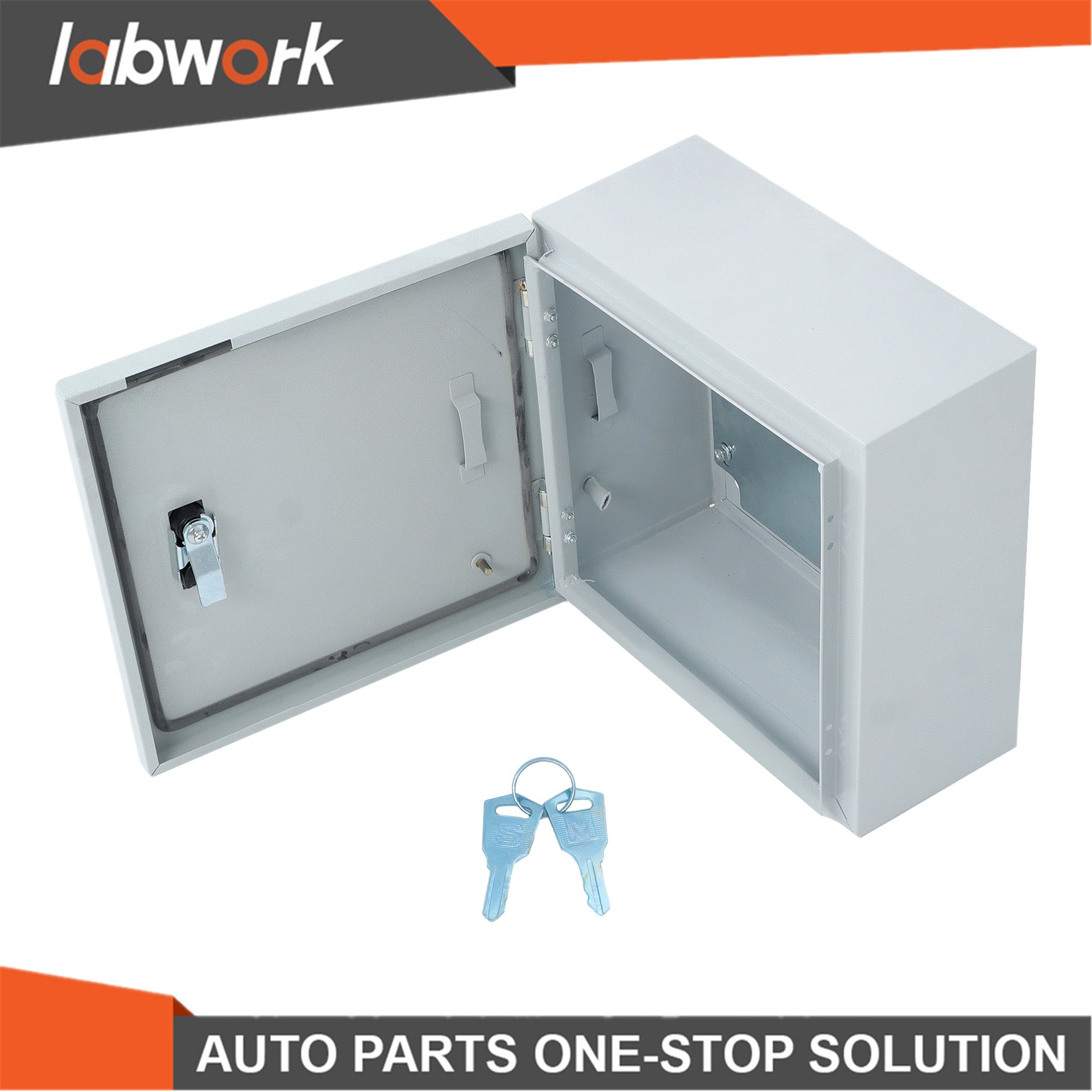

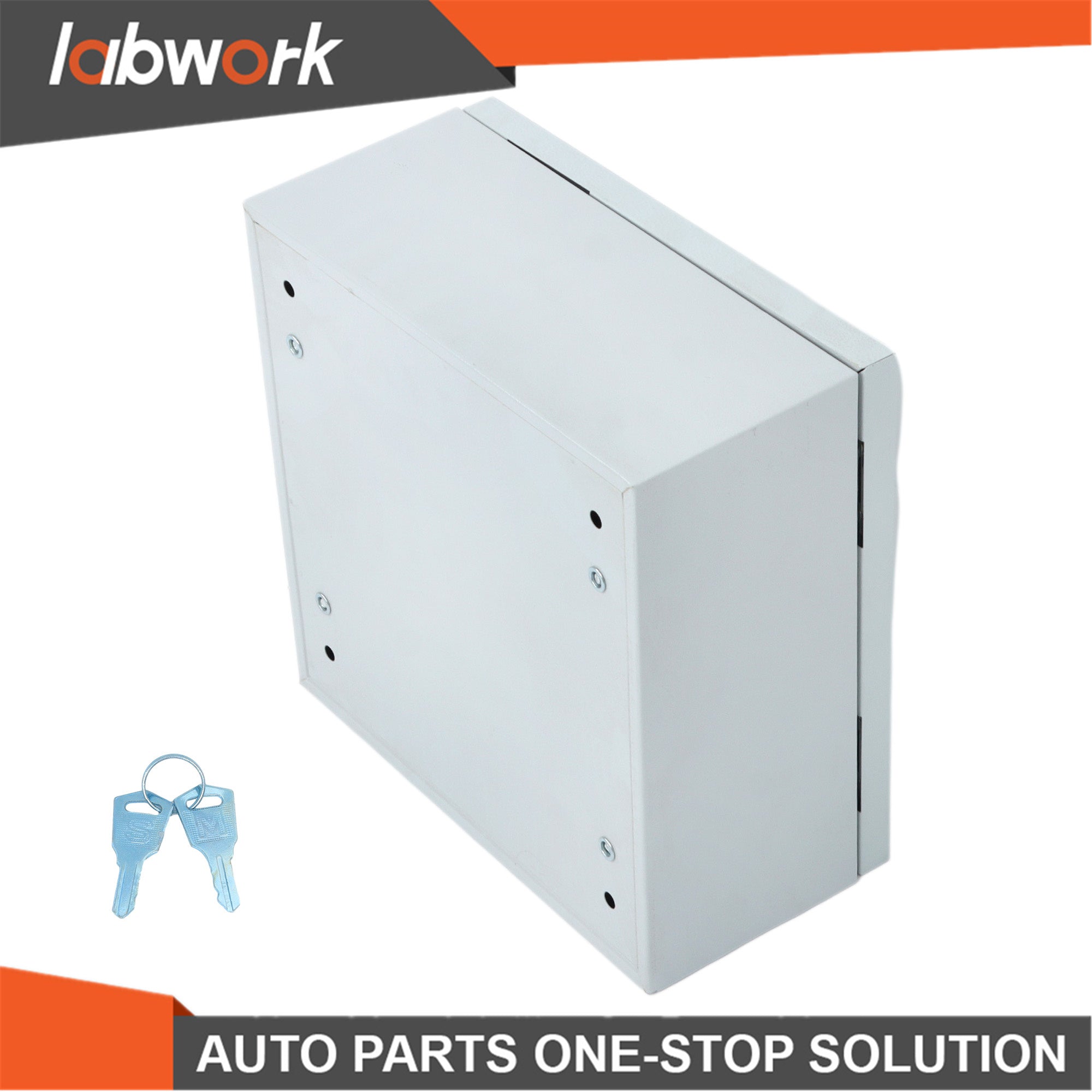

The 2MM detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position.  Four mounting holes on the outdoor electrical box back for simple assembly.

Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit.  The ground wire in the electrical box has been installed in advance.  The rounded corners are designed to avoid damage to the cables.

Extensive Application
A electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components.  Applicable to factories, construction sites, shopping malls, squares, etc.

Feature:

Product Name: Electrical Box
Color: silver
Coating: Epoxy Polyester Powder Coating
Mounting Plate: Detachable Galvanized Backplate
Connection Type: Hinged
IP Rating: Designed to meet IP66
Product size parameters
Outer Dimensions (H x W x D): 16'' x 12'' x 8'' / 40 x 30 x 20 cm
NEMA Rating: NEMA 4X
Mounting Type: Wall-Mount
Mounting Plate: 2 mm/0.079'' Detachable Galvanized Back Plate
Application: Indoor/ Outdoor

Package Including：

1*Electrical Box
