labwork 100H Heavy-Duty Roller Chain 10 ft with 2 Connecting Links for Go-Kart, Mini Bike, and Industrial Drives

Product Description

Designed for demanding drive applications, this labwork 100H roller chain provides high load-bearing strength, wear resistance, and impact tolerance. Made from heat-treated medium-carbon steel, the 10-foot chain is suitable for go-karts, mini bikes, industrial machinery, and other high-load equipment.

Features

• High-strength chain for power transmission and heavy loads
• Heat-treated medium-carbon steel construction
• Enhanced surface hardness and wear resistance
• Good impact tolerance in demanding environments
• Standard 10-foot length for convenient installation

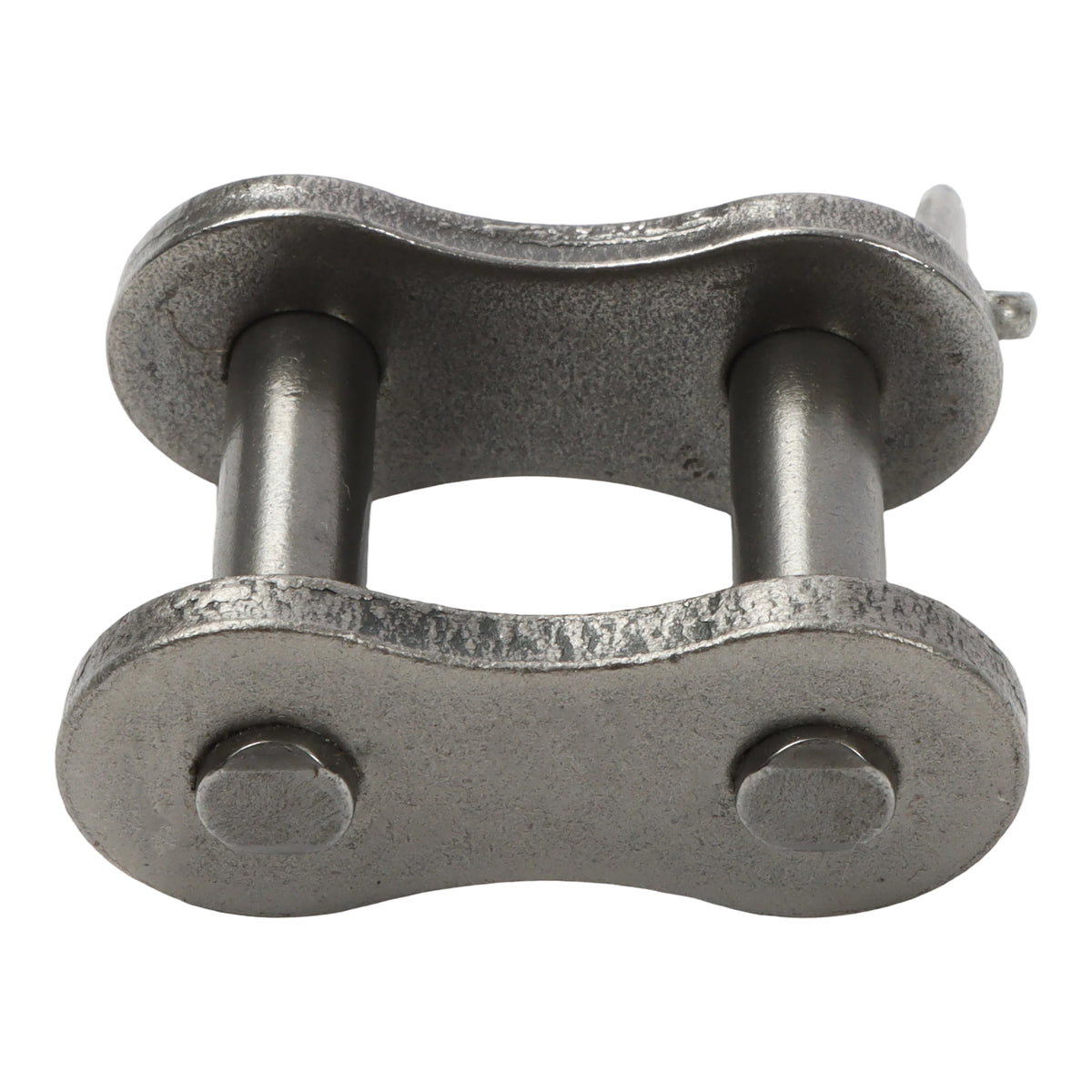

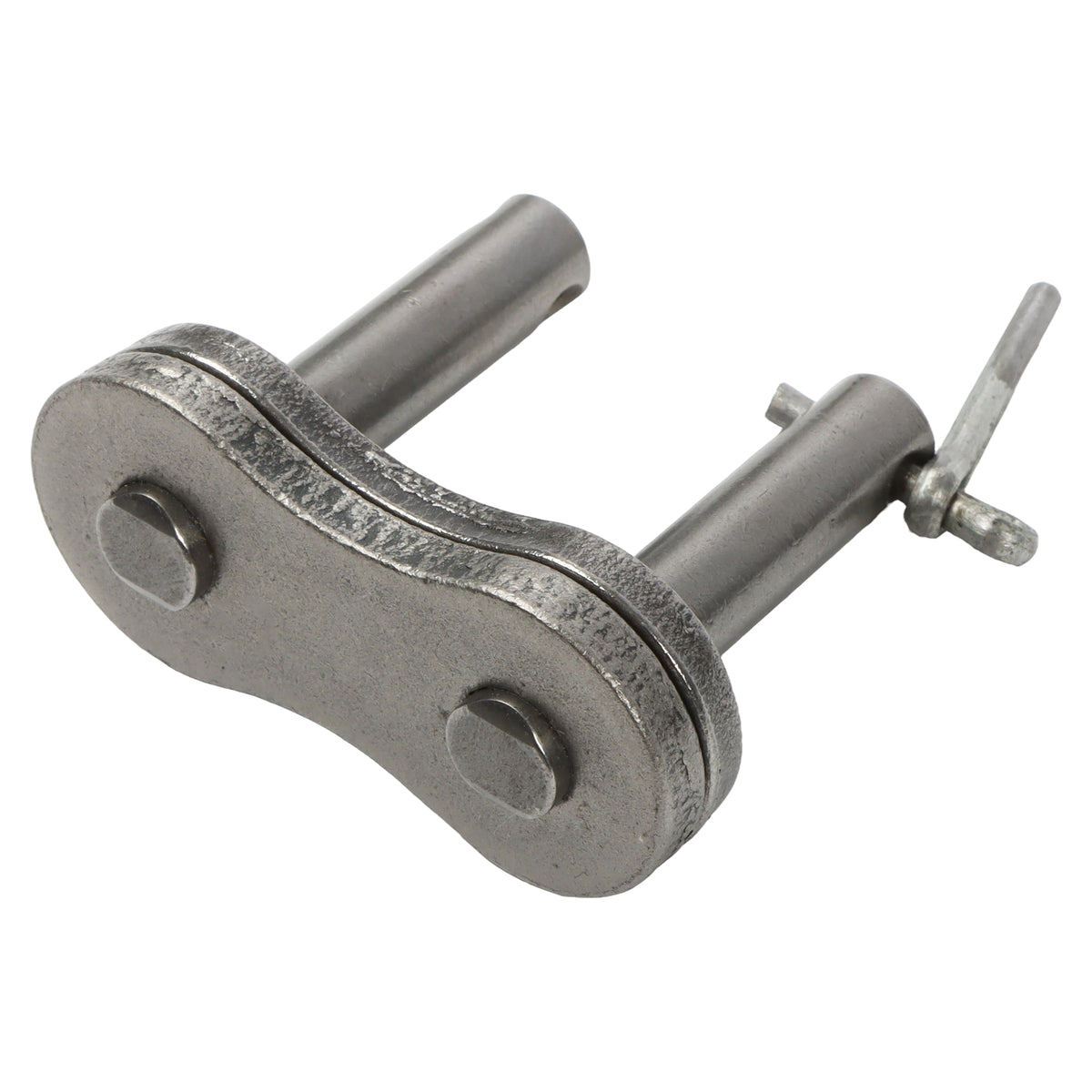

• Includes two connecting links for chain assembly
• Suitable for go-karts, mini bikes, industrial drives, and machinery

Detailed Dimensions

• Chain Size: 100H
• Pitch: 1.250 in
• Maximum Roller Diameter: 0.750 in
• Minimum Width Between Inner Plates: 0.744 in
• Maximum Pin Diameter: 0.375 in
• Maximum Pin Length: 1.717 in
• Maximum Connecting Pin Length: 1.846 in
• Maximum Inner Plate Depth: 1.181 in
• Maximum Plate Thickness: 0.189 in
• Chain Length: 10 ft

Specifications

• Type: Heavy-Duty Roller Chain
• Material: Heat-Treated Medium-Carbon Steel
• Chain Size: 100H
• Application: Power Transmission
• Fitment Type: Universal Mechanical Replacement

Package Includes

• 1 × 100H Heavy-Duty Roller Chain, 10 ft
• 2 × Connecting Links

Important Note

Verify the chain size, pitch, roller diameter, and required length before ordering. Proper lubrication, alignment, and tension are recommended for safe and efficient operation.
