labwork 10-Ton Hydraulic Tube Expander Kit, 1-5/8 to 4-1/4 Inch, 4 Dies, Manual Exhaust Pipe Stretcher

Product Description

This manual hydraulic tube expander is designed for expanding thin-wall automotive exhaust pipes from 1-5/8 to 4-1/4 inches outside diameter. The 10-ton hydraulic mechanism provides controlled expansion for exhaust repair and muffler installation work.

Compatibility

• Thin-wall automotive exhaust pipes
• Stainless-steel exhaust pipes
• Aluminum exhaust pipes
• Iron exhaust pipes
• Tube outside diameter: 1-5/8 to 4-1/4 inches
• Wall thickness: approximately 1 mm

Replacement Part Numbers

• 78835
• 17350

Specifications

• Type: Manual Hydraulic Tube Expander
• Hydraulic Capacity: 10 Tons
• Tube Size Range: 1-5/8 to 4-1/4 inches
• Material: Aluminum Alloy
• Thread Specification: M20 × 1.5 mm
• Hose Length: 4 Feet
• Operation: Manual Hydraulic
• Storage: Plastic and Iron Cases
• Fitment Type: Workshop Tool

Features

• 10-ton manual hydraulic expansion force
• Expands thin-wall exhaust tubing for repair and fitting
• Aluminum-alloy construction supports durability

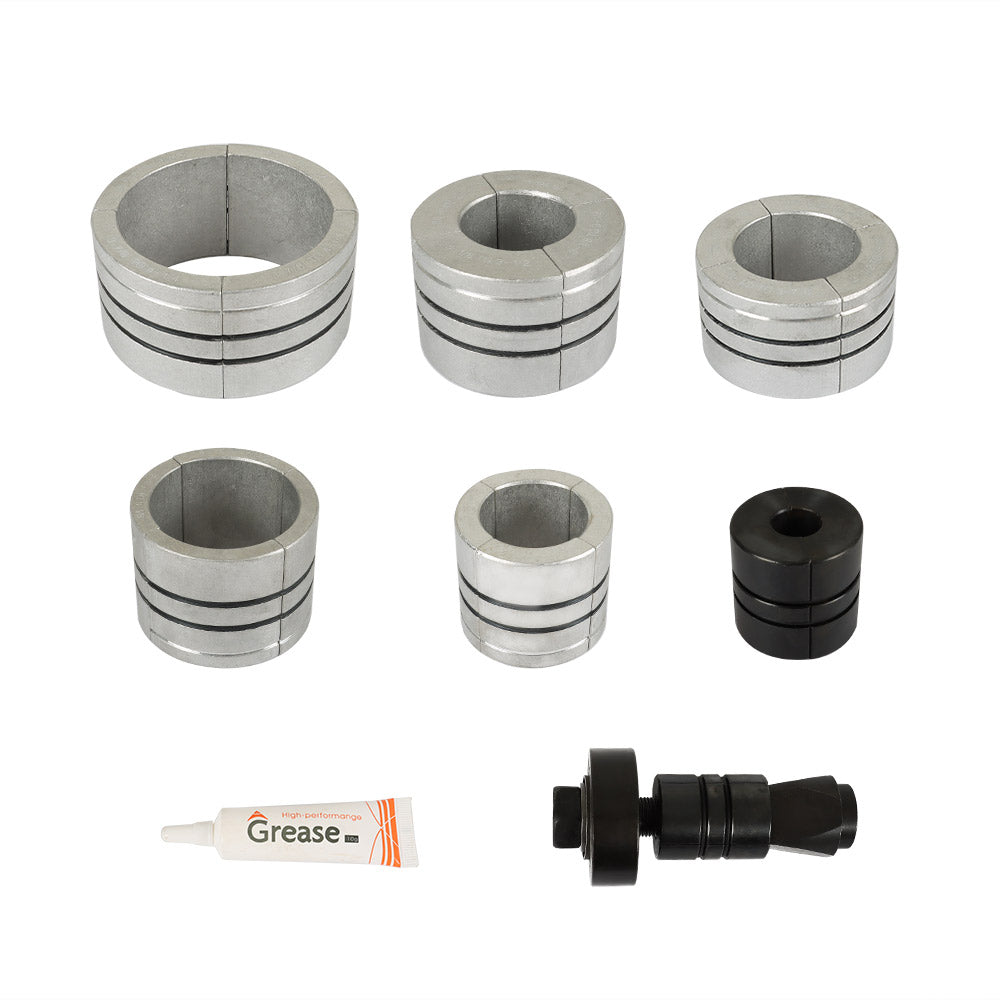

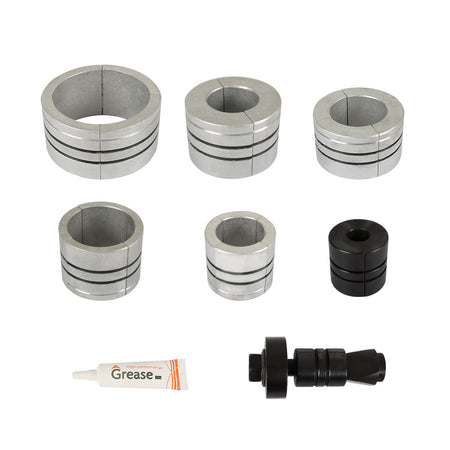

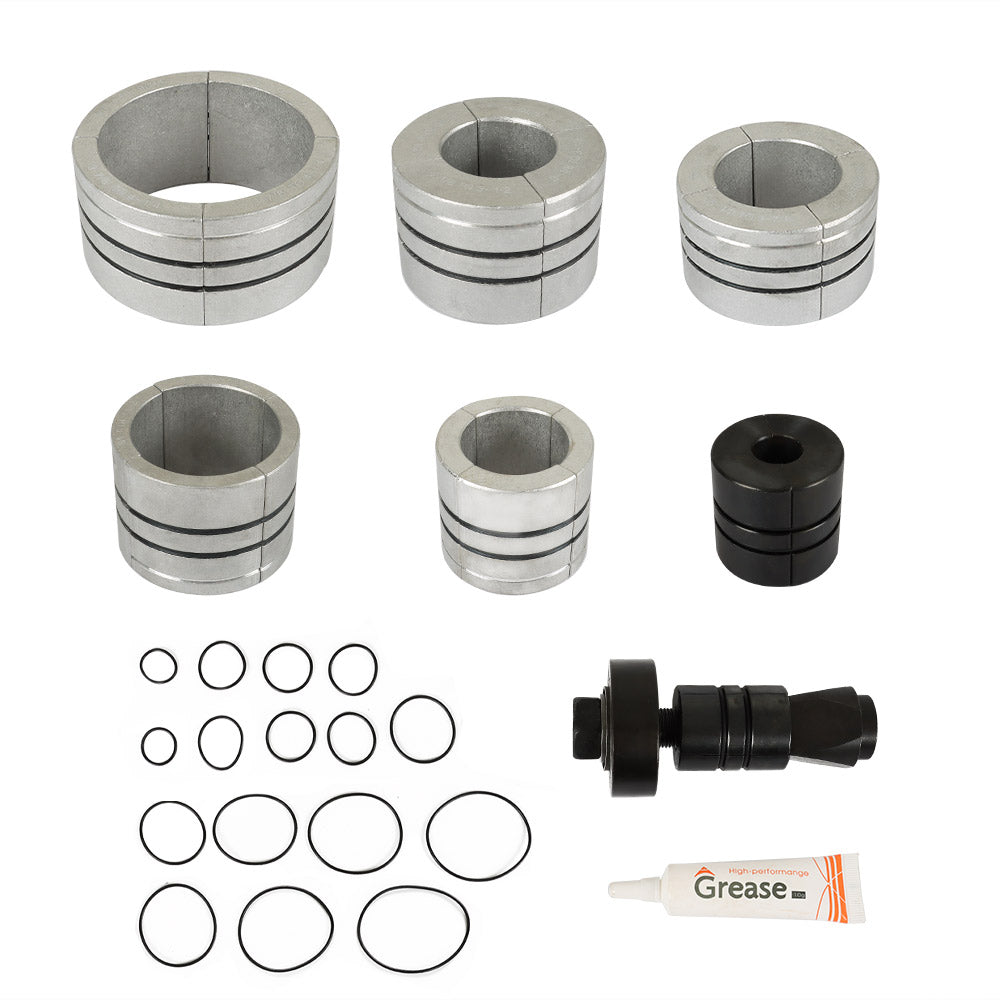

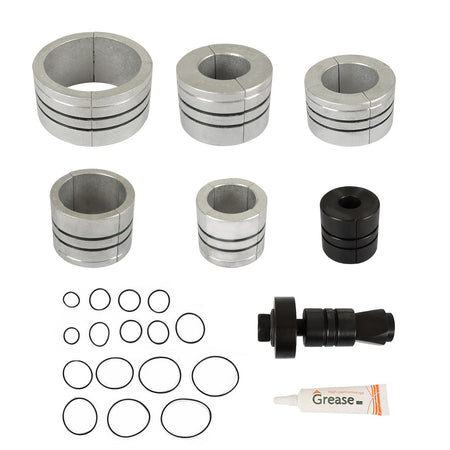

• Four interchangeable dies accommodate different pipe sizes

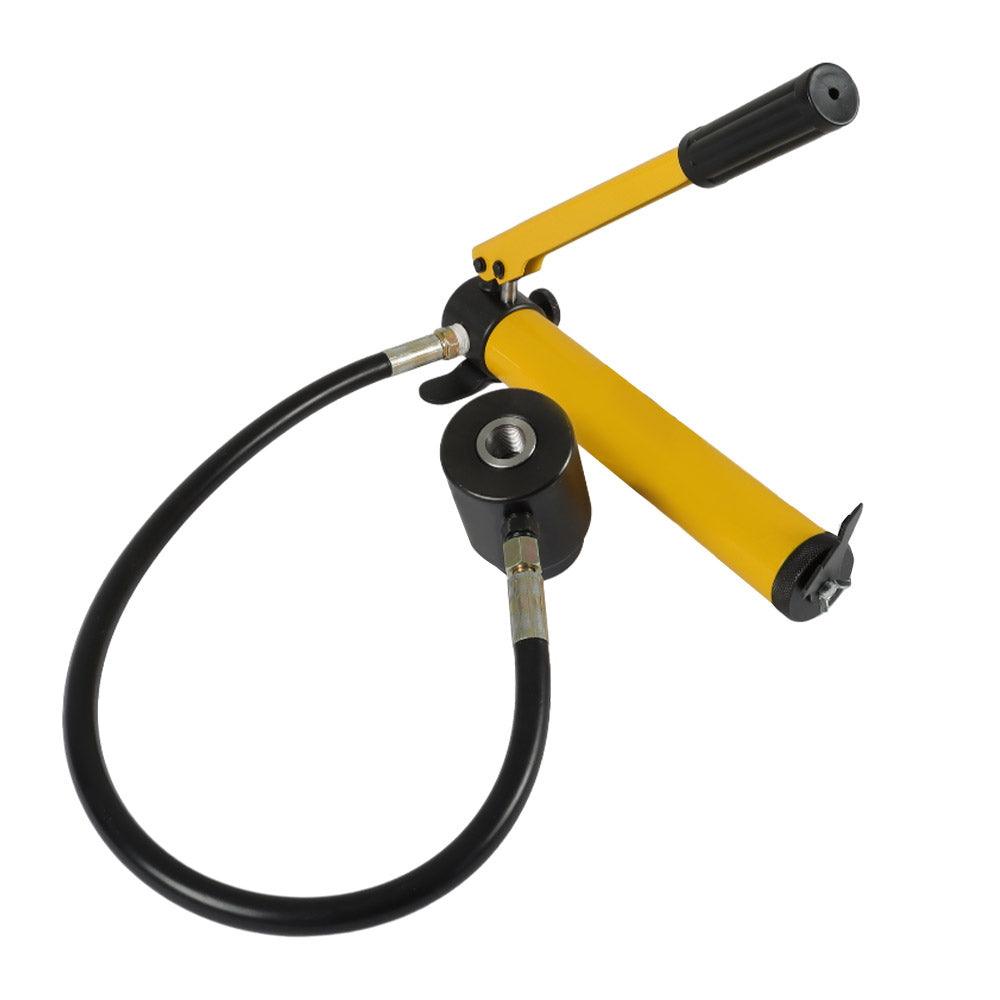

• High-pressure hose supports convenient operation
• Sealed hydraulic cylinder helps reduce oil leakage

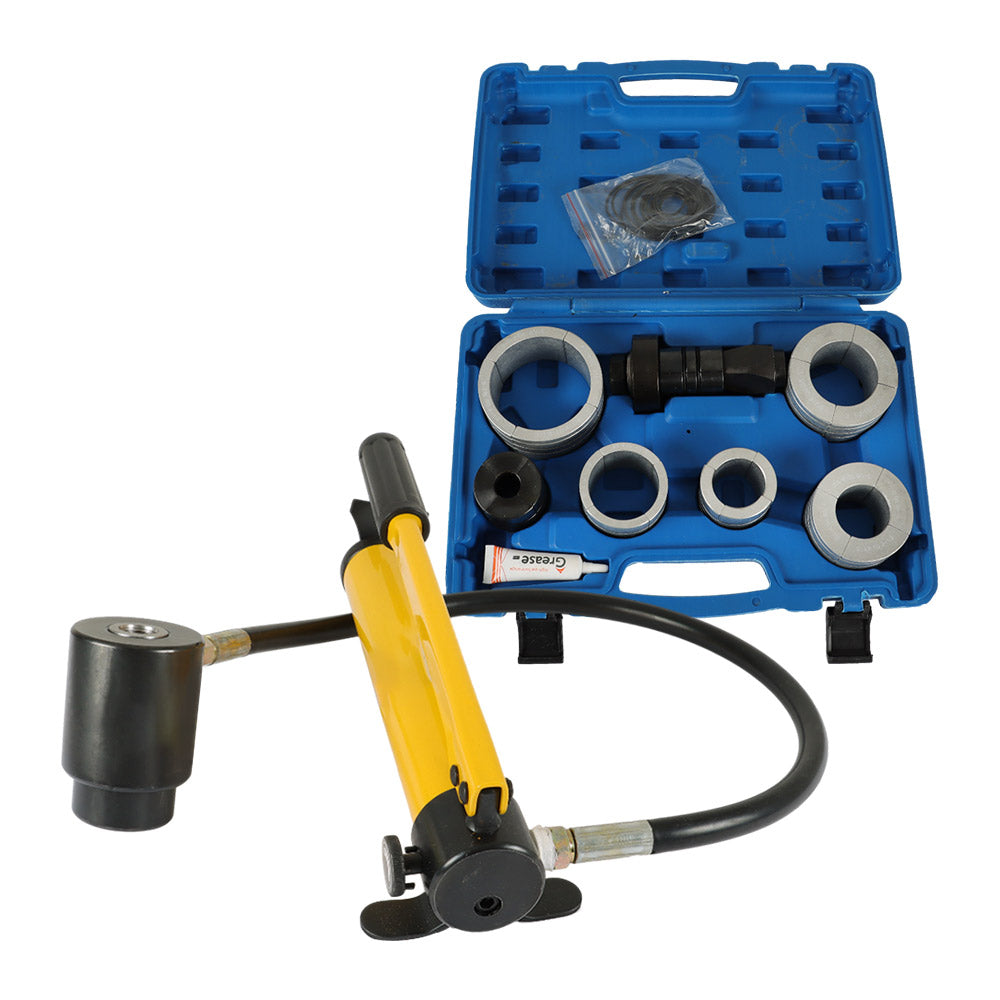

• Plastic tool case and iron outer case provide added storage protection
• Suitable for automotive exhaust and muffler repair applications

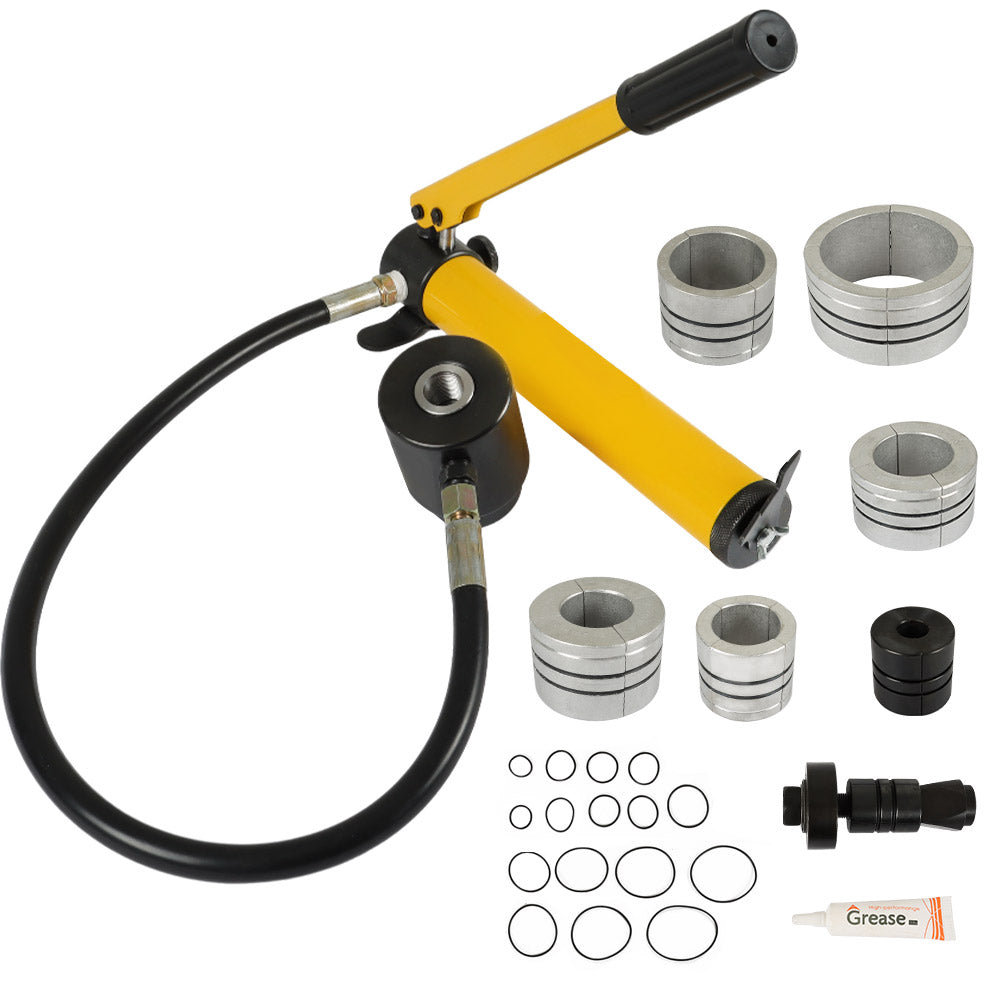

Package Includes

• 1 × Manual Hydraulic Tube Expander
• 4 × Expansion Dies
• 1 × Plastic Storage Case
• 1 × Iron Storage Case
• W/o Installation Instructions

Installation Instructions

1. Select the correct die for the pipe diameter.
2. Apply the included grease to the expansion threads before use.
3. Secure the exhaust pipe and make sure the work area is stable.
4. Position the expander inside the pipe.
5. Operate the hydraulic pump gradually to expand the pipe.
6. Stop when the required fit is achieved; do not overload the tool.
7. Release hydraulic pressure and remove the expander carefully.

Safety Instructions

• Do not use damaged tools.
• Keep the tool clean and properly lubricated.
• Support raised vehicles with axle stands or ramps and wheel chocks.
• Wear suitable protective clothing and eye protection.
• Do not wear loose jewelry or clothing that may snag.
• Do not use the tool when tired or under the influence of alcohol, drugs, or medication.
• Account for all tools and parts before returning the vehicle to service.
• Follow the vehicle manufacturer’s service instructions.
• Overloading may stretch the lead screw, strip threads, deform the pipe opening, or cause hydraulic-pump pressure failure.

Important Note

This tool is intended for thin-wall automotive exhaust pipes only. Do not use it on thick-wall steel tubing, solid metal end caps, heavy-gauge stock, or other materials outside the stated range. Overloading may cause lead-screw stretching, stripped threads, pipe deformation, or hydraulic-pump failure. Support raised vehicles securely with axle stands or ramps and wheel chocks. Professional use and proper safety equipment are recommended.
