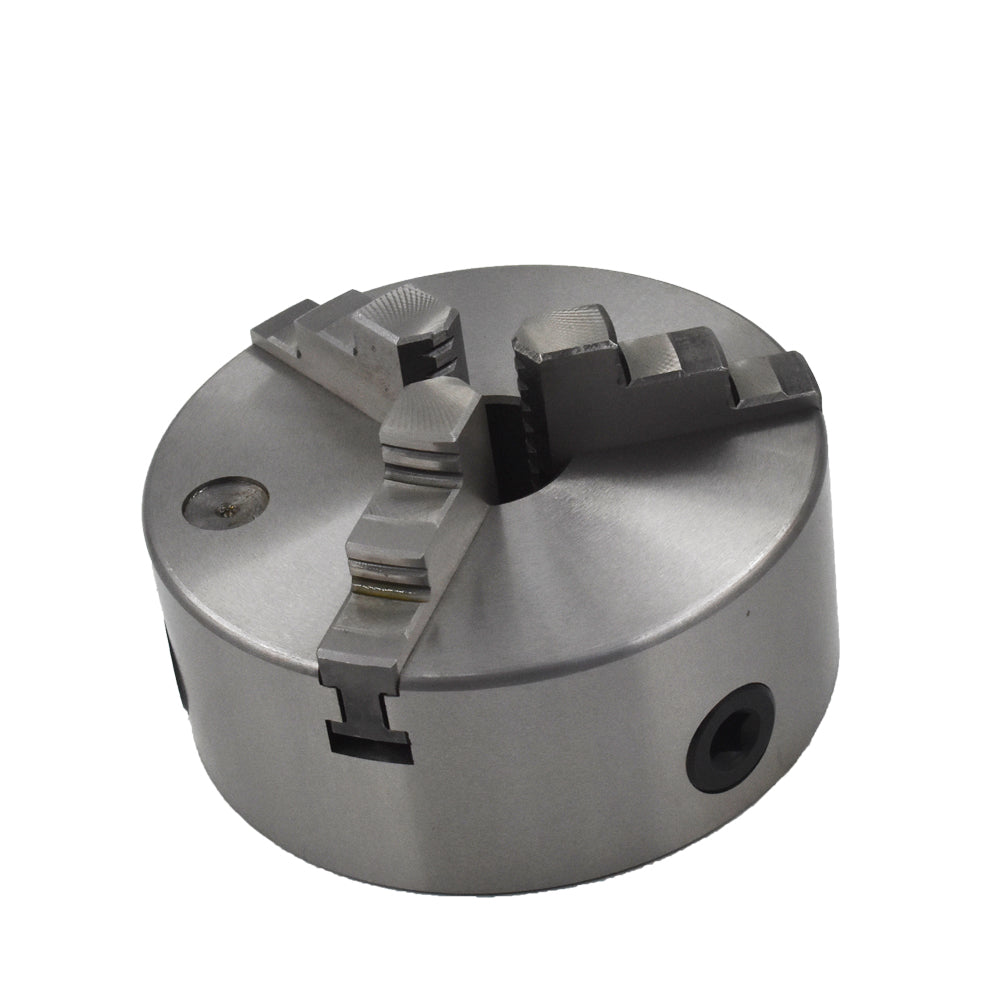

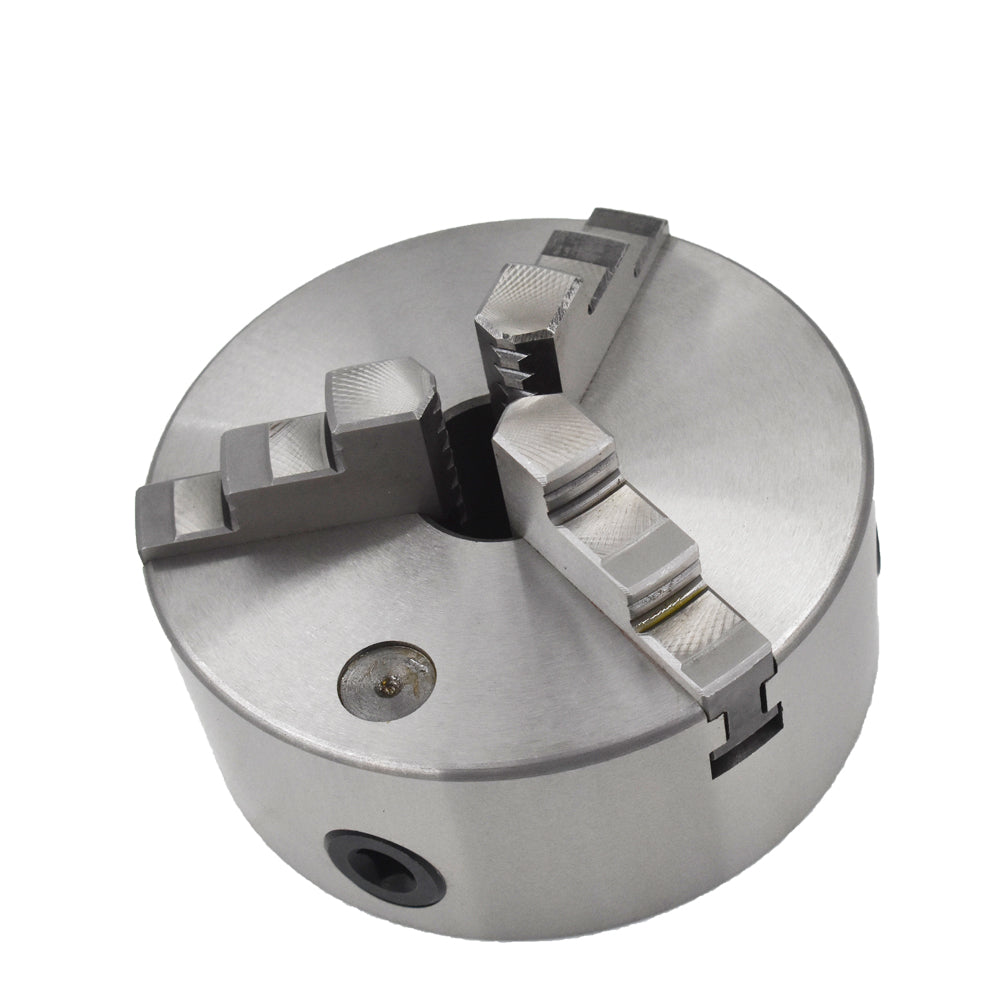

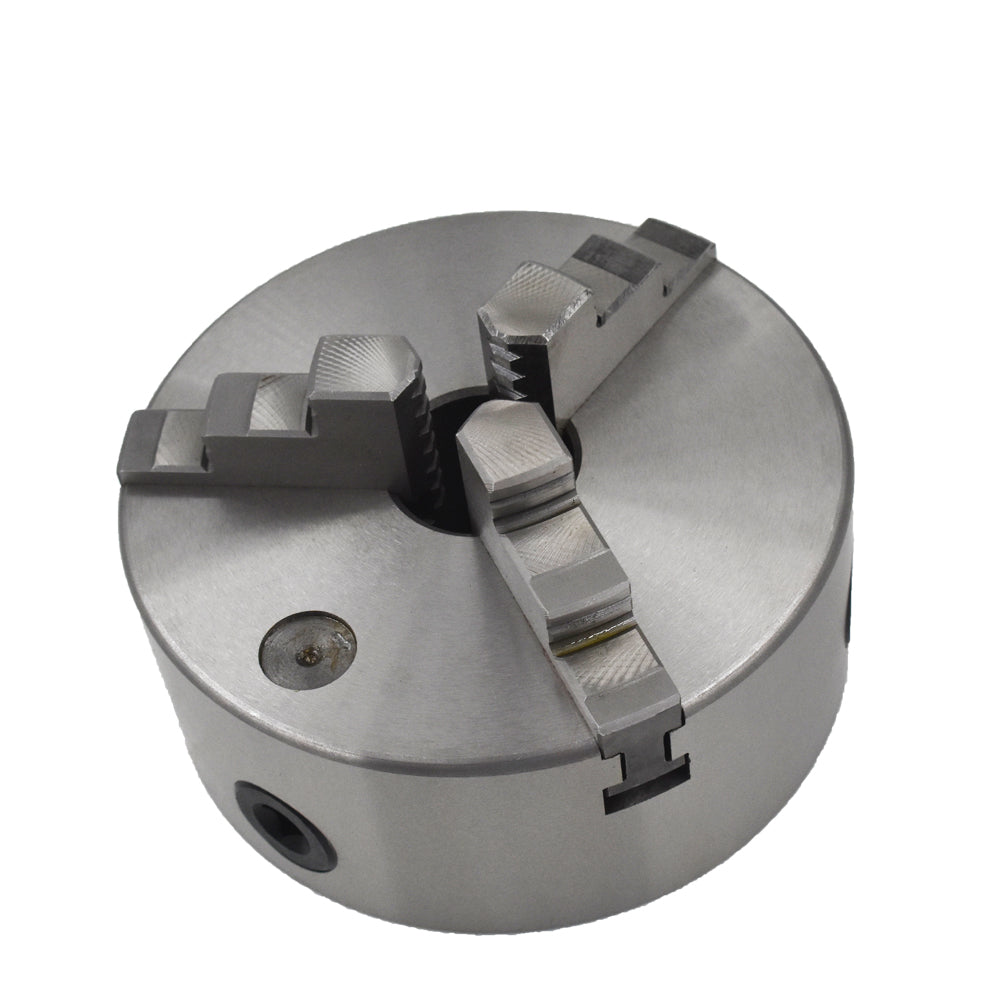

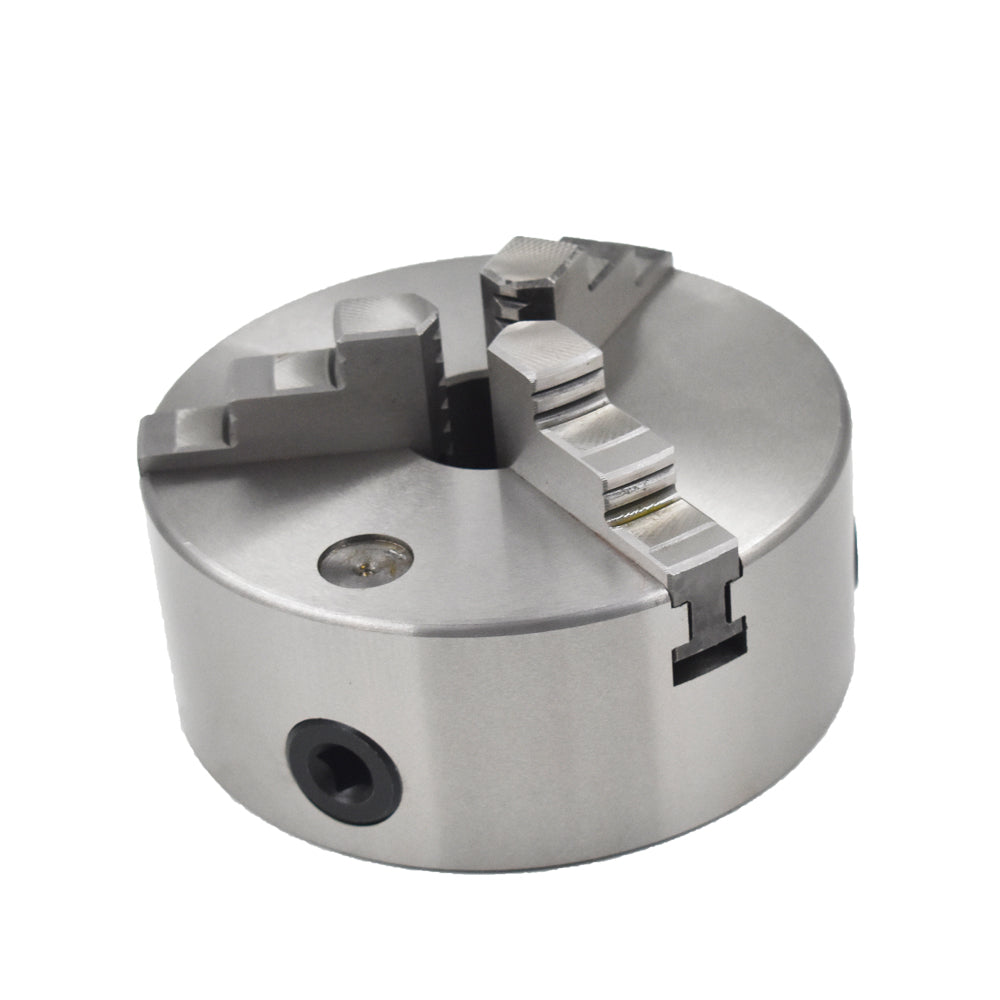

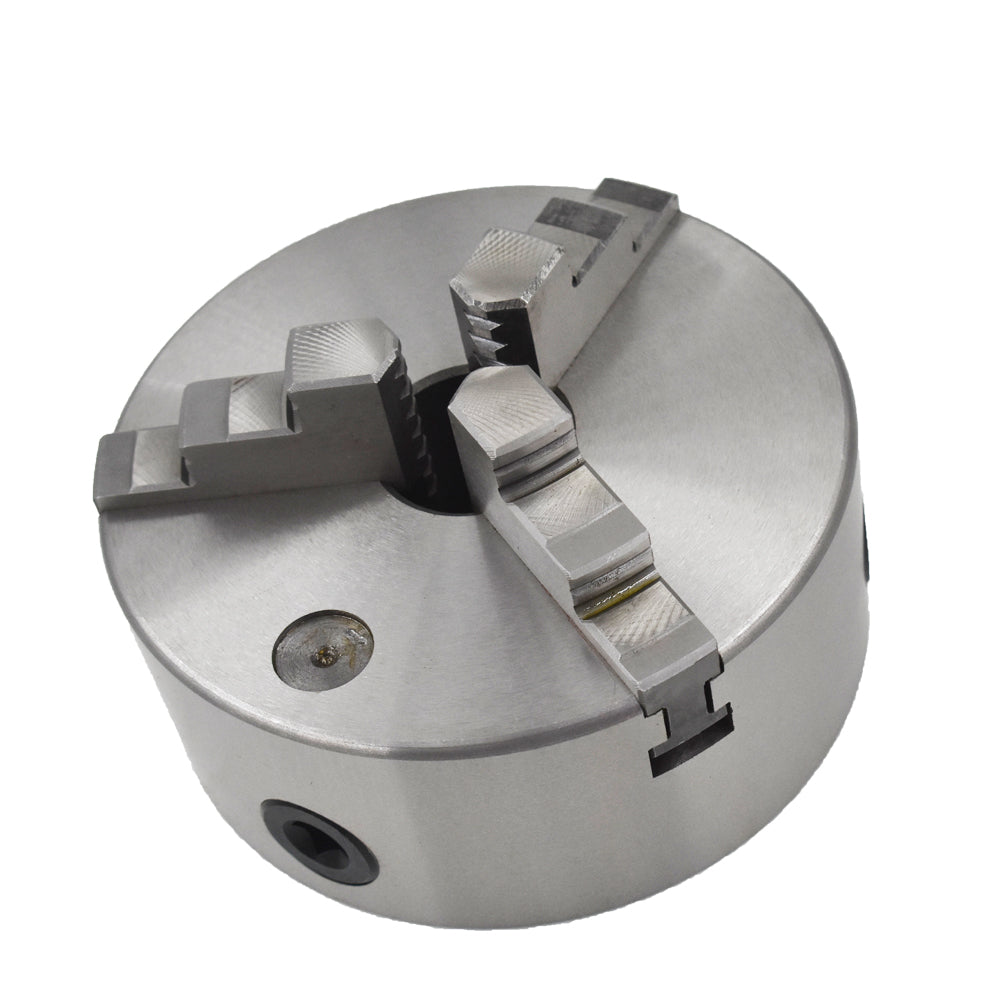

K11-160 Lathe Chuck 6",Metal Lathe Chuck Self-centering 3 Jaw,Lathe Chuck

Specifications

Material: Hardened Steel

Model: K11-160

Jaw: 3 Jaw

High Precision: ≤0.002" / 0.05 mm

Color: Silver

Lathe Chuck:

Size: 6.3" / 160 mm

Outside Diameter: 6.3" / 160 mm

Bolt Circle Diameter: 5.59" / 142 mm

Center Thru Hole Diameter: 1.77" / 45 mm

Chuck Body Thickness: 2.56" / 65 mm

Internal Jaw Clamping Range (A-A1): 0.12"-2.17" / 3-55 mm

Internal Jaw Jamming Range (B-B1): 1.97"-6.3" / 50-160 mm

External Jaw Clamping Range (C-C1): 2.17"-5.7" / 55-145 mm

Accuracy: 0.002" / 0.051 mm

Item Weight: 18.4 lbs

Feature:

Quality Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62.  It has high strength and toughness, compression resistance and durability, and long service life.

High Precision: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation.  The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.

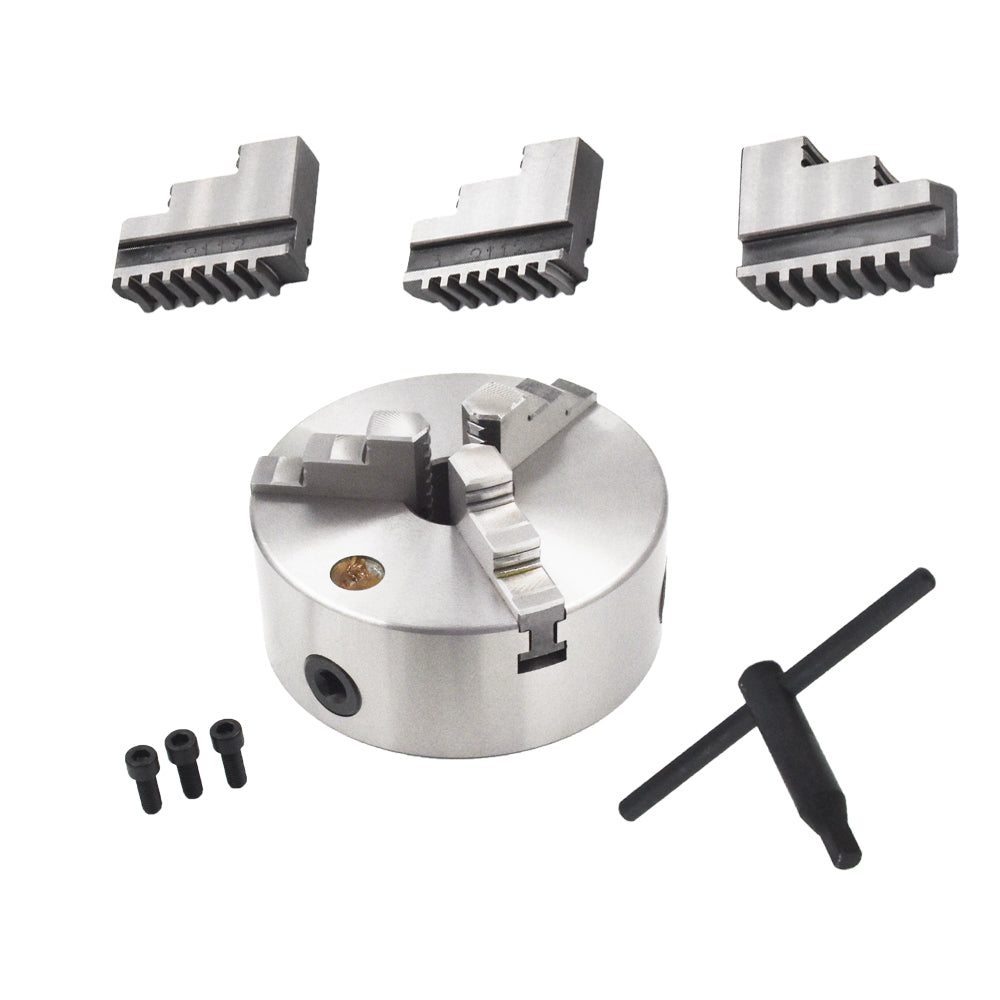

2 Sets of Jaws: This chuck includes two sets of internal and external jaws.  The clamping range of this chuck is between 0.12" / 3 mm - 6.3" / 160 mm, which is suitable for clamping a variety of industrial parts.

Fast Clamping Speed: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation.  It only needs to be installed in the correct order, which is simple, fast, and convenient.

High Adaptability: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.

Package Including??

1 piece K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-Centering 3 Jaw
