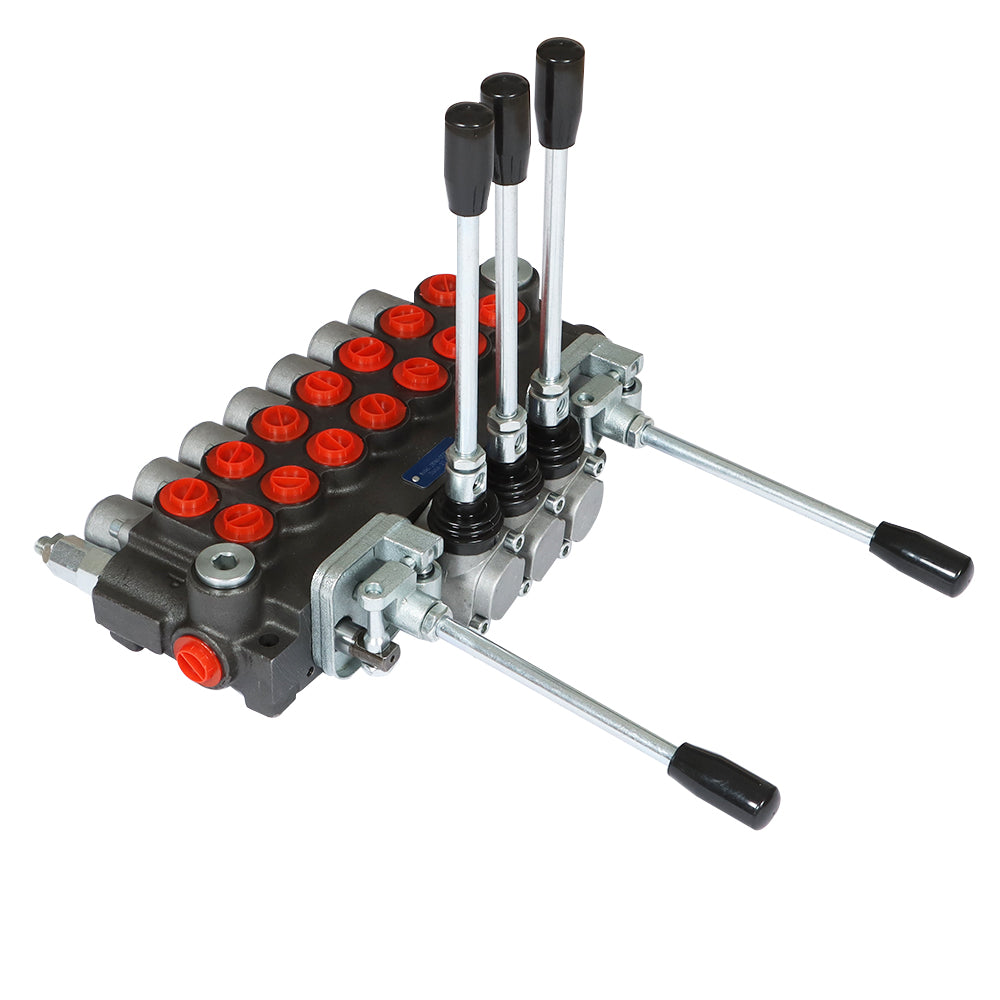

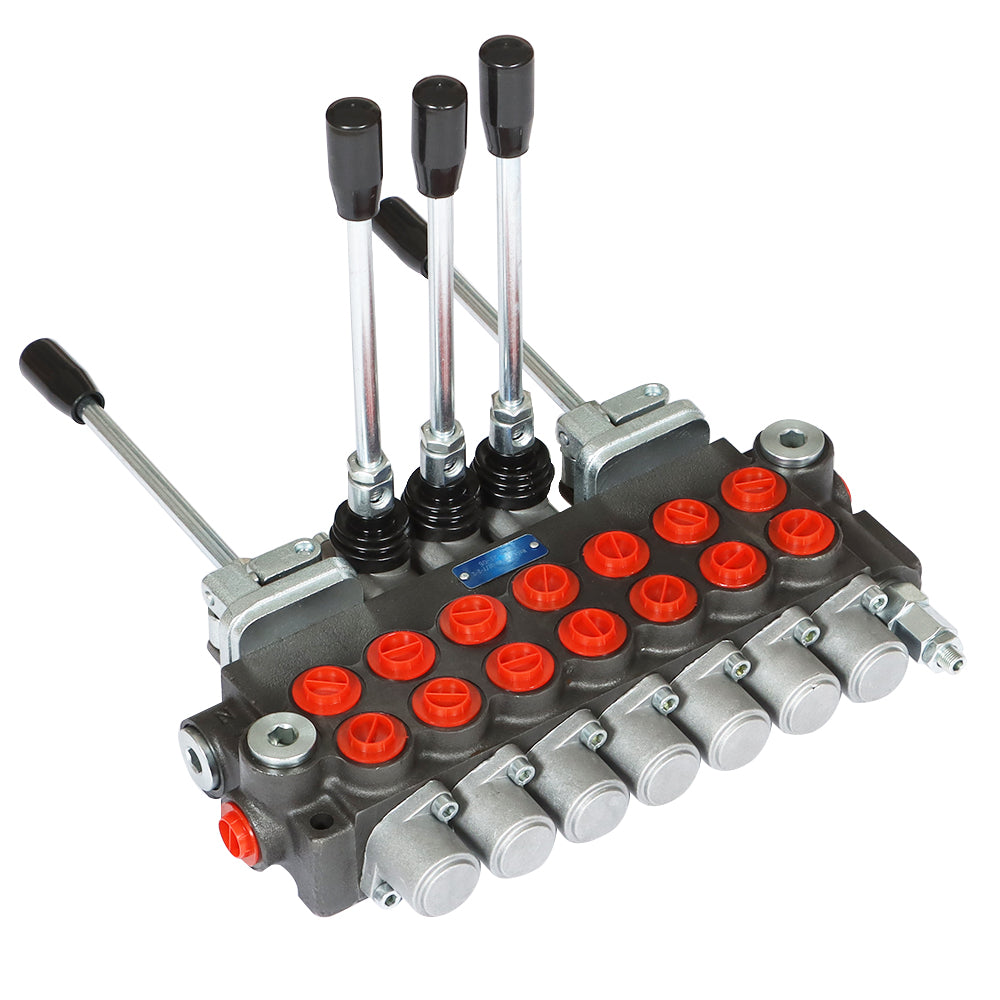

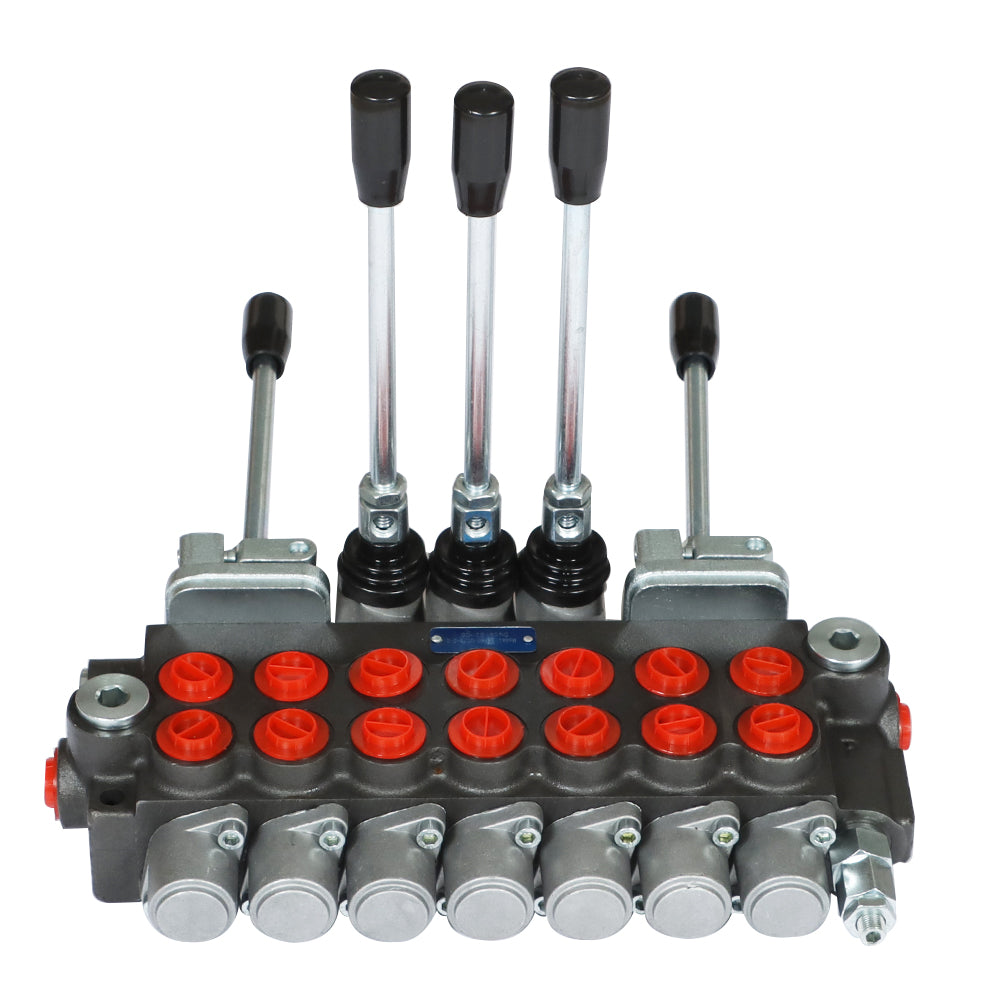

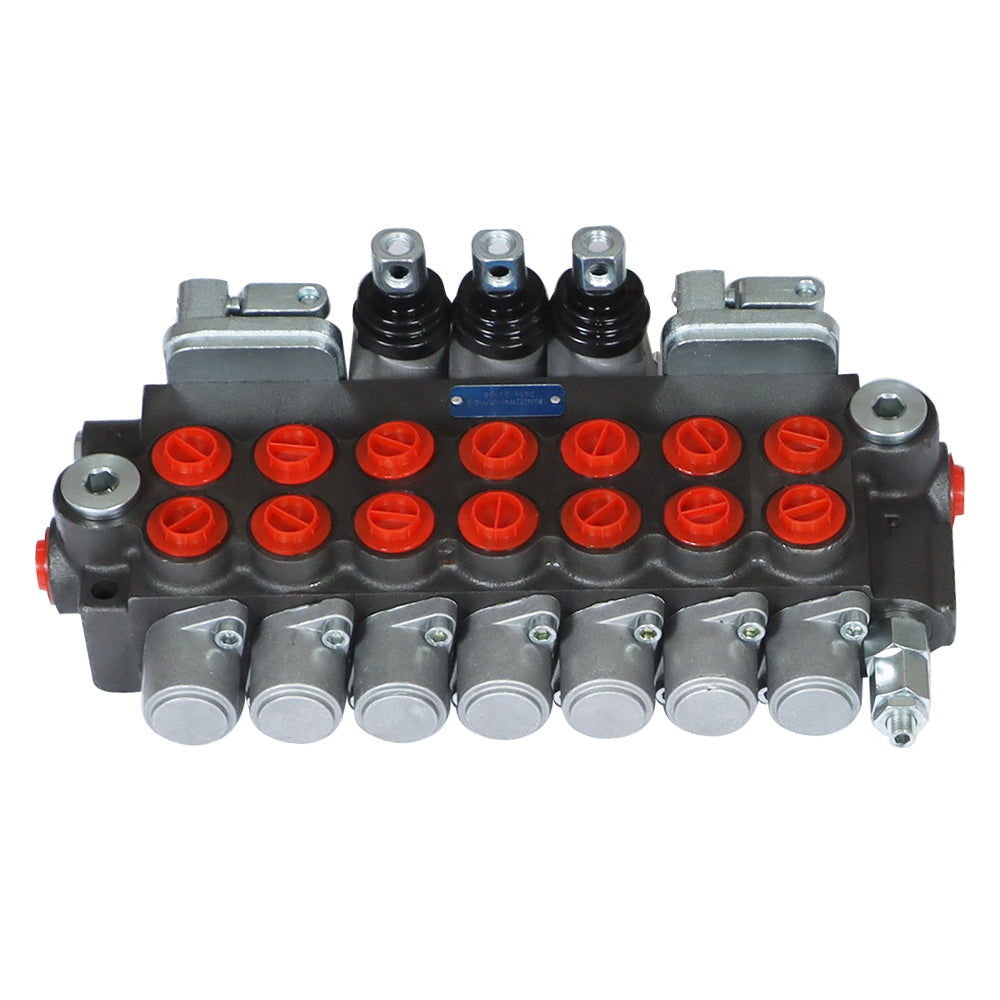

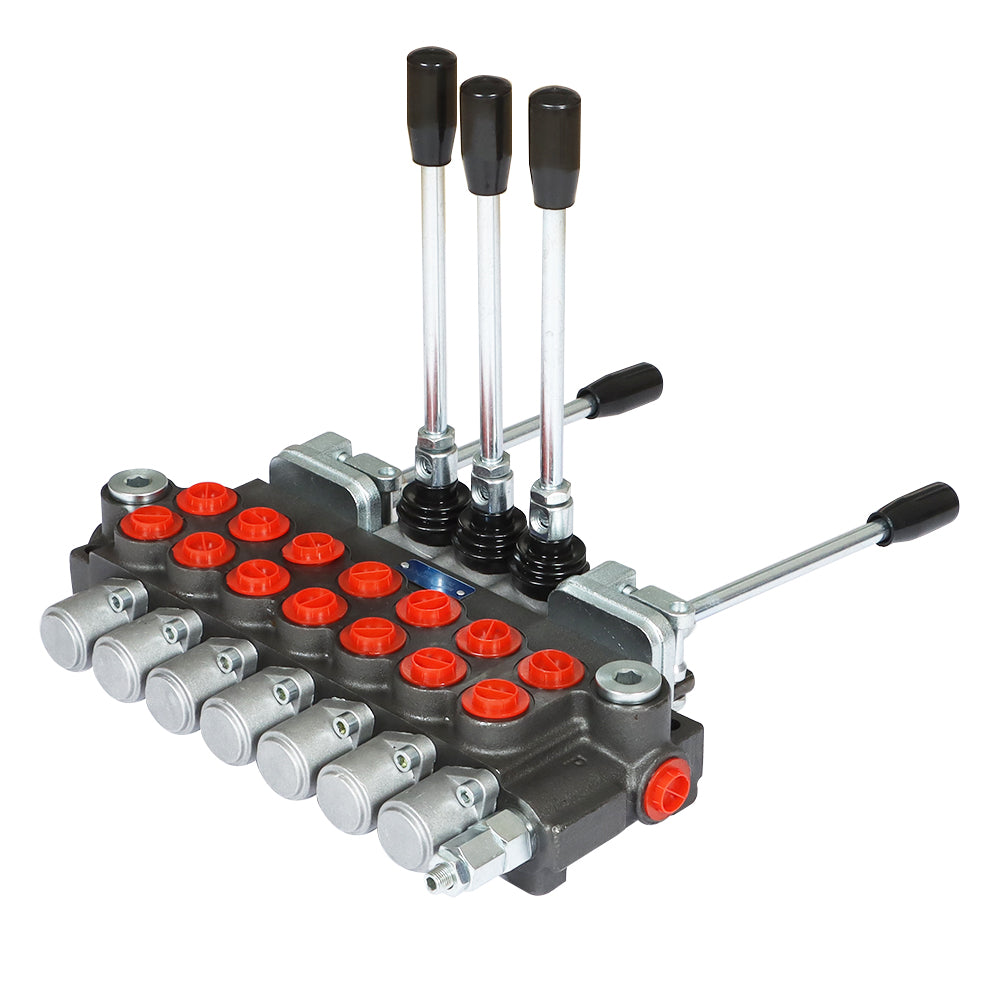

Hydraulic Directional Control Valve 7 Spool 11GPM,40L,BSPP Interface NEW

Application:

• It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction, and well-known industries.
• The distributor is adapted to different types of machines, such as B. agricultural machines, tractors, sprayers, round vehicles, cyclo-loaders, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical specifications:

• Recommended oil flow: 0 - 40 l / min. Example control: two 2-way drives.
• Possibility of serial connection to the existing system (pressure sleeve required).

Control:

• Joystick with five positions (1 - 2 - 0 - 3 - 4) on the spring, i.e. it returns to the vertical:
• Position 0 neutral (joystick positioned vertically) piston rods of both drives are stationary - oil overflows.
• Working position 1 (joystick lever tilted forward) The piston rod of the first actuator extends.
• Working position 2 (joystick lever in an inclined position) The piston rod of the first drive is retracted.
• Working position 3 (joystick lever inclined to the left) The piston rod of the other drive extends.
• Working position 4 (joystick lever inclined to the right) The piston rod of the other drive is retracted.

Connection:

• Pump supply (P1, P2): BSPP 1/2 "internal thread
• Back to the tank (T1, T2): BSPP 1/2 "internal thread
• Sections (A1, A2; B1, B2): BSPP 1/2 "internal thread
• Serial connection (N): BSPP 1/2 internal thread

Pressure range:

• Maximum pressure on the supply: 250bar
• Maximum return pressure: 50 bar
• Maximum pressure on the sections: 300 bar
• The overflow valve is factory-set to 175 bar
• Possibility of self-regulation, full turnover change by 30bar.
