Hydraulic Directional Control 3 Spool Valve 11GPM Double Acting Adjustable US

Feature：

Nominal flow: 11gpm (40l/min)

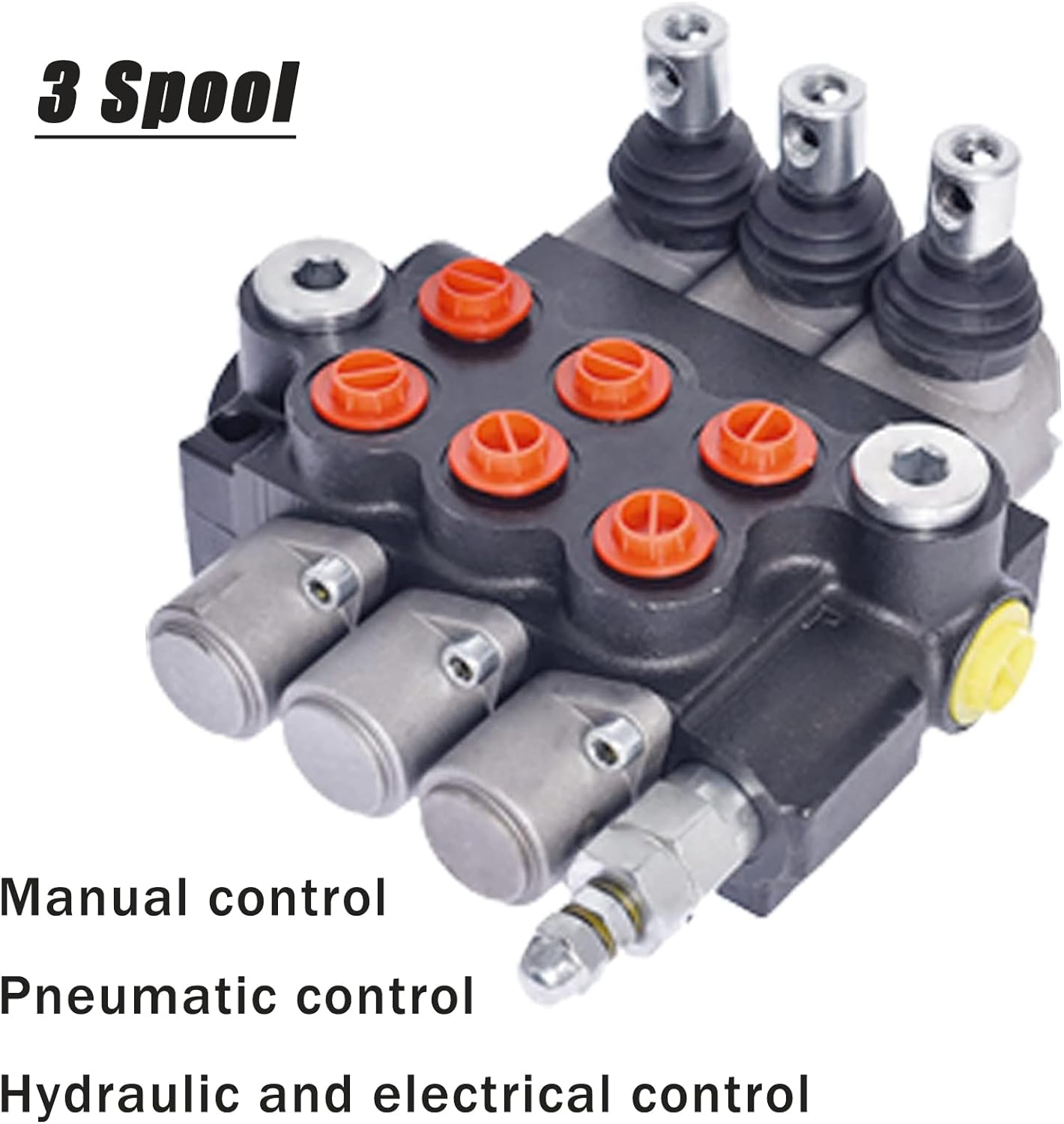

Spool count: 3 Spool

PABTN: 7/8-14 " Unthreaded sealed cylindrical pipe threads

PTN: 7/8-14"

AB: 7/8-14

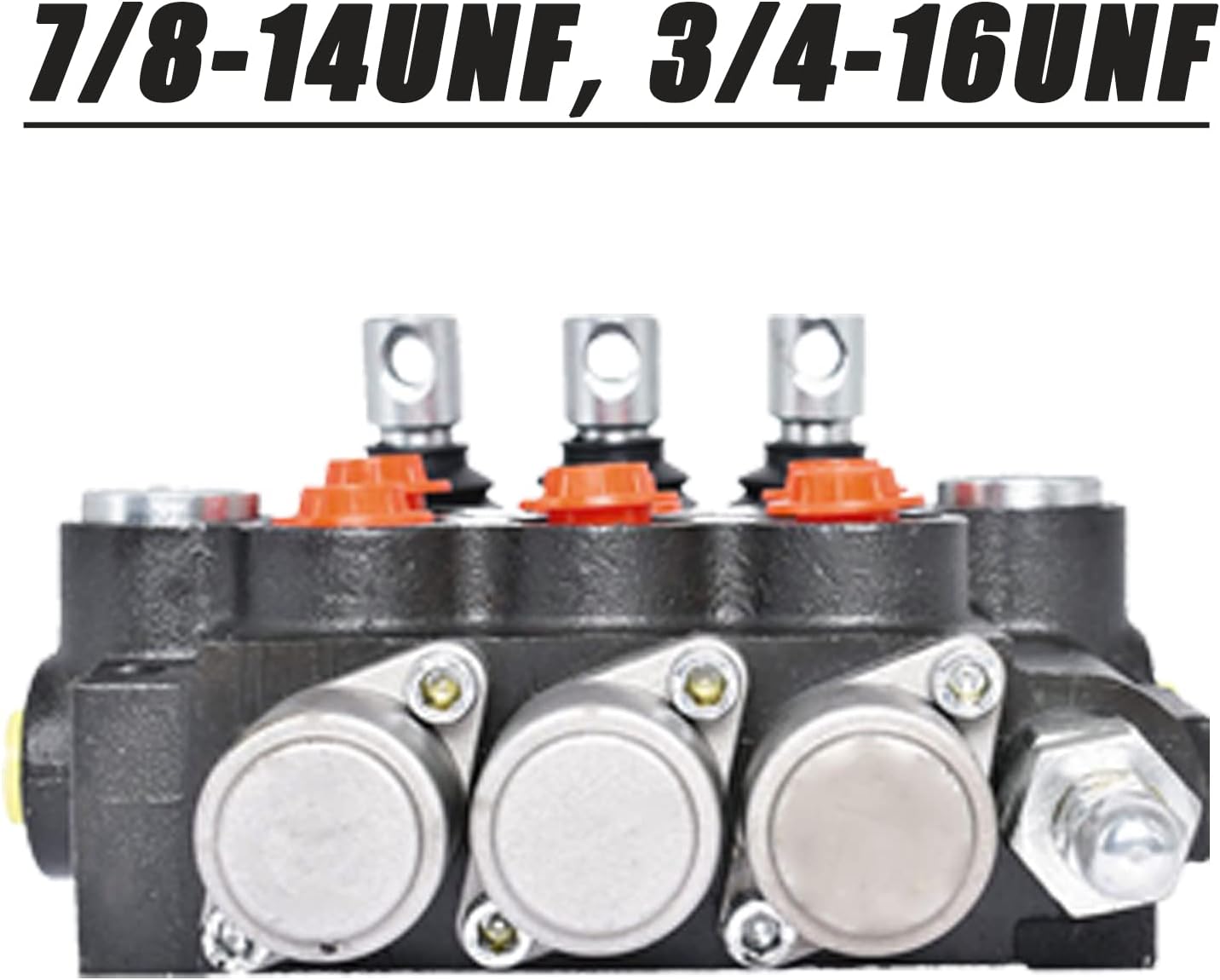

7/8-14UNF

Relief valve: Adjustable

Center system: Open

Weight: 14.6 lb (6.6 kg)

Description：

DOUBLE ACTING： Our hydraulic control valve is made for operating double-acting cylinders.
DURABLE QUALITY： This control valve comes with 3 spools and 3/8 " Unthreaded sealed cylindrical pipe threads O-ring in/out ports, with cast iron construction for long-time use.

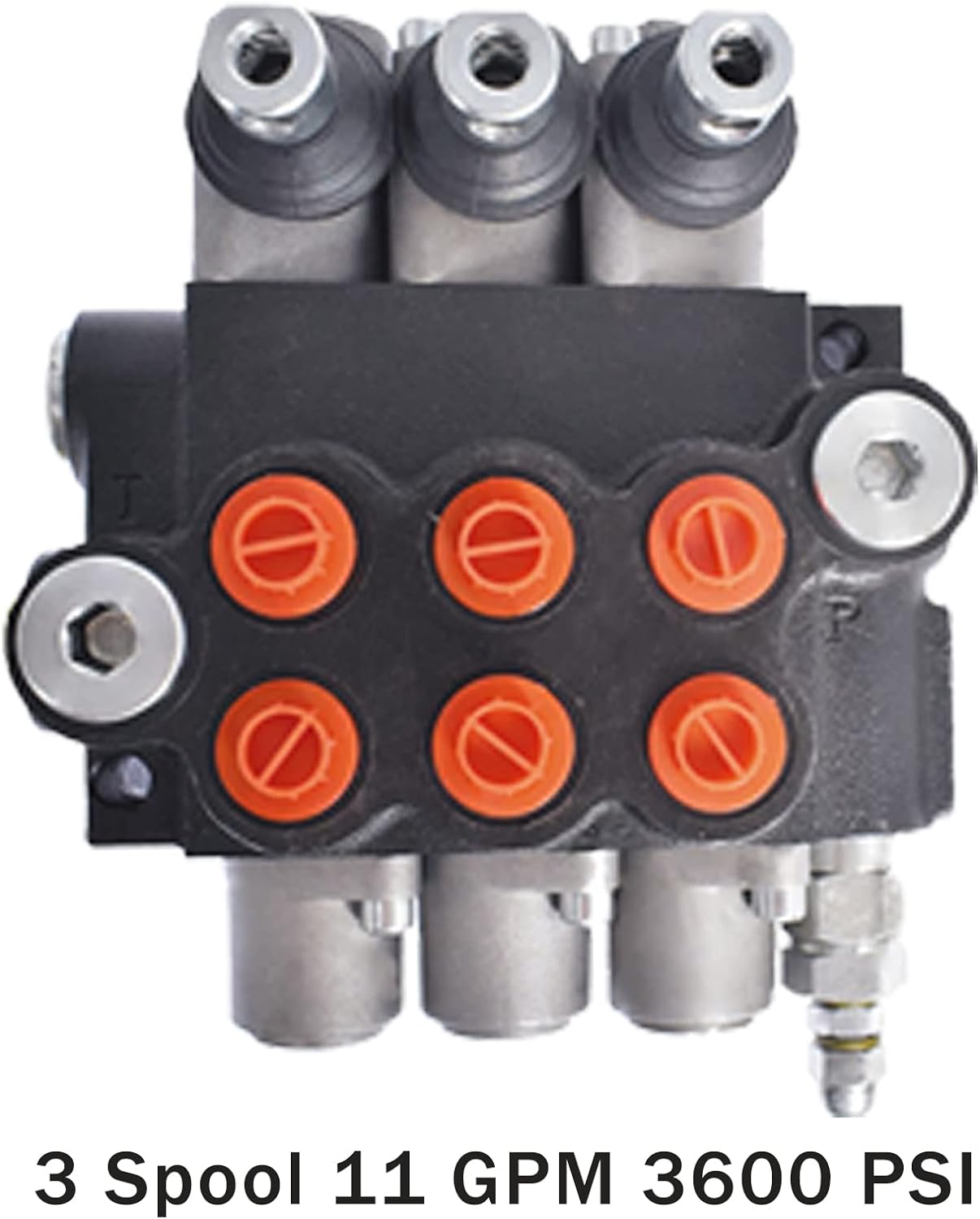

HIGH PERFORMANCE：This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
SPRING RETURN： All spool valves come with spring return, which can return to the neutral position.
WIDELY USED：This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
Solid Construction：Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.

High Performance：The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

Spring Return：All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

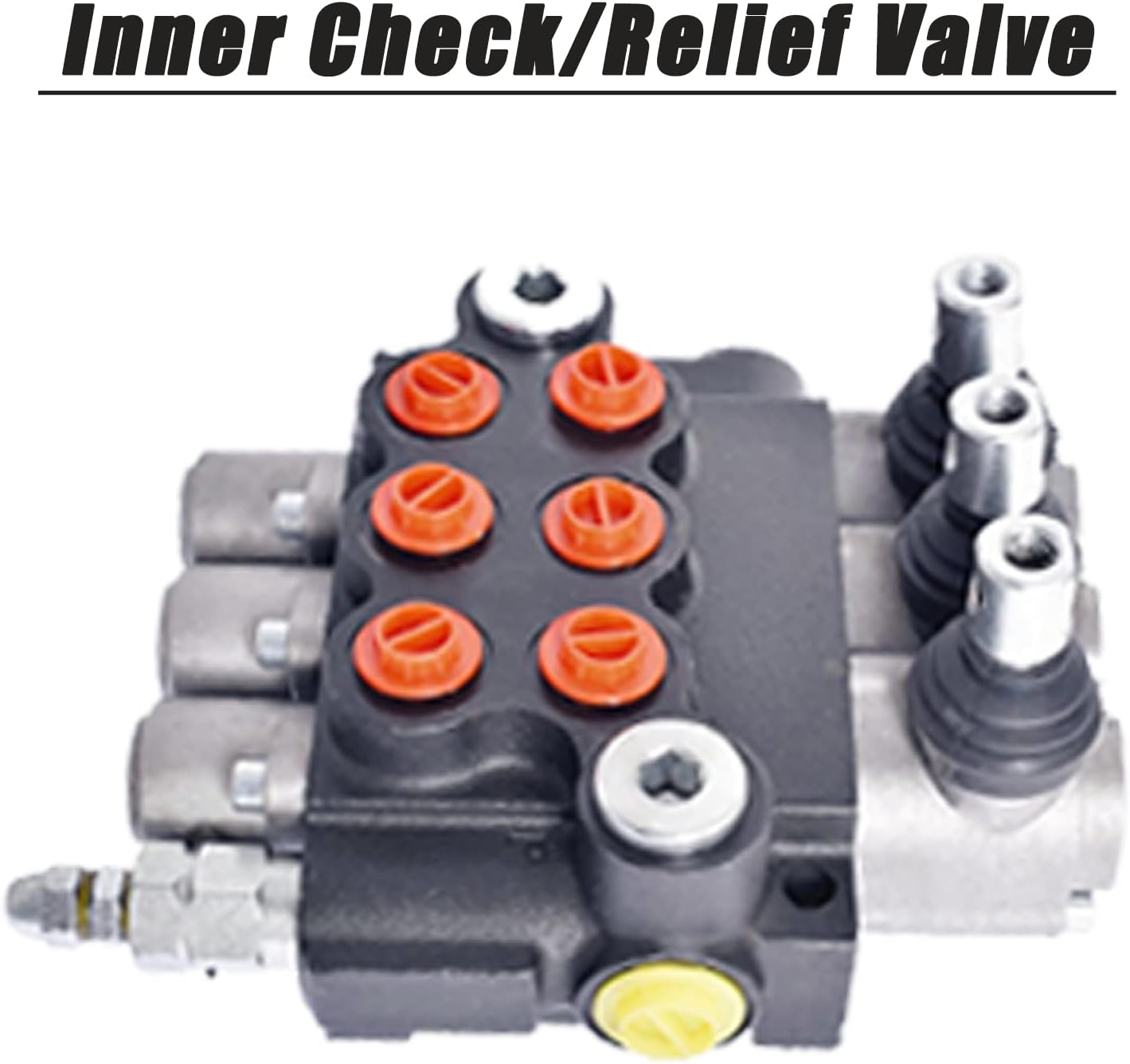

Inner Check/Relief Valve：The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.

Wide Application：The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.

Package Included：

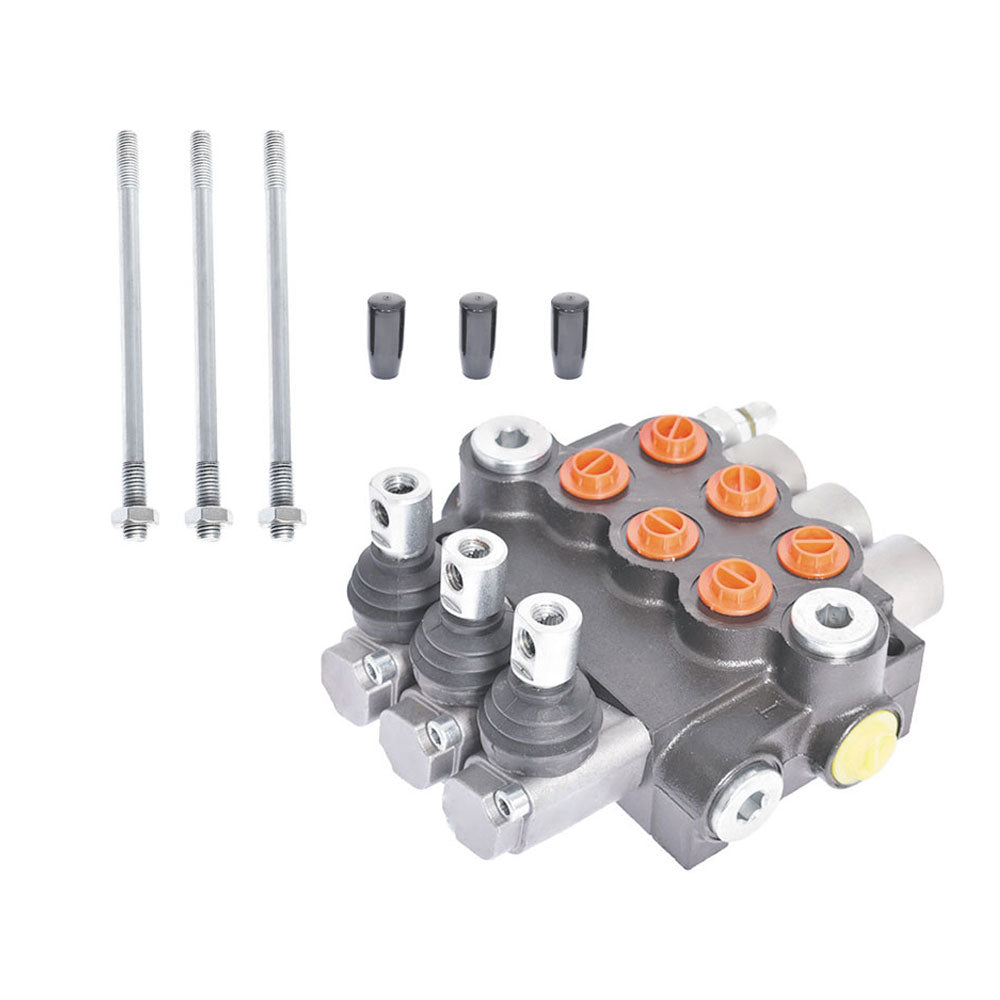

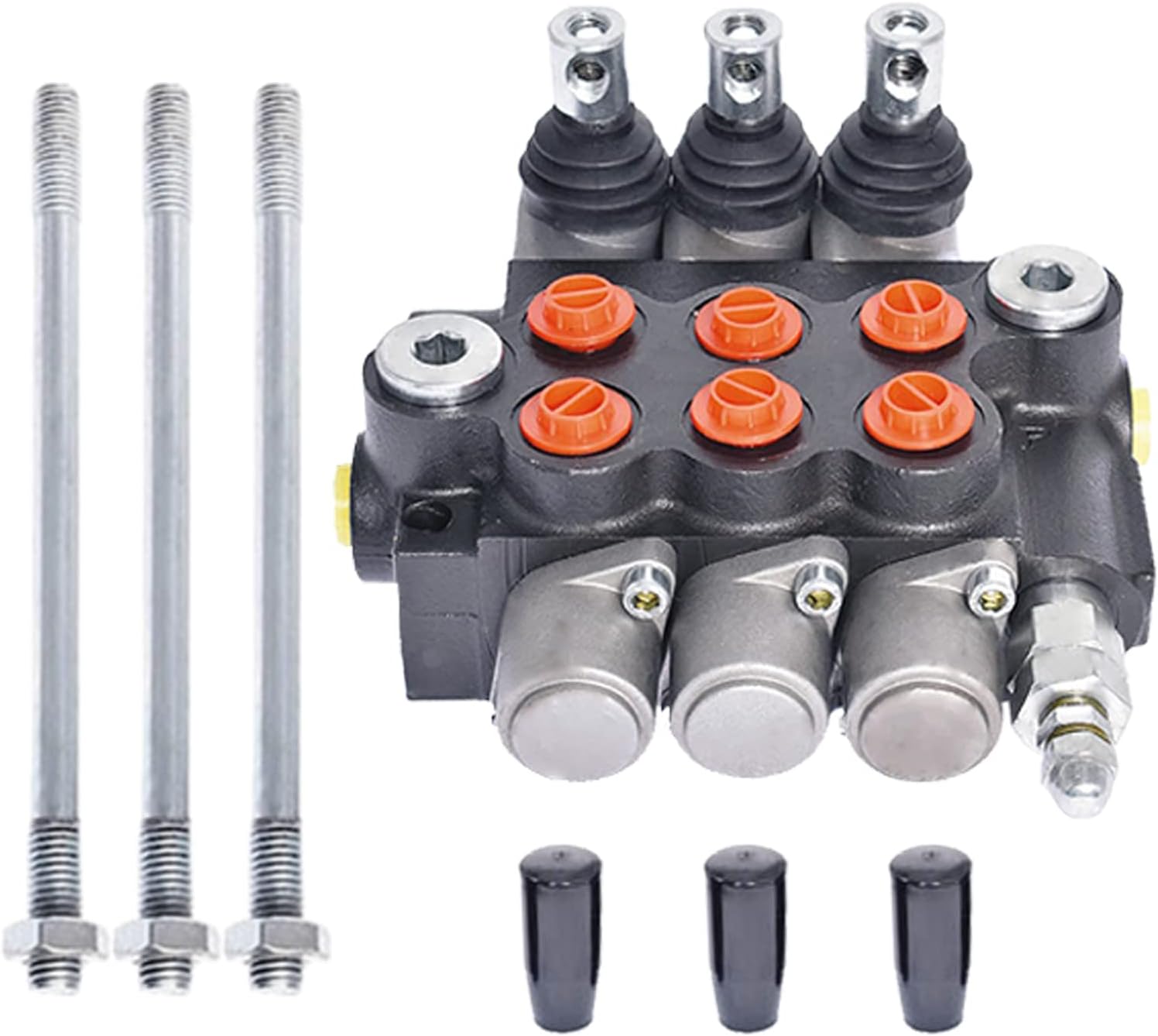

1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM

Note：

Please make sure that the model and appearance of your equipment are exactly the same as our products.

It is the customer's responsibility to buy the right products. If you are not sure, please contact us in time.

Thank you for your cooperation
