Go Kart Rear Live Axle Kit 29" 32" 44" Sprocket+Hub+Brake Assembly+chain+Disc

Please make sure the size you choose is the one you really need before ordering, thanks!

Specification:

If you buy------29" Rear Axle Kit+T8F chain +brake assembly

• Chain Sprocket:T8F 58T
• Fit for many 50cc 70cc 90cc atv quads, such as Atomik , Motowork, DHZ , LEI etc.
• This is a complete rear axle kits for gokart.
• Perfect for DIY gokart projects or rebuilds.
• It will come like the photo shows.

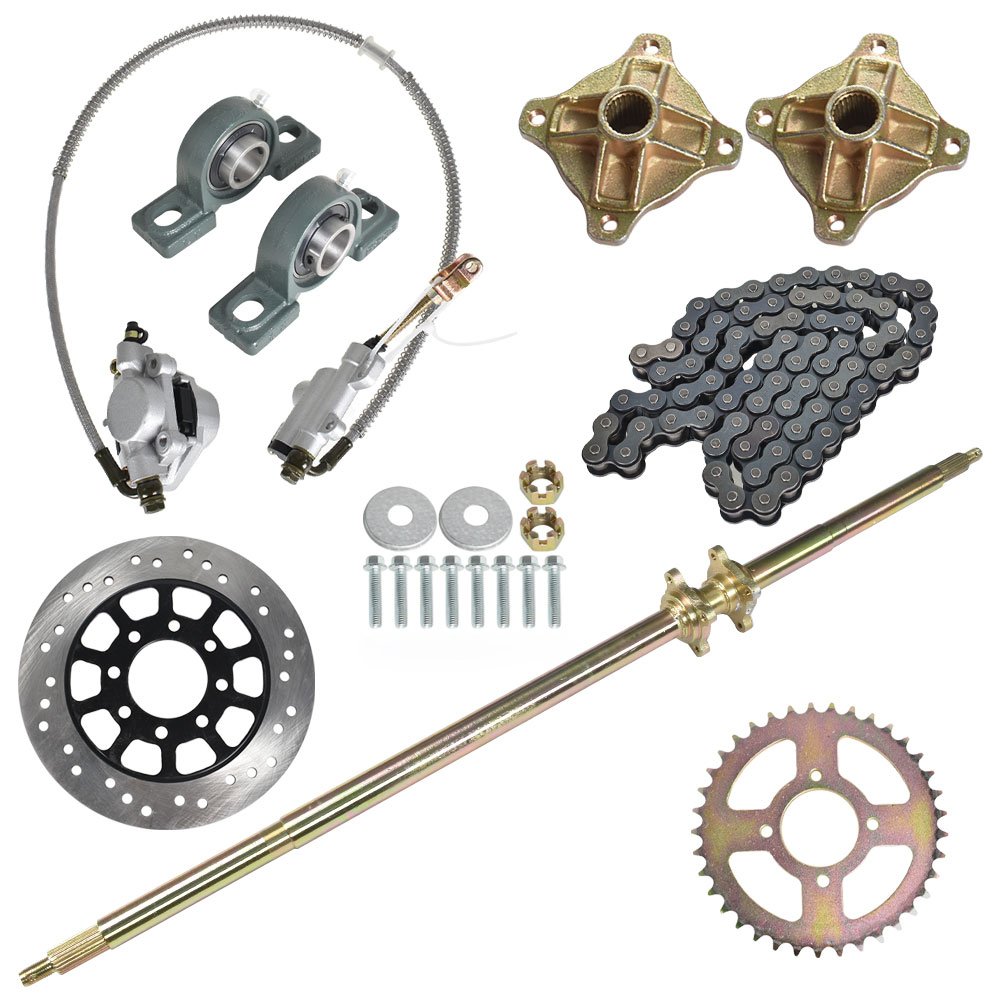

Package includes :

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of wheel hubs+T8F Chain+Brake assembly

If you buy------29" Rear Live Axle Kit + Brake Assembly

• This is a live axle kit for DIY rebuild Go Kart, ATV, Quad and Drift Trikes
• Axle Overall length (from end to end): 740mm (29 1/8")
• The thickest part of the axle is 22mm (7/8")
• Chain Sprocket: T8F 58 Teeth
• Brake Disc Diameter: 160mm(6 1/4")
• Bearing model: 6904RS
• Spline teeth: 17T and 19T

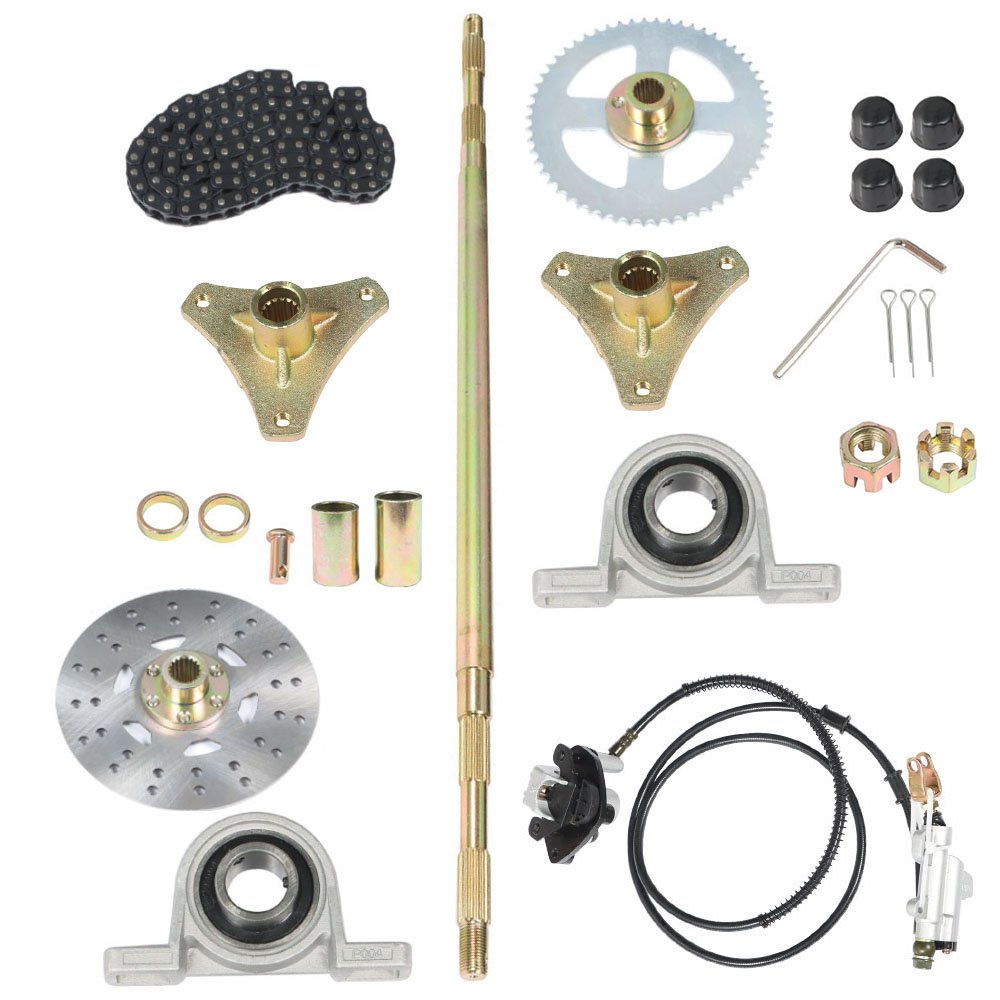

Package includes :

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of 4 bolt wheel hubs+Brake Assembly

If you buy------29"Rear Live Axle Kit

• Fit for many 50cc 70cc 90cc atv quads,such as  Atomik , Motowork, DHZ , LEI etc.
• This is a complete rear axle kits for gokart.
• Perfect for DIY gokart projects or rebuilds.
• It will come like the photo shows

Package includes:

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of  wheel hubs

If you buy------ 32"Rear Axle Kit +428 chain+Brake assembly

• This is a live axle kit for DIY rebuild Go Kart, ATV, Quad and Drift Trikes
• Axle Overall length (from end to end): 815mm (32")
• The thickest part of the axle is 30mm (1.2")
• Chain Sprocket: 428  37 Teeth
• Brake Disc Diameter: 190mm(7.5")
• Spline teeth: 24T and 28T

Package includes :

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of 4 bolt wheel hubs+428 chain+Brake assembly

If you buy------ 32"Rear Axle Kit +Brake assembly

• This is a live axle kit for DIY rebuild Go Kart, ATV, Quad and Drift Trikes
• Axle Overall length (from end to end): 815mm (32")
• The thickest part of the axle is 30mm (1.2")
• Chain Sprocket: 428  37 Teeth
• Brake Disc Diameter: 190mm(7.5")
• Spline teeth: 24T and 28T

Package includes :

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of 4 bolt wheel hubs+Brake assembly

If you buy------ 32"Rear Axle Kit

• This is a live axle kit for DIY rebuild Go Kart, ATV, Quad and Drift Trikes
• Axle Overall length (from end to end): 815mm (32")
• The thickest part of the axle is 30mm (1.2")
• Chain Sprocket: 428  37 Teeth
• Brake Disc Diameter: 190mm(7.5")
• Spline teeth: 24T and 28T

Package includes :

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of 4 bolt wheel hubs

If you buy------44" Live Axle Kit +530 Chain+Brake assembly

Description:

• Type: Rear Axle Kit
• Axle Overall length (from end to end): 1128mm (44.4")
• The thickest part of the axle is 33mm (1.3")
• Chain Sprocket: 530  37 Teeth
• Brake Disc Diameter: 220mm(8.66")
• Other Dimensions: As pictures shown
• Note: Installation Instructions is not included. Professional installation is recommended.

Package Included:

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of 4 bolt wheel hubs+Chain+Brake assembly

If you buy------44" Rear Axle Kit

Description:

• Type: Rear Axle Kit
• Axle Overall length (from end to end): 1128mm (44.4")
• The thickest part of the axle is 33mm (1.3")
• Chain and Sprocket: 530 37 Tooth
• Brake Disc Diameter: 220mm(8.66")
• Other Dimensions: As pictures shown
• Note: Installation Instructions is not included. Professional installation is recommended.

Package includes:

Rear Axle + Pair of pillow blocks + Sprocket + Brake Disc + Pair of 4 bolt wheel hubs
