For Yamaha Warrior 350 Cylinder Piston Gasket Top End Kit 1987-2004 ATV

In stock
No reviews
$79.95
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee

Checking Vehicle Fit

Have Questions?
Market@labworkauto.com
Description Reviews

Features:

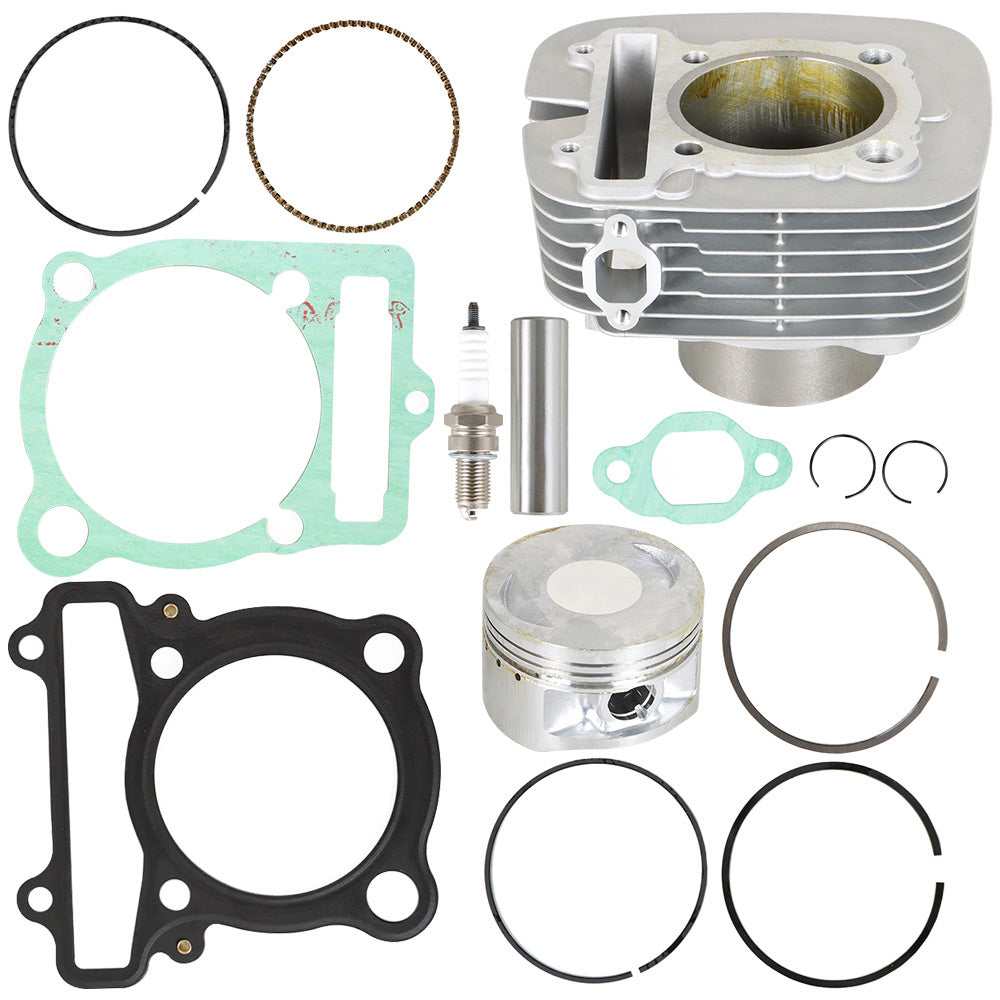

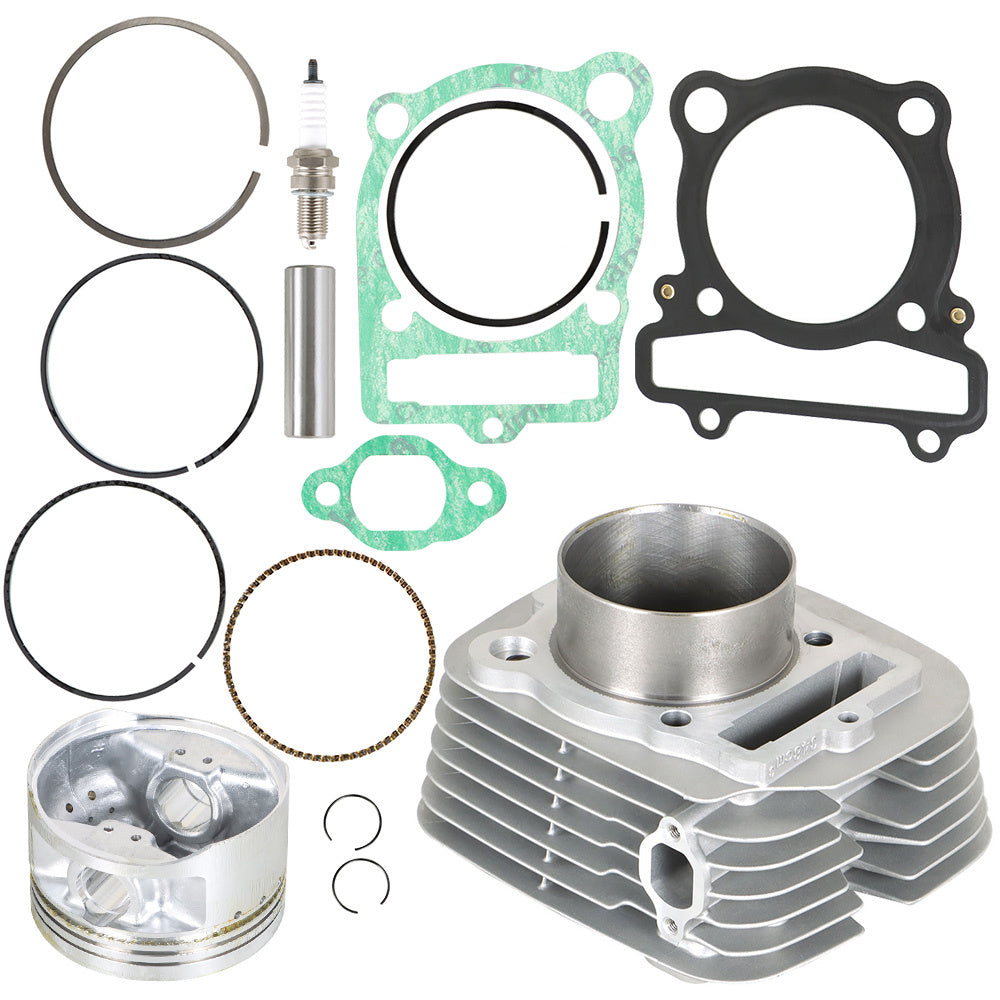

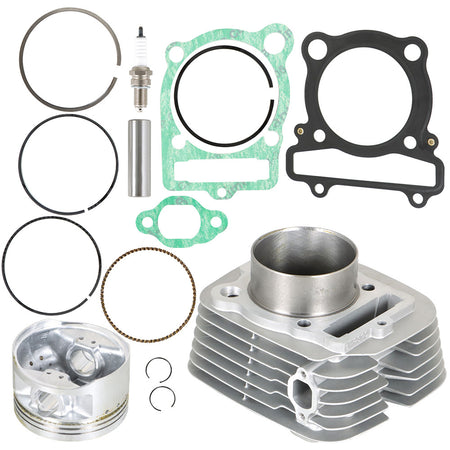

  • Kit includes piston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured).
  • Cast piston has super-high silicone content for additional strength.
  • Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
  • Piston dome is anodized for superior heat resistance and longer lifespan.

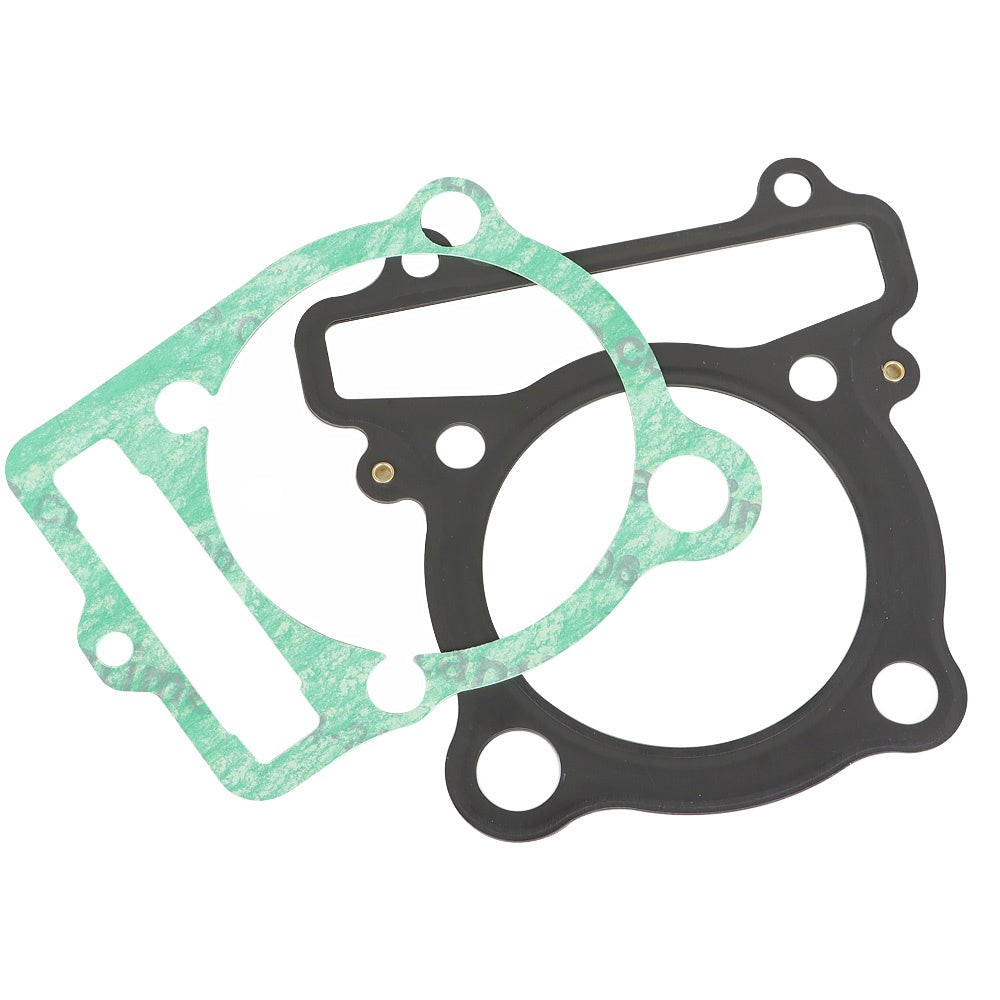

  • The gaskets use performance materials to increase durability and provide greater reliability.
  • Includes all gaskets pictured to rebuild top end.
  • Kit is for standard bore size - 83.00mm.
  • Piston is 82.95mm.
  • All of the components within this kit are bolt-on ready for a hassle free installation.



Specifics:

  • Condition: Aftermarket 100% Brand New
  • Quantity: 1 Set
  • Piston Material: Forged Aluminum
  • Actual Displacement: 348 cc
  • Bore size: STD 83 mm
  • Piston diameter: 82.95 mm
  • Piston height: 58.8 mm
  • Piston pin diameter: 19 mm
  • Piston pin height: 65 mm
  • Stroke: 64.50 mm
  • Replaces Part Number:
  • Cylinder: 1UY-11310-03-00, 5YT-11310-00-00, 4WU-11310-00-00
  • Piston: 1YW-11631-01-Y0
  • Piston Pin: 55V-11633-00-00
  • Piston Ring Set: 4GB-11610-00-00
  • Head Gasket: 1UY-11181-01-00
  • Base Gasket: 4KB-11351-00-00
  • 2x Circlips: 93450-19095-00



Fitment:

  • Fit for Yamaha Big Bear 350 4x4 (YFM350FW) 1987 - 1999
  • Fit for Yamaha Big Bear 350 2x4 (YFM350U) 1996 - 1999
  • Fit for Yamaha Bruin 350 4x4 (YFM350FA) 2004 - 2006
  • Fit for Yamaha Bruin 350 2x4 (YFM350A) 2004 - 2006
  • Fit for Yamaha Grizzly 350 2x4 (YFM350G) 2007 - 2011
  • Fit for Yamaha Grizzly 350 4x4 (YFM350FG) 2007 - 2014
  • Fit for Yamaha Grizzly 350 4x4 IRS (YFM350FGI) 2007 - 2011
  • Fit for Yamaha Moto-4 350 (YFM350ER) 1987 - 1995
  • Fit for Yamaha Raptor 350 (YFM350R) 2004 - 2013
  • Fit for Yamaha Warrior 350 (YFM350X) 1987 - 2004
  • Fit for Yamaha Wolverine 350 4x4 (YFM350FX) 1995 - 2005
  • Fit for Yamaha Wolverine 350 2x4 (YFM350X) 2006 - 2009
  • (Compatibility Chart is for Reference ONLY!!!)
  • (Please Compare with Your faulty unit and the image we provided to Decide Fitment)



Package Includes:

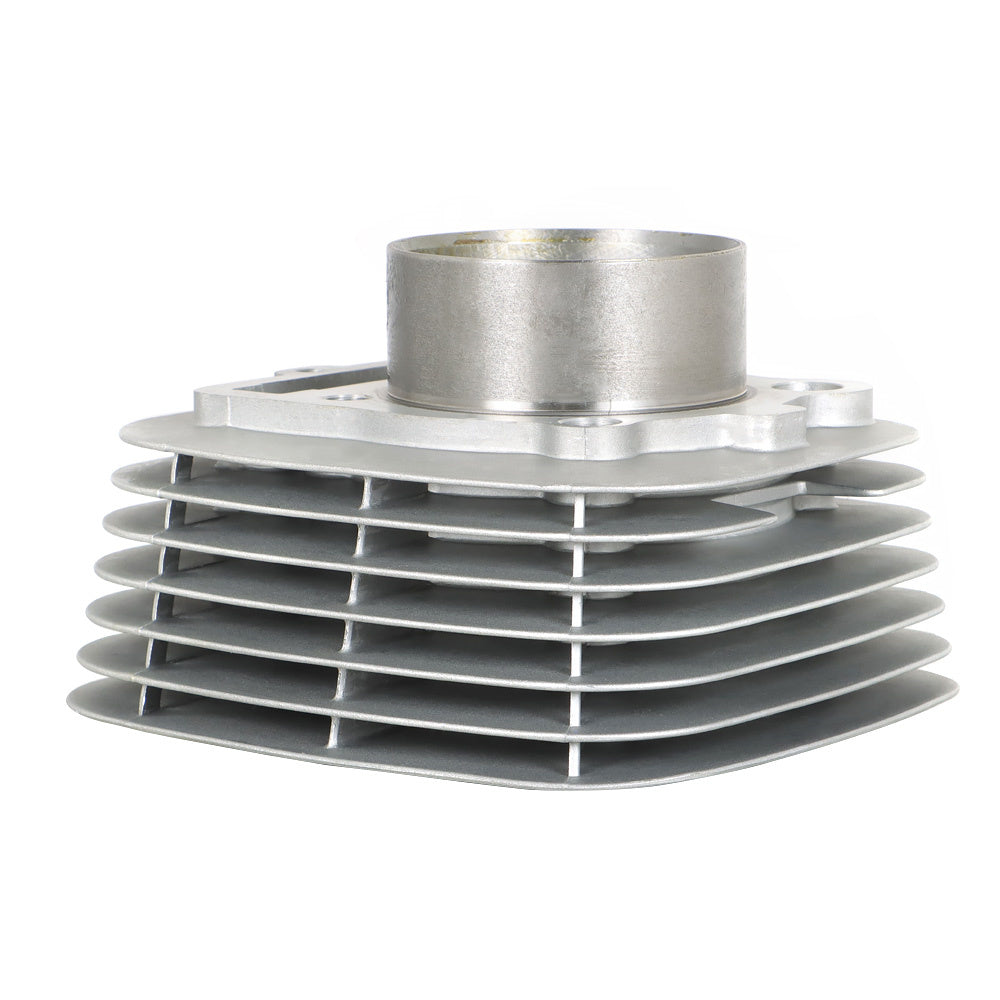

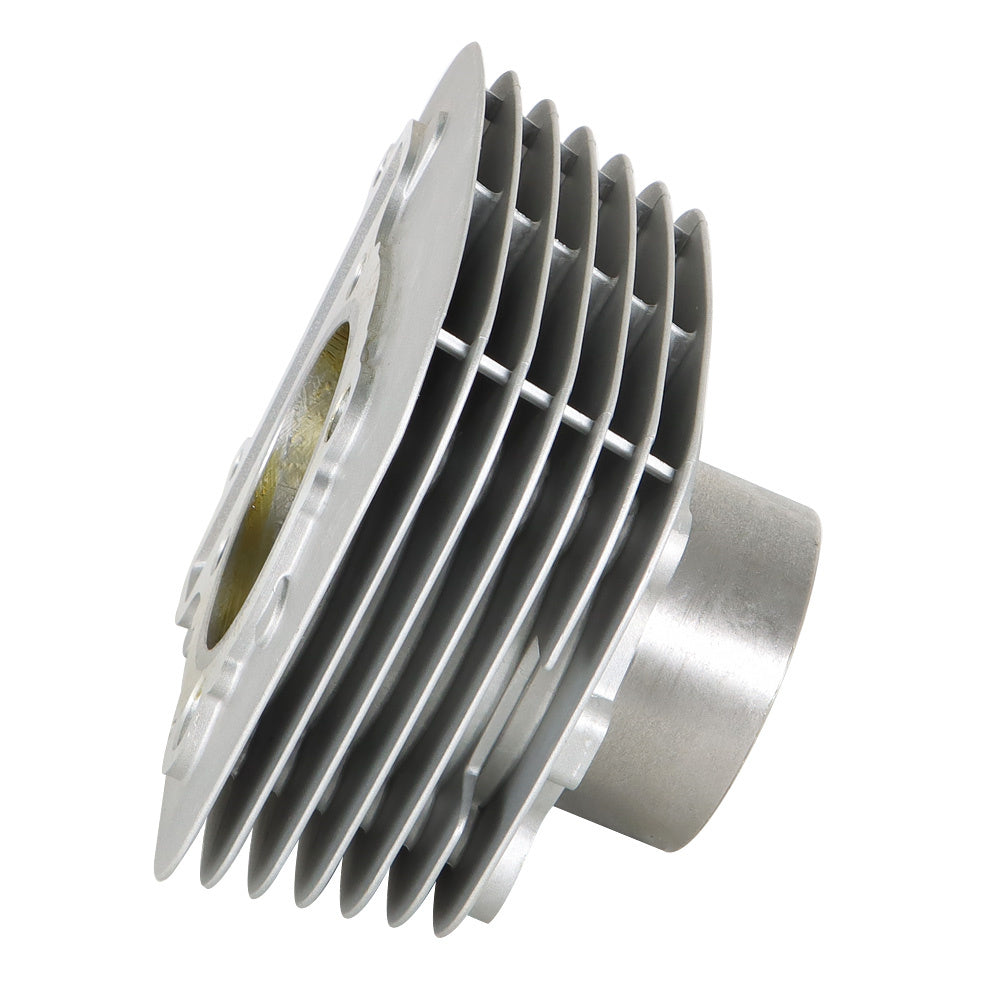

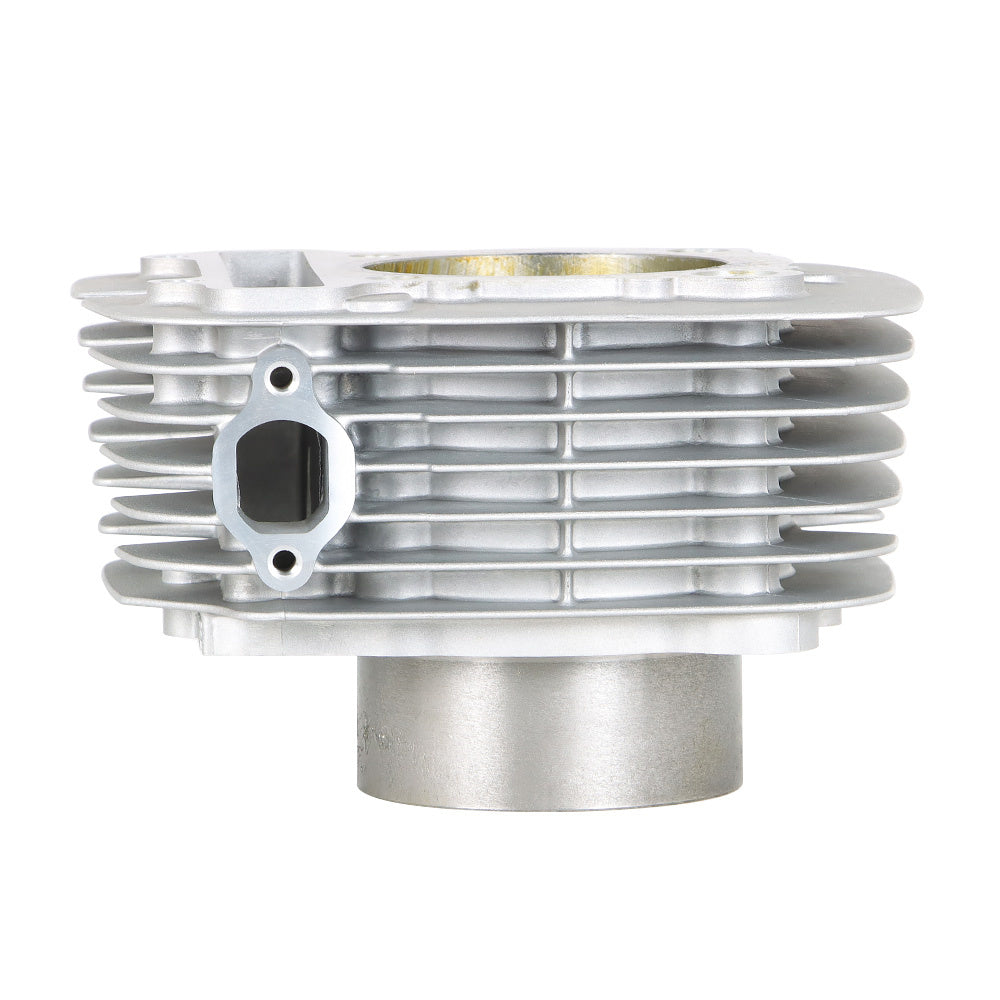

  • 1x Cylinder
  • 1x Piston
  • 1x sets of Rings
  • 1x Wristpin
  • 2x Circlips
  • 1x Intake Gasket
  • 1x Cylinder Head Gasket
  • 1x Cylinder Base Gasket
