For Yamaha Kodiak 400 Grizzly 400 YFM 400 4x4 Cylinder Piston Gasket Top End Kit

Description：
1. 100%New, Never used or installed
2. Complete Standard Sized Replacement Cylinder Kit
3. Cylinder Material: Cast Aluminum
4. Part Type: Top End Repair Kit
5. Improved Casting Design Enhances Intake Porting Capability
6. Professional Installation is Highly Recommended (No Instruction Included)

Specifics:
Condition:Aftermarket 100% Brand New
Actual Displacement: 400cc
Bore Size: STD 84.50 mm
Piston diameter: 84.50 mm
Piston height: 52.30 mm
Piston pin diameter: 20 mm
Piston pin height: 58 mm

Fitment:
For Yamaha Kodiak 400 2000-2006
For Yamaha Grizzly 400 2007-2008

Replaces Part Number:
Cylinder: 5GH-11310-00-00
Piston: 5GH-11631-00-00
Piston Ring Set: 5GH-11603-00-00
Wristpin: 3LD-11633-00-00
Circlip: 93450-22027-00
Head Gasket: 5GH-11181-00-00
Base Gasket: 5GH-11351-00-00
Chain Tensioner Gasket: 3GD-12213-00-00
Cylinder Head O-Ring: 93210-89447-00
Radiator Hose O-Ring: 93210-33786-00
Clutch O-Ring: 93210-18322-00

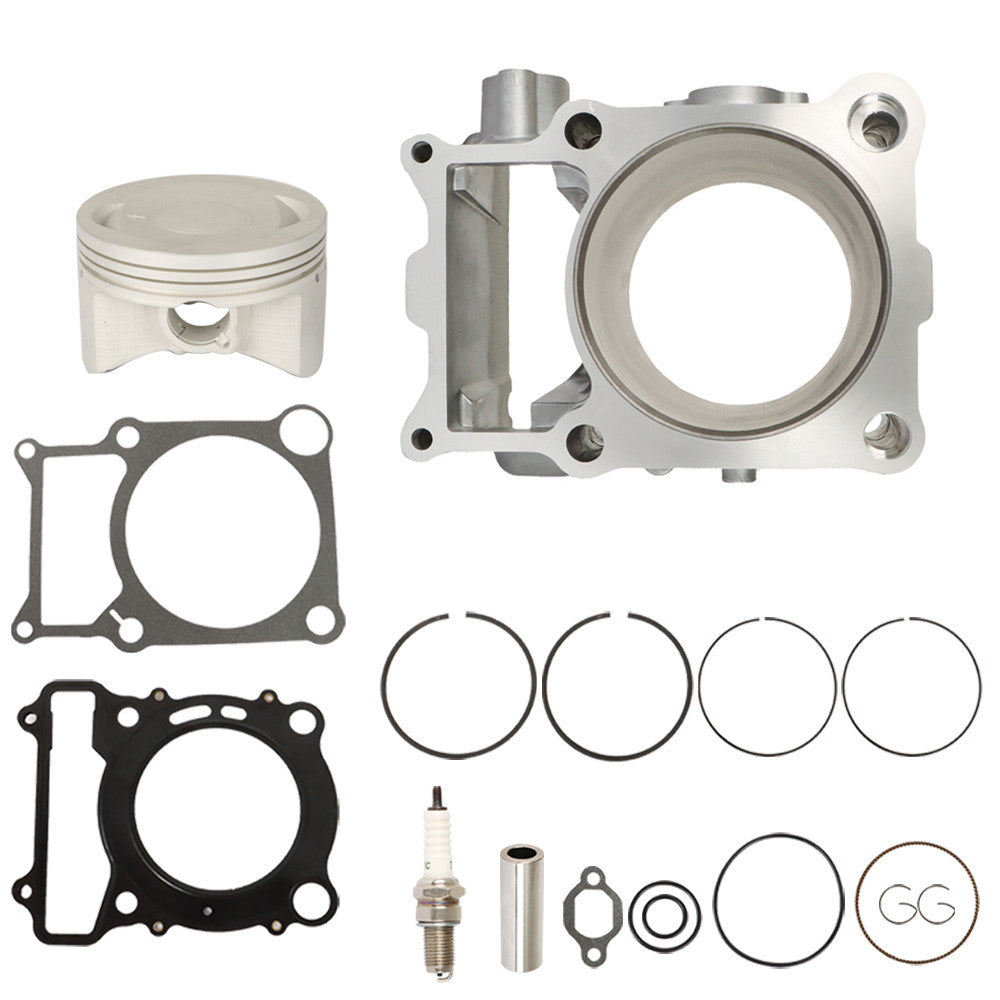

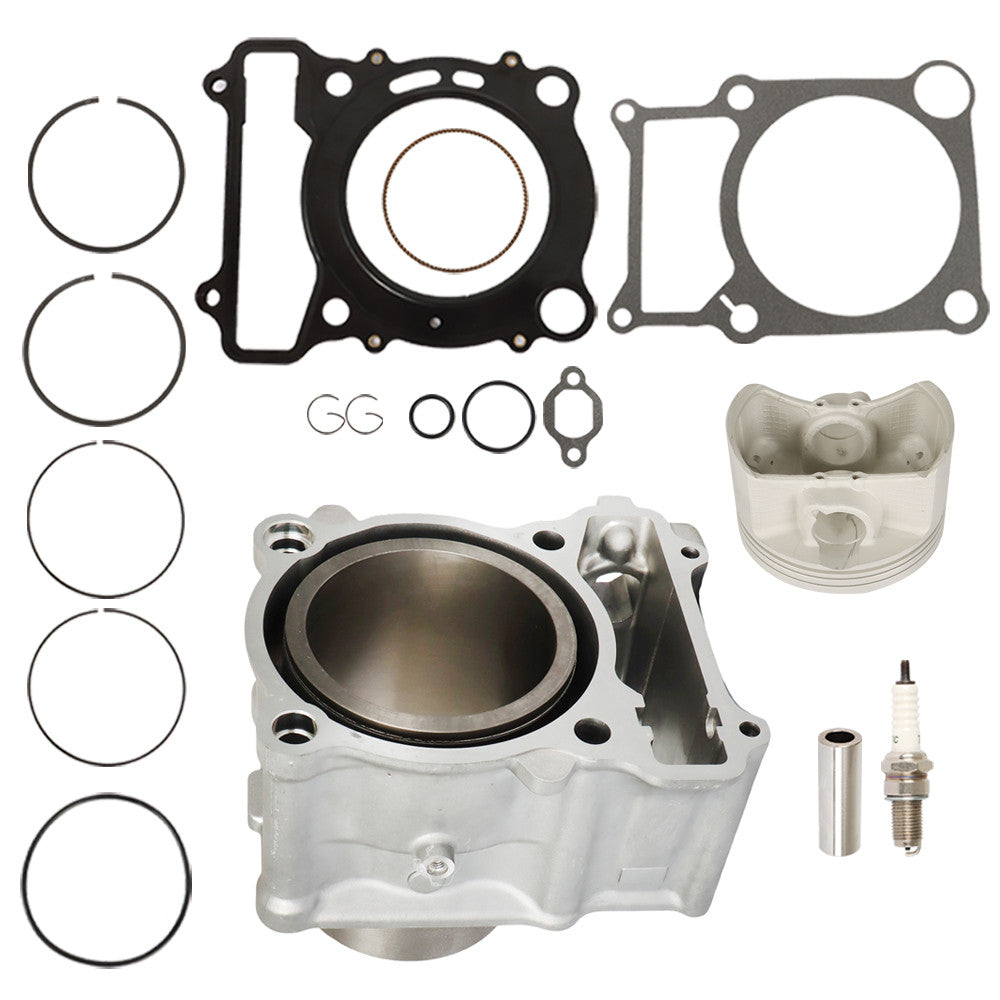

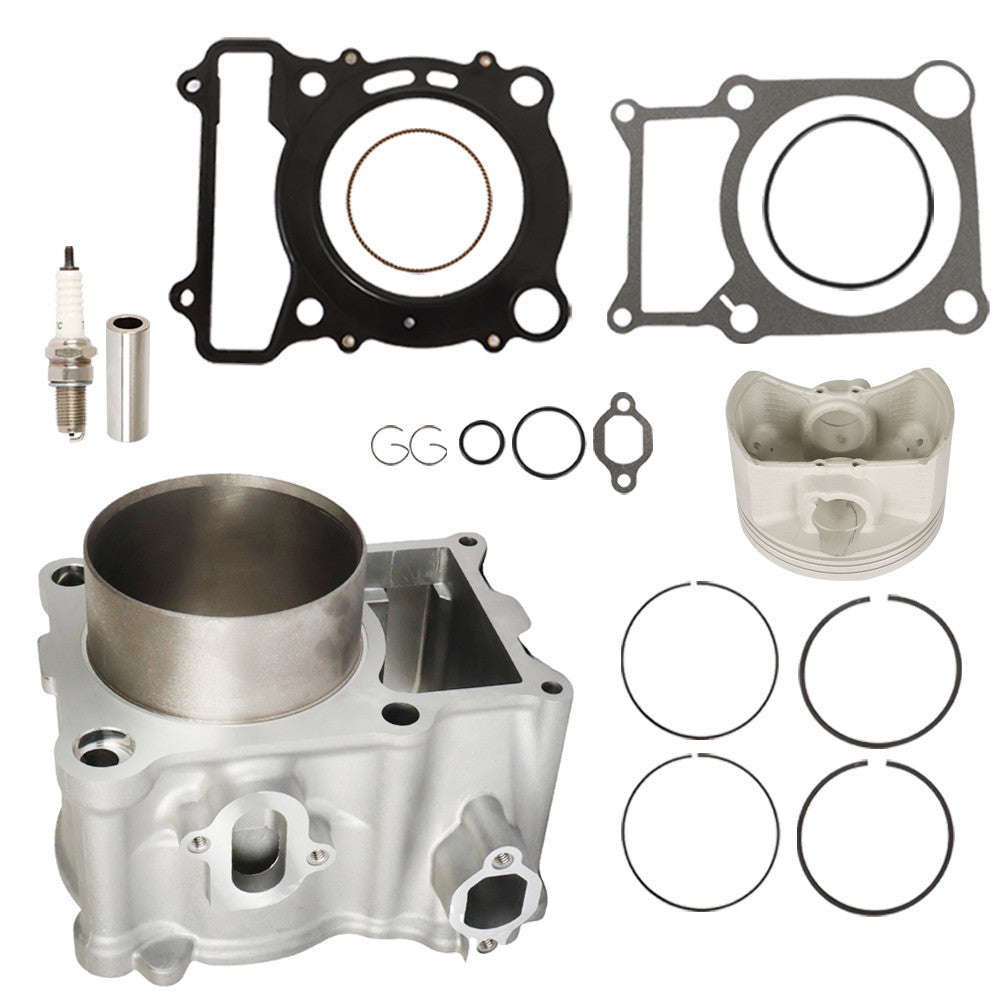

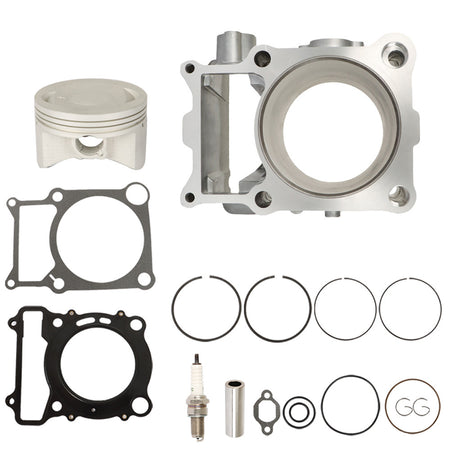

Package Includes:

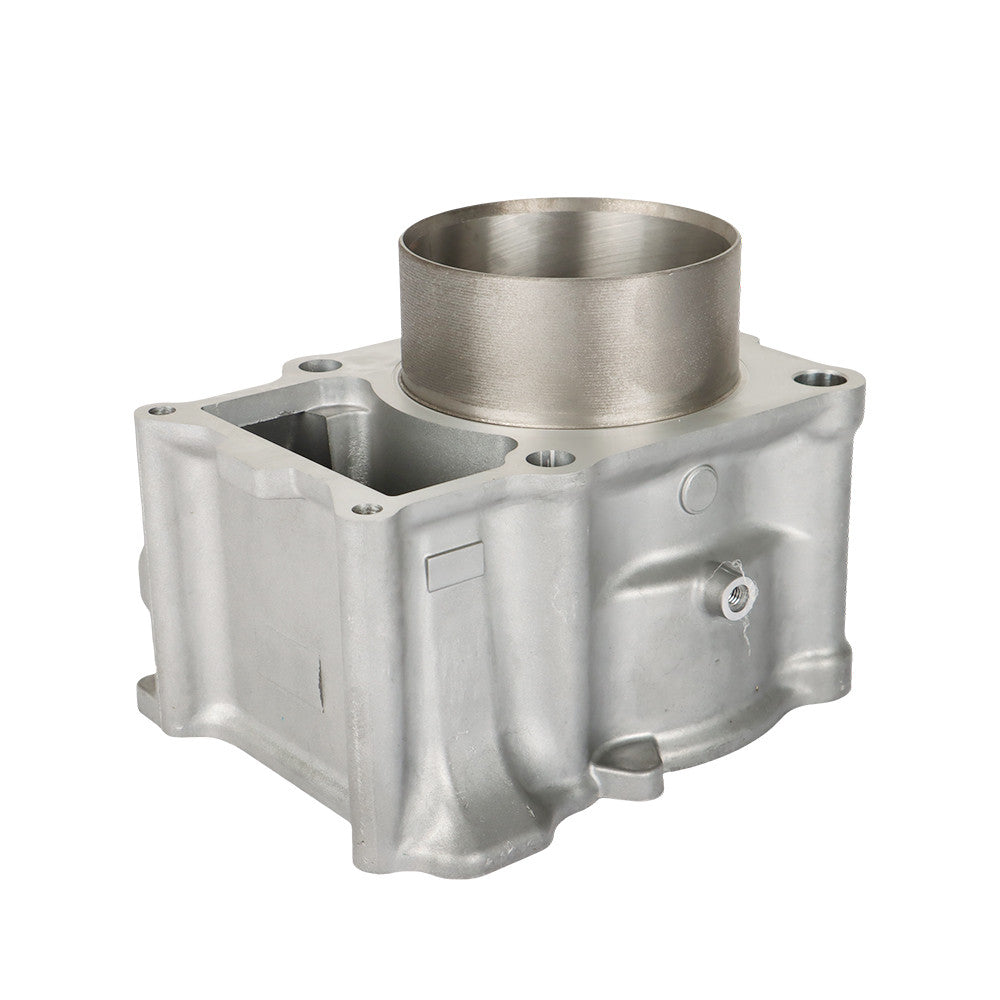

1x Cylinder

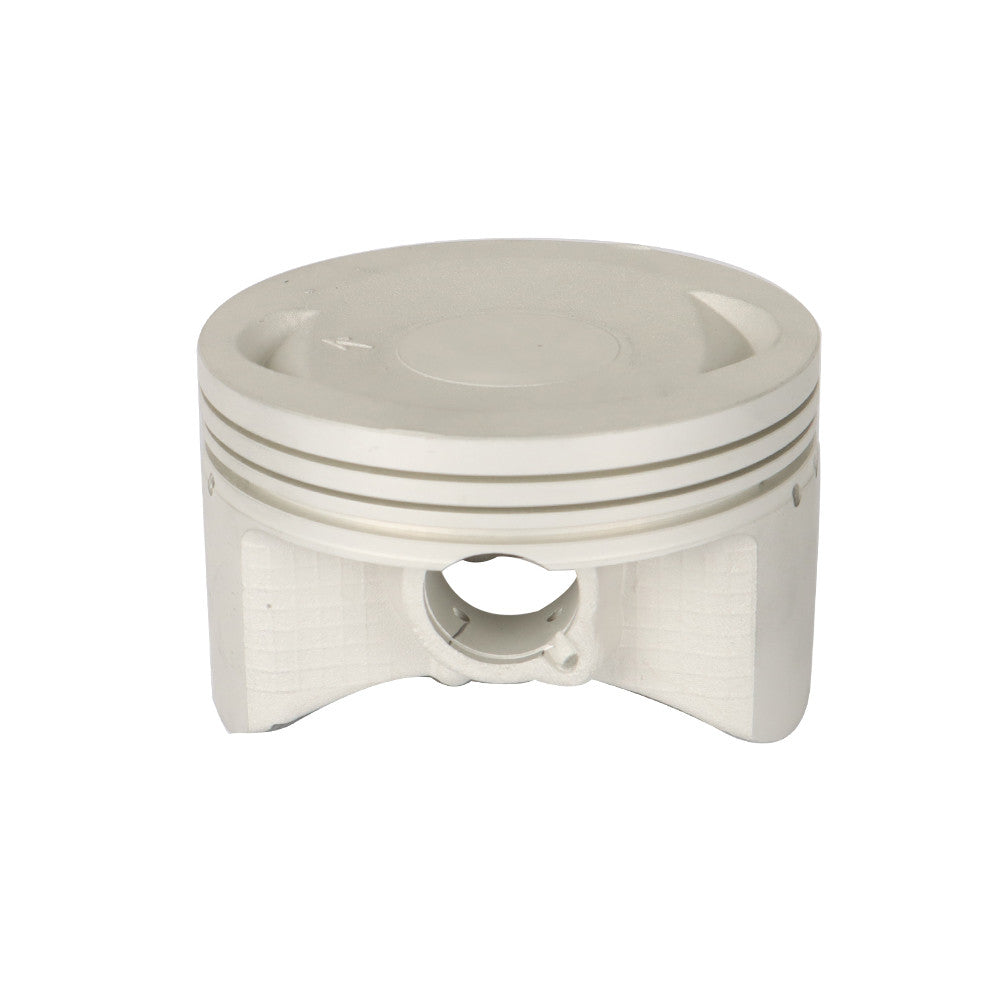

1x Piston(STD)
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Chain Tensioner Gasket
1x Cylinder Head O-Ring
1x Radiator Hose O-Ring
1x Clutch O-Ring
(As the pictures shown)

Notes：
-If You Are Not Sure The Item 100% Fit For Your Vehicle Before Your Purchase.
-Please Allow 1-3CM Differs Due To Manual Measurement.
-Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item. Thanks For Your Understanding.
